General Information
The P5523 is used for calibrating high-pressure gas measuring instruments against a
hydraulic Deadweight Tester.
Note
The terms ”Master Test Gauge” and “Gauge” in this document refer to
any pressure-measuring instrument such as Transfer Standards, Digital
Calibrators and Transducers.
An external high-pressure gas source is applied through a series of liquid traps, to the
hydraulic system of the deadweight tester. Typically, dry Nitrogen from a commercially
available compressed gas cylinder is used. With the deadweight tester system correctly
primed, gas pressure from the external supply is adjusted to reach equilibrium with the
weights on the deadweight tester.
5523 SEPARATOR
gle01.eps
Figure 1. Hydraulic/Pneumatic Circuit Schematic

P5523
Users Manual
2
How to Contact Fluke
To order accessories, receive operating assistance, or get the location of the nearest Fluke
distributor or Service Center, call:
•Technical Support USA: 1-800-99-FLUKE (1-800-993-5853)
•Calibration/Repair USA: 1-888-99-FLUKE (1-888-993-5853)
•Canada: 1-800-36-FLUKE (1-800-363-5853)
•Europe: [phone]
•China: [phone]
•Japan: [phone]
•Singapore: [phone]
•Anywhere in the world: [phone]
Or, visit Fluke's website at www.fluke.com.
To register your product, visit http://register.fluke.com.
To view, print, or download the latest manual supplement, visit
http://us.fluke.com/usen/support/manuals.
Safety Summary
The following are general safety precautions that are not related to any specific
procedures and do not appear elsewhere in this publication. These are recommended
precautions that personnel must understand and apply during equipment operation and
maintenance to ensure safety and health and protection of property.
Compressed Liquid & Gas
Use of compressed liquids and gasses can create an environment of propelled foreign
matter. Pressure system safety precautions apply to all ranges of pressure. Care must be
taken during testing to ensure that all hydraulic and pneumatic connections are properly
and tightly made prior to applying pressure. Personnel must wear eye protection to
prevent injury.
Personal Protective Equipment
Wear eye protection approved for the materials and tools being used.
Symbols Used in this Manual
In this manual, a Warning identifies conditions and actions that pose a hazard to the
user. A Caution identifies conditions and actions that may damage the Liquid to Gas
Separator.
Symbols used on the Liquid to Gas Separator and this manual are explained in Table 1.
Table 1. Symbols
Symbol Description
BAC (Alternating Current)
JEarth Ground
WImportant Information: refer to manual
~Do not dispose of this product as unsorted
municipal waste. Go to Fluke’s website for
recycling information.

Liquid to Gas Separator
Preparations
3
Preparations
This section assumes that the deadweight tester is completely primed with the correct
fluid. The P5523 should be placed on a level, stable workbench or similar surface, to the
right-hand side of the deadweight tester.
Level the P5523 using the four adjustable feet to prevent “rocking”, and fit the
connection hose supplied with the instrument to the bulkhead coupling on the top plate.
The other end of the hose must be attached the test port of the deadweight tester in the
same manner as a conventional pressure gauge or transducer. The hose is pre-assembled
with a flat-faced fitting for this purpose; see notes below on making correct connections.
The external gas supply is connected to the ¼ NPT port in the rear of the P5523 case. A
compressed gas cylinder fitted with a suitable pressure regulator is recommended.
Factory (compressor) air lines or gas multipliers should only be used if a series of filters
are fitted to ensure that the supply is clean and dry.
WCaution
The external pressure supply must be regulated to either the
maximum range of the P5523 (3000 psi / 210 bar), or 10% above
the maximum pressure required, whichever is the lower. DO
NOT OVER-PRESSURIZE THE P5523.
Fit the device under test (DUT) to the test port using the method described below:
WCaution
Ensure that all devices are internally clean and free from
contamination before connecting to the tester. Particle
contamination can damage valve seats.
WWarning
DO NOT use Teflon/PTFE tape on these connections, as this
will prevent correct sealing. The Gauge Adapter sealing system
is designed for hand-tight sealing up to 20,000 psi / 1,400
bar-wrenches or similar tools are not required — over
tightening can cause damage to threads or sealing faces.
Before connection, ensure that there is an O-ring fitted to the
test port.
Check that the sealing face of the device to be fitted is clean
and undamaged, as scratches or dents can form leak-paths.
Note
The thread on the test port, and the lower part of the gauge adapters is
LEFT-HANDED. The following procedure details the correct method for
mounting devices using these adapters.

P5523
Users Manual
4
1 2 3 4
gle11.eps
Figure 2. Connecting the Gauge
Connect the Gauge
Refer to Figure 2 for steps 1-4.
1. Screw the appropriate gauge adapter fully on to the instrument to be tested.
2. Screw assembly down COUNTER-CLOCKWISE onto test port.
Note
Hand-tight is sufficient; ensure that the bottom face contacts the O-ring on
the test port.
3. To adjust the position to face forward, hold the gauge adapter and turn the instrument
COUNTER-CLOCKWISE, so that it faces forward.
4. Hold the instrument steady, while turning the gauge adapter
COUNTER-CLOCKWISE until it pulls down onto the O-ring.
Connect the Test Port Insert
For devices with 1/8 BSP or NPT mounting threads, the diameter of the thread is very
close to the effective sealing diameter of the O-ring fitted to the test port.
This can make it difficult to achieve a good seal. When mounting these devices, use the
test port insert (stored in the spare seals container) as shown in Figure 3.

Liquid to Gas Separator
Priming
5
1
2
3
4
gle012.eps

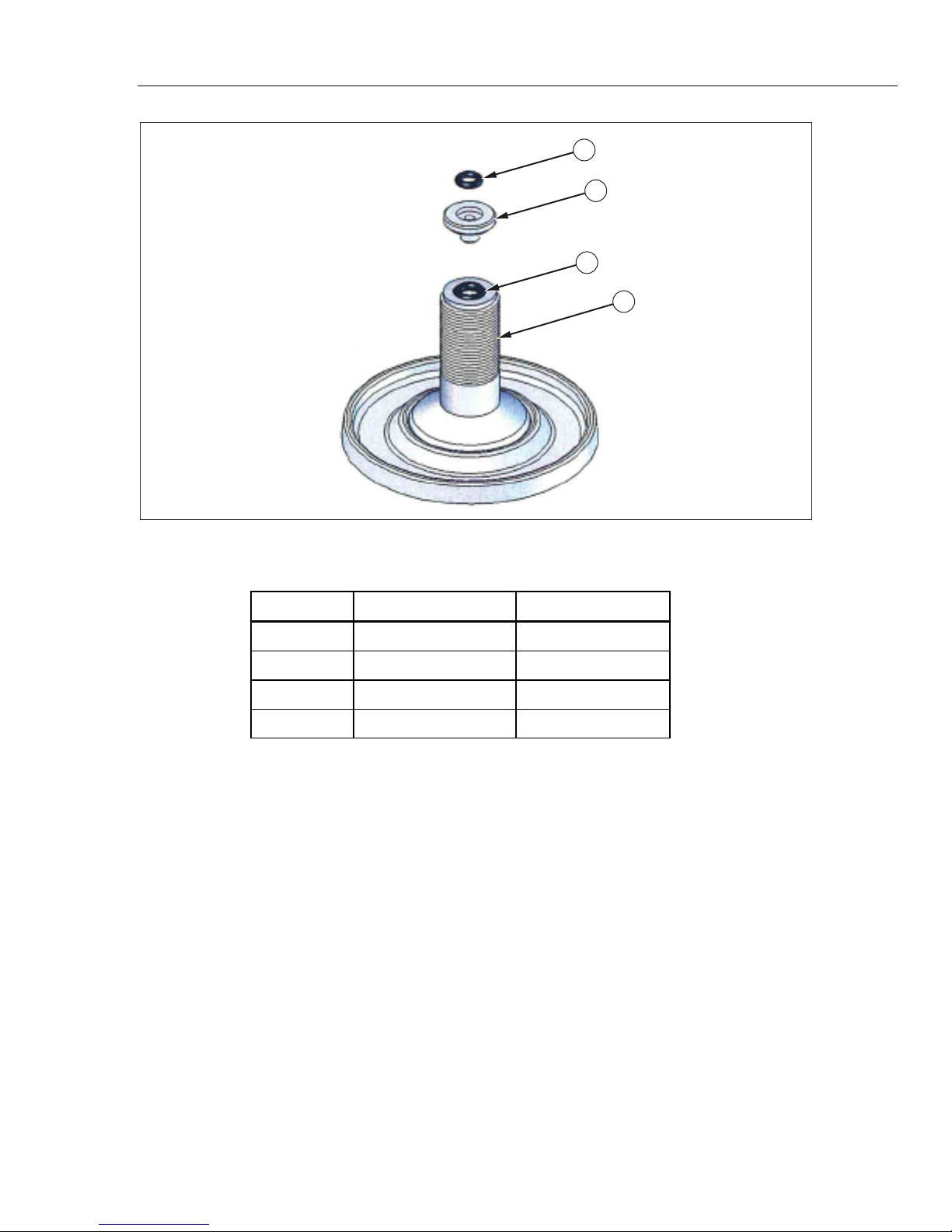

Figure 3. Test Port Insert
Table 2. Test Port Insert - Parts List
Item Description Part Number
1 O Ring 3865142
2 Test Port Insert 3919892
3 O Ring 3883397
4 Test Port —
To calibrate panel-mounted gauges with pressure connections in the rear, use an Angle
Adapter. (Refer to section, Ancillary Equipment.)
Priming
1. Unscrew and remove reservoir cap from left-hand reservoir. Note the position of the
groove inside the reservoir body — this is the Fluid Datum Level.
2. Using the priming pump on the deadweight tester, slowly drive fluid from the
deadweight tester through the connection pipe, into the left-hand reservoir, until it is
just below the Fluid Datum Level.
3. Allow a few moments for the system to stabilize, and then bring the fluid up to the
Datum Level by slowly turning the screw press in (clockwise).

P5523
Users Manual
6
Note
The fluid height must not be above this level during operation — turn the
screw press out (counter-clockwise) to reduce the fluid level.
4. Replace the reservoir cap.
Operation
WWarning
ALWAYS reduce the system pressure with the Exhaust Valve —
NEVER use the deadweight tester reservoir valve.
1. Ensure both Inlet and Exhaust valves are closed.
2. Place the weights necessary to achieve the desired calibration point on the
deadweight tester.
3. Slowly open and close the inlet valve until the piston floats. To avoid
over-pressurization due to “fluid-stick”, the weights can be gently rotated close to the
calibration point. The monitor gauge fitted to the separator can be used as a guide to
the system pressure.
4. Use the screw press for fine adjustment of the PCU float height — do not turn screw
press more than 2 turns in or out from its priming position.
5. Ensure that the weights are rotating freely, and allow a few moments for the system
to stabilize before taking any readings, especially after large changes in system
pressure.
Note
Large, sudden changes in pressure will cause the system temperature to
rise or fall, which can cause instrument readings to change as the fluid in
the system expands or contracts, thus increasing or decreasing the
pressure.
6. Compare the reading of the gauge under test with that of the master gauge.
7. For the next, higher calibration point, repeat from step 2 above.
8. To measure reducing pressures, remove the necessary weights from the deadweight
tester, and slowly open and close exhaust valve, reducing the system pressure until
the piston is floating at its mid-operating position.
9. Ensure that the weights are rotating freely, and allow a few moments for the system
to stabilize before taking any readings.
10. During long periods of use, the fluid level in the left-hand reservoir should be
checked, and adjusted if necessary, to maintain the correct datum level. Ensure that
the system is FULLY DEPRESSURIZED before removing the reservoir cap.
11. To depressurize the system fully, slowly open and close the exhaust valve —
NEVER depressurize the system quickly.
Disconnecting the Unit from the Deadweight Tester
1. With the system fully depressurized, remove the reservoir cap from the left-hand
reservoir.
2. Ensure reservoir valve is closed on the deadweight tester, and turn the screw press
out to draw fluid back into the deadweight tester reservoir. (Observe fluid level in
P5523 reservoir.)

Liquid to Gas Separator
Ancillary Equipment
7
3. When the fluid has been withdrawn from the separator, the connection hose can be
disconnected from the deadweight tester.
Periodically, the right-hand reservoir body should be inspected and cleaned, to remove
any fluid that may be present.
Ancillary Equipment
Angle Adapter, P5543
To calibrate gauges with the pressure connection on the rear (e.g. panel-mount gauges) in
their correct position, an angle adapter should be used. The angle adapter fits directly
onto the test station, converting it through 90 degrees, allowing the standard adapters to
be used.

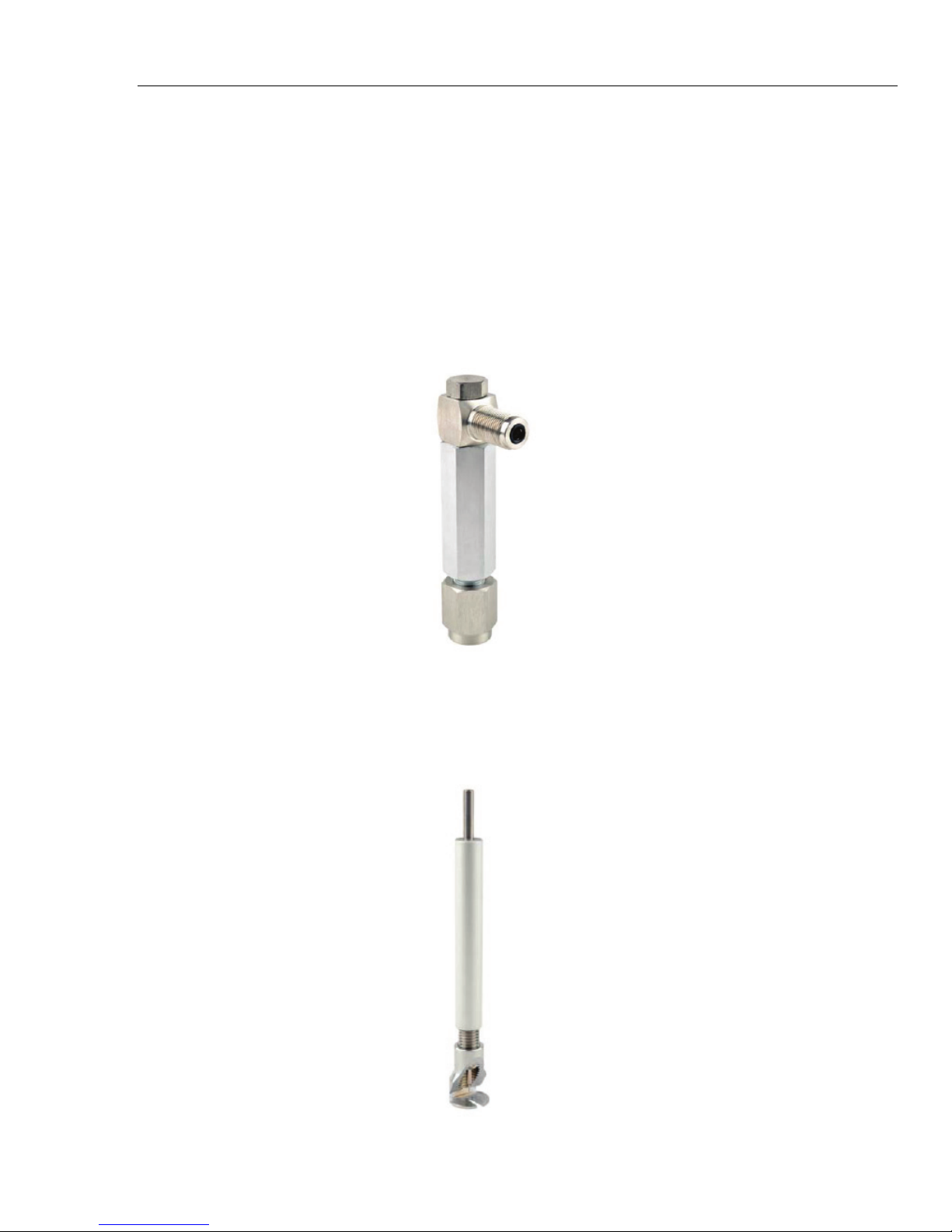

Figure 4. Angle Adapter
Pointer Remover/Punch, P5551
To remove and refit the pointer of a pressure gauge, use the Pointer Remover/Punch. This
tool has a spring-loaded plunger to quickly and consistently refit the pointer.
Figure 5. Pointer Remover/Punch

P5523
Users Manual
8
