Fly Dragon Light Sky 330W User manual

USER MANUAL
FOLLOW SPOT
□330W □440W □470W
www.lightsky.com.c
www.lightsky-chi a.com
FLY DRAGON LIGHTING EQUIPMENT CO., LTD

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD
www.lightsk .com.cn
www.lightsk -china.com
1
CONTENTS
1.Safet information………………………………………………...….……2
2.Technical information……...…….………………………………….….…….3
3.Functional introduction………………………………………….…..……6
4.Ph sical modules………………………………………………..….…… 7
5.Assembling………………………………………………..….…………….8
6.Lamp-on operation…………………………..….………………...…..……10
7.Tripod packing…….……………………………………….….………11
8.Fixture dimension….……………………………………….…….………11
9.Lamp replacement….……………………………………….……………12
10.
Colored paper installation………………………………..……….……..13
11.Circuit connecting diagram………………………………..……….……..14
12.Cleaning and serving…….…….…………………………..……………15
13.Troubleshooting…….………………………..……………………………15
14.Compan information.……………………………………………………16
Note: As the compan pursues a polic to improve its products all the time, the
data contains in this manual are subject to change without notice. The Our
Compan reserves the right to change the relevant specifications in product
improvement. The publisher of this manual shall not be responsible for the
accurac of the information herein contained or the consequence resulting from
such information.

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD
www.lightsk .com.cn
www.lightsk -china.com
2
1.Safety i formatio
● Mi imum dista ce of illumi ated objects ：
The projector needs to be positioned so that the objects hit b the beam of light
are at least 3 meter.
● Mi imum dista ce of flammable materials
The projector must be positioned so that an flammable materials are at least
0.2 meters.
● Electric shock rati g:
Design of the projector according to the guard against protect of t pe.
The projector must be complete connect earth s stem use. And the projector
metal crust of the earth port must be reliable connect install the light-frame
● Co ectio to the electrical power supply:
Connect trunk line of the power voltage and must be entrusted to a suitabl
qualified electrician.
Check the power trunk line of voltage and frequenc electric data, whether
accord with the voltage and frequenc parameter. Avoid appear to high-voltage
● Lamp
The lamp of projector have own life, the life of lamp do not excess. Otherwise,
the lamp ma be exploding cause damage spotlight s stem and hole the electric
parts. An wa , the lens of the projector must be fixed better. If appearance
damage and slop, must change and reinforce it in time.

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD
www.lightsk .com.cn
www.lightsk -china.com
3
● Maximum ambie t temperature
Do not operate the fixture if the ambient temperature (Ta) exceeds 38 ℃
● Temperature of the exter al surface
The maximum temperature that can be reached on the external surface of the
fitting, in a thermall stead state, is 60 ℃ .
● Protectio agai st explosio
Lenses and shields screens must be replaced if the have become visible
damaged to such an extent that their effectiveness is impaired. Replace the
lamp immediatel if it becomes visuall deformed, damaged or in an wa
defected.
2.Tech ical i formatio
Power supplies available AC100-240V 50/60Hz
Rated consumption □ 400W, □ 500W, □ 521W
Lamp □ 330W, □ 440W, □ 470W
Average life 1500H(330W); 1200H(440W,470W)
Fixture dimension 866 × 400 × 404MM
N.W. 22.5KG
Carton size 978 × 512 × 475MM
G.W. 26KG
Fl case size (single) 1225 × 625 × 545MM
G.W. 73KG
Tripod weight 9.18KG

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD
www.lightsk .com.cn
www.lightsk -china.com
4

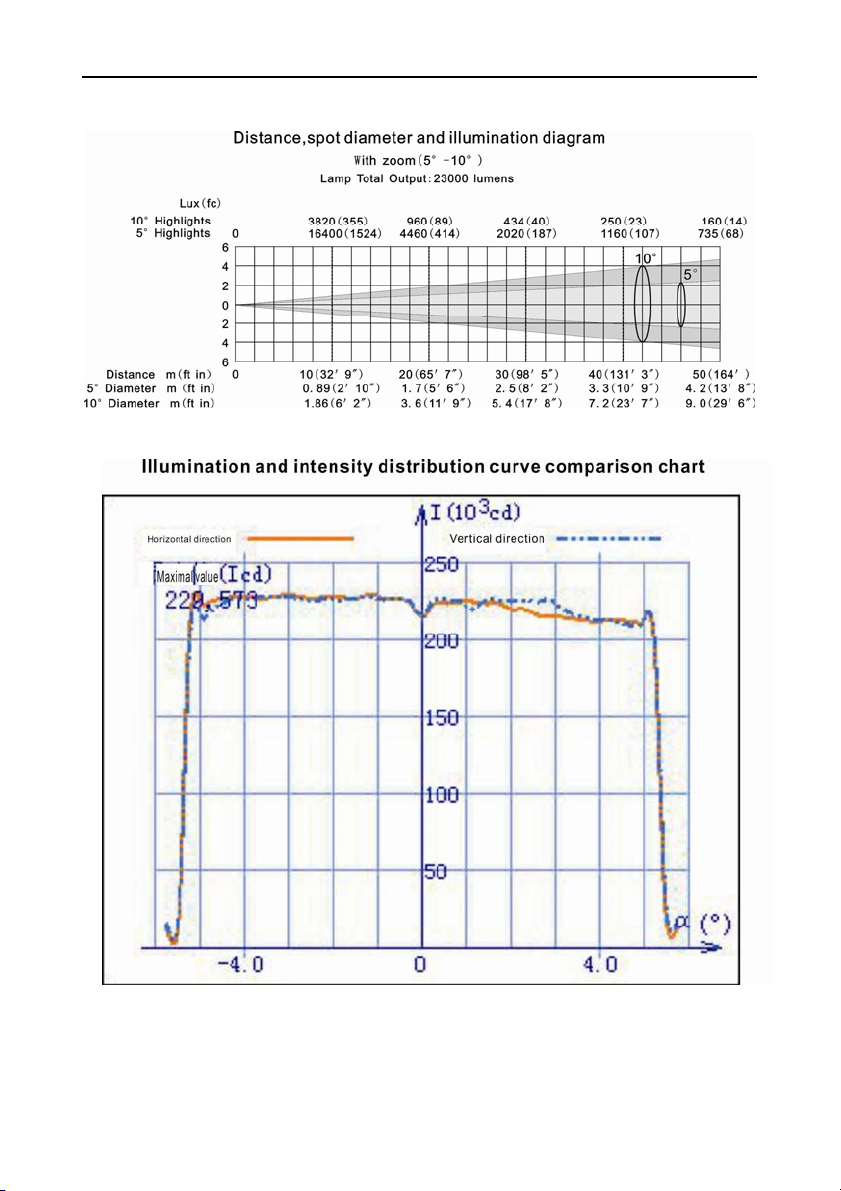

Travel Pan:360 ° ,Tilt:90 °
Color temperature 440W （ 2500K 、 3200K 、 8000K ） , 330W （ 7500K ）
Beam angle 4°-12°(330W、440W); 5°-10°(470W)
330W
440W

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD
www.lightsk .com.cn
www.lightsk -china.com
5
470W

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD
www.lightsk .com.cn
www.lightsk -china.com
6
3.Fu ctio al i troductio
1. Dimmer
Manuall linear dimmer, smooth and even dimming through the whole
dimming range 0-100%
2.Frost
Frost filter, impart frosted effect to light beam.
3.Iris
Manuall mechanical iris, used to regulate spot diameter.
4.Beam shaper
Beam shaper s stem, cut light beam verticall on both sides.
5.Focus
Focusing optics can be used to sharpen the casting beam.
6.Zoom
Zooming range:4 ° to 12 ° (330W 、 440W); 5 ° to 10 ° (470W)
7.Gobo
Manuall replace gobos.
8. Color temperature
Standard Color temperature 3200K, manuall adjustment.
9.Color changer
Color changer, designated with 5 color paper clips which are intended for
changing colors of the casting beam b interchanging preset color papers.

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD
www.lightsk .com.cn
www.lightsk -china.com
7

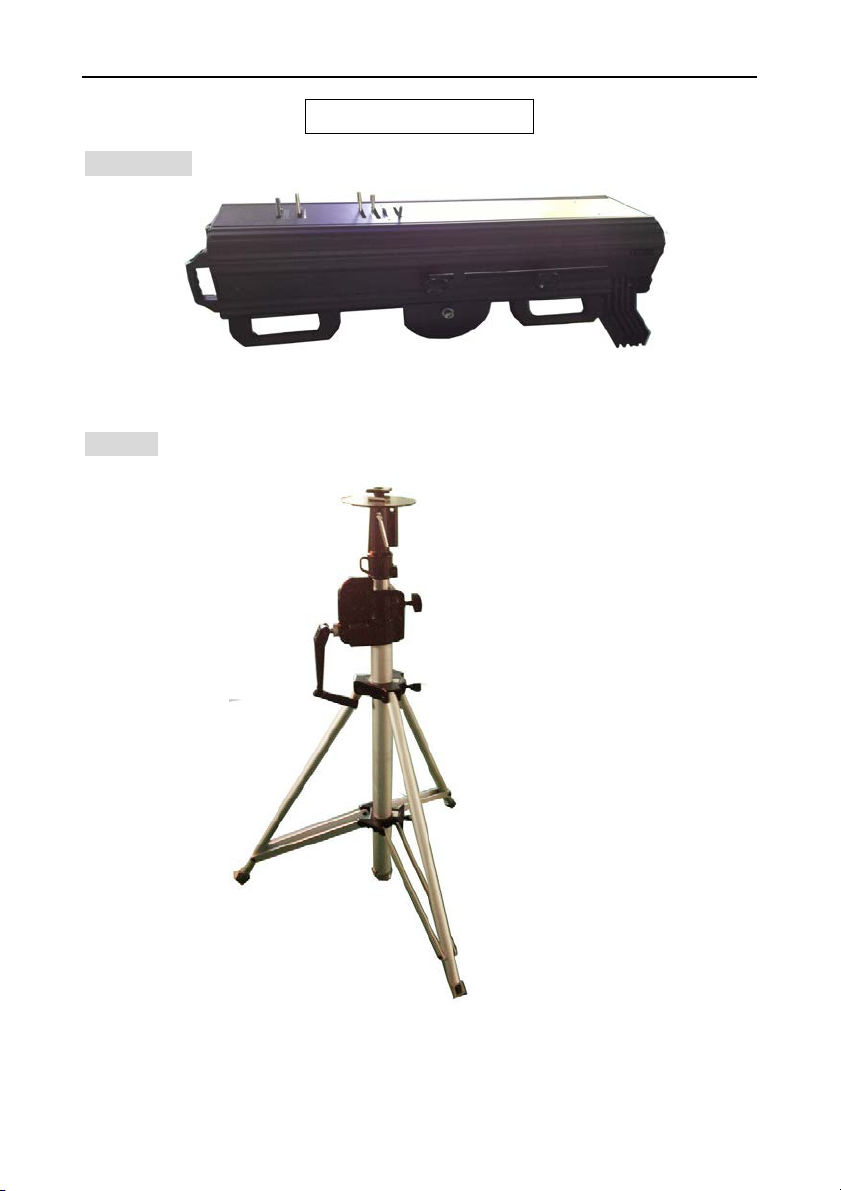

4.Physical modules
1.Main bod
2.Tripod

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD
www.lightsk .com.cn
www.lightsk -china.com
8
5.Assembli g
1. Tripod assembli g
1.1.Take out the Stand from packing carton and put it awa (as picture 1),
unscrew the sliders ( number 1,number 2).
1.2. Outward pull the stand feet or downward press the slider (as picture 2)
1.3.Twist the screw(number 5), then adjust the lifting handle to the suitable
height and tighten the screw (number 5).
Fig.1 Fig.2

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD
www.lightsk .com.cn
www.lightsk -china.com
9

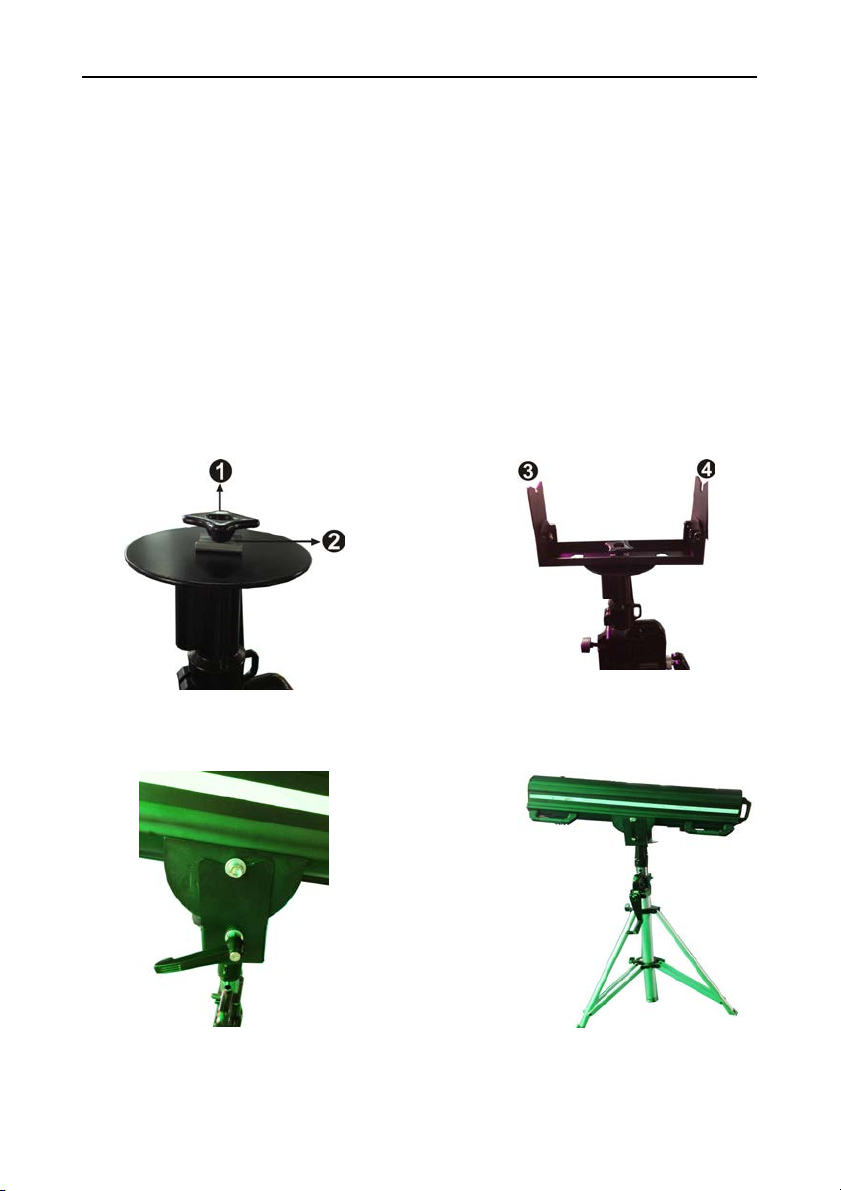

2.Light assembli g
2.1. Take out the Backing plate and Slider( as picture 3), then assemble and fix
the U-t pe stand plate (as picture 4).
2.2.Take out the light from packing carton, to aim and install the assembling
site of the light to the mounting holes (number 3, number 4) of U-t pe stand
plate and fix the screws( as picture 5).
After assembling as picture 6, to adjust the lifting handle to the suitable height.
Fig.3 Fig.4
Fig.5 Fig.6

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD
www.lightsk .com.cn
www.lightsk -china.com
10
6.Lamp-o operatio
1.1.Fist connect the follow spot to the mains via power cable ① ,turn on power
switch
②
, push down lamp switch ke ③ to ignite the lamp.
1.2.Turn on levers ④⑤⑥⑦⑧⑨ subsequentl , and a casting beam comes out
of the fixture.
①Power
②Power switch
③Lamp switch（please re-turn on the lamp at least 2 minutes later
after the lamp turns off .）
④Dimmer
⑤Color temperature
⑥Beam shaper
⑦Iris
⑧Gobo
⑨Frost

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD
www.lightsk .com.cn
www.lightsk -china.com
11
7.Tripod packi g
Keep the handle down when put the Stand into the fl case as the above
。
8.Fixture dime sio

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD
www.lightsk .com.cn
www.lightsk -china.com
12
9.Lamp replaceme t
1.When the lamp totall cooling down , loose the crew ①②③ ,open the rear
cover.
2. Pull out the lamp cable.
3. Press the lamp softl ,lamp can be got out.
4. Install the lamp and connect the cable.
5. Close and lock the rear cover.
6. The replacement is complete.
Before operation, read the manufacturer avoid to the contretemps. Otherwise,
the manufacturer have not an respond if installation don't following the
above-mention lead to the projector fall and bring into the result.
CAUTION
：
1
、
O ly i stall the lamp with the device switched off!
2
、
U plug from mai s before!
3
、
The lamp has to be replaced whe it is damaged or
deformed due to the heat.

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD
www.lightsk .com.cn
www.lightsk -china.com
13
10. Colored paper i stallatio
1. Undo the 3 screws on the colored paper fixed plate as picture 1.
Picture 1
2. Neatl put the colored paper into the middle of the fixed plate as picture 2,
then pull up the colored paper as the direction of arrow as picture 3.
Picture 2 Picture 3
3. Tighten the 3 screws, and use the scissors to trim the colored paper as
picture 4.
Picture 4
Remark: the size of colored paper is 215X215mm

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD
www.lightsk .com.cn
www.lightsk -china.com
14
11.Circuit co ecti g diagram

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD
www.lightsk .com.cn
www.lightsk -china.com
15
12.Clea i g a d servi g
To ensure reliable operation, the projector shall be kept clean. It is
recommended that the machine and the fan be clean ever 15 da s. The lens
and the color separation filter shall be cleaned regularl to ensure optimal
lighting effect. Note, no soluble detergent shall be used on the color separation
filter
13.Troubleshooti g
It is recommended some solution for some normal trouble shooting. an
unsolutioned problems should alwa s be handle b the professional person.
Disconnect the power suppl before maintenance the light
◎ Lamp off
1.Please check if install the suitable lamp
2. Please check the connection of the power suppl or switch is ok
3. The lamp is in over heat protection status due to high interior temperature.
check whether the fan and the air duct are blocked
4. Ballast damaged
◎ The light works intermission
1. Please check if the fan works normall or mote clogging
2. Please check if the lamp is to the usage life.
