Fly Dragon LIGHT SKY TX0710 WASH User manual

USER MANUAL
PROFESSIONAL SHOW LIGHTING
LED
TX0710 WASH
www.lightsky.com.cn/www.lightsky-china.com
FLY DRAGON LIGHTING EQUIPMENT CO., LTD
AC100~240V
0/60Hz

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD
www.lightsk .com.cn
www.lightsk -china.com
1
CONTENTS
1. General information 2
2. Safety instructions 3
3. Trait an skill specifications 4
4. Operation panel 6
. Dimensional rawings 6
6. Photometric ata 7
7. Mounting an Installation 7
8. Power supply an Signal connection 9
9. Display menu 11
10. DMX traits 18
11. Circuit connecting iagram 22
12. Trouble ispose 23
13. Cleaning an Maintenance 24
14. Duty exonerative an Copyright protection 24

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD
www.lightsk .com.cn
www.lightsk -china.com
2
1. GENERAL INFORMATION
INTRODUCTION: Congratulations, ou have just purchased one of the
most innovative and reliable LED fixtures on the market toda . Our
compan has been designed to perform reliabl for ears when the
guidelines in this booklet are followed. Please read and understand the
instructions in this manual carefull and thoroughl before attempting to
operate this unit. These instructions contain important information
regarding safet during use and maintenance.
UNPACKING: Thank ou for purchasing our compan products. Ever
product has been thoroughl tested and has been shipped in perfect
operating condition. Carefull check the shipping carton for damage that
ma have occurred during shipping. If the carton appears to be damaged,
carefull inspect our fixture for damage and be sure all accessories
necessar to operate the fixture have arrived intact. In the event damage
has been found or parts are missing, please contact our customer support
team for further instructions. Inside the box ou should find: the fixture,
a DMX XLR cable, a power cable, and this user manual.
Please do not discard the shipping carton in the trash. Please rec cle
whenever possible.
Notice: As part of our ongoing commitment to continuous
products update, compan will keep the right to improve
this products, the information in this menu ma be
changed in the future, the compan reserve the right to
change the data without an advises.

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD
www.lightsk .com.cn
www.lightsk -china.com
3
2. SAFETY INSTRUCTIONS
●1. In order to ensure the light could operate normall , the ambient
temperature couldn't be higher than 38℃ and no lower than- 2℃.
●2. Under normal condition, the highest sectional surface temperature
ma be up to 60 ℃.
●3.These projectors are designed depends on the electric shock
protection, the projector should be connected with the power suppl
s stem which connected ground enough. The projector's ground
cable should be connected with the ground cable of the power
suppl s stem as well. The ground mark of the light metal cover
should be connecting with the installation bricked steadil .
●4. Don't use the power cable when the insulation is damaged.
It must be the manufacturer or distributor or the professional person
to change the damaged power cable in order to avoid an
dangerous.
●5.Please check the voltage, frequenc data of power suppl s stem is
suitable for the mentioned on the projector. Please do avoid the
different voltage between them and burn the projector.
●6.Do not attempt to operate this fixture if the power cord has become
damaged or fra ed.
●7.Never open this fixture while in use.
●8.Never look directl into the light source. You risk injur to our
retina, which ma induce blindness.
●9.Please be aware that damages caused b modifications to the device
are not subject to warrant .
Notice: To guarantee proper and consistent operation, it is
important to follow the guidelines in this manual. Our
compan will not accept responsibilit for damages
resulting from the misuse of this fixture due to the
disregard of the information printed in this manual.

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD
www.lightsk .com.cn
www.lightsk -china.com
4
3. PERFORMANCE TRAIT AND SKILL SPECIFICATIONS
◎ Voltage：AC100~240V 50/60Hz.
◎ Power：118W.
◎ LED chip：10W，RGBW 4 in 1 LED chip.
◎ LED QTY：7PCS.
◎ LED life：50000H.
◎ Lens degree：standard 8°.
◎ Beam angle:12°.
◎ Color: RGBW macro color s stem.
◎ Strobe:1-30 times/ second electronic strobe and random strobe.
◎ Dimmer ：65536 class dimmer.
◎ Pan/Tilt ： Pan ：540° times /1.5 seconds Tilt：180°/0.5 seconds.
◎ Control Mode: DMX512, RDM, Stand-alone mode ,Voice Control
mode , Mater-Slave mode , Wireless DMX512.
◎ Channel: Standard Channel : 9 , Extend Channel : 15.
◎ Displa Menu:
1. 2.4 inches TFT touch screen, Chinese and English two version
language.
2, Displa board can record device’s using time , show device’s
temperature, channel data and software version .
3, Edit the procedure

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD
www.lightsk .com.cn
www.lightsk -china.com
5
◎ Other feature :
1.Extend IP address function , each IP address maximum can set 64
ID
2.Support DMX signal priorit identification, when lose the signal
it would be turn into Black , default scene , Automatic function
etc according to our set.
3.Remote control function: control the procedure, speed etc function
b the remote controller when the product under the condition
without signal.
4.software upgrade : upgrade software b XRL cable.
◎ Outlooking: adopt ABS anti-fire plastic.
◎ Carton size : 270×260×350MM.
◎ N.W.: 3.8KG G.W.: 5.7KG
◎ Light size:φ226×268MM

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD
www.lightsk .com.cn
www.lightsk -china.com
6
4. OPERATION PANEL
. DIMENSIONAL DRAWINGS

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD
www.lightsk .com.cn
www.lightsk -china.com
7
6. PHOTOMETRIC DATA
7. MOUNTING AND INSTALLATION
Cautions:
For added protection mount the fixtures in areas outside walking
paths, seating areas, and awa from areas were unauthorized personnel
might reach the fixture. Before mounting the fixture to an surface, make
sure that the installation area can hold a minimum point load of 10 times
the device's weight. Fixture installation must alwa s be secured with a
secondar safet attachment, such as an appropriate safet cable. To
avoid injur , never stand directl below the device when mounting,
removing, or servicing the fixture.
Mounting points:
Overhead mounting requires extensive experience, including
amongst others calculating working load limits, a fine knowledge of the
installation material being used, and periodic safet inspection of all
installation material and the fixture. If ou lack these qualifications, do
not attempt the installation ourself. Improper installation can result in
bodil injur . Be sure to complete all rigging and installation procedures
before connecting the main power cord to the appropriate wall outlet.

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD
www.lightsk .com.cn
www.lightsk -china.com
8
Mounting
Our compan is full operational in an mounting position, hanging
upside-down, side mounted, or set on a flat level surface, etc. Be sure this
fixture is kept at least 0.5m (about 1.6feet) awa from an flammable
materials (decoration etc.).

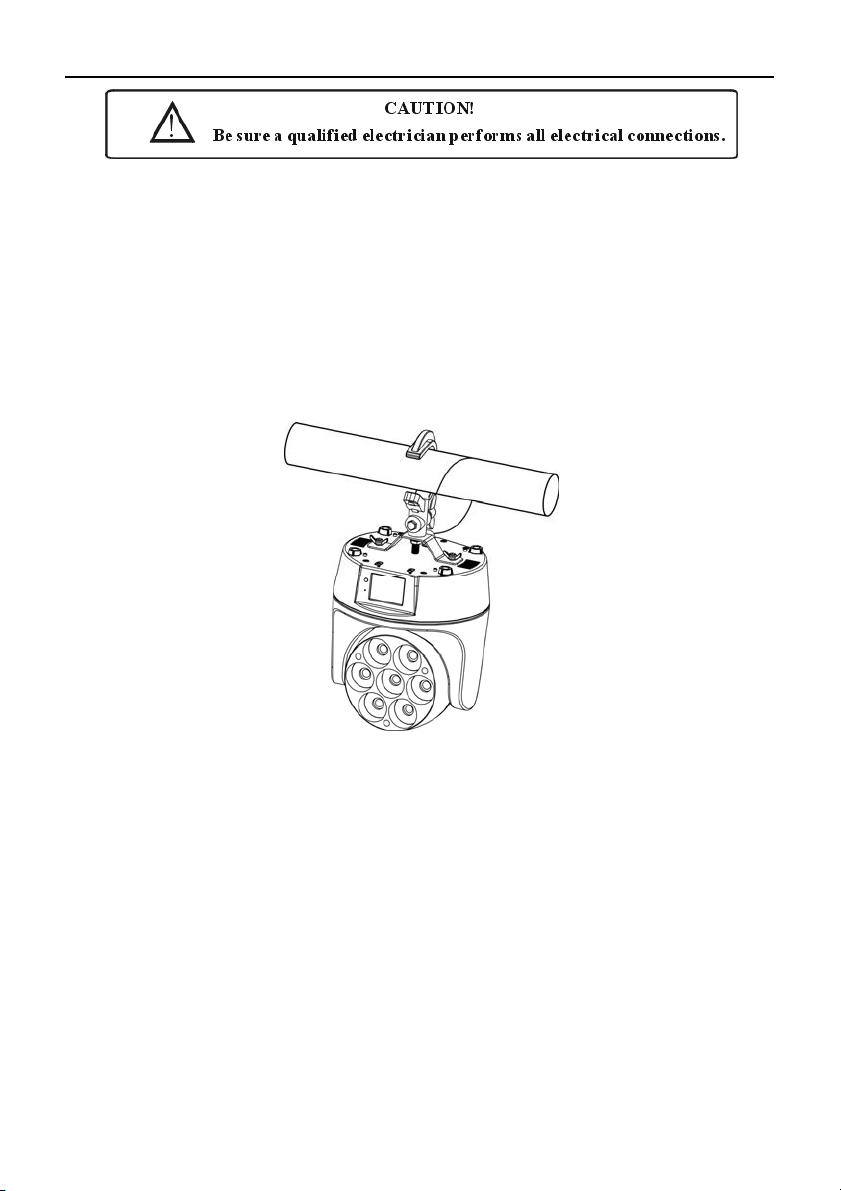

When clamp mounting; alwa s use and install the supplied safet
cable as an added safet measure to prevent accidental damage in the
event of a clamp failure. See the image below.

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD
www.lightsk .com.cn
www.lightsk -china.com
9
8. POWER SUPPLY AND SIGNAL CONNECTION
1. Power supply
Use the professional plug to connect the projector and main power
suppl . Please pa attention to the voltage, frequenc the same as the
mentioned on the projector. Suggest each light has separatel switched of
the power suppl so that could turn on or turn off each projector
desultoril .
2. Signal connection
Please use the round 3/5-pin XLR plugs &sockets offered b menu
facture to connect the first projector's output to the second projector'
input and connect the second projector's output to the third device's input.
And in the same wa for the rest, eventuall connect the last device's
output, all the devices are together as the following figure.
The devices’ control signal output or input b using the 3/5-pin XLR pug
and socket. If need to long then the communication cable, please make
sure the both side of 3/5-pin plug is one to one. (one to one, two to two,
three to three). Otherwise, the communication cable will be interrupted.
The communicate cable is 2-pin shielded cable 75Ω
Resistance with each core is at least a 0.5mm diameter. (Caution: All the
inside leading wire of 3/5-pin XLR plug couldn't touch each other or
plinth).
Recommend to use the DMX signal terminator for the installation to
avoid the electronic noise damage the digital control signal. Simpl

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD
www.lightsk .com.cn
www.lightsk -china.com
10
speaking, DMX terminator is an XLR connector with a 120Ω 1/2w
resistor connected across pin 2 and 3.Which is then plugged into the
output socket on the last projector in the chain. Refer to the connection as
above:(Picture ).We suggest using the DMX signal distributor when the
distance of the lights over 15meter,In case of effect the light
communication because of the signal feeble.
3. Light power connection:
the items can't be more than 6pcs under series connection.
After doing the above operation and making sure all the devices had
been installed with natural operate, press the power switch to check
whether ever thing is working normall .

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD
www.lightsk .com.cn
www.lightsk -china.com
11
9. DISPLAY MENU
Menu Ⅰ Menu Ⅱ Ⅲ Menu Remark
DMX Address 001-512
Fixture ID 000-064
Sta dard（9CH） Default
Cha el mode Exte ded（15CH）
Wired i put Default
Wireless i put
DMX i put mode
Reset wireless
Hold
Black
D.sce e
Program 1
Program 2
Program 3
Program 4
Program 5
Program 6
Program 7
DMX fu ctio
Program 8
Slave mode
Slave-Master Master mode
Close
Music co trol Ope
SETTING
Exit

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD
www.lightsk .com.cn
www.lightsk -china.com
12
Ⅰ Menu
Ⅱ
Menu Ⅲ Menu Remark
Power o time ****H
Fixture times
Lamp o time ****H
Fixture
temperatures
LAMP_TEM ***℃
RDM UID 3888:********
1. Dimmer 0-255
2. Dimmer fi e 0-255
3. Shutter 0-255
4. Red 0-255
5. Gree 0-255
6. Blue 0-255
7. White 0-255
8. Macro colour 0-255
9. Pa 0-255
10. Pa fi e 0-255
11. Tilt 0-255
12. Tilt fi e 0-255
13. Fixture co trol 0-255
14. Calibratio 0-255
DMX live
15. Slave ID 0-255
LED_XY_SOFT:V*.**
Versio i fo LED_DPY_SOFT:V*.**
INFO
Exit

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD
www.lightsk .com.cn
www.lightsk -china.com
13
Ⅰ Menu Ⅱ Menu Ⅲ Menu Ⅳ Menu Remark
OFF Default
PT swap ON
OFF Default
Pan invert ON
OFF Default
Tilt invert ON
Pan/Tilt
Exit
ON Default
DMX reset
OFF
S stem reset
Reset Exit
Open Quick
closedown Close
Close P/T angle
limit Open
Close Program
on/off Open
Pan start
Pan end
Tilt start
Tilt end
PERSON
Set p/t
angle
Exit

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD
www.lightsk .com.cn
www.lightsk -china.com
14
Ⅰ Menu Ⅱ Menu Ⅲ Menu Ⅳ Menu Remark
E glish(英文) Default
Displa
language Chi ese（中文)
Light alwa s
2 minutes Default
4 minutes
Displa sleep
6 minutes
Displa
intensit
10-100 Default:50
Normal Default Displa
rotation Rotate 180
TFT calibration
Displa
Exit
PERSON
Exit

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD
www.lightsk .com.cn
www.lightsk -china.com
15
Ⅰ Menu Ⅱ Menu Ⅲ Menu Remark
1. Dimmer 0-255
2. Dimmer fin 0-255
3. Shutter 0-255
4. Red 0-255
5. Green 0-255
6. Blue 0-255
7. White 0-255
8. Macro colo 0-255
9. Pan 0-255
10. Pan fine 0-255
11. Tilt 0-255
12. Tilt fine 0-255
13. Fixture c 0-255
14. Calibrati 0-255
15. Slave ID 0-255
MANUAL
Exit

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD
www.lightsk .com.cn
www.lightsk -china.com
16
Ⅰ Menu Ⅱ Menu Ⅲ Menu ⅣMenu
Sce e 0-100
1. Dimmer 0-255
2. Dimmer fin 0-255
3. Shutter 0-255
4. Red 0-255
5. Green 0-255
6. Blue 0-255
7. White 0-255
8. Macro colo 0-255
9. Pan 0-255
10. Pan fine 0-255
11. Tilt 0-255
12. Tilt fine 0-255
13. Fixture c 0-255
14. Calibrati 0-255
15. Slave ID 0-255
Save scene
Edit program 1
Exit
Edit program 2
Same as Edit program1
Edit program 3
Same as Edit program1
Edit program 4
Same as Edit program1
Edit program 5
Same as Edit program1
Edit program 6
Same as Edit program1
Edit program 7
Same as Edit program1
Edit program 8
Same as Edit program1
PROGRAM Edit program
Exit

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD
www.lightsk .com.cn
www.lightsk -china.com
17
Ⅰ Menu Ⅱ Menu Ⅲ Menu ⅣMenu
Start step 0-100
End step 0-100
Step time 0-255
Save
Set program 1
Exit
Set program 2 Same as Set program 1
Set program 3 Same as Set program 1
Set program 4 Same as Set program 1
Set program 5 Same as Set program 1
Set program 6 Same as Set program 1
Set program 7 Same as Set program 1
Set program 8 Same as Set program 1
Set program
Exit
Run Running program…
Fixed scene
Scene 001-100
PROGRAM
Exit
Error list
Pan ±5.00%
Tilt ±5.00%
Adjust
Exit
Factor default ****
Adjust default ****
Time clean ****
Developer ****
Machine sel. ****
Factor
Exit
Updata ****
SERVICE
Exit

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD
www.lightsk .com.cn
www.lightsk -china.com
18
10、DMX TRAITS
Channel DMX
values % Effect
1. Dimmer 0-255 0-100
2. Dimmer fine
0-255 0-100
0-9 0-3 Unused range
10-49 4-19 Light→dark
， slow→fast
50-89 20-34 Dark→light
， slow→fast
90-119 35-46 Dark→light→dark
， slow→fast
120-179 47-70 Random fast→slow strobe
180-249 71-98 In-phase, slow→fast
3. Shutter
250-255 99-100 Unused range
4. Red 0-255 0-100
5. Green 0-255 0-100
6. Blue 0-255 0-100
7. White 0-255 0-100
0-1 0-1 Unused range
2-254 1-99 Shadow
8. Macro
colour 255 100 Unused range
9. Pan 0-255 0-100
10. Pan fine 0-255 0-100
11. Tilt 0-255 0-100
12. Tilt fine 0-255 0-100

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD
www.lightsk .com.cn
www.lightsk -china.com
19
Channel DMX
values % Effect
0-9 0-3 Unused range
10-14 4-5 Complete reset
15-19 5-7 Open
20-24 7-9 Close
25-29 10-11 Quick open
30-34 12-13 Quick close
35-239 14-93 Unused range
240-244 94-95 Pan
245-249 96-97 Tilt
13. Fixture
control
250-255 98-100 Unused range
14. Calibration
0-255 0-100
0-2 0
All IDs are efficient lighting its own
ID to 0, the channel set to an value
is valid
3-5 1-2 ID:1 effective
6-8 2-3 ID:2 effective
... ...
192-194 75-76 ID:64 effective
195-197 76-77 ID is(2*n)+1 effective,(n=0-31)
1 、 3 、 5 、 7 、 9…63
198-200 77-78 ID is(2*n)+2 effective,(n=0-31)
2 、 4 、 6 、 8 、 10…64
15. Slave ID
201-203 78-79 ID is(3*n)+1 effective,(n=0-21)
1 、 4 、 7 、 10 、 13…64
