FMUser FUTV4311A User manual

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
FUTV4311A MPEG-2/H.264 HD
Encoder
SW Version: V1.49
HW Version: V1.3.11
Web NMS Version: V1.28
Date: 9th JUNE, 2013

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
About This Manual
Intended Audience
This user manual has been written to help people who have to use, to integrate
and to install the product. Some chapters require some prerequisite knowledge
in electronics and especially in broadcast technologies and standards.
Disclaimer
No part of this document may be reproduced in any form without the written
permission of the copyright owner.
The contents of this document are subject to revision without notice due to
continued progress in methodology, design and manufacturing. FMUSER shall
have no liability for any error or damage of any kind resulting from the use of this
document.
Copy Warning
This document includes some confidential information. Its usage is limited to
the owners of the product that it is relevant to. It cannot be copied, modified, or
translated in another language without prior written authorization from
FMUSER.

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
Directory
CHAPTER 1 INTRODUCTION..................................................................................................4
1.1 PRODUCT OVERVIEW .............................................................................................................4
1.2 KEY FEATURES......................................................................................................................4
1.3 SPECIFICATIONS ....................................................................................................................5
1.4 PRINCIPLE CHART..................................................................................................................6
1.5APPEARANCE AND DESCRIPTION..............................................................................................6
CHAPTER 2 INSTALLATION GUIDE........................................................................................8
2.1 GENERAL PRECAUTIONS.........................................................................................................8
2.2 POWER PRECAUTIONS............................................................................................................8
2.3 DEVICE’S INSTALLATION FLOW CHART ILLUSTRATED AS FOLLOWING.............................................8
2.4 ENVIRONMENT REQUIREMENT.................................................................................................9
2.5 GROUNDING REQUIREMENT ....................................................................................................9
CHAPTER 3 FRONT PANEL OPERATION.............................................................................10
3.1 LCD MENUS .......................................................................................................................11
3.2 INITIAL STATUS ....................................................................................................................12
3.3 GENERAL SETTINGS FOR MAIN MENU ....................................................................................13
CHAPTER 4 WEB NMS OPERATION.....................................................................................25
4.1 LOGIN.................................................................................................................................25
4.2 OPERATION.........................................................................................................................26
CHAPTER 5 TROUBLESHOOTING .......................................................................................37
CHAPTER 6 PACKING LIST ..................................................................................................38

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
4/ 38
Chapter 1 Introduction
1.1 Product Overview
FUTV4311A MPEG-2/H.264 HD Encoder is the new broadcasting audio &
video encoding and multiplexing device with powerful functionality. It is
equipped with multiple video input interfaces (SDI, CVBS, YPbPr and
HDMI) and audio input interfaces (AES, RCA and XLR). It supports both
MPEG-2 and MPEG-4 AVC/H.264 video encoding and MPEG1 Layer II,
HE-AAC and LC-AAC audio encoding. Multiplexing function is also
embedded to select the input programs and output stream through ASI/IP
port in the same time.
1.2 Key Features
nMPEG-2 HD/SD and MPEG-4 AVC/H.264 HD/SD video encoding
nSupport 720P, 1080I, 480I and 576I video resolution
nMPEG1 Layer II, HE-AAC (v1&v2) and LC-AAC audio encoding
nSupport 2 stereo or 4 Mono audio encoding
nSupport AC3 pass through
nSupport CC (Closed Caption), EIA 608 and EIA 708
nApplicable for one Seg/ISDB-T utilization (2 streams output
simultaneously: 1 for one-seg and 1 for main stream)
nIP(MPTS/8*SPTS) Output; ASI Output
nGOP structure setting
nSupport CBR & VBR control
nSupport UDP/RTP media transmission protocols &
multicast/unicast output
nLCD / keyboard control and web management

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
5/ 38
1.3 Specifications
Input
1×SDI, 1×CVBS, 1×YPbPr and 1×HDMI input
2×XLR, 2×RCAand 1×AES inputs
1×ASI input, BNC interface
Video
Resolution 1920×1080i @59.94Hz, 1920×1080i @50Hz
1280×[email protected], 1280×720p @50Hz
720×480i @59.94Hz, 720×576i @50Hz
Encoding MPEG-2 HD/SD; MPEG-4AVC/H.264 HD/SD
Bit-rate 0.25 Mbps~60.5Mbps
Rate Control CBR/VBR
GOP Structure Auto, IP, IPB, IPBB, IPBBB, IPBBBB, IPBBBBB
Aspect Ratio 4:3; 16:9; 1:1; 2.35:1
Advanced
Pretreatment De-interlacing, noise reduction, sharpening
Audio
Encoding MPEG-1 Layer II, HE-AAC (v1&v2), LC-AAC
Sampling rate 48KHz
Resolution 24-bit
Bit-rate 32Kbps~384Kbps
Multiplexing 1ASI input multiplexed with 1 local channels TS
Stream output 2×ASI output ports, BNC interface
MPTS/8*SPTS over UDP/RTP, 10/100 Base-T
Ethernet interface (UDP/RTP multicast/unicast)
System function LCD/keyboard and web management
Language: English
Ethernet software upgrade
General
Dimensions 482mm×405mm×44.5mm (W × D × H)
Approx weight 4.5Kg
Temperature
range 0~45℃(Operation), -20~80℃(Storage)
Power
requirement AC110V±10%, 50/60Hz
AC 220V±10%,50/60Hz
Power
consumption 21W

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
6/ 38
1.4 Principle Chart
1.5 Appearance and Description
Front Panel Illustration
①LCD window
②Indicators
③Up and down, left and right navigation buttons
④Enter button: for confirm
⑤Menu button: for back step
⑥Lock button: press to lock set
Rear Panel Illustration

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
7/ 38
①SDI input connector
②YPbPr & CVBS input connectors
③AES, RCA and XLR input connectors
④HDMI input connector
⑤ASI input connector
⑥NMS connector for connecting Web management on PC
⑦DATAPort (not applicable currently)
⑧DATAPort for IP stream output
⑨ASI output connectors
⑩Power supply/Fuse
⑪Grounding

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
8/ 38
Chapter 2 Installation Guide
This section is to explain the cautions the users must know in some case
that possible injure may bring to users when it’s used or installed. For this
reason, please read all details here and make in mind before installing or
using the product.
2.1 General Precautions
üMust be operated and maintained free of dust or dirty.
üThe cover should be securely fastened, do not open the cover of the
products when the power is on.
üAfter use, securely stow away all loose cables, external antenna, and
others.
2.2 Power precautions
üWhen you connect the power source, make sure if it may cause overload.
üAvoid operating on a wet floor in the open. Make sure the extension cable
is in good condition
üMake sure the power switch is off before you start to install the device
2.3 Device’s Installation Flow Chart Illustrated as following

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
9/ 38
2.4 Environment Requirement
Item Requirement
Machine Hall
Space
When user installs machine frame array in one machine
hall, the distance between 2 rows of machine frames
should be 1.2~1.5m and the distance against wall should
be no less than 0.8m.
Machine Hall
Floor
Electric Isolation, Dust Free
Volume resistivity of ground anti-static material:
1X107~1X1010Ω，Grounding current limiting resistance:
1MΩ(Floor bearing should be greater than 450Kg/㎡)
Environment
Temperature 5~40℃(sustainable )，0~45℃(short time)，
installing air-conditioning is recommended
Relative Humidity
20%~80% sustainable 10%~90% short time
Pressure 86~105KPa
Door & Window Installing rubber strip for sealing door-gaps and dual level
glasses for window
Wall It can be covered with wallpaper, or brightness less paint.
Fire Protection Fire alarm system and extinguisher
Power
Requiring device power, air-conditioning power and
lighting power are independent to each other. Device
power requires AC 110V±10%, 50/60Hz or AC
220V±10%, 50/60Hz. Please carefully check before
running.
2.5 Grounding Requirement
üAll function modules’ good grounding is the basis of reliability and stability of
devices. Also, they are the most important guarantee of lightning arresting and
interference rejection. Therefore, the system must follow this rule.
üGrounding conductor must adopt copper conductor in order to reduce high
frequency impedance, and the grounding wire must be as thick and short as
possible.

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
10 / 38
üUsers should make sure the 2 ends of grounding wire well electric conducted
and be antirust.
üIt is prohibited to use any other device as part of grounding electric circuit
üThe area of the conduction between grounding wire and device’s frame
should be no less than 25 mm2.
Chapter 3 Front Panel Operation
FUTV4311A’s front panel is user operation interface where users
configure the device manually. The LCD is a 2-line * 40-character back-lit
dot-matrix user interface with pushbuttons for UP, DOWN, LEFT, RIGHT,
ENTER, MENU, and LOCK for front panel control.
User can decide whether to directly use the factory setting, or customize
the input/output parameters and etc.
Keyboard Function Description
LEFT/RIGHT: To choose and set the parameters
UP/DOWN: To modify activated parameters or page up/down when
parameter is inactivated.
MENU: To cancel presently entered value, resume previous setting;
ENTER: To activate the parameters which need modification, and confirm
the changes after modification
LOCK: Lock the screen / cancel the lock state .After pressing lock key,
the system will question the users to save or not .If not, the LCD will
display the current configuration state

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
11 / 38

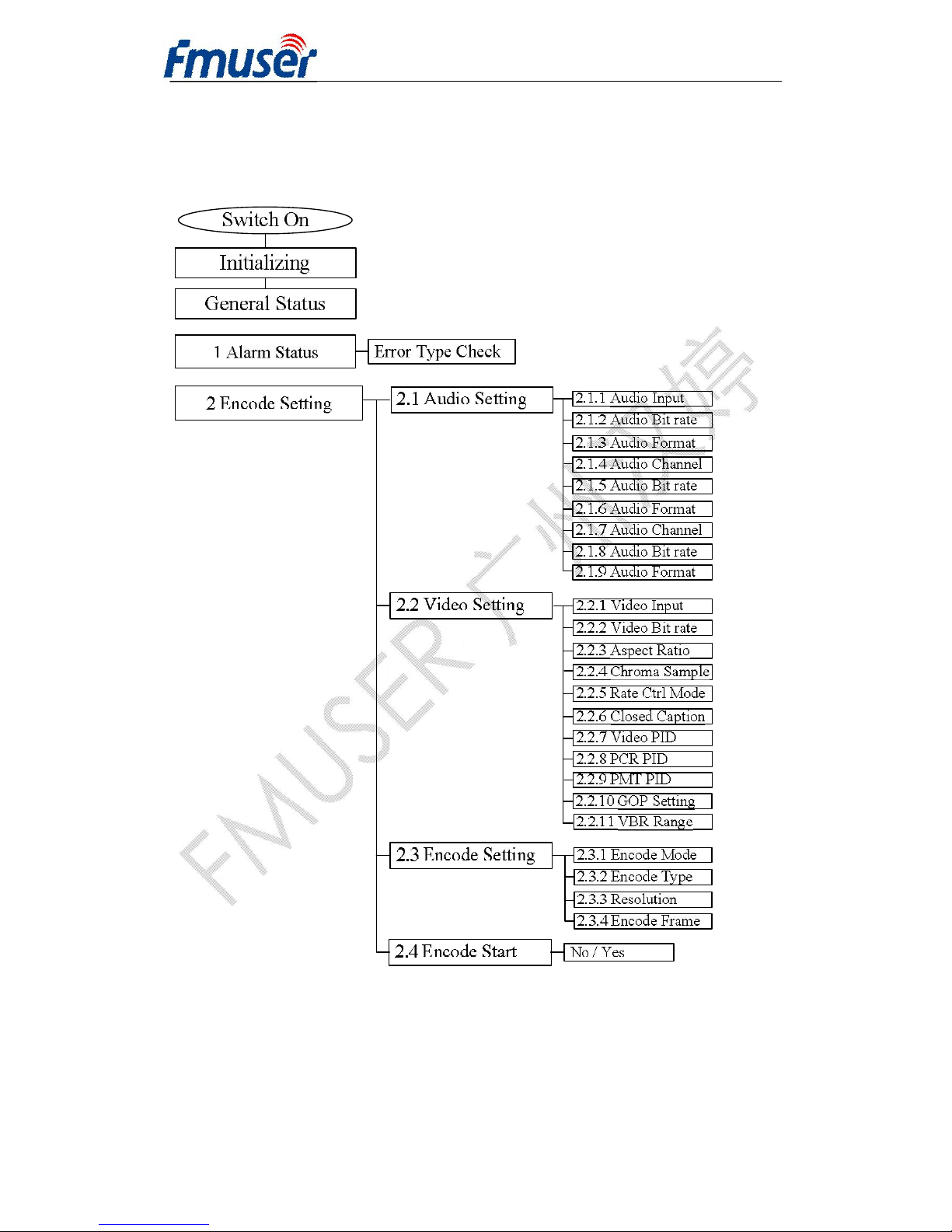

3.1 LCD Menus

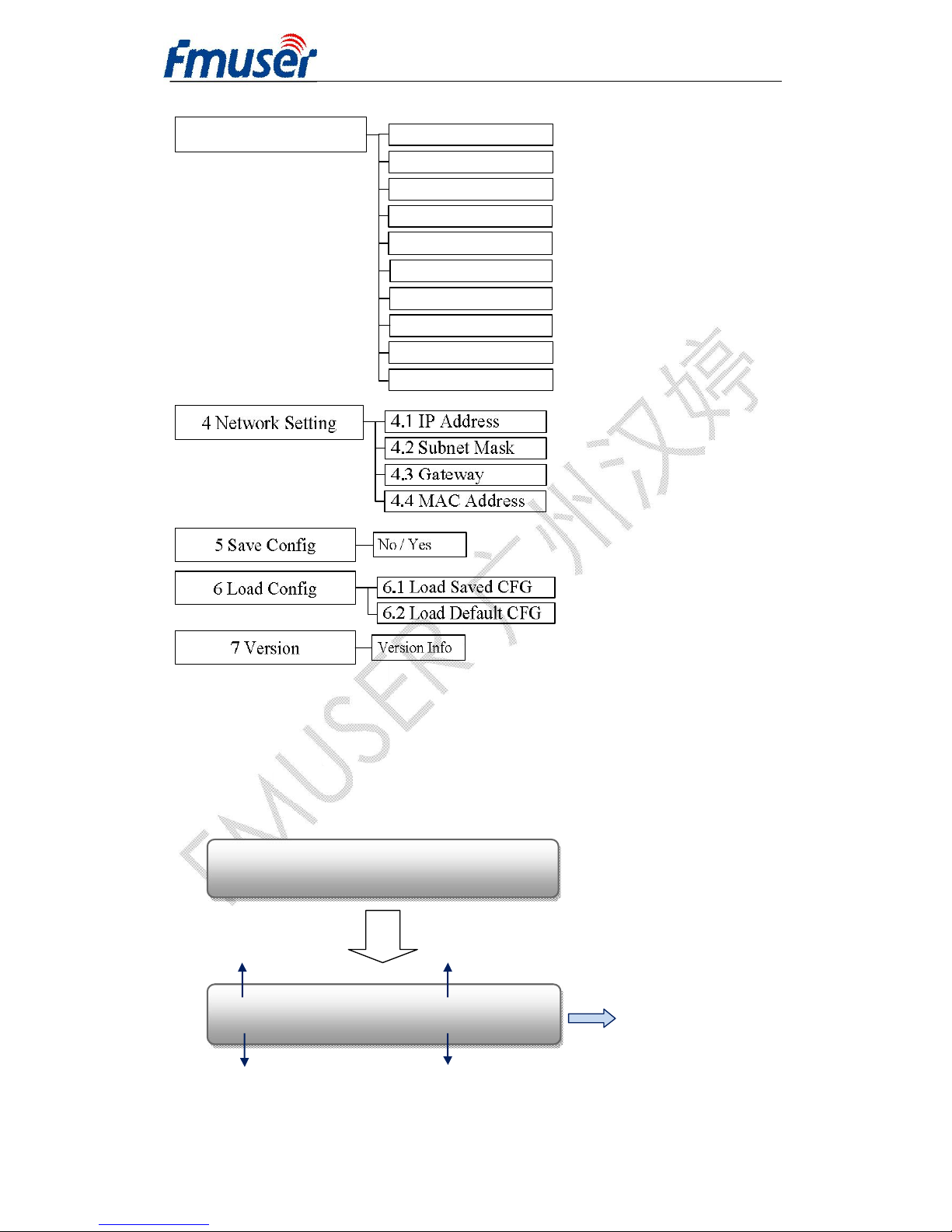

An overview of the LCD menus:

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
12 / 38
3 Output Setting 3.1 TS Mux Option
3.2 IP Null Packet
3.3 IP Out Mode
3.4 IP Out Address
3.5 IP Out Submask
3.6 IP Out Port
3.7 Service IP
3.8 Source MAC
3.9 Source Gateway
3.10 Output Bit rate
3.2 Initial Status
Switch on the device and after a few seconds’ initialization, it presents
booting pictures as below:
Encode Starting
>>>>>>>>>>>>>>>>>>>>>>
NDS3211A HD Encoder Rate: 12.34 Mbps
FMT: 720x576 50i PORT: HDMI
Signal’s encoded resolution format Signal source port
Read Only
Output Bit Rate
Device Name

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
13 / 38
3.3 General Settings for Main Menu
Press “LOCK” key on the front panel to enter the main menu. The LCD will
display the following pages where user can configure the parameters for
the device:
User can press UP/DOWN/LEFT/RIGHT buttons to specify menu item,
and then press ENTER to enter the submenus as below:
3.3.1 ALARM STATUS
The alarm indicator will turn on if signal source loses or encoding errors
occur. User can then enter this menu to check the error type.
3.3.2 ENCODE SETTING
Enter “2 Encode Setting” to configure the Video/Audio parameters for the
input program (HDMI/SDI/YPbPr/CVBS input program). Submenus go as
below:
3.3.2.1 Audio Setting
1 Alarm Status 2 Encode Setting
3 Output Setting 4 Network Setting
5 Saving Config 6 Load Config
7 Version
2.1 Audio Setting 2.2 Video Setting
2.3 Encode Setting 2.4 Encode Start
2.1.1 Audio Input 2.1.2 Audio Bit rate
2.1.3 Audio Format 2.1.4 Audio Channel
2.1.5 Sample Rate 2.1.6 Code Mode
2.1.7 Pass through 2.1.8 Audio-1 PID
2.1.9 Audio-2 PID

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
14 / 38
ØAudio Input
Press ENTER to enter menu 2.1.1Audio Input. It displays the current mode
of audio input. Press ENTER again to enter the setting interface, move the
square bracket with LEFT/RIGHT keys to select the target mode and press
ENTER to confirm.At last, press MENU to step back to the upper menus.
REMARKS:
If the audio source is from HDMI or SDI, the system will automatically
identify and match the interface. It is not necessary to set this menu. If the
audio source is from XLR, RCA or AES, it needs to match the interface
manually.
NOTE
THE OPERATIONAL APPROACHES DEFINED ABOVE ARE
APPLICABLE FOR ALL THE OTHER SETTINGS.
ØAudio Bit rate
Select audio bit rate among 32Kbps – 384Kbps.
Audio Input
RCA
Audio Input RCA
XLR [RCA] AES
Audio Input RCA
[SDI]
Press ENTER key to go to
the setting interface
The current mode
The current
mode
Press LEFT/RIGHT keys to turn
pages and elect the target mode.
Audio Bit rate 192 Kbps
[192 Kbps] 256 Kbps 320 Kbps 384
Audio Bit rate 192 Kbps
[32 Kbps] 64 Kbps 96 Kbps 128 Kbps

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
15 / 38
ØAudio Format
Select audio format among items listed in the interface.
REMARKS:
lIf “None” is chosen the audio format, the system will not choose any
audio to process and there will be no audio in the output data stream.
lIf “AC3 Pass” is chosen, user needs to enable the pass-through
function at menu “2.1.7 Pass through”
ØAudio Channel
FUTV4311A HD Encoder supports both single audio channel and dual
audio channels (Audio1 and Audio 2).
Single: Only Audio 1 will be effect.
Multi: Both Audio 1 andAudio 2 will be effect.
ØSample Rate
The audio sample rate is 48 KHz without other options.
ØCode Mode
Select audio code mode among stereo, L-Mono, and R-Mono.
Audio Format MPEG 1
[AAC HE V1] AAC HE V2
Audio Format MPEG 1
None [MPEG 1] AC3 Pass AAC
Audio Channel Multi
Single [Multi]
Audio Sample Rate 48 KHz
[48 KHz]

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
16 / 38
ØPass Through
If user needs to pass through AC3 audio, select “AC3 pass” as the audio
format at menu “2.1.3 Audio Format” and select “ON” at this menu.
ØAudio-1/2 PID
FUTV4311A HD Encoder supports both single audio channel and dual
audio channels (Audio1 and Audio 2). User can edit the audio PID at
menus 2.1.8 and 2.1.9.
When the audio channel is single, only audio 1 PID is effect, while audio
channel is multi, both audio1 and 2 PID are effect.
REMARKS: The value is based on decimal system.
lPress ENTER key to start the editing state;
lPress LEFT/RIGHT key to move the underline;
lPress UP/DOWN key to adjust the value with underline;
lPress ENTER key again to confirm
NOTE
THE OPERATIONAL APPROACHES DEFINED ABOVE ARE
APPLICABLE FOR ALL THE OTHER SETTINGS.
3.3.2.2 Video Setting
Audio Code Mode Stereo
[Stereo] L-Mono R-Mono
Audio Pass Through ON
OFF [ON]
Audio-1 PID
0512

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
17 / 38
ØVideo Input
Press ENTER to enter menu 2.2.1Audio Input. It displays the current mode
of audio input. Press ENTER again to enter the setting interface, move the
square bracket with LEFT/RIGHT keys to select the target mode and press
ENTER to confirm.At last, press MENU to step back to the upper menus.
There are 4 types of interface for video input. Select one type and the
system will detect the single and process. Make sure the single cables are
properly connected.
ØVideo Bit Rate
FUTV4311A can encode video at range of 0.25 Mbps to 60.50 Mbps (This
item is for setting CBR).
REMARKS:
If VBR (Variable Bit Rate) is set as the rate-control mode, make sure the
video bit rate is within the VBR range (see 2.2.10).
ØAspect Ratio
2.2.1 Video Input 2.2.2 Video Bit rate
2.2.3 Aspect Ratio 2.2.4 Chroma Sample
2.2.5 Rate Ctrl Mode 2.2.6 Closed Caption
2.2.7 Video PID 2.2.8 PCR PID
2.2.9 PMT PID 2.2.10 GOP Setting
2.2.11 VBR Range
Video Input YPbPr
HDMI CVBS [YPbPr] SDI
Video Bit rate
12.00 Mbps

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
18 / 38
Select one aspect ratio mode from options listed.
REMARKS:
FUTV4311A supports two Encode Types: H.264 (MPEG4 AVC/H.264) and
MPEG2 (see 2.3.2). Mode “2.35x1” is only applicable for H.264 encode
type.
ØChroma Sample
Select one Chroma Sample mode from the 2 options listed.
REMARKS:
FUTV4311A supports two Encode Types: H.264 (MPEG4 AVC/H.264) and
MPEG2 (see 2.3.2). Modes “4:2:0” is only applicable for H.264 encode
type.
ØRate Control Mode
FUTV4311A supports both CBR (Constant Bit Rate) and VBR (Variable Bit
Rate) control mode.
ØClosed Caption (CC)
ON: to insert the CC into the output stream
OFF: not to insert the CC into the output stream
Aspect Ratio 16x9
4x3 [16x9] 1x1 2.35x1
Chroma Sample
[4:2:0] 4:2:2
Rate Control Mode CBR
[CBR] VBR
Closed Caption OFF
[OFF] ON

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
19 / 38
ØVideo/PCR/PMT PID
Enter each menu to edit the PIDs.
REMARKS: These values are based on decimal system.
ØGOP Setting
Select GOP structure mode from the options listed.
ØVBR Range
When the Rate Control Mode is set as VBR, user can enter this menu to
set the VBR range. (The minimum rate is fixed to 1.00 Mbps. User can only
set the maximum value.)
3.3.2.3 Encode Setting
ØEncode Mode
User can choose to encode the program automatically or manually at this
menu.
Video PID
0258
PCR PID
0256
PMT PID
0257
VBR range
01.00 – 15.00 Mbps
2.3.1 Encode Mode 2.3.2 Encode Type
2.3.3 Resolution 2.3.4 Encode Frame
GOP Structure Auto
[Auto] IP IPB IPBB
GOP Structure Auto
IPBBB IPBBBB IPBBBBB

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
20 / 38
ØEncode Type
FUTV4311A supports two Encode Types: H.264 (MPEG4 AVC/H.264) and
MPEG2. User can choose to one mode as the video compression type at
this menu.
ØResolution
Enter this menu to set the video resolution.
ØEncode Frame
Enter this menu to set the video frame.
3.3.2.4 Encode Start
After finishing all the configuration of V/A and encode modes (from
2.1-2.3), user can choose “Yes” in 2.4 to start processing the program.
3.3.3 OUTPUT SETTING
Enter “3 Output Setting” to set the output parameters. Submenus go as
below:
Encode Mode Manual
Auto [Manual]
Encode Type MPEG 2
H.264 [MPEG 2]
Encode Resolution 576i
480i [576i] 720p 1080i
Encode Frame 50
[50] 59.94 60
Encode Start?
►No Yes
