Focal Point L23 CHESHIRE Guide

INSTALLATION AND USER INSTRUCTIONS
All instructions must be handed to user for safekeeping
Revision A - 03/08
Country(s) of destination - GB/IE
L23 CHESHIRE
P23 MONET TRIO
P23 ENIGMA
FLUELESS GAS FIRE
Focal Point Fires plc, Christchurch, Dorset BH23 2BT
Tel: [phone] Fax: [phone]
www.focalpointfires.co.uk
e-mail: [email protected]

L23 Cheshire
P23 Monet trio P23 Enigma silver glass

INSTALLATION INSTRUCTIONS
Preliminary Notes Before Installation
This appliance is a high efficiency, flueless, flame effect gas fire. It provides radiant and con-
vected warmth both efficiently and safely utilising the latest type catalytic convertor burner
technology.
The appliance incorporates a combustion monitoring system (Oxygen Depletion System). It
must not be adjusted or put out of operation. If replaced then manufacturers original parts
must be used.
The appliance is designed to fit various types of situations as listed in the Installation
Requirements.
This appliance must be installed in accordance with the rules in force and only used in a suf-
ficiently ventilated space. A minimum of 100cm2 (15.5in2) purpose provided ventilation is
required for this appliance. An openable window or louvre is also required. This appliance is
factory set for operation on the gas type, and at the pressure stated on the appliance data
plate.
The room size should be a minimum of 23m3(812ft3) to allow adequate circulation of air
and ensure the correct operation of the fire. This volume may include adjacent spaces but
these spaces must not be separated by a door. In order to convert from cubic feet (ft3) to
cubic metres (m3) divide the room volume (in ft3) by 35.3. This appliance is intended as a
secondary source of heat only and should not be used in a room without some form of
background heating present.
The appliance must not be installed in a bedroom, bathroom or any sleeping area. The
appliance does not require a flue system of any type as the catalytic converter cleans the
flue products to provide a complete combustion system, which is intrinsically safe.
The appliance must be installed by a competent person in accordance with Gas Safety
(Installation and Use) Regulations 1998 or rules in force. It is strongly recommended that a
CORGI registered engineer is used for this purpose, as they are the only persons approved
by the HSE under the above regulations.
On initial lightup of a new appliance, the ‘newness’ will burn off within the first few hours of
operation. During this period some smoke may be emitted from outlet grille, this should be
no cause for concern. Accordingly, the room should be well ventilated with all windows
and doors open during this period.
Read all these instructions before commencing installation.

IMPORTANT NOTES
This appliance is a catalytic flueless flame effect gas fire, providing radiant and convected warmth. It is designed
to operate on Natural Gas following factory set adjustments, (see Data Plate on appliance for gas type and pres-
sure).
It is the LAW that all gas appliances and fittings are installed by a competent person (such as a CORGI registered
fitter) and in accordance with the Gas Safety (Installation and Use) Regulations 1998, the relevant British
Standards for Installation, Codes of Practice and the Manufacturers' Instructions. The installation shall also be
carried out in accordance with the following regulations:
The Building Regulations issued by the Department of the Environment, the Building Standards (Scotland)
(Consolidation) Regulations issued by the Scottish Development Department.
Relevant British standards insofar as the relevant areas are not covered by these instructions.
Note: For Republic of Ireland, reference should be made to the relevant standards governing installation. (IS 813:
1996)
Failure to comply with these regulations could lead to prosecution and deem the warranty invalid.
This appliance must be installed in accordance with the rules in force and used only in a sufficiently ventilated
space. A minimum of 100cm2(15.5 in2) purpose provided ventilation is required for this appliance, an openable
window or louvre is also required. To reduce the possibility of draughts entering the room via the air vent, we
recommend the use of "Black Hole" or "Vortex" type vents featuring internal baffles.
It should be noted that heaters create warm air currents. These currents move heat to wall surfaces next to the
heater. Installing the heater next to vinyl or cloth wall coverings or operating the heater where impurities in the
air (such as tobacco smoke) exist, may discolour walls.
Consult ALL instructions before installation and use of this appliance.
This appliance is free from any asbestos material.
1
Section Contents Page No.
1.0 Important Notes 1
2.0 Appliance Data 2
3.0 Installation Requirements 2
3.1 Room Sizing 2
4.0 Site Requirements 2
4.1 Ventilation 3
5.0 Unpacking the Appliance 4
5.1 Component Checklist 4
6.0 Gas Supply Routes 4
7.0 Fixing the Appliance 5
7.1 Checking the Burner 5
Section Contents Page No.
8.0 Testing and Commissioning 6
8.1 Operating the Appliance 6
8.2 Spark Failure 6
8.3 Setting pressure 6
8.4 Fitting the Decorative Frame 7
9.0 Briefing the customer 8
10.0 Servicing 8
10.1 Servicing the Burner Unit 8
10.2 Pilot Assembly 9
10.3 Catalyst 9
10.4 Testing for Firebox Leakage 9
11.0 Troubleshooting Guide 10
User Instructions
1.0

INSTALLATION REQUIREMENTS
If the appliance is to be sited near a disused natural draught flue it is recommended that the old flue should be
partially sealed off to prevent draughts, however some ventilation will be required to prevent condensation.
The appliance is designed to be wall mounted. It is possible to install the appliance onto certain types of com-
bustible materials - see section entitled ‘Clearances to combustible materials’.
In the event that the fire is sited near a disused or unserviceable fireplace served by a natural draught flue, any
existing under grate draught device should be sealed off to prevent loss of heat or creation of draughts. The
passageway into the flue should be partially sealed to prevent excessive draughts, however some ventilation
will be required in the old flue to prevent condensation and dampness. Advice should be sought from your
local building control officer.
ROOM SIZING
All Models : The room size should be a minimum of 23m3(e.g. 10’1” x 10’1” x 8’) to allow adequate circula-
tion of air and ensure the correct operation of the fire. This volume may include adjacent spaces but these
spaces must not be separated by a door. To calculate a room size in cubic metres (m3) divide the room vol-
ume in cubic feet (ft3) by 35.3.
SITE REQUIREMENTS
This appliance is designed to be wall-hung. Do not recess any part of the appliance into the wall.
This Appliance may be installed in any room in a home except bedrooms and bathrooms.
Installation in living rooms is common, however other rooms such as kitchens, dining rooms and hallways are
permitted, providing a suitable natural gas supply is available, and rooms sizing and ventilation requirements
are strictly adhered to (see section 4.1).
The appliance is designed to be versatile, and as such will operate correctly when exposed to normal gentle
draughts experienced within the home. It is not recommended, however that the appliance be installed in areas
where it is likely to be exposed to persistent strong draughts, that may be generated by outside doors or win-
dows, air vents etc. It is recommended that the appliance should not be installed within one metre of any air
vent.
2
APPLIANCE DATA
L23 Models P23 Models
Gas Group G20 Natural Gas CAT I2H G20 Natural Gas CAT I2H
Inlet Pressure 20 mbar (+/- 2.0mbar) 20 mbar (+/- 2.0mbar)
Max Energy Input Gross 2.0 kW Gross 2.0 kW
Net 1.8 kW Net 1.8 kW
Max Gas Rate 0.20 m3/h 0.20 m3/h
Min Energy Input Gross 1.3 kW Gross 1.0 kW
Net 1.15 kW Net 0.9 kW
Pilot Energy Input Gross 166 W Gross 166 W
Net 150 W Net 150 W
Burner Pressure High 18.7 mbar. (+/-1.5 mbar). Hot 18.7 mbar. (+/-1.5 mbar). Hot
18.6 mbar. (+/-1.5 mbar). Cold 18.6 mbar. (+/-1.5 mbar). Cold
Low 7.4 mbar. (+/-0.75 mbar). Hot 4.1 mbar. (+/-0.75 mbar). Hot
7.3 mbar (+/-0.75 mbar). Cold 4.0 mbar (+/-0.75 mbar). Cold
Main burner flow restrictor Stereo 1.03mm (1/4” BSP) Stereo 1.03mm (1/4” BSP)
Oxypilot SIT/Bray 9082 SIT/Bray 9082
Gas Inlet Connection 8mm inlet restrictor elbow 8mm inlet restrictor elbow
Ignition Piezo spark Piezo spark
Spark Gap 4.0 mm (± 1.0mm) 4.0 mm (± 1.0mm)
Please see Data Badge affixed to appliance for current data.
This appliance is for use only with the gas type, and at the pressure stated on the appliance Data Badge.
2.0
3.0
3.1
4.0

SITE REQUIREMENTS (continued)
Clearances to non-combustibles
Non combustible surfaces are defined as brick, metal, marble, concrete etc. and also a number of man-made
materials impervious to flame. If in doubt refer to the material manufacturer for further information before pro-
ceeding with installation.
Clearances to the sides of the appliance are 100mm (4in). Clearance to the front of the appliance is 500mm
(20in).
The back of the appliance may be installed directly onto a non-combustible wall, providing the area behind the
appliance is flat and does not interfere with the various vent holes in the back panel of the appliance.
A non combustible shelf of any depth may be positioned above the appliance provided it is no closer than
400mm from the top of the appliance glass panel and the wall above the appliance is non combustible.
The appliance must not be positioned vertically within 60mm (2.4in) of a solid floor (i.e. wood or stone) or
hearth. This dimension is measured vertically to the bottom of the appliance firebox.
Clearances to combustible materials
Combustible materials are defined as wood, fabrics, or other materials likely to combust if exposed to flame.
Generally, any material, which is likely to discolour, melt or misshape when exposed to moderate heat, should
be considered as a combustible material or surface.
Clearance to the sides of the appliance are 100mm (4in) but curtains, drapes and other fabrics are not permit-
ted within a distance of 500mm (20in) of the appliance sides. No such materials are permitted directly above
the appliance regardless of distance.
The minimum clearance to the ceiling above the appliance is 800mm (31.5in) measured from the top of the
appliance inner glass panel.
Combustible materials should not be positioned directly in front of the appliance within a distance of one metre.
Under no circumstances should any electrical equipment e.g. plasma screen TV sets etc. be positioned on the
wall above the appliance. The appliance is designed to be wall mounted alone and not in conjunction with any
type of combustible fire surround. No combustible shelves should be positioned on the wall above the appli-
ance. It should be established that any mirrors or picture frames etc. to be positioned on the wall above the appli-
ance are able to withstand prolonged exposure to moderate heat and moisture before proceeding with their
installation.
The back of the appliance may be installed directly onto a combustible wall, providing it is relatively flat and does
not interfere with the various vent holes in the back panel of the appliance. The wall must be structurally sound
and constructed from a material capable of withstanding moderate heat. Finished plaster, conventional wall
paper and dry-lined plasterboard are examples of suitable materials. Materials such as flock, blown vinyl and
embossed paper which are sensitive to even small amounts of heat should be avoided as scorching and or dis-
colouration may occur over time.
If the appliance is to be mounted on a dry lined wall or a timber framed construction wall then the integrity and
ability of the wall to carry the weight of the appliance must be confirmed. It is important in these circumstances
that any vapour control barrier is not damaged, and that any structural members of the house frame are not dam-
aged.
The appliance must not be positioned vertically within 100 mm (4in) of a carpeted floor, rugs or fabric materials
of any kind. This dimension is measured vertically to the bottom of the appliance firebox.
VENTILATION
A minimum of 100 cm2purpose provided ventilation is required for this appliance. This may be achieved either
with one vent 100 cm2at a high or low position in the room, or split ventilation i.e. 50cm2 be installed at high
level and 50cm2 be installed at low level within the room. An openable window or equivalent is also required.
The requirements of other flued appliance operating in the same room or space must be taken into considera-
tion when assessing ventilation.
3
4.0
4.1

VENTILATION (continued)
Any ventilation fitted must comply with BS 5871 part 4 and BS 5440 part 2. Ventilation fitted under, or within
immediate vicinity of the appliance must not be used as it may adversely effect performance of the ODS sys-
tem. The appliance MUST NOT be installed in a bedroom, bathroom or any sleeping area. For Republic of
Ireland, see relevant rules in force. The appliance should not be installed within one metre of any air vent.
UNPACKING THE APPLIANCE
Remove the outer packaging, remove any instructions or fixing kits.
Read ALL these instructions before continuing to unpack or install this appliance.
Lift off the remaining packaging components and remove the contents of the box.
Check that the components supplied correlate with the component checklist. Please dispose of all the packag-
ing materials at your local recycling centre.
COMPONENT CHECKLIST
QUANTITY DESCRIPTION
1 Firebox and burner assembly
1 Set of manufacturers instructions
1 Decorative black glass facia assembly (L23 Cheshire models)
3 Decorative metal facia panel in a variety of colours (P23 Monet trio models)
1 Decorative silver glass facia panel (P23 Enigma models)
4 Decotaive metal corner columns (P23 Enigma models)
1 Screw and wall plug pack
1 Rubber grommet
1 Fitting template
GAS SUPPLY ROUTES
There are four possible entry points for the gas supply
pipework to enter the appliance firebox. These entry
points are ‘knock out’ type holes. Non-concealed gas
connections may be made using the entry points at either
end of the firebox or the one in the bottom of the firebox.
A concealed gas connection may be made using the
knock out hole in the centre back of the firebox. Select
the most appropriate entry point and knock out the rele-
vant hole
No more than 1.5m of 8mm diameter pipe must be used
to avoid unnecessary pressure drops.
If a concealed gas connection is to be made, the supply pipe should always be sleeved through walls and floors
using the shortest possible route. For concealed supply pipe routing, pipes must (where possible) be vertical and
providing there is sufficient wall thickness available, they should be placed in pipe chases. Horizontal pipe runs
should be avoided. Prior to chasing a solid wall, an inspection should be made to note the proximity of any
cables/sockets outlets which may already be buried.
Pipes must be secured using suitable clips and protected against corrosion. Ideally factory finished protected
pipework and fittings should be used. Joints should be kept to a minimum and compression fittings must not be
used. The pipework installation must be tested for soundness before any protection is applied and/or the
pipework and fittings are buried.
4
5.0
5.1
6.0
4.1

FIXING THE APPLIANCE
After having selected the final mounting position of
the appliance, taking into account the site require-
ments as specified in section 4 of these instructions,
the integrity of the wall, and the feasibility of the pro-
posed supply pipe routing, the firebox of appliance

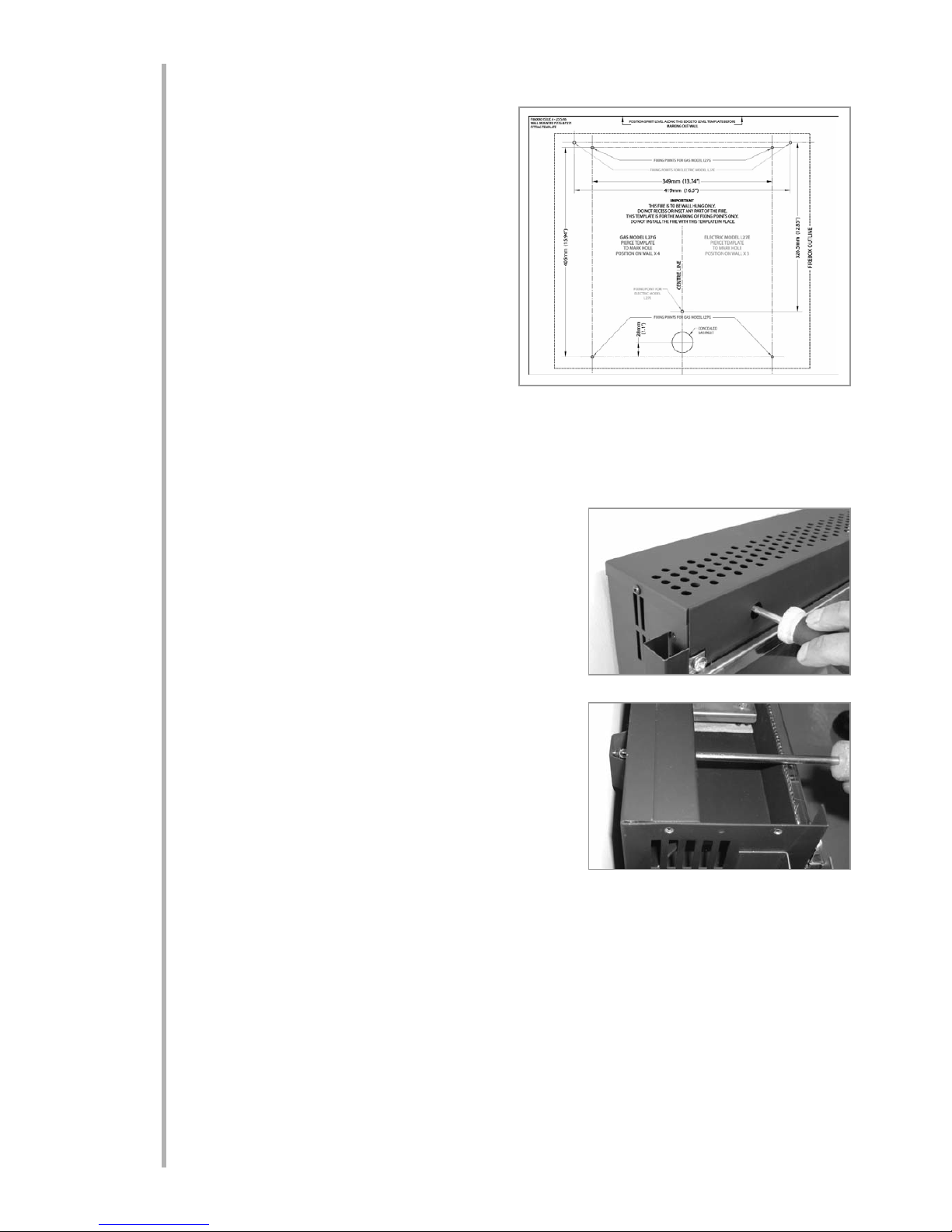

may be secured to the wall. A fitting template is sup-
plied to assist with this.
• For L23 Cheshire models : Mark the positions
shown as “Gas model L23G” on the wall.
• For P23 Monet trio and P23 Enigma models : Mark
the positions shown as “Gas model P23G” on the
wall.
If the appliance is to be mounted on the inner leaf of a conventional cavity wall, or a solid wall, drill four holes
to a depth of 42mm using a 8mm masonry bit. Insert the wallplugs provided.
If the appliance is to be mounted on a dry lined wall or a timber framed construction wall then special cavity
screw fixings will be required which are not supplied with this product. These should be constructed from metal
and not plastic.
If a concealed gas connection is to be made ensure the gas sup-
ply pipe is in it’s final position and can enter the appliance in the
correct position when the appliance is hung on the wall.
Insert the wall fixing screws into the top wall plugs, taking care to
leave the screws protruding approximately 5mm from the wall.
Now hang the appliance onto these screws through the two key-
hole shaped holes in the back panel of the appliance.
Insert the lower fixing screws into the lower wall plugs through the
corresponding fixing holes in the lower part of the back panel. Do
not tighten fully.
Before tightening the wall mounting screws fully, at this stage it is
recommended to check the horizontal alignment of the appliance
with a spirit level, as small adjustments can still be made if neces-
sary. When this has been checked, tighten all four fixing screws
fully.
To access the upper fixing screws insert a screwdriver either
through the round holes in the front of the outlet grille, or alterna-
tively for easier access the outlet grille may be removed and the fixing screws accessed more directly through
the holes in the deflector baffle as shown above.
CHECKING THE BURNER
There are no imitation fuel bed components to install. The appliance features a ribbon burner which is
designed to produce a continuous band of flame over it’s length.
The burner should be visually inspected to ensure it is free from any foreign matter.
If it is necessary to clean or dust off the burner then the glass door should be removed by removal of the four
retaining screws. Re-fit the glass door after cleaning or inspection, ensuring a good seal.
5
7.0
7.1

TESTING AND COMMISSIONING
Turn on and test the gas supply up to the fire for any leaks, in accordance with the current edition of BS6891.
OPERATING THE APPLIANCE
The pilot is visible behind the left hand side of the burner.
The control knob is located on the lower right hand side of the outer
case. It is of a spherical design and is marked as shown in the diagram
to the right;
Push in and turn the control knob to the SPARK position, and hold
there for a few seconds. Continue turning anti-clockwise through the
spark click to the PILOT light position, ensuring the pilot has lit. If not,
return the knob clockwise, and repeat.
When the pilot lights after the spark, keep the knob depressed for
approximately ten seconds. Now release the knob and the pilot
should stay alight. If the pilot is extinguished during use, wait three
minutes before repeating the ignition procedure.
To achieve the HIGH setting, push the control knob in slightly and
continue turning anti-clockwise to the high position. The main burner should light after a few seconds. To
decrease the setting to LOW, turn the control knob clockwise to the low setting.
To turn to the PILOT position from the HIGH or LOW positions, press the control knob in, and return to the pilot
position and release. To turn the fire OFF, keep the knob pressed in, return to the off position and release.
SPARK FAILURE
The gap between the spark electrode and the pilot should be 3 - 5mm to produce a good spark. There should
be no need to adjust this. If under any circumstances the piezo electric spark fails, the pilot cannot be lit man-
ually.
SETTING PRESSURE
The pressure test point is located on the left hand side of the appliance, on the main burner pipe, next to the
brass restrictor/connector. Release the setting pressure test point screw, and attach a U gauge. Light the fire on
the HIGH setting.
To commission the appliance, the burner pressure must be in accordance with the figures stated in the data sec-
tion of these instructions.
The fire is factory set to achieve these pressures and any
significant variation could indicate a supply problem. If
the pressure is too high, the gas supply meter may be set
incorrectly. This should be checked with the fire running
and if necessary reset by the gas supplier.
If the burner pressure is too low, then check the inlet
pressure with the appliance running. If this is less than
approximately 20mbar it will need to be reset by the gas
supplier. If the setting pressure is too low, but the meter
pressure is acceptable, then a problem in the supply
pipework is to be suspected.
This will be dirt and debris, kinked or inadequate size
pipes, restriction in a fitting, shut off elbow not fully open or solder flashing across a joint. Identify the cause of
the restriction and rectify. Switch the fire off, disconnect the U gauge and refit the test nipple screw. Light the
fire and check for gas soundness.
In the event that the burner pressure is not in accordance with the figures stated in the data section of these
instructions, the appliance must not be commissioned, and the manufacturer should be contacted for guidance.
6
8.3
8.0
8.1
8.2
‘OFF’ position
‘SPARK’ position
‘LOW’ position
‘HIGH’ position

FITTING THE DECORATIVE FRAME ASSEMBLY
P23 Monet Trio models :
The appliance is supplied with a selection of
differently couloured decorative frames.
Remove the chosen decorative frame assem-
bly from any protective packaging, and
remove any protective film that may be pres-
ent on the frame.
The frame is hung onto the firebox via the
two upper hanging brackets and then
secured to the firebox via the two lower
knurled fixing bolts, which are inserted
through the holes in the lower frame mount-
ing brackets after the frame is in position. See
diagrams to the right and below.
L23 Chesire models and P23 Enigma models:
Remove the glass facia panel from any pro-
tective packaging. The glass facia panel is
supported by four M6 screws which protrude
from the front of the outer casing.
Ensure each screw is unscrewed approxi-
mately one turn from the fully screwed in
position in order to create a 2mm gap
(shown).
Simply hang the facia panel onto the outer
casing ensuring that the corresponding key-
hole shaped holes engage the screwheads
fully.
P23 Enigma models:
To fit the decorative corner columns, ensure
the main glass facia is mounted in position.
Remove any transit tape and unscrew the
front clamping disc and remove.
Compress the column assembly and position behind the glass panel, lining up with the appropriate hole. Release
the assembly when in position and secure in place by refitting the front clamping disc.
7
8.4
L23 Chesire models and P23 Enigma models
Compress the
assembly
Front clamping disc
P23 Monet Trio models

BRIEFING THE CUSTOMER
All instructions must be handed to the user for safekeeping. Show the customer how to light and control the fire.
After commissioning the appliance, the customer should be instructed on the safe use of the appliance and the
need for regular servicing. Frequency of service depends on usage, but MUST be carried out at least once annu-
ally.
Advise that cleaning of the fire maybe achieved when the fire is cold using a damp cloth and mild detergent on
most surfaces. Advise that the fire will emit a "newness" smell for a time after initial commissioning and that extra
ventilation may be needed during this time. Recommend that a guard be used for the protection of the young,
pets, the elderly and the infirm
SERVICING
Isolate the fire from the gas supply. Ensure that the fire is fully cold before attempting service.
A suggested procedure for servicing is detailed below.
1. Lay out the dustsheet and tools.
2. Remove the decorative frame/glass facia assembly. Removal is reverse of section 8.4.
3. Remove the glass door assembly (4 screws) and clean carefully.
4. Inspect the burner and the catalyst and clean if necessary with a soft brush.
5. Disconnect the gas supply.
6. Detach the burner front cover plate by removal of the four retaining screws. Undo the four
screws retaining the burner support brackets to the base and rear of the firebox. Remove the
control knob and spindle assembly from the valve by removal of the spindle retaining clip.
7. Remove the burner unit, strip off the burner pipes and clean thoroughly.
8. Clean the in-line restrictor, pilot assembly and the burner tube. Do not attempt to remove the
pilot injector as this can cause damage.
9. Re-assemble components.
10. Turn on the gas supply and leak test. Check pilot and burner for good ignition.
11. Refit the glass door assembly, ensuring correct orientation and a good seal.
12. Refit the decorative facia/frame assembly as detailed in section 8.4.
13. Check the purpose provided ventilation is un-obstructed.
14. Light the fire and test setting pressures.
15. Check safe operation of the appliance.
For specific servicing instructions, see relevant sections.
SERVICING THE BURNER UNIT AND GAS ASSEMBLY
Firstly, remove the decorative glass facia assembly as described in section 8.4. Remove the inner glass panel, and
disconnect the gas connection inside appliance. The gas connections to the gas valve can now be released.
Detach the burner front cover plate by removal of the four retaining screws. Undo the four screws retaining the
burner support brackets to the base and rear of the firebox, and remove the control knob and spindle assembly
by removal of the spindle retaining clip. The burner may now be removed.
Remove the pilot and main burner pipes and blow through to dislodge any debris. Now remove the restrictor
elbow and blow through to make sure it is entirely clear.
Unclip the pilot lint gauze and clean with a soft brush. Clean the exterior of the pilot assembly with a soft brush
and blow through the flame ports on the pilot head. Check the aeration holes are free from lint or dirt. The pilot
assembly can be removed if required by disconnecting the electrode HT lead, gas pipe and unscrewing the
mounting screws and lifting away.
The pilot assembly is a non-serviceable item and should not be taken apart. Aeration holes must be absolutely
clear internally for proper operation.
NEVER MODIFY OR BEND THE THERMOCOUPLE TO MAKE THE PILOT
STAY ALIGHT
. Modifications are dangerous and can have serious unseen effects on safety. If the pilot will not
stay lit there is a problem with dirt, the gas supply to it, or the thermocouple needs replacement.
The gas valve is a non-serviceable item. If this needs replacement, remove M4 securing screw holding the valve
in place, remove all pipe unions, electrode lead, thermocouple lead and then the complete valve. Replacement
must be original manufacturers parts. Re-assembly is the reverse of removal. Ensure setting pressures are as stat-
ed in Section 2; Appliance Data.
8
10.0
9.0
10.1

PILOT ASSEMBLY
Clean the pilot assembly with a soft brush and blow through. Check the aeration holes are free of any dirt or
lint. Clean thoroughly internally, the connection can be removed from the base of the pilot unit using two span-
ners to make cleaning easier. Do not damage or try to dismantle the pilot injector.
The unit is factory set and the only check necessary is to ensure the spark gap is correct. See specifications for
gas setting.
NEVER MODIFY OR BEND THE THERMOCOUPLE TO MAKE THE PILOT STAY ALIGHT
. If the pilot will not stay
lit there is a problem with dirt, the gas supply, or the thermocouple needs replacement. Modifications are dan-
gerous and can have a serious unseen effect on safety and therefore MUST not be done. Replacements must be
original manufacturers parts. Re-assemble in the reverse of removal. Ensure setting pressures are as stated in
Section 2; Appliance Data.
CATALYST
It is recommended that the catalysts are inspected for signs of damage and dirt during routine servicing proce-
dures. The expected life of the catalysts is in excess of 11,000 hours (10 years of normal use). After this time the
catalysts should be replaced.
If there are any deposits of dirt or soot on the catalyst they should be cleaned with a soft brush and a vacuum
cleaner. If removed for cleaning ensure the seals are in good condition before replacing the catalyst. New seals
will usually be required. The performance of the catalysts may be checked using a combustion gas analyser as
follows. Any analyser used should conform to EN 50379-3.
Ignite the fire as per the operating instructions, and run at maximum setting for 15 minutes. Position gas sample
probe directly over the catalysts via the outlet grille, on top of the appliance. Record the carbon dioxide (CO2)
concentration and then the carbon monoxide (CO) concentration as displayed by the analyser - also noting the
units in which the values are expressed.
Most analysers display carbon dioxide (CO2) concentrations in percentage (%) terms and carbon monoxide
concentration in parts per million (ppm) terms.
In order to calculate the combustion ratio for the appliance (CO/CO2) it is first necessary to express both gas
concentrations in terms of percentage. To convert from parts per million (ppm) to a percentage (%) divide the
ppm figure by 10,000. Examples : 35ppm = 0.0035%, 15ppm = 0.0015%, 5ppm = 0.0005%.
Now divide the concentration of carbon monoxide (CO) expressed in percent by the concentration of carbon
dioxide (CO2) to obtain the appliance combustion ratio.
The combustion ratio of the gasses emitted by the catalytic convertor should not exceed 0.0015.
If replacing, firstly, remove the decorative frame/glass facia as described in section 8.4. The catalysts are located
on the top of the internal firebox and can be removed be unscrewing the retaining nuts securing the clamping
plates. Remove the catalysts their seals and discard. Refit the new catalysts and seals in reverse order, ensure the
catalysts and the glass door have good seals.
TESTING FOR FIREBOX LEAKAGE
Appliances that are several years old or have been extensively dismantled should be checked for soundness. It
is important that all the products of combustion pass through the catalytic converter at the top of the firebox
before leaving the appliance.
The firebox is heated by lighting for a few minutes to provide a flow through the firebox. The burner is then
shut off and a smoke pellet or match introduced at the base of the fire underneath the burner tray. Large
quantities of smoke will emerge from the top of the appliance, but none should emerge from the joints or gas-
ket faces, especially around the door.
It is important to note that the appliance can never be expected to be 100% smoke tight and small quantities
of smoke may be seen in corners of joints and gasket faces etc without affecting safety when the fire is in
operation.
9
10.3
10.2
CO (%)
CO2 (%) = ratio
10.4

TROUBLESHOOTING GUIDE
Fire sparks but pilot does not light
No gas to fire, check isolators are open.
Pipe work blockage, clean out.
Air not fully purged, re purge supply or wait longer.
Spark earthing to metal work, reset gap correctly.
Blocked pilot, clean out internally.
Pilot lights but then goes out
Severe restriction in gas supply: clear obstruction.
Faulty thermocouple, replace pilot unit.
Blocked pilot, clean out.
Blocked lint gauze, clean.
Hold control knob in for longer.
Check control knob does not foul indicator plate.
If the pilot will not stay lit there is a problem with dirt,
the gas supply, or the thermocouple needs replacement.
Modifications are dangerous and can have a serious
unseen effect on safety. NEVER MODIFY OR BEND THE
THERMOCOUPLE TO MAKE THE PILOT STAY ALIGHT.
Fire does not spark at pilot
HT lead detached, refit.
Check the spark gap (see section 8.2).
Faulty piezo unit, replace.
Debris shorting out electrode, clean.
Spark shorting to metalwork under tray, realign HT lead.
Fire runs for a time and then cuts off Loose or faulty thermocouple, rectify.
Blocked pilot, clean out.
Dirt or lint in pilot aeration hole or on the lint gauze,
clean thoroughly.
If the pilot will not stay lit there is a problem with dirt,
the gas supply, or the thermocouple needs replacement.
Modifications are dangerous and can have a serious
unseen effect on safety. NEVER MODIFY OR BEND THE
THERMOCOUPLE TO MAKE THE PILOT STAY ALIGHT.
Pilot flame shrinks when fire is on high
Poor gas flow to fire, check pressure with fire on high.
If pressure is low, remove any restriction in pipework or
valve.
Check all isolators are adequately sized and fully open.
Check meter pressure is adequate.
If the pilot will not stay lit there is a problem with dirt,
the gas supply, or the thermocouple needs replacement.
Modifications are dangerous and can have a serious
unseen effect on safety. NEVER MODIFY OR BEND THE
THERMOCOUPLE TO MAKE THE PILOT STAY ALIGHT.
Fire smells when first lit or in use
Newness smell from brand new appliance.
Leakage occurring. Carry out leakage test and rectify
any problems.
Combustible materials used in incorrect positions.
10
11.0

USER INSTRUCTIONS
Section Content Page No
1.0 Important Notes 1
2.0 Clearances to Combustibles 2
3.0 Ventilation & Room Size 2
4.0 Operating Instructions 3
5.0 Combustion Monitoring System 3
6.0 Cleaning 3
7.0 Servicing 3
8.0 List of Replacement Parts 3
IMPORTANT NOTES
The installation and Servicing of this fire MUST only be carried out by a competent person (such as a CORGI
registered fitter) in accordance with the Gas Safety (Installation and Use) Regulations 1998, the relevant British
Standards, Codes of Practice, the Building Regulations and the manufacturer's instructions.
Failure to comply with the above recommendations could lead to prosecution and invalidate the appliance
warranty.
Always keep a note of the installer's name and address, CORGI registration number, the original purchase
receipt and the date of installation for future reference. Failure to produce these documents may invalidate the
warranty.
The appliance should be serviced regularly to ensure continued safe operation. See the servicing section for
further reference.
Parts of this appliance become naturally hot during use. It is recommended that a suitable fireguard conform-
ing to BS 8423 : 2002 is used, especially where young children, pets, the elderly or infirm are concerned.
The manufacturer of this appliance considers all surfaces as working surfaces with the exception of the control
knob and indicator bracket.
Combustible items, such as flooring and furniture and soft wall coverings (such as blown vinyl or embossed
paper), low temperature surrounds etc may discolour if fitted too close to the fire. See relevant section for fur-
ther details on clearances to combustibles. No combustible materials or flooring should protrude onto the
hearth (if fitted).
This appliance incorporates a combustion monitoring system (ODS).
DO NOT burn any foreign material on this fire. Under no circumstances shall the appliance be used if the
glass front door or panel has been removed, damaged or is open.
DO NOT place any objects on top of the appliance, or cover the outlet grille in any way. DO NOT operate the
appliance with any parts removed or missing.
The integral catalysts should be checked by the installer upon servicing to ensure there are no defects or
obstructions that may prevent the satisfactory flow of combustion products.
The expected life of the catalyst is in excess of 11,000 hours (10 years of normal use). After this time the cata-
lyst should be replaced.
This appliance is only suitable for the gas type for which it is supplied.
It should be noted that heaters create warm air currents. These currents move heat to wall surfaces next to the
heater. Installing the heater next to vinyl or cloth wall coverings or operating the heater where impurities in the
air (such as tobacco smoke) exist, may discolour walls.
WARNING: Due to the nature of this product the area around the top of the appliance (i.e. the grille) gets very
hot. Care should be taken when operating the appliance.
1
1.0

CLEARANCES TO COMBUSTIBLES
Clearances to combustible materials
Combustible materials are defined as wood, fabrics, or other materials likely to combust if exposed to flame.
Generally, any material, which is likely to discolour, melt or misshape when exposed to moderate heat, should
be considered as a combustible material or surface.
Clearance to the sides of the appliance are 100mm(4in) but curtains, drapes and other fabrics are not permitted
within a distance of 500mm(20in) of the appliance sides. No such materials are permitted directly above the
appliance regardless of distance.
The minimum clearance to the ceiling above the appliance is 800mm measured from the top of the appliance
glass panel.
Combustible materials should not be positioned directly in front of the appliance within a distance of one metre.
Under no circumstances should any electrical equipment e.g. plasma screen TV sets etc. be positioned on the
wall above the appliance. The appliance is designed to be wall mounted alone and not in conjunction with any
type of combustible fire surround. No combustible shelves should be positioned on the wall above the appli-
ance. It should be established that any mirrors or picture frames etc. to be positioned on the wall above the appli-
ance are able to withstand prolonged moderate heat before proceeding with their installation.
The back of the appliance may be installed directly onto a combustible wall, providing it is relatively flat and does
not interfere with the various vent holes in the back panel of the appliance. The wall must be structurally sound
and constructed from a material capable of withstanding moderate heat. Finished plaster, conventional wall
paper and dry-lined plasterboard are examples of suitable materials. Materials such as flock, blown vinyl and
embossed paper which are sensitive to even small amounts of heat should be avoided as scorching and or dis-
colouration may occur over time.
The appliance must not be positioned vertically within 100 mm of a carpeted floor, rugs or fabric materials of
any kind. This dimension is measured vertically to the bottom of the appliance firebox.
Clearances to non-combustibles
Non combustible surfaces are defined as brick, metal, marble, concrete etc. and also a number of man-made
materials impervious to flame. If in doubt refer to the material manufacturer for further information before pro-
ceeding with installation.
Clearances to the sides of the appliance are 100mm (4in). Clearance to the front of the appliance is 500mm
(20in).
The back of the appliance may be installed directly onto a non-combustible wall, providing it is relatively flat and
does not interfere with the various vent holes in the back panel of the appliance.
A non combustible shelf of any depth may be positioned above the appliance provided it is no closer than
400mm from the top of the appliance glass panel and the wall above the appliance is non combustible.
The appliance must not be positioned vertically within 60mm of a solid floor (i.e. wood or stone) or hearth. This
dimension is measured vertically to the bottom of the appliance firebox.
VENTILATION AND ROOM SIZE
Purpose provided ventilation of 100cm2is required for this appliance. An openable window or equivalent is
also required. The appliance should not be installed within 500mm of any air vent.
Any ventilation fitted must comply with BS 5871 part 4 and BS 5440 part 2. Ventilation fitted under, or within
immediate vicinity of the appliance must not be used as it may adversely effect performance of the combus-
tion monitoring system (ODS) system.
The requirements of other appliances operating in the space or room must be taken into consideration when
assessing ventilation requirements, this will have been carried out by your CORGI registered
installer.
A supply of fresh air into the room is advisable to maintain temperatures within limits. The appliance MUST
NOT be installed in a bedroom or bathroom. For Republic of Ireland, see relevant rules in force.
2.0
3.0
2

VENTILATION AND ROOM SIZE (continued)
The room size should be a minimum of 23m3(e.g. 10’1” x 10’1” x 8’) to allow adequate circulation of air and
ensure the correct operation of the fire. This volume may include adjacent spaces but these spaces must not
be separated by a door. To calculate a room size in cubic metres (m3) divide the room volume in cubic feet
(ft3) by 35.3. This appliance is intended as a secondary source of heat only and should not be used in a room
without some form of background heating present.
OPERATING INSTRUCTIONS
The pilot is visible behind the left hand side of the burner.
The control knob is located on the lower right hand side of the outer
case. It is of a spherical design and is marked as shown in the dia-
gram to the right.
Push in and turn the control knob to the SPARK position, and hold
there for a few seconds. Continue turning anti-clockwise through the
spark click to the PILOT light position, ensuring the pilot has lit. If not,
return the knob clockwise, and repeat.
When the pilot lights after the spark, keep the knob depressed for
approximately ten seconds. Now release the knob and the pilot
should stay alight. If the pilot is extinguished during use, wait three
minutes before repeating the ignition procedure.
To achieve the HIGH setting, push the control knob in slightly and
continue turning anti-clockwise to the high position. The main burn-
er should light after a few seconds. To decrease the setting to LOW,
turn the control knob clockwise to the low setting.
To turn to the PILOT position from the HIGH or LOW positions, press the control knob in, and return to the pilot
position and release. To turn the fire OFF, keep the knob pressed in, return to the off position and release.
COMBUSTION MONITORING SYSTEM
This fire is fitted with a combustion monitoring safety device (ODS). If the appliance shuts down during use for
no apparent reason then several reasons may be suspected. If a door or window has been opened creating a
draught, then pilot disturbance could be the problem and removal of the draught should resolve this. The appli-
ance can then be re-lit in accordance with the previous section.
If pilot disturbance is not the cause, then the ODS safety system may be in operation. Switch the appliance OFF,
call in your installer to check the appliance and ventilation. Remedial work must be carried out as required. DO
NOT allow the appliance to be used until the appliance and installation is passed as safe. If the pilot continues
to be extinguished, you must call your installer to check the operation of the complete appliance.
CLEANING
Before carrying out any of the following operations, ensure that the appliance is OFF and completely cold.
INNER GLASS PANEL - This can be cleaned with a suitable glass cleaner, or propriety ceramic hob cleaner.
Test on a small area first.
GLASS FACIA PANEL - This should only be cleaned using a suitable glass cleaner. Test on a small area first.
PAINTED AREAS - These can be cleaned using a dry cloth.
SERVICING
The appliance should be checked on an annual basis to ensure it is working safely. The frequency of service
will depend on usage, but MUST be carried out at least once annually. Servicing must be carried out by a
competent person, such as a CORGI registered installer. The Installation instructions carry full servicing details
for the use of the installer.
LIST OF SPARE PARTS
PART NO. ITEM PART NO. ITEM
F960002 Glass door assembly F730023 Pilot assembly
FT003155/1 Gas valve TRAY055 Burner tray
F780081 Catalyst F940136 Seal kit for Catalyst
4.0
5.0
3.0
‘OFF’ position
‘SPARK’ position
‘LOW’ position
‘HIGH’ position
7.0
6.0
8.0
F860473
As our policy is one of continuous improvement and development , we hope therefore you will understand we must retain the right
to amend details and/or specifications without prior notice.
3
