Focal Point SLIMLINE EVOKE Assembly Instructions

I STALLATIO & USER I STRUCTIO S
All instructions must be handed to the user for
safekeeping.
MODELS COVERED BY THESE I STRUCTIO S
SLIMLI E EVOKE LCD ELECTRIC
SE2015
Please note : Except where otherwise stated, all rights,
including copyright in the text, images and layout of this
booklet is owned by Focal Point Fires plc. You are not per-
mitted to copy or adapt any of the content without the
prior written permission of Focal Point Fires plc.
1
Revision F - 08/15
©2015 Focal Point Fires plc.
Figure 1 : Evoke
GB IE
WALL MOU TED LCD ELECTRIC FIRE
Focal Point Fires plc.
Christchurch, Dorset BH23 2BT
Tel: [phone]
Fax: [phone]
www.focalpointfires.co.uk
e - mail : [email protected].uk
Questions or problems with your appliance?
Don’t take it back to the store
just give us a call on 01202 588601 we’re here to help
lines open between 9am and 5pm, onday to Friday

The Evoke Electric Wall Heater provides convected heating in conjunction with an LCD screen which can display a number of different fuel
effects and scenes. The appliance is designed for indoor use, and can be simply wall mounted in the majority of wall positions anticipated. It can
be located in any household room, with the exception of bathrooms. Read all of the instructions before commencing installation. Retain for future
reference and pass on as necessary to subsequent owners of the appliance.
1.0 PRELIMI ARY OTES
I S TA L L AT I O & U S E R I S T R U C T I O S
2
GB IE
©2015 Focal Point Fires plc.
Section Contents Page o.
1.0 Preliminary otes 2
2.0 Appliance Data 3
3.0 Electrical Installation Requirements 3
4.0 Site Requirements 3
5.0 Clearances to Combustible Materials 3
6.0 Unpacking the Appliance 4
7.0 Component Checklist 4
Section Contents Page o.
8.0 Fixing the Appliance 4
9.0 Operating the Appliance 5
10.0 Safety Cut-Out System 6
11.0 Cleaning and Maintenance 6
12.0 Servicing 6
13.0 Appliance Dimensions 7
14.0 Guarantee - Terms and Conditions 7
IMPORTA T - THESE I STRUCTIO S SHOULD BE READ CAREFULLY
A D RETAI ED FOR FUTURE REFERE CE.
When using this electrical appliance, basic precautions should be followed to reduce the risk
of fire, electric shock and injury to person, including the following:
• This heater must be used on an AC supply only and the voltage marked on the heater’s
rating label must correspond to the supply voltage.
• DO OT switch the appliance on until it is properly installed as described in this
manual.
• This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the appliance. Cleaning and
user maintenance shall not be made by children without supervision.
• Children of less than 3 years should be kept away unless continuously supervised.
Children aged from 3 years and less than 8 years shall only switch on/off the appliance pro-
vided that it has been placed or installed in its intended normal operating position and they
have been given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children aged from 3 years and less than 8 years shall not
plug in, regulate and clean the appliance or perform user maintenance.
• CAUTIO : Some parts of this product can become very hot and cause burns.
Particular attention has to be given where children and vulnerable people are present.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
• The heater must not be located immediately below a socket-outlet.
• DO OT use this heater in the immediate surroundings of a bath, a shower or a swim-
ming pool.
• WAR I G: In order to avoid overheating, do not cover the heater.
• DO OT use this heater with a programmer, timer, separate remote-control system or
any other device that switches the heater on automatically, since a fire risk exists if the
heater is covered or positioned incorrectly.
• CAUTIO : In order to avoid a hazard due to inadvertent resetting of the thermal
cutout, this appliance must not be supplied through an external switching device, such as a
timer, or connected to a circuit that is regularly switched on and off by the utility.
• Keep furniture, curtains and other fabric material away from the appliance.
• DO OT leave the appliance unattended during use.
• From time to time, check the cord for damage. Never use the appliance if the cord or any
part of the appliance shows signs of damage.

It is important that the following clearances are maintained from the appliance to combustible materials and are dependant on the desired
mounting location as defined below.
This appliance is designed to be wall mounted only. Do not stand it on the floor.
The minimum distance from the top of the appliance to a ceiling is 500mm.
The minimum distance from the bottom of the appliance to the floor is 100mm.
The minimum distance to the sides of the appliance is 100mm.
The minimum distance to the front of the appliance is 500mm.
4.0 SITE REQUIREME TS
5.0 CLEARA CES TO COMBUSTIBLE MATERIALS
©2015 Focal Point Fires plc.
3
3.0 ELECTRICAL I STALLATIO REQUIREME TS
• DO OT run the mains cable under carpets, rugs etc.
• DO OT cover or obstruct the heater in any way. Overheating will result if it is acci-
dentally covered.
• Never immerse the product in water or any other liquids.
• DO OT use the appliance outdoors.
• Before cleaning the appliance, ensure it is unplugged from the power and that it is com-
pletely cool.
• DO OT clean the appliance with abrasive chemicals.
• Never use accessories that are not recommended or supplied by the manufacturer. It
could cause danger to the user or damage to the appliance.
• DO OT insert or allow foreign objects to enter the inlet or outlet vents as this may
result in electric shock, fire or damage to the appliance.
• DO OT install the fire using an extension cord.
• Unplug from the mains supply if the appliance is not to be used for long periods.
The appliance is designed to be wall mounted via the wall mounting plate and fixings provided. The wall should be relatively flat and not inter-
fere with any of the ventilation slots in the appliance casing.
The wall must be structurally sound and of a material capable of withstanding moderate heat. Finished plaster, conventional wallpaper, dry-lined
plaster board are examples of suitable materials. aterials such as “flock” blown vinyl”, embossed paper and cloth wall coverings which are sen-
sitive to even small amounts of heat should be avoided, as some discolouration may occur. It should be noted that the appliance creates warm
convected air currents. These currents move heat from the room surroundings to, and up the wall surfaces adjacent to the heater.
Installing the heater next to these types of wall coverings or operating the heater where impurities in the air, (such as tobacco smoke) exist,
may slightly discolour wall finishing.
If the appliance is to be mounted on a dry lined or timber framed construction then the integrity and ability of the wall to carry the weight of
the appliance must be confirmed. It is important in these circumstances that any vapour barrier and/or structural members of the house frame
are not damaged. If you are unsure of the ability of the wall to carry the weight and/or which type of wall fixing to use, you should take pro-
fessional advice and obtain the correct fixings. Alternatively, find a more suitable wall location.
DO OT -mount on a ceiling or floor.
-recess any part of the appliance into the wall.
-site any electrical equipment e.g. plasma screen TV sets etc,
on the wall above the appliance.
- site in a position where curtains or drapes could cover the appliance.
-site in a position where other soft materials could cover e.g. below a coat rack.
-site behind an opening door where mechanical impact/damage could occur.
-site where the supply cable would become a trip hazard.
-sit, stand or forcefully pull on the appliance.
-obstruct, cover or force items into the openings.
-use the heater to dry clothes.
- site/use in an outdoor location(s).
-run the supply cable under carpets.

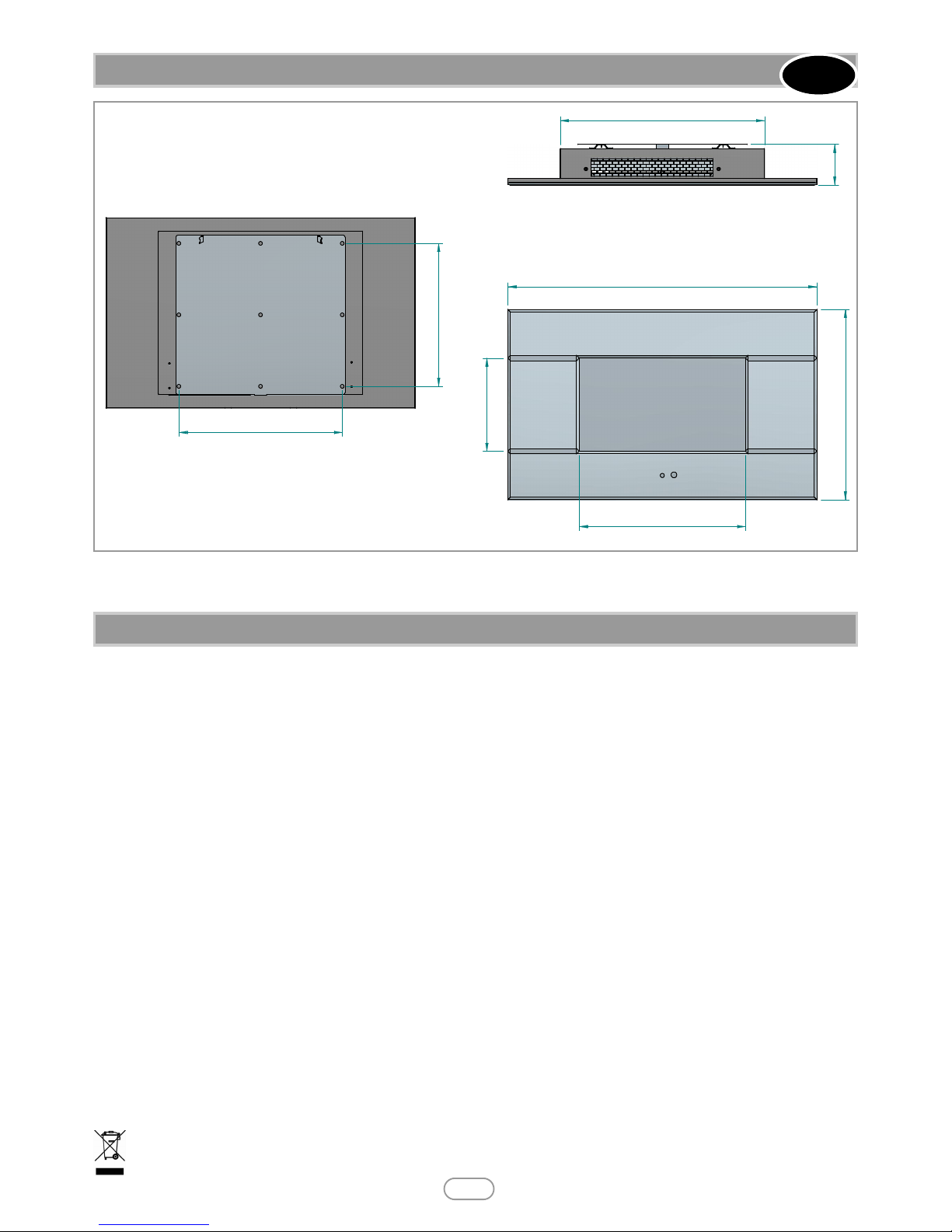

2.0 APPLIA CE DATA
Weight (kg): 17.0 kg Supply Cord: 2 metres
Dimensions (mm): H 466 x W 757 x D 100 Fuse: 13Amp
Supply Voltage and rating power: 220-240V a.c. 50/60Hz, 1716 - 2016 Location: Indoor Use
Heating Elements: 2 x 900/1000Watts (1.8 - 2.0kW) LCD Display: 16 Watts
DO OT RECESS A Y PART OF THE APPLIA CE.
The appliance is supplied with a pre-wired three pin plug (13 Amp fuse rated), and 2 metre cable. A standard switched outlet/wall socket, (includ-
ing earth provision), must therefore be located within this distance, and be easily accessible in order to isolate the supply for maintenance and
cleaning. This socket must not be mounted behind or above the appliance.
IMPORTA T: THIS APPLIA CE MUST BE EARTHED.
1.0 PRELIMI ARY OTES - CO TI UED GB IE

4

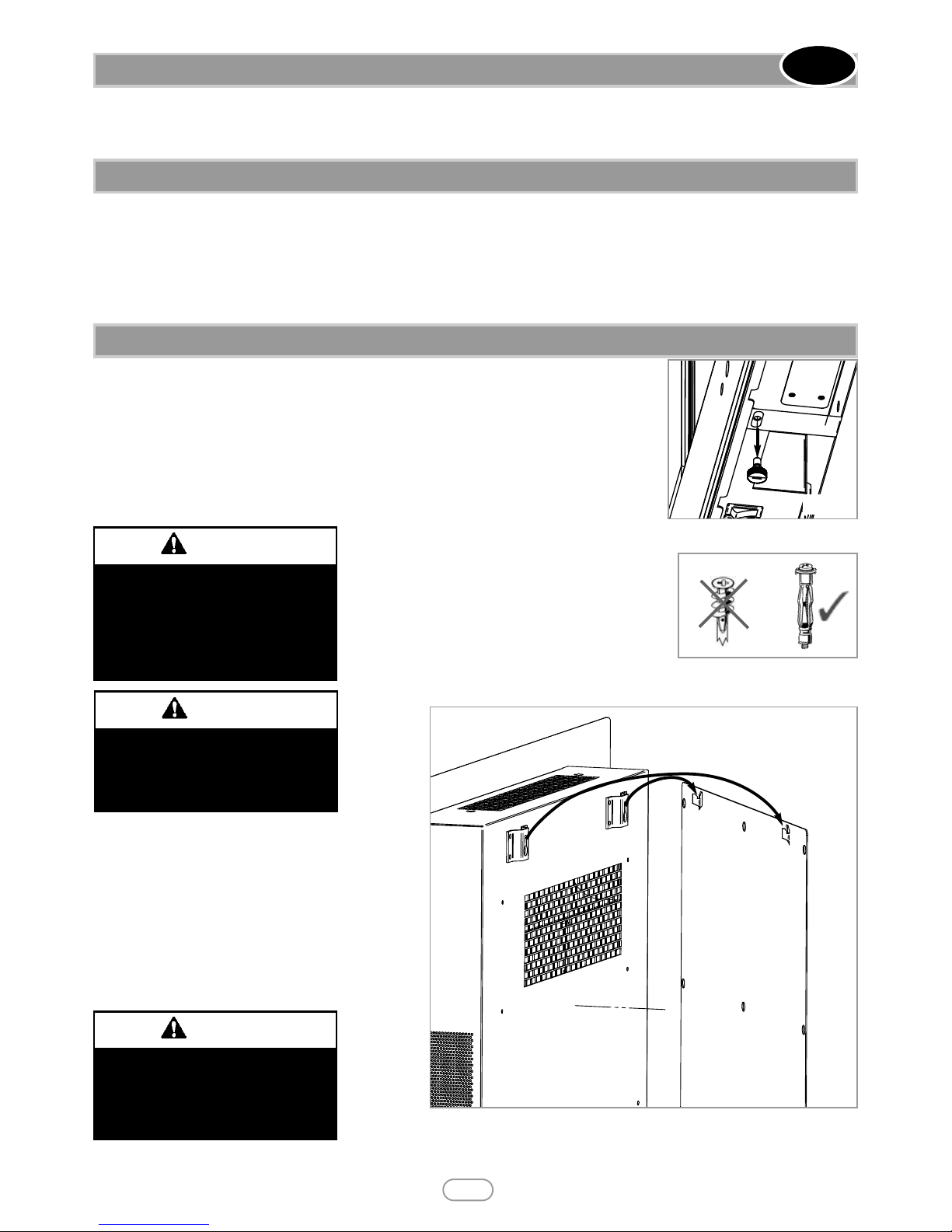

8.0 FIXI G THE APPLIA CE
DO OT connect the appliance to the supply at this stage. Remove the single thumbscrew from
the middle of the base panel of the appliance, then remove the wall mounting plate from the appliance.
After having selected the final mounting position of the appliance, taking into account the requirements as spec-
ified in sections 3.0, 4.0 and 5.0 of these instructions, the integrity of the wall, and the feasibility of the proposed
supply cord routing, the wall mounting plate may be secured to the wall. To ensure safety, be sure to design the
installation so that the strength of both the wall and any wall fixings used are sufficient.
Focal Point Fires plc. assumes absolutely no responsibility for injuries and damages that may occur due to
improper installation or handling. The appliance should not be installed until all wet plastering and/or dry
wall sanding and wall painting has been completed. Do not block the ventilation holes of the appliance.
The wall onto which the appliance is installed must be flat. Install only on a vertical surface. Avoid sloped
surfaces. Installation onto anything other than a vertical wall may result in fire, damage or injury.
If the appliance is to be mounted on the inner leaf of a conventional cavity brick wall, or a solid
wall, then the wall plugs and fixing screws provided may be used. Depending on the condition of
the wall it may be necessary to use additional fixings. In this
situation, any additional fixings and wall plugs should be of
the same size and type as the ones provided. Using a spirit
level to check correct horizontal alignment, hold the wall
mounting plate in the desired position and using a pencil,
mark out the position of the fixing holes on the wall.
Remove the mounting plate from the wall and drill four
holes using only a 8.0mm masonry bit to a depth of 43mm.
Insert the wall plugs provided ensuring they are flush to the wall. Using the screws provided, fix
the mounting plate to the wall.
If the appli-
ance is to be
mounted on
a dry lined
wall or a
t i m b e r
framed con-
s t r u c t i o n
wall then efforts should be made to fix in at least two posi-
tions vertically, into one of the wooden studs, or supporting
wooden members of the wall using two of the fixing screws
provided. If this is not achievable then the wall should be
strengthened using appropriate building materials.
If there is no alternative than to rely on some plasterboard
fixings then special cavity screw fixings or hollow wall
anchors will be required which are not supplied with this
product. These should be constructed from metal and not
plastic and of the design indicated in figure 3.
With the wall plate secured in position the heater unit can
be hung onto the wall plate. Ensure the two hooks at the top
of the wall
plate fully
engage the
k e y h o l e
shaped holes
in the brack-
ets at the
top of the
heater back panel as shown in figure 4.
Finally re-fit the thumbscrew to the base panel of the heater via the tab at the bottom of the wall
plate (see figure 2). This fixes the heater to the wall plate and will prevent the heater from falling off the wall in the event it is accidentally
knocked, for example.
©2015 Focal Point Fires plc.
Plasterboard alone is not considered
to be a structural material.
It is not recommended to rely on
plasterboard fixings alone to sup-
port the weight of the appliance.
WAR I G
The wall where the appliance is to
be installed must be capable of long-
term support of the total load of the
appliance. Measures should also be
taken to ensure sufficient strength
to withstand the force of earth-
quakes, vibration and other external
forces.
WAR I G
Ensure the frame is fitted correctly
and the remote control infrared sen-
sor can be seen through the hole in
the middle of the lower glass panel. If
not, appliance will not receive signals
from the handset.
IMPORTA T
Figure 4
Figure 3
Figure 2
QUA TITY DESCRIPTIO
1 Heater unit including LCD display
1 Decorative glass facia
1 Remote control handset
1 Wall mounting plate
1 ains supply cord
1 Instruction Booklet
4 37mm long round head screws
4 Wall plugs
7.0 COMPO E T CHECKLIST
Caution: This appliance is heavy. Always seek assistance whilst unpacking and/or during installation. Read all the instructions
before continuing to unpack or install this appliance. Carefully remove the appliance from its packaging and lay on the floor with it’s back sur-
face downward. Check that the remaining packaging contents correlate with the component checklist below. Please dispose of all packaging
with care at your local recycling centre.
6.0 U PACKI G THE APPLIA CE GB IE

Controlling the
LCD display panel
LCD on/off control: The LCD
display may be switched on and
off independently of the heater
functions by using the LCD on/off
button as shown in figure 14.
Scene select buttons: The
appliance is pre-programmed
with nine different scenes as
shown in figures 5 through 13.
These scenes have been specially
edited to run in a seamless loop.
When the appliance is switched
on, the log fire scene will auto-
matically run. To select a different
scene press the appropriate
scene select button to choose
the desired scene. During normal
operation the footage may occa-
sionally be seen to ‘freeze’ for a fraction of a second. This happens as the scene is recycled
to loop again. This is perfectly normal and should be no cause for concern.
Volume up, down and mute button: Some of the LCD scenes include sound effects.
These buttons raise and lower the volume. The ute button mutes the speakers. While the
speakers are muted, a symbol will be displayed on screen. Press again to de-activate.
The appliance can be switched off at any time, irrespective of the particular
mode selected, by simply switching the first switch marked (OI) to the “off ”
position. It is also recommended to unplug the power supply cable at the supply
outlet when not in use.
5©2015 Focal Point Fires plc.
Fig. 11 - Abstract scene Fig. 12 - Nature scene Fig. 13 - Aquarium scene
Fig. 8 - Gas fire (medium) Fig. 9 - Gas fire (high) Fig. 10 - Gas fire (Blue Flame)
Fig. 5 - Log fire Fig. 6 - Twig fire Fig. 7 - Coal fire
Scene
select
buttons
Volume
and
mute
buttons
Figure 14
LCD
on/off
control
Controlling the heater functions
The first switch marked (0I), controls the main power to the appliance and switches on the LCD display panel. This feature can be used inde-
pendently of the heating features.
The next switch, marked (*) operates the fan blower without heat, and can be used for cool air circulation. However for this feature, the
main power switch (0I), must also be in the “on” position.
The next switch, with a “single bar” marked (I) operates the low heat, (1000W/ 1.0KW) setting.
The next switch, with “two single bars” marked (II), operates the high heat, (2000W/ 2.0KW) setting.
To operate the fire in any of the above modes, the top switch marked (OI) must be switched to the “on” position.
To operate the fire, the (OI) switch must be on, followed by the (*)switch to start the blower. To obtain heat from the appliance, the
blower must be on and the I switch must then be operated for LOW heat, followed by the II switch for the HIGH heat setting.
Read All Instructions Before Use
Check that the heater outlet grille, mounted at the top of the appliance, is not covered or obstructed in any way, and ensure the power to the
fire is switched on. The power to the LCD display panel and the heater functions are controlled using four switches mounted on the bottom
of the appliance. The fire can be turned off by just unpluging the power cord.
9.0 OPERATI G THE APPLIA CE GB IE

6©2015 Focal Point Fires plc.
ALWAYS DISCO ECT THE APPLIA CE AT THE SUPPLY OUTLET SOCKET BEFORE U DERTAKI G A Y CLEA I G.
Except for periodic cleaning of dust, there are no specific requirements for care, other than regular cleaning of the general appliance. A wipe
with a dry cloth is normally sufficient. DO OT use abrasive cleaners as they can damage the finish. ake sure the heater outlet grille (locat-
ed on the top panel), and the air inlet mesh grilles (located on the sides and base panel) are kept clear of dust, pet hair and other airborne
household matter. These should be vacuum cleaned periodically using a brush attachment.
GLASS FACIA PANEL - This should only be cleaned using a suitable glass cleaner. Test on a small area first.
11.0 CLEA I G A D MAI TE A CE
12.0 SERVICI G
There are no internal user serviceable parts.
Check regularly for security of wall fixings as appropriate. Also check security of supply cable and connections. If the supply cable
becomes damaged, it must be replaced by a service agent or competent person, such as a qualified electrician.
This appliance is supplied with a 3 pin plug fitted with a 13 Amp fuse. Should the fuse require replacing, it must be replaced
with a fuse rated at 13 Amp. In the event of the mains plug being removed/ replaced for any reason, please note : IMPOR-
TA T: The wires in the mains lead are coloured in accordance with the following code:
Blue - Neutral
Brown - Live
Green/ Yellow - Earth
As the colours of the wires in the mains lead of this appliance may not correspond
with the colour markings identifying the terminals in your plug, proceed as follows.
The blue wire must be connected to the terminal marked with an N or coloured
black. The brown wire must be connected to the terminal marked with an L or
coloured red. The green/yellow wire must be connected to the earth terminal which
is marked with an E or with the earth symbol. WAR I G: Never connect live or
neutral wires to the earth terminal of the plug.
NOTE: If a moulded plug is fitted and has to be removed take great care in disposing
of the plug and severed cable, it must be destroyed to prevent engaging into a sock-
et.
Refer to Section 2.0, Appliance Data for fuse specification. Excluding fuses, use only
genuine manufacturers spare parts available from your supplier.
10.0 SAFETY CUT-OUT SYSTEM
OTE: The LCD display panel will remain operational if the cut-out is activated, only the fan heater elements are prevented
from operating.
This product has one non-self-resetting overheat protection device (thermal cut-out) which will activate if the air inlets or out-
lets are obstructed. For safety reasons the fire will NOT switch on again automatically, the following procedure must be carried
out before the fire can be operated.
NOTE: The visual effect will remain operational if the cutout is activated, only the fan heater is prevented from working.
Switch OFF the appliance at the wall socket or outlet. Leave the fire OFF for a period of no less than 10 minutes, ensuring all
obstructions are removed. Switch the appliance ON at the wall. Ensure the appliance is turned ON at the control switches. If
the fire fails to operate correctly, repeat the above procedure. If an attempt to switch on the appliance is made before the safe-
ty cutout has reset, the appliance may cutout for a further period of time. If the sequence has been followed correctly and the
appliance still fails to function, check the fuse in the wall outlet. If this is not the cause, call an electrician or maintenance engineer.
GB IE
Figure 15

7©2015 Focal Point Fires plc.
F860592
14.0 GUARA TEE - TERMS A D CO DITIO S
As our policy is one of continuous improvement and development, we therefore hope that you will understand we must retain the right to amend details and/or specifications without prior notice.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.
Registration is not required.
1. For any claim to be made within the 3 years from date of purchase you will be required to provide and supply us with your original proof
of purchase.
2. Purchase(s) must be made through an authorised stockist/retailer.
During the guarantee period any product or component which is proved to be faulty or defective in manufacture, will be repaired or replaced
free of material and labour charges, providing that we have authorised or carried out the repair or replacement.
We will not accept or reimburse the costs of any third party who undertakes any work carried on the product or fits parts, unless we have
approved such work in advance of it being carried out.
The guarantee period will not be extended even if we repair or replace any product or part.
For all electric fires purchased the 3 year guarantee commences from the date of purchase, providing that you can supply the proof of pur-
chase. This does not cover consumable items such as pebbles, coals or light bulbs. Purchase(s) must be made through an authorised stockist.
aking a claim
aking a claim is easy. If you wish to make a claim under our guarantee and all the terms and conditions for your product have been met
then please submit the following information for the attention of the 3G Service Department to the address below. Alternatively, you can
email or fax.
Focal Point Fires, 3G Service Department, Reid Street, Christchurch, Dorset, BH23 2BT.
Email: [email protected].uk,
Fax. [phone].
Details required:
1. Name, full address including postal code and contact telephone number.
2. A copy of your proof of purchase e.g. receipt or bank statement.
Please note that this does not affect your statutory rights.








Figure 16
13.0 APPLIA CE DIME SIO S GB IE
