Focal Point F500056 Assembly Instructions

INSTALLATION & USER INSTRUCTIONS
MODELS COVERED BY THESE INSTRUCTIONS
BLENHEIM 20” FULL DEPTH GAS FIRE F500056
FULL DEPTH INSET GAS FIRE
GB IE
Focal Point Fires plc.
Christchurch, Dorset BH23 2BT
Tel: [phone]
Fax: [phone]
www.focalpointfires.co.uk
e : [e-mail]
BLENHEIM 20”
BS7977-1 : 2009
BS EN 509 : 2000
KM579168
All instructions must be handed to the user for
safekeeping.
Please note : Except where otherwise stated, all rights, including copyright
in the text, images and layout of this booklet is owned by Focal Point Fires
plc. You are not permitted to copy or adapt any of the content without
the prior written permission of Focal Point Fires plc. Revision B - 02/12
IN THE UK ALWAYS USE A GAS SAFE REGISTERED ENGINEER TO INSTALL, REPAIR OR SERVICE THIS APPLIANCE
© 2012 Focal Point Fires plc.

• This appliance is an Inset Decorative Fuel Effect appliance which provides radiant warmth utilising the latest type burner technology.
• The fire is designed to suit various types of fireplaces and natural draught flues as detailed in this manual.
• The appliance must be installed by a competent person in accordance with Gas Safety (Installation and Use) Regulations 1998. It is
strongly recommended that a GAS SAFE registered engineer be used for this purpose.
• Read all these instructions before commencing installation.
• This appliance must be installed in accordance with the rules in force and used only in a sufficiently ventilated space.
• The appliance is designed for installation on to a non-combustible hearth of at least 300mm depth.
• This appliance is factory set for operation on the gas type, and at the pressure stated on the appliance data plate.
• In the event of gas leakage from the appliance, the gas supply must be turned off at the nearest isolating valve.
• The appliance must be installed in accordance with the following:
• Failure to comply with the above could lead to prosecution and deem the manufacturer’s warranty invalid.
• The appliance is designed to fit various types of situations as described in sections 3.0 and 4.0.
• It should be noted that heaters create warm air currents. These currents move heat to wall surfaces next to the heater. Installing the
heater next to vinyl or cloth wall coverings or operating the heater where impurities in the air (such as tobacco smoke, candle smoke
etc.) exist, may cause the walls to become discoloured.
• WARNING: The manufacturer of this appliance considers all surfaces as working surfaces with the exception of the control knob
and ash pan door.Where young children, pets, the elderly or infirm are concerned, a suitable fireguard should be used.
• Consult ALL instructions before installation and use of this appliance.
• This appliance is free from any asbestos material.
• Refractories and fuel bed are constructed from ceramic fibre.
INSTALLATION INSTRUCTIONS
2
GB IE
•Manufacturers' Instructions.
•The Building Regulations issued by the Department for Communities and Local Government, the Building Standards (Scotland)
(Consolidation) Regulations issued by the Scottish Development Department.
•Relevant British Standards insofar as the relevant areas are not covered by these instructions.
•For Republic of Ireland, reference should be made to the current edition of IS813 (the relevant standards governing installation).
1.0 IMPORTANT NOTES
© 2012 Focal Point Fires plc.
Section
1.0
2.0
3.0
4.0
4.1
5.0
6.0
7.0
7.1
8.0
9.0
10.0
11.0
11.1
11.2
11.3
11.4
Contents
Important Notes
Appliance Data
Installation Requirements
Site Requirements
Debris Collection Space
Ventilation
Pre Fabricated Flue Boxes
Unpacking the Appliance
Component Checklist
Preparing the Appliance
Preparing the Opening
Gas Supply Routing
Fitting the Firebox

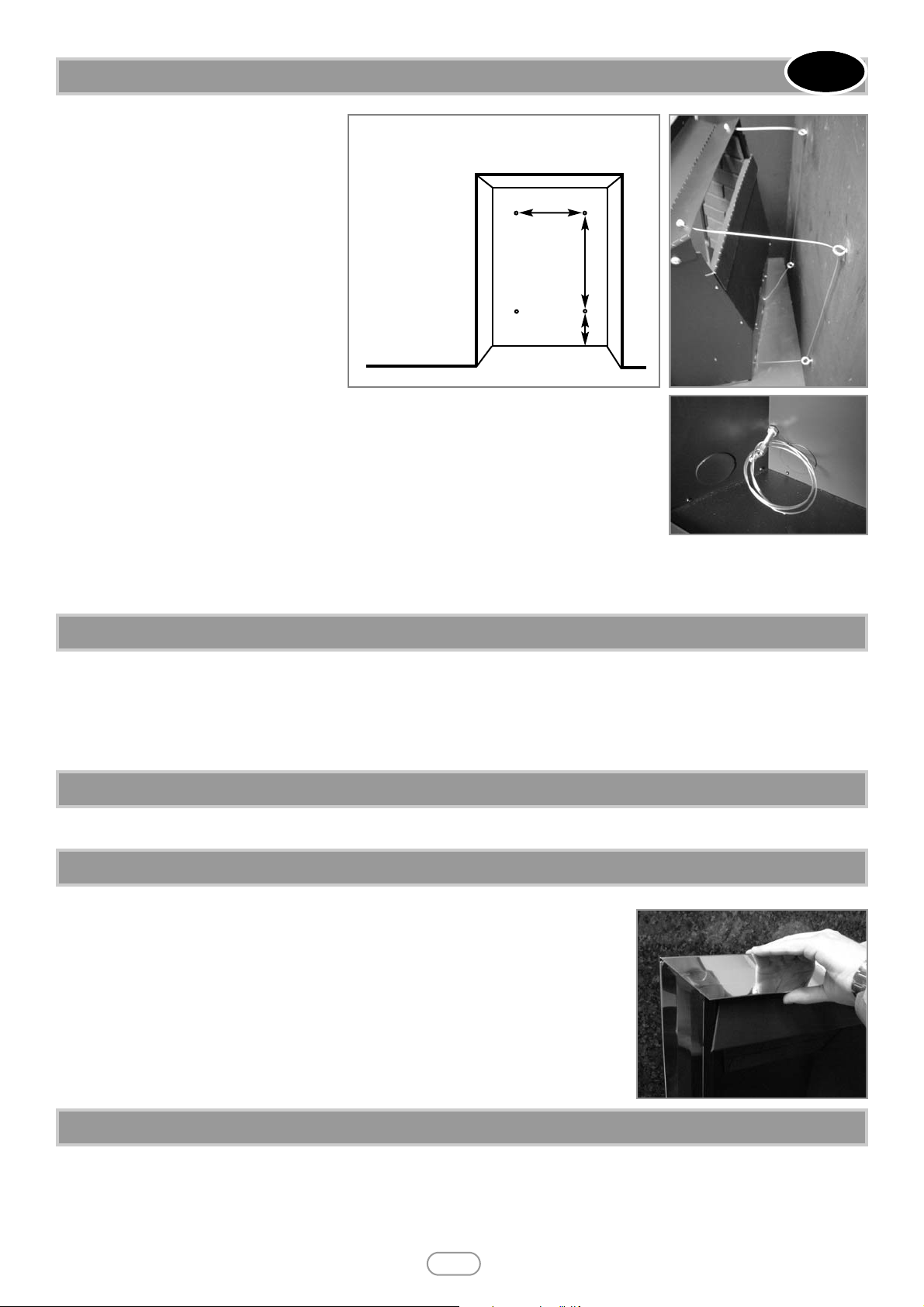

Installation by Cable Fixing Kit
Gas Connection

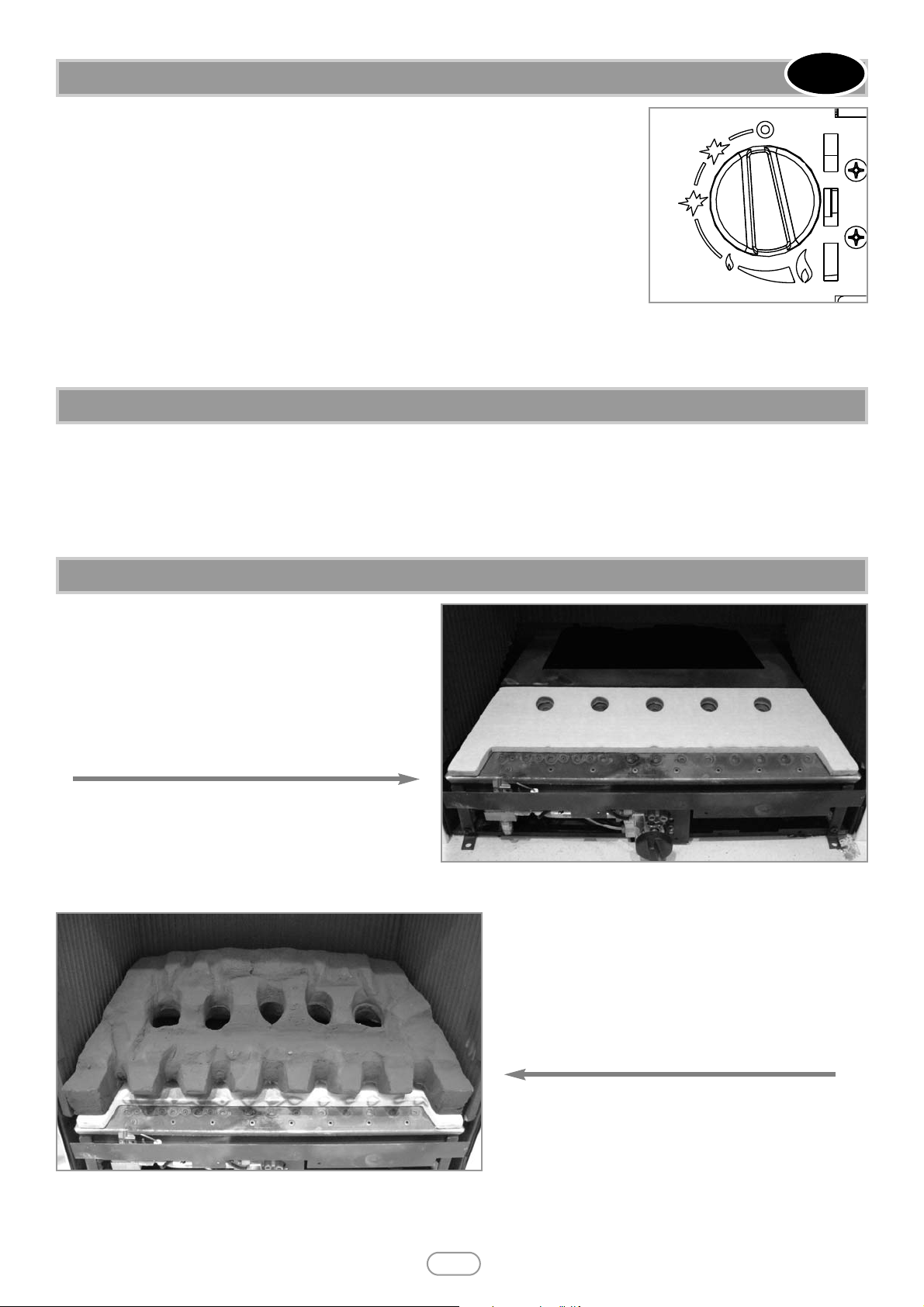

Fuel Bed Layout
Fitting the Firefront / Frame
Page No.
2
3
3
3
4
5
5
5
5
6
7
7
7
8
8
8
8
Section
12.0
12.1
12.2
12.3
12.4
12.5
12.6
13.0
13.1
13.2
13.3
13.4
13.5
14.0
Contents
Testing and Commissioning
Operating the Fire

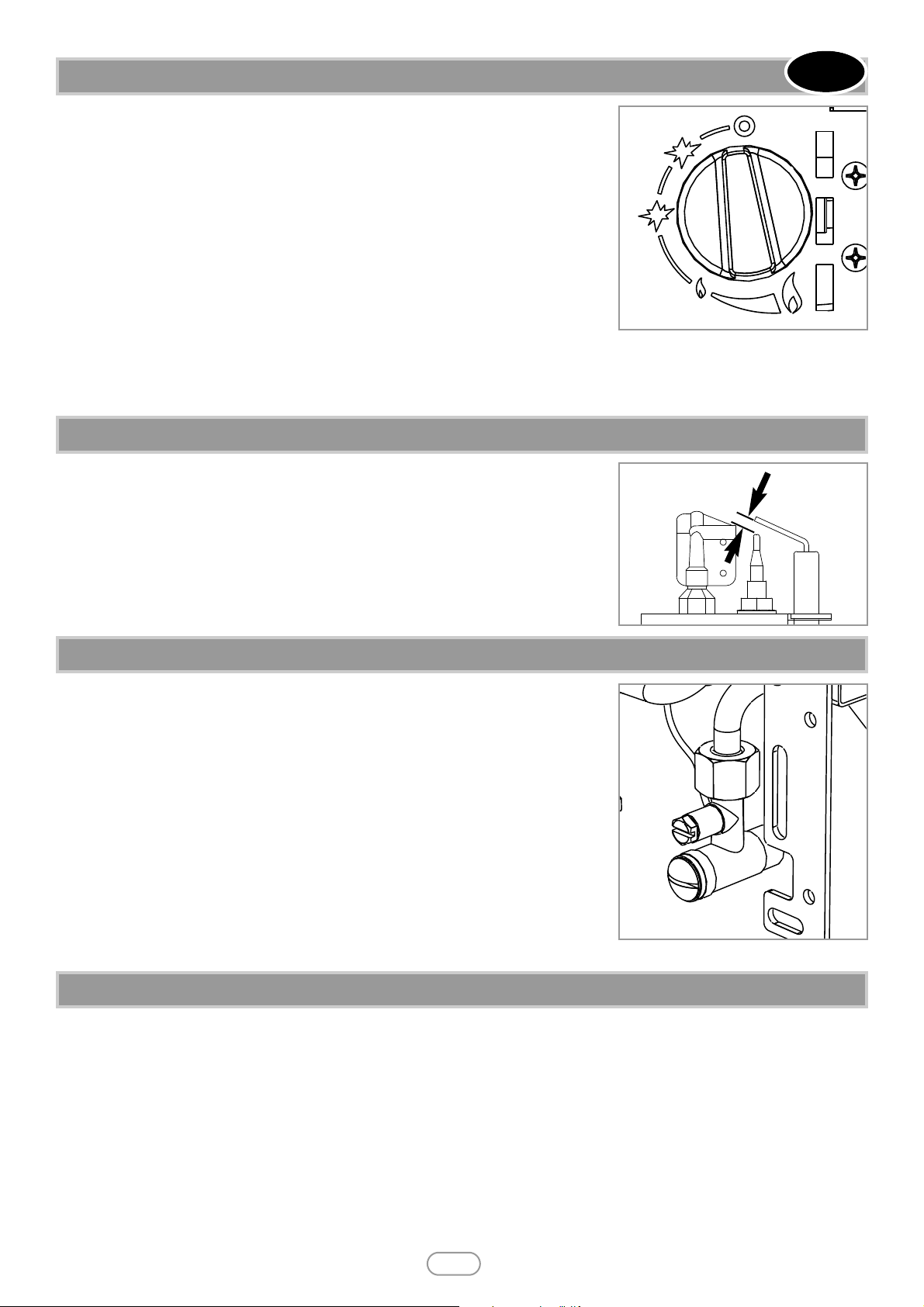

Spark Gap
Operating Pressure
Flue Spillage Monitoring System
Testing for Spillage
Briefing the customer
Servicing
Cleaning the Ceramics
Removing the Burner
Servicing the Burner
Pilot Assembly
Removing the Firebox
Troubleshooting Guide
Page No.
8
9
9
9
9
10
10
10
11
11
11
11
11
11

2.0 APPLIANCE DATA
3
GB IE
3.0 INSTALLATION REQUIREMENTS
Specifications All Models
Main burner injector Stereo size 95
Oxypilot (Natural Gas Models) SIT 9090
Gas Control (All Models) Copreci 21400/342
Gas Inlet 8mm compression - Inlet restrictor elbow
Ignition Double-action piezo Spark
Spark Gap 3.5 - 4.5mm
Flue specification
All models - 225mm x 225mm (9in x 9in) brick or stone.
175mm (7in) minimum diameter lined brick or stone.
175mm (7in) minimum diameter twin wall flue conforming to BS 715.
This appliance MUST NOT be installed into a room containing a bath or shower, or where steam may be present. The fire has been
designed to fit into a builders’ opening or fireplace conforming to BS 1251 (and meeting certain dimensional requirements), or a suit-
able flue box complying with the constructional requirements of BS 715.The flue box must be installed onto a suitable non-combustible
insulating surface at least 12mm thick, covering the entire base area of the box.The flue must have an effective height of at least three
metres, as measured from the hearth to the top of the flue. Any flue damper plates or restrictors should be removed and no other
restriction fitted to the flue.Where removal is not practical, the restriction must be fixed in the fully open position.
A natural draught flue system is required, and if previously used for solid fuel or oil burning, the flue and chimney must be swept prior
to appliance installation.The flue must be checked before installation by using a smoke pellet or similar to ensure proper draw and that
leakage is not evident at any joints. Repair and re-test as necessary before the appliance is installed.The flue must be connected to only
one fireplace, and the flue must not vent more than one appliance (i.e. not shared with a gas back boiler).There must be no opening in
the flue apart from the one that the appliance is installed into, and the one venting the gases into the air.A suitable terminal may be fit-
ted, such as class GC1, as regulations allow.
These appliances have been tested for use with circular flues of a minimum internal diameter of 175mm.This appliance is suitable for
use with a “lightweight” surround and back panel of 150°C minimum rating.
The fireplace opening should be inspected and repairs made where necessary.Any chair brick or fireback may be left in situ, providing
that the dimensional requirements for debris collection space and spigot clearances are met. See diagram below..
The opening WIDTH and HEIGHT dimensions should be between 470mm and 530mm wide, and 540mm (see note below) to 575mm
high.
Note:The spigot outlet of the fire is 565mm high, but should fit into the gather at the top of the fireplace as the appli-
ance is fitted.Any modifications to the fireplace opening must be to a height of 565mm min.
Opening DEPTH should be 200mm or greater for a clay/cement lined flue which is new, unused, or previously used only with a gas appli-
ance. DEPTH should be 240mm or greater for a flue used for solid fuel of oil burning appliances. Opening DEPTHS include any plaster
or infill panels which form part of the installation.
4.0 SITE REQUIREMENTS
Please see Data Badge affixed to appliance for current data.This appliance is for use only with the gas type, and at the pressure stated
on the appliance Data Badge, and is for decorative purposes.
© 2012 Focal Point Fires plc.
Model Destination
Country Cat
Operating Pressure
(±2.0 mbar) Max Energy Input (kW) Min Energy Input (kW)
Natural gas G20 G25 G30 G31 Gross Net Gross Net
All models GB - IE I2H 20 - - - 8.75 7.9 3.5 3.15

4.0 SITE REQUIREMENTS - CONTINUED GB IE
4
This appliance requires a natural draught flue system which may be one of the following;
225mm x 225mm (9in x 9in) brick or stone.
175mm (7in) minimum diameter lined brick or stone.
175mm (7in) minimum diameter twin wall flue conforming to BS 715.
Any existing under grate draught device must be sealed off.The opening wall must be non-combustible.
Any existing under grate draught device must be sealed off.The opening wall must be non-combustible.The appliance requires a hearth
with non-combustible surface of at least 12mm thick.The top surface must be at least 50mm above the surrounding floor level, or be
surrounded by a raised edge or fender 50mm high.
To enable the products of combustion to be cleared properly up the flue, the outlet at the back of the appliance must have a 50mm min-
imum clearance between it and the back wall of the opening or any other obstruction.The area immediately above the outlet must form
a smooth path into the flue.
Any type of fire surround used with this appliance must be adequately sealed to the wall and floor.
A combustible shelf may be fixed to the wall above the fire, providing that it complies with the dimensions given below.
A non-combustible shelf may be fitted to within 10mm of the top edge of the fireframe. Combustible materials, such as wood, may be
fitted to within 100mm of either side of the fireplace opening, providing the forward projection does not exceed 100mm. Any com-
bustible side walls must be at least 500mm to the side of the radiant heat source. As with all heating appliances, any decorations, soft
furnishings, and wall coverings (i.e. flock, blown vinyl and embossed paper) positioned too close to the appliance may discolour or scorch.
The mounting depth of this appliance is 180mm. In accordance with BS 5871 part 2, minimum debris collection volumes are required
behind the installed appliance.These are shown below and as dimension ‘X’ in figure 1.
CLAY/CEMENT LINES OR BLOCK FLUE WHICH IS NEW, UNUSED, OR PREVIOUSLY ONLY USED WITH A GAS FIRE.
X Dimension = 20mm
UNLINED FLUE OR CHIMNEY WHICH HAS BEEN PREVIOUSLY USED FOR A SOLID FUEL OR OIL BURNING APPLIANCE
X Dimension = 60mm
4.1 DEBRIS COLLECTION SPACE
© 2012 Focal Point Fires plc.
A. Opening height: 540mm min/575 mm max.
B. Opening width: 470mm min/530mm max.
C. Mounting depth: 180mm
D. Hearth must extend minimum of 150mm either
side of the opening.
E. Hearth must extend minimum of 300mm in front
of the opening.
F. Non-combustible hearth must be a minimum of
50mm in height, or be surrounded by 50mm high
fender.
G. 550mm, this area must be flat and vertical to
ensure a good seal.
H. 585mm, this area must be flat and vertical to
ensure a good seal.
X. Debris collection space - See section 4.1 on fol-
lowing page.
‘A’
‘C’
‘B’
‘E’
‘F’
‘G’
‘H’
‘X’
‘D’
Figure 1
Maximum depth of shelf Minimum distance from finished hearth surface to underside of shelf
100mm 745mm
150mm 845mm
203mm 895mm

This appliance requires purpose provided ventilation of at least 8.75cm2.The requirements of other appliances operating in
the same room or space must be taken into consideration when assessing ventilation.
If spillage is detected when commissioning the appliance, then amongst other problems there may be insufficient ventilation for correct
operation of the flue. If the appliance does not spill with the windows open, but spillage is detected with the windows closed, this demon-
strates a lack of ventilation and will require the installation of additional ventilation. If spillage is still detected with the windows open,
the flue is at fault. Any ventilation fitted must comply with BS 5871 part 2 and BS 5440 part 2.Vents fitted under or within the imme-
diate vicinity (500mm) of the appliance must not be used as adverse effects to the operation of the ODS may occur.Spillage detected
during commissioning is almost always a result of poor flue performance that cannot be corrected by any amount of ventilation.
For Republic of Ireland ventilation may be required, see IS 813, ICP3, IS 327, and any other rules in force.

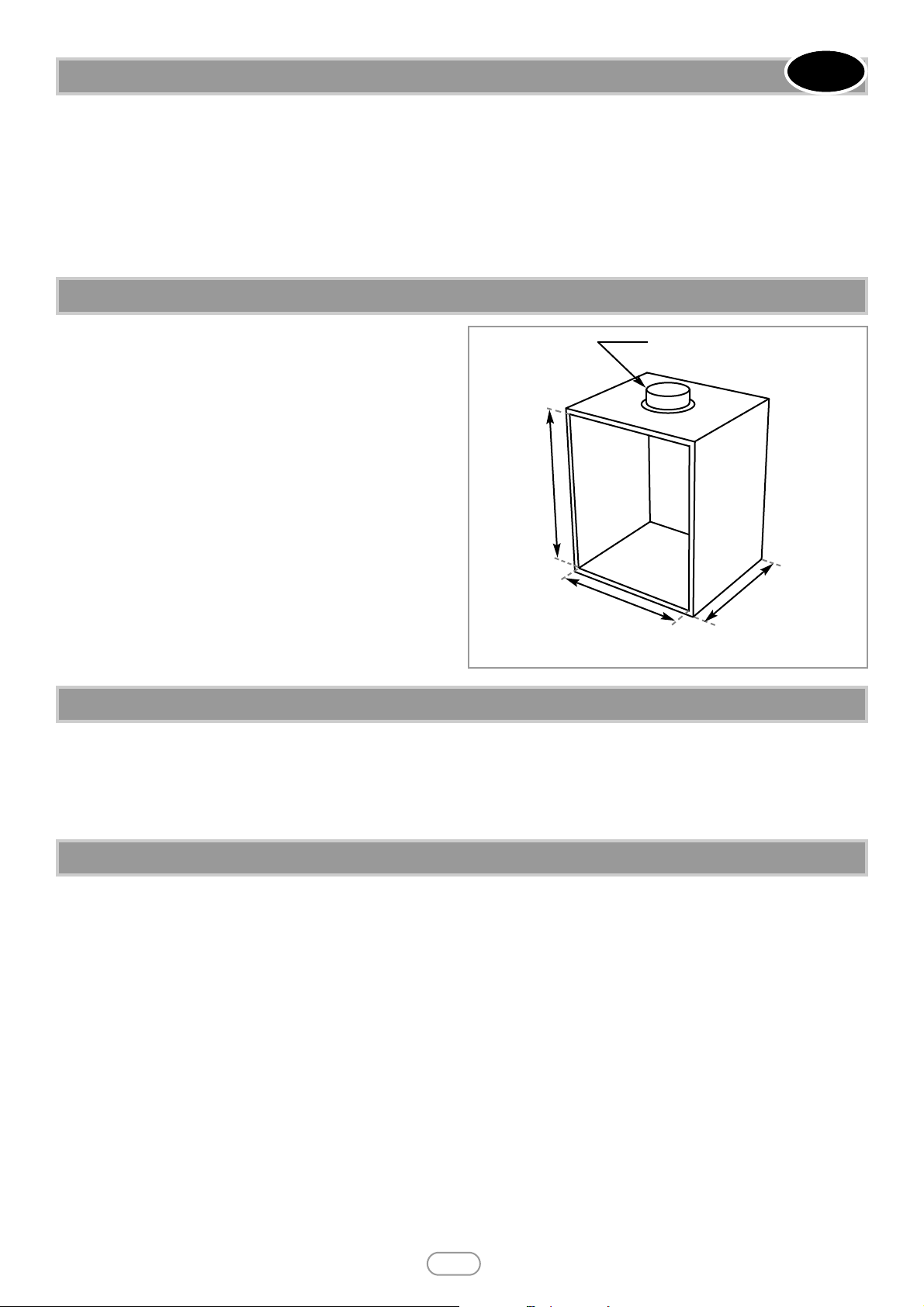

This appliance can be fitted into a number of proprietary flue
boxes provided that the minimum dimensions shown in figure 2
are complied with.
Constructional Note: The frame of the fire, any back panel or
other infill panels, and the flue box must be sealed together so that
there is no possibility of leakage between them. Adequate clear-
ances to combustible materials (e.g. false chimney breast con-
struction) must be maintained.
The manufacturers’ instructions for fitting the prefabri-
cated box shall be complied with at all times. To fit the fire
using the cable fixing kit, some minor adaption may be necessary
for certain flue boxes.A check should be made to ensure the fire-
box does not obscure the flue box outlet.The firebox, base of the
flue box, and hearth below may be drilled to allow plugs and
screws to secure installation. It is important that the sealing
requirements of the appliance are met at all times and that the flue
box is well sealed to any back or infill panel. Note: The DEPTH
dimension is inclusive of any back or infill panel.
Stand the carton the right way up, cut the strapping bands and remove the top endcap. Read all the instructions before continuing to
unpack or install this appliance.
Remove the box containing the firefront, and the bags containing the ceramic components. Remove the cardboard packing pieces, and
any other bags or boxes containing fittings or other parts.When all loose parts have been removed, the outer sleeve may be lifted off
to reveal the appliance. Check that the components supplied correlate with the component checklist given in section 7.1. Please dispose
of all the packaging materials at your local recycling centre.
5.0 VENTILATION GB IE
6.0 PREFABRICATED FLUE BOXES
175mm min internal dia twin wall flue
250mm min depth
490mm min opening width
560mm min
height
Figure 2
7.0 UNPACKING THE APPLIANCE
7.1 COMPONENT CHECKLIST
QUANTITY DESCRIPTION
1 Firebox and burner tray assembly
1 Three piece decorative trim
1 Cast firefront
1 Moulded ceramic fibre combustion matrix
1 Left-hand Moulded ceramic front strip
1 Right-hand Moulded ceramic front strip
16 Individual ceramic coals
4 Ceramic ribbed effect radiant panels
3 Ceramic panel retaining clips
1 Cable fixing kit; 2 cables, 2 tensioners, 2 cable clamps, 4 eyebolts
1 Sealing grommet
3 Lengths of adhesive sealing strip
1 Self tapping screw pack; 4 No8 x 5/16
1 Set of manufacturers instructions
4 Wall Plugs
5© 2012 Focal Point Fires plc.

Note: Ensure that the gas supply is isolated before commencing
installation of the appliance.
The fireplace opening and environment must be in compliance with specifica-
tions laid down in the appropriate sections of these instructions.
Remove the appliance from it’s carton as described previously and stand upon
a dust sheet or similar. Place the decorative frame, coals, ceramics and fixings
safely to one side. Remove the burner from the assembly by removing the
retaining screws.
Slide control models : Remove the slide control linkage connecting screw.
The tray is now free, and may be lifted away.
RADIANT PANELS : The three radiant panels may now be fixed inside the firebox. Select the
plain or patterned side of each panel and insert as follows;
Lay the firebox on it’s back. Lay the tapered panel onto the rear face of the firebox.
The side panels should be fitted by inserting their front edges into the pre-fitted retaining brack-
ets on the front face of the firebox. Gently align the side panels with the side of the firebox as
shown in figure 3, over the top of the back panel already in place.
Make sure that the side panels are pushed up firmly to the roof of the firebox, and
back firmly to retain the tapered panel. Make small adjustments to line up the mor-
tar lines if required. Secure the side panels using the small ‘L’ shaped brackets and
screws provided (figure 4).The screws should locate into the pre-punched holes in
the sides of the firebox.
SUPPLY PIPE ENTRY : Knockout holes are provided in the rear and sides of the
firebox for use where concealed pipework is required.Where necessary, knock out
the appropriate hole with a sharp tap from a hammer, and fit the rubber grommet
supplied. A small incision can now be made in the rubber to slip snugly around the
outside of the pipe and sleeving. Do not install or use the appliance without
the seal in place. If a hole is inadvertently opened, reseal with an intact grommet.
Failure to fit the seal correctly will cause flue suction to act upon the area under
the burner, resulting in poor performance and intermittent cutting out of the
burner.
SPIGOT RESTRICTOR : If installing the fire into a Class 1 or good Class
2 flue, simply bend up (stitch bend join) the spigot restrictor into position in
the flue outlet of the fire as shown in figure 5.
You MUST remove (or bend down fully) the spigot restrictor and
re-test if the appliance fails a spillage test during commissioning.
SEALING STRIPS : Apply the self adhesive sealing strips to the back of
the fireframe as shown in figure 6 to give a continuous seal.
8.0 PREPARING THE APPLIANCE GB IE
6© 2012 Focal Point Fires plc.
Figure 6
Figure 3
Figure 4
Figure 5

Before installing the fire, check the flue using a smoke pellet.All of the smoke should travel up the flue and exit correctly from the ter-
minal. If problems are found, DO NOT fit the fire until corrective action is completed. Protect the decorative hearth whilst pushing the
firebox in and out of the opening. Part of the packaging will make an ideal hearth saver pad. Before running the gas supply into the open-
ing, offer up the firebox to the fireplace to check the fit is good. Angle the firebox as shown in figure 9 or adjust the spigot outlet as
described in part 10.0 of these instructions. Ensure that it slides in correctly, the sealing face sits flat and square to the wall or infill panel,
and that the base is firm on the floor of the opening as no leaks are permissible here.
At this stage it is essential to ensure that the spigot outlet of the fire is not restricted in any way. Remove the firebox and take any nec-
essary measurements before making good and preparing for final installation.
CABLE FIXING : For fixing of the fire by the cable method, see the relevant section.The cable fixing locations should be marked on
the back of the opening and the holes drilled. Fit the wall plugs and eyebolts to these holes.
SCREW FIXING : For fixing by screw, mark and drill the fireframe or base, and the relevant points in the opening or on the wall. wall
plugs will again be required. Pre-punched holes are not provided for this purpose to allow you to choose the optimum positions.
GAS SUPPLY : Following preparation for the fixing method, the concealed gas supply, where required, can now be put into place. Refer
to the gas supply section for suggested pipe routes.The ends of the sleeving in which the gas pipe is run should be sealed.The ends of
the 8mm supply pipe should be temporarily sealed to prevent the ingress of debris during fixing.
When the opening is ready for installation of the fire, the gas supply may be routed as per the examples shown in figure 7.
IMPORTANT - Wherever a concealed connection is made a rubber grommet must be used to seal the firebox.
The gas pipe must be suitably protected where it passes through fireplace openings.Any sleeving should be sealed to the pipe at its ends.
This appliance is fitted with an inlet restrictor elbow. Using 8mm diameter pipe, connect the appliance to the gas supply point.The appli-
ance must be fitted with rigid or semi-rigid pipe of 8mm external diameter.The appliance is factory fitted with an inlet restrictor elbow.
Use a minimum length of 8mm pipe, less than 1.5m where possible, as a long run of pipe may cause an unacceptable drop in the supply
pressure.
The open end of the supply pipe should be sealed temporarily during the installation of the firebox to prevent the ingress of dirt and
dust.
To fit the firebox, first check the firebox fits correctly into the opening. For openings
between 545mm and 565mm in height it will be necessary to insert the upper part
of the firebox first, followed by the lower as shown in figure 8.
If it is still not possible to fit the firebox into the opening then remove the outlet
deflector screws using a screwdriver, bend the outlet deflector down and partly
insert the firebox. Now push the outlet deflector back up to the original
position under the lip of the fireplace opening and secure with the screws.
The fire is designed to operate correctly with the spigot raised and screwed in its
original position and spillage problems may arise by not realigning correctly once fit-
ted.Secure the firebox by drilling and screwing down the frame or base of the fire-
box, or use the cable fixing method.

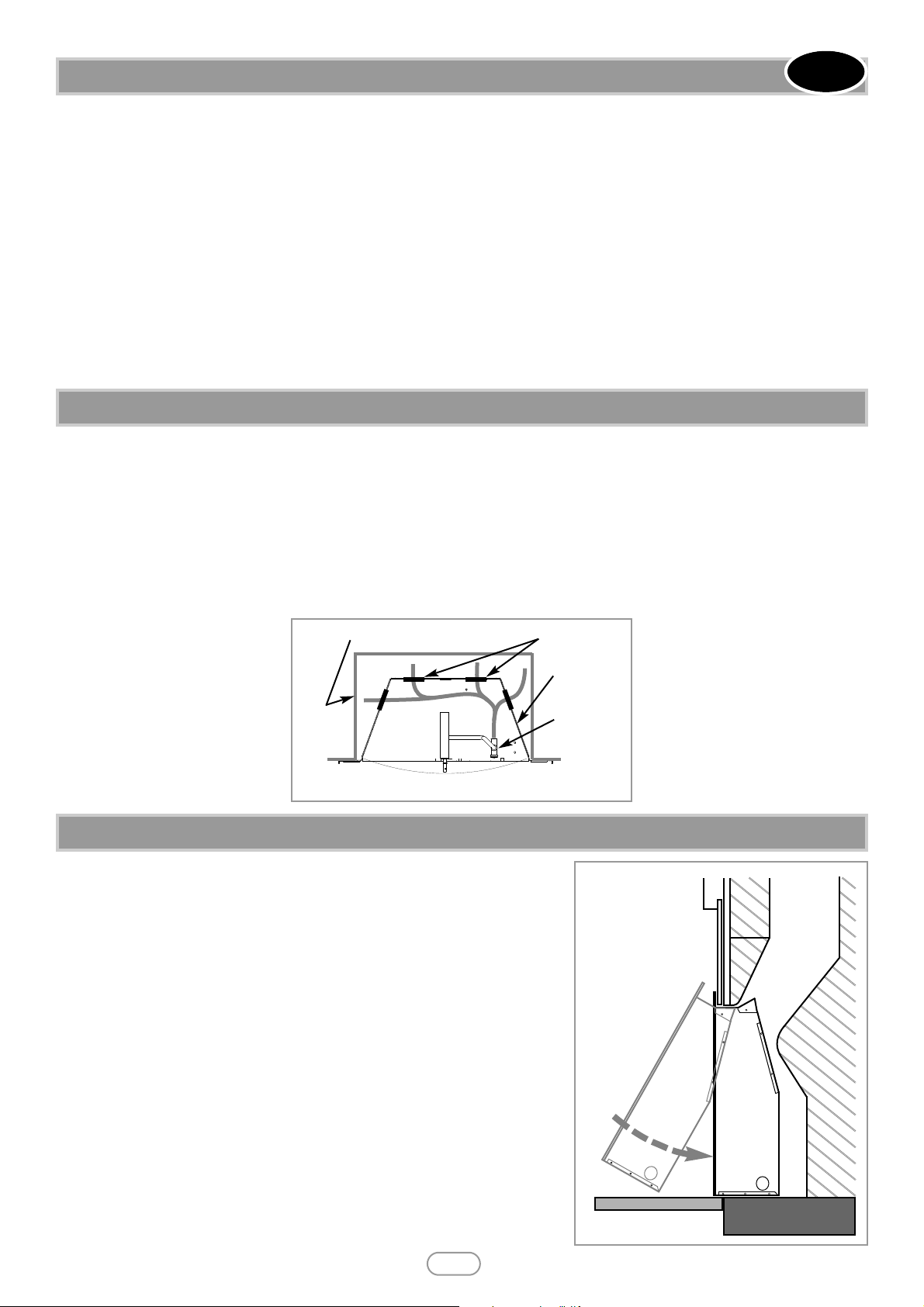

9.0 PREPARING THE OPENING GB IE
7© 2012 Focal Point Fires plc.
10.0 GAS SUPPLY ROUTING
11.0 FITTING THE FIREBOX
Figure 7
Figure 8
Fireplace opening Grommets
Firebox
Inlet
restrictor
elbow
Not to scale

Drill four holes using a 8mm masonry bit to a
depth of 42mm in the positions shown in fig-
ure 9. If the fireplace configuration does not
allow the exact layout given, the eyebolts
should be positioned as close to the correct
layout as possible.
Before finally fitting cables, ensure the self
adhesive sealing strips are in position on the
back of the appliance frame. The fireframe
must be sealed evenly to the fireplace opening
all around the periphery.
Thread the tensioning cables through the
holes in the top of the firebox, then the eye-
lets, and finally through the lower holes in the
back of the firebox, as shown in figure 10.
Note : The burner must be removed as per relevant section to gain access to the cable adjusters.
Push the appliance back into the fireplace, centralise, and pull the loose tensioning cables through the
holes into the firebox. You may need to temporarily adjust the outlet deflector at this point as
described in section 11.0 of these instructions.Thread the tensioner bolts onto the cables, with the
nuts screwed down close to the tensioner head. Slide the screwed nipple onto the cable, pull cable
tight, and tighten nipple.
The tension of the cable may now be adjusted by using a suitable spanner on the tensioner nuts to
pull the appliance tightly against the fireplace opening.Visually inspect the seal and reseat if necessary.
Do not cut off excess cable. Surplus cable must not be cut off, as it will be impossible to refit the fire after servicing. Coil up the surplus
cable, and locate at rear of firebox as shown in figure 11. If running a concealed gas supply, ensure grommets are secure around incom-
ing pipes.
Important Note: Check the thermocouple nut connection into the rear of the valve is secure.
Temporarily fit the burner unit and ensure a suitable gas route can be achieved. Purge the gas supply thoroughly to remove air and
dirt/debris before connection. Disconnect the inlet restrictor elbow from the inlet pipe.
Connect the previously installed gas supply to inlet restrictor elbow. Place the burner unit into the firebox making sure that the rear
lugs locate properly on to the ledge in the firebox. Fit the two securing screws through the burner legs to secure the assembly. Re-fit
the restrictor elbow to the inlet pipe of the appliance.
Please see the relevant section of the user instructions.
Remove all protective film and packaging material before fitting.
The clip-on frame pieces should be hooked over the outer edges of the fireframe, (figure 12),
and pushed firmly home.The sides should be fixed first, followed by the top bar, which over-
laps the sides. Push firmly home.
IMPORTANT : Due to the possibility of sharp edges, care should be taken when
handling the three-piece frame components.The use of protective gloves is strong-
ly recommended.
Turn on and test the gas supply up to the fire for any leaks, in accordance with current edition of BS6891.
When the appliance is first used, protective oils coating the firebox may burn off. It is advisable to ventilate the room during this period
for at least one hour.
11.1 INSTALLATION BY CABLE FIXING KIT GB IE
8© 2012 Focal Point Fires plc.
‘A’
‘B’
‘C’
‘A’. 250 mm
‘B’. 350 mm
‘C’. 60 mm
All dims ±10mm
Figure 9
Figure 10
Figure 11
11.2 GAS CONNECTION
11.3 FUEL BED LAYOUT
12.0 TESTING AND COMMISSIONING
11.4 FITTINGTHE FIREFRONT/FRAME
Figure 12

The pilot is visible through the left hand side front ceramic strip.When cold, the coals may
be rotated for good viewing.The fire features a ‘twin spark’ ignition system to aid lighting,
Push the control knob in fully and turn anti-clockwise through both of the SPARK positions,
keeping fully depressed, hold there for a few seconds. If the fire has not been used for some
time, hold the knob in this position for longer, to allow any air in the pipes to be purged.
Continue turning anti-clockwise through the spark clicks to the nine o’clock position, ensur-
ing the pilot has lit. If not, return the knob clockwise, and repeat.
When the pilot lights after one of the two sparks, keep the knob depressed in the nine
o’clock position for approximately ten seconds. Now release the knob and the pilot should
stay alight. If the pilot is extinguished during use, wait three minutes before repeating the
ignition procedure.
To achieve the HIGH setting, push the control knob in slightly and continue turning anti-
clockwise to the high position.The main burner should light after a few seconds.To decrease the setting to LOW, push the knob in slight-
ly and turn the control knob clockwise to the low setting.To turn to the pilot only position from the HIGH or LOW positions, press
the control knob in, and return to the nine o’clock position and release.To turn the fire OFF, keep the knob pressed in, return to the
off position and release.
If under any circumstances the electric spark fails, the pilot may be lit manually by proceed-
ing with the ignition sequence as previously described, and after turning the control knob
through the spark position, the knob should be held in and the pilot lit with a taper.
Release the pressure test point screw, and attach a pressure gauge. Light the fire on the
HIGH setting.To commission the appliance, the operating pressure must be in accordance
with the figures stated in section 2.0 of these instructions.
The operating pressure is measured on the appliance inlet elbow shown in figure 13. Release
and attach a pressure gauge. Light the fire on the HIGH setting. To commission the appli-
ance, the operating pressure must be in accordance with the figures stated in section 2.0 of
these instructions.The fire is factory set to achieve the correct flow rates at the specified
operating pressure.
Any significant variation in the inlet pressure could indicate a supply problem. If the operat-
ing pressure is too high, the gas supply meter/governor may be set incorrectly. This should
be checked with the fire running and if necessary reset by the gas supplier. If the operating
pressure is too low, then check the meter/governor pressure with the appliance running. If
this is less than the operating pressure stated in section 2.0 of these instructions it will need
to be reset by the gas supplier. If the inlet pressure is too low, but the meter/governor pres-
sure is acceptable, then a problem in the supply pipework is to be suspected. Upon satis-
factory checking of the operating pressure, turn the fire off, disconnect the pressure gauge
and refit the test point screw. Light the fire and check for gas soundness. In the event that
the operating pressure is not in accordance with the figures stated in the data section of
these instructions, the appliance must not be commissioned, and the problem investigated and rectified.
This fire is fitted with a flue spillage safety device (ODS). If the fire shuts down during use for no apparent reason then several things
may be suspected. If a door or window has been opened creating a draught, then pilot disturbance is the problem, and removal of the
draught should resolve this.The gas pressure reaching the fire must also be checked (again, recall your installer to check and rectify any
problem).The thermocouple connection into the back of the gas control valve may also have worked loose during installation, simply
get the installer to tighten. If pilot disturbance is not the cause, then the ODS safety system may be in operation. Switch the appliance
OFF, check the flue and carry out any remedial work required. Relight the fire and carry out a spillage test.
DO NOT allow the appliance to be used if it continues to fail a spillage test.The aeration hole of the pilot must be carefully cleaned out
on each annual service to ensure continued function of the ODS.The spillage monitoring system shall not be adjusted, modified, or put
out of operation by the installer.Any spare parts fitted MUST be of a type supplied for the purpose by the appliance manufacturer. If the
fire is not spilling, then further guidance should be sought, using the Troubleshooting section as a guide.
12.1 OPERATINGTHE FIRE - MANUAL CONTROL MODELS GB IE
9© 2012 Focal Point Fires plc.
12.2 SPARK GAP
12.3 OPERATING PRESSURE
Figure 13
Figure 14
Spark gap
Figure 15
12.4 FLUE SPILLAGE MONITORING SYSTEM

Close all doors and windows to the room containing the appliance. Let the fire run on HIGH for five minutes.Take a smoke
match, light it, and using a smoke match tube, hold it at the top edge of the fire opening, 25mm down and 25mm in. Starting 50mm in
from either side, run the smoke match across the opening.
All the smoke should be drawn away up the flue. Any smoke returning into the room indicates that spillage is occurring. If the initial
spillage test fails, run the fire for a further 10 minutes and repeat the test.
When the test has been completed satisfactorily, repeat with any extractor fans in the premises running on the highest setting, and any
communicating doors open. Finally, repeat with all doors open.
DO NOT allow the fire to be used until the test is satisfactorily passed.
All instructions must be handed to the user for safekeeping. Show the customer how to light and control the fire.After commissioning
the appliance, the customer should be instructed on the safe use of the appliance and the need for regular servicing. Frequency of serv-
ice depends on usage, but MUST be carried out at least once annually. Advise that cleaning of the fire may be achieved when the fire is
cold using a damp cloth and mild detergent on most surfaces.
Scratched and other superficial damage to the matt black paintwork of the appliance can be covered with matching heatproof spray. Use
only the manufacturers’ recommended spray paint. Paint only when the fire is OFF and cold. Always mask off the surrounding area to
prevent contamination with overspray.Ventilate the room during the use of the spray. DO NOT attempt to wash the coals or ceramics
in water.
Advise that the fire will emit a “newness” smell for a time after initial commissioning and that extra ventilation may be needed during
this time. Advise that the fire is fitted with a spillage safety device (O.D.S.). If the fire shuts down, this system may be in operation. If
spillage is suspected, SWITCH APPLIANCE OFF and call in the installer to investigate any problems.
Isolate the fire from the gas supply. Ensure that the fire is fully cold before attempting service. A suggested procedure for servicing is
detailed below.
For specific servicing instructions, see the relevant sections.
10 © 2012 Focal Point Fires plc.
12.5 TESTING FOR SPILLAGE
Match
Crimp
Tube
Figure 16 : Cross section of smoke match tube
Make a smoke match tube from 10mm diameter
tube. Seal off one end and crimp the tube to prevent
the smoke match from sliding down inside.
Spillage test - Figure 17
A. 25mm down from top of
opening
B. 25mm in from front of open-
ing.
C. Disregard outer 50mm
either side of fireplace opening
C
CB
A
Fireplace Opening
Smoke Match
In Tube
Figure 18
12.6 BRIEFING THE CUSTOMER
GB IE
13.0 SERVICING
1. Lay out the dust sheet and tools.
2. Carefully remove the ceramic components.
3. Remove the cast front fret.
4. Disconnect the gas supply, and remove the two securing screws in the tray legs.
5. Remove the burner tray.
6. Remove firebox as described.
7. Check the fireplace opening for rubble accumulation and remove. If debris is excessive, initiate remedial work on the flue.
8. Check the flue with smoke pellet for correct operation.
9. Refit firebox using new seals where necessary.
10. Strip off the burner pipes and clean thoroughly.
11. Clean out the injector, pilot assembly and burner tube. DO NOT attempt to remove the pilot injector.
12. Re-assemble and re-fit the burner tray.
13.Turn on the gas supply, and leak test.
14. Refit the decorative firefront and ceramics.
15. Check the purpose provided ventilation is un-obstructed.
16. Light the fire and test for spillage.
17. Check setting pressure and safe operation of the appliance.

11
Remove the firefront and place to one side. Remove the ceramic components. Gently clean in the open air. Be careful not to create
dust from the coals.Where necessary replace damaged components with genuine spares. Seal scrap ceramic components in plastic
bags and dispose at proper refuse sites as directed.
Re-fit the coals by referring to the relevant section of these instructions.
Remove the decorative front. Remove the ceramics and place safely aside.
Remove the two screws securing the tray legs to the firebox. Pull tray forward slightly and lift away.
Refitting is the reverse of above, being sure to engage the tray location lugs on the shelf at the rear of the firebox.
Remove the burner unit as previously described.The pilot unit can be removed by withdrawing the tubing nut, the thermocouple nut on
the rear of the valve, and the two securing screws, and lifting away. Remove the tubing nut from the valve end of the pilot pipe, and blow
through to dislodge any debris.
Remove the two tubing nuts on the ends of the gas pipe to the injector elbow and blow clear. Release the screw through the supporting
leg and lift assembly clear.The injector pipe can now be checked for debris. Remove the nut retaining the injector elbow. Blow through
the elbow to remove any debris.
Remove the burner unit as in relevant section and pilot unit as described.
Clean the pilot assembly with a soft brush and blow through. Check the aeration holes are free of any dirt or lint. Clean thoroughly
internally, the connection can be removed from the base of the pilot unit using two spanners to make cleaning easier. Do not damage
or try to remove the pilot injector.The unit is factory set and the only check necessary is to ensure the spark gap is correct. See
specifications for gap setting.
Remove the burner unit as described previously.
Protect the hearth from potential damage. Unroll the coiled tensioner cables from the rear of the firebox. Remove the securing nip-
ples and tensioner adjusters.The firebox is now released from the opening and can be slid outward onto the hearth. Inspect the fire-
place opening for debris and if excessive rectify the flue before proceeding further. Check the seal around the fireframe and if neces-
sary replace. Refitting of the firebox is as described in the fitting section of these instructions.
Fire sparks but pilot does not light • No gas to fire, check isolators are open and gas supply is on.
• Pipework blockage, clean out.
• Air not fully purged, re purge supply or wait longer.
• Spark earthing to metalwork, reset gap correctly.
• Blocked pilot, clean out internally.
Pilot lights but then goes out • Severe restriction in gas supply: clear obstruction.
• Faulty thermocouple, replace pilot unit.
• Blocked pilot, clean out.
• Blocked lint gauze, clean.
• Hold control knob in for longer.
• Check control knob does not foul indicator plate.
• If the pilot will not stay lit there could be a problem with contamination of the
gas supply, drafts,ventilation or the thermocouple needs replacement.
Modifications are dangerous and can have a serious unseen effect on safety.
NEVER MODIFY OR BEND THE THERMOCOUPLE TO MAKE THE PILOT STAY ALIGHT.
Fire does not spark at pilot • HT lead detached, refit.
© 2012 Focal Point Fires plc.
13.3 SERVICING THE BURNER
13.1 CLEANING THE CERAMICS
13.2 REMOVING THE BURNER
13.4 PILOT ASSEMBLY
13.5 REMOVING THE FIREBOX
GB IE
14.0 TROUBLESHOOTING GUIDE

• Check the spark gap (see section 12.2).
• Faulty piezo unit, replace.
• Debris shorting out electrode, clean.
• Spark shorting to metalwork under tray, check routing of HT lead under burner.
Fire runs for a time and then cuts off • Loose or faulty thermocouple, rectify.
• Blocked pilot, clean out.
• Excessive drafts in the room.
• Excessive flue pull.
• Fire is too close the an air vent.
• Dirt or lint in pilot aeration hole or on the lint gauze, clean thoroughly.
• If the pilot will not stay lit there could be a problem with contamination of the
gas supply, drafts, ventilation or the thermocouple needs replacement.
Modifications are dangerous and can have a serious unseen effect on safety.
NEVER MODIFY OR BEND THE THERMOCOUPLE TO MAKE THE PILOT STAY ALIGHT.
Pilot flame shrinks when fire is on high • Poor gas flow to fire, check pressure with fire on high.
• If pressure is low, remove any restriction in pipework or valve.
• Check all isolators are adequately sized and fully open.
• Check meter pressure is adequate.
• Firebox grommet seal missing, rectify.
• If the pilot will not stay lit there could be a problem with contamination of the
gas supply, drafts, ventilation or the thermocouple needs replacement.
Modifications are dangerous and can have a serious unseen effect on safety.
NEVER MODIFY OR BEND THE THERMOCOUPLE TO MAKE THE PILOT STAY ALIGHT.
Fire smells when first lit or in use • Newness smell from brand new appliance.
• Spillage occurring. Carry out Spillage test and rectify any problems.
• Combustible materials used in incorrect positions.
• Firebox grommet seal missing, rectify.
•Other airborne contaminants such as dust, tobacco smoke, paint vapours.
12 © 2012 Focal Point Fires plc.
14.0 TROUBLESHOOTING GUIDE - CONTINUED GB IE

• The installation and Servicing of this fire MUST only be carried out by a competent person in accordance with local Codes and/or
Regulations, Building Regulations and the manufacturer's instructions. Failure to comply with these could lead to prosecution and invalidate
the appliance warranty. In the event of gas leakage from the appliance, the gas supply must be turned off at the nearest isolating valve.This
appliance is only suitable for the gas type for which it is supplied.
• Keep a note of the installer's name and address, the original purchase receipt and the date of installation. Failure to produce this informa-
tion may invalidate the warranty. The appliance should be serviced regularly to ensure continued safe operation. See the servicing section
for further reference. Frequency of service will depend on use, but MUST be carried out at least once annually.
• Parts of this appliance become naturally hot during use. It is recommended that a suitable fireguard is used, especially where young children,
pets, the elderly or infirm are concerned.The manufacturer of this appliance considers all surfaces as working surfaces with the exception of
the control knob and control panel.
• It is recommended that a suitable fireguard conforming to BS 8423 is used, especially where young children, the elderly, or infirm are con-
cerned.
• The appliance should be serviced regularly to ensure continued safe operation. Frequency of service will depend on use, but MUST be car-
ried out at least once annually.
• Combustible items, such as flooring and furniture and soft wall coverings (such as blown vinyl or embossed paper), low temperature sur-
rounds etc may discolour if fitted too close to the fire. See relevant section for further details on clearances to combustibles. No combustible
materials or flooring should protrude onto the hearth.
• This appliance incorporates a combustion monitoring system (ODS).
• DO NOT burn any foreign material on this fire, the ceramic fuel effect components must be of the correct type and laid out in accordance
with the relevant section of these instructions.
• Failure to do so could create a hazard or lead to sooting.
• Before the appliance is installed, the chimney should be swept.All flues should be checked by the installer to ensure there are no defects
or obstructions that may prevent the flow of combustion products.
• This appliance is fitted with a flue blockage safety device which will shut down the fire if abnormal flue conditions occur. It is NOT a sub-
stitute for an independently mounted Carbon Monoxide detector.
• This fire is supplied with a particular style of firefront. Use of the firefront will ensure an adequate airflow under the firebed for the cor-
rect functioning of this appliance. Use ONLY the firefront supplied with the appliance. Use of any other firefront could be dangerous.
• Should any home improvements be carried out to the property after the fire is installed, such as installation of extractor fans for example,
the fire should be re-checked by a competent person for safe operation.
USER INSTRUCTIONS
2.0 CLEARANCES TO COMBUSTIBLES
A combustible shelf may be fixed to the wall above the fire, providing that it complies with the dimensions given below.
A non-combustible shelf may be fitted to within 10mm of the top edge of the fireplace opening. Combustible materials, such as wood, may be
fitted to within 100mm of either side of the fireplace opening, providing the forward projection does not exceed 100mm.
Any combustible side walls must be at least 500mm to the side of the radiant heat source.As with all heating appliances, any decorations, soft
furnishings, and wall coverings (i.e. flock, blown vinyl and embossed paper) positioned too close to the appliance may discolour or scorch.
This appliance requires purpose provided ventilation of at least 8.75cm2.The requirements of other appliances operating in the same
space or room, and the results of a spillage test must be taken into consideration when assessing ventilation requirements, this will have been
carried out by your CORGI registered installer.
For Republic of Ireland, ventilation may be required, see IS 813, ICP3, IS 327, and any other rules in force.
WARNING :Ventilation openings (where fitted) must never be blocked or restricted in any way.
1.0 IMPORTANT NOTES
1
GB IE
© 2012 Focal Point Fires plc.
Maximum depth of shelf Minimum distance from finished hearth surface to underside of shelf
100mm 745mm
150mm 845mm
203mm 895mm
3.0 VENTILATION
Section
1.0
2.0
3.0
4.0
5.0
6.0
Contents
Important Notes
Clearances to Combustibles
Ventilation
Operating Instructions
Flue Spillage Monitoring System
Fuel Bed Layout
Page No.
1
1
1
2
2
2
Section
7.0
8.0
9.0
10.0
11.0
Contents
Servicing
Cleaning
List of Replacement Parts
Installation Details
Service History
Page No.
4
4
4
4
4

The pilot is visible through the left hand side front ceramic strip . When cold, the coals may be
rotated for good viewing.The fire features a ‘twin spark’ ignition system to aid lighting,
Push the control knob in fully and turn anti-clockwise through both of the SPARK positions, keep-
ing fully depressed, hold there for a few seconds. If the fire has not been used for some time, hold
the knob in this position for longer, to allow any air in the pipes to be purged.
Continue turning anti-clockwise through the spark clicks to the nine o’clock position, ensuring
the pilot has lit. If not, return the knob clockwise, and repeat.
When the pilot lights after one of the two sparks, keep the knob depressed in the nine o’clock
position for approximately ten seconds. Now release the knob and the pilot should stay alight. If
the pilot is extinguished during use, wait three minutes before repeating the ignition procedure.
To achieve the HIGH setting, push the control knob in slightly and continue turning anti-clock-
wise to the high position.The main burner should light after a few seconds.To decrease the setting to LOW, push the knob in slightly
and turn the control knob clockwise to the low setting.To turn to the pilot only position from the HIGH or LOW positions, press the
control knob in, and return to the nine o’clock position and release. To turn the fire OFF, keep the knob pressed in, return to the off
position and release.
This fire is fitted with a flue spillage safety device (ODS). If the fire shuts down during use for no apparent reason then several
reasons may be suspected. If a door or window has been opened creating a draught, then pilot disturbance could be the prob-
lem, and removal of the draught should resolve this.The fire can then be re-lit in accordance with the previous section. If pilot
disturbance is not the cause, then the ODS safety system may be in operation. Switch the appliance OFF, call in your installer to
check any ventilation and carry out any remedial work required. DO NOT allow the appliance to be used until the installation is
passed as safe.
1. Place the ceramic burner pad onto the top of the burner as
shown in figure 2, taking care to ensure it is centralised and
pushed fully against the back location ledge. Check that all of
the holes in the burner top plate are unobscured.
2. Place the matrix into position as shown in figure 3. Slide it
back to the rearmost position and centralise.
2© 2012 Focal Point Fires plc.
4.0 OPERATING THE FIRE GB IE
5.0 FLUE SPILLAGE MONITORING SYSTEM
6.0 FUEL BED LAYOUT
Figure 1
Figure 2
Figure 3

3. Locate the two front coal sections marked ‘L’ and ‘R’ into
the slot along the front of the burner tray as shown in figure
3.The legs of the coals have a slightly tapered front face which
is intended to give a tight interference fit into the tray.
Do not alter the slot in the tray front, so that the coals
become a loose fit.
4. Open the bag of 16 moulded coals.All of the coals are the
same.Take six coals and place them as shown in figure 4. Care
should be taken to ensure that the coals bridge the gap
between the front coal and the four coal supports at the front
of the matrix.
5.Take five more moulded coals and position as shown in fig-
ure 5 along the rear of the matrix. Do not place the coals
directly over the holes in the matrix.The coals may be rotat-
ed as desired to ensure they sit firmly on the various sup-
porting parts of the matrix.
6. Finally, take the five remaining coals and position as shown
in figure 6.These coals should rest on the front and rear rows
of coals, rather than sitting directly on the matrix. Adding
these coals should complete the appearance of the fuel bed
giving an even distribution of equally spaced coals.
The fire is designed to operate correctly with the sixteen coals supplied when assembled according to the instructions.
Never add to the sixteen coals, or change them for a different type. Never throw rubbish or other matter onto the fuel
bed. Please note: some discolouration/sooting is to be expected during normal use. IMPORTANT : The fire is designed
to operate correctly with the pebbles supplied when assembled according to the instructions. Never add to the sixteen
pebbles, or change them for a different type. Never throw rubbish or other matter onto the fuel bed. Due to the light
colour of the pebbles, some discolouration/sooting is to be expected during normal use.
3© 2012 Focal Point Fires plc.
6.0 FUEL BED LAYOUT - CONTINUED GB IE
R
L
Figure 3
Figure 4
Figure 5
Figure 6

As our policy is one of continuous improvement and development , we hope therefore you will understand we must retain the right to amend details and/or specifications without prior notice.
The fire and flue should be checked on an annual basis to ensure all of the products of combustion are entering the flue and that there is no
excessive build up of soot.The frequency of service will depend on usage, but MUST be carried out at least once annually. Servicing must be
carried out by a GAS SAFE registered engineer.
Cleaning of the coals/pebbles may be carried out by following the instructions given in section 8.0 of these instructions.The Installation instruc-
tions carry full servicing details for the use of the installer.
If debris from the flue or other foreign matter is found on the fire it may indicate a need for servicing. Do not use the fire until the source of
the debris has been found and rectified. Air vents should be checked periodically to ensure they are free from obstruction.
Before carrying out any of the following operations, ensure that the fire is OFF and completely cold.
FIREFRONT - Any dust accumulating in the firefront may be removed using a vacuum cleaner or dry cloth. Heavy stains may be removed by
using a damp cloth and mild household detergent. Brass parts of the firefront may be cleaned using a suitable brass cleaner. Replace the front
centrally against the fire after cleaning. Do not use a damp cloth to clean cast iron fronts (Soho, Finsbury and Arch models) as this can cause
the fronts to rust.
PAINTED AREAS - These can be cleaned using a dry cloth.
COALS AND CERAMICS - Remove the firefront and place to one side. Remove the ceramic components. Gently clean in the open air. Be care-
ful not to create dust from the coals.Where necessary replace damaged components with genuine spares. Seal scrap components in plastic bags
and dispose of at proper refuse sites as directed.
Re-fit the ceramics carefully by referring to section 6.0 of these instructions.
PART NO. ITEM
F550138 Pack of 16 coals
F780071 Ceramic combustion matrix
F780074 RH front coal strip
F780075 LH front coal strip
F820040 Brass decorative Frame
F820041 Chrome decorative Frame
Please Enquire Decorative Front
4© 2012 Focal Point Fires plc.
7.0 SERVICING
8.0 CLEANING
GB IE
9.0 LIST OF REPLACEMENT PARTS
10.0 INSTALLATION DETAILS
Installer GAS SAFE registration No : Model :
Fire serial No. :
Name & contact details of installer : Supplied by :
11.0 SERVICE HISTORY
Date installed :
Date of service Serviced by (name): GAS SAFE No. : Contact details of Engineer
F860226
