Follett REFVAC20-LB Setup guide

Installation, Operation and Service Manual
REFVAC20/25 – LB
REFVAC20/25 – PH
REFVAC20/25 – PD
Order parts online
www.follettice.com
01441492R00
801 Church Lane • Easton, PA 18040, USA
Toll free [phone] • [phone]
www.follettice.com/healthcare
Following installation, please forward this manual
totheappropriate operations person.

201441492R00 – REFVAC20/25 LB, PH, PD
Contents
Welcome to Follett ........................................................................... 3
Before you begin............................................................................. 3
Refrigeration System ......................................................................... 4
Ambients................................................................................... 4
Clearances ................................................................................. 4
Electrical specications ....................................................................... 4
Refrigeration specications .................................................................... 4
Detail drawing ............................................................................. 5
Installation.................................................................................. 6
Adjust self-closing door...................................................................... 6
Install baskets (if equipped) and power up....................................................... 6
Fill product bottle........................................................................... 7
Power the Unit............................................................................. 7

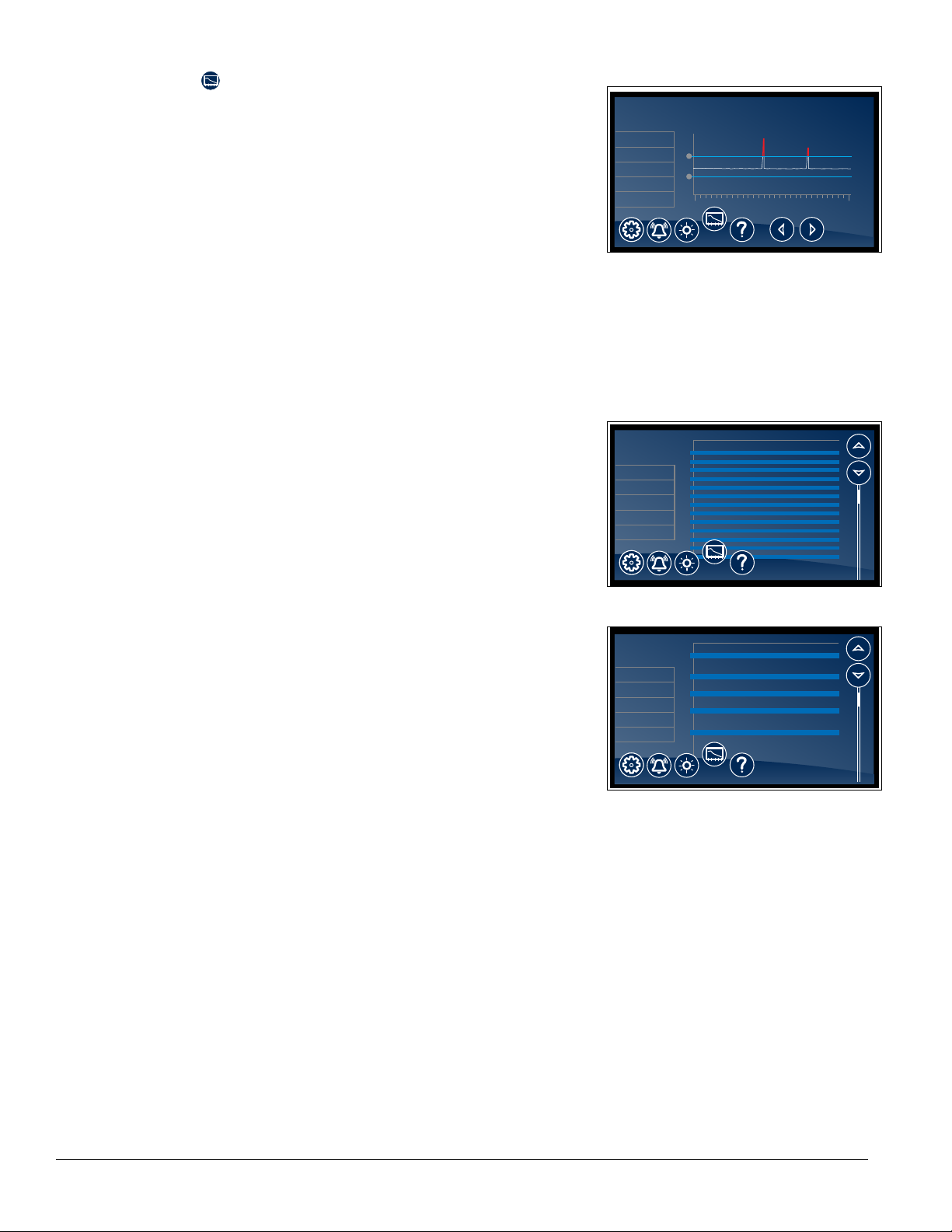

Controller Operation ......................................................................... 8
Use and care of the LCD touchscreen .......................................................... 8
Removing drawers ........................................................................ 15
Removing slides .......................................................................... 15
Network Enabled Device ................................................................... 15
Cleaning .................................................................................. 15
Interior cleaning .......................................................................... 15
Exterior cleaning .......................................................................... 15
Annual cleaning .......................................................................... 16
Defrosting ............................................................................... 16
Service - System Controls .................................................................... 17
Controller Operation ....................................................................... 17
Sensor Readings/Temperature Display ........................................................ 17
Heated door (option)....................................................................... 17
Facade removal ............................................................................ 18
Controller replacement ....................................................................... 18
Reversing the door swing (requires a new door) ................................................... 19
Door gasket replacement ..................................................................... 19
Slide-out unit cooler ......................................................................... 19
Wiring diagram ............................................................................. 20
Refrigeration System ....................................................................... 21
Replacement parts ............................................................................ 26
Unit cooler (Tecumseh - Silver Evaporator Cover) .................................................. 26
Unit cooler (Embraco - Black Evaporator Cover) ................................................... 27
Door assembly ........................................................................... 30
Cabinet ................................................................................. 31

01441492R00 – REFVAC20/25 LB, PH, PD 3
Welcome to Follett
Follett equipment enjoys a well-deserved reputation for excellent performance, long-term reliability and outstanding
after-the-sale support. To ensure that this product delivers that same degree of service, we ask that you take a
moment to review this manual before beginning the installation. Should you have any questions or require technical
help at any point, please call our technical service group at [phone] or [phone].
Before you begin
After uncrating and removing all packing material, inspect the equipment for concealed shipping damage. If damage
is found, notify the shipper immediately and contact Follett LLC so that we can help in the ling of a claim, if
necessary.
Check your paperwork to determine which conguration you have. Follett conguration numbers are designed to
provide information about the type of refrigerator you are receiving.
Specications
REFVAC20-LB REFVAC25-LB REFVAC20-PH REFVAC25-PH REFVAC20-PD REFVAC25-PD
Capacity 19.7 ft3(558L) 24.6 ft3(697L) 19.7 ft3(558L) 24.6 ft3(697L) 19.7 ft3(558L)/
280 bags (450ml)
24.6 ft3(697L)/
360 bags (450ml)
Usable
Space
12.8 ft3(0.36m3)16.4 ft3(0.46m3)12.8 ft3(0.36m3)16.4 ft3(0.46m3)13.8 ft3(0.39m3)18.2 ft3(0.52m3)
Storage
system
(4) epoxy-coated
shelves
(4) epoxy-coated
shelves
(6) epoxy-coated
baskets
(6) epoxy-coated
baskets
(6) stainless steel
drawers
(6) stainless steel
drawers
Exterior
width
29.75" (76 cm) 29.75" (76 cm) 29.75" (76 cm) 29.75" (76 cm) 29.75" (76 cm) 29.75" (76 cm)
Exterior
depth
29" (74 cm) 35" (89 cm) 29" (74 cm) 35" (89 cm) 29" (74 cm) 35" (89 cm)
Exterior
depth with
handles
30.5" (78 cm) 36.5" (93 cm) 30.5" (78 cm) 36.5" (93 cm) 30.5" (78 cm) 36.5" (93 cm)
Exterior
height with
casters
79.5" (202 cm) 79.5" (202 cm) 79.5" (202 cm) 79.5" (202 cm) 79.5" (202 cm) 79.5" (202 cm)
Interior
dimensions
(w x d x h)
24" x 22.5" x 56"
(61 cmx 58 cm x 143 cm)
24" x 28.5" x 56"
(61 cmx73 cm x 143 cm)
24" x 22.5" x 56"
(61 cmx 58 cm x 143 cm)
24" x 28.5" x 56"
(61 cmx 73 cm x 143 cm)
24" x 22.5" x 56"
(61 cmx 58 cm x 143 cm)
24" x 28.5" x 56"
(61 cmx 73 cm x 143 cm)
Crated
weight
395 (180 kg) 430 (196 kg) 450 (205 kg) 485 (220 kg) 475 (216 kg) 525 (239 kg)
Max. heat
rejection
950 BTU/hr 1050 BTU/hr 950 BTU/hr 1050 BTU/hr 950 BTU/hr 1050 BTU/hr
Standard features – all models
Door Dual pane, low-E glass, condensation free to 80 F (27 C) air/60% RH
Door handle ADA-compliant, full length handle with integral lock
Interior/exteriormaterial Heavy-duty, corrosion resistant stainless steel
Casters (4) dual-wheel swiveling casters with toe locks
Insulation 2.75" (7 cm) thick, CFC-free foam insulation throughout
Lighting (2) full length side LED lights
Air circulation system Ducted air through 12 back plenum openings with front face return
Temperature probe Stainless steel RTD (resistance temperature detectors) top, available as an option on -LB, -PH,
-PD models, immersible with panel quick-disconnect

401441492R00 – REFVAC20/25 LB, PH, PD
Refrigeration System
The REFVAC20/25 series refrigeration system is designed to give many years of trouble-free service. Except for
routine cleaning of the air-cooled condenser and related parts, the refrigeration system requires no service or
maintenance. The system uses a capillary tube metering device and is critically charged. Access ttings are not
provided. Temporary piercing valves are required to work on the refrigeration system. Follett recommends that if
hoses are ever connected to the refrigeration system for service, the refrigerant should be recovered, permanent
access valves should be installed and the system evacuated, and recharged by weighing in the correct refrigerant
charge (refrigerant R134a, 11.4 oz (322g).
Note: Do not charge the system by pressures.
Ambients
Intended for indoor use where ambient temperature, measured at the condenser inlet, does not exceed 80 F
(27C) and ambient relative humidity does not exceed 60% RH. A heated door is recommended for higher humidity
ambients.
Clearances
The top of the refrigerator must have 10 inches (25.4 cm) of clear space above the refrigerator to ensure proper
ventilation of the refrigeration system.
The back of the refrigerator should have 1 inch (2.5 cm) of clearance to allow for power cord clearance on unit and
an additional 1 inch (2.5 cm) if the unit is to be plugged in directly behind the refrigerator.
Electrical specications
§115 V, 60 Hz, 1 phase
§Running load amps: 8.4A without heated door; max 9.7A with door heater energized 100% (adjustable)
§Full load amps (90% maximum continuous current per UL 471 at 40 C): 10.5A
§Minimum circuit ampacity: 15A dedicated circuit
§Maximum size of branch circuit overcurrent device: 15A dedicated circuit
§Follett recommends circuit be protected by GFCI breaker
Refrigeration specications
§Refrigerant R134a, 11.4 oz (322 g)
§Compressor amperage: RLA - 7.6A, LRA - 44.5A
§Compressor winding resistances: C-S (5.2Ω - 5.9Ω), C-R (1.2Ω - 1.3Ω)
§Evaporator fan motor amperage: FLA - 0.22A
§Condenser fan motor amperage: FLA - 0.46A
§Condenser inlet air temperature: 75 F (23.9 C)
§Discharge pressure (psi): 186
§Suction pressure (psi): 88

01441492R00 – REFVAC20/25 LB, PH, PD 5
Detail drawing
REF20
30.5" (78cm)
REF25
36.5" (93cm)
76.75"
(195cm)
79.5"
(202cm)
29.75"
(76cm)
10.0"
(25.4cm)
Required Clearances
1.0" (2.5 cm)
for power cord;
2.0" (2.5 cm) if
outlet directly
behind unit

601441492R00 – REFVAC20/25 LB, PH, PD
Installation
DANGER
• Do not tilt any unit further than 30° off vertical during uncrating or
installation
• Refrigeration module area contains mechanical, moving parts. Keep
hands and arms clear of this area at all times. If access to this area is
required, power to unit must be disconnected rst.
Fig. 1
1. Remove key taped to side of refrigerator cabinet and unlock door.
2. Remove casters from box packed inside refrigerator.
Note: California facilities requiring wall and oor anchors – refer to
wall anchor kit instructions (#00938241) packed with seismic kit
before proceeding with caster installation.
3. Unbolt refrigerator from pallet.
4. Rotate refrigerator on pallet to install casters (Fig. 1.1).
5. Install casters by hand one at a time using channel locks to tighten,
until caster meets against the bottom of cabinet (Fig. 1.2).
6. Peel protective lm from exterior walls of stainless cabinet.
Adjust self-closing door
Fig. 2
1. Roll refrigerator to desired location and lock as many casters as
possible (Fig 2.1).
2. If the door appears to be sagging, remove the philips screw
(Fig.2.2) holding the Hold Open Bracket to the Hinge Bracket to
gain access to the Sag Adjustment Screw (Fig. 2.3). Turn the Sag
Adjustment Screw to align the door squarely with the freezer cabinet.
When nished, reinstall the Hold Open Bracket.
3. Check door for closing tension and adjust if necessary. To
check closing tension, open door 1” and turn screw (Fig. 2.4)
counterclockwise until you achieve positive close. (Light will go out)
Then, turn another half turn counterclockwise.
Install shelves (if equipped) and power up
Fig. 3
1. If refrigerator is equipped with shelves, remove bag containing
shelves supports and position them in desired locations on each
pilaster and insert shelves (Fig. 3).
2. Plug refrigerator into a 115 V 60 Hz 15A dedicated outlet.
1
2
2
1
3
Hold Open
Bracket
4
2
1
3

01441492R00 – REFVAC20/25 LB, PH, PD 7
Fill product bottle
Fig. 4
ATTENTION INSTALLER
§It is imperative that the top/bottom probe bottle be lled with a solution
that your facility uses to ensure proper operation of unit.
§Units are equipped with a third-party monitor installation port.
Customers are required to refer to CDC Vaccine and Handling Toolkit
(cdc.gov) for proper placement of the probe within the cabinet to
ensure proper performance.
§NSF 456 requires the temperature display probe (P4-RTD1 in
REF12, REF20/25, FZR20/25, and REF45 models) to be replaced or
recalibrated. Follett recommends replacement/recalibration 12 months
from the original date of calibration on the Certicate of Traceability
supplied with your equipment at the time of purchase. Recalibration
or purchasing a new calibrated probe is not covered by the original
equipment warranty. To purchase a new Probe with Certicate of
Traceability, please contact our Parts Department @ 1-877-612-5086
or [e-mail]
1. Remove probe and cap from the top bottle and ll with glycerine
supplied with unit (e.g., 50% glycerine and 50% water) (Fig. 4).
Replace cap and reinsert probe sensor.
2. Adhere supplied probe wire clips (x4, packaged with manual) to
inside wall leading to the probe bottle.
3. Route probe wire into clips and close the clips.
Power the Unit
Fig. 5
1. Press lower left corner of front facade door to access power switch
inside (Fig. 5.1).
Fig. 6
2. Press power switch to turn unit on (Fig. 6.1).
3. Connect wiring harness to back-up battery pack.
1
1
2

801441492R00 – REFVAC20/25 LB, PH, PD
Controller Operation
Use and care of the LCD touchscreen
The LCD touchscreen utilizes capacitive touch technology. This will allow you to engage the functionality by
touching the screen with your ngers, even while you are wearing latex or cotton gloves. Functionality will not
engage by touching with an inanimate object, such as a pen or stylus.
§To preserve optimal touch sensitivity, keep the screen clean by using a clean, dry cotton cloth.
§Do not expose the screen to liquids or excessive dust, heat or humidity.
Control function icons and navigation buttons engage functionality of the user interface. Status indicators alert the
user to a change of status.
Home screen
The Home Screen consists of three primary information areas: the
temperature display, control function display zone and system status display.
System Status
Settings
Alarming
Light
Information log
Help
Compressor is running
Evaporator fan is running
Door is open
Defrost cycle is in process
Control Functions
USB download available
(downloading when blinking)
Refrigeration set points
Sleep functions
Centrigrade to Fahrenheit
Functions and Settings
Probe set points
Alarming functions
Alarm mute
Reset
§Product temperature is displayed in the upper right corner.
§Current selected display probe above temperature readout.
§Primary control function icons are displayed in the lower left corner.
§System status icons will display in lower right corner to indicate a
condition has been activated.
Fig. 7
Fig. 8
High and low temperature display
From the home screen touch the temperature display in the upper right
corner. The high/low temperatures will appear below the temperature
display. To the left of the high/low temperature, a time and date stamp will be
displayed.
View the bottom probe temperature and min/max temperature log
1. Press the Temperature Display in the upper right hand corner of the
display
– Will initially display MIN/MAX temperature of Top probe.
2. Press a second time to prompt a reset Top probe MIN/MAX.
3. Press a third time to display HIGH/LOW alarm settings.
4. Press a fourth time to display current Bottom probe temperature.
5. Press a fth time to display Bottom probe MIN/MAX temperature.
6. Press a sixth time for prompt to reset Bottom probe MIN/MAX
temperature log..
Fig. 9

01441492R00 – REFVAC20/25 LB, PH, PD 9
Reset the high and low temperatures
Touch the temperature display a second time and the reset function
will appear under the high and low temperature. Touch the reset icon and
a yellow message box will appear. Press to conrm reset or to
cancel.
Alarm set point display
From the home screen touch the temperature display three times. The High
and low alarm set point will appear under the temperature.
VAC models have the alarms factory preset to 2 C (35.6 F) and 8 C (46.4 F).
Fig. 10
Help
§Help is available at any time by touching the icon at the bottom of
the screen.
§Help is screen-specic; touching the icon will display an explanation
of the functionality and use of the screen you are currently viewing.
§Touch to exit help screen.
Fig. 11
Settings
§Refrigeration Set Point
– Touch the number displayed in the box to the right of the Set point
label and use the keypad or UP and DOWN arrows to select product
temperature. Press to accept or tocancel.
§Sleep Temperature Display
– Toggle ON to hide the temperature reading immediately on the
home screen.
§Set the Sleep Delay
– To automatically hide the temperature after 0-600 seconds of
inactivity, touch the box to the right of the delay (0-600) box. Use
keypad or UP and DOWN arrows to select from 0-600.
§Temperature
F
C
– Toggle between Fand Cto select Fahrenheit or Celsius.
§Brightness
– Touch the number displayed in the box to the right of the Brightness
icon and use the keypad or UP and DOWN arrows to select
from 1-10. Press to accept or to cancel.
Fig. 12
38.4 F40 F
Advanced Settings
FC
F
C
Set point 38.0 F
System Info
Brightness
delay (0 - 300)
ON
3 seconds
OFF
5
Fig. 13
Advanced Settings
delay (0 - 300)
ON
3 seconds
OFF
F C
F
C
Set point 38.0 F
2
5
8
0
1
4
7
3
6
9
#
*
System Information
§Touch the System Info icon to display the model number, unit serial
number and software version. Touch the checkbox icon in the lower
right corner of the box to clear.
Fig. 14

10 01441492R00 – REFVAC20/25 LB, PH, PD
Alarm or Alert Notications
§If an alarm or event condition is detected and an alarm is engaged,
an alert notication will appear in the left center of the screen with an
explanation of the alert condition and a checkbox at the bottom
right of the alert box.
§No further action can be taken on the User Interface until the alert
condition is acknowledged and cleared by touching the checkbox .
§Mute
– Touch the icon to mute audible alarm for 10 minutes.
High/Low Alarm
This unit is equipped with a High and Low Temperature alarm that will give
an audible and visual alarm immediately after the top probe falls out of
range. The alarm will reappear every 10 minutes until the condition falls back
into range.
Fig. 15
Door Switch
§This unit is equipped with a door switch that is located in the façade, and a magnet located on the top of the
door. With the door closed, the switch reads closed. When the door is opened, the switch contacts open and
turn on the LED lights.
Door Alarm
§This unit is equipped with a door ajar alarm that is factory set for 1 minute. In the event the door switch reads
open for longer than 60 seconds (default) an audible and visual alarm will occur. The alarm will clear when the
door is closed. The door alarm activation time can be changed from 0-600 seconds in the Advanced Settings
Menu under Door Open Alarm Delay.
Power Alarm
§This unit is equipped with a Power Alarm that will sound if the unit loses power for more than ve minutes. The
Power Loss Alarm box will display every ve minutes, then the screen will sleep. An audible alarm will sound
every 30 seconds during the power failure. An alarm box will be displayed when power is restored. The event
log will record the exact time and date of the power loss and when the power was restored.
Start-up alarm delay
This unit has a 120 minute time delay between when the unit is energized to
when the temperature alarms become active. This delay can be changed in
parameters in the controller under Alarm Startup Delay.
Setting Alarms
§Alarming Settings control the conditions and timing of event and alarm
conditions that result in audible and/or visual alerts.
§To change the high alarm set point, touch the number displayed in the
box to the right of the icon and use the keypad or UP and DOWN
arrows to select an alarm value. Press to accept or to cancel.
§To change the low alarm set point, touch the number displayed in the
box to the right of the icon and use the keypad or UP and DOWN
arrows to select alarm value. Press to accept or to cancel.
§Audible Alarm
– Toggle between ON and OFF to engage and disengage the audible
alarm function.
§Mute
– Touch the icon to mute audible alarm for 10 minutes.
Fig. 16
HIGH
LOW
41.5 F
35.1 F
(1 - 10)
ON
3
OFF
Advanced Settings
