FONESTAR FCM-930A User manual

DESCRIPTION
Models FCM-930A, FCM-930A-MC3 y FCM-930A-MC4, are lightweight, hands-free unidirectional electret condenser
capsule microphone headsets.
They are highly sensitive and have a wide frequency response for reproducing a clear sound.
Their design and style give these microphones minimum visual impact. The hands-free design is perfect for people that
need to be able to express themselves while speaking. These models offer a firm grip and robust construction, specially
designed for sportsmen, aerobics monitors, etc.
They can be used in wireless transmission systems and with the majority of sound cards for PCs.
The wires allow adjustment without pressure, due to being very lightweight, making them very comfortable to use.
INSTALLATION
- Hold the two ends of the headset with both hands and separate them
lightly (a) to place them over your ears.
- To make the wires longer, hold the microphone with one hand on the
plastic joint that is under the end of the headset on the microphone side
and move the wires forwards or backwards with the other hand.
- Lastly, gently bend the end with the microphone capsule to adjust its
curve. The wires can be damaged if bent too much or too violently.
CONNECTION
The microphone needs power (from 1 to 10 V DC) for the electret capsule preamplifier. If the input where the microphone
is going to be connected does not have this type of power supply, it will have to be powered through a power circuit or
pre adapter (which includes the adapter circuit and battery). Power circuit:
- 1-
FCM-930A, FCM-930A-MC3, FCM-930A-MC4
HANDS-FREE UNIDIRECTIONAL ELECTRET CONDENSER
MICROPHONE HEADSET
EN
FCM-930_FCM-930-MC3_FCM-930-MC4_MANUAL_(EN)_20170404_Maquetación 1 15/1/18 14:35 Pá ina 1

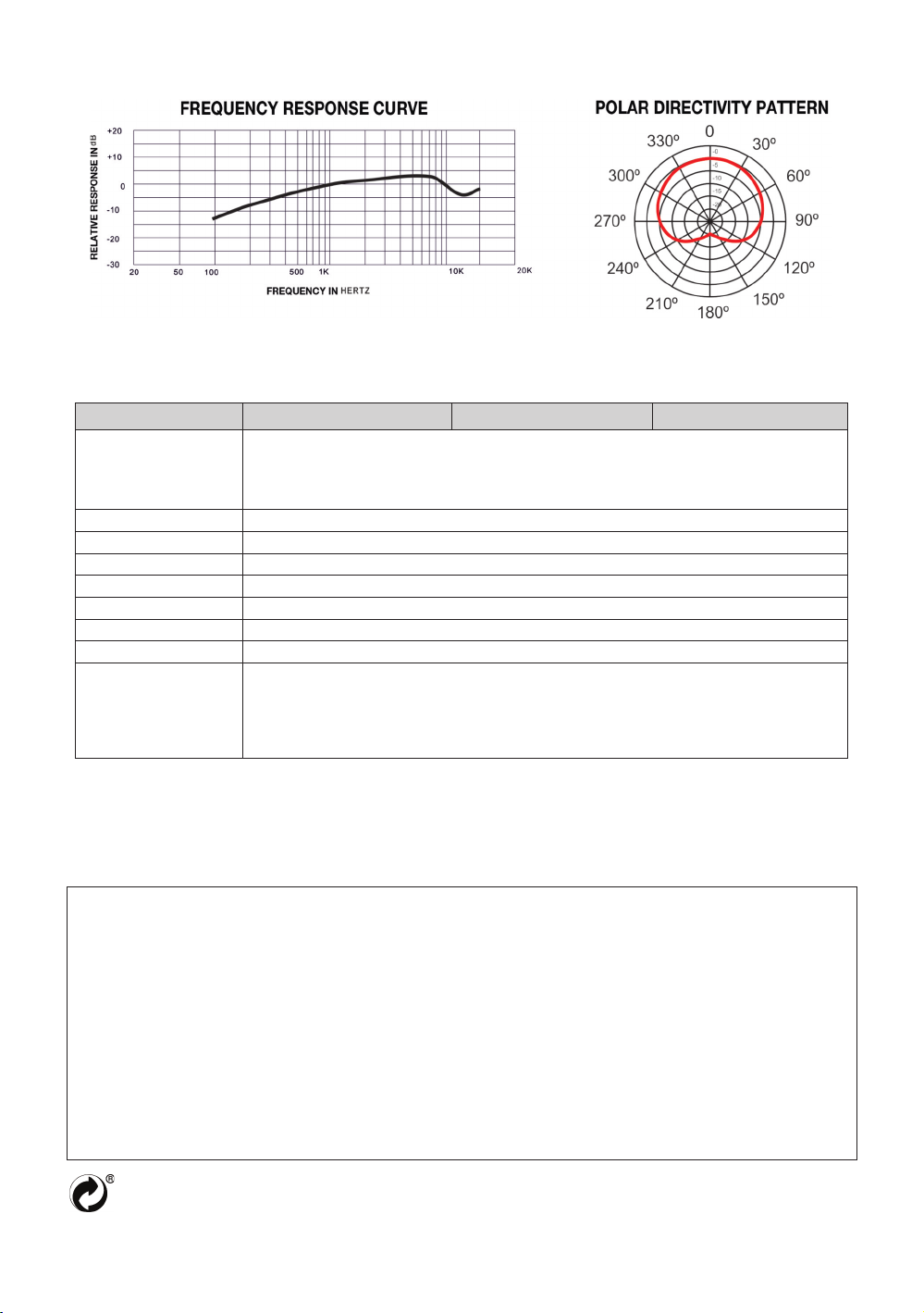

TECHNICAL SPECIFICATIONS
FCM-930A FCM-930A-MC3 FCM-930A-MC4
CHARACTERISTICS Unidirectional electret condenser capsule. For wireless equipment or electret
condenser microphone inputs. Stylish and discreet design, flesh colour.
High quality capsule with exceptionally low feedback.
Robust construction suitable for sporting activities, such as aerobics, step, etc.
RESPONSE 70-16,000 Hz
SENSIBILITY -47 dB ±3 dB (V/Pa)
IMPEDANCE 1,400 Ω
POWER SUPPLY 1 at 10 V DC
CABLE 1 m
MATERIAL Stainless steel, flexible and easily malleable
ACCESORIES Foam windshield
COMPATIBILITY FCM-930A, 90º 3.5 mm mono plug for mods. MSH-108, MSH-209, MSH-135, MSHT-45P,
ASH-26GU and ASH-52GU
FCM-930A-MC3, Mini XLR for mods. MSH-829, AKG and Gemini
FCM-930A-MC4, Mini 4-pin XLR for mod. MSH-236
FCM-930A-MC4S, Mini 4-pin XLR for mods. ASH-103U, ASH-203U, Shure and JTS
