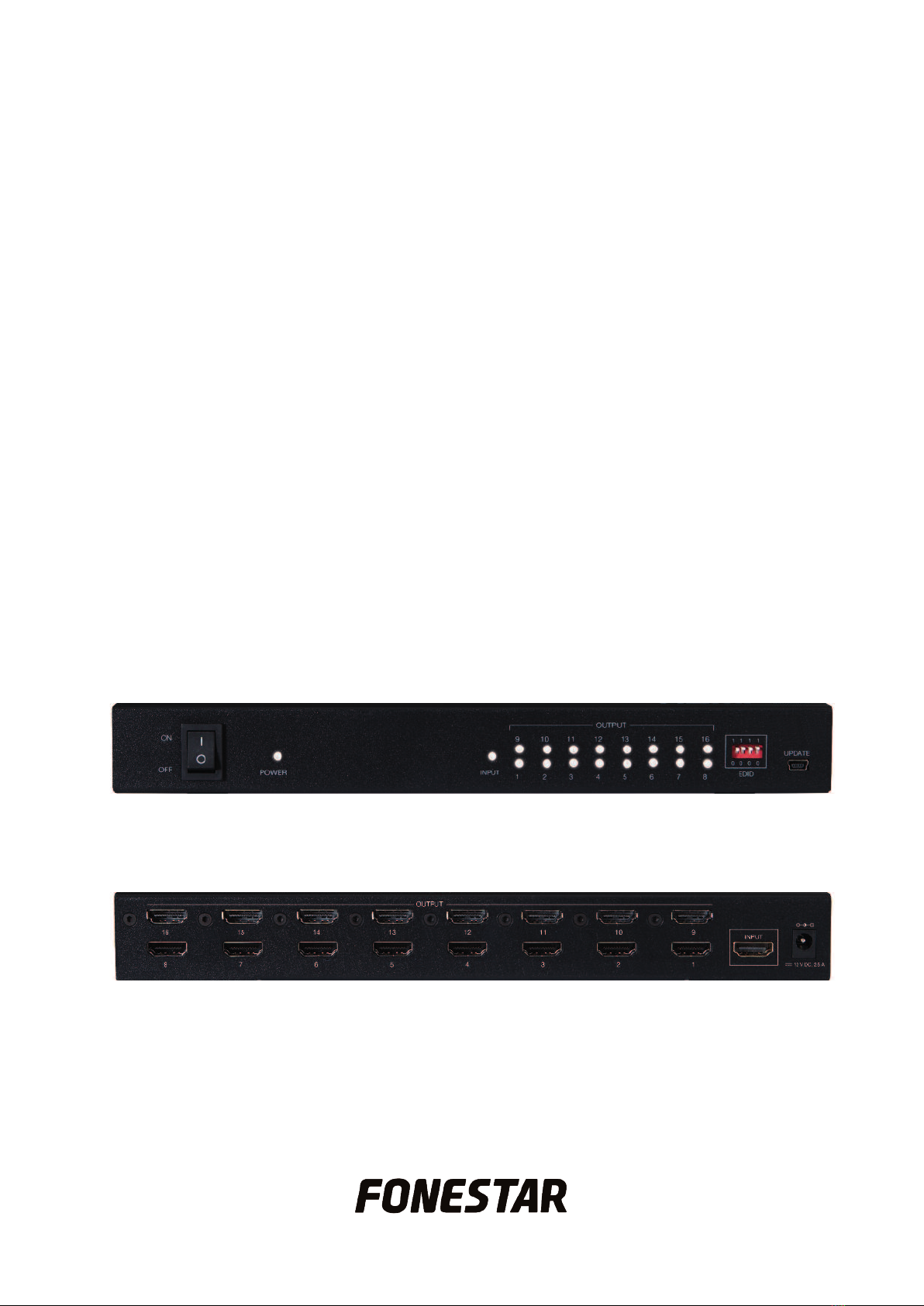

FONESTAR FO-20S16E User manual

FO-20S16E
1 x 16 HDMI SPLITTER
INSTRUCTION MANUAL

EN
- 2-
We take this opportunity to thank you for buying this product.
We recommend you read the instruction manual before switching on the machine and follow the instructions
that are given. Keep the manual for future reference.
SECURITY AND THE ENVIRONMENT
E ECTRICA SECURITY
Check that the current in the mains connection where the machine is to be installed corresponds to the
power supply of the machine.
To avoid damaging the equipment, electrical shocks, fire or physical injury when you connect or disconnect
the equipment from the power supply, pull the plug firmly out of the mains socket holding the plug, never the
cable.
Always do this with dry hands.
Keep the power supply cable far from sources of heat. Do not put heavy objects on top of it or change it.
Clean dust and dirt off the power supply cable regularly.
Do not open the machine; you could get an electric shock.
CAUTION
While installing the machine, make sure it is switched off and unplugged.
Do not open the machine. Touching the internal parts is dangerous and you could receive an electric shock.
The machine must not be splashed or dripped on. Never place recipients with liquid inside on the machine.
Do not place anything inside the machine.
OCATION
Place the equipment on a horizontal surface with enough space around it to allow ventilation.
Avoid direct sunlight, heat sources and excessive dust.
Do not place the machine near magnetic fields or static electricity.
Do not use surfaces which vibrate or receive impact.
Do not pile machines on top of one another.
VENTI ATION
Never block or cover the ventilation slits on the machine.
Do not expose it to direct sunlight or place it near sources of heat.
PERIODS OF INACTIVITY
When the machine is not going to be used for a long period of time, disconnect it from the mains.
If you are using an adapter, take into account that it will continue using electricity even if the machine is
switched off. If it is not going to be used for a long period of time, disconnect it from the mains.
THE ENVIRONMENT
To save energy, switch the machine off when you are not going to use it for a long time. The machine could
contain substances that are harmful to the environment or human health. To minimize the effect of these
substances the machine must be correctly managed and recycled when you decide to dispose of it.
When you dispose of it remember: it cannot be thrown into a conventional rubbish bin.
If it contains or uses batteries, these must be disposed of separately.
The machine (without batteries) must be disposed of correctly. Put it in a container specially intended for the
collection of electronic and electrical appliances, at the dump or hand it over to the dealer when you purchase
similar equipment, so that the dealer can dispose of it correctly (at no added cost).

EN
- 3-

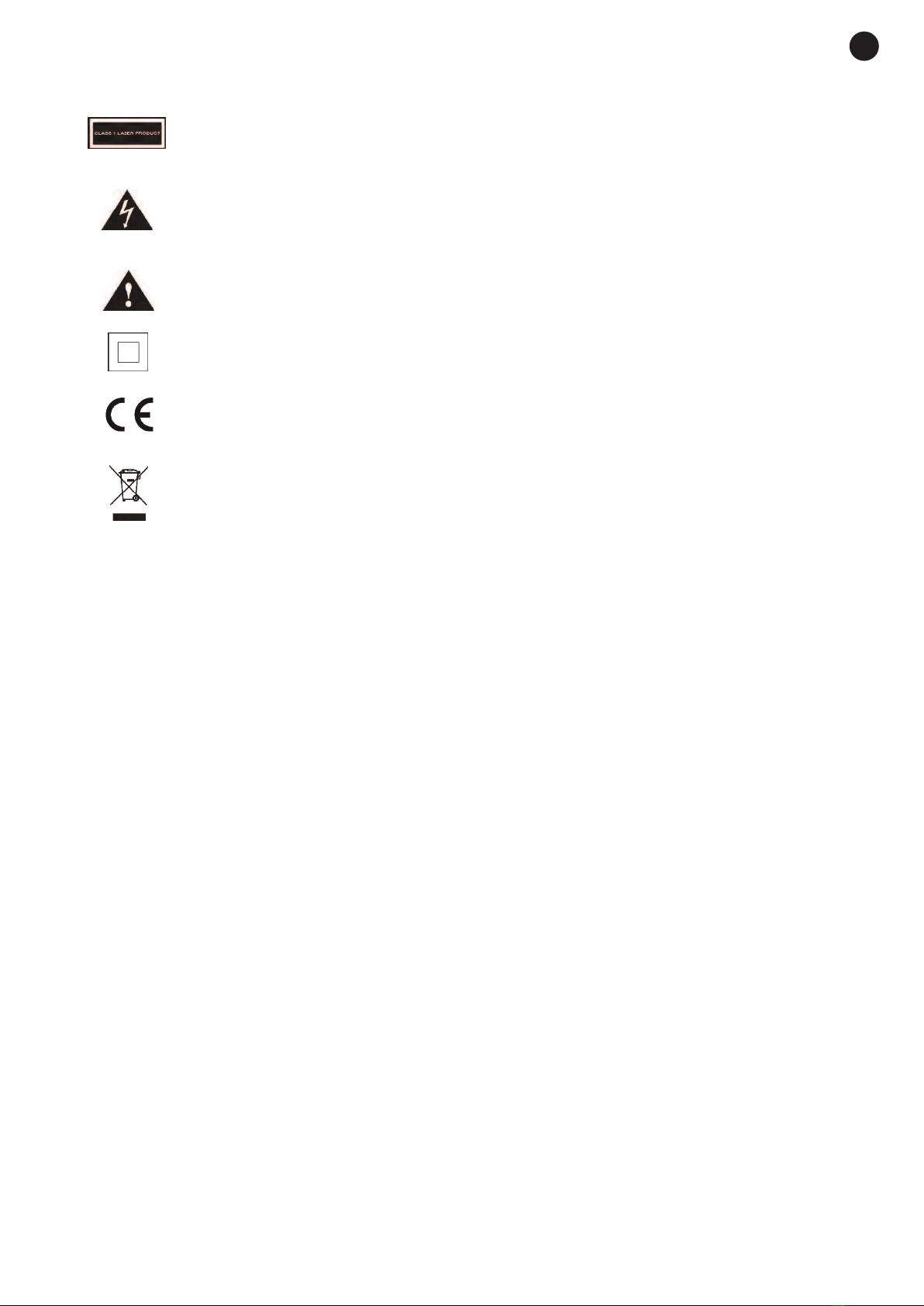

SIGNIFICANCE OF THE SYMBOLS ON THE MACHINE*
The symbol formed by the expression “Class 1 laser product” written in a rectangle
indicates that visible or invisible laser radiation could be produced. Avoid direct exposure
to the laser.
The symbol formed by a ray of lightening inside a triangle shows that the machine has
connection terminals or a circuit with areas with a current which could cause an electric
shock, even in normal working conditions.
The symbol formed by an exclamation mark in a triangle shows that the instruction manual
must be referred to for information on how the machine works and its use.
The symbol formed by one square inside another square shows that the machine has
double electrical insulation.
The European Community symbol shows that the machine complies with the current
European Union legislation, as well as its transposition to local legislation.
The symbol of a rubbish bin crossed out and over a horizontal line shows that when the
product is disposed of it must be done properly, placing it in a special selective electronic
and electrical equipment container or through a dealer when purchasing a similar product,
at no additional cost. It also shows that the machine was put on the market after 13th
August 2005 (European Community Directive 2002/96/CE of Electrical and Electronic
recycling, and its Spanish equivalent R.D.208/2005).
In accordance with what is set out in the aforementioned decree, FONESTAR is registered
in the RAEE (Registro de Aparatos Eléctricos y Electrónicos) in a special section REI
(Registro de establecimientos Industriales), with the entry number 001851.
*It is possible that some of these symbols do not appear on the machine.
EXEMPTION OF LIABILITY
The characteristics of the equipment and the content of the manual can change without forewarning.
FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the
information supplied in this instruction manual, and specifically disclaims any implied liability for marketability
or fitness for any other use.
All rights reserved by FONESTAR, S.A.

EN
- 4-
DESCRIPTION
- The 1 x 16 HDMI splitter mod. FO-20S16E allows connection of up to 16 monitors with HDMI input to
display the signal connected to the splitter’s HDMI input, conditioning the signal for optimum playback via
the EDID function. Maximum resolution up to 4k x 2k, compatible with all 3D formats.
- The EDID function negotiates between the playback device and the screen the resolution, frequency, colour
and audio formats suited to obtaining the best display.

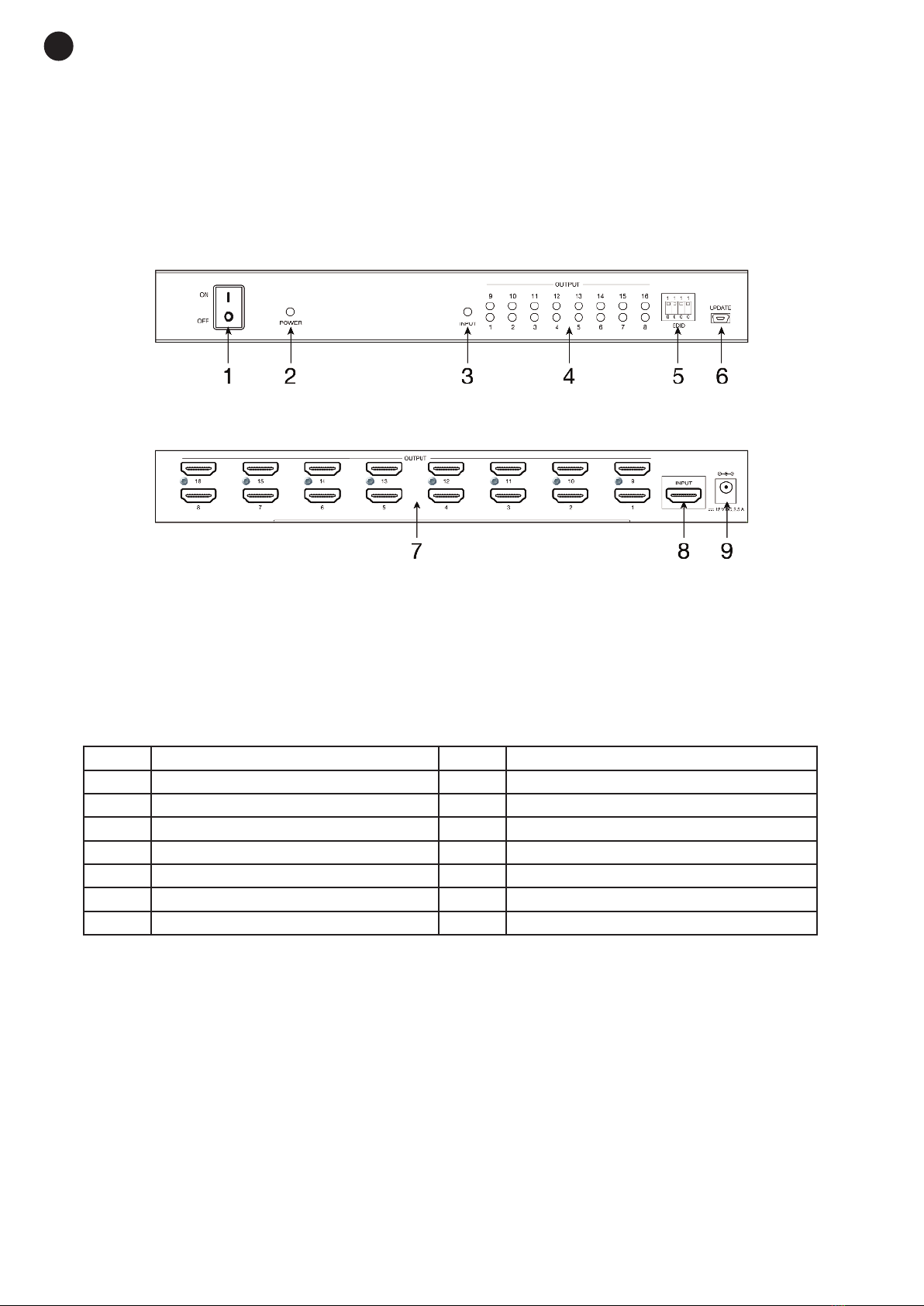

CONTROLS AND FUNCTIONS
1.- ON/OFF: splitter on/off switch.
2.- POWER: ED power indicator.
3.- ED indicator which lights up when the input source is connected.
4.- ED indicators which light up when the corresponding outputs are connected.
5.- EDID: EDID mode selection in the splitter. Consult the following table to select the most suitable mode
to ensure the best display in all the screens.
Place the DIP microswitches in the required position to select one of the following options:
6.- UPDATE: function not available.
7.- OUTPUT 1-16: signal outputs, HDMI connectors. They provide a signal identical to the one in the input.
8.- INPUT: signal input, HDMI input.
9.- Power supply for the mains adapter provided.
0000 1080p, audio 2CH 1000 3D, 1080p, audio HD
0001 1080p, DO BY/DTS 5.1 1001 4k x 2k, audio 2CH
0010 1080p, audio HD 1010 4k x 2k, DO BY/DTS 5.1
0011 1080i, audio 2CH 1011 4k x 2k, audio HD
0100 1080i, DO BY/DTS 5.1 1100 Do not use
0101 1080i, audio HD 1101 Do not use
0110 3D, 1080p, audio 2CH 1110 Do not use
0111 3D, 1080p, DO BY/DTS 5.1 1111 Acquires the information from output 1

EN
- 5-
CONNECTION AND OPERATING
- Connect the HDMI signal source to the splitter INPUT.
- Connect the required OUTPUT to the TV monitors.
- Power the FO-20S16E splitter with the mains adapter provided.
- Select the required EDID mode with the splitter’s DIP microswitches.
TECHNICAL SPECIFICATIONS
FO-20S16E
CHARACTERISTICS 1 x 16 HDMI splitter amplifier.
Compatible with 4k x 2k, Full HD 1080p, Full 3D.
EDID function, automatically or manually selects optimum resolution for all TVs.
Bandwidth 10.2 Gbps.
INPUTS 1 gold-plated female HDMI connector
OUTPUTS 16 gold-plated female HDMI connectors
INDICATORS ED power indicator
ED input indicator
ED output indicators
POWER SUPPLY 12 V DC, 2.5 A with adapter included
DIMENSIONS 270 x 45 x 115 mm depth

- 6-
EN

WARRANTY
This product has been tested and has passed the corresponding quality control prior to being put on the
market.
FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from
the delivery date and commits itself to repair or substitute the goods as expressed in the Spanish law ‘ a
ey General para la Defensa de los Consumidores y Usuarios, Real Decreto egislativo 1/2007 16
Noviembre.
The lack of conformity in the first six months after purchase, due to a manufacturing defect, will be
rectified with no more than showing the proof of purchase. After six months FONESTAR reserves the right
to demand proof of the product being sold with that problem.
This warranty does not include damage produced by: inappropriate use or negligence, accidents, worn
out parts due to use, breakages, burns, spilt liquids or other substances, excessive humidity, battery
deterioration and internal manipulation of the device, the software or its components by unauthorized
persons, and in general any use that is unrelated to the nature and purpose of the product.
If any service is needed during the warranty period because of lack of conformity, please contact the
business or distributor where the product was purchased in no more than 2 months after being conscious
of the problem. It is only necessary to contact FONESTAR if it is impossible or imposes an undue burden
for them to solve it.
To benefit from this warranty it is necessary to show the proof of purchase with the date clearly visible,
with no corrections or crossing out.
This document adds information, and never decreases the consumers’ rights, which in all cases are
protected by the Spanish law ‘ a ey General para la Defensa de los Consumidores y Usuarios, Real
Decreto egislativo 1/2007 16 Noviembre.
FONESTAR is a member of ECOEMBA AJES ESPAÑA, S.A. “ECOEMBES”, with number 03497 and all our products
carry the symbol, backed by our membership and subscription to the above mentioned organization with the recycling and
subsequent management of our packaging.
FONESTAR, S.A. - NIF A28780443 - Polígono Trascueto - 39600 Revilla de Camargo, Cantabria (Spain)
www.fonest r.com
