FOR-A USF-1013MUX User manual

USF-1013MUX
Digital Audio Multiplexer
1st Edition - Rev. 1
OPERATION
MANUAL

2
Precautions
Important Safety Warnings
[Power]
Stop
Do not place or drop heavy or sharp-edged objects on the power cord. A damaged
cord can cause fire or electrical shock hazards. Regularly check the power cord for
excessive wear or damage to avoid possible fire / electrical hazards.
[Circuitry Access]
Stop
Do not touch any parts / circuitry with a high heat factor.
Capacitors can retain enough electric charge to cause mild to serious shock, even after
the power has been disconnected. Capacitors associated with the power supply are
especially hazardous.
Hazard
Unit should not be operated or stored with cover, panels, and / or casing removed.
Operating the unit with circuitry exposed could result in electric shock / fire hazards or
a unit malfunction.
[Potential Hazards]
Caution
If abnormal odors or noises are noticed coming from the unit, immediately turn the
power off and disconnect the power cord to avoid potentially hazardous conditions. If
problems similar to the above occur, contact an authorized service representative
before attempting to operate the unit again.
[[Consumables]
Caution
Consumable items that are used in the unit must be periodically replaced. For further
details on which parts are consumables and when they should be replaced, refer to the
specifications at the end of the Operation Manual. Since the service life of the
consumables varies greatly depending on the environment in which they are used,
such items should be replaced at an early date. For details on replacing consumable
items, contact your dealer.

3
Upon Receipt
The USF-1013MUX module is fully inspected and adjusted prior to shipment. Check your received items
against the packing lists below. Check to ensure no damage has occurred during shipment. If damage
has occurred, or items are missing, inform your supplier immediately.
USF-1013MUX
ITEM
QTY
REMARKS
USF-1013MUX
1
USF-1013MUX front module
USF-1013MUX rear module
Screws for rear module
installation
2 pcs.
CD-ROM
1
Operation manual (PDF)
The USF-1013MUX is used by installing into a USF-212S frame.
The USF-1013MUX is not installed into a USF-212 frame.
Up to 12 USF-1013MUX can be installed into a USF-212S frame.

4
Table of Contents
1. Prior to Starting.....................................................................................................................................5
1-1. Overview .....................................................................................................................................5
1-2. Features......................................................................................................................................5
1-3. About This Manual......................................................................................................................5
2. Panel Descriptions................................................................................................................................6
2-1. Front Panel..................................................................................................................................6
2-2. Rear Panel ..................................................................................................................................6
3. Connection ...........................................................................................................................................6
4. Operation Examples.............................................................................................................................7
4-1. SDI Embedded Output of AES Audio .........................................................................................7
4-2. Synchronous / Asynchronous Audio Mapping............................................................................8
5. Web GUI...............................................................................................................................................9
5-1. Audio Input Settings..................................................................................................................10
5-1-1. SDI Audio Clock.................................................................................................................10
5-1-2. AES Audio Clock................................................................................................................10
5-1-3. SDI PCM Mode/AES PCM Mode....................................................................................11
5-1-4. SDI Audio Gain/AES Audio Gain ....................................................................................11
5-2. Audio Output Mapping ..............................................................................................................11
5-2-1. SDI Audio Output Mapping................................................................................................12
5-3. Audio Output Settings...............................................................................................................12
5-3-1. Audio Mode........................................................................................................................12
5-3-2. SDI Mono Sum...................................................................................................................12
5-3-3. SDI Audio Resolution.........................................................................................................13
5-3-4. SDI Audio Mute..................................................................................................................13
5-3-5. SDI Audio Gain..................................................................................................................13
5-4. System Settings ........................................................................................................................13
5-4-1. System...............................................................................................................................13
5-4-2. Parameter..........................................................................................................................14
5-5. Status (Display Only) ................................................................................................................15
5-5-1. SDI Audio Clock.................................................................................................................15
5-5-2. SDI Audio Mode.................................................................................................................15
5-5-3. AES Audio Mode ...............................................................................................................15
5-5-4. Signal Input Status.............................................................................................................16
5-5-5. LTC Input ...........................................................................................................................16
5-5-6. Module Status....................................................................................................................16
5-6. SNMP Settings..........................................................................................................................16
5-6-1. Trap....................................................................................................................................17
6. About SNMP.......................................................................................................................................18
6-1. Overview ...................................................................................................................................18
6-2. USF-1013MUX GET/SET List...................................................................................................18
6-3. USF-1013MUX TRAP List.........................................................................................................20
7. Work Block Chart................................................................................................................................21
7-1. Audio Processing ......................................................................................................................21
8. Troubleshooting..................................................................................................................................22
9. Specifications and Dimensions ..........................................................................................................23
9-1. Specifications............................................................................................................................23
9-2. External Dimensions.................................................................................................................24

5
1. Prior to Starting
1-1. Overview
The USF-1013MUX is a module type digital audio multiplexer to be mounted into a USF-212S
frame.
The USF-1013 MUX is a plug-in module. The USF-1013MUX multiplexes and outputs 3G-SDI
signal, HD-SDI signal or SD-SDI signal, and 8 channels (stereo 4 sets) of AES/EBU signal.
AES 7/8 input can be switched to LTC signal input and the input LTC (Time code) can be
embedded in SDI output.
1-2. Features
Multiplexes 4 pairs (8 channels) of AES/ EBU signals onto SDI signals
3G/HD/SD-SDI input and output x 1
Gain adjustment for audio input/ output
Timecode (LTC) input (AES7/8 switching)
Sample rate converter for AES/ EBU input
1-3. About This Manual
This manual is intended to help the user easily operate this product and make full use of its
functions during operation. Before installing or operating your module, read this operation manual
thoroughly to ensure you understand the product. Afterwards, store this manual in a safe place for
future reference.

6
2. Panel Descriptions
2-1. Front Panel
USF-1013MUX
No.
Name
Description
1
POWER
Lights green when power is supplied from USF frame and internal CPU is
functioning.
2
SDI-IN
Lights green when SDI signal is normally input. (Lights green )
: SD input
: 1.5G-SDI input
: 3G-SDI input
3
μSD card
connector
Used when upgrading USF-1013MUX software.
(Do not insert μSD card in normal operation.)
2-2. Rear Panel
IN OUT
3G/HD/SD SDI
USF-1013MUX
1/2 3/4 5/6 7/8
-LTC
DIGITAL AUDIO IN
No.
Name
Description
1
3G/HD/SD-SDI
IN
SD input connector
2
OUT
SDI output connector - Embeds selected audio channel.
3
DIGITAL AUDIO IN
1/2 to 7/8
4-pair AES/EBU input connector
7/8 can be used as LTC input connector by switching.
3. Connection
Connect peripheral devices referring to the drawing as shown below.
(1)
(3)
(2)
(1)
(3)
(2)
IN OUT
3G/HD/SD SDI
USF-1013MUX
1/2 3/4 5/6 7/8
-LTC
DIGITAL AUDIO IN
Audio embedded SDI IN
DIGITAL AUDIO IN
SDI IN

7
4. Operation Examples
4-1. SDI Embedded Output of AES Audio
This example embeds synchronous/ asynchronous digital audio input (Ch.1-4) to SDI embedded
audio Group 1 (Ch. 1-4).
Audio source
AES input Ch1 to 4
Channel to be embedded
SDI output Ch1 to 4 (Group 1)
Setting Required Parameters
Menu
Parameter
Channel
Setting
Description
Refer to
Mapping
SDI Audio
Output
Mappings
Ch. 1
AES Ch. 1
Assigns AES input
Ch. 1-4 to SDI output
Ch. 1-4.
5-2-1
Ch. 2
AES Ch. 2
Ch. 3
AES Ch. 3
Ch. 4
AES Ch. 4
Output
Audio Mode
Group1 *
Mapping
(default)
Performs Group1
audio embedding.
5-3-1
* For SD-SDI signals, Mapping or Through should be selected for all groups.
Adjustable Parameters
Menu
Parameter
Channel
Default
Setting
Description
Refer to
Input
AES Audio
Clock
Ch. 1-4
SRC On
Allows you to select
Sync. or Async. for audio
sources.
5-1-2
AES PCM
Mode
Ch. 1/2
Ch. 3/4
Auto
Allows you to select
PCM or NON-PCM for
audio sources.
5-1-3
AES Audio
Gain
Master
Ch. 1-4
0.0dB
Allows you to adjust
input gain.
5-1-4
Output
SDI Mono Sum
Ch. 1/2
Ch. 3/4
Stereo
Allows you to select
stereo or mono for
output audio.
5-3-2
SDI Audio
Resolution
Ch. 1-4
24bit
Allows you to select bit
depth for output audio.
5-3-3
SDI Audio
Mute
Ch. 1-4
Off
Allows you to mute audio
output.
5-3-4
SDI Audio
Gain
Master
Ch. 1-4
0.0dB
Allows you to adjust
output gain.
5-3-5
System
Sync Format
---
Auto
Allows you to select an
SDI format. Select Auto
to switch multiple
formats.
5-4-1
Audio Test
Signal Output
---
Off
Allows you to output
audio test signal. Select
1kHz Tone to output
audio test signal.
5-4-1
USF-
1013MUX
Group 1

8
4-2. Synchronous / Asynchronous Audio Mapping
If audio source channels are synchronized with VIDEO, they can be freely mapped to SDI audio
output channels. If audio source channels are asynchronous, they are mapped on a per-group
basis.
Synchronous Audio Mapping Example (Freely assignable on a per-channel basis)
Input Audio Channels Mapping Channels after Mapping
Group 1
(Sync)
SDI ch1
SDI ch1
Group 1
(Sync)
AES ch3
SDI ch2
SDI ch2
SDI ch5
SDI ch3
SDI ch3
SDI ch16
SDI ch4
SDI ch4
AES ch4
Group 2
(Sync)
SDI ch5
SDI ch5
Group 2
(Sync)
SDI ch6
SDI ch6
SDI ch6
SDI ch2
SDI ch7
SDI ch7
AES ch8
SDI ch8
SDI ch8
SDI ch1
|
|
SDI ch9
Group 3
(Sync)
AES ch6
Group 4
(Sync)
SDI ch14
SDI ch10
SDI ch14
SDI ch15
SDI ch11
AES ch7
SDI ch16
SDI ch12
SDI ch4
Group 1
(Sync)
AES ch1
SDI ch13
Group 4
(Sync)
SDI ch7
AES ch2
SDI ch14
SDI ch15
AES ch3
SDI ch15
SDI ch6
AES ch4
SDI ch16
AES ch4
Group 2
(Sync)
AES ch5
AES ch6
AES ch7
AES ch8
Synchronous and Asynchronous Audio Mapping Example
Synchronous audio is assignable on per-channel and Asynchronous audio is assignable on group
basis.
Input Audio Channels Mapping Channels after Mapping
Group 1
(Sync)
SDI ch1
SDI ch1
Group 1
(Async)
SDI ch5
SDI ch2
SDI ch2
SDI ch6
SDI ch3
SDI ch3
SDI ch7
SDI ch4
SDI ch4
SDI ch8
Group 2
(Async)
SDI ch5
SDI ch5
Group 2
(Sync)
AES ch2
SDI ch6
SDI ch6
SDI ch2
SDI ch7
SDI ch7
AES ch8
SDI ch8
SDI ch8
SDI ch1
|
|
SDI ch9
Group 3
(Async)
AES ch5
Group 4
(Sync)
SDI ch14
SDI ch10
AES ch6
SDI ch15
SDI ch11
AES ch7
SDI ch16
SDI ch12
AES ch8
Group 1
(Sync)
AES ch1
SDI ch13
Group 4
(Sync)
SDI ch14
AES ch2
SDI ch14
SDI ch15
AES ch3
SDI ch15
SDI ch4
AES ch4
SDI ch16
AES ch4
Group 2
(Async.)
AES ch5
AES ch6
AES ch7
AES ch8
IMPORTANT
If audio channels are mapped on a per-channel basis and some audio channels are changed
from synchronous to asynchronous during processing, the audio channels may play out
improperly or noisily. In such case, verify and remap the channels on a per-group basis.
After mapping, if there is no input on the first channel of a group (ch1, 5, 9, and 13), all channels
in the group are not embedded.

9
5. Web GUI
Start up a web browser on the PC and connect to the USF-1013MUX installed in a USF-212S frame.
The following window will open.
* Refer to the USF-212S operation manual for details on how to connect to a USF-1013MUX from the
web browser.
Clicking on a tab, Input, Mapping, Output, System, Status, or SNMP enables you to select a top
menu.
Menu
Description
Input
Menu related to embedded audio and AES audio input
Mapping
Assigns respective channels of embedded audio and AES audio input to
embedded SDI output audio channels.
Output
Configures embedded audio output.
System
Configures system and SDI signal set-up.
Status
(Display only)
Status of embedded audio, AES audio, LTC input
SNMP
Sends / Does not send SNMP trap.

10
5-1. Audio Input Settings
Click Input.
5-1-1. SDI Audio Clock
Channel
Default
Selection
Description
Group1-4
Auto
Auto
Sync SDI
Audio Clock
Selects the Sync. Mode for embedded audio
processing.
Auto: Automatically selects Sync. or Async.
Mode according to the flag in embedded audio.
Sync SDI: Processes audio in Sync. Mode.
Audio Clock: Processes audio in Async.
Mode.
* The "asx" of UDW (user data word) bits in embedded audio packets indicates the audio
Sync Mode.
* If Sync SDI or Audio Clock is selected, it is also set in the "asx" of UDW bits in output
audio.
5-1-2. AES Audio Clock
Channel
Default
Selection
Description
Ch.1-4
Ch.5-8
SRC On
SRC On
Sync SDI
Audio Clock
Selects the Sync. Mode for AES audio
processing.
SRC On:Enables SRC (Sample Rate
Converter) to synchronize AES audio to video.
Sync SDI: Processes audio in Sync. Mode.
Audio Clock: Processes audio in Async.
Mode.
* Sync SDI or Audio Clock if selected, is set in the "asx" of UDW bits in output audio.
IMPORTANT
Asynchronous audio mapping can only be performed on a per group basis. If mapped on a
per-channel basis, synchronous and asynchronous signals are mixed in a group and may
play out improperly or noisily.

11
5-1-3. SDI PCM Mode/AES PCM Mode
Parameter
Channel
Default
Selection
Description
SDI PCM
Mode
Ch. 1/2 to
15/16
Auto
Auto
PCM
NON-PCM
Selects PCM (linear PCM,
uncompressed) or non-PCM
(non-linear PCM) mode for
embedded and AES audio
processing.
Auto: Automatically selects PCM
or NON-PCM mode
according to the flag in
embedded audio and AES
audio.
PCM: Processes audio in PCM
mode.
NON-PCM: Processes audio in
NON-PCM mode.
AES PCM
Mode
Ch. 1/2 to
7/8
* A flag is included in the corresponding Channel Status bit.
PCM and NonPCM
Linear PCM audio indicates raw and uncompressed digital audio data, which is encoded from
analog audio signals using the Linear Pulse Code Modulation (LPCM) method.
NonPCM (non-linear) audio indicates digital audio data other than linear PCM audio and
includes compressed audio streams such as Dolby E or AC3.
IMPORTANT
Note that some audio channels may be output improperly if PCM and non-PCM or non-PCM
of different-format audio channels are included in a group.
5-1-4. SDI Audio Gain/AES Audio Gain
Parameter
Channel
Default
Setting Range
(min. step)
Description
SDI Audio
Gain
Master
Ch. 1 to 16
0.0dB
-20.0dB to
+20.0dB
(0.1dB step)
Adjusts the input gain for each
embedded and AES.
Set to 0.0dB for NON-PCM
mode channel.
AES Audio
Gain
Master
Ch. 1 to 8
5-2. Audio Output Mapping
Click Mapping.

12
5-2-1. SDI Audio Output Mapping
Channel
Default
Setting Range
Description
Ch. 1 to 16
Same
as SDI
IN
SDI Ch1 to 16
AES Ch1 to 8
Assigns audio input channels to output
channels. Audio assignments can be performed
on a per-channel basis, but asynchronous
(non-PCM) audio must be assigned on a
per-group basis.
5-3. Audio Output Settings
Click Output.
5-3-1. Audio Mode
Channel
Default
Selection
Description
3G
HD
Group1 to 4
Mapping
Mapping
Through
Mapping: Embeds the selected channels
under SDI OUT MAPPING to the SDI
output.
Through: Passes through the SDI input
audio without modification.
For 3G/HD-SDI signals, set the parameter
for each group.
For SD-SDI signals, set the parameter for all
groups.
SD
---
5-3-2. SDI Mono Sum
Channel
Default
Selection
Description
Ch.1/2 to
Ch. 15/16
Stereo
Stereo
Monaural
Stereo: Outputs audio in normal Stereo
mode.
Monaural: Outputs L and R mixed audio
(Monaural) for both L and R.

13
5-3-3. SDI Audio Resolution
Channel
Default
Selection
Description
Ch1 to 16
24bit
24bit
20bit
16bit
Sets the sampling resolution (bit depth) for
output audio.
24bit: Outputs 24-bit audio.
20bit: Outputs 20-bit audio.
16bit: Outputs16-bit audio.
5-3-4. SDI Audio Mute
Channel
Default
Selection
Description
Ch1 to 16
OFF
OFF
ON
Checkmark ON to mute audio output
5-3-5. SDI Audio Gain
Channel
Default
Setting Range
(Step)
Description
Master
Ch1 to 16
0.0dB
-20.0dB to +20.0dB
(0.1dB step)
Adjusts the output gain for each embedded
audio channel.
5-4. System Settings
Click System.
5-4-1. System
Item
Default
Selection
Description
Sync
Format
Auto
(See the
table
“Format
Settings” as
shown on
next page
below.)
Selects video format of SDI signal.
The formats listed on the table as shown on next
page can be selected.
Multiple video formats that are used need to be
selected each time a format is switched.
Auto: Selects video format automatically.
When different signal other than the selected
video format is input, an image selected in Video
Loss Mode will be output.

14
Item
Default
Selection
Description
Sync
Format
Auto
(See the
table
“Format
Settings” as
shown on
next page
below.)
Selects video format of SDI signal.
The formats listed on the table as shown on next
page can be selected.
Multiple video formats that are used need to be
selected each time a format is switched.
Auto: Selects video format automatically.
When different signal other than the selected
video format is input, an image selected in Video
Loss Mode will be output.
AES 7/8
Port Input
AES 7/8
AES7/8
LTC
Selects signal to input in AES 7/8 port.
AES7/8: AES CH7/8 audio signals are input.
LTC: LTC signals are input
LTC Input
SDI
SDI
AES
Selects ANC area time code to SDI output.
SDI: Outputs SDI input data without processing.
AES: Inserts or overwrites LTC and VITC by LTC
data that were input into AES 7/8 Port.
Audio
Reference
Level
-20dBFS
-20dBFS
-18dBFS
Sets audio test signal output level.
-20dBFS: Test signal will be output at -20dBFS
level.
-18dBFS: Test signal will be output at -18dBFS
level.
Audio Test
Signal
Output
Off
Off
1kHz Tone
Outputs audio test signal when 1kHz Tone is
selected.
Off: Selected input audio signal will be output.
1kHz Tone: Internally generated 1kHz TEST
signal will be output.
Video Loss
Mode
Black
Black
Blue
Selects black or blue video for output if SDI is not
input, or the input video format is different from
the Sync Format setting. (See Sec. 5-4-1). Note
that these video signals are output asynchronous
with the system. In addition, no payload ID is
passed through.
Black: Outputs black video.
Blue: Outputs blue video.
Format Settings
3G SDI
HD SDI
SD SDI
1080/59p(Level-A)
1080/50p(Level-A)
1080/60p(Level-A)
1080/59p(Level-B)
1080/50p(Level-B)
1080/60p(Level-B)
1080/59i
1080/50i
1080/60i
1080/30p
1080/29p
1080/25p
1080/24p
1080/23p
1080/24PsF
1080/23PsF
720/59p
720/50p
720/60p
720/24p
720/23p
1035/59i
1035/60i
525/60
625/50
5-4-2. Parameter
Selection
Description
Import
Export
Import: Selects a file by clicking the File Selection button and loads the
settings in GUI.
Export: Downloads a GUI settings file.

15
5-5. Status (Display Only)
Click Status.
5-5-1. SDI Audio Clock
Channel
Description
Group1 to 4
Displays if SDI input embedded audio is synchronous or asynchronous per
group.
Sync SDI: Synchronous mode
Audio Clock: Asynchronous mode
Loss: No audio
5-5-2. SDI Audio Mode
Channel
Description
Ch. 1/2 to
Ch. 15/16
Displays if SDI input embedded audio is PCM or NON-PCM per stereo pair.
PCM: PCM mode
NON-PCM: NON-PCM mode
Loss: No audio
5-5-3. AES Audio Mode
Channel
Description
Ch. 1/2 to
Ch. 7/8
Displays if AES input embedded audio is PCM or NON-PCM per stereo pair.
PCM: PCM mode
NON-PCM: NON-PCM mode
Loss: No audio

16
5-5-4. Signal Input Status
Parameter
Description
SDI Status
Displays SDI input signal status.
Normal: Normal input is detected.
Lock Error: No input or SDI lock error is detected.
CRC Error: No input or CRC error is detected.
Loss: SDI signal is lost.
Video Format
Displays video format of SDI input signal.
Loss: SDI signal is lost.
5-5-5. LTC Input
Parameter
Description
SDI
AES
Displays LTC input signal detection.
Detected: LTC signal is detected.
Loss: LTC signal is not detected.
5-5-6. Module Status
Parameter
Description
Slot
Slot no. of USF-212S on which the module is installed.
S/N
Serial no. of USF-1013MUX
Install Cards
Indicates whether or not the front and rear modules match.
Matched: Correct (front/rear) modules are installed.
Mismatched: Incorrect rear module is installed. Install correct rear
module.
Soft Version
Software version of USF-1013MUX
FPGA Version
FPGA version of USF-1013MUX
IP Address
Assigned IP address
Subnet Mask
Assigned subnet mask
Default Gateway
Assigned default gateway address
MAC Address
Displays the MAC address
MicroSD Card
Indicates whether or not a microSD card is installed.
No Detected: Not installed.
Detected: Installed.
5-6. SNMP Settings
Click SNMP.

17
5-6-1. Trap
Parameter
Selection
Description
Video Input
Disable: Does not send
SNMP traps.
Enable: Sends SNMP
traps.
Sends SNMP traps when change occurs
on SDI input signal format.
SDI Audio Input
Sends SNMP traps when change occurs
on embedded audio input.
AES Audio Input
Sends SNMP traps when change occurs
on AES audio input.
LTC Input
Sends SNMP traps when change occurs
on LTC input signal.
Download MIB File
Enables you to download an MIB file.

18
6. About SNMP
6-1. Overview
The USF-1013MUX can be remotely monitored using an external SNMP monitoring system that
supports SNMPv2C. MIB(Management Information Base )files required for the SNMP
monitoring system can be downloaded from web GUI. Refer to Sec.5-6. “SNMP Settings,
Downloading the MIB (Management Information Base) File” for details. Refer to “USF-212S
Operation Manual” for SNMP settings.
6-2. USF-1013MUX GET/SET List
Object
Group
Item Name
Object name in MIB file
Value
OID
GET
/SET
Type
TRAP
Function
Notes
OID: 1.3.6.1.4.1.20175.1.315.1. ( Unit Info )
Module
Info.
Product
Name
usf1013MuxProductName
USF-1013MUX
1
GET
OCTET
STRING
Product
Code
usf1013MuxProductCode
1023811
2
GET
INTEGER
Serial
Number
usf1013MuxSerialNumber
3
GET
INTEGER
Soft Ver
usf1013MuxSoftVersion
4
GET
OCTET
STRING
FPGA Ver
usf1013MuxFpgaVersion
5
GET
OCTET
STRING
Slot No
usf1013MuxSlotNumber
6
GET
INTEGER
SDI Input
Status
usf1013MuxInputVideoStatus
0: loss
1: format525-60
2: format625-50
4: format1080-59i
5: format1080-50i
6: format1080-60i
7: format1080-30p
8: format1080-29p
9: format1080-25p
10: format1080-24p
11: format1080-23p
12: format1080-24psf
13: format1080-23psf
14:format1080-59pA
15: format1080-59pB
16: format1080-50pA
17: format1080-50pB
18: format1080-60pA
19: format1080-60pB
23: format720-59p
24: format720-50p
25: format720-60p
26: format720-24p
27: format720-23p
30: format1035-59i
31: format1035-60i
50: CRC error
51: Lock error
7
GET
INTEGER
SDI Audio
Info Ch1
usf1013MuxAudioInCh1
0: loss
1: pcm
2: nonPCM
3: asyncPCM
4: asyncNonPCM
8
GET
INTEGER
SDI Audio
Info Ch2
usf1013MuxAudioInCh2
Same as above
9
GET
INTEGER
SDI Audio
Info Ch3
usf1013MuxAudioInCh3
Same as above
10
GET
INTEGER
SDI Audio
Info Ch4
usf1013MuxAudioInCh4
Same as above
11
GET
INTEGER
SDI Audio
Info Ch5
usf1013MuxAudioInCh5
Same as above
12
GET
INTEGER
SDI Audio
Info Ch6
usf1013MuxAudioInCh6
Same as above
13
GET
INTEGER
SDI Audio
Info Ch7
usf1013MuxAudioInCh7
Same as above
14
GET
INTEGER
SDI Audio
Info Ch8
usf1013MuxAudioInCh8
Same as above
15
GET
INTEGER
SDI Audio
Info Ch9
usf1013MuxAudioInCh9
Same as above
16
GET
INTEGER

19
SDI Audio
Info Ch10
usf1013MuxAudioInCh10
Same as above
17
GET
INTEGER
SDI Audio
Info Ch11
usf1013MuxAudioInCh11
Same as above
18
GET
INTEGER
SDI Audio
Info Ch12
usf1013MuxAudioInCh12
Same as above
19
GET
INTEGER
SDI Audio
Info Ch13
usf1013MuxAudioInCh13
Same as above
20
GET
INTEGER
SDI Audio
Info Ch14
usf1013MuxAudioInCh14
Same as above
21
GET
INTEGER
SDI Audio
Info Ch15
usf1013MuxAudioInCh15
Same as above
22
GET
INTEGER
SDI Audio
Info Ch16
usf1013MuxAudioInCh16
Same as above
23
GET
INTEGER
AES Audio
Info Ch1-2
usf1013MuxAESInCh1-2
0: loss
1: pcm
2: nonPCM
3: asyncPCM
4: asyncNonPCM
24
GET
INTEGER
AES Audio
Info Ch3-4
usf1013MuxAESInCh3-4
Same as above
25
GET
INTEGER
AES Audio
Info Ch5-6
usf1013MuxAESInCh5-6
Same as above
26
GET
INTEGER
AES Audio
Info Ch7-8
usf1013MuxAESInCh7-8
0: loss
1: pcm
2: nonPCM
3: asyncPCM
4: asyncNonPCM
10:LTC In
27
GET
INTEGER
AES Audio
Info
Ch9-10
usf1013MuxAESInCh9-10
-1: notInstalled
28
GET
INTEGER
To be
support
-ed in
future
AES Audio
Info
Ch11-12
usf1013MuxAESInCh11-12
Same as above
29
GET
INTEGER
AES Audio
Info
Ch13-14
usf1013MuxAESInCh13-14
Same as above
30
GET
INTEGER
AES Audio
Info
Ch15-16
usf1013MuxAESInCh15-16
Same as above
31
GET
INTEGER
Same
as
above
LTC Input
SDI
usf1013MuxEmbLTCIn
0:notDetected
1: Detected
40
GET
INTEGER
LTC Input
AES
usf1013MuxAESLTCIn
0:notDetected
1: Detected
10:AESIn
41
GET
INTEGER
Test Signal
usf1013MuxTestSignal
0:Off
1:1kHz Tone
42
GET/
SET
INTEGER

20
6-3. USF-1013MUX TRAP List
Object
group
Item Name
Object name in MIB file
OID
Type
Reference Object
OID: 1.3.6.1.4.1.20175.1.315.0. ( TRAP )
TRAP
Video In
usf1013MuxInputVideoChange
1
INTEGER
usf1013MuxSlotNumber
INTEGER
usf1013MuxInputVideoStatus
SDI Audio Info Ch1
usf1013MuxAudioInCh1Change
2
INTEGER
usf1013MuxSlotNumber
INTEGER
usf1013MuxAudioInCh1
SDI Audio Info Ch 2
usf1013MuxAudioInCh2Change
3
INTEGER
usf1013MuxSlotNumber
INTEGER
usf1013MuxAudioInCh2
SDI Audio Info Ch 3
usf1013MuxAudioInCh3Change
4
INTEGER
usf1013MuxSlotNumber
INTEGER
usf1013MuxAudioInCh3
SDI Audio Info Ch 4
usf1013MuxAudioInCh4Change
5
INTEGER
usf1013MuxSlotNumber
INTEGER
usf1013MuxAudioInCh4
SDI Audio Info Ch 5
usf1013MuxAudioInCh5Change
6
INTEGER
usf1013MuxSlotNumber
INTEGER
usf1013MuxAudioInCh5
SDI Audio Info Ch 6
usf1013MuxAudioInCh6Change
7
INTEGER
usf1013MuxSlotNumber
INTEGER
usf1013MuxAudioInCh6
SDI Audio Info Ch 7
usf1013MuxAudioInCh7Change
8
INTEGER
usf1013MuxSlotNumber
INTEGER
usf1013MuxAudioInCh7
SDI Audio Info Ch 8
usf1013MuxAudioInCh8Change
9
INTEGER
usf1013MuxSlotNumber
INTEGER
usf1013MuxAudioInCh8
SDI Audio Info Ch 9
usf1013MuxAudioInCh9Change
10
INTEGER
usf1013MuxSlotNumber
INTEGER
usf1013MuxAudioInCh9
SDI Audio Info Ch 10
usf1013MuxAudioInCh10Change
11
INTEGER
usf1013MuxSlotNumber
INTEGER
usf1013MuxAudioInCh10
SDI Audio Info Ch 11
usf1013MuxAudioInCh11Change
12
INTEGER
usf1013MuxSlotNumber
INTEGER
usf1013MuxAudioInCh11
SDI Audio Info Ch 12
usf1013MuxAudioInCh12Change
13
INTEGER
usf1013MuxSlotNumber
INTEGER
usf1013MuxAudioInCh12
SDI Audio Info Ch 13
usf1013MuxAudioInCh13Change
14
INTEGER
usf1013MuxSlotNumber
INTEGER
usf1013MuxAudioInCh13
SDI Audio Info Ch 14
usf1013MuxAudioInCh14Change
15
INTEGER
usf1013MuxSlotNumber
INTEGER
usf1013MuxAudioInCh14
SDI Audio Info Ch 15
usf1013MuxAudioInCh15Change
16
INTEGER
usf1013MuxSlotNumber
INTEGER
usf1013MuxAudioInCh15
SDI Audio Info Ch 16
usf1013MuxAudioInCh16Change
17
INTEGER
usf1013MuxSlotNumber
INTEGER
usf1013MuxAudioInCh16
AES Audio Info Ch1-2
usf1013MuxAESInCh1-2Change
18
INTEGER
usf1013MuxSlotNumber
INTEGER
usf1013MuxAESInCh1-2
AES Audio Info Ch3-4
usf1013MuxAESInCh3-4Change
19
INTEGER
usf1013MuxSlotNumber
INTEGER
usf1013MuxAESInCh3-4
AES Audio Info Ch5-6
usf1013MuxAESInCh5-6Change
20
INTEGER
usf1013MuxSlotNumber
INTEGER
usf1013MuxAESInCh5-6
AES Audio Info Ch7-8
usf1013MuxAESInCh7-8Change
21
INTEGER
usf1013MuxSlotNumber
INTEGER
usf1013MuxAESInCh7-8
AES Audio Info Ch9-10 (*1)
usf1013MuxAESInCh9-10Change
22
INTEGER
usf1013MuxSlotNumber
INTEGER
usf1013MuxAESInCh9-10
AES Audio Info Ch11-12 (*1)
usf1013MuxAESInCh11-12Change
23
INTEGER
usf1013MuxSlotNumber
INTEGER
usf1013MuxAESInCh11-12
AES Audio Info Ch13-14 (*1)
usf1013MuxAESInCh13-14Change
24
INTEGER
usf1013MuxSlotNumber
INTEGER
usf1013MuxAESInCh13-14
AES Audio Info Ch15-16 (*1)
usf1013MuxAESInCh15-16Change
25
INTEGER
usf1013MuxSlotNumber
INTEGER
usf1013MuxAESInCh15-16
LTC Input SDI
usf1013MuxEmbLTCInChange
40
INTEGER
usf1013MuxSlotNumber
INTEGER
usf1013MuxEmbLTCIn
AES Input SDI
usf1013MuxAESLTCInChange
41
INTEGER
usf1013MuxSlotNumber
INTEGER
usf1013MuxAESLTCIn
(*1) To be supported in future.
Table of contents
Other FOR-A Multiplexer manuals
Popular Multiplexer manuals by other brands

Wellav
Wellav SMP260 Quick installation guide

Dynamix
Dynamix DV-8-UM user manual

Transition Networks
Transition Networks PSM-8E user guide

Teledyne

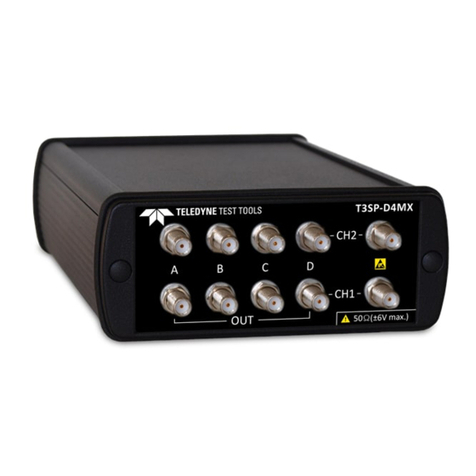

Teledyne Everywhereyoulook T3SP-D4MX Operator's manual

Paradyne
Paradyne Hotwire 8774 installation instructions

HEIDENHAIN
HEIDENHAIN MSE 1000 operating instructions
