FORENO REEF REF30 User manual

FORENO TAPWARE (NZ) LTD | Freephone: 0508 FORENO | [e-mail] | 5 Hewlett Street, Port Whangarei 0110 | FORENO.CO.NZ
Congratulations on your purchase of this high quality product from Foreno Tapware.
Please read the following before installation and retain (along with your receipt) for future reference.
TECHNICAL SPECIFICATIONS
Suitable for All Pressures
Minimum Pressure = 35kPa
Maximum operating Pressure = 500kPa* (As per NZ Building Code AS/NZ 3500.1)
Maximum operating Temperature = 65 deg. Celsius
For domestic use only.
CONFIGURATION
Mains Pressure systems Prior to installation, remove the valve inserts from both inlets.
Unequal Low systems Install as supplied.
Important note: Only slide showers that are equipped with a large internal bore hose and open flow single
function handset will work eectively with this shower mixer. We recommend this mixer be used with a REEF
Slide Shower (REF61R) for optimum performance.
Equal Low systems Prior to installation, remove the valve inserts from both inlets.

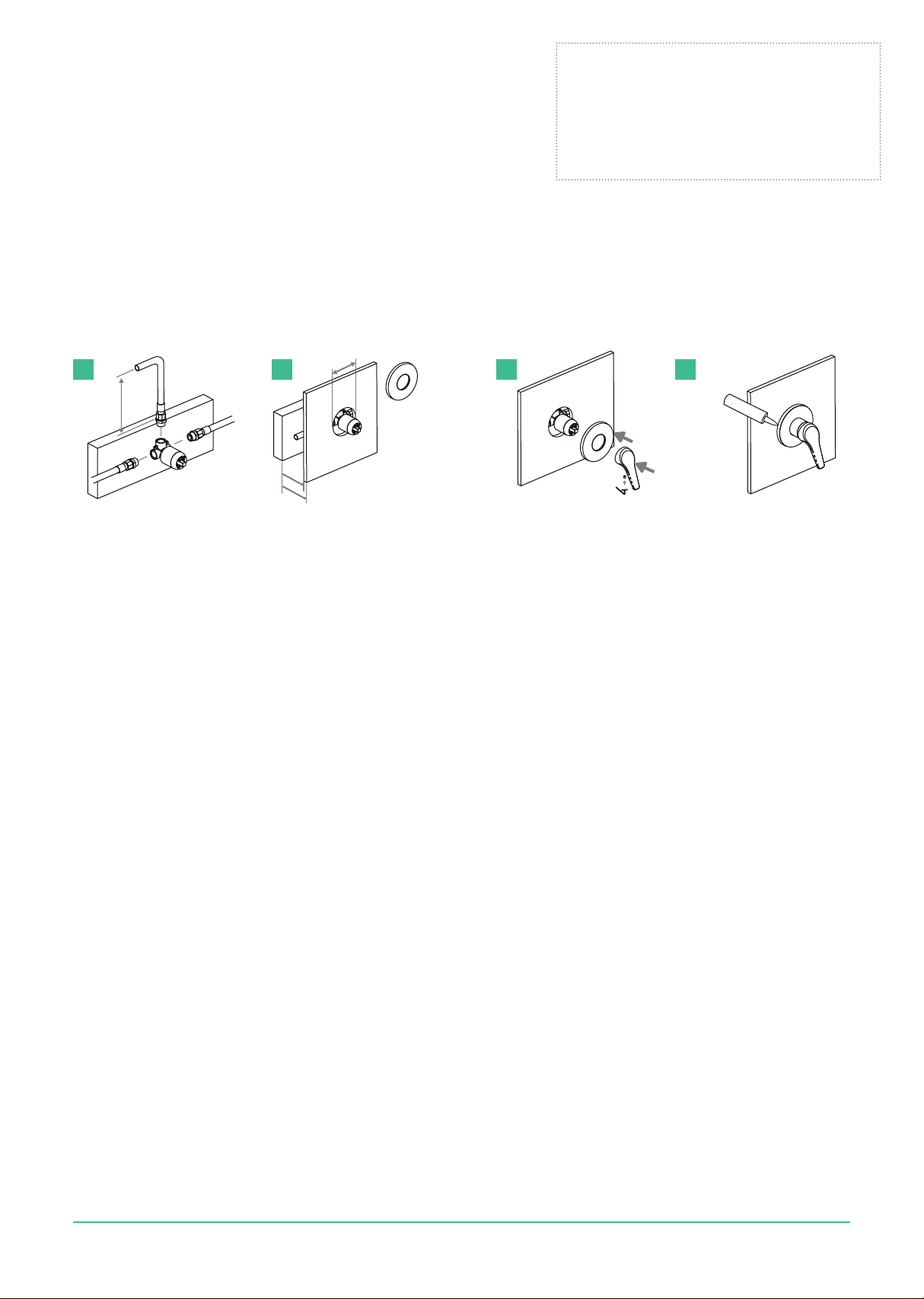

INSTALLATION
FOR PRESSURES EXCEEDING 500kPa INSTALL A PRESSURE REDUCING VALVE. THOROUGHLY FLUSH ALL
PIPES TO ELIMINATE ANY REMAINING DIRT AND RESIDUE, AND INSTALL INLINE FILTERS. FAILURE TO DO SO
MAY VOID THE WARRANTY.
Installation must comply with Section 5.4 of AS/NZS 3500 Standard with regard to Isolating stop cock use. Shower
mixers must be water tested with the outlet open, to prevent damage to cartridge seals; due to back pressure.
All pipe work must be flushed prior to the installation of this mixer, accessible inline filters must be installed in the
pipework for both the hot and cold inlet supply to prevent particles from damaging the ceramic cartridge.
Back Flow Prevention: Where back flow prevention is required, install our Back Flow Prevention Valve at the supply
elbow hose connection of the handpiece.
REEF
Shower Mixer
REF30

450mm minimum
straight distance
HOTsupply only
COLDsupplyonly
**to suit faceplate
Min 45mm
Max60mm
150mm Faceplate
**Min = Ø80mm
**Max = Ø100mm
115mm Faceplate
Seal with silicon
if necessary
FORENO TAPWARE (NZ) LTD | Freephone: 0508 FORENO | [e-mail] | 5 Hewlett Street, Port Whangarei 0110 | FORENO.CO.NZ
ATTACH PROOF OF PURCHASE HERE
Any water seepage ex- the cartridge cavity opening can be stopped by retightening the large brass retaining nut.
If you have performance issues on low or unequal systems, please check there are no flow restrictors between the
hose and the handpiece, or the hose and the shower elbow. Remove any restrictors with rubber washers.
Plumbers Note: Do not pressure test this mixer under static pressure.
TROUBLESHOOTING
1. Is the lever between 7 and 8 O’clock? When installed correctly the lever should be close to 7 O’clock position, at 38°C, delivering about 6L per minute,
where the relative hot/cold pressures are not greater than 10:1. We recommend installing a Needle Valve if there is a greater than 10/1 ratio of cold to hot
kPa (The needle valve should be about an 1/8th turn open).
2. If the lever is beyond 8 O’clock position, it is likely:
– One of the valve inserts has been removed from the hot/cold ports;
– The supply elbow has a restrictive bore (i.e. less than 10mm);
– The supply hose has a bore size less than 9.5mm;
– The handpiece is not a free-flow single function model
– The WELs restrictor hasn’t been removed.
– The Pressure reducing valve has not been readjusted (the feed valve on the LP Hot water cylinder should always be readjusted when installing a new
mixer, because the head pressure drops over time. To readjust the Feed Valve (Pressure reducing valve) – turn the adjuster screw clockwise until the first
drips appear from the relief pipe (protruding from the roof) or relief valve, then back it o half-a-turn and re-secure the locking nut.
3. If the hot/cold mix is temperamental where the lever position is within 7-8 O’clock position, either the hot or cold pressures will require a slight tweak.
4. Check that the hot and cold supply lines have not been incorrectly plumbed in, i.e. the cold supply connected to the hot inlet and hot supply connected
to the cold inlet.
5. WHEN USING WITH UNEQUAL LOW SYSTEMS, IT NEEDS TO BE REMEMBERED THE REQUIREMENT FOR A MINIMUM OF 450MM OF STRAIGHT
OUTLET PIPE, BEFORE ANY BENDS.
WARRANTY
Please refer to our website for warranty information: www.foreno.co.nz/warranty
In the unlikely event that this product fails during its warranty period, phone our Customer Service team
immediately on 0508 FORENO (0508 367 366) – as unauthorised removal of the product may void the warranty.
CARE AND MAINTENANCE
SHOULD NOT BE CLEANED WITH ACIDIC, CAUSTIC/ALKALINE, ABRASIVE OR CITRIC CLEANERS.
A so, damp cloth is recommended for cleaning (Not a Micro fibre cloth). Mild soap solutions can also be used on
occasion.
See FORENO. website for full care instructions: www.foreno.co.nz/tapware-care-instructions/
