FORESIGHT SP001 User manual

Online Coaxial Surge Protection Device
ITEM NO: SP001, SP001P
Application for protects equipment from high voltage surges such as lightning strikes. UL
grounding requirements for coaxial cable offer protection from hazardous voltages that may occur
on the shielding. Because of the physical length of ground wires, UL grounding systems may
appear as an open circuit to lightning caused, high frequency surges and provide no protection
from these surges getting into a home and destroying CATV converters, TV sets, VCR, Camera
etc.
Features:
Performs a different function than grounding requirements.
Protects equipment from high voltage surges from nearby lightning strikes.
Two stage protection: 130V, AC/DC 12V
Wide range of applications: CCTV system, Antenna of Television, satellite receivers, FM receivers,
video camera, monitors, multiplexers & Quad processor, VCR, etc.
SP001 Coaxial Surge Protection Device BNC Connector
BNC male to BNC female. Hi Frequency for both CCTV and CATV use.
SP001P Power Surge protection Device
2 pin terminal for power input to 2 pin terminal for power output.
Two stage protection, AC/DC 130V
Max power input AC 40V(MAX), DC 56V(MAX)
Installation View:
SP001
SP001P
1
FORESIGHT CCTV INC. | 5863 Leslie Street, Unit#713, North York, Ontario,Canada, M2H 1J8 | http://www.foresight-cctv.com | 1-888-GO2-CCTV

2

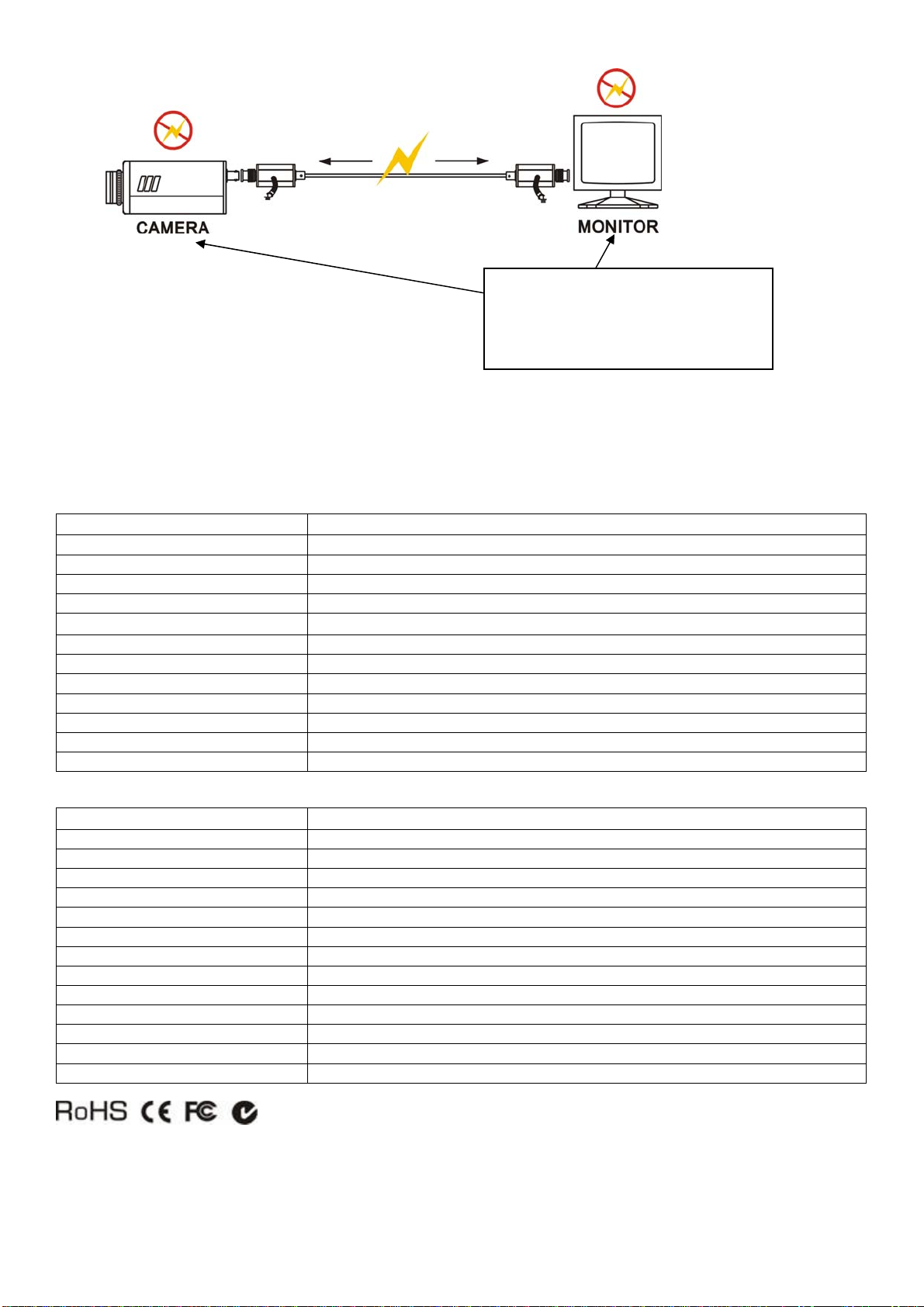

Application
CATV System
Antenna of Television
Video Cassette Recorders
FM receivers
Note:
For ensuring the unit can
protect equipments, the cable
must be connected to ground.
Video Cameras and monitors
Multiplexers and Quad Processor
Specification:
ITEM NO. SP001
Surge Protection Attack Time 1 ns
Maximum Surge Voltage 4 KV
Surge Life 300 surges of 100Amps
Normal Resistance Across Coax 10,000 MΩ
Surge Resistance Approx. 0Ω
BAND PASS 0~1 GHZ
Power Passing Capability 130V AC / DC, 65 Vrms at10 Amps
Insertion Loss Less than 0.2 dB
Return Loss (75 ohms) 16dB
Connectors BNC
Dimensions W x H x D mm 78x25x25
WEIGHT g 80
ITEM NO. SP001P
Surge Protection Attack Time 1 ns
Maximum Surge Voltage 4 KV
Surge Life 300 surges of 100Amps
Normal Resistance Across Coax 10,000 MΩ
Surge Resistance Approx. 0Ω
BAND PASS 0~1 GHZ
Power Passing Capability 130V DC / AC, 65 Vrms at10 Amps
Insertion Loss Less than 0.2 dB
Return Loss (75 ohms) 16dB
Power IN Put AC 40V(MAX), DC56V(MAX)
Connectors Terminal
Dimensions W x H x D mm 65x25x25
WEIGHT g 65
