Forest AV FOR08-23R User manual

ELECTRIC SIT-STAND DESK
Instruction Manual
FOR08-23R
Instructions of Safety and Warnings:
Disposal: The product with this mark indicates that this product shouldn't be disposed with other household
wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled
waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your
used device, please use the local recycle service or contact your point of purchase to withdrawn the product.
Electrical Safety Instructions:
The product is powered by electricity. In order to avoid burns, fire and electric shock, please read the
instructions carefully.
CAUTION
Don't clean the product with water
while the power is still connected.
Don't disassemble or replace components
while the power is still connected.
Never operate the system with a damaged cord
or plug. Please contact your point of purchase to
replace the damaged parts.
Never operate the system if it's in moist
environment or its electrical components
have contact with liquids.
Don't operate the system if the control box
makes noise or odor.
Alterations of the given power unit and
control box aren't allowed.
Other Safety Instructions:
• Clear up all obstacles within the height adjustment range.
• Don't leave the cords or plug unorganized in order to prevent tripping hazards.
• Any attempts to reconstruct the desk frame aren't allowed.
• Don't add anything to the adjustable junctions of the desk frame.
• Outdoor use is prohibited.
• Any incomplete observation of the instructions, warnings and additional information marked with the "Note"
and " " may result in serious damage to the system or its components.
• This product can be used by children aged from 8 years and above if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall
not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
Unplug the desk when the system isn't in use, and place the power plug out of children reach.
• Any failure to comply with the safety and installation instructions in this manual may cause serious bodily injury.
• Persons with reduced physical, mental abilities and or lack of experience and knowledge must not use the product,
unless they're under supervision, understand the hazards involved or they have been thoroughly instructed in the
use of the apparatus by a person who is responsible for the safety of these persons.
• Users should make sure that they never sit on the desktop in order to prevent serious bodily injury.
CAUTION
There are two adjustable foot pads under each foot. If the floor isn't even,
simply turn the pad to make the desk stable.
Tip: Use a bubble level to check if the desktop is even.
8. Level Adjustment
M08-23D
Bubble Level
M08-23R
6. Assembling the Control Box
7. Connecting Cords
Figure1
F
• Attach the fixing plate on the center of the crossbar with 2 screws using a Phillips screwdriver.
• Follow the direction of the arrow on the fixing plate to slide the control box .
ES-E
F
• Connect the motor cords to the ports located on both sides of the control box with the mark of "M1" and "M2" .
Note: There is no corresponding relation between the ports and motor.
• Connect the controller cord to the port marked "HS".
• Insert the power plug in the port marked "AC".
• Run the cables through the cable clips and attach the cable clips to the desktop with screws to ensure
clean and neat surface.
H
GS-F S-D
Phillips
Screwdriver
E
S-E
M1&M2 HS AC S-D
S-F
G

2. Assembling Lifting Columns and Feet
C
D
S-B
S-A
S-H
• Insert one lifting column into one end of
the crossbar with the head of the lifting
column facing inward.
• Fix the lifting column with crossbar
using 4 screws with the Allen
wrench .
• Attach the foot to the lifting column
using 4 screws with Allen
wrench .
• Repeat the same process to assemble the
other lifting column and foot.
C
S-A
S-H
D
S-B
S-H
What tools are needed to
assemble the desk frame?
What important specifications
should know before installation? Power Input
(100~240V)
Operation Temperature
(-5°C~+40°C)
Bubble Level Allen Wrench
(Included)
Drill
Weight Capacity
125kg/275lbs
Phillips Screwdriver
S-A (x8)
Hex Head Screw
S-B (x8)
Hex Head Screw
S-C (x12)
Phillips Head Screw+ 1 Spacer
S-D (x5)
Phillips Head Screw
S-E (x2)
Phillips Head Screw
S-G (x12)
Anti-Vibration Pad
S-H (x1)
Allen Wrench

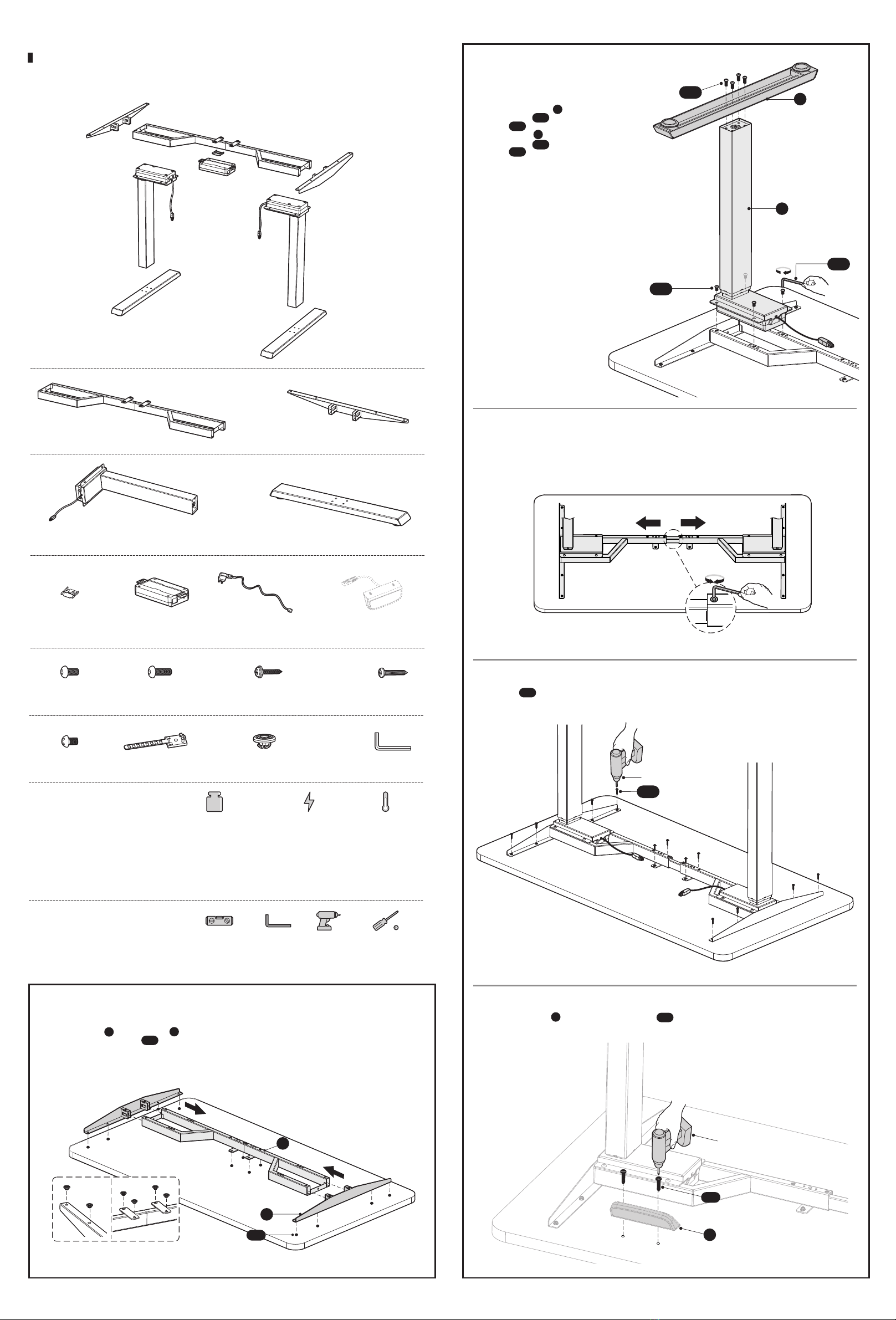

Checklist and Installation
Please check all of the components shown in the component checklist. If any of the components are missing or damaged,
contact your point of purchase for a replacement.
A (x1)
Crossbar
B (x2)
Side Bracket
C (x2)
Lifting Column
D (x2)
Foot
E (x1)
Fixing Plate
F (x1)
Control Box
G (x1)
Power Cord
S-F (x3)
Cable Clip
3. Adjusting the Frame
• Loosen the hex head screws that fix the adjustable junction,
but don't completely take out the screws.
• Ensure that the frame is placed in the center of the table.
• Then adjust the frame to suit the size of the desktop.
• Retighten all the hex head screws to finish the adjustment.
When adjusting the frame position, please make sure it doesn't exceed the Max marked on the inner crossbar.
MA X
4. Attaching the Frame to the Desktop
Drill
• Drill screws from the backside of the desktop through
12 mounting holes as shown.
S-C
S-C
S-D
Drill
H
H (x1)
Controller
The picture of the controller is for your
reference only. Actual product may vary.
5. Attaching the Controller
• Attach the Controller to the desktop with 2 Screws using a drill.
HS-D
Note: The picture of the controller is for your reference only. Actual product may vary.
1. Attaching Side Brackets
• Place a shipping blanket on the floor to prevent scratches.
• Carefully place the desktop (not included) upside down on the blanket.
• Place the crossbar and side brackets on the top.
• Attach the anti-vibration pads from below to the positions as shown.
• Attach the side brackets to the end of the crossbar. (This step doesn't require the use of the screws.)
Note: The drawings of both of the crossbar and side brackets are the backside of the components. Please make
sure the crossbar and side brackets keep facing down while installation, which is convenient for the further steps.
S-G
AB
B
A
S-G
（Weight Capacity Functionally Rated）
SPECIAL NOTE: Should the desk lose power or be unplugged and the loaded weight exceeds 176lbs,
the desk may begin to automatically lower itself. This is normal and a safety feature
designed to reduce the risk of accidents during power outages. Never overload your
desk and maintain clean space beneath it at all times.
