CATSKILL 51538 User manual

Assembly Instructions
Model 51538
Mid-Sized Island w/Flat Panel Doors & Drop Leaf
GENERAL:
1. You have purchased model 51538.
2. Should you need assistance or need to replace a damaged or missing part simply give us a call M-F at
607-652-7321 from 7:30 am - 4:30 pm EST and we’ll send you the prepaid part via UPS usually that same
day! You may also email us [email protected].
3. Read the assembly instructions and the enclosed brochure before beginning assembly. Assembly is
easy if you read and follow the instructions step by step. See our website for assembly tips and videos.
4. Tools required: Phillips screwdrivers, medium and small; medium at blade screwdriver and a hammer.
5. Drawer glides are sometimes pre-packed with screws, these are not used.
6. Directions (left/right, front/back) are given as facing the front of an assembled upright unit. A friend
is recommended to assist with assembly as this will ease the process. Some of the parts are large and
awkward to hold in place, an extra pair of hands will help.

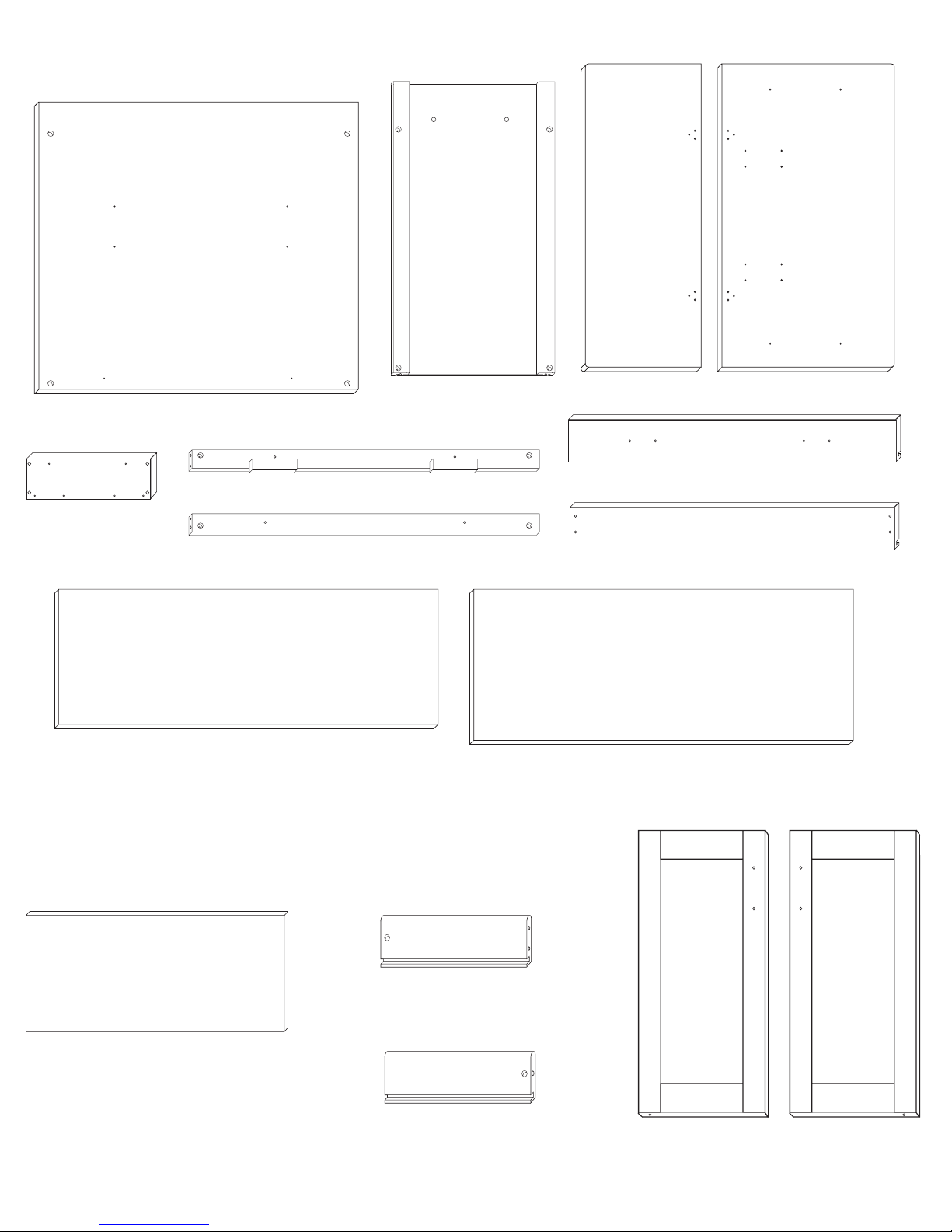

Parts List Model 51538
Side Panel (2)
P/N SP/HDL-51538
Back Panel (1)
P/N BP-51538
Drop Leaf (1)
P/N DL-51538
Table Top (1)
P/N TT-51538
Glide Support (2)
P/N GLDSUP-51538
Top Front Brace (1)
P/N B-34 1/4 / 2 1/2/TF-51538
Bottom Front Brace (1)
P/N B-34 1/4 / 2 1/2/BOT-51538
Drawer Front (1)
P/N DF-51538
Drawer Back (1)
P/N DBK-51538
Center Shelf (1)
P/N CS-51538 Bottom Shelf (1)
P/N BS-51538
Drawer Bottom (1)
P/N DB-51538
Left Drawer Side (1)
P/N DS-51538L
Right Drawer Side (1)
P/N DS-51538R Left Door (2) Right Door (2)

1 3/4” Phillips Flat Head Bolt (8)
1 1/4” Phillips Flat Head #8 Screw (20)
7/8” Truss Head Machine Screw (12)
5/8” Phillips Flat Head #8 Screw (20)
3/4” Long 3/16” DIA. Steel Pin (4)
1” Long 3/16” DIA. Steel Pin (14)
1 1/2” Long 3/16” DIA. Steel Pin (8)
Hinge (2)
Caster Socket (4)
5/8 Wooden Disk (8)
Nickel Handle (6)
Towel Bar Post (2)
Wheel Casters (2)
Locking Wheel Casters (2)
3/16” Flat Washer (8) 10-24 Hex Nut (8)
5/8” Phillips Flat Head #7 Screw (12)
5/8” Phillips Flat Head #5 Screw (4)
Bastion Set Screw (2)
Bastion Post (2)
Bastion Barrel Nut (2)
Drawer Glide (1 Set )
Drawer
Cabinet
P/N Drop Leaf Support (2)
Polished Nickel Towel Bar (1)
Hardware 51538
5/8” Pan Head Screw (8)
Magnet Plate (4) Magnet (4)
1/2” Phillips Flat Head #4 Screw (4)
(Used on Magnet Plate
Included in magnet pack)
(Used on Magnet
Included in magnet pack)
Magnet Packs (4)
1” Phillips Flat Head #8 Screw (4)
(used to attach spice
rack and towel bar)
(Door Pins)
(Shelf Pins)
(Brace Pins)
(Use 8 Bronze screws
for spice rack)
(Used for drop
leaf hardware)
(Used to attach “L” bracket
and cabinet glides)
(Used to attach drawer glides)
“L” Bracket (4)
(Used to attach
drawer handles)
Spice Rack Retaining Rods (2)

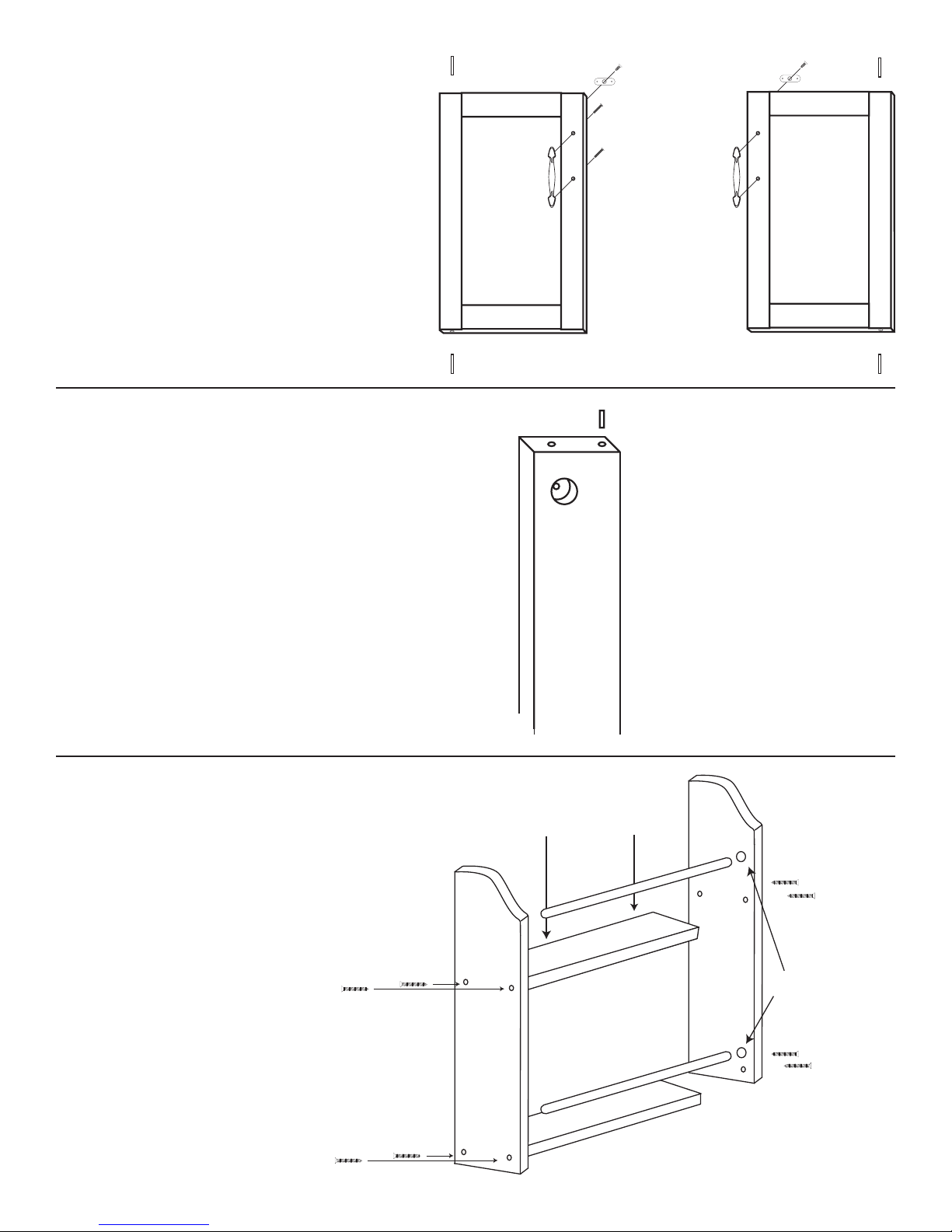

STEP 1
A. Tap/insert ONE 1 1/2” pin into
each end of all the doors. DON’T
OVERDRIVE PINS! Pins should stick
up about 1/2” when seated.
B. Attach the magnet plate (may be
stuck to magnet!) with the 1/2” #4
screw to the top of the doors. Bumps
go toward the wood.
C. Attach door handles with 7/8”
truss head machine screws.
STEP 2
A. Take the 2 front braces and tap/
insert one 3/4” steel pin into each end
of both braces until seated. About 3/8”
will stick out when seated. OK if loose.
STEP 3
Assemble Spice Rack
Insert retainer
rods into holes
Fasten Shelves with
1 1/4” Phillips Flat Head
#8 Screw (Bronze)
Pilot holes in shelves
go toward back

1 1/4” #8
1” Truss Head Screw
5/8” #5
See next page to learn how the bastion fastening system works.

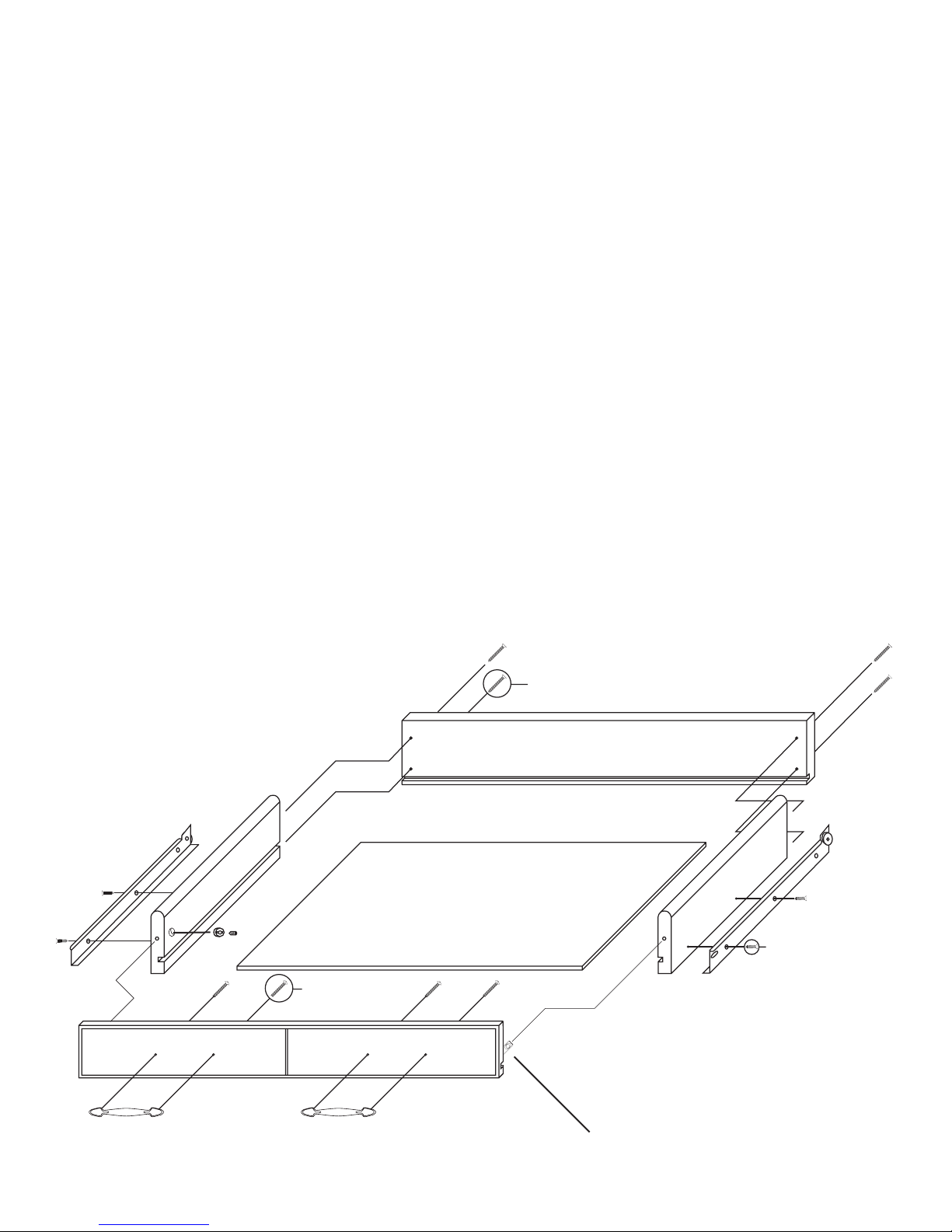

STEP 4
A. Attach the Drawer Back to the Drawer Sides with four 1 1/4” #8 screws. There are left and right
sides. Make sure the slots that run the length of the Sides are aligned with the slot in the Drawer Back
to accept the Drawer Bottom.
B. Slide in Drawer Bottom, best side up, to inside of drawer.
C. Take the 2 bastion posts, align the threaded end of the posts with the post holes located near the
ends of the inside of the Drawer Front. Tighten posts down until the solid shaft of the posts hits the
wood. Back post out until the hole/screwdriver slot in end of post is parallel and in direct line with the
long edges of the Drawer Front.
D. Insert the barrel nuts into the nut access holes on the inside of the Drawer Sides with the threaded
ends of the nuts facing out. Take the Drawer Front and carefully insert the posts into the ends of
the Drawer Sides, through the sides of the nuts until seated. Push nut snug up against the wood in
the nut access hole toward the inside of Drawer Front. Hole should be slightly off-center toward the
Drawer Front. Insert the set screw and tighten down. The ends of the sides should be tight against the
inside Drawer Front.
E. Attach the drawer handles with 7/8” Truss head machine screws.
F. Attach the drawer glides (left and right) to the Drawer Sides using two 5/8” #5 screws per side.
Wheels go toward Drawer Back and are up. The end with no wheels should touch the Drawer Front.
Also see our video on the Bastion Fastening System at www.catskillcraftsmen.com

Step 1
1. The Bastion fastening system consists of a steel post (threaded on one end with a
hole through the shaft on the other end); a Barrel Nut (cylindrical barrel-shaped with
threaded open end & holes through the sides); and a Set Screw (Phillips slot on one end,
pointed on the other)
2. To attach Posts: A) Dip threads of Post in vegetable oil. B) Align threaded end of Post
with hole in wood, tap on slotted end with hard hammer until threads enter, then tighten
down using a flat head screw driver or the provided allen wrench (See the Illus. Bas. 3 for
alternate seating methods). DO NOT TRY TO HAMMER THE POST ALL THE WAY IN AS
IT WILL STRIP THE POST HOLE. C) When solid shaft of Post hits wood, back out
approximately ½ turn until the hole in the posts is properly aligned as per step by step
directions. For example: the holes in the posts on the inside of the drawer front will be
parallel with the long length of the drawer front when properly seated.
3. A) Place a Barrel Nut into the nut access hole, so that the threads in the nut face out.
The small notches on either side of the nut opening, indicate the location of the holes
through the sides of the nut. B) Insert the posts through the end of the braces (or drawer
sides); through the holes in the sides of the nut. When properly aligned, you will see the
Illustration Bas. 1
Step 2
Illustration Bas. 2 Illustration Bas. 3
TIPS ON HOW THE BASTION FASTENING SYSTEM WORKS
See video on our website!
If you have any questions regarding assembly or missing or damaged
parts, call our customer support number:
607-652-7321 or 888-732-7321.
Customer Support Hours are 8am-5pm Mon. - Fri. Eastern Time zone.
Allen Wrench Provided
WRONG!
Post needs to be screwed deeper.
RIGHT!
hole in the post inside the barrel nut. Post hole should be slightly off-center toward the wood.
4. Insert the Set Screw into the threaded end of the nut and tighten down. The tip of the Set Screw will seek the center of
the hole in the Post as it is tightened down, forcing the Nut toward the main shaft of the Post. This is what tightens the
wooden parts together. Set screws should thread easily – DON’T CROSS THREAD! If Set Screw doesn’t thread easily,
check position of the hole in Post.
5. If the wooden parts are not tight against each other, the Post needs to be screwed a half turn at a time until wood joints
are tight.

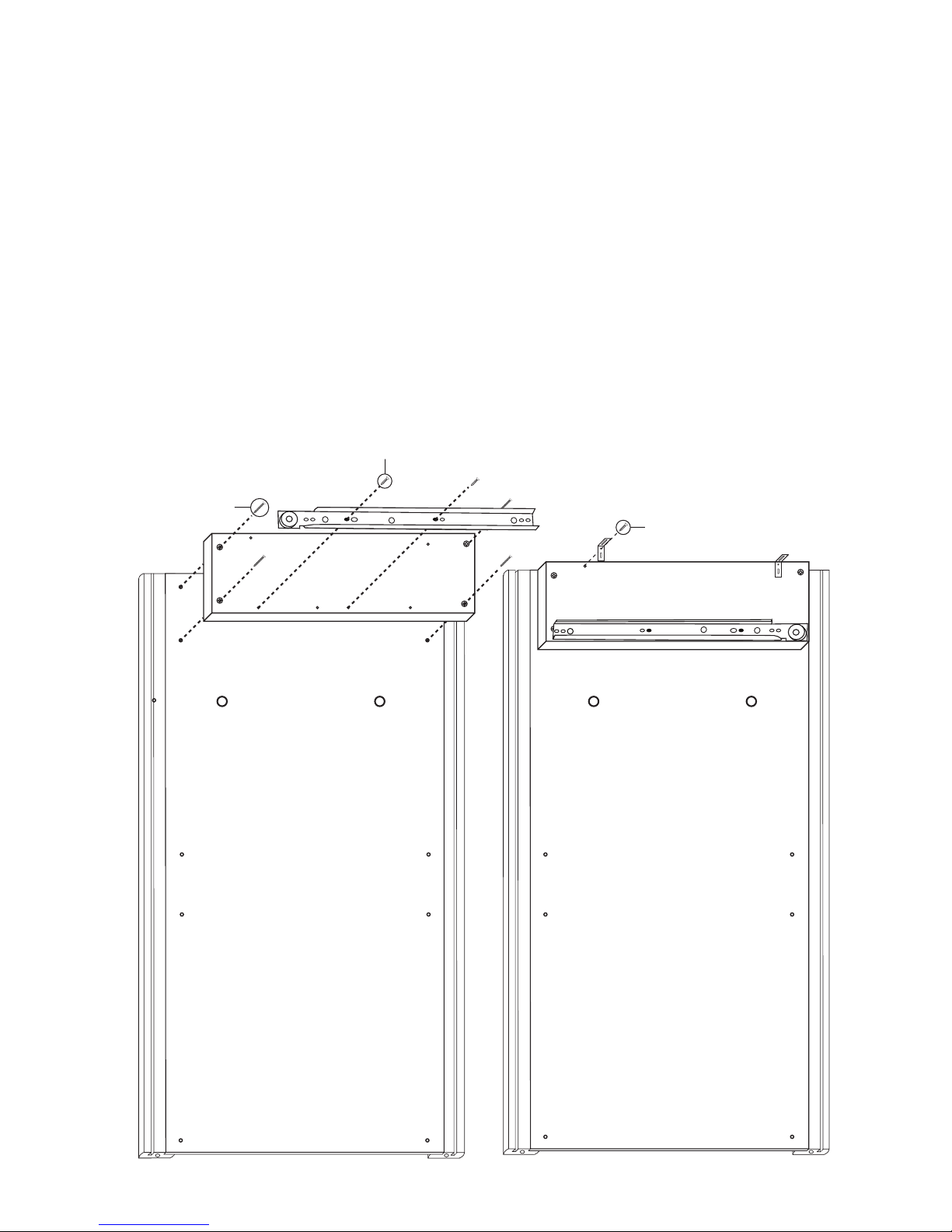

STEP 5
A. Attach a Glide Support Stick to the top of each Side Panel using 1 1/4” #8 screws. The
countersunk holes (reamed out) in the stick are positioned as in illustration 5 so that the glide holes
are toward the lower edge. Sticks should be ush with top of panel.
B. Attach the cabinet glide of the Drawer Glides to the Glide Support Stick using 5/8” #7 at head
screws. Left glide to left Side Panel, right glide to right Side Panel. The glides look almost alike
however, the right glide (as you face the cart) has a rolled lip at the top of the glide that keeps the
drawer glide wheel in place. Line up the holes in the glides so that the end with the wheel comes ush
with the front edge of the Glide Support Stick. Only 2 pilot holes are used in the glide support sticks.
C. Attach the “L” brackets to the top of the glide supports using 5/8” #7 screws. Use the hole rather
than the slot. The slot will be used to attach the table top. The “L” brackets should be ush with the
top of the glide support sticks.
Note: Cabinet drawer glides usually have an imprint “CL” or “CR” inside near the wheel.
CR=Right / CL=Left
TO
PT
OP
5/8” #7 Screw
1 1/4” #8 Screw
5/8” #7 Screw

STEP 6
A. Lay Back Panel at on a smooth surface with holes up.
B. Attach Side Panels with 1 3/4” bolts and hex nuts. After inserting bolts(s) thru the holes in the Side
Panels, thru the holes in the long edges of the Back Panel, place a hex nut on the tip of your nger,
align nut with bolt and tighten.
C. Look ahead to step 7 which shows side panels attached to back panel.
NOTE: Make sure you position the side panels according to Drawer Glides (left or right). The Back
Panel is 1 1/4” shorter than the Side Panels at the top.
STEP 7
A. Invert cabinet assembly
from step 6.
B. Take the Top Front Brace
(with magnet blocks), insert
the pins in the brace ends
into the slots on the inside
of the front legs of the Side
Panel and slide down until
the brace is aligned with the
set of holes in the Side Panel
as illustrated.
C. Secure brace with 1 3/4”
bolts and hex nuts as in
step 6

STEP 8
A. Install Doors by tting the pins in the top of the door into the holes in the Top Front Brace.
B. Place washers on the pins on the bottom of the doors, then t the Bottom Front Brace onto the
pins and secure the brace using 1 3/4” bolts and nuts as in illustration 8A.
ILLUSTRATION 8A
ILLUSTRATION 8B
1” Pins1” Pins
C. Tap two 1” pins into the back
panel, two into the holes on the
inside of the Bottom Front Brace
and two into each Side Panel as in
illustration 8B. These will hold the
Bottom Shelf.

STEP 9
A. Stick magnet to magnet plate on an outside door.
B. With adjacent door open, close the outside door. The magnet should be positioned over the
wooden block on the bottom of the top front brace. Hold the magnet in place with your thumb, and
open the door. The magnet will be in the correct position on the block. Mark the position with a pencil.
C. Secure magnet with the two round head screws in the magnet packet. Center screws in the slot in
the magnet . This will allow adjustment later, if needed.
D. Repeat these steps for all the doors.
STEP 10
A. Insert and tap caster sock-
ets with hammer until the teeth
grab the wood. DON’T POUND
SOCKET FLAT OR CASTER
SHAFT WILL NOT ENTER.
B. Insert casters and seat by
pushing straight downward
with heel of your hand, or tap
into place with a hammer. Don’t
be afraid to give them a good
downward whack on the solid
metal part of the caster!
C. Locking wheels usually
go on front.

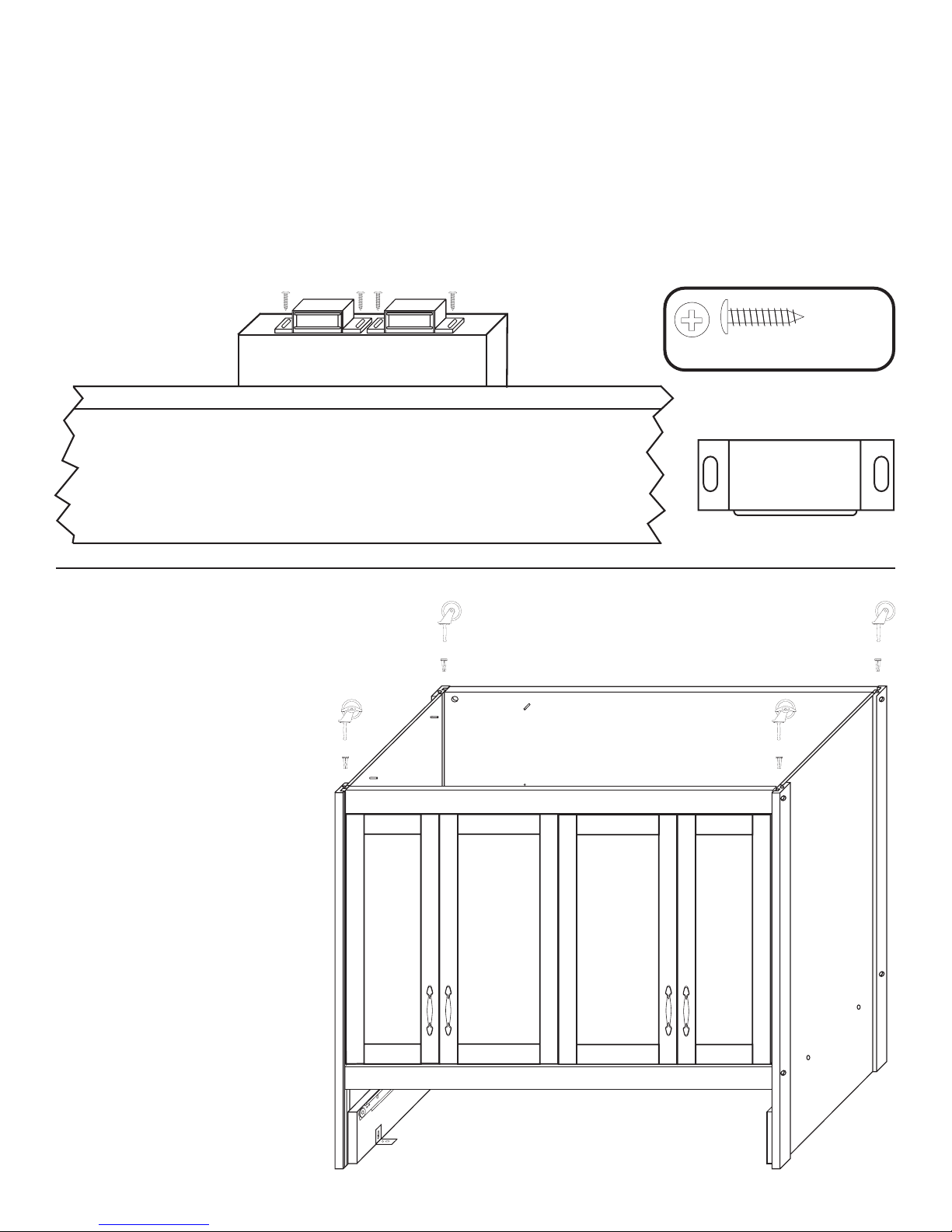

Magnet (4)
5/8” Pan Head Screw
8 Used
in this step
No pilot holes
as soft wood.

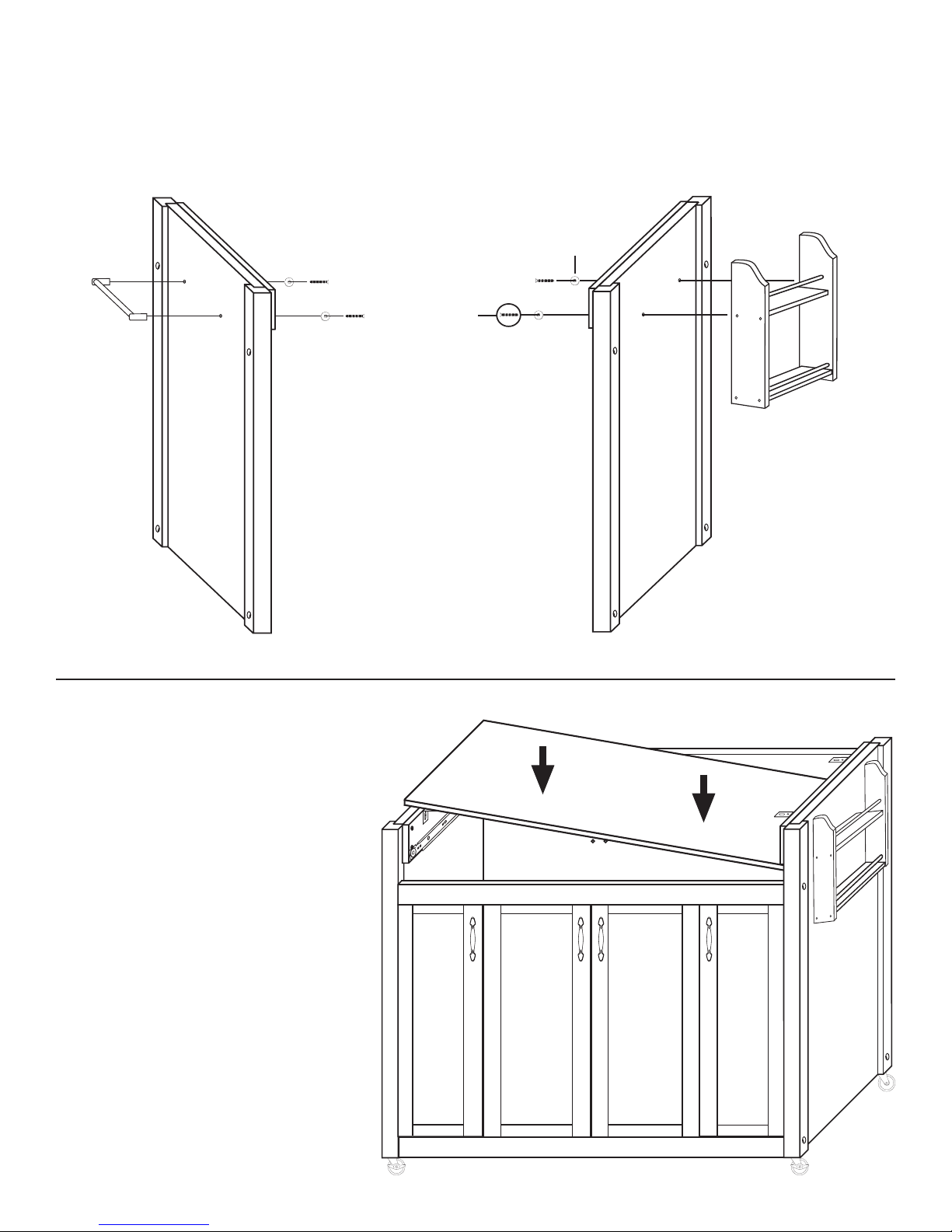

STEP 11
Upright unit. Decide which side to put the spice rack on then put the towel bar on the other side.At-
tach side handle/towel bar using 1” Phillips Flat Head #8 screws. Place a washer over the screw to
keep screw heads from pulling through the side panels. Attach the spice rack in the same way using
the pilot holes in the top shelf. The holes in the bottom shelf are not used.
1” #8
Washer
1” #8
STEP 12
A. Angle the bottom shelf as
necessary to pass it through
the opening in the cabinet top
until it rests on the pins in-
stalled in step 8.

Note: Middle Shelf
has edge banding out
STEP 13
A. Set the height for the
middle shelf by choosing one
of two sets of holes in the
Back & Side Panels. Then tap
1” pins into the 6 holes in the
Back & Side Panels.
B. Fit the middle shelf into the
cart and rest it on the pins.
STEP 14
A. Assemble top by placing the top and the drop leaf upside down on a smooth at surface. Install
hinges using 5/8 #8 screws. The longer part of the hinge goes on the drop leaf with the short part on
the cart top. Fasten the drop leaf supports using 5/8 #8 screws. See illustration 14B.
B. Make a large X mark over each of the 4 pilot holes in the bottom. Make marks about 1/2-1” long.
These marks will help you align the cabinet with the pilot holes in the bottom of the Top.
C. Place the Cart Top on the cabinet. Open the outside doors. Maneuver the Cart Top so that the X
marks/pilot holes in the bottom of the Top align with the holes in the “L” brackets. Secure top to “L”
brackets with 5/8” #7 screws.
ILLUSTRATION 14A
ILLUSTRATION 14B

STEP 15
A. Slide the Drawer into the front of the cart. Make sure drawer slides smoothly, then retighten all
bolts and nuts.
B. Tap in the 5/8 wooden plugs into the holes on the legs.
C. Illustration 15B shows completed 51538.
ILLUSTRATION 15A
ILLUSTRATION 15B

For continued beauty and long life of your
Catskill Craftsmen cart, we recommend
Catskill Craftsmen’s Butcher Block Oil.
Our Butcher Block Oil is available direct-
ly from Catskill Craftsmen’s factory. For
one eight ounce (8 . oz.) bottle, which
is sufcient for two applications, simply
send $7.95 along with the completed
coupon to the address below. Visit us
online at www.catskillcraftsmen.com to
browse our assortment of butcher block
care products. Visa and Mastercard are
accepted online .
Catskill Craftsmen, Inc.
15 West End Ave.
Stamford, NY 12167-1296
BUTCHER BLOCK OIL COUPON
Please send me______# of bottle(s) of the
Catskill Craftsmen Butcher Block Oil at $7.95
per bottle. My check or money order is
enclosed for a total of $____________.
Item code: 51538
Name _______________________________
Address _____________________________
City ________________________________
State ___________ Zip ________________
Please make checks payable to Catskill Craftsmen
Inc. 15 West End Ave., Stamford, NY 12167-1296
