FOREVER ICON AW-100 User manual

MANUAL
Smartwatch AW-100
(full version)

2.
1.

3
EN
Thank you for purchasing a product by Forever. Before use, please
refer to the User’s manual, and save it for future reference. Do not
disassemble the device on your own – all repairs should be done
by a service technician. Use only original parts and accessories
provided by the manufacturer. We hope that the product by Fore-
ver fullls your expectations.
Description
1. Main button
2. Touch panel / display
Basic specication
Waterproofness: IP68
Battery capacity: 310 mAh
Bluetooth: 5.0
Charging time: 2 hours
Operating temperature: -10˚C to 50˚C
SAFETY NOTES
- Avoid impacts between the device and hard objects since this may
damage the device
- Avoid contact of the device with solvents or other chemicals
- Keep away from strong magnetic elds
- Avoid contact of the smartwatch with water if the water tempera-
ture exceeds 35˚C
- Do not repair the device on your own
- Do not throw it into re, there is a risk of explosion
First launching
When using the device for the rst time, take it out of the package
and charge it using the supplied charging station. Correct con-
nection will be indicated by vibrations and display of an icon that
shows the battery charging status. Date and time of the device will
be automatically synchronized and set after establishing connec-
tion with a dedicated application via Bluetooth. Language of the
device will be automatically adapted to the one set in the phone.
To activate the smartwatch, press and hold main button for 5 se-
conds. Activation will be indicated with vibrations.

4
EN Charging
Place the smartwatch on the dedicated docking station in a way
to connect charging connectors together, and then connect USB
cable to a power source.
After completion of the charging process, disconnect the smar-
twatch from the power source.
Turning the smartwatch on/o
Turning on: Press and hold main button for 5 seconds until the
smartwatch activates, which will be indicated by vibrations.
Turning o: Scroll the main screen down to open a pop-up menu
and select the symbol , and then conrm activation of the smar-
twatch.
Forever GoFit application installation
Find application called “Forever GoFit” in Google Play or App Store and
install it. You may always scan the QR code located on the package.
NOTE:
The operating system of the phone must have the following mini-
mum specications to run the application and support the smar-
twatch:
Android 5.1 or higher
iOS 10.0 or higher
Connect the smartwatch with the phone
1. Activate Bluetooth in your phone.
NOTE:
To be able to use all functions of the application and the smar-
twatch, during the rst launching, allow the application to access
all required functions, and then also activate access to notications
in settings.
2. Activate “Forever GoFit” in the phone. Start using the application
as a “Guest” by clicking the upper right part of the screen or select

5
EN
“Register” and follow the steps below:
– enter the email address you want to use to create an account
– press the button (obtain verication)
– a verication code, which must be entered in the indicated eld,
will be sent to your email
– enter and remember your user password
3. After logging into the application, you will see the main screen, in which
you should click button or select menu in the upper left corner.

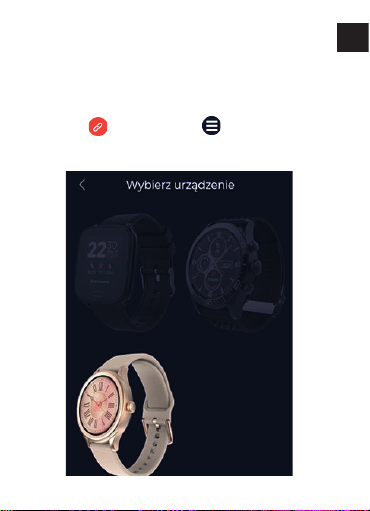

4. Select the smartwatch model you want to connect with by clicking
its picture:

6
EN 5. Conrm the selected model by clicking “YES”. If a wrong model has
been selected, click “NO” and select the correct one.
6. Select “JW-100” model from the list of devices and conrm con-
nection by pressing “YES”. The connection will be established within
several seconds and all data will be automatically synchronized. If the
automatic synchronization won’t start, select button in the lower ri-
ght corner of the screen to perform manual synchronization.
Description of the application
User’s prole information
After correct logging in and carrying out synchronization, press
the menu button in the upper left corner, and then click the user
name to enter the prole setting. Here, check whether all the data
is correct. Providing actual data is necessary for correct operation
of the algorithm that calculates your steps, calories and covered
distance with the highest possible accuracy.
Description of the main panel

7
EN
1. Menu button
Expands the user’s panel that allows to carry out settings descri-
bed in subsection 1.1

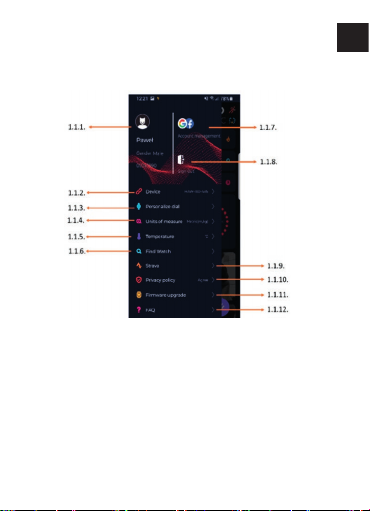

1.1 Set ting s
1.1.1. User’s information
Click it to change settings, such as: prole photo, user name, sex,
date of birth, height, weight, change password
1.1.2. Settings and functions of the device
Access to extended information, settings and functions of the
smartwatch, such as: information regarding the date of last syn-
chronization, information regarding the current version of the
software, information regarding MAC number of the device, remo-
te camera, alarm clock, notication regarding lack of exercise, re-
minders about hydration, hand on which the smartwatch is worn,
automatic backlight of the screen via wrist movement, daily heart
rate monitoring, notications from the application, settings reset,

8
EN disconnection of the smartwatch and the application
1.1.3. Select one of the clock faces and send it to the smartwatch
1.1.4. Measurement units
Select the units of measurements you want to receive
1.1.5. Temperature
Select the temperature units used to show the current weather
on the main screen
1.1.6. Find the smartwatch
Click to call the smartwatch, which will start to vibrate in order to
notify you about its current location
1.1.7. Connection with Google and Facebook accounts
Connect the application with Google or Facebook account to ena-
ble sharing data gathered in the application
1.1.8. Logout
Click to logout from the currently used application account
1.1.9. Strava
It allows to connect with an account in Strava application and send
information to the account from the smartwatch
1.1.10. Privac y polic y
Read the privacy policy and accept it in order to protect your data
1.1.11. Update
Check if the smartwatch has the latest version of the software.
If not, update you smartwatch to fully use all available functions.
1.1.12. FAQ
Most frequently asked questions and answers
1.1.13. Application information
Shows the current application version.

9
EN
2. Number of steps
Shows the number of steps taken in a given day and the degree of
completion of an assumed goal. Click to go to more detailed data
or check its history.
3. Weekly trainings
Shows detailed data regarding trainings, broken down into par-
ticular weeks.
4. Heart rate monitor
Readout of daily heart rate measurement and the dynamic heart rate.
The daily heart rate section is responsible for periodic measure-
ments of the heart rate during the whole day. The smartwatch
carries out automatic measurements after the user activates the
function in the device settings.
5. Sleep monitoring
To carry out a measurement or sleep analysis, wear the smar-
twatch for the entire night. The device will prepare a sleep schedu-
le based on the user’s motions during sleep.
6. GPS sport mode
Measurement of the selected sports discipline, including recor-
ding of the route using the smartphone’s built-in GPS module.
Click the icon to go to the map, select the sport, and then press
start to begin measurements.
7. Weather
Current weather in a given town
8. Calories, Distance, Exercise Time
Data collected from particular measurements from a given day.
After clicking the requested measurement, we go to its history.
9. Activity
Shows activity during a given day, broken down into hours.

10
ENEN The smartwatch interface description
Note: to set a given clock face, scroll the touch screen left.
After a moment, correct setting will be indicated by a green
symbol visible in the center of the display.
Smartwatch
faces
Select one of three faces available in the
smartwatch. You may also send an additio-
nal, fourth clock face, selected from among
all faces available in the application. Scroll
the touch screen left to set the selected
clock face
Note: scroll the touch screen right to go to the list of particular func-
tions presented below:
Sport data Select to see data regarding the number of
steps, covered distance and burnt calories
in a given day
Heart rate
monitor
Select to carry out a heart rate measure-
ment in a given moment. The measure-
ment will start automatically, and its com-
pletion will be indicated via vibrations.
Messages Preview of recently received messages and
notications from the application, to which
the smartwatch obtained access through
the settings in Forever GoFit application

11
EN
Sleep The sleep time recorded during the last
night.
Weather Current weather forecast. Data is down-
loaded from Forever GoFit application.
Updating requires active connection with
the application.
Sport Select one of the available activities (Walking,
Jogging, Climbing, Bicycle) to carry out me-
asurements.
Stopwatch Select to activate the stopwatch function.
Find phone The function allows to activate vibrations
and sound in the phone connected with
the smartwatch. It makes it easier to nd.
Settings Go to the settings of the smartwatch, whe-
re you will be able to dene the screen bri-
ghtness and activate or deactivate vibra-
tions. In the System Information section
you will nd settings and system names of
the software.
Turn o Select to turn the smartwatch o.
Note: scroll the touch screen down to go to a pop-up menu conta-
ining the following functions

12
ENEN Settings
Go to the settings of the smartwatch, whe-
re you will be able to dene the screen bri-
ghtness and activate or deactivate vibra-
tions. In the System Information section
you will nd settings and system names of
the software.
Always On
mode
Select to switch the smartwatch to “al-
ways on display” mode. In this mode, the
time, date, battery level and Bluetooth
connection status will be visible on the
smartwatch’s screen all the time, without
the necessity to activate it by a wrist move-
ment or a button.
Find phone The function allows to activate vibrations
and sound in the phone connected with
the smartwatch. It makes it easier to nd.
Turn o Select to turn the smartwatch o.
Stopwatch Select to activate the stopwatch function.
Date, status,
battery
Quick preview of date, Bluetooth connection status
and the battery charge level.
TelForceOne S.A. declares that the product is compati-
ble with requirements and other relevant provisions of the
2014/53/UE directive. You can download the declaration
of product on website https://sklep.telforceone.pl/en-gb/

www.forever.eu
2011/65/UE
