FOREVER iGO JW-100 User manual

USER MANUAL
Smartwatch JW-100
(long version)

1.
2.

3
EN
Thank you for buying the Forever brand product. Before use, read
this instruction manual and keep it for future reference. Do not
open the device on your own – any repairs should be carried out
by a serviceman. Only use original parts and accessories supplied
by the manufacturer. We hope that Forever will meet your expec-
tations.
Description
1. Touch button
2. Display
Basic specication
Waterproofness: IP68
Battery capacity: 160 mAh
Bluetooth: 4.0
Charging time: 2 hours
Operating temperature: -10˚C to 50˚C
SAFETY NOTES:
• Avoid impacts between the device and hard objects since this
may damage the device
• Avoid contact of the device with solvents or other chemicals
• Keep away from strong magnetic elds
• Avoid contact of the smartwatch with water if the water
temperature exceeds 35˚C
• Do not repair the device on your own
• Do not throw it into re, there is a risk of explosion
First launching
When using the device for the rst time, take it out of the package
and charge it using the supplied charging cable. The device will
turn on automatically after charging is completed. Date and time
of the device will be automatically synchronized and set after es-
tablishing connection with a dedicated application via Bluetooth.
Language of the device will be automatically adapted to the one
set in the phone.
To activate the smartwatch without connecting it to the charger,
press and hold the touch button located below the display for 3
seconds.

4
EN Charging
Place the smartwatch in the special bracket in a way to connect
charging connectors together, and then connect USB cable to a
power source.
After charging is completed, take the smartwatch out of the brac-
ket and disconnect it from the power source.
Turning the smartwatch on/o
Turning on: Press and hold the “Touch button” until the smar-
twatch turns on.
Turning o: Go to the tab marked with symbol in the smartwatch
menu, and then hold the touch button to turn the device o.
„Forever GoFit” application installation
Find application called “Forever GoFit” in Google Play or App
Store and install it.
NOTE: The operating system of the phone must have the follo-
wing minimum specications to run the application and support
the smartwatch: Android 5.0 or higher / iOS 10.0 or higher
Connect the smartwatch with the phone
1. Activate Bluetooth in your phone.
NOTE: To be able to use all functions of the application and
the smartwatch, during the rst launching, allow the application
to access all required functions, and then also activate access
to notications.
2. Activate “Forever GoFit” in the phone. Start using the application
as a “Guest” by clicking the upper right part of the screen or select
“Register” and follow the steps below:
– enter the email address you want to use to create an account
– press the button (obtain verication)
– a verication code, which must be entered in the indicated eld,
will be sent to your email
– enter and remember your user password
3. After logging into the application, you will see the main screen, in which
you should click button or select menu in the upper left corner.

5
EN
4. Select the smartwatch model you want to connect with by clicking
its picture:
5. Conrm the selected model by clicking “YES”. If a wrong model has
been selected, click “NO” and select the correct one.
6. Select “JW-100” model from the list of devices and conrm con-
nection by pressing “YES”. The connection will be established within
several seconds and all data will be automatically synchronized. If the
automatic synchronization won’t start, select button in the lower ri-
ght corner of the screen to perform manual synchronization.

6
EN Description of the application
User’s prole information
After correct logging in and carrying out synchronization, press
the menu button in the upper left corner, and then click the user
name to enter the prole setting. Here, check whether all the data
is correct. Providing actual data is necessary for correct operation
of the algorithm that calculates your steps, calories and covered
distance with the highest possible accuracy.

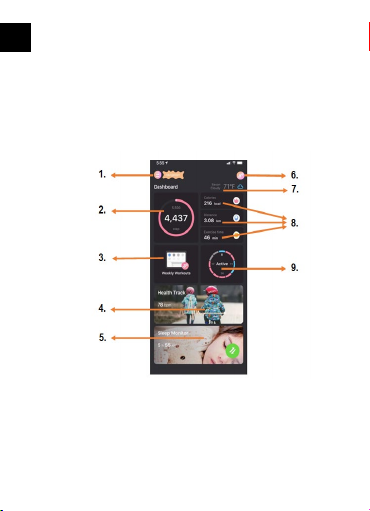

Description of the main panel
1. Menu button
Expands the user’s panel that allows to carry out settings descri-
bed in subsection 1.1

7
EN
1.1 Setting s
1.1.1. User’s information
Click it to change settings, such as: prole photo, user name, sex,
date of birth, height, weight, change password
1.1.2. Settings and functions of the device
Access to extended information, settings and functions of the smar-
twatch, such as: information regarding the date of last synchronization,
information regarding the current version of the software, information
regarding MAC number of the device, remote camera, alarm clock,
schedule, notication regarding lack of exercise, do not disturb mode,
automatic backlight of the screen via wrist movement, daily heart rate
monitoring, time display system, notications from the application, set-
tings reset, disconnection of the smartwatch and the application
1.1.3. Measurement units
Select the units of measurements you want to receive
1.1.4. Temperature
Select the temperature units used to show the current weather

8
EN on the main screen
1.1.5. Find the smartwatch
Click to call the smartwatch, which will start to vibrate in order to
notify you about its current location
1.1.6. Connection with Google and Facebook accounts
Connect the application with Google or Facebook account to ena-
ble sharing data gathered in the application
1.1.7. Logout
Click to logout from the currently used application account
1.1.8.Strava
It allows to connect with an account in Strava application and send
information to the account from the smartwatch
1.1.9. Privacy policy
Read the privacy policy and accept it in order to protect your data
1.1.10. Update
Check if the smartwatch has the latest version of the software.
If not, update you smartwatch to fully use all available functions.
1.1.11. FAQ
Most frequently asked questions and answers
1.1.12. Application information
Shows the current application version.
2. Number of steps
Shows the number of steps taken in a given day and the degree of
completion of an assumed goal. Click to go to more detailed data
or check its history.
3. Weekly trainings
Shows detailed data regarding trainings, broken down into particular
weeks.
4. Heart rate monitor
Readout of daily heart rate measurement and the dynamic heart rate.
The daily heart rate section is responsible for periodic measurements of
the heart rate during the whole day. The smartwatch carries out auto-

9
EN
matic measurements after the user activates the function in the device
settings.
5. Sleep monitoring
To carry out a measurement or sleep analysis, wear the smar-
twatch for the entire night. The device will prepare a sleep schedu-
le based on the user’s motions during sleep.
6. GPS sport mode
Measurement of the selected sports discipline, inclu-
ding recording of the route using the smartphone’s buil-
t-in GPS module. Click the icon to go to the map, select
the sport, and then press start to begin measurements.
7. Weather
Current weather in a given town
8. Calories, Distance, Exercise Time
Data collected from particular measurements from a given day.
After clicking the requested measurement, we go to its history.
9. Activity
Shows activity during a given day, broken down into hours.
The smartwatch interface description
NOTE: Press the touch button one time to move between
particular screens of the interface. In order to select a given
function or conrm, press and hold the touch button for 3
seconds.
Smartwatch
faces
Select one of four available smartwatch fa-
ces. Press and hold the touch button for 3
seconds to change the face.

10
EN Activity
The number of steps, burnt calories and
the covered distance in a given day.
Heart rate
monitor
Real-time heart rate measurement. Press
and hold the touch button to start the me-
asurement. The smartwatch must be pla-
ced on the user’s wrist and tted well using
the adjustable strap.
Weather
Weather forecast for today and tomorrow.
To correctly display the weather infor-
mation, connect with the application and
carry out data synchronization. The appli-
cation must have access to the smartpho-
ne location.
Messages
Readout of received messages. To allow
correct operation of the function, synchro-
nize the smartwatch with the application.
The application must have access to noti-
cations, and notications from applica-
tions, from which we want to receive mes-
sages, must be activated.
Sleep
Shows the sleep time from last night. Syn-
chronization of data allows access to more
detailed data in the application.

11
EN
Music
Control of music played in the smartphone using
the smartwatch. Press and hold the touch button to
activate the control panel. Next, by pressing the touch
button once, select the back, play/stop, next or exit
button. To confirm, press and hold the touch button
again. To ensure correct operation of the function, the
application must have access to multimedia.
Game
Basketball game is a simple arcade game. Its
purpose is to achieve the highest possible
score. To activate the game, press and hold
the touch button for 3 seconds. The game
will be automatically launched. Throws ac-
curacy bar and a moving indicator will be
visible in the bottom of the screen. To per-
form a successful throw, press the button
once when the indicator is located within
the red eld of the accuracy bar. If you stop
the indicator in the yellow eld, you will miss
the target. To exit the game, press and hold
the touch button for 3 seconds, and do that
again when “turn o?” message appears. If
you press the button once after the message
appears, you will return to the game.
Sports mode
The sports mode allows to carry out me-
asurements of one of the available sports.
Press and hold the touch button for 3
seconds, and then select one of the follo-
wing sports by pressing the button once:
Walking, Jogging, Climbing, Bicycle, Swim-
ming. Conrm the selection by holding the
button again. The smartwatch will indicate
start of the measurement via short vibra-
tion and start a countdown. To stop the
measurement, press and hold the touch
button again.

12
EN Stopwatch
This function allows to perform time me-
asurements. Press and hold the touch
button to conrm selection of this func-
tion. Pressing the button once will start
or stop the countdown. To reset and turn
the stopwatch o, press and hold the to-
uch button.
Brightness
Display brightness adjustment. Note: the
degree of brightness of the display has a
large impact on the working time of the
smartwatch on a single battery charge
cycle
Turn o Holding the touch button on this screen
with turn the smartwatch o.
TelForceOne S.A. declares that the product is compatible with
requirements and other relevant provisions of the 2014/53/UE
directive. You can download the declaration of product on website
https://sklep.telforceone.pl/en-gb/

www.forever.eu
2011/65/UE
