Fortin Evo-one rfk942 User manual

ALL-IN-ONE DATA INTERFACE

REMOTE STARTER / ALARM

QUICK INSTALLATION GUIDE

A20

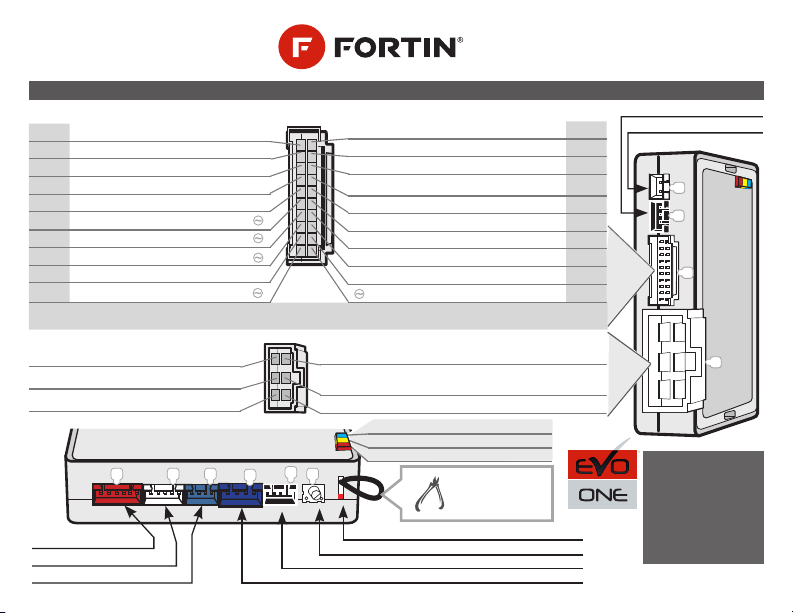

WIRING / CONNECTION GUIDE

Black

White

(3-PIN) SHOCK SENSOR

(2-PIN) Valet/

Programming Button

DCBHIJ

(6-PIN) B YP AS S R EL AY

(5-PIN) CAN-BUS (4-PIN) RS-232 DATA-LINK & FLASH-LINK UPDATER PORT

BYPASS PROGRAMMING BUTTON

REMOTE STARTER PROGR AMMING LED

CUT LOOP FOR

AUTOMATIC

TRANSMISSION

MODE.

Red White Blue Blue Black

LED Blue CAN ACTIVITY

LED Yellow IGNITION ON

LED Red BY PASS DATA

(+) Foot Brake Black IN

750mA (-) Parking lights Pink OUT

750mA (-) Trunk Release/AUX Yellow/Black OUT

(-) Hand Brake Brown/White IN

(-) Hood/Door Pink/Black IN

Bypass cong. Purple/Yellow

Bypass cong. Green/White

Bypass cong. Green/Red

Bypass cong. White/Black OUT

Bypass cong. Lt.Blue

750 mA MAXIMUM OUTPUT. DO NOT EXCEED THE MAXIMUM CURRENT OR PERMANENT DAMAGE TO THE MODULE WILL OCCUR THAT WILL NOT BE COVERED

UNDER WARRANTY.

(20-PIN) SECONDARY CONNECTOR

(4-PIN) ANTENNA(4-PIN) DATA-LINK ANTENNA

IN Yellow (+) BYPASS IGNITION

OUT Purple (-) LOCK 750mA

OUT Purple/White (-) UNLOCK 750mA

OUT Green (-) IGNITION 750mA

OUT White (-) START 750mA

OUT Orange (-) DISARM 750mA

OUT Orange/Black (-) HORN/SIREN 2 Amp

OUT Dk.Blue (-) GWR/PROGRAMMABLE 750mA

IN Red/Blue BYPASS CONFIG.

Lt.Blue/Black BYPASS CONFIG.

Ground Black IN

(+) Ignition Pink OUT

(+) Starter Yellow OUT

OUT White (+) PARKLIGHTS/IGN2/ACC/START

PROGRAMMABLE OUTPUT (FUNCTION 2 & 31)

OUT Orange (+) ACC / IGN2

PROGRAMMABLE OUTPUT (FUNCTION 2 & 31)

IN Red (+) 12V

(6-PIN) POWER CONNECTOR

PAGE 1

EVO-ONEEVO-ONE

RFK942

GUIDE # 69611

download the

specific vehicle

install ation guide at:

www.foRtin.ca

PAGE 2

PROGRAMMING REMOTE TRANSMITTER(S)

The system can learn up to a maximum of 4 transmitters.

Any transmitters can be stored in more than 1 memory slot.

When a 5th transmitter is learned the 1st remote is erased (FIFO). *Valet switch sold separately

STEP 1 STEP 2 STEP 3 STEP 4 STEP 5 STEP 6

WITH IGNITION SWITCH

Turn the Ignition

O F F.

Turn the

Ignition ON.

The LED

will turn

ON.

Press and

release

the brake

pedal four

times.

Turn

the

Igni-

tion

ON.

WITH VALET SWITCH*

Press and hold the

valet switch* until

the parking lights

turn ON, the horn/

siren will chirp. x5

Press and release the valet

switch* ve time.

The parking lights will ash

and the horn/siren will chirp

each time to conrm. x1

Press and

release

the brake

pedal

once.

The

LED

will

ash

rapidly.

On each Transmitter press

and release the button

then press and release the

button.

The LED will stop

ashing for a

second conrming

programming.

Turn the

Ignition

OFF to exit

program-

ming.

ERASES ALL REMOTES THAT HAVE BEEN PROGRAMMED AND RESETS ALL FUNCTIONS BACK TO DEFAULT.

Disarm

the system

(The

antenna

led must

not be

ashing,

see enter/

exit valet

mode

p.6).

STEP 1 STEP 2 STEP 3 STEP 4 STEP 5 STEP 6

Turn

the

Ignition

ON.

OR Press and

hold the valet

switch* or

the antenna

button until

the Parking

lights turn

ON, the horn/

siren will

chirp.

OR Press

and

release

the valet

switch*

or the

antenna

button

TIMES.

Press

and re-

lease the

brake

pedal

once.

OR Press

and hold

the valet

switch* or

the antenna

button for

5 seconds.

The Parking

lights will

ash to

conrm.

Turn the

Ignition

OFF to

exit pro-

gram-

ming.

The

Parking

lights

will

ash 4

times.

Within 5 sec.

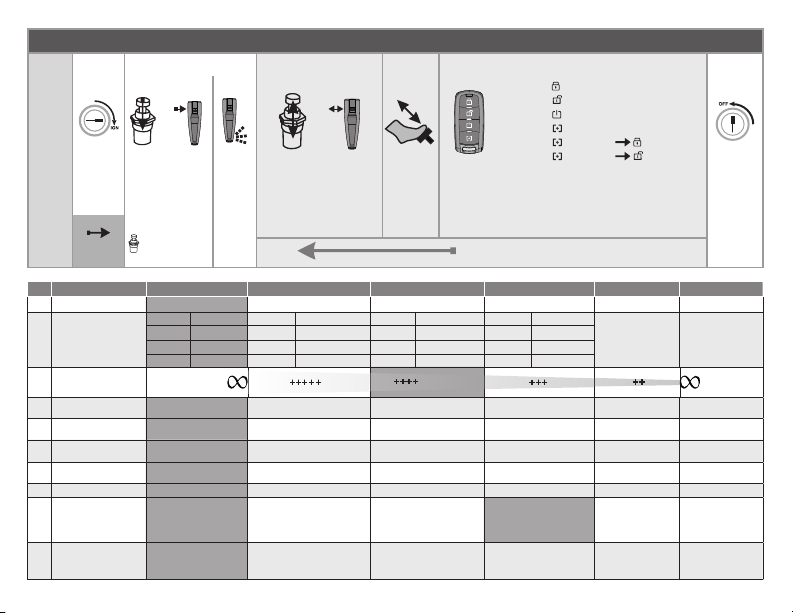

FUNCTION PROGRAMMING

Disarm

the

system

(The

antenna

led

must

not be

ash-

ing, see

enter/

exit

valet

mode

p.6).

STEP 1 STEP 2 STEP 3 STEP 4 STEP 5 STEP 6

OR OR

MODE 1 - LOCK

MODE 2 - UNLOCK

MODE 3 - START (3 SECONDS)

MODE 4 - FUNCTION (3 SECONDS)

MODE 5 - FUNCTION LOCK

MODE 6 - FUNCTION UNLOCK

Turn the

Ignition

ON.

Press and hold the

valet switch* or

the antenna button

until the Parking

lights turn ON,

the horn/siren will

chirp.

*Valet switch

sold separately

The

LED will

ash

rapidly.

Press and release the valet

switch or the antenna but-

ton X time for the desired

function. The Parking lights

will ash and the horn/

siren will chirp each time

to conrm.

Press and

release the

brake-

pedal

once.

Turn the

Ignition

OFF to exit

program-

ming.

The Park-

ing lights

will ash

4 times.

Press the BUTTON on a programmed remote to select the

mode (X).

The Parking lights will ash 1-6 times to conrm.

Within 5 sec.

Return to step 3 to programmed the next option

FUNCTION MODE 1 MODE 2 MODE 3 MODE 4 MODE 5 MODE 6

1 — — — — — — —

Programmable Output

(+) Ign/Acc/Start

(FUNCTION 31

MODE 4)

White

(+)Ignition2

White

(+)Accessory2

White

(+)Start2

White

(+)Start

— —

Orange (+)Accessory Orange (+)Accessory Orange (+)Accessory Orange (+)Ignition2

Pink (+)Ignition Pink (+)Ignition Pink (+)Ignition Pink (+)Ignition

Yellow (+)Start Yellow (+)Start Yellow (+)Start Yellow (+)Start2

3 Tachless sensivity Increase

crank time (By default) Decrease

crank time

4Remote car starter

runtime

Gas: 15 minutes

Diesel: 30 minutes

Gas: 7 minutes

Diesel: 14 minutes

Gas: 3 minutes

Diesel: 6 minutes — — —

5Add Remote on FMH

antenna series Add Remote — — — — —

6 Doorlock option No Unlock before remote-start &

Lock after remote-start. Lock after remote-start. Unlock and relock after

shut-down.

Relock 10 sec.after

shut-down.

Disarm before shut

down.

7 Ignition Doorlock option No Lock after foot-brake &

unlock after key is turned OFF.

Unlock after key is turned

OFF.

Doorlock Output at Ignition

only. — —

8 Unlock Pulse Time Single 0.25 sec Double 0.25 sec Single 4.0 sec Single 2.5 sec Single 1.5 sec Single 0.75 sec

9Active or Passive Alarm

& Starter Kill.

Active

Press LOCK to activate

the Alarm and starter-kill.

Passive (Lock disabled)

Arm alarm activate starter-kill

30(MODE 4), 60(MODE5), or

120(MODE6) sec.

after the door

is closed.

Passive (Lock enabled)

Arm alarm, activate starter-kill

and lock doors 30(MODE 4),

60(MODE5), or 120(MODE6)

sec. after the door is closed.

Passive arm

30 seconds (by default if

MODE 2 or 3 is activated.

Passive arm

60 seconds. (if MODE

2 or 3 is activated.

Passive arm 120

seconds. (if MODE 2

or 3 is activated.

Starter Kill Output.

Required function 32

mode 4. - Dk.Blue (A8)

= starter-kill.

Starter-kill &anti-grind Anti-grind only Relay normally open — — —

FUNCTION MODE 1 MODE 2 MODE 3 MODE 4 MODE 5 MODE 6

Sound Conrmation

& LED antenna

Antidémarreur

1st LOCK/UNLOCK silent

2nd LOCK/UNLOCK sound

---------------------------

Antenna LED active.

LOCK/UNLOCK

sound always. Antenna LED disabled. Antenna LED disabled with

ignition.

Conrmation sound at

LOCK only Panic mode disabled

12 Output horn/siren

conguration

Horn(-) only. Siren(+) Output (E1) white Siren(+) Output (E1) white

and Horn(-)

Siren(-) only (A7) — —

Conrmation Pulse

Long

Short

—

14 Alarm ON/OFF

Starter ON/OFF

Alarm OFF

Remote-starter ON

Alarm ON

Remote-starter ON.

Alarm ON

Remote-starter OFF

— — —

Smart Arming

Smart Doorlock

Smart Lock pulse

Disable

(Unlock signal) Automatically

LOCK and rearm alarm if

door(s) are not opened after

30 seconds.

Automatic Lock when starter

kill arms.

Lock pulse only when its

Unlock — —

Cold Start Timer

3 hours at -5

c/Runtime

1.5 hours at -5

c/Runtime

3 hours at -5

c/5 minutes

1.5 hours at -5

c/5 minutes

Cold time OFF

—

18 Diesel Mode Disable

Enable (20 seconds)

Delay between Ignition

power up and Starter (crank).

Enable (10 seconds)

Delay between Ignition

power up and Starter (crank).

Enable

No delay between Ignition

power up and Starter (crank).

Enable (5 seconds)

Delay between

Ignition power up and

Starter (crank).

—

Turbo timer

Disable

Run 2 minutes.

Run 4 minutes.

—

Engine supervision:

-Tachless -

-analog tach-

-Tach Data-Link-

Tachless on crank

and supervision Tach

Data-Link.

Tachless only.

( vehicles with automatic

transmission only)

Start (Crank) 20 sec +

Supervision by

Data-LInk Tach

Start (crank) 8 seconds

on Tachless.

( vehicles with automatic

transmission only)

Start (Crank) 8 sec +

Supervision by

Data-LInk Tach

Tach Data-Link only

21 Start Attempts 2 1 3 — — —

22 ——— — — — —

23 Master RESET

RESET all programming

options by default.

(Retains already

programmed remote.)

— — — — —

24 — — — — — — —

25 Yellow/Black (A13) :

Aux1 --> LOCK

0.5 seconds &

disarm alarm 0.5 seconds 10 sec latch or

until a button is pressed

20 sec latch or

until a button is pressed

30 sec latch or

until a button is

pressed

Latch until shutdown

26 Hybrid mode Gas / Diesel vehicle Hybrid vehicle — — — —

—

Alarm Duration

30 seconds

60 seconds

120 seconds

—

30 Valet code Ignition ON

Valet button x3 times.

Ignition ON

Valet button x3 times

and x1 times 3 seconds.

Ignition ON

Valet button x4 times

and x1 times 3 seconds.

Ignition ON

Valet button x5 times

and x1 times 3 seconds.

Ignition ON

Valet button x6

times and x1 times

3seconds.

Ignition ON

Valet button x7 times

and x1 times 3 sec.

31 Special application

Programmable output (+)

No special application

Priority on function 2

Special application - Function 2 (all option)

not available. White (+) Parking

Lights White (+) Parking

Lights

White:(+) Parking-

Lights

Orange (+) Accessory Orange Ign.2 Orange:(+) Parking

lights

White wire (E1) : Enable at

ground out, disable with vehicle

ignition OFF.

White wire (E1) : Trunk

Output Pink (+) Ignition Pink Ign.1 Pink:(+) Ignition

Yellow (+) Start Yellow (+) Start Yellow:(+) Start

FUNCTION MODE 1 MODE 2 MODE 3 MODE 4 MODE 5 MODE 6

32 Ground Out

Dk.Blue (Ground out):

Shut-down 1 second after

remote start run time.

Dk.Blue (Ground out):

Shut-down 3 seconds after

remote start run time.

Dk.Blue

(Ground Out):

Shutdown After

D.k Blue

(Ground Out):

Starter-Kill

D.k Blue

(Ground Out):

Arm / Rearm

Controlled by CAN

learning

33 Manual transmission

function

Manual transmission

completed by door closed.

Automatically activated by hand-

brake and Foot Brake

Manual sequence completed

by locking the doors

Cancel ready mode when

trunk open. — —

34 Trunk output Pulse 0.5 seconds Pulse 2.5 seconds Unlock before trunk pulse

0.5sec

Trunk Output at ignition only — —

Door unlock Special

application No special application

Activate vehicle ignition at

unlock.

Activate vehicle ignition and

accessory at unlock. — — —

36 Activation/desactivation

remote Valet Mode

—by remote : FUNCTION -->

LOCK + UNLOCK or valet button By Valet button only — — —

Security Remote car

starter

Special application

No special application

Security ON: Shutdown Engine

if the door is opened before

UNLOCK is pressed. (Door

trigger required).

— — — —

38 System control by OEM

Remote Disable Press 3x Lock to remote start Start/Stop on trigger shock

sensor

Alarm control by OEM

Remote.

Press Lock, Unlock

Lock to remote start —

39 Temperature option Disable

Enable : AUX1 activated at

5oc when remote started (see

function 25)

— — — —

LEGEND: FUNCTION BY DEFAULT

MANUAL TRANSMISSION SEQUENCE FOR COMPATIBLE VEHICLES ONLY

STEP 1 STEP 2 STEP 3 STEP 4 STEP 5 STEP 6 STEP 7

Make sure that

all doors are

closed and the

transmission is

in the NEUTRAL

position.

Push the

START button

(3sec.). The

Parking lights

will ash once

and then

remain on.

Remove the

key from the

ignition barrel.

The vehicle

will remain

running with

the Remote-

Starter.

Exit the vehicle

and close all of the

doors.The Remote-

Starter will stop

running once all the

doors are closed.

Press the

brake

While the engine

is running.

Engage the

parking brake.

Release

the brake

pedal

WILL DISABLE MANUAL TRANSMISSION SEQUENCE

STANDARD

• Open any door(s)

• Open the hood

• Disengage the parking brake

Note : If the Parking lights ash 3 times when Remote-

Starting, Ready Mode is not enabled.

TO ENABLE COLD START MODE

(

Press and release the FUNCTION button,

within 12 seconds simultaneously press and

and hold the LOCK and START buttons for 1

second. The parking lights will ash once.

TO DISABLE COLD START MODE

• Press and release the FUNCTION button,

within 12 seconds simultaneously press

and and hold the LOCK and START buttons for

1second. The parking lights will ash twice.

• Put the Remote-Starter/alarm into Valet

• Remote-Start the vehicle

• Open the hood

• Press the brake pedal

• Turn the key to the ignition position.

• Disable Ready Mode (manual transmission).

PAGE 5

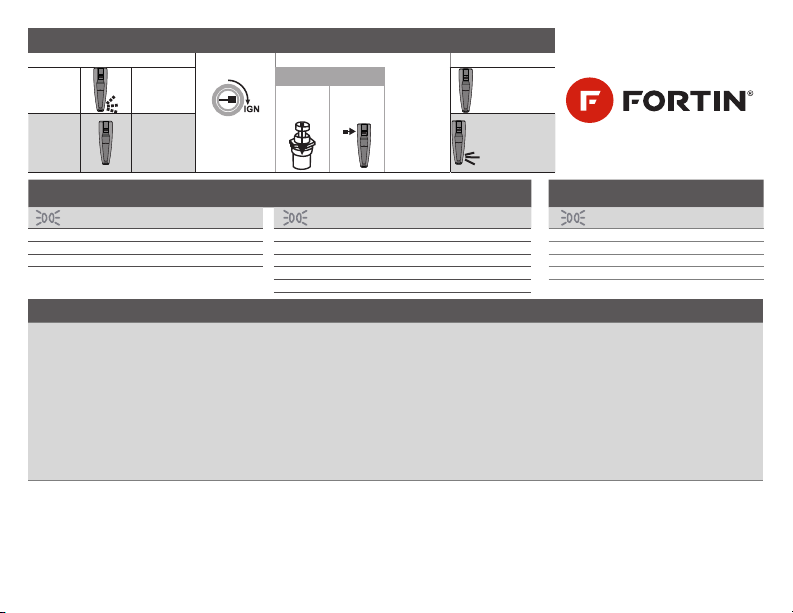

DISARM / ENTER / EXIT VALET MODE

STEP 1 STEP 2

to disarm

the system

System armed

: DEL ash

Insert the key

and turn it to the

ignition (ON/RUN)

position.

OR Within

10seconds

press and

release

the Valet

switch or

the antenna

button

3TIMES.

System dis-

armed :

LED is OFF

3x 3x

to enter and

exit valet

mode

System

disarmed :

LED is OFF

System disarmed

and in valet

mode :

LED is ON.

REMOTE START DIAGNOSTICS ALARM DIAGNOSTICS

Parking Lights ashes (before starting): Parking Lights ashes (after Shutdown): Parking Lights ashes (after disarm) :

3x Ready mode disabled 1x Normal stop (Brake, Park Brake) 3x Door open – zone 3

4x Valet mode activated (The LED is on) 3x Runtime expired or shut down by transmitter 4x Shock sensor – zone 4

5x Hood open 4x No tachometer signal 5x Hood open – zone 5

5x Hood open 6x Trunk open – zone 6

6x Over crank threshold (8 seconds)

WARNING

NOTICE The manufacturer will accept no responsibility for any electrical damage resulting from improper installation of the product, including either damage to the vehicle

itself or to the remote-starter module. This module must be installed by a certied technician including all of the supplied safety devices. Please note that this guide

has been written for trained professional technicians, a certain level of skills and knowledge is therefore assumed. Please review the Installation Guide carefully before

beginning any work.

WARNING By default this system is setup for vehicles with a manual transmission. For vehicles with an automatic transmission the safety wire loop on the main unit must

be cut. Before proceeding to the installation, make sure that the vehicle does not attempt to start when the when the vehicle is in the “drive” or “reverse” position. If an

automatic transmission vehicle starts when the transmission is in gear, ensure that the safety wire loop on the unit is not cut. Once the safety wire loop is cut, the system

is considered an automatic transmission remote-starter indenitely. Once a loop is cut all warranties, guaranties, and liability is immediately void if the unit is install on

a manual transmission vehicle.Neither the manufacturer or distributor of this module is responsible of damages of any kind indirectly or directly caused by this module,

except for the replacement of this module in case of manufacturing defects. This module must be install by qualied technician. This instruction guide may change
