Silencer 53SL User manual

USERS MANUAL
This unit is designed for professional installation only.
For Warranty Information:
Please visit our website at www.magnadyne.com

UM_FULL_53SL_REV_A 2
Contents
CHANGING THE BATTERY............................................................................................................................................. 3
4-BUTTON REMOTE TRANSMITTER OPERATION........................................................................................................3
2-BUTTON REMOTE TRANSMITTER OPERATION........................................................................................................4
CHIRP INDICATORS........................................................................................................................................................ 4
PARKING LIGHT ...............................................................................................................................................................4
DOOR LOCKING...............................................................................................................................................................4
Silent Door Locking ........................................................................................................................................................4
DOOR UNLOCKING .........................................................................................................................................................4
Silent Door Unlocking.....................................................................................................................................................4
Pathway Illumination ......................................................................................................................................................4
Two-Steps Door Unlock .................................................................................................................................................4
PANIC FUNCTION ............................................................................................................................................................4
VALET MODE....................................................................................................................................................................5
Enter Valet Mode............................................................................................................................................................5
Exit Valet Mode ............................................................................................................................................................. 5
Remote Valet..................................................................................................................................................................5
CAR LOCATOR................................................................................................................................................................ 5
IGNITION CONTROL DOOR LOCK/UNLOCK .................................................................................................................5
TRUNK RELEASE (AUX 1) OUTPUT.............................................................................................................................. 5
2ND VEHICLE SECURITY OPERATION ............................................................................................................................5
TO REMOTE START THE VEHICLE .................................................................................................................................6
PROGRAMMABLE SAFETY START ................................................................................................................................6
RUNNING TIME EXTENDER.............................................................................................................................................7
OPERATE THE VEHICLE WHILE RUNNING FROM THE REMOTE START .....................................................................7
TEMPORARY STOP MODE ..............................................................................................................................................7
TO TURN OFF THE REMOTE START ............................................................................................................................ 7
DISABLING THE REMOTE START SYSTEM.................................................................................................................. 7
SHUTDOWN DIAGNOSTICS............................................................................................................................................8

UM_FULL_53SL_REV_A 3
REMOTE CONTROL TRANSMITTER
A. CHANGING THE BATTERY

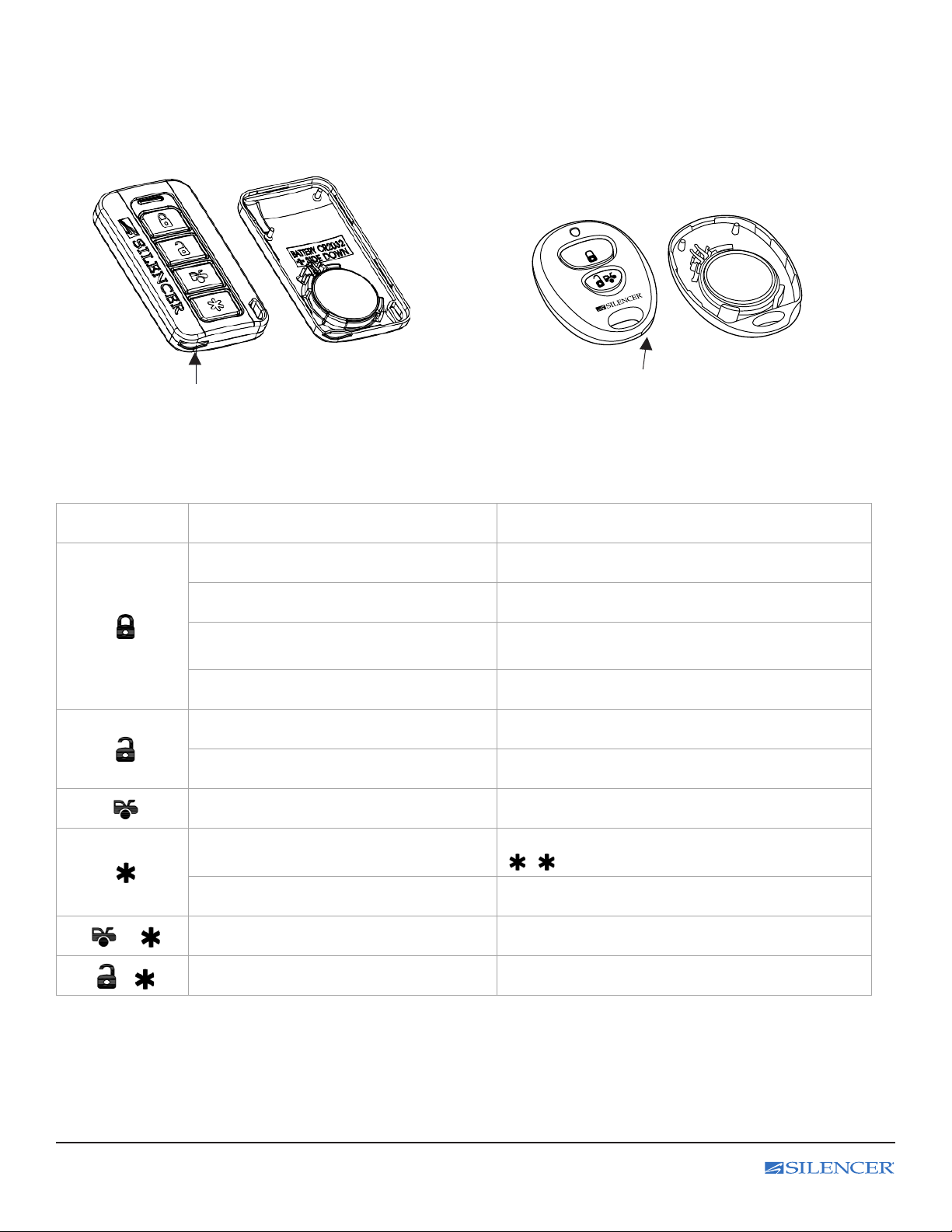

B. 4-BUTTON REMOTE TRANSMITTER OPERATION
Transmitter
Button System Function Remark
Lock Doors Tap the Lock button for a half second
Silent Lock Doors Press and hold for 1.0 seconds
Panic Function Press and hold for 3 seconds to Activate or Deactivate
panic function
Car Locator Press when the system Locked
Unlock Doors Tap the Unlock button for a half second
Silent Unlock Doors Press and hold for 1.0 seconds
Trunk Release Press and hold for 3 seconds
Activate or Deactivate the Remote Start Press button once.
- Press twice if set to start safety mode.
Running Time Extender Press and hold for 2 seconds
+ Switch Code for 2nd Car Operation Press together & release.
+ Shutdown Diagnostic Press together & release
Both transmitters are powered by one CR2032 Battery. To replace the battery, use a coin or
small at blade screwdriver to carefully pry apart the case at the notch provided.
START

UM_FULL_53SL_REV_A 4
C. 2-BUTTON REMOTE TRANSMITTER OPERATION
2-Button
Transmitter System Function Remark
/
Lock Doors Press the Lock button and 1 LED ash
Activate or Deactivate the Remote Start Press and hold for 1.5 seconds and 2 LED ashes.
Activate or Deactivate the Panic. Press and hold for 3 seconds and 3 LED ashes
/
Unlock Doors Tap the Unlock button for a half second
Silent Unlock Doors Press and hold for 1.0 seconds and 1 LED ash
Trunk Release Press and hold for 3 seconds and 2 LED ashes.
( / ) +
( / )
Shutdown Diagnostic Press together & release
D. CHIRP INDICATORS PARKING LIGHT
Chirp Function Parking light Function
1 Chirp Lock 1 Flash Lock
2 Chirps Unlock 2 Flashes Unlock
6 Chirps Car Locator 12 Flashes Car Locator
Constant On Under Remote Start
E. DOOR LOCKING
1. Press the button on the transmitter.
2. The system will lock the doors (if connected), and the horn chirps and parking lights ash once.
SILENT LOCKING (For 4-button transmitter only):Press and hold the transmitter buttons for 1.0 second.
The system will lock the doors. No chirp sound will be heard and the lock conrmation will be through the
vehicles parking lights only.
F. DOOR UNLOCKING
1. Press the button,
2. The horn will chirp twice and the parking lights will ash twice indicating that the system now unlocked the doors.
SILENT LOCKING:Press and hold the button for 1.0 second. The system will unlock the doors.
No chirp sound will be heard and the unlock conrmation will be through the vehicles parking lights only,
G. PANIC FUNCTION
Press and hold the button for 3 seconds to activate the personal protection alarm. During panic mode, the normal
function of the transmitter buttons will be suspended. The transmitter and buttons can be used to lock and
unlock the door (if the option is installed). To stop the alarm, press and hold the button on the transmitter again for
3 seconds. The system will automatically stop after 30 seconds.

UM_FULL_53SL_REV_A 5
H. VALET MODE
When servicing or loaning your vehicle to others, the system should be placed in Valet Mode. Valet Mode prevents the
system from remote starting.
Enter Valet Mode:
1. Under the system unlocked, turn the ignition to “ON/ OFF/ ON” position.
2. Press and hold valet switch for 2 seconds until the LED turns “ON” solid.
The LED will remain on as long as the system is in Valet Mode.
Exit Valet Mode:
1. Turn ignition “ON/ OFF/ ON”.
2. Push and hold the valet switch for 2 seconds. The LED will turn off indicating the system is exiting the ValetMode.
I. CAR LOCATOR (For 4-button transmitter only)
Under the system Locked, press the button to activate the car locator function. The horn will chirp 6 times.
The parking light will ash 12 times, assisting you in easily locating your car.
J. IGNITION CONTROL DOOR LOCK/UNLOCK (See feature bank 1-05)
If the vehicles door locks have been interfaced to the security system, the system will automatically lock the vehi-
cle’s doors when the ignition is turned “ON” and /or unlock the vehicle’s doors when the ignition is turned “OFF”.
(Default setting is “OFF”)
K. TRUNK RELEASE OUTPUT
Press and hold the button on the transmitter for 3 seconds to remotely control the trunk release
L. SECOND VEHICLE SECURITY OPERATION. (For 4-button transmitter only)
Your 4-button remote transmitter can be utilized to control a second vehicle’s security system. To program the remote
control transmitter to a second vehicle, Press and hold the +buttons 2 seconds to select car 2 or car 1 opera-
tion. For Car 2: When the LED start 2 pause ash then release buttons.
For Car 1: When the LED start 1 pause ash then release the buttons.

UM_FULL_53SL_REV_A 6
WARNINGS
As with any product that performs automatic functions, there are certain safety precautions
that you must practice and be aware of.
1. Keep the transmitter out of children’s reach.
2. Do not leave anyone in the vehicle while running on remote control.
3. Alert servicing personnel that the vehicle can be started automatically.
4. Do not start the vehicle by remote while it’s in an enclosed area or garage.
5. Always apply the parking brake and lock the vehicle as you exit the vehicle.
6. The vehicle windows must be rolled up.
7. Should the unit malfunction, disconnect the fuse until the problem is corrected.
8. The use and operation of this system is the sole responsibility of the operator.
9. Some areas may have local ordinances that prohibit leaving a vehicle running on public streets.
10. It is not safe to remote start the vehicle if the vehicle is parked on a steep incline.
REMOTE START OPERATION
A. To Remote Start The Vehicle
When you want to start your vehicle:
1. Press the button once on the 4-button transmitter or press and hold the / button for
1.5 seconds on the 2-button transmitter.
2. The parking light will activate to indicate the remote start has received the signal.
3. The engine will start in approximately 5 seconds
4. After a couple of seconds with the engine running the parking lights will turn on.
5. The vehicle will run for a programmable 3 to 45 minutes cycle (set installation center.) before shutting down.
(See feature bank 2-04 setting)
6. The vehicle refused to start running after 3 unsuccessful attempts.
B. Programmable Safety Start (For 4-button transmitter only)
By default, your Silencer remote starter is programmed to start/stop after pressing the button 1 time.
This default setting can be re-programmed to require 2 presses - .
This setting is known as “Child Safety Mode”.
Contact your installer to reprogram this feature if needed.

UM_FULL_53SL_REV_A 7
C. Running Time Extender (For 4-button transmitter only)
User Programmable Run Time / Run Time Extension. The system has the ability to allow the user to extend the time
the vehicle will be running under control of the remote start. This will only extend the run time back to the current run
time setting during the current remote start cycle. If your system is set to run 15 minutes and the time remaining is 4
minutes, extending the run time will reset the countdown timer to 15 minutes and your vehicle will continue to run for
another 15 minutes. Follow the steps below to extend the vehicle’s run time.
1. The remote start must already be active.
2. Press and hold the button for 2 seconds on the 4-button transmitter.
3. The system will chirp 1 time and ash the parking lights 4 times to conrm that the run time has been reset
D. Operate The Vehicle While Running From The Remote Start
To operate the vehicle while the engine is running from the remote start:
1. Insert the ignition key and turn it to “ON” (not the start) position
2. Press the brake pedal.
Note: If the brake pedal is pressed before the key is in the “ON” position, the engine will shut down.
E. Temporary Stop Mode
This mode allows the vehicle to remain running after the key has been removed from the ignition. This feature is
useful for occasions when you wish to exit and lock the vehicle for short periods of time but would like to leave the
motor running and the climate control on.
1. While the vehicle is running, place the transmission in PARK, set the emergency / parking brake.
2. With your foot off the brake pedal, press the button once on the 4-button transmitter or press and hold the
/ button for 2 seconds on the 2-button transmitter. The parking lights will turn on to conrm the system has
entered Temporary Stop Mode.
3. Remove the keys from the ignition and exit the vehicle. Press the button to lock the vehicle’s doors if desired.
Note: Do not leave children or animals unattended in the vehicle when using the temporary stop feature.
F. To Turn Off Remote Start
When the engine is running (by remote start) and you want to stop it:
1. Press the button once on the 4-button transmitter or press and hold the / button for
2 seconds on the 2-button transmitter under the remote start mode.
2. Move the optional remote start enable toggle switch to the “OFF” position. (If installed)
3. Press the brake pedal.
The vehicle will shut down and turn off the parking light to indicate the engine has stopped

UM_FULL_53SL_REV_A 8
G. Disabling Remote Start System: (If Installed)
This feature allows your system’s remote start unit to be temporarily disabled to prevent the vehicle from being
remote started accidentally. This feature is useful if the vehicle is being serviced or stored in an enclosed area.
To disable the remote start, move the optional remote start enable toggle switch to the “OFF” position.
H. Shutdown Diagnostics:
The unit has the ability to report the cause of the last shutdown of the remote start system.
Press Buttons +simultaneously. The parking light and chirps will now report the reason
of the system last shutdown by ashing in the following grouped patterns,
GROUP 1 (One Flash of Parking Light)
Chirps Shutdown Mode Solution
1Hood Open • Close the hood.
• Check 10-pin White/Black wire connection.
2Black/White must have a ground
• Check 10-pin Black/White wire connection.
• Move the gear selector to “Park”/ “NEUTRAL” position.
(If installed.)
3Foot Brake on • Check 10-pin White/Violet wire connection
• Release Foot Brake.
4System is in Valet Mode Exit the Valet mode
5
Hi Voltage
(Voltage Checking Type) Set the “Feature 2-02 to “Low Level”
Low or No RPM
(Tachometer Checking Type)
• Check 10-pin White/ Red wire connection
• Set the “Feature 2-02 to “Hi Level”
• Re-learning the RPM
6The engine has run successfully but is
still starting (Tachometer Checking Type) •Set the “Feature 2-02 to “Low Level”
GROUP 2 (Two Flash of Parking Light)
Chirps Shutdown Mode Solution
1Over-Rev Shutdown
2Running Time expired
3Transmitter Shutdown

UM_FULL_53SL_REV_A 9
SILENCER LIMITED LIFETIME WARRANTY
Magnadyne Corporation or its authorized agents will, for the life of the vehicle and to the original purchaser, repair, replace or refund the retail
sales price of said product or any part thereof, at the option of the Magnadyne Corporation or its authorized agents, if said product or part is found
defective in materials or workmanship, when properly connected and operating on the correct power requirements designated for the specic
product. This warranty and Magnadyne Corporation or its authorized agents obligations, hereunder do not apply where the product was: damaged
while in the possession of the consumer, subjected to unreasonable or unintended use, not reasonably maintained, utilized in commercial or
industrial operation, or serviced by anyone other than Magnadyne Corporation or its authorized agent, or where the warning seal on the product
is broken or the power plugs or wires are detached from the unit. Magnadyne Corporation or any of its authorized agents do not assume any
labor costs for the removal and reinstallation of any product found to be defective, or the cost of transportation to Magnadyne Corporation or its
authorized agents. Such costs are the sole responsibility of the purchaser.
This warranty does not cover the cabinet, appearance items, normal wear and tear or accessories used in connection with the product resulting
from improper installation, alteration, accident, misuse, abuse or acts of nature.
This Limited Life Time Warranty applies only to the receiver section of the security system. Neither the siren, transmitters, wire harness or any
accessory item added to or used with a Remote Mobile security system are covered by this Limited Life Time Warranty. Sirens, transmitters, wire
harness or any accessory item are covered by our standard 12 month limited warranty.
Magnadyne Corporation or its authorized agents shall not be liable to anyone for consequential or incidental damages or claims that may arise
due to failure of product to operate properly except those accorded by law. Magnadyne’s or its authorized agents liability to the repair, replacement
of the product as stated above if all conditions of the warranty are met. No expressed warranty or implied warranty is given except those set
forth herein. Magnadyne does not warrant or guarantee against break in damage or the theft of the vehicle in part or whole, or against the loss
or damage to the contents of any vehicle in which a security system is installed. Magnadyne security systems are only a deterrent against
possible theft.
This warranty extends only to the original purchaser of the product and for the vehicle in which it was originally installed. This warranty is not
transferable or assignable to any person or vehicle. Defective merchandise should be returned to the original point of purchase or secondly to
Magnadyne Corporation, 1111 W. Victoria Street, Compton, CA 90220. A return authorization must be obtained before sending, or merchandise
may be refused.
Warning: Some batteries may contain Perchlorate
What is Perchlorate? Perchlorate is both a naturally occurring and manmade contaminant increasingly found in groundwater, surface water and soil.
Most perchlorate manufactured in the U.S. is used as an ingredient in solid fuel for rockets and missiles. In addition, perchlorate-based chemicals
are also used in the construction of highway safety ares, reworks, pyrotechnics, explosives, common batteries, and automobile restraint systems.
Perchlorate contamination has been reported in at least 20 states. Perchlorate greatly impacts human health by interfering with iodide uptake into
the thyroid gland. In adults, the thyroid gland helps regulate the metabolism by releasing hormones, while in children; the thyroid helps in proper
development. Perchlorate is becoming a serious threat to human health and water resources. “Perchlorate Material – Special handling may apply.” For
more information, go to http://www.dtsc.ca.gov/hazardouswaste/perchlorate/

Magnadyne Corporation 1111 W. Victoria Street Compton CA 90220 [phone]
Please visit our website at www.magnadyne.com Made in Taiwan. All Rights Reserved
