Fortinet FortiMonitor 100F User manual

QuickStart Guide
FortiMonitor 100F
FMN-100F
QuickStart Guide

Before you begin
Register your device to access FortiGuard updates, cloud management,
firmware upgrades, technical support and warranty coverage.
https://support.fortinet.com
32
May 24, 2023
Copyright© 2023 Fortinet, Inc. All rights reserved. Fortinet®, FortiGate®, FortiCare® and FortiGuard®, and certain other marks are registered
trademarks of Fortinet, Inc., in the U.S. and other jurisdictions, and other Fortinet names herein may also be registered and/or common law
trademarks of Fortinet. All other product or company names may be trademarks of their respective owners. Performance and other metrics
contained herein were attained in internal lab tests under ideal conditions, and actual performance and other results may vary. Network
variables, different network environments and other conditions may affect performance results. Nothing herein represents any binding
commitment by Fortinet, and Fortinet disclaims all warranties, whether express or implied, except to the extent Fortinet enters a binding
written contract, signed by Fortinet’s General Counsel, with a purchaser that expressly warrants that the identified product will perform
according to certain expressly-identified performance metrics and, in such event, only the specific performance metrics expressly identified
in such binding written contract shall be binding on Fortinet. For absolute clarity, any such warranty will be limited to performance in the same
ideal conditions as in Fortinet’s internal lab tests. In no event does Fortinet make any commitment related to future deliverables, features or
development, and circumstances may change such that any forward-looking statements herein are not accurate. Fortinet disclaims in full
any covenants, representations, and guarantees pursuant hereto, whether express or implied. Fortinet reserves the right to change, modify,
transfer, or otherwise revise this publication without notice, and the most current version of the publication shall be applicable.
For Product License Agreement / EULA and Warranty Terms, visit https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf
This guide covers: FMN-100F

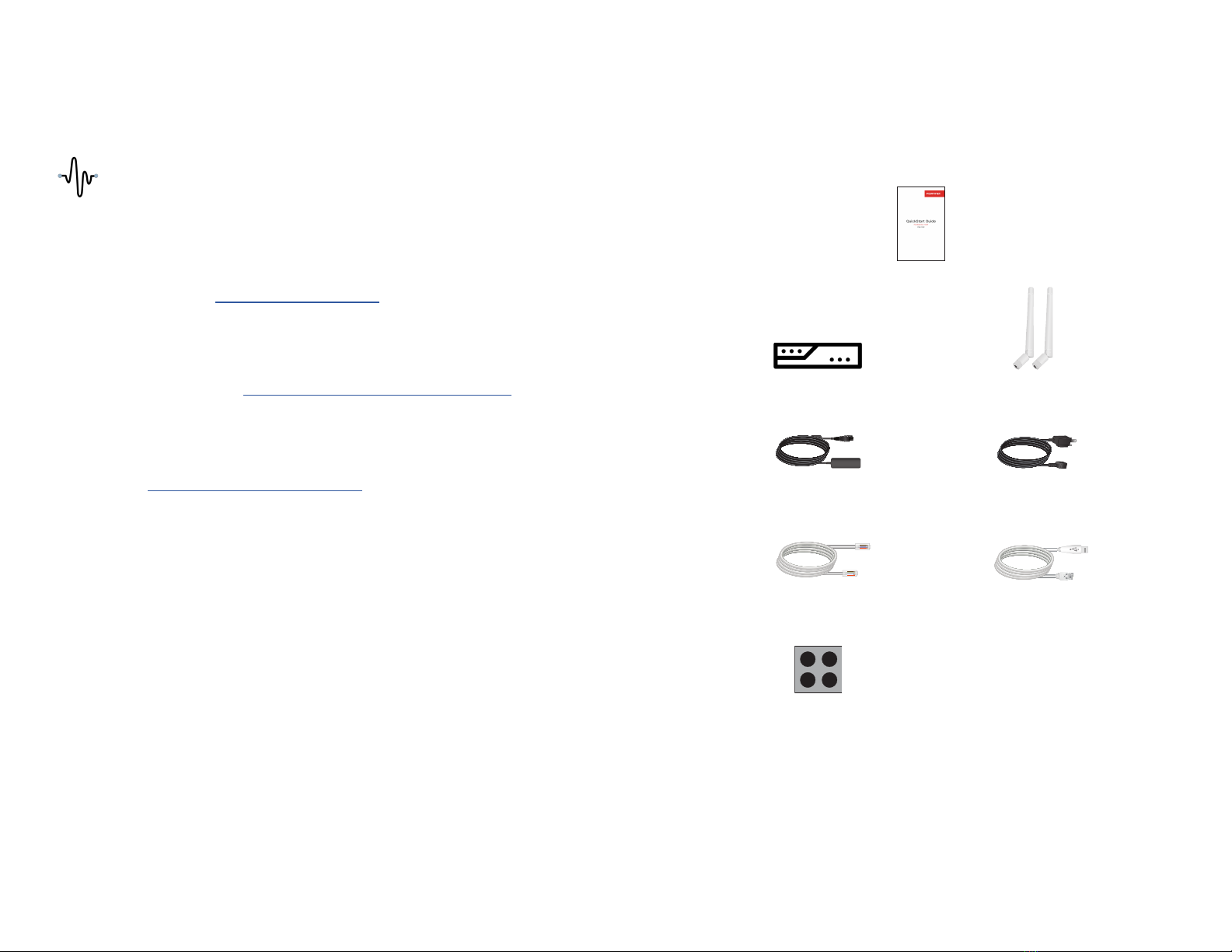

Package Contents
5
FortiMonitor 100F
FMN-100F
FortiMonitor Device
1x Ethernet Cable
4x Rubber Feet
2x Antennas
QuickStart Guide
1x AC DC Power Adapter
1x Console Cable
(USB to RJ45)
1x AC Power Cable
4
The Essentials
Default Logins
https://192.168.1.99
Username: admin
Password: leave blank
Thank you for choosing Fortinet
For a detailed Administration Guide, up-to-date Hardware documentation and
Reference Manuals, visit https://docs.fortinet.com/
For contracts, licensing, product registration and account management,
contact FortiCare Support at https://www.fortinet.com/support/contact
To access our Resource Center, Professional Services and Technical Support
Services, visit https://www.fortinet.com/support
Fortinet Documents Library
Customer Service
Technical Support

7

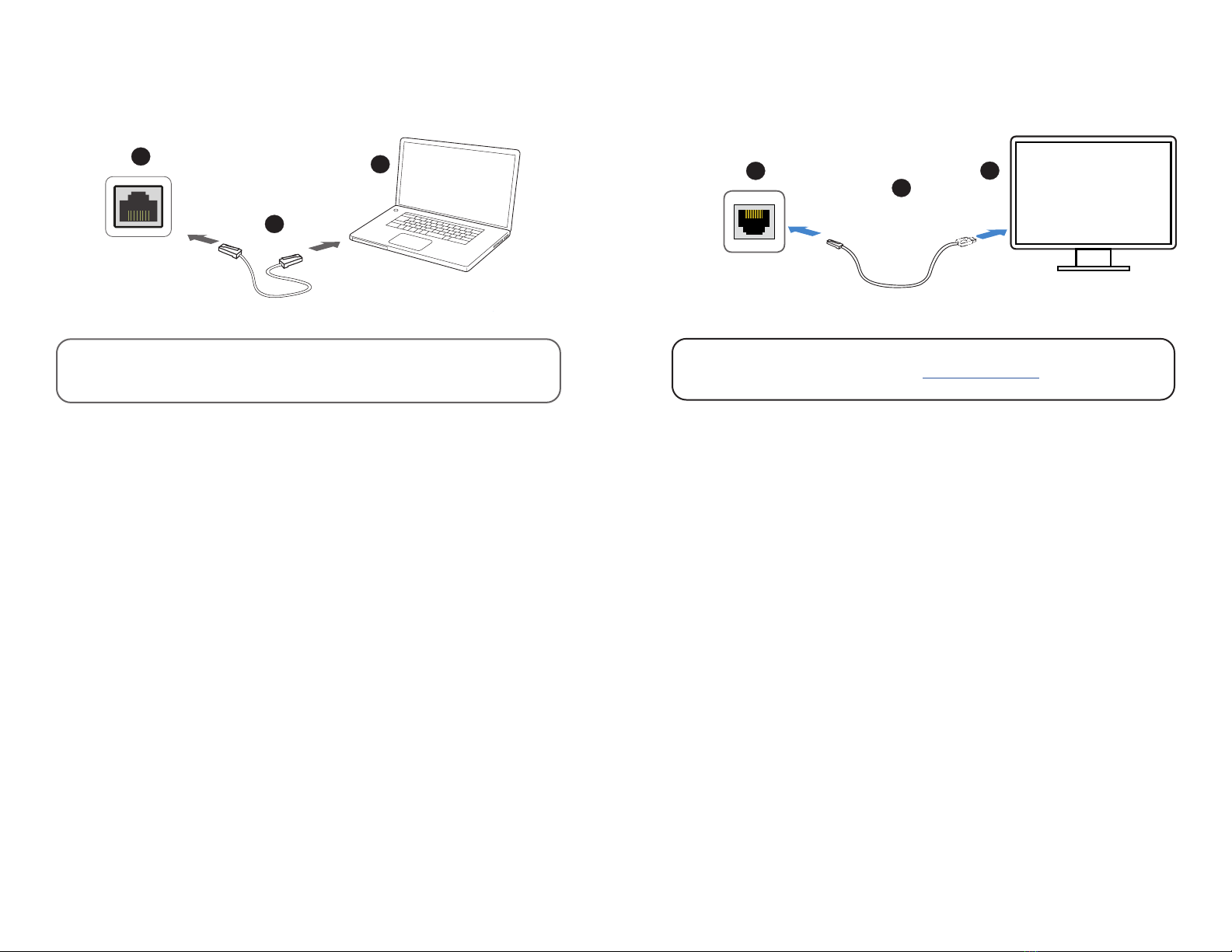

Setup Options
GUI
Ethernet Cable
Management Computer
MGMT
https://192.168.1.99
Username: admin
No Password
Note: For static IP configuration, use 192.168.1.1 with subnet mask
255.255.255.0
1
2
3
6
Console Port
Management Computer
Note: For a detailed CLI guide, visit docs.fortinet.com
USB Console Cable
CLI
1
2
3Speed (default): 9600
Data bits: 8
Stop bits: 1
Parity: None
Flow Control: None

89
 
11
22 33 4 5 6 7 4

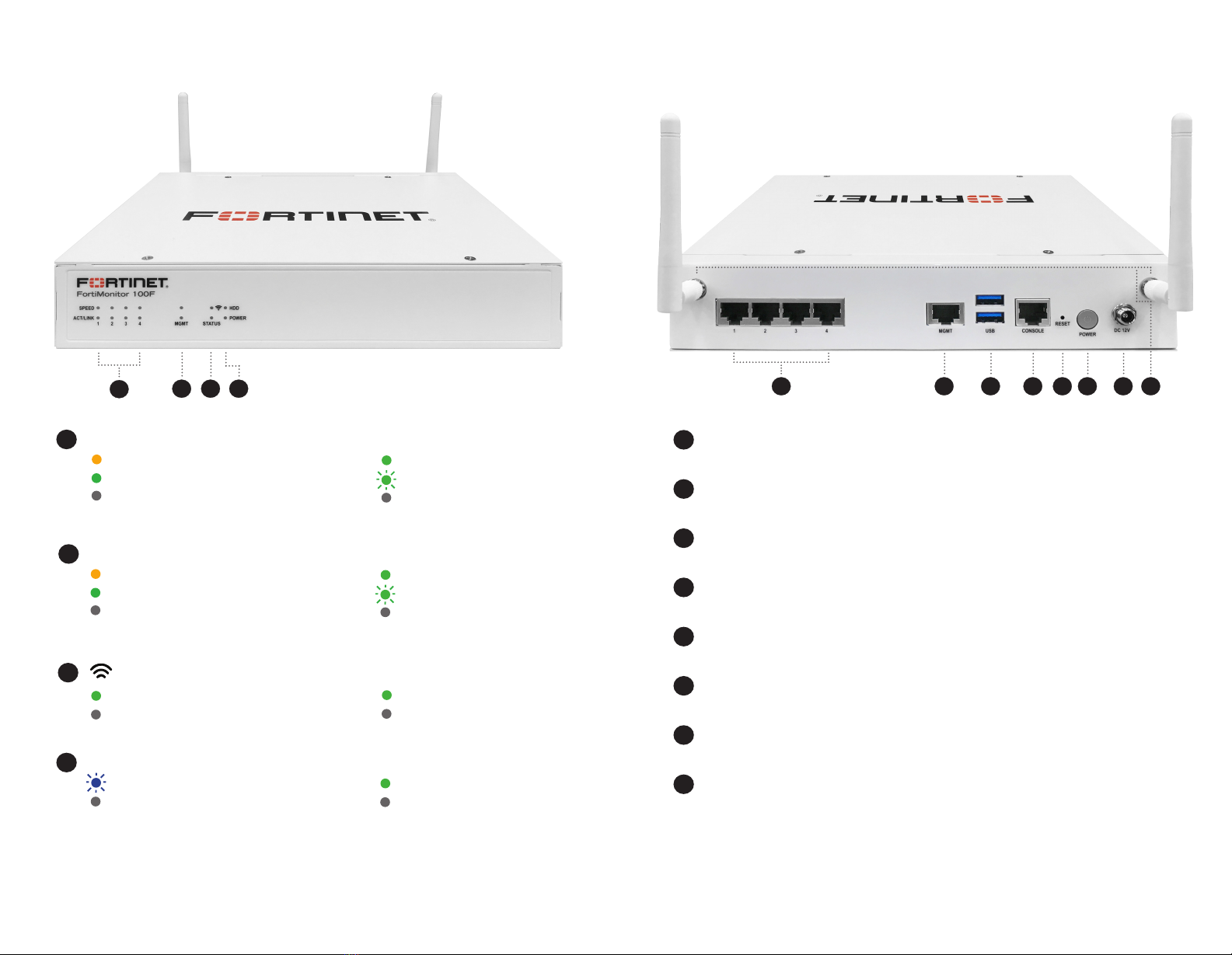

Power Input 12V DC 3.34A, 40W Max
Ports 1 to 4
MGMT
1 GE Ethernet ports
 1 GE Ethernet management port, default IP 192.168.1.99
Not in use
CLI management
System reset
System on/off
 passive directional antenna connection
WiFi
HDD


1
2
1
2
3
4
5
6
7
8
3
4
ACT/
LINK
ACT/
LINK
SPEED
SPEED
Green: Link established
Flashing Green:Data activity
Off:No link established
Green: Link established
Flashing Green:Data activity
Off:No link established
Connected at 1000 Mbps
Green: Connected at 100 Mbps
Off:No link established or
connected at 10 Mbps
Connected at 1000 Mbps
Green: Connected at 100 Mbps
Off:No link established or
connected at 10 Mbps
Green: WiFi connected
Off:WiFi disconnected
Flashing Blue:HDD activity
Off:HDD is off
Green: System warning
Off:Operating normally
Green: Device is on
Off:Device is off
8

10 11
Cautions and Warnings
Environmental specifications
Ambient operating temperature: 0°C to 50°C
Refer to specific Product Model Data Sheet for Environmental Specifications (Operating Temperature, Storage Temperature, Humidity, and Altitude)
Référez à la Fiche Technique de ce produit pour les caractéristiques environnementales (Température de fonctionnement, température de stockage, humidité et l’altitude).
Safety
Caution: This equipment is to be used in a Network Environment 0 per IECTR 62101.
Attention: Ce matériel doit être utilisé dans un Environnement Réseau 0 par IECTR 62101.
This product is intended to be supplied by a Listed Direct Plug-In Power Unit marked LPS or Class 2 and rated 12Vdc, 3.34A.
Le produit doit être alimenté par un bloc d’alimentation à courant continu homologué UL de 12Vdc, 3.34A nominal marqué LPS ou Class 2.
Regulatory Notices
Federal Communication Commission (FCC) – USA
This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received; including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if it is not installed and used in accordance
with the instruction manual, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
WARNING: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
This device meets all the other requirements specified in Part 15E, Section 15.407 of the FCC Rules.
Industry Canada Equipment Standard for Digital Equipment (ICES) – Canada
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Innovation, Science and Economic Development (ISED) – Canada
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the
following two conditions:
1.This device may not cause interference.
2.This device must accept any interference, including interference that may cause undesired operation of the device.
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils
radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes:
1.L’appareil ne doit pas produire de brouillage;
2.L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible.
Pour les produits disponibles aux États-Unis / Canada du marché, seul le canal 1 à 11 peuvent être exploités. Sélection d’autres canaux n’est pas possible.
This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
Cet équipement est conforme aux limites d’exposition aux rayonnements ISED établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de
20cm de distance entre la source de rayonnement et votre corps.
Caution: The device for the band 5150-5250 MHz is only for indoor usage to reduce potential for harmful interference to co-channel mobile satellite systems.
Attention: Le dispositif de la bande 5150-5250 MHz est réservé à un usage intérieur afin de réduire l’interférence nuisible potentielle aux systèmes mobiles par satellite co-canal.
This device has been designed to operate with an antenna having a maximum gain of 2 dBi for 2.4GHz and 3dBi for 5GHz. Antenna having a higher gain is strictly prohibited per regulations
of ISED. The required antenna impedance is 50 ohms.
Under ISED regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by ISED. To reduce potential radio
interference to other users, the antenna type and its gain should be so chosen that the equivalent isotopically radiated power (e.i.r.p.) is not more than that necessary for successful
communication.
Ce dispositif a été conçu pour fonctionner avec une antenne ayant un gain maximal de 2dBi pour 2,4 GHz et 3dBi pour 5GHz. Une antenne ayant un gain supérieur sont strictement
interdites par la réglementation d’ISED. L’impédance d’antenne requise est de 50 ohms.
Conformément à la réglementation d’ISED, cet émetteur radio peut fonctionner seulement avec une antenne d’un type et d’un gain maximal (ou inférieur) approuvé pour l’émetteur par ISED.
Dans le but de réduire les risques de brouillage radioélectrique aux autres utilisateurs, il faut choisir le type d’antenne et son gain de sorte que la puissance isotrope rayonnée équivalente
(p.i.r.e.) ne dépasse pas l’intensité nécessaire à l’établissement d’une communication réussie.
This radio transmitter (Contains IC: 26176-Q6391M2) has been approved by ISED to operate with the antenna types listed below with the maximum permissible gain and required antenna
impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with
this device.
Le présent émetteur radio (Contains IC: 26176-Q6391M2) a été approuvé par ISED pour fonctionner avec les types d’antenne énumérés ci-dessous et ayant un gain admissible maximal
et l’impédance requise pour chaque type d’antenne. Les types d’antenne non inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour
l’exploitation de l’émetteur.
This device and it’s antennas(s) must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with IC multi-transmitter product procedures.
Cet appareil et son antenne (s) ne doit pas être co-localisés ou fonctionnement en association avec une autre antenne ou transmetteur.
Note : The EUT has two external antennas.
European Conformity (CE) - EU
This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.
The product transmits within the frequency ranges and less than or equal to the power listed below:
2402-2480MHz less than 20dBm
2412-2472MHz less than 20dBm
5180-5240MHz less than 23dBm
5260-5320MHz less than 23dBm *
5500-5700MHz less than 30dBm *
Note: * Only with DFS bands certification.
This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
Simplied EU Declaration of Conformity
This declaration is only valid for Fortinet products (including combinations of software, firmware and hardware) provided by Fortinet or Fortinet’s authorized partners to the end-customer
directly for use within the EU or countries that have implemented the EU Directives and/or spectrum regulation. Any Fortinet products not obtained directly from Fortinet or Fortinet’s autho-
rized partners may not comply with EU Directives and Fortinet makes no assurances for such products.
Български
Този продукт е в съответствие с Директива 2014/53/ЕС.
Česky
Tento produkt je v souladu se směrnicí 2014/53/EU.
Dansk
Dette produkt er i overensstemmelse med direktiv 2014/53/EU.
Deutsch
Dieses Produkt entspricht der Richtlinie 2014/53/EU.
Eesti
See toode vastab direktiivile 2014/53/EL.
English
This product is in compliance with Directive 2014/53/EU.
Español
Este producto cumple con la Directiva 2014/53/UE.
Ελληνική
Το προϊόν αυτό συμμορφώνεται με την Οδηγία 2014/53/ΕΕ.
Français
Ce produit est conforme à la Directive 2014/53/UE.
Hrvatski
Ovaj proizvod je u skladu s Direktivom 2014/53/EU.
Italiano
Questo prodotto è conforme alla Direttiva 2014/53/EU.
Latviski
Šis produkts atbilst Direktīvai 2014/53/ES.
Lietuvių
Šis gaminys atitinka direktyvą 2014/53/ES.
Malti
Dan il-prodott huwa konformi mad-Direttiva 2014/53/UE.
Magyar
Ez a termék megfelel a 2014/53/EU irányelvnek.
Nederlands
Dit product is in overeenstemming met Richtlijn 2014/53/EU.
Norsk
Dette produktet er i samsvar med direktiv 2014/53/EU.
Polski
Ten produkt jest zgodny z dyrektywą 2014/53/UE.
Português
Este produto está em conformidade com a Diretiva 2014/53/UE.
Rumunski
Acest produs este în conformitate cu Directiva 2014/53/UE.
Slovensky
Tento produkt je v súlade so smernicou 2014/53/EÚ.
Slovensko
Ta izdelek je v skladu z Direktivo 2014/53/EU.
Suomi
Tämä tuote on direktiivin 2014/53/EU mukainen.
Svenska
Denna produkt överensstämmer med direktiv 2014/53/EU.
Note: The full Declaration of Conformity for this product is available in the link below:
https://site.fortinet.com/ProductRegulatory/EU

12 13
Compliance with 2014/53/EU Radio Equipment Directive (RED)
In accordance with Article 10.8(a) and 10.8(b) of the RED, the following table provides information on the frequency bands used and the maximum RF transmit power of the product for sale
in the EU:
UK Conformity Assessed (UKCA) – United Kingdom
The product transmits within the frequency ranges and less than or equal to the power listed below:
2402-2480MHz less than 20dBm
2412-2472MHz less than 20dBm
5180-5240MHz less than 23dBm
5260-5320MHz less than 23dBm *
5500-5700MHz less than 30dBm *
Note: * Only with DFS bands certification.
This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
This product is in compliance with Statutory Instrument 1206 Radio Equipment Regulations 2017
The full Declaration of Conformity for this product is available in the link below:
https://site.fortinet.com/ProductRegulatory/UK

14 15
