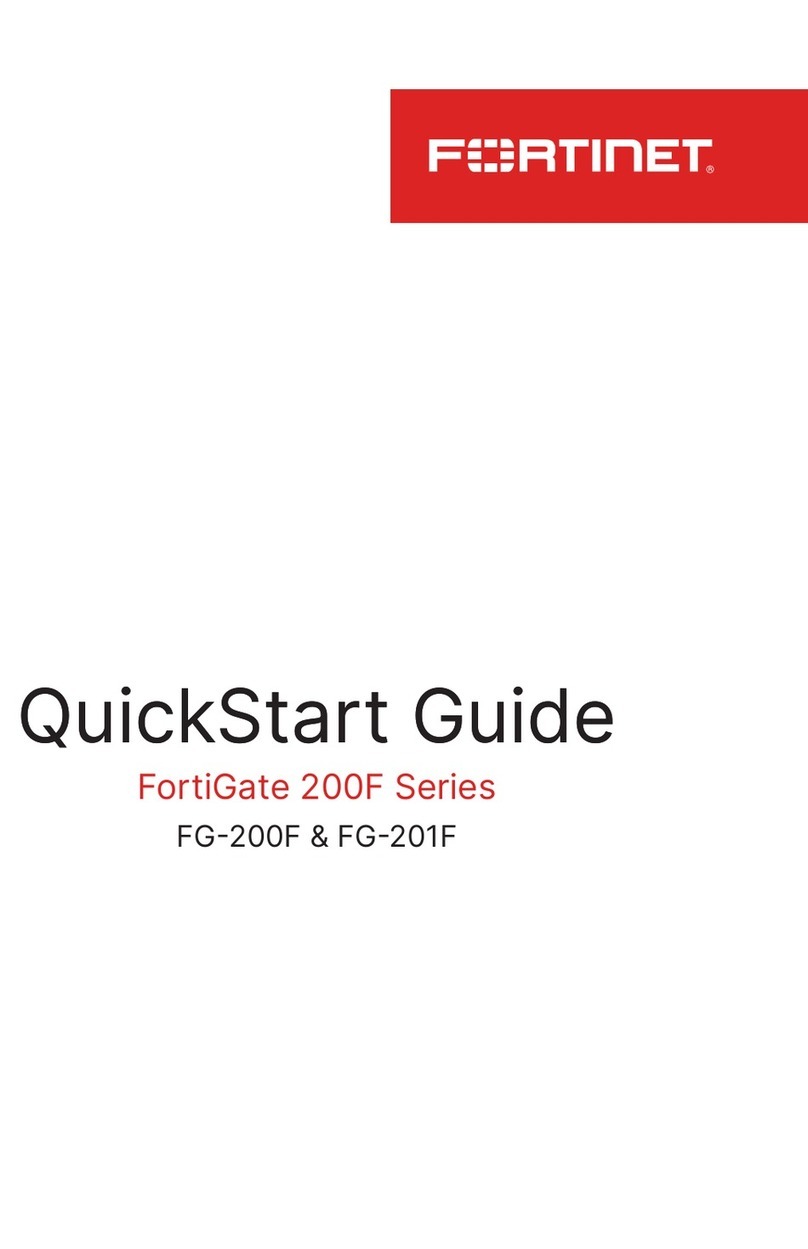

Fortinet FortiGate 200F Series User manual

QuickStart Guide
FortiGate 200F Series
QuickStart Guide

Before you begin
Register your device to access FortiGuard updates, cloud management,
firmware upgrades, technical support and warranty coverage.
http://support.fortinet.com
32
October 8, 2021
Copyright© 2021 Fortinet, Inc. All rights reserved. Fortinet®, FortiGate®, FortiCare® and FortiGuard®, and certain other marks are registered
trademarks of Fortinet, Inc., in the U.S. and other jurisdictions, and other Fortinet names herein may also be registered and/or common law
trademarks of Fortinet. All other product or company names may be trademarks of their respective owners. Performance and other metrics
contained herein were attained in internal lab tests under ideal conditions, and actual performance and other results may vary. Network
variables, different network environments and other conditions may affect performance results. Nothing herein represents any binding
commitment by Fortinet, and Fortinet disclaims all warranties, whether express or implied, except to the extent Fortinet enters a binding
written contract, signed by Fortinet’s General Counsel, with a purchaser that expressly warrants that the identified product will perform
according to certain expressly-identified performance metrics and, in such event, only the specific performance metrics expressly identified
in such binding written contract shall be binding on Fortinet. For absolute clarity, any such warranty will be limited to performance in the same
ideal conditions as in Fortinet’s internal lab tests. In no event does Fortinet make any commitment related to future deliverables, features or
development, and circumstances may change such that any forward-looking statements herein are not accurate. Fortinet disclaims in full
any covenants, representations, and guarantees pursuant hereto, whether express or implied. Fortinet reserves the right to change, modify,
transfer, or otherwise revise this publication without notice, and the most current version of the publication shall be applicable.
For Product License Agreement / EULA and Warranty Terms, visit https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf
This guide covers: FG-200F and FG-201F
This document is prepared in English and French. In case of conflict between them, the English version shall prevail over the French version.
English

Package Contents
5
FortiGate 200F Series
FG-200F and FG-201F
FortiGate Device 1x Ethernet CableQuickStart Guide 2x AC Power Cables
2x Rack mount brackets
1x Console Cable 8x Rack mount screws 4x Rubber feet
4
The Essentials
For a detailed Getting Started guide, setup and configuration information,
refer to the Admin Guide on https://docs.fortinet.com/
For contracts, licensing, product registration and account management,
contact FortiCare Support at https://www.fortinet.com/support/contact
Access our knowledge base, forums, videos and technical experts at
https://www.fortinet.com/support/support-services/forticare-support
Default Logins
https://192.168.1.99
Username: admin
Password: leave blank
Admin Guide
Customer Service
Self-service Resources
Thank you for choosing Fortinet
English

7
Setup Options
Set up your Fortinet device locally or connect using forticloud.com
GUI
Ethernet Cable
Management Computer
MGMT1
https://192.168.1.99
Username: admin
No Password
Note: For static IP configuration, use 192.168.1.1 with subnet mask
255.255.255.0
Console Port
Management Computer
Note: For a detailed CLI guide, visit docs.fortinet.com
USB Console Cable
(available for purchase)
CLI
1
1
2
2
3
3
Speed (default): 9600
Data bits: 8
Stop bits: 1
Parity: None
Flow Control: None
6
FortiGate Cloud Key
1
2
3
Go to forticloud.com and login with your FortiCloud Credentials or Register
Follow the on-screen instructions, then click Add FortiGate
Enter the FortiGate Cloud Key located on the sticker of your device
(Connect a WAN port to the Internet)
English

8 9
Note: Place the device on a flat, clean and stable surface.
Desktop Mount Rack Mount
1.5in
1.5in
1.5in
1.5in
1
2
3
Note: The recommended clearance is 1.5 inches above and below the
device.
Caution: To avoid personal injury or damage to the device, it is
recommended that two or more people mount the device on a rack.
English

10 11
English
Front/Rear - FG 200F Series
1Green: Device is on
Off: Device is off
LOGO
3 USB 3.0 server port
4 CLI command line interface
5 1GE High availability port
AC LINE
100-240V AC
50-60Hz 2-1.2A
AC LINE
100-240V AC
50-60Hz 2-1.2A
10
CAUTION/ATTENTION
SHOCKHAZARD. DISCONNECT ALL POWER SOURCES.
RISQUED’ÉLECTROCUTION.DÉBRANCHEZ TOUTES LES
SOURCESD’ALIMENTATION.
Redundant Power Supplies 100 - 240V AC, 2-1.2A, 50/60Hz
10
2
13 4 5 6 7 8 9
CONSOLEUSB
HA
MGMT
1
2
3
4
5
6
7
8
9
10
11
12
13 X1 X3
X2 X4
14
15
16
17
18
19
20
21
22
23
24
FortiGate 200F
POWER
HA
ALARM
STATUS
2
Green
Red
Off
Red
Amber
Off
STATUS
ALARM
HA
POWER
Green
Flashing Green
Red
Green
Red
Off
FortiGate
 1GE Management port, IP 192.168.1.99
6
7
8
9
10GE network connections
 FortiLink 10Gbps auto-discovery ports
 GE network connections
Bottom Port
 GE network connections
Speed
Act/
Link
Act/
Link
Act/
Link
Act/
Link
Green:Connected
Flashing Green
Off
Green
Flashing Green
Off
Green: Connected at 10G or 1Gbps
Flashing Green
Off: No link established
Green
Flashing Green
Off
Green
Amber
Off
RJ45 Port
SFP & SFP+
Top Port
Act/Link
Speed

Guide de démarrage rapide
Série FortiGate 200F
1312
This page is intentionally left blank
Cette page a été laissée blanche intentionnellement
Français

Avant de commencer
Enregistrez votre appareil pour avoir accès aux mises à jour, à la gestion
infonuagique, aux mises à niveau de micrologiciel, au soutien technique et à
la garantie de FortiGuard.
http://support.fortinet.com
1514
October 8, 2021
Copyright© 2021 Fortinet, Inc. All rights reserved. Fortinet®, FortiGate®, FortiCare® and FortiGuard®, and certain other marks are registered
trademarks of Fortinet, Inc., in the U.S. and other jurisdictions, and other Fortinet names herein may also be registered and/or common law
trademarks of Fortinet. All other product or company names may be trademarks of their respective owners. Performance and other metrics
contained herein were attained in internal lab tests under ideal conditions, and actual performance and other results may vary. Network
variables, different network environments and other conditions may affect performance results. Nothing herein represents any binding
commitment by Fortinet, and Fortinet disclaims all warranties, whether express or implied, except to the extent Fortinet enters a binding
written contract, signed by Fortinet’s General Counsel, with a purchaser that expressly warrants that the identified product will perform
according to certain expressly-identified performance metrics and, in such event, only the specific performance metrics expressly identified
in such binding written contract shall be binding on Fortinet. For absolute clarity, any such warranty will be limited to performance in the same
ideal conditions as in Fortinet’s internal lab tests. In no event does Fortinet make any commitment related to future deliverables, features or
development, and circumstances may change such that any forward-looking statements herein are not accurate. Fortinet disclaims in full
any covenants, representations, and guarantees pursuant hereto, whether express or implied. Fortinet reserves the right to change, modify,
transfer, or otherwise revise this publication without notice, and the most current version of the publication shall be applicable.
Contrat de licence de produit / CLUF et modalités de garantie: https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf
Dans ce guide: FG-200F et FG-201F
Ce document est préparé en versions anglaise et française. En cas de conflit entre eux, la version anglaise prévaudra sur la version française.
Français

Série FortiGate 200F
FG-200F et FG-201F
Contenu de l’emballage
17
Appareil FortiGate 1x câble EthernetGuide de
démarrage rapide
2x Câbles
d’alimentation CA
2x Supports de montage
sur bâti
8x Vis de montage sur
bâti
4x Pieds en
caoutchouc
1x Câble de console
Renseignements de base
Pour obtenir un guide de démarrage détaillé et des renseignements de
configuration, consultez le guide de gestion sur https://docs.fortinet.com/
Pour obtenir de l’aide avec les contrats, les licences, l’enregistrement de
produit et la gestion de compte, communiquez avec le service FortiCare au
https://www.fortinet.com/support/contact
Pour accéder à notre base de connaissances, à nos forums, à nos vidéos et à
nos conseils techniques d’experts, visitez le lien
https://www.fortinet.com/support/support-services/forticare-support
Identifiants par défaut
https://192.168.1.99
Username: admin
Password:(sans mot de pass)
Guide de gestion
Service à la clientèle
Ressources en libre-service
Merci d’avoir choisi Fortinet
16
Français

19
Autres options de configuration
Configurez l’appareil Fortinet localement ou connectez-le avec forticloud.com
GUI
Câble Ethernet
Ordinateur de gestion
MGMT1
https://192.168.1.99
Username: admin
Sans mot de passe
N.B.: Pour la configuration avec adresse IP fixe, utilisez
l’adresse 192.168.1.1 et le masque de sous-réseau 255.255.255.0.
Port de
console Ordinateur de gestion
N.B.: Pour obtenir un guide détaillé pour l’interface de ligne de
commande, rendez-vous sur docs.fortinet.com
Câble de console USB
(vendu séparément)
CLI
1
1
2
2
3
3
Vitesse (par défaut): 9600
Bits de données : 8
Bits d’arrêt: 1
Parité: N
Contrôle du flux: N
18
Français
Clé infonuagique FortiGate
1
2
3
Rendez-vous sur forticloud.com et connectez-vous avec vos identifiants
FortiCloud ou inscrivez-vous
Suivez les instructions à l’écran, puis cliquez sur Add FortiGate
Entrez la clé infonuagique FortiGate inscrite sur l’étiquette de l’appareil
(Connexion à Internet avec un port WAN)
