FOS Technologies ATLAS Tube User manual

ATLAS Tube
Waterproof & battery bar, with wireless control

1
Instruction Manual of
Atlas Tube
1 Introduction
1.1 Security Warning
 When unpacking and before disposing of the carton, check if there is any transportation damage before using
the product. Should there be any damage caused by transportation, consult your dealer and do not use the
apparatus.
 Product should install in a cool place.
 The product is only intended for installation, operation and maintenance by qualified personnel. And read the
user manual and labels on the lighting carefully before use.
 Please do not attempt to dismantle and/or modify the product inner structure.
 Electrical connection must only be carried out by qualified personnel.
 Do not connect this device to any other types of dimmer apparatus.
 There are protection structure and circuit for the battery inside the unit, any inappropriate dismount of the
light or battery might break the protection function and lead to batter getting hot, smoking, deforming or
fire.
 Never short-circuit the unit.

2
 Heating and burning will melt the battery separator, causing loss of protection function or burning of
electrolyte and overheat will cause heating, smoking, deformation or burning of batteries.
 Never use the unit in an environment over 40℃, don’t charge the unit close to fire source or under direct
sun. Don’t throw the unit to water, otherwise, the protection function inside the batter might lose or
abnormal chemical reaction might arise, causing battery to be hot, smoking, deformation or fire.
 Use only the supplied power supply, for charging the fixture.
 Place the unit where kids can't reach.
 If the charging time over the standard charging time for long, it is advised to stop charging. It will extend the
charging time if charging while using, it is advised to turn off the light when charging.
 Not to use the unit in an environment where there is static electricity, the battery protection circuit might
easily malfunction.
 Use the supplied power adapter only, never charging over 24 hours.
 When not using the unit for long term, please save the unit properly in a dry place, battery should be half
charged.
 Please recycle the used unit, never throw to fire or water.
If you have any questions, don't hesitate to consult our dealer or manufacturer.
Important: Before any installation, maintenance and cleaning, please ensure that
the power cut off!
1.2 Main Technical Parameters
Lithium battery
 Charging Voltage: DC12.6V/2A
 Battery Specification: 21700 4.2V/4.5Ah*12 cells (12.6V/18Ah)
 Charge Time: 8~10 hours
 Circulation Life: Not less than 300 times / Run Time Of Battery: Max. 20h
LED
 LED Type: 288pcs ×0.3Watts RGBW 4in1 full-color LED
 Control Pixel: 32 Pixels
 Rated Power: 50W
 Colors: 16.7 million colors (0~100% saturation dimming) / Life: 50000 hours
Control
 Control Protocol: International standard DMX-512 signal

3
 Channel Protocol: 7 kinds of control channel mode. 2CH; 4CH; 6CH; 11CH; 32CH -8 Pixels; 64CH -16 Pixels;
128CH -32 Pixels;
 Control Mode: DMX-512, auto, master-slave, music, infrared remote control, wireless DMX-512 and Mobile
APP WIFI control.
 Wireless Protocol: W-DMX
Wireless DMX Specs
 2.4G Communication Distance: 200M (clearing, it changes vary with different environments)
 WIFI Communication Distance: 30M (clearing, it changes vary with different environments)
 Band: 2.4G ISM, 126 channel frequencies
 Maximum Transmit Power: 20dBm
 Receiver Sensitivity: -94dBm
Optical System
 Dimmer: From 0 -100 linear dimming.
 Flashing Rate: 1 -20Hz / Beam Angle: 180°
Physical
 Dimensions: Ø52 x 1190 mm
 Weight: 1.72kg
Security
 Cooling System: Convection
 Waterproof Rate: IP65
 Temperature Protection: 60℃
 Operating Environment: Indoor / Outdoor
1.3 Product Features
Using the latest LED control technology, this product is designed for stage and event sites and can be used to
create stunning lighting effects. Its main features include：
1) Product built-in lithium battery and the DMX signal wireless module.
2) Product built-in WIFI receiving module, which can be controlled by mobile APP.
3)
4) With music control function.
Wireless DMX with transceiver function.

4
5) Custom color temperature settings.
6) Built-in commonly used film and television shooting effects.
7) With charging protection and current overload protection.
8) Intuitive and convenient battery display function.
9) The static power consumption of the control panel is 0.3W, and its efficiency will reach up to 97% during the
process of high-power output, which realizes the function of eco-friendly operation.
10) Overheating automatic protection function.
11) IR infrared remote-control panel.
12) Touch button and LCD display.
13) Password protected keyboard.
14) 7 kinds of DMX working modes.
15) Built-in 68 kinds of Auto effect.
16) Master-slave control, multi-units for synchronous wireless control.
17) Software system updates & upgrades are available through DMX 512 or wireless DMX.
1.4 Product Packing Information
Following accessories are packed together with the product, please check them carefully upon unpacking.
Spare parts Name QTY Unit Remark
Magic Tube light 1 piece
Charger 1 piece
DMX signal cable IN&OUT 2 pieces
Infrared remote controller 1 piece
Instruction Manual 1 piece
2 Product Installation
2.1 DMX Connection Method
When set the DMX512 address code be CH4 MODE, as below:

5
2.2 2.4G-Wireless Master-Slave Connection Method
As below:

Wireless DMX transmitter should
connected to the DMX-512 controller.

Since CH4 MODE has 4 channels,
address code
with
4 increment increas ing
p rogressively ( e.g., 1 , 5 ,9, 13 ...)

Every DMX address code can be reused as
needed.

DMX address code can be any data

6
 Set the wireless DMX signal of the first light to the sending state (Master), and the wireless DMX
signal of other lights to the receiving state (Slave).
 When the Slave is set to DMX512 control mode, running auto effect or other static colors on the
Master to achieve the wireless master-slave synchronization.
 The DMX address code of the Master and Slave can be any data between 001 and 512 without
affecting master-slave online.
2.3 Mobile APP WIFI Master-Slave Connection Method
As below:

7
 Establish wireless communication between WIFI control of mobile phone and WIFI control of
lights according to 3.5.7.
 Set the wireless DMX signal of the first light to the sending state (Master), and the wireless DMX
signal of other lights to the receiving state (Slave).
 When the Slave is set to DMX512 control mode, running auto effect or other static colors on the
phone APP to achieve the wireless master-slave synchronization.
 The DMX address code of the Master and Slave can be any data between 001 and 512 without
affecting master-slave online.
3 Operation Method

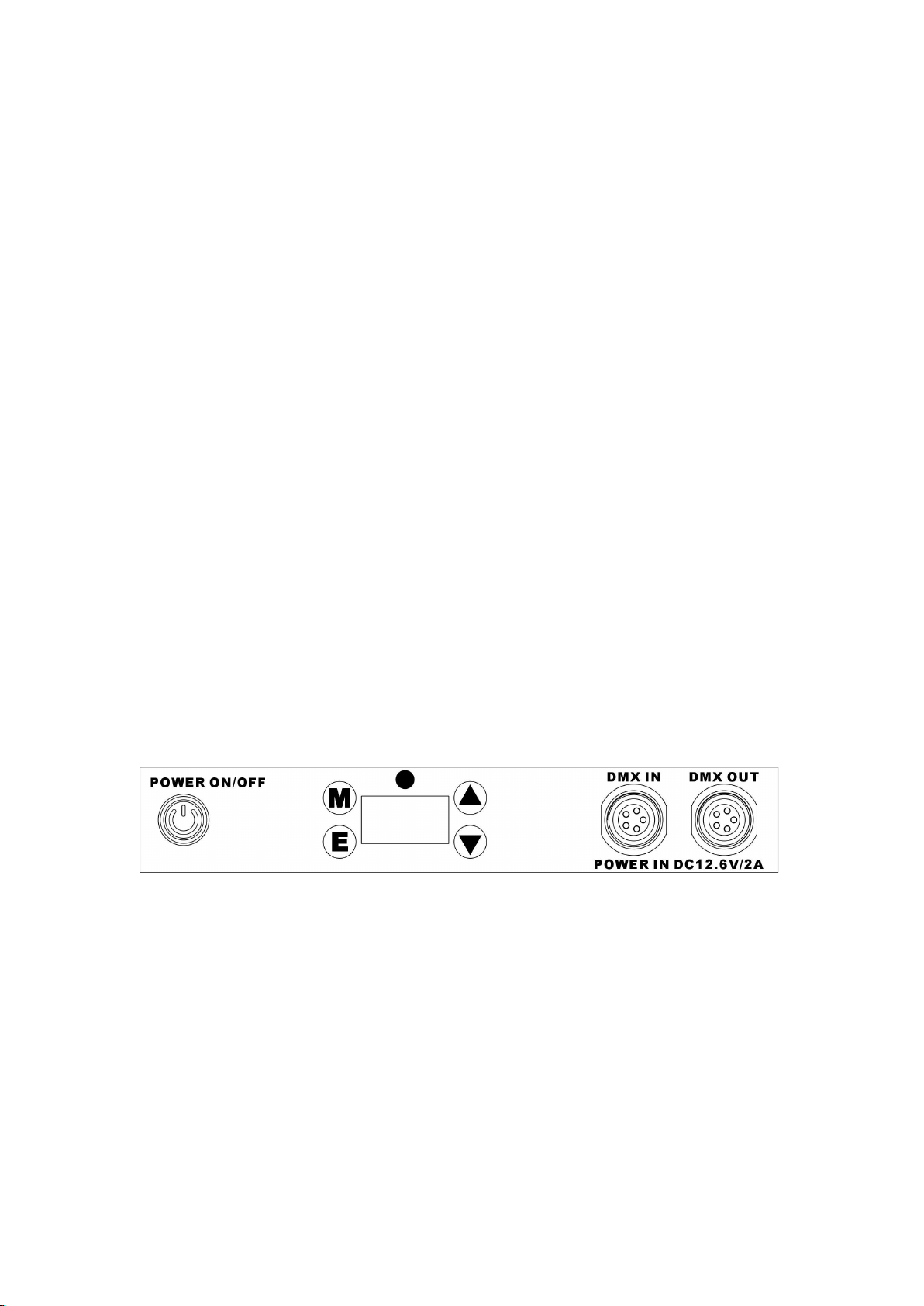

3.1 Back panel function’s introduction
 M: Menu button/return button, enter the menu selection interface or previous menu.
 E: Confirmation button, used to confirm the selected function.
 ▲ / ▼：Upward/downward select function or Parameter increment / decrement.
 POWER IN DC12.6V/2A：Charging port, both available.
 DMX IN / OUT：DMX-512 signal Input / Output.

8
3.2 2.4G Wireless DMX Connection Method
3.2.1 Working mode
2.4G wireless DMX transceiver uses the W-DMX communication protocol which has two working modes：
Transmit mode and Receive mode.
 Find【Set】menu and press【ENTER】 to enter system settings menu.
 Press【UP/DOWN】key to select【Wireless 2.4g】to enter 2.4g wireless
DMX settings menu.
 【 WIRELESS 】 for wireless DMX control ON/OFF. 【CONNECT】means the
paired connection of wireless
DMX module. 【RESET】means reset the data of wireless DMX
control setting,【MODE】has transmitting mode and receiving
mode.
WORKING
MODE ACTION STATUS DESCRIPTION
W-DMX
Receive
White Connection is not established
Red fast flash Connection is lost
Green fast flash Connecting to transmitter
Green slow flash Connected. Without DMX signal
Green Connected. Receiving DMX signal
W-DMX
Transmit
Red Deleting all receivers’ connection
Blue fast flash Connecting with the Receiver(s)
Blue slow flash No DMX signal input
Blue Transmitting DMX signal
Note: The wireless transceiver will remember the chosen protocol even after you disconnect the power supply.
There is no need for repeated setting.

9

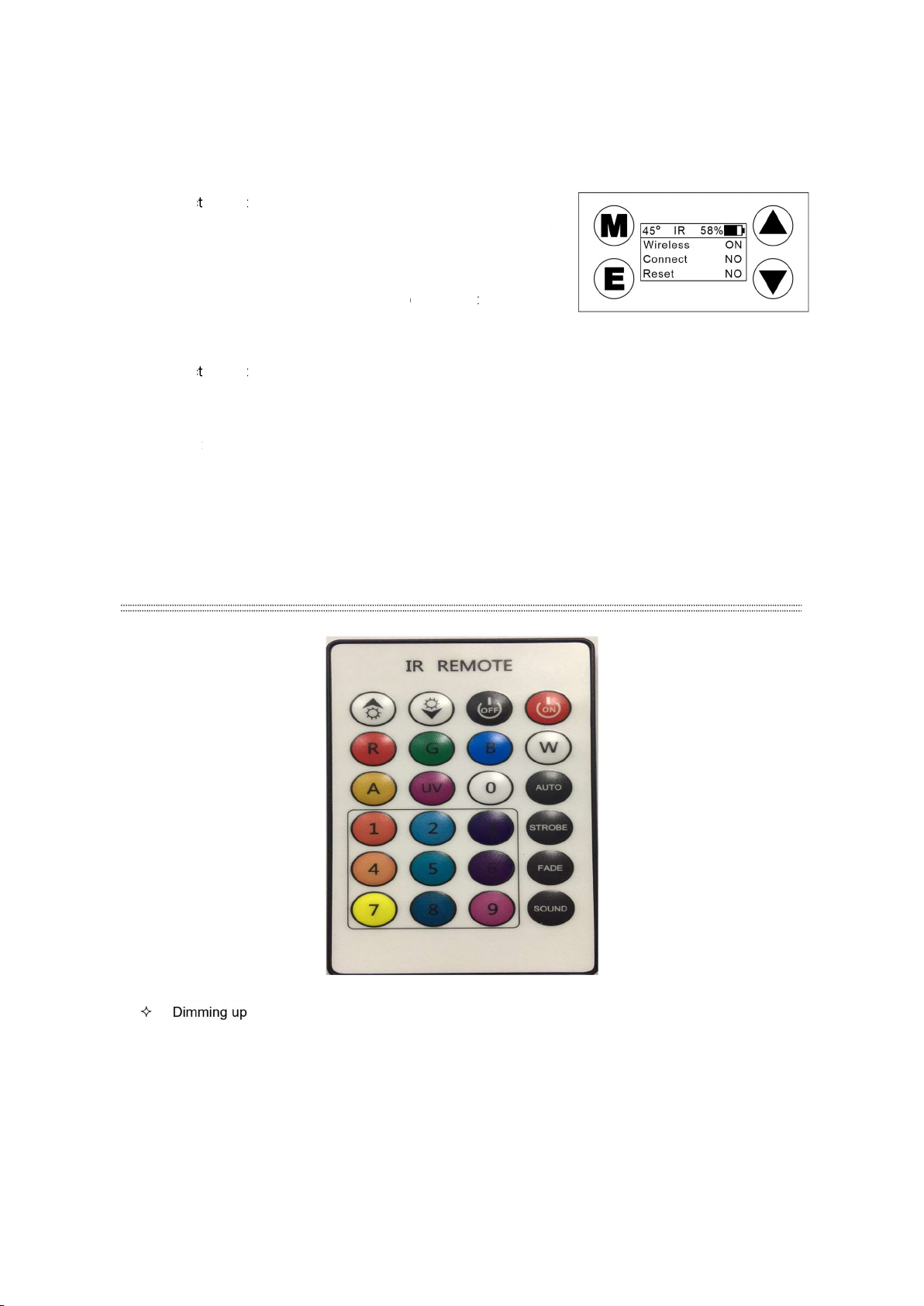

3.3 Infrared Remote Controller Instruction
 Dimming down
 Off: light off
 ON: light on
 R / G / B / W for 4 single color, A / UV (None)
 9 number keys means 9 kinds of static mix color (AC1......AC9)
 The “0” key for is to enter DMX-512 control state
3.2. 2 Working mode

According to step 3.2.1 set the Slave to
【
Receive
】
mode.

Select
【
Reset
】
menu to reset
wireless
connection. At this time,
the indicator light is
white,
indicating that the wireless module
is not connected to transmit module and is ready to receive
the paired signal.

According to step 3.2.1 set the Master to
【
Transmit
】
mode. At
this time, the indicator light is blue slow flash, indicating that
the
wireless
module is not connected to DMX signal.

Select
【
Reset
】
menu to reset
wireless
connection. At this time,
the indicator light is red, indicating that the connected
receiving module is being deleted.

Select
【
CONNECT
】
to transmit wireless paired signal, at this
time the indicator light is blue fast flash.

When the Slave receive the paired signal from Master, the
indicator light is Green fast flash which means the connection
is established .

10
 AUTO key is color change mode, press up and down key to adjust speed
 STROBE key is in color strobe mode (32 types are optional), press up and down key to adjust speed.
 FADE key is for color fading mode, press up and down key to adjust speed.
 SOUND key is for sound control mode, press up and down key to adjust the sound control sensitivity.
Note: The IR remote controller should be pointed at the IR infrared receiver.
3.5 Menu Overview
Main menu Primary menu Sub-menu Function Note
DMX Mode 001--512 DMX address setting and Receive mode DMX console
mode
Show
Auto
Auto Mode：0-68 68 kinds of Auto effect
Auto mode
Speed：1-16 1-16 from slow to fast on speed setting
Color：0-15 Color setting, 0 for automatic color change, a
total of 15 colors
Sound
Sound Mode：1-4 4 sound control modes optional
Sound mode
Sens：1-100 Sound sensitivity setting
Color ：0-15 Color setting, 0 for automatic color change, a
total of 15 colors
Static
Dimmer：000-255 Overall dimming
Static color
mode
Strobe：000-255 Strobe
Red：000-255 Red dimming
Green：000-255 Green dimming
Blue：000-255 Blue dimming
White：000-255 White dimming

11
Color
Red Cyan Blue+W
Built in static
color mode
Green Purple Yellow+W
Blue Warm White Cyan+W
White Red+W Purple+W
Yellow Green+W Full
CCT
2800K，3000K，3200K，3500K，3800K，4000K，4500K，5000K，
5600K，6000K，6500K，7000K，7500K，8000K，8500K，9000K，
9500K，10000K，
Color
temperature
mode
WIFI On the phone, connect WIFI address "Led_XXX" and turn on the
APP【LED LAMP】control WIFI mode
Set
DMX Channel 2CH/4CH/6CH/11CH/32CH/64CH/128CH 7 DMX channel modes
DMX Fail Hold / Blackout Status of light fixture after DMX fail
Display Reverse
OFF / ON Display Reverse OFF / ON
Display On
Time ON / 30S / 60S Display start time
Menu Lock OFF / ON
When Menu Lock is ON, the button will is
locked after 30 seconds without any
operation, and press the UP+DOWN button
for 5 seconds to unlock.
IR Remote OFF / ON Infrared remote control OFF / ON
Wireless 2.4g
Wireless OFF / ON
Wireless DMX OFF / ON
Connect NO / YES
Reset NO / YES
Mode Receive / Transmit
Factory Set 1.Red 0-255 Limit the red brightness value,
factory default value is 220
2.Green 0-255 Limit the green brightness value, factory
default value is 220
3.Blue 0-255 Limit the blue brightness value, factory
default value is 220
4.White 0-255 Limit the white brightness value, factory
default value is 220
5.State Single / Whole Single：only the current color,
Whole：full color working
6. T.Limit 40-100 Set the start temperature of temperature
protection

12
Factory Reset NO / YES YES：Restore factory settings
Info
Name MAGIC
Version V1.0
3.5.1 DMX Address Settings (Dmx512)
 Find【DMX Mode】menu and press【ENTER】to enter DMX address code setting.
 Press【UP/DOWN】button to adjust parameters.
 After setting the DMX address code, press【ENTER】to save the settings.
3.5.2 Auto Effect Settings (Auto)
 Find【Auto】menu and press【ENTER】to enter auto effect setting.
 Press【UP/DOWN】button to select【Auto Mode】,【Speed】or【Color】.
 Press【ENTER】to enter the settings.
 Press【UP/DOWN】button to select auto effect, speed, or color, press【ENTER】to save the settings.
3.5.3 Sound Effect Settings (Sound)
 Find【Sound】menu and press【ENTER】to enter sound effect setting.
 Press【UP/DOWN】button to select【Sound Mode】,【Sens】or【Color】.
 Press【ENTER】to enter the settings.

13
 Press【 UP/DOWN】 button to select sound effect, sound control sensitivity or color effect, press 【ENTER】
to save the settings.
3.5.4 Static Color Settings (Static)
 Find【Static】menu and press【ENTER】to enter static color setting.
 Press【UP/DOWN】button to select【Dimmer】,【Strobe】,【Red】,【Green】,【Blue】or【White】.
 Press【ENTER】to confirm menu and press【UP/DOWN】button to adjust parameters, then press 【ENTER
】to save the settings.
3.5.5 Built-in Static Color Settings (Color)
 Find【Color】menu and press【ENTER】to enter built-in static color setting.
 Press【UP/DOWN】button to select【Red】,【Green】,【Blue】... 15 built-in colors.
 Press【ENTER】to save the settings.
3.5.6 Color Temperature Settings (CCT)
 Find【CCT】menu and press【ENTER】to enter color temperature setting.
 Press【UP/DOWN】button to select【2800K】【3000K】【3200K】... 18 kinds of color temperature effect.
 Press【ENTER】to save the settings. Hold 【ENTER】for more than 3 seconds to enter the screen for
customizing the current color temperature.

14
 Built-in【Red】,【Green】,【Blue】,【White】4 base colors with 0~255 brightness adjustment, can freely
customize the current color temperature according to your needs.
3.5.7 Mobile APP Control Mode Settings (WIFI)
 Find【WIFI】menu and press【ENTER】to turn on WIFI.
 "Led_XXX" displayed on the screen is the WIFI address of the light fixture.
 Scan the above QR code to install 【LED LAMP】APP first on mobile phone.
 On the phone, find WIFI and search WIFI address, and the words beginning with LED appear. For example,
"LED-XXX", click the link.
 Turn on the【LED LAMP】APP installed on the phone and show the link is successful then you can control it.
 Find【Set】menu and press【ENTER】to enter system setting.
 Press【UP/DOWN】button to select corresponding function setting.
 After setting, press【ENTER】to save the settings.

15
3.5.9 Factory Settings (Factory Set)
 Find【Factory】menu and press【ENTER】to enter factory setting.
 Press【UP/DOWN】button to select corresponding function setting.
 After setting, press【ENTER】to save the settings.
Note: This the factory default setting, do not change it if unnecessary.
3.5.10 Menu Lock Function (Menu Lock)
 Press【ENTER】button to enter select 【ON】.
 When the menu locked, at the same time long press button▼▲ , the display appears a small lock icon and
have a number count down to “0”, it will unlock successfully.
Note: In the process of charging, the display screen will have a charging display. If the lamp needs to work while
charging, long press【MENU】button to enter for operate menu.

16
4 Control Channel
4.1 DMX Channel Table
4.1.1----2CH 2CH Mode:
Channel DMX Data Control function Detail description
1 0
255 Overall dimmer Linear dimming from 0~100%
2
0 10 NO FUNCTION
CCT
11 24 2800K
25 38 3000K
39 52 3200K
53 66 3500K
67 80 3800K
81 94 4000K
95 108 4500K
109 122 5000K
123 136 5600K
137 150 6000K
151 164 6500K
165 178 7000K
179 192 7500K
193 206 8000K
207 220 8500K
221 234 9000K
235 248 9500K
249 255 10000K
4.1.2----4CH 4CH Mode:
Channel DMX Data Control function Detail description
1 0 255 Red dimmer Linear dimming from 0~100%
2 0 255 Green dimmer Linear dimming from 0~100%
3 0 255 Blue dimmer Linear dimming from 0~100%
4 0 255 White dimmer Linear dimming from 0~100%
4.1.3----6CH 6CH Mode:
Channel DMX Data Control function Detail description

17
1 0 255 Overall dimmer Linear dimming from 0~100%
2 0 10 Strobe
NO FUNCTION
11 255 From slow to fast(1HZ-20HZ)
3 0 255 Red dimmer Linear dimming from 0~100%
4 0 255 Green dimmer Linear dimming from 0~100%
5 0 255 Blue dimmer Linear dimming from 0~100%
6 0 255 White dimmer Linear dimming from 0~100%
4.1.4----11CH 11CH Mode:
Channel DMX Data Control function Detail description
1 0 255 Overall dimmer Linear dimming from 0~100%
2 0
10 Strobe
NO FUNCTION
11 255 From slow to fast(1HZ-20HZ)
3
0 10
Static macro
NO FUNCTION
11 255 17 values for each color
4
0 10
Macro background color
NO FUNCTION
11 255 17 values for each color
5 0 255 Macro background color brightness Linear dimming from 0~100%
6
0 10
Macro
NO FUNCTION
11 200 3 values for each m acro effect
201 215 Sound control mode 1
216 230 Sound control mode 2
231 245 Sound control mode 3
246 255 Sound control mode 4
7 0 255 Macro speed From slow to fast
8 0 255 Red dimmer Linear dimming from 0~100%
9 0 255 Green dimmer Linear dimming from 0~100%
10 0 255 Blue dimmer Linear dimming from 0~100%
11 0 255 White dimmer Linear dimming from 0~100%
4.1.5----32CH 32CH Mode:
Channel DMX Data Control function Detail description
1 0 255 Red 1 dimmer Linear dimming from 0~100%
2 0 255 Green 1 dimmer Linear dimming from 0~100%
3 0 255 Blue 1 dimmer Linear dimming from 0~100%
4 0 255 White 1 dimmer Linear dimming from 0~100%

18
… … …… …
29 0 255 Red 8 dimmer Linear dimming from 0~100%
30 0 255 Green 8 dimmer Linear dimming from 0~100%
31 0 255 Blue 8 dimmer Linear dimming from 0~100%
32 0 255 White 8 dimmer Linear dimming from 0~100%
4.1.6----64CH 64CH Mode:
Channel DMX Data Control function Detail description
1 0 255 Red 1 dimmer Linear dimming from 0~100%
2 0 255 Green 1 dimmer Linear dimming from 0~100%
3 0 255 Blue 1 dimmer Linear dimming from 0~100%
4 0 255 White 1 dimmer Linear dimming from 0~100%
… … …… …
61 0 255 Red 16 dimmer Linear dimming from 0~100%
62 0 255 Green16 dimmer Linear dimming from 0~100%
63 0 255 Blue 16 dimmer Linear dimming from 0~100%
64 0 255 White 16 dimmer Linear dimming from 0~100%
4.1.7----128CH 128CH Mode:
Channel DMX Data Control function Detail description
1 0 255 Red 1 dimmer Linear dimming from 0~100%
2 0 255 Green 1 dimmer Linear dimming from 0~100%
3 0 255 Blue 1 dimmer Linear dimming from 0~100%
4 0 255 White 1 dimmer Linear dimming from 0~100%
… … …… …
125 0 255 Red 32 dimmer Linear dimming from 0~100%
126 0 255 Green 32 dimmer Linear dimming from 0~100%
127 0 255 Blue 32 dimmer Linear dimming from 0~100%
128 0 255 White 32 dimmer Linear dimming from 0~100%

19
5 Maintenance
5.1 Product Maintenance
To prolong the life of the product, it is very important to do maintenance work. The environment is hash outdoors,
or if the product is idle for a long time, damp, smoke or particularly dirty surroundings can cause greater
accumulation of dirt on its LED lens cover, fan vents and housing. So, it should be cleaned to maintain an optimum
light output and at the same time to prevent it from corrupted by acid gas.
Cleaning frequency depends on the environment in which the fixture operates. Soft cloth and typical glass cleaning
products should be used for cleaning. It is recommended to clean product at least one every 20 days.
Friendly notice: Please do not use any organic solvent, e.g., alcohol to clean housing
of the apparatus, it will cause damage.
5.2 Trouble Shooting
Problems Action
The product doesn't switch
on
The battery is dead. Charging it.
Power supply is damaged or abnormal. Call a qualified personnel to fix it.
Control section is damaged. Call a qualified personnel to fix it.
Connection of internal circuitry is not correct. Call a qualified personnel to fix it.
The product can turn on,but
LEDs do not emit light and
are out of control
DMX address is wrongly setting up. Resetting it according to instruction book.
DMX Signal wrongly connected. Connect it correctly according to instruction book.
Control section is damaged. Call a qualified personnel to fix it.
