FOS Technologies L005613 User manual

L005613 FOS TV BICOLOR PANEL USER MANUAL L005613 FOS TV BICOLOR PANEL USER MANUAL
FOS TV BICOLOR PANEL
L005613
CE RoHS
User Manual
Please read this user manual before using this product！
Keep it for further reference!

L005613 FOS TV BICOLOR PANEL USER MANUAL L005613 FOS TV BICOLOR PANEL USER MANUAL
Unqualified person involved with installation, operation and maintenance of this
device is prohibited
If any above mentioned problem happened, or unknown problem happened, please
contact manufacturer or distributor for assistance.
Innovation, Quality, Performance, Achieving Users’Value!
12

L005613 FOS TV BICOLOR PANEL USER MANUAL L005613 FOS TV BICOLOR PANEL USER MANUAL
·LED lifespan: 50,000hours
·Dimmer: 0~100%, 0-15% smoothly dimmer
·Beam angle: 120degree
·Color rendering index: Ra≥92
·Color temperature: 3200K-5600K
·Control mode: DMX-512
·DMX channel: 4CH/5CH
·Focus: manual focus adjustable
·Light visor: optional
·IP rating: IP20
·Housing material: aluminum alloy
·Working temperature: -25~40centigrad degree
ⅨAPPENDIX
Problem and solution
Problem
Reason
Resolution
Device not work
No power
AC100-240V, 50/60Hz
Check the power connection, and
make sure device connect the mains
in well condition.
Check if the fuse is good.
LED Bulb is off
LED bulb damaged
Replacing LED bulb
LED drive board damaged
Replacing LED drive board
Temperature switch damaged
Replacing temperature switch
Fans not work
Fans damaged
Replacing fans
Caution
INDEX
ⅠPRODUCT MAIN FEATURES ......................................... 01
ⅡOVERVIEW AND DIMENSIONS.....................................02
ⅢSAFETY INFORMATION ................................................02
ⅣPOWER CONNECTION ..................................................03
ⅤCONTROL PANNEL .......................................................06
ⅥDMX PROTOCOL ...........................................................09
ⅦCOMMON INSTRUCTION .............................................. 10
ⅧTECHNICAL SPECIFICATION........................................ 10
ⅨAPPENDIX .....................................................................11
11

L005613 FOS TV BICOLOR PANEL USER MANUAL L005613 FOS TV BICOLOR PANEL USER MANUAL
Thank you for using our product! Please read this manual carefully and completely. For
technical reference in future, please keep this user manual well. This user manual contains
all installation and operation information of this LED Soft Video Panel Light, it’s very useful
for user to install and operate the light. Please strictly abide by the relevant instruction for
the installation and operation.
This light has very beautiful appearance. Based on the LED Film and Television Flat Light
Technology, using high brightness SMD LED chips beads matrix arrangement of large area,
through the whole aluminum shell to realize heat dissipation naturally, we have designed
this light. This light has high brightness, good head dissipation, ultra-quiet and other
features. It can satisfy the requirement of indoor movie filming for the lighting layout. It is
a good substitute of the traditional Fresnel spot light, which is very suitable for the studio
room, TV station, Meeting room, stage, show and other entertainment places.
This light meets the following criteria:
GB7000.1-2007/IEC60598-1:2003
GB7000.217-2008/IEC60598-2-17:1984+A2:1990
ⅠPRODUCT MAIN FEATURES
The light’s lighting function is controlled by DMX-512, very convenient;
Using international standard (1990) DMX single, digital control panel display;
With 4/5 DMX channel control modes;
Dimmer range: 0~100%, 0~15% dimmer smoothly;
CRI more than 92, 3200-5600K color temperature optional, light effective distance is 3~15
meters;
Cast aluminum radiator, equips copper tube radiator, no need fan cooling, realize the silent,
CH2
Fixed Color-Tem.
000←→099
100←→149
150←→199
200←→255
Close
3200K
4500K
5600K
CH3
Color 1
000←→255
0-100% linear dimmer
CH4
Color 2
000←→255
0-100% linear dimmer
CH5
Strobe
000←→255
Strobe from slow to fast
ⅦCOMMON INSTRUCTION
The light uses international 3 pins DMX signal cannon for DMX in and DMX out;
The light uses digital display to show the parameter. If there is no DMX in, the display will
shows the information which you can check from the menu map.
In fact, the light has 2 DMX channels modes, please refer the DMX channel chart.
This light uses intelligent full aluminium shell for the heat dissipation, through the electronic
temperature detection ensure the stability of the circuit at any time;
This light is only for indoor use, when you install it by hanging, please use the safety cable
to ensure the safety.
If you have any questions, please contact with our sales manager.
ⅧTECHNICAL SPECIFICATION
·Input power: AC100~240V, 50/60Hz
·Power consumption: 200W
·Light sources: 1200pcs 0.2W SMD LED Lamps
01
10

L005613 FOS TV BICOLOR PANEL USER MANUAL L005613 FOS TV BICOLOR PANEL USER MANUAL
3. Press UP/DOWN to choose Alone scene menu, then press to save;
4. Press UP/DOWN to choose Set auto mode Color Temperature menu, then press
ENTER into the option of color temperature;
5. Press UP/DOWN to choose Set auto mode Dimmer menu, then press ENTER into the
adjust function of the LED;
6. Press UP/DOWN to adjust the brightness (=000 light off, =255 Max brightness), after
the setting, press ENTER to save;
7. Press twice MENU/SET button to back the title mode(the second line will shows Master
Auto), the setting is ok.
*The sound active mode based on the light has the sound active mode or not, this is
a option function. Please contact sales manager when you need it.
ⅥDMX PROTOCOL
4CH MODE
CH
Name
Value
Function
CH1
General dimmer
000←→255
0-100% linear dimmer
CH2
Fixed Color-Tem.
000←→099
100←→149
150←→199
200←→255
Close
3200K
4500K
5600K
CH3
Color 1
000←→255
0-100% linear dimmer
CH4
Color 2
000←→255
0-100% linear dimmer
5CH MODE
CH
Name
Value
Function
CH1
General dimmer
000←→255
0-100% linear dimmer
intelligent temperature control system, improve the quality of our products stable
performance, apply to indoor installation.
Using brand LED chips, integrated encapsulation, improve reliability and long lifespan.
Using the advanced optical reflective material, make the light on the projection distance
and brightness is higher than traditional film soft light.

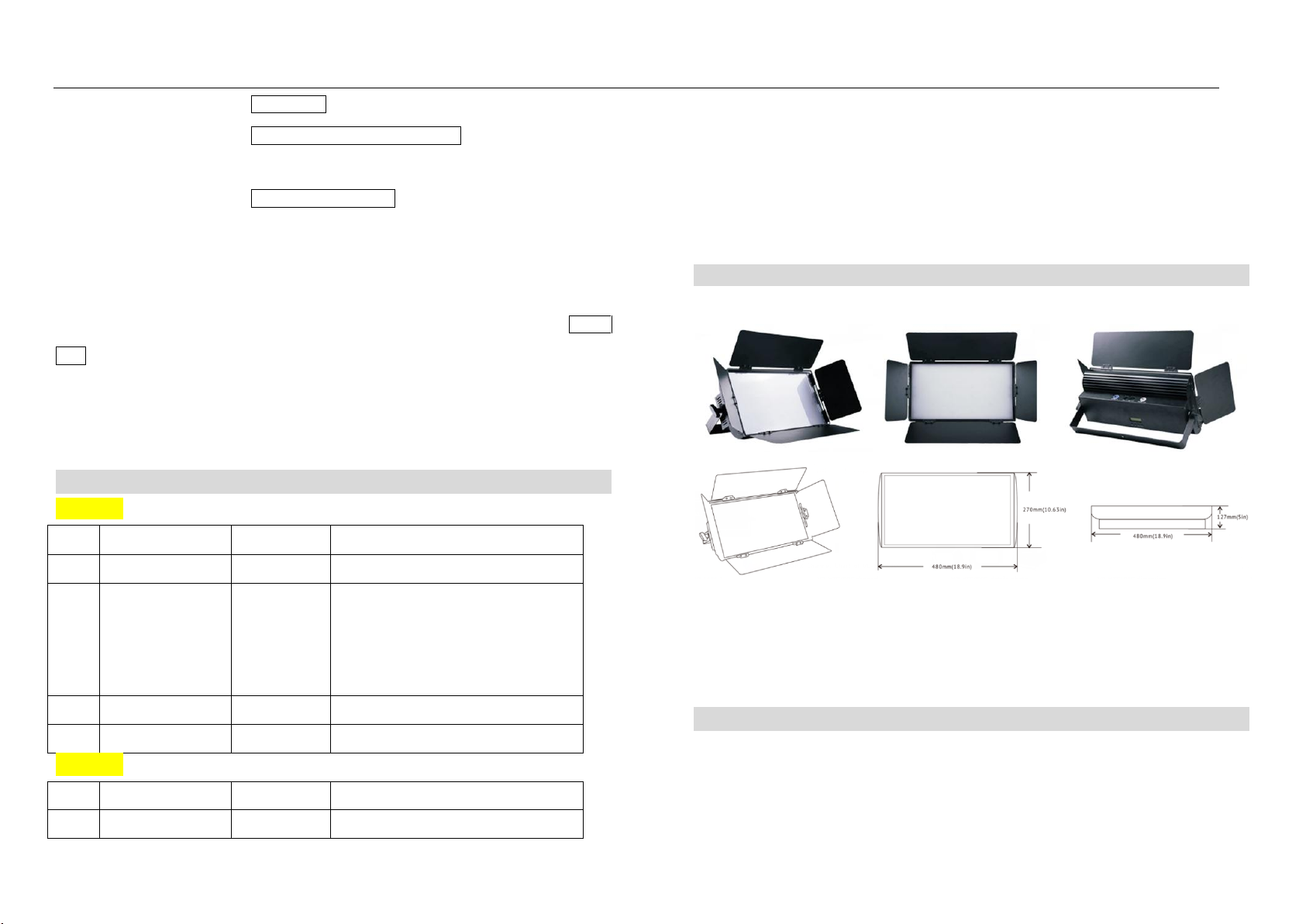

ⅡOVERVIEW AND DIMENSIONS
All dimensions are in millimeters
ⅢSAFETY INFORMATION
※Important
Every person involved with the installation, operation and maintenance of this device has to
be qualified and follow the instructions of this manual. Manufacturer will not with
responsibility for those operations which are not according to this Instruction.
02
09

L005613 FOS TV BICOLOR PANEL USER MANUAL L005613 FOS TV BICOLOR PANEL USER MANUAL
Verify that the voltage matches the rated voltage.
When the voltage is 110V, Do not connect more than 10 lightings in total to AC mains
power in one interconnected daisy chain
When the voltage is 220V, Do not connect more than 20 lightings in total to AC mains
power in one interconnected daisy chain
Before using the fixture, check that all power distribution equipment and cables are in
perfect condition and rated for the current requirements of all connected devices.
Always ground (earth) the fixture electrically.
Avoiding hit the Light when you are move or install the light.
The minimum distance between light-output and the illuminated surface must be more
than 0.5 meters. Keep all combustible materials (for example fabric, wood, paper) at least
0.2 meters away from the fixture.
Do not expose the fixture to rain or moisture.
Avoid looking directly into the light source (especially those who suffer from epileptic fits)
Maximum ambient temperature (Ta) is 40°C. Do not operate fixture at temperatures higher
than this.
The Maximum surface temperature is 50°C
When suspending the fixture above ground level, verify that the structure can hold at least
10 times the weight of all installed devices.
Verify that all external covers and rigging hardware are securely fastened and use an
approved means of secondary attachment such as a safety cable.
ⅣPOWER CONNECTION

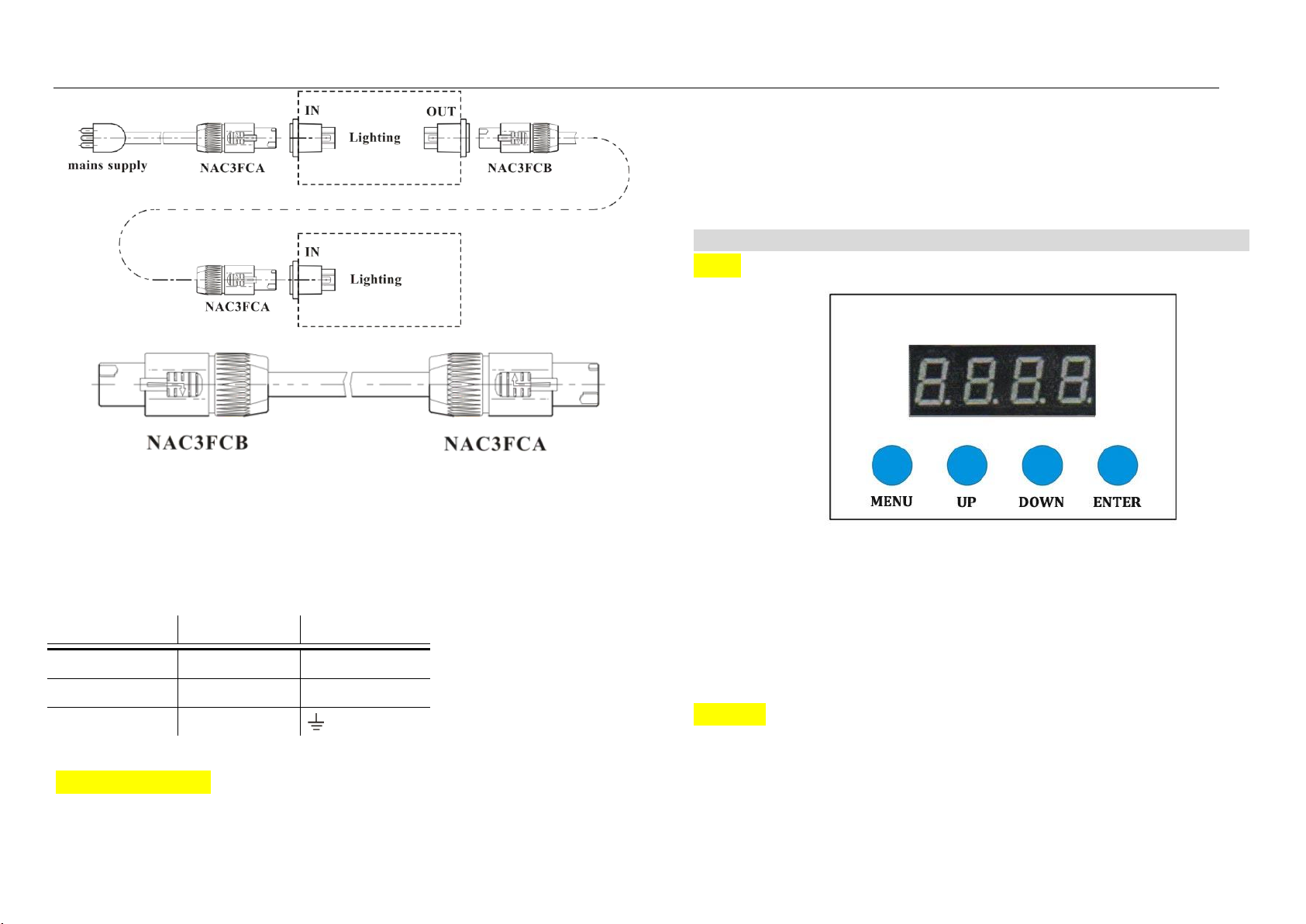

INSTALLING A NENUTRIK CONNECTOR ON A POWER CABLE
to save.
Mode
Working mode option
Mode
= 04 Channel DMX
Mode
= 05 Channel DMX
Mode
= Alone scene ↓
Set auto mode
Dimmer 1
Dimmer,
dimmer=0-255
= 000
Set auto mode
Dimmer 2
Color Temperature=
3200K
4200K
5600K
= 000
Set alone scene
Strobe
Strobe,
Strobe=0-255
= 000
Press UP,
DOWN button
to choose the
menu you
need, then
press ENTER
to save.
SETTING DMX 512 MODE
1. Press ENTER when the display show the title information;
2. Press UP/DOWN to choose the Mode menu, then press ENTER into;
3. Press UP/DOWN to choose 01 Channel DMX or 01 Chanel DMX menu, then press
ENTER to save;
4. Press MENU/SET back the title mode(the second line will shows 01CH or 01CH
Address=001), the setting is ok.
SETTING POWER ON,LIGHT ON
1. Press ENTER when the display show the title information;
2. Press UP/DOWN to choose the Mode menu, then press ENTER into;
03
08

L005613 FOS TV BICOLOR PANEL USER MANUAL L005613 FOS TV BICOLOR PANEL USER MANUAL
5. Press ENTER to save the setting;
6. Press MENU/SET button to back.
MENU MAP
LCD SHOW
Function Instruction
Operation of
Buttons
Supplementary
Instruction
T=xxxC
◆The temperature of LED
bulb radiator in real time
(Celsius)
◆If there is no this
temperature shows, means
the temperature sensor
failure
◆If the value over 80,
please check the wind path
is normal or not
No Signal
Couldn't receive the DMX
512 signal
RX DMX
Received the DMX 512
signal
RX Slave
Slave mode
You only need
set a master
light, the slave
light will be
identified
automatically
You need pull off the
DMX signal from
console under
master/salve mode
Address
Address setting
Press UP,
DOWN button
to set the
address you
need, then
press ENTER

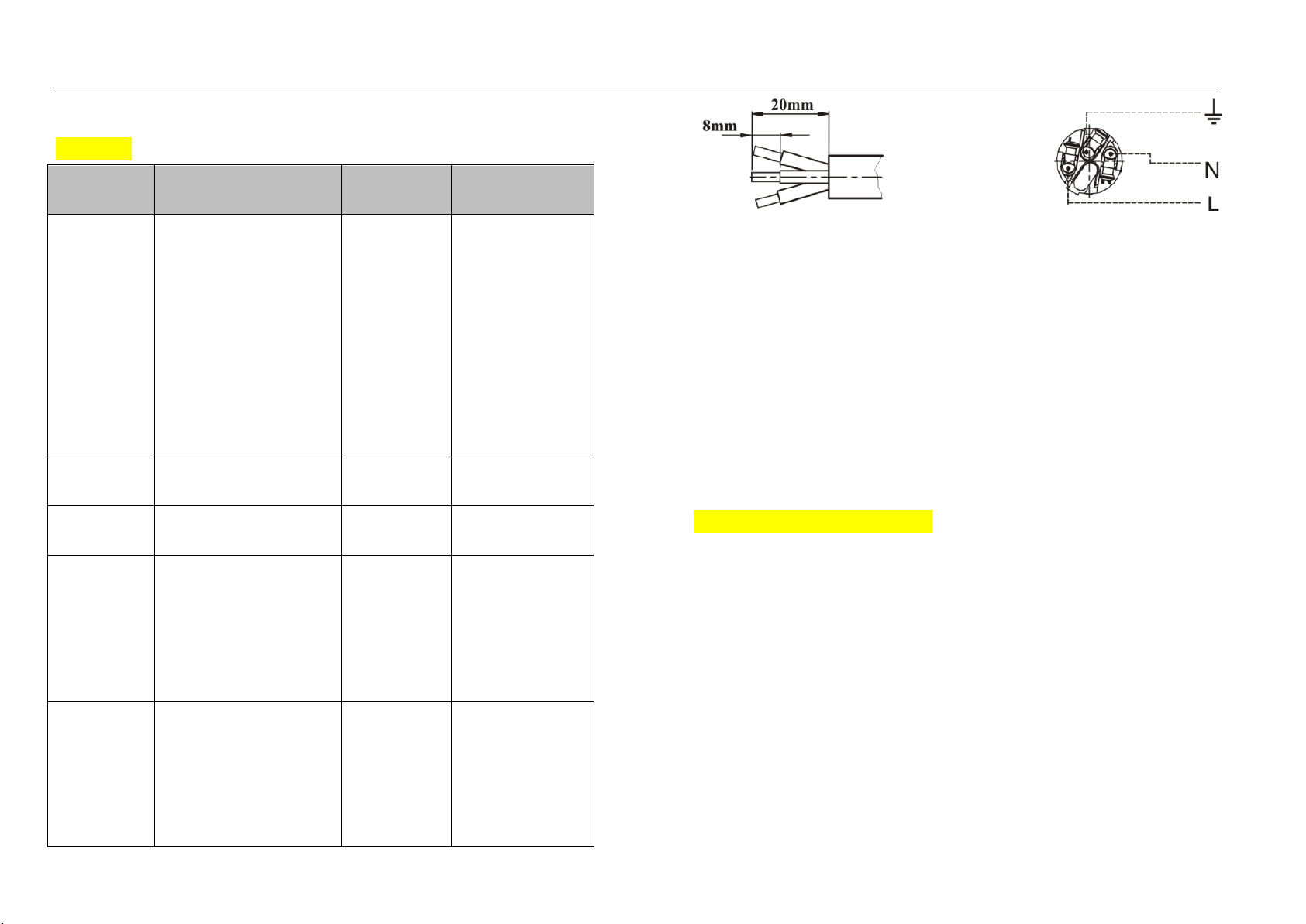

Put bushing and chuck onto the cable.
Prepare cable as shown above. The power cable must is a three-conductor 2.5mm2 cable.
Insert the wire into the terminals and fasten the clamping device by a flat screw driver.
Push insert and chuck into housing (pay attention to the guiding keyway).
Fasten bushing.
The color-coding schemes and some possible pin identification schemes; if pins are not
clearly identified, or if you have any doubts about proper installation, consult a qualified
electrician.
RELAYING POWER TO OTHER DEVICES
The lightings can be linked in a chain by power cables which installed a blue and a
light-gray connectors on the two ends. The light-gray connector connects to the power out
socket of the first lighting, and the blue connector connects to the power in socket of the
subsequent lighting, and so on.
05
04
07

L005613 FOS TV BICOLOR PANEL USER MANUAL L005613 FOS TV BICOLOR PANEL USER MANUAL
The power cable must is a three-conductor 2.5mm2 cable.
When the voltage is 110V, Do not connect more than 10 lightings in total to AC mains
power in one interconnected daisy chain.
When the voltage is 220V, Do not connect more than 20 lightings in total to AC mains
power in one interconnected daisy chain.
PHYSICAL INSTALLATION
This lighting can be placed on a horizontal surface such as a stage or clamped to a truss or
similar rigging structure in any orientation using a rigging clamp.
When suspending the fixture above ground level, verify that the structure can hold at least
10 times the weight of all installed devices.
Verify that all external covers and rigging hardware are securely fastened and use an
approved means of secondary attachment such as a safety cable.
ⅤCONTROL PANNEL
BUTTON
SET
UP
DOWN
ENTER
Call the main menu, or escape the current menu, (i.e. return to the
upper menu and give up the selected item or parameter).
Browse the menu item forward or increase the parameter.
Browse the menu item backward or decrease the parameter.
Confirm the selected item or parameter, (i.e. enter into the next menu,
or escape the current menu and save the selected item or parameter).
MAIN MENU
The way into the menu as below:
1. Press ENTER when the display show the title information;
2. Press UP or DOWN button to choose the right menu which you need;
3. Press ENTER into the menu;
4. Press UP and DOWN button to set the parameter or setting;
Wire color
Conductor
Symbol
Brown
Live
L
Blue
Neutral
N
Yellow/green
ground
07
06
05
