ACME Xperior XP-380 BEAM IP F User manual

XP-380 BEAM IP F

CONTENTS
1. Safety Instructions ................................................................................. 2
2. Technical Specifications ......................................................................... 3
3. Description............................................................................................. 5
3.1 Control Panel ................................................................................ 5
4. Gobo/Color and Lamp............................................................................ 6
4.1 Gobos/Color.................................................................................. 6
4.2 Light Source.................................................................................. 6
5. How To Set The Unit............................................................................... 7
5.1 Main Function................................................................................ 7

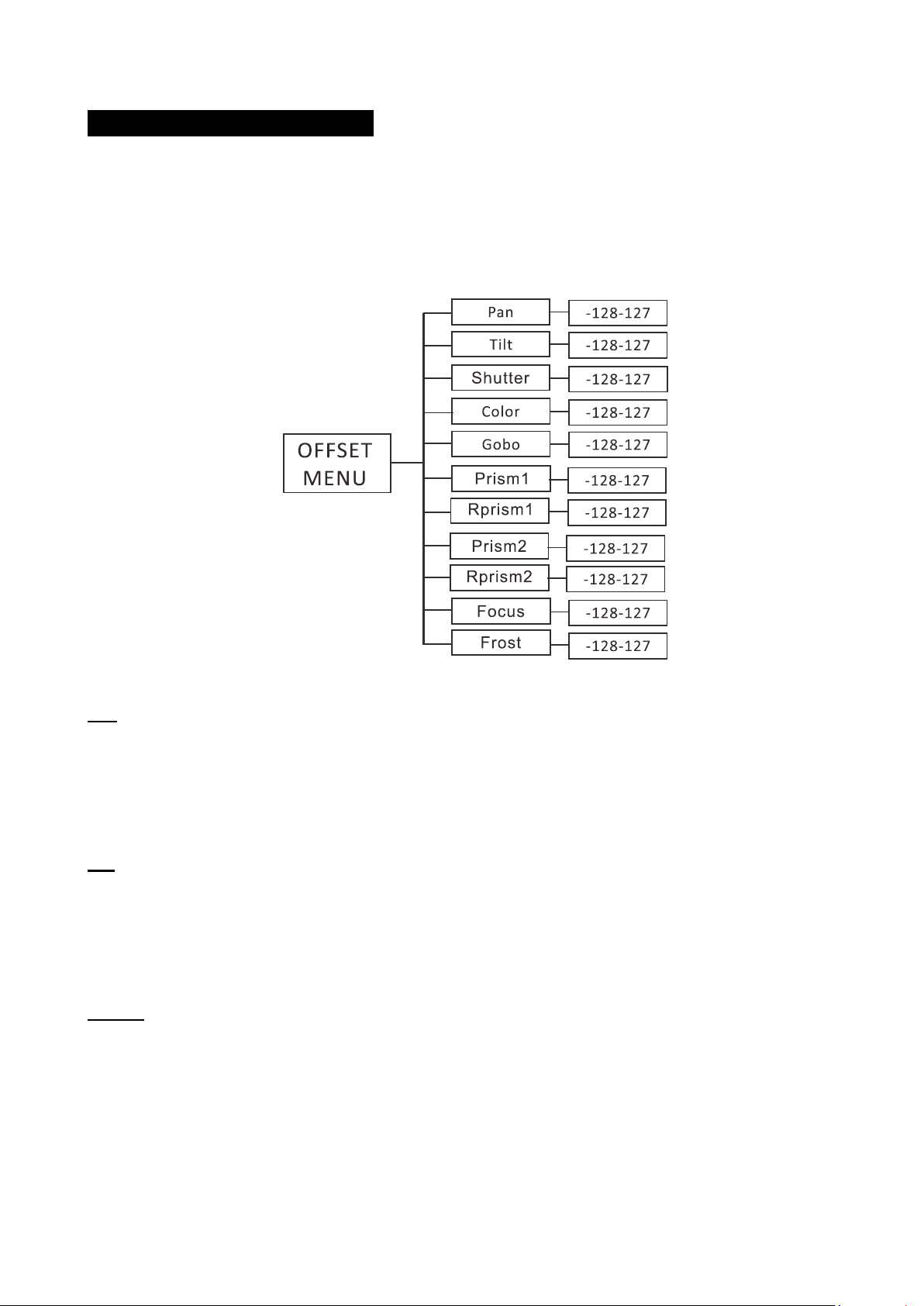

5.2 Home Position Adjustment........................................................ 14
5.3 Error Information......................................................................... 16
6. Control By Universal DMX Controller ................................................... 17
6.1 Connection .................................................................................. 17
6.2 Address Setting........................................................................... 18
6.3 DMX 512 Configuration ............................................................. 18
7. Troubleshooting ................................................................................... 23
8. Maintenance and Cleaning .................................................................. 25
1A

1. Safety Instructions
WARNING
Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that
they also receive this instruction manual.
Important:
Damages caused by the disregard of this user manual are not subject to warranty. The dealer
will not accept liability for any resulting defects or problems.
Unpack and check carefully that there is no transportation damage before using the unit.
The unit is for indoor use only. Use only in a dry location.
DO install and operate by qualified operator.
DO NOT allow children to operate the fixture.
Use safety chain when fixing the unit. Handle the unit by carrying its base instead of head only.
The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent
surfaces.
Be sure that no ventilation slots are blocked, otherwise the unit will be overheated.
Before operating, ensure that the voltage and frequency of power supply match the power
requirements of the unit.
It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
Maximum ambient temperature TA: 40℃，Minimum ambient temperature TA: 0℃.
DO NOT connect the device to any dimmer pack.
During initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective, and it will decrease gradually within 15 minutes.
Make sure there are no flammable materials close to the unit while operating to avoid fire hazard.
Examine the power wires carefully; replace them immediately if there is any damage.
Unit’s surface temperature may reach up to 89℃. DO NOT touch the housing bare-handed during
its operation, and allow about 15 minutes for cooling the unit down before replacing bulb or
maintenance as it could be very hot.
Avoid any inflammable liquids, water or metal objects entering the unit. Once it happens, cut off
Please read the instruction carefully which includes important information about
the installation, usage and maintenance.
2A

the mains power immediately.
DO NOT operate in dirty or dusty environment, do clean fixtures regularly.
DO NOT touch any wire during operation as there might be a hazard of electric shock.
Avoid power wires together twist other cables.
The minimum distance between light output and the illuminated surface must be more than 12
meters.
Disconnect mains power before fuse/lamp replacement or servicing.
Replace fuse/lamp only with the same type.
In the event of serious operating problem, stop using the unit immediately.
Never turn on and off the unit time after time.
The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.
DO NOT open the unit as there are no user serviceable parts inside.
Never try to repair the unit by yourself. Repairs carried out by unskilled people can lead to damage
or malfunction. Please contact the nearest authorized technical assistance center if needed.
Disconnect the mains power if the fixture is has not been used for a long time.
DO use the original packing materials before transporting it again.
Cautions:
To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture.
Hot lamp explosion hazard. DO NOT open the unit within 15 minutes after switching off.
DO replace the bulb once it is damaged, deformed or life-expired.
DO NOT look directly at the light while the bulb is on.
Never touch bulb with bare fingers, as it is very hot after using.
DO NOT start on the unit without bulb enclosure or when housing is damaged.
2. Technical Specifications
Power supply：
AC 100~240V ,50/60Hz
Power Consumption：
535W
Display
：
3A

OLED
Protection Rating
：
IP65
Color Temperature
：
7800K
Beam Angle
：
3°
Light Source
OSRAM SIRIUS HRI®370W LL
Optical system
High efficiency optical system, delivering extremely powerful output
High quality dichroic lenses
Movement
Pan: 540°
Tilt: 270°
Pan/Tilt moving speed adjustable.
Automatic Pan/Tilt correction.
Easy calibration and maintenance by magnetic home positioning.
Pan/Tilt position lock for transporting protection.
Dimmer/Shutter
Blackout, 0~100% smooth dimming, independent shutter and various strobe effect.
Color wheel
Color wheel: 12 fixed colors plus open with rainbow effect
Gobo wheel
Gobo Wheel : 1 Rotating gobo wheel with 12 gobos plus open
Prism
8 facet prism+24 facet prism, both of them can rotate in both directions and overlay
Protocols
DMX 512
Date input/output: 3 Pin XLR socket
4A

Dimension/Weight
402× 330×628mm，30Kg
15.8"x12.9"x24.7"in, 66.1lbs
3. Description
3.1 Control Panel
1. Monitor:
2. Button:
MENU To enter into move backward or leave the menu
UP To go backward to move up in the menu
DOWN To go to move down in the menu
ENTER To perform the desired functions
3. DMX output:
DMX 512 operation, use 3 XLR cable to link the next units.
4. DMX input:
628 mm
402 mm
402 mm
330 mm
5A

DMX 512 link, use 3 XLR cable to link the unit and DMX controller.
5. Power In:
To connect to the mains supply
6. Power Out:
To connect to the next fixture
4. Gobo/Color and Lamp
4.1 Gobos/Color
CAUTION: Never unscrew the screws of the rotating gobo as the ball bearing will otherwise be
opened!
4.2 Light Source
OSRAM SIRIUS HRI®370W LL
Because of its high internal pressure, there might be a risk that the Discharge lamp would
explode during operation. The lamp emits intense UV radiation which is harmful to the
eyes and skin. The high luminance of the arc can cause severe damage to the retina if you
take a close look at the lamp.
DANGER!
Install the gobos with the device switched off only.
Unplug from mains before changing gobos!
6A

To protect the lamp, always turn off the lamp first (via control panel or DMX controller)
and let the unit run at least five minutes to cool down before switching off the mains
supply. Never handle the lamp or luminary when it is hot.
Do not touch the bulb with bare hands. If this happens, clean the lamp with denatured
alcohol and wipe it with a lint free cloth before installation.
The lamp generates UV radiation. Never operate the lamp without appropriate shielding.
When lighting up, the lamp operates at high pressure and there is a slight risk of arc tube
rupture. The risk increases with age, temperature and improper handling of the lamp. Do not
use the lamp longer than its lifespan.
Make sure the lamp is located in the center of the reflector for the best projection.
5. How To Set The Unit
5.1 Main Function
Turn on the unit, press the MENU button into menu mode, and press the UP/DOWN button until the
required function is shown on the monitor. Select the function by the ENTER button. Use the
UP/DOWN button to choose the submenu, press the ENTER button to store and automatically return
to the last menu. Press the MENU button or let the unit idle one minute to exit menu mode.
In the event of disconnecting with mains power, press the UP button for one minute to enter into
menu mode. Press MENU button or let the unit idle one minute to exit.
The main functions are shown below（the grayed boxes are preset settings）:
7A

8A

DMX Functions
To select DMX Functions press the ENTER button to confirm, use the UP/DOWN button to select DMX
Address, Channel Mode , DMX State or View DMX Value.
DMX Address —DMX512 address setting
To select DMX Address, press the ENTER button to confirm. Use the UP/DOWN button to adjust
the address from 001 to 499/496, press the ENTER button to store. Press the MENU button back
to the last menu or let the unit idle one minute to exit menu mode.
Channel Mode — channel mode
To select Channel Mode, press the ENTER button to confirm. Use the UP/DOWN button to select
Mode1 (14) channels mode or Mode2 (17) channels mode , press the ENTER button to store.
Press the MENU button back to the last menu or let the unit idle one minute to exit menu mode.
DMX State —fixture state while DMX single stops
To select DMX State, press the ENTER button to confirm. Use the UP/DOWN button to select
Blackout (fixture blacks out if DMX signal stops) or Hold (fixture continues to obey the last
command it received Via DMX if DMX signal stops), press the ENTER button to store. Press the
MENU button back to the last menu or let the unit idle one minute to exit menu mode.
View DMX Value
To select View DMX Value, press the ENTER button to confirm. Use the UP/DOWN button to view
the DMX channel value. Press the MENU button back to the last menu or let the unit idle one
minute to exit menu mode.
Fixture Settings
To select Fixture Settings, press the ENTER button to confirm, use the UP/DOWN button to select Pan
Inverse, Tile Inverse or P/T Feedback.
Pan Inverse
To select Pan Inverse, press the ENTER button to confirm. Use the UP/DOWN button to select No
9A

(normal) or Yes (pan inverse), press the ENTER button to store. Press the MENU button back to
the last menu or let the unit idle one minute to exit menu mode.
Tilt Inverse
To select Tilt Inverse, press the ENTER button to confirm. Use the UP/DOWN button to select No
(normal) or Yes (tilt inverse), press the ENTER button to store. Press the MENU button back to the
last menu or let the unit idle one minute to exit menu mode.
P/T Feedback
To select P/T Feedback, press the ENTER button to confirm. Use the UP/DOWN button to select
No (Pan or tilt’s position will not feedback while out of step) or Yes (Feedback while pan/tilt out of
step), press the ENTER button to store. Press the MENU button back to the last menu or let the
unit idle one minute to exit menu mode.
Lamp Settings
To select Fixture Settings, press the ENTER button to confirm, use the UP/DOWN button to select
Lamp On/Off or State/Power on.
Lamp On/Off —Turn on/off the lamp
To select Lamp On/Off, press the ENTER button to confirm. Use the UP/DOWN button to select
On (lamp on) or Off (lamp off), press the ENTER button to store. Press the MENU button back to
the last menu or let the unit idle one minute to exit menu mode.
State/Power On — Lamp state while power on
To select State/Power On, press the ENTER button to confirm. Use the UP/DOWN button to select
On (Lamp on while power on) or Off (Lamp off while power on), press the ENTER button to store.
Press the MENU button back to the last menu or let the unit idle one minute to exit menu mode.
Display Settings
Enter menu mode, select Display Setting, press the ENTER button to confirm, use the UP/DOWN
button to select Display Inverse, Backlight Intensity or Temperature .
10A

Display Inverse
Select Display Inverse, press the ENTER button to confirm, present mode will blink on the display,
use the UP/DOWN button to select No (normal display) or Yes (inverse display), press the ENTER
button to store. Press the MENU button back to the last menu or let the unit idle one minute to
exit menu mode.
Backlight Intensity
Select Backlight Intensity, press the ENTER button to confirm, present mode will blink on the
display, use the UP/DOWN button to adjust backlight intensity from 1 (dark) to 10 (bright), press
the ENTER button to store. Press the MENU button back to the last menu or let the unit idle one
minute to exit menu mode.
Temperature Unit
Select Temperature Unit, press the ENTER button to confirm, present mode will blink on the
display, use the UP/DOWN button to select
℃
or
℉
, press the ENTER button to store. Press the
MENU button back to the last menu or let the unit idle one minute to exit menu mode.
F ixture Test
Enter menu mode, select Fixture Test, press the ENTER button to confirm, use the UP/DOWN
button to select Auto Test or Manual Test
Auto Test
Select Auto Test, press the ENTER button to confirm, the unit will run built-in programs to
automatically test pan, tilt, shutter, color, CMY, gobo, gobo rotation, prism, prism rotation, iris,
frost, zoom, focus, dimmer and lamp on/off. Press the MENU button back to the last menu or exit
menu mode after auto test.
Manual Test
Select Manual Test, press the ENTER button to confirm, the present channel will show on the
display, use the UP/DOWN button to select channel, press the ENTER button to confirm, then use
the UP and DOWN button to adjust the value, press the ENTER button to store, the fixture will run
as the channel value indicates. Press the MENU button back to the last menu or exit menu mode
11A

idling one minute.
(All channels value will become 0 after exiting Manual Test menu)
Fixture Information
Enter menu mode, select Fixture Information, press the ENTER button to confirm, use the
UP/DOWN button to select Fixture use hour, Lamp Life Time, Lamp Time Reset, Temperature,
Fan State or Firmware Version.
Fixture use hour
Select Fixture use hour, press the ENTERbutton to confirm, fixture use time will show on the
display, press the MENU button to exit.
Lamp Life Time
Select Lamp use hour, press the ENTER button to confirm, lamp life time will show on the display,
Press the MENU button back to the last menu or exit menu mode idling one minute.
Lamp Time Reset
Select Lamp Time Reset, press the ENTER button to confirm, use the UP/DOWN button to select
050, press the ENTER button to confirm. Press the MENU button back to the last menu or exit
menu mode idling one minute.
Temperature
Select Temperature, press the ENTERbutton to confirm, fixture temperature will show on the
display, press the MENU button to exit.
Fan State
Select Fan State, press the ENTER button to confirm, Fan State will show on the display, press the
ENTER button to confirm, use the UP/DOWN button to select Base Fan1,BaseFan2,Lamp Fan1,
Lamp Fan2, Strobe Fan3, Lamp Fan4 or Arm Fan5, press the ENTER button to confirm. Press the
MENU button back to the last menu or exit menu mode idling one minute.
12A

Firmware Version
Select Firmware Version, press the ENTER button to confirm, firmware version will show on the
display, press the MENU button back to exit.
Reset Functions
Enter menu mode, select Reset Function, press the ENTER button to confirm, use the UP/DOWN
button to select Pan/Tilt, Effect or All.
Pan/Tilt —Reset Pan/Tilt
Select Pan/Tilt, press the ENTER button to confirm, use the UP/DOWN button to select Yes (the
unit will run built-in program to reset pan and tilt to their home positions) or No(normal), press
the ENTER button to store. Press the MENU button back to the last menu or let the unit idle one
minute to exit menu mode.
Effect —Reset Effect
Select Effect, press the ENTER button to confirm, use the UP/DOWN button to select Yes (the unit
will run built-in program to reset effect to their home positions) or No, press the ENTER button to
store. Press the MENU button back to the last menu or let the unit idle one minute to exit menu
mode.
All — Reset All
Select All, press the ENTER button to confirm, use the UP/DOWN button to select Yes (the unit
will run built-in program to reset all motors to their home positions) or No, press ENTER button to
store. Press the MENU button to exit.
Special Functions
Factory Settings
Select Factory Settings,press the ENTER button to confirm, use the UP/DOWN button to select
Yes (the fixture will reset to factory settings)or No (normal), press ENTER button to store. Press
the MENU button to exit.
13A

5.2 Home Position Adjustment
Press the MENU button into menu mode, then press the ENTER button for about 3 seconds into offset
mode to adjust the home position. Select the function by the ENTER button. Use the UP/DOWN
button to choose the submenu, press the ENTER button to store and automatically return to the last
menu. Press MENU button to exit.
Pan—pan home position adjustment
Enter offset mode, Select Pan, press the ENTER button to confirm, the present position will blink on
the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button to
store. Press the MENU button to exit.
Tilt—Tilt home position adjustment
Enter offset mode, Select Tilt, press the ENTER button to confirm, the present position will blink on
the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button to
store. Press the MENU button to exit.
Shutter—Shutter home position adjustment
Enter offset mode, Select Shutter, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button
to store. Press the MENU button to exit.
14A

Color—Color home position adjustment
Enter offset mode, Select Color, press the ENTER button to confirm, the present position will blink on
the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button to
store. Press the MENU button to exit.
Gobo —Gobo 1 home position adjustment
Enter offset mode, Select Gobo 1, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button
to store. Press the MENU button to exit.
Prism—Prism home position adjustment
Enter offset mode, Select Prism, press the ENTER button to confirm, the present position will blink on
the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button to
store. Press the MENU button to exit.
R-Prism—Prism rotation home position adjustment
Enter offset mode, Select R-Prism, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button
to store. Press the MENU button to exit.
Prism 2—Prism 2 home position adjustment
Enter offset mode, Select Prism 2, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button
to store. Press the MENU button to exit.
R-Prism 2—Prism 2 rotation home position adjustment
Enter offset mode, Select R-Prism 2, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button
to store. Press the MENU button to exit.
Focus—Focus home position adjustment
Enter offset mode, Select Focus, press the ENTER button to confirm, the present position will blink on
the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button to
store. Press the MENU button to exit.
15A

Frost—Frost home position adjustment
Enter offset mode, Select Frost, press the ENTER button to confirm, the present position will blink on
the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button to
store. Press the MENU button to exit.
5.3 Error Information
Lamp Startup Fail
It appears when there is no lamp or some wires are damaged.
Temperature Sense Error
It appears when temperature check board is damaged.
Lamp Too Hot Power Off
It appears when temperature is detected higher than 110℃. Check if the unit is properly ventilated, or
fans or temperature check board may is damaged.
Lamp Too Hot Low Power
It appears when detected temperature is higher than 105℃. the unit will run on a low power level.
Maintenance Fixture
It appears when the maintenance remaining time becomes 0S, please enter menu mode and reset the
time.
Lamp On Over 700 Hour
It appears when the lamp always has been on over 700 hours, please turn off the lamp.
Memory Initial Fail
It appears when the memory IC is damaged.
CPU-B Error, CPU-C Error, CPU-D Error
They appear when board P.C or some wires are damaged.
Pan Reset Error, Pan Encode Error, Tilt Reset Error, Tilt Encode Error, Shutter Reset Fail, Dimmer
Reset Fail, Color Reset Fail, Cyan Reset Fail, Magenta Reset Fail, Yellow Reset Fail, Gobo1 Reset Fail,
R-Gobo1 Reset Fail, Gobo2 Reset Fail, Iris Reset Fail, Effect Reset Fail, R-Effect Reset Fail, Frost Reset
Fail, Flat Reset Fail, Focus Reset Fail, Zoom Reset Fail
16A

They may appear when turning on or resetting the unit, for some parts such as board P.C are damaged.
Please contact the qualified maintenance.
6. Control By Universal DMX Controller
6.1 Connection
1. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120-ohm 1/4W resistor
between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output of the
last unit.
2. Connect the unit together in a “daisy chain” by XLR plug cable from the output of the unit to the
input of the next unit. The cable cannot be branched or split to a “Y” cable. DMX 512 is a very
high-speed signal. Inadequate or damaged cables, soldered joints or corroded connectors can easily
distort the signal and shut down the system.
3. The DMX output and input connectors are pass-through to maintain the DMX circuit, when one of
ATTENTION
Termination reduces signal errors and to avoid signal transmission problems and
interference. It is always advisable to connect a DMX terminal (Resistance 120 ohm 1/4W
between pin2 (DMX-) and pin3 (DMX+) of the last fixture).
17A

the units’ power is disconnected.
4. Each lighting unit needs to have a DMX address to receive the data by the controller. The address
number is between 0-511 (usually 0 & 1 are equal to 1).
5. The end of the DMX 512 system should be terminated to reduce signal errors.
6. 3 pin XLR connectors are more popular than 5 pins XLR.
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+), Pin4, Pin5 not used.
6.2 Address Setting
If you use a universal DMX controller to control the units, you have to set DMX address from 1 to 512
so that the units can receive DMX signal.
Press the MENU button to enter menu mode, select DMX Functions, press the ENTER button to
confirm, use the UP/DOWN button to select DMX Address, press the ENTER button to confirm, the
present address will blinking the display, use the UP/DOWN button to adjust the address from 001 to
512, press the ENTER button to store. Press the MENU button back to the last menu or idling let the
unit idle one minute to exit menu mode.
Please refer to the following diagram to address your DMX512 channel for the first 4 units.
Channel mode
Unit 1
Address
Unit 2
Address
Unit 3
Address
Unit 4
Address
14 channels 1 15 29 43
17 channels 1 18 35 52
6.3 DMX 512 Configuration
Please refer to below configurations to control the fixtures
Attentions:
1. The unit will maintain the last condition until reset if you cut-off the DMX signal.
2. For the channel Function, keep the value for about 5 seconds, then the corresponding function
will take into effect.
18A

14 Channels (Mode 1):
CHANNEL VALUE FUNCTION
1
000-255
PAN
0 ° 540°
2
000-255
TILT
0 ° 270°
3
000-255
P/T SPEED
Fast Slow
4
000-003
004-007
008-011
012-015
016-019
020-023
024-027
028-031
032-035
036-039
040-043
044-047
048-051
052-055
056-059
060-127
128-189
190-193
194-255
COLOR
White
Color 1
Color 2
Color 3
Color 4
Color 5
Color 6
Color 7
Color 8
Color 9
Color 10
Color 11
Color 12
Color 13
Color 14
White to Color14
Clockwise Rotation Fast to Slow
Stop
Counter-Clockwise Rotation Slow to Fast
5
000-007
008-010
011-013
014-016
017-019
020-022
023-025
026-028
029-031
032-034
035-037
038-040
041-043
044-046
047-049
050-052
GOBO
White
Gobo 1
Gobo 2
Gobo 3
Gobo 4
Gobo 5
Gobo 6
Gobo 7
Gobo 8
Gobo 9
Gobo 10
Gobo 11
Gobo 12
Gobo 13
Gobo 14
Gobo 15
19A
