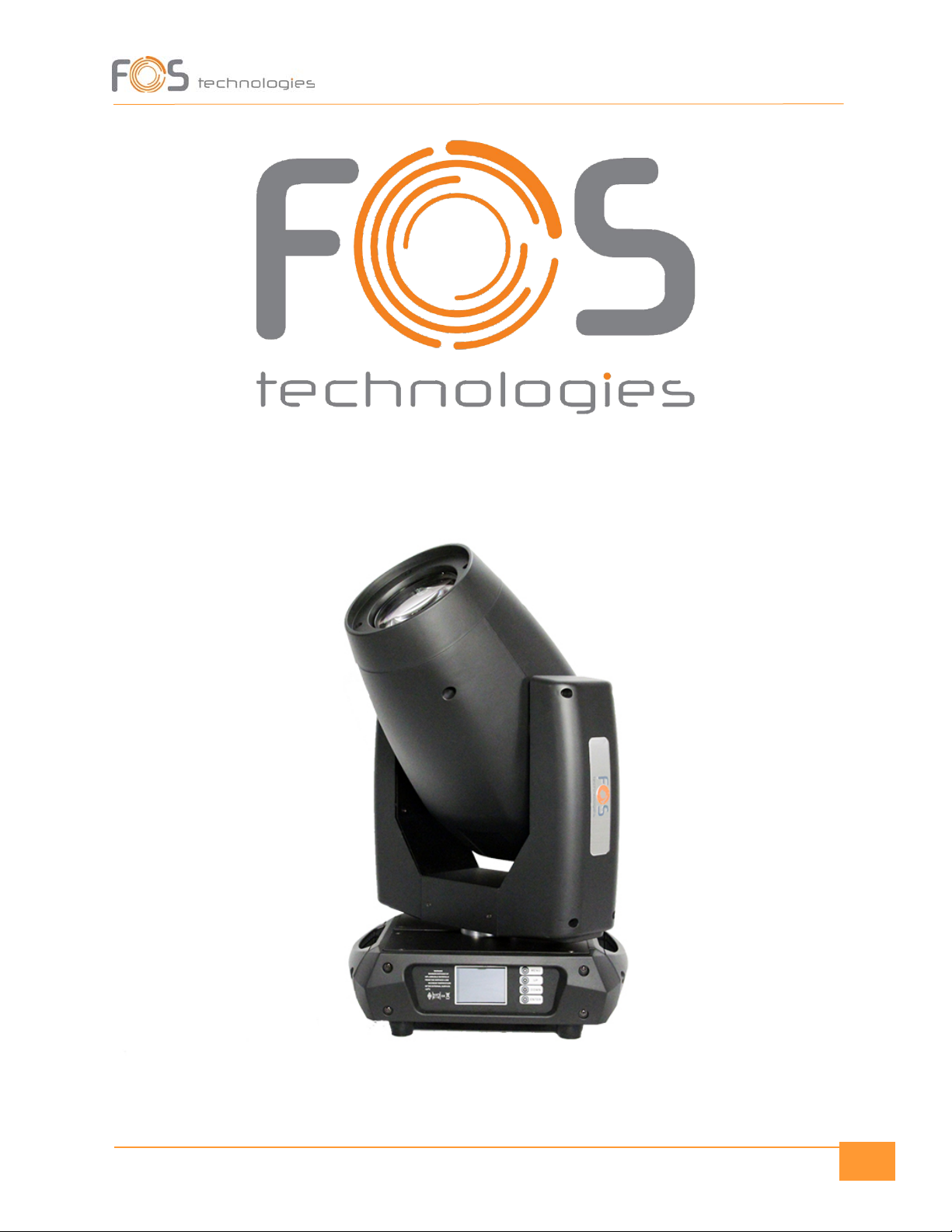

FOS Technologies 17R Hybrid CMY User manual

1
FOS 17R Hybrid CMY

2
PRODUCT SPECIFICATIONS
TECHNICAL SPECIFICATIONS
Voltage: 110/240 Volt AC, 50/60 Hz.
Power Consumption: 500 Watt.
Light Source: 17R, 350 Watt
Lumen Output: 150.000 Lumens / 10 meters
Optical System: Beam, Spot, Wash modes, zoom range from 2,5 to 32 degrees.
Mechanical Effects: 12 fixed gobos, 9 rotating gobos, 2 combinable prisms, frost filter, zoom 2,5° to 32°,
motorized focus, mechanical shutter for dimming / strobe.
Color Mixing System: FOS 17R Hybrid contains 3 color wheels, which includes the Cyan, Magenta and
Yellow flag each, plus 5 dichroic color filters each which they can be combined. The colors and CMY mixing
are offered on to different DMX channels, but they operate always as LTP.
Control: Sound Active, Master / Slave, Auto, DMX512.
DMX Channels: 21, 26, 23
Protection Class: IP20 (for indoor use only)
Width: 395 mm
Depth: 305 mm
Height: 640 mm
Weight: 20,9 Kg
SAFETY WARNING
This product must be installed by a qualified professional. All maintenance must be carried out by a
qualified electrician. A minimum distance of 0.5 m must be maintained between the equipment and a
combustible surface. The product must always be operated in a well-ventilated area. DO NOT stare
directly into the light source. Always disconnect the power before carrying out any maintenance. The

3
earth must always be connected to the ground. Ensure that all parts of the equipment are kept clean and
free of dust.
PROTECTION AGAINST SOLIDS AND WATER
Only for IP-rated fixtures
The protection level of a housing is set by applied standards. For classification there is used the IP-Code.
It contains the declaration „IP“and two following numbers. The first number characterizes the protection
against harmful effects of solids, the second is rating the water protection. It is important to distinguish
whether encapsulation and harmful effect! There can be housing that is not capsuled completely but still
avoids harmful effect of solids or water.
PROTECTION EXAMPLES:
IP20: Protection against intruding objects >12,5mm „Finger protected “; No waterproofing. TYPICAL
PROTECTION FOR INDOOR USE FIXTURES
IP33: Protection against intruding objects >2,5mm; Falling water within an angle of 60° has no harmful
effect TYPICAL PROTECTION OF LED-LIGHTS USING RECESSED POWERCON AND DMX SOCKET. This
protection is linked to the mounting position of the fixture and always refers to typical mounting situation
like a Floor spot used standing on the ground.
IP54: complete protection against solids and low-pressure water from any side THIS TYPE OF FIXTURES
CAN BE USED UNDER NORMAL OUTDOOR CONDITIONS.
IP65: shielded against dust and pressurized water from any side. TYPICAL PROTECTION FOR OUTDOOR
RATED EVENTFIXTURES USING WATERPROOFED POWER AND SIGNAL LINK.
IP67: shielded against dust and protected for accidental briefly submerge. PROTECTION AGAINST
ACCIDENTIAL SUBMERGING ON TEMPORARY FLOODED AREA.
TEMPORARY USE
Event equipment is designed for temporary use. This are typical purpose as concerts, festivals, theatre,
clubs and disco use and referable venues. Long-term use, specially under outdoor conditions and fixed
outdoor installation can bring damage in aging materials and affect the coated surface. Sealings as well as
cables are made from rubber material and will age by long-term UV-emission as sunlight and should be
checked frequently.

4
LIMITATIONS OF IP PROTECTION
IP-Rating doesn´t mean unlimited outdoor use and protection against any kind of environmental
influence! Especially sunlight and included UV will bring accelerated aging. Some fixtures need special
parts or processes to fit the rated IP-Protection, like mounting covers or caps or similar. Sealings and other
plastic or rubber materials are aging parts. They must be checked frequently to ensure the protection and
safety of the fixtures. Also specified torque of screws can affect protection!
Installation
Hanging: The fixture can be mounted in a hanging position using the supporting bracket. The bracket
should be secured to the mounting truss or structure using a standard mounting clamp. Please note that
when hanging the unit, a safety cable should also be used.
UPRIGHT: The fixture can be mounted in an upright or sitting position using the supporting brackets.
NOTE! If the signal cable is over 60 m between the DMX512 controller and fixture or between
two fixtures, then a DMX signal amplifier is needed as well.
Caution! HOT BEAM! In beam mode, the light beam can be very hot, even in distance. The
fixture must be installed with a 5m distance from flamable objects. Do not point the beam
in to flamable objects.
Menu Screen
You can easily navigate through menu’s options with the four buttons under the screen. Navigating in the
menu is simple! With the Up / Down buttons, you are moving through menu’s choices, pressing Enter,
you are entering the sub menu of the option you have chosen, with the Up / Down buttons you’re moving
through the sub menu’s options, with Enter, you are confirming your choice. Other than that, the fixture
has a touch screen, making the navigation much more fast and easy. The FOS 17R Hybrid CMY offers the
following options:

5
Features menu
Run mode:
•Auto
•Wireless
•DMX
ChanMode:
•21
•23
•26
X Reverse: On / Off
Y Reverse: On / Off
X Angle: 540 / 360
XY OCcheck: On / Off (Pan / Tilt movement Feedback)
SignalClear: On / Off (activates or deactivates the default position when DMX signal is lost)
Full Color: On / Off
Shortcut: On / Off (activates or deactivates the disks shortest distance between the effects)
Manual
Reset
•All Motor
•Part Motor (effects motor reset)
•XY Motor
Select one option and press yes
Test Run
•Auto
•Sound
Simulate DMX
Shows the list of 26 total channels, in which you can adjust the DMX value from the fader on the screen,
to create a static effect

6
System Info
DMX Value: Shows the DMX value of all the DMX channels available on the fixture.
OTHER Info: Shows hardware info of the fixture, like the firmware version of each board, temperature
and running time.
ERROR Info: Shows the errors, if any.
Display Setting
Brightness: Level 1 to 7
LightDelay: 10 / 20 / 30 / On
Manuback: 10 / 20 / 30 / On
Flicker: On / Off (activates or deactivates the flickering of the screen, when it’s not used)
Lamp Setting
Default:On / Off
Manual:On / Off
Electronic:On / Off
Screen reverse
Language Set
Return to main screen

7
Channel Modes
21 Channels
1. Pan
2. Tilt
3. Pan / Tilt Speed
4. Functions
•0 – 100 No Function
•101 – 119 Blackout with Gobo Change OFF**
•120 – 129 Blackout with Gobo Change ON**
•130 – 139 Lamp On
•140 – 149 Pan / Tilt Reset
•150 – 159 No Function
•160 – 169 Effects Motor Reset
•170 – 199 No Function
•200 – 209 Complete Reset
•210 – 229 No Function
•230 – 239 Lamp Off
•240 – 255 No Function
** For command activation, keep the value for at least 5 seconds.
5. Color Wheel 1
•0 – 10 Open (White)
•11 – 30 White & Pink
•31 – 60 Pink
•61 – 80 Pink & CTB
•81 – 110 CTB
•111 – 131 CTB & CTO
•132 – 160 CTO
•161 – 182 CTO & CTO 3200
•183 – 214 CTO 3200
•215 – 235 CTO 3200 & UV
•236 – 255 UV
6. Color Wheel 2
•0 – 10 Open (White)
•11 – 30 White & Green
•31 – 60 Green

8
•61 – 80 Green & CTB
•81 – 110 CTB
•111 – 131 CTB & Dewberry
•132 – 160 Dewberry
•161 – 182 Dewberry & White
•183 – 214 White
•215 – 235 White & Deep Red
•236 – 255 Deep Red
7. Color Wheel 3
•0 – 10 Open (White)
•11 – 30 White & Light Green
•31 – 60 Green
•61 – 80 Green & Light Pink
•81 – 110 Light Pink
•111 – 134 Light Pink & Turquoise
•135 – 160 Turquoise
•161 – 185 Turquoise & Orange
•186 – 214 Orange
•215 – 236 Orange & Sunset Yellow
•237 – 255 Sunset Yellow
8. Cyan
9. Magenta
10. Yellow
11. Static Gobo Wheel
•0 – 4 Open
•5 – 9 Gobo 1
•10 – 14 Gobo 2
•15 – 19 Gobo 3
•20 – 24 Gobo 4
•25 – 29 Gobo 5
•30 – 34 Gobo 6
•35 – 39 Gobo 7
•40 – 44 Gobo 8
•45 – 49 Gobo 9
•50 – 54 Gobo 10
•55 – 59 Reducer 1
•60 – 64 Reducer 2
•65 – 89 Reducer 3
•90 – 94 Gobo 1 Shake
•95 – 99 Gobo 2 Shake
•100 – 104 Gobo 3 Shake

9
•105 – 109 Gobo 4 Shake
•110 – 114 Gobo 5 Shake
•115 – 119 Gobo 6 Shake
•120 – 124 Gobo 7 Shake
•125 – 129 Gobo 8 Shake
•130 – 134 Gobo 9 Shake
•135 – 139 Gobo 10 Shake
•140 – 144 Beam Reducer 1 Shake
•145 – 149 Beam Reducer 2 Shake
•150 – 174 Beam Reducer 3 Shake
•175 – 210 CW Gobo Scroll
•211 – 224 Stop
•225 – 255 CCW Gobo Scroll
12. Rotating Gobo Wheel
•0 – 1 Beam mode aperture (Open)
•2 – 4 Spot beam aperture (Open)
•5 – 7 Gobo 1
•8 – 10 Gobo 2
•11 – 13 Gobo 3
•14 – 16 Gobo 4
•17 – 19 Gobo 5
•20 – 22 Gobo 6
•23 – 25 Gobo 7
•26 – 28 Gobo 8
•29 – 31 Gobo 9
•31 – 34 Gobo 1
•35 – 37 Gobo 2
•38 – 40 Gobo 3
•41 – 43 Gobo 4
•44 – 46 Gobo 5
•47 – 49 Gobo 6
•50 – 52 Gobo 7
•53 – 55 Gobo 8
•56 – 59 Gobo 9
•60 – 67 Gobo 1
•68 – 75 Gobo 2
•76 – 83 Gobo 3
•84 – 91 Gobo 4
•92 – 99 Gobo 5
•100 – 107 Gobo 6

10
•108 – 115 Gobo 7
•116 – 123 Gobo 8
•124 – 129 Gobo 9
•130 – 137 Gobo 1
•138 – 145 Gobo 2
•146 – 153 Gobo 3
•154 – 161 Gobo 4
•162 – 169 Gobo 5
•170 – 177 Gobo 6
•178 – 185 Gobo 7
•186 – 193 Gobo 8
•194 – 199 Gobo 9
•200 – 201 Spot Open
•202 – 221 CW Gobo Scroll
•222 – 223 Stop
•224 – 255 CCW Gobo Scroll
Gobos with Indexing option
Gobos with CW & CCW rotation
Gobos shake with Indexing option
Gobos shake with CW & CCW rotation
13. Gobo Rotation / Index
14. Prisms
•0 – 4 No Prism
•5 – 99 16 Facet Prism
•100 – 199 8 Facet Prism
•200 – 255 Both prisms combined
15. 16F Prism Rotation & Indexing
•0 – 128 Indexing
•129 – 192 CW Rotation
•193 – 255 CCW Rotation
16. 8F Prism Rotation & Indexing
•0 – 128 Indexing
•129 – 192 CW Rotation
•193 – 255 CCW Rotation
17. Frost
18. Zoom
19. Focus
20. Shutter:
•0 – 31 Shutter Closed

11
•32 – 63 Shutter Open
•64 – 95 Synchronous Strobe
•96 – 127 Shutter Open
•128 – 143 Closing Pulse
•144 – 159 Opening Pulse
•160 – 191 Shutter Open
•192 – 223 Flash Effect
•224 – 255 Shutter Open
21. Dimmer
23 Channels
1. Pan
2. Pan Fine
3. Tilt
4. Tilt Fine
5. Pan / Tilt Speed
6. Functions
•0 – 100 No Function
•101 – 119 Blackout with Gobo Change OFF**
•120 – 129 Blackout with Gobo Change ON**
•130 – 139 Lamp On
•140 – 149 Pan / Tilt Reset
•150 – 159 No Function
•160 – 169 Effects Motor Reset
•170 – 199 No Function
•200 – 209 Complete Reset
•210 – 229 No Function
•230 – 239 Lamp Off
•240 – 255 No Function
** For command activation, keep the value for at least 5 seconds.
7. Color Wheel 1
•0 – 10 Open (White)
•11 – 30 White & Pink
•31 – 60 Pink
•61 – 80 Pink & CTB
•81 – 110 CTB
•111 – 131 CTB & CTO
•132 – 160 CTO
•161 – 182 CTO & CTO 3200

12
•183 – 214 CTO 3200
•215 – 235 CTO 3200 & UV
•236 – 255 UV
8. Color Wheel 2
•0 – 10 Open (White)
•11 – 30 White & Green
•31 – 60 Green
•61 – 80 Green & CTB
•81 – 110 CTB
•111 – 131 CTB & Dewberry
•132 – 160 Dewberry
•161 – 182 Dewberry & White
•183 – 214 White
•215 – 235 White & Deep Red
•236 – 255 Deep Red
9. Color Wheel 3
•0 – 10 Open (White)
•11 – 30 White & Light Green
•31 – 60 Green
•61 – 80 Green & Light Pink
•81 – 110 Light Pink
•111 – 134 Light Pink & Turquoise
•135 – 160 Turquoise
•161 – 185 Turquoise & Orange
•186 – 214 Orange
•215 – 236 Orange & Sunset Yellow
•237 – 255 Sunset Yellow
10. Cyan
11. Magenta
12. Yellow
13. Static Gobo Wheel
•0 – 4 Open
•5 – 9 Gobo 1
•10 – 14 Gobo 2
•15 – 19 Gobo 3
•20 – 24 Gobo 4
•25 – 29 Gobo 5
•30 – 34 Gobo 6
•35 – 39 Gobo 7

13
•40 – 44 Gobo 8
•45 – 49 Gobo 9
•50 – 54 Gobo 10
•55 – 59 Reducer 1
•60 – 64 Reducer 2
•65 – 89 Reducer 3
•90 – 94 Gobo 1 Shake
•95 – 99 Gobo 2 Shake
•100 – 104 Gobo 3 Shake
•105 – 109 Gobo 4 Shake
•110 – 114 Gobo 5 Shake
•115 – 119 Gobo 6 Shake
•120 – 124 Gobo 7 Shake
•125 – 129 Gobo 8 Shake
•130 – 134 Gobo 9 Shake
•135 – 139 Gobo 10 Shake
•140 – 144 Beam Reducer 1 Shake
•145 – 149 Beam Reducer 2 Shake
•150 – 174 Beam Reducer 3 Shake
•175 – 210 CW Gobo Scroll
•211 – 224 Stop
•225 – 255 CCW Gobo Scroll
14. Rotating Gobo Wheel
•0 – 1 Beam mode aperture (Open)
•2 – 4 Spot beam aperture (Open)
•5 – 7 Gobo 1
•8 – 10 Gobo 2
•11 – 13 Gobo 3
•14 – 16 Gobo 4
•17 – 19 Gobo 5
•20 – 22 Gobo 6
•23 – 25 Gobo 7
•26 – 28 Gobo 8
•29 – 31 Gobo 9
•31 – 34 Gobo 1
•35 – 37 Gobo 2
•38 – 40 Gobo 3
•41 – 43 Gobo 4
•44 – 46 Gobo 5
•47 – 49 Gobo 6

14
•50 – 52 Gobo 7
•53 – 55 Gobo 8
•56 – 59 Gobo 9
•60 – 67 Gobo 1
•68 – 75 Gobo 2
•76 – 83 Gobo 3
•84 – 91 Gobo 4
•92 – 99 Gobo 5
•100 – 107 Gobo 6
•108 – 115 Gobo 7
•116 – 123 Gobo 8
•124 – 129 Gobo 9
•130 – 137 Gobo 1
•138 – 145 Gobo 2
•146 – 153 Gobo 3
•154 – 161 Gobo 4
•162 – 169 Gobo 5
•170 – 177 Gobo 6
•178 – 185 Gobo 7
•186 – 193 Gobo 8
•194 – 199 Gobo 9
•200 – 201 Spot Open
•202 – 221 CW Gobo Scroll
•222 – 223 Stop
•224 – 255 CCW Gobo Scroll
Gobos with Indexing option
Gobos with CW & CCW rotation
Gobos shake with Indexing option
Gobos shake with CW & CCW rotation
15. Gobo Rotation / Index
16. Prisms
•0 – 4 No Prism
•5 – 99 16 Facet Prism
•100 – 199 8 Facet Prism
•200 – 255 Both prisms combined
17. 16F Prism Rotation & Indexing
•0 – 128 Indexing
•129 – 192 CW Rotation
•193 – 255 CCW Rotation

15
18. 8F Prism Rotation & Indexing
•0 – 128 Indexing
•129 – 192 CW Rotation
•193 – 255 CCW Rotation
19. Frost
20. Zoom
21. Focus
22. Shutter:
•0 – 31 Shutter Closed
•32 – 63 Shutter Open
•64 – 95 Synchronous Strobe
•96 – 127 Shutter Open
•128 – 143 Closing Pulse
•144 – 159 Opening Pulse
•160 – 191 Shutter Open
•192 – 223 Flash Effect
•224 – 255 Shutter Open
23. Dimmer
26 Channels
1. Pan
2. Pan Fine
3. Tilt
4. Tilt Fine
5. Pan / Tilt Speed
6. Functions
•0 – 100 No Function
•101 – 119 Blackout with Gobo Change OFF**
•120 – 129 Blackout with Gobo Change ON**
•130 – 139 Lamp On
•140 – 149 Pan / Tilt Reset
•150 – 159 No Function
•160 – 169 Effects Motor Reset
•170 – 199 No Function
•200 – 209 Complete Reset
•210 – 229 No Function
•230 – 239 Lamp Off
•240 – 255 No Function
** For command activation, keep the value for at least 5 seconds.

16
7. Color Wheel 1
•0 – 10 Open (White)
•11 – 30 White & Pink
•31 – 60 Pink
•61 – 80 Pink & CTB
•81 – 110 CTB
•111 – 131 CTB & CTO
•132 – 160 CTO
•161 – 182 CTO & CTO 3200
•183 – 214 CTO 3200
•215 – 235 CTO 3200 & UV
•236 – 255 UV
8. Color Wheel 2
•0 – 10 Open (White)
•11 – 30 White & Green
•31 – 60 Green
•61 – 80 Green & CTB
•81 – 110 CTB
•111 – 131 CTB & Dewberry
•132 – 160 Dewberry
•161 – 182 Dewberry & White
•183 – 214 White
•215 – 235 White & Deep Red
•236 – 255 Deep Red
9. Color Wheel 3
•0 – 10 Open (White)
•11 – 30 White & Light Green
•31 – 60 Green
•61 – 80 Green & Light Pink
•81 – 110 Light Pink
•111 – 134 Light Pink & Turquoise
•135 – 160 Turquoise
•161 – 185 Turquoise & Orange
•186 – 214 Orange
•215 – 236 Orange & Sunset Yellow
•237 – 255 Sunset Yellow
10. Static Gobo Wheel
•0 – 4 Open
•5 – 9 Gobo 1

17
•10 – 14 Gobo 2
•15 – 19 Gobo 3
•20 – 24 Gobo 4
•25 – 29 Gobo 5
•30 – 34 Gobo 6
•35 – 39 Gobo 7
•40 – 44 Gobo 8
•45 – 49 Gobo 9
•50 – 54 Gobo 10
•55 – 59 Reducer 1
•60 – 64 Reducer 2
•65 – 89 Reducer 3
•90 – 94 Gobo 1 Shake
•95 – 99 Gobo 2 Shake
•100 – 104 Gobo 3 Shake
•105 – 109 Gobo 4 Shake
•110 – 114 Gobo 5 Shake
•115 – 119 Gobo 6 Shake
•120 – 124 Gobo 7 Shake
•125 – 129 Gobo 8 Shake
•130 – 134 Gobo 9 Shake
•135 – 139 Gobo 10 Shake
•140 – 144 Beam Reducer 1 Shake
•145 – 149 Beam Reducer 2 Shake
•150 – 174 Beam Reducer 3 Shake
•175 – 210 CW Gobo Scroll
•211 – 224 Stop
•225 – 255 CCW Gobo Scroll
11. Rotating Gobo Wheel
•0 – 1 Beam mode aperture (Open)
•2 – 4 Spot beam aperture (Open)
•5 – 7 Gobo 1
•8 – 10 Gobo 2
•11 – 13 Gobo 3
•14 – 16 Gobo 4
•17 – 19 Gobo 5
•20 – 22 Gobo 6
•23 – 25 Gobo 7
•26 – 28 Gobo 8
•29 – 31 Gobo 9

18
•31 – 34 Gobo 1
•35 – 37 Gobo 2
•38 – 40 Gobo 3
•41 – 43 Gobo 4
•44 – 46 Gobo 5
•47 – 49 Gobo 6
•50 – 52 Gobo 7
•53 – 55 Gobo 8
•56 – 59 Gobo 9
•60 – 67 Gobo 1
•68 – 75 Gobo 2
•76 – 83 Gobo 3
•84 – 91 Gobo 4
•92 – 99 Gobo 5
•100 – 107 Gobo 6
•108 – 115 Gobo 7
•116 – 123 Gobo 8
•124 – 129 Gobo 9
•130 – 137 Gobo 1
•138 – 145 Gobo 2
•146 – 153 Gobo 3
•154 – 161 Gobo 4
•162 – 169 Gobo 5
•170 – 177 Gobo 6
•178 – 185 Gobo 7
•186 – 193 Gobo 8
•194 – 199 Gobo 9
•200 – 201 Spot Open
•202 – 221 CW Gobo Scroll
•222 – 223 Stop
•224 – 255 CCW Gobo Scroll
Gobos with Indexing option
Gobos with CW & CCW rotation
Gobos shake with Indexing option
Gobos shake with CW & CCW rotation
12. Gobo Rotation / Index
13. Prisms
•0 – 4 No Prism
•5 – 99 16 Facet Prism

19
•100 – 199 8 Facet Prism
•200 – 255 Both prisms combined
14. 16F Prism Rotation & Indexing
•0 – 128 Indexing
•129 – 192 CW Rotation
•193 – 255 CCW Rotation
15. 8F Prism Rotation & Indexing
•0 – 128 Indexing
•129 – 192 CW Rotation
•193 – 255 CCW Rotation
16. Frost
17. Zoom
18. Zoom Fine
19. Focus
20. Focus Fine
21. Auto Focus
•0 – 3: Auto focus is off
•4 – 128: Zoom macro function (fast - slow)
•129 – 193: Automatic focus 5M start range
•193 – 255: Automatic focus 12M start range
22. Shutter:
•0 – 31 Shutter Closed
•32 – 63 Shutter Open
•64 – 95 Synchronous Strobe
•96 – 127 Shutter Open
•128 – 143 Closing Pulse
•144 – 159 Opening Pulse
•160 – 191 Shutter Open
•192 – 223 Flash Effect
•224 – 255 Shutter Open
23. Dimmer
24. Cyan
25. Magenta
26. Yellow
General Information

20
Replacing a fuse:
Always disconnect the fixture from main power before replacing a fuse. Use only the appropriate fuse,
with the same type and rating. A fuse with different rating, can damage the fixture in case of failure.
Risk of electric shock and / or fire:
The fixture must be earthed, supplied always with its nominal voltage and cleaned periodically from dust.
For cleaning use only, a moist cloth. Never use liquids or force water. After cleaning, let the fixture dry
before use.
Lamp:
Disconnect power supply when changing the lamp. The lamp become extremely hot during operation, so
let the fixture cool down before opening the cover. Never touch the lamp with bare hands. If the lamp is
deformed or cracked, must be replaced immediately. Only recycle the lamp after replacement, as it
contains harmful for the environment materials. Use only the same type of lamp for replacement. Never
use the fixture without the covers, when the lamp is on.
