Chapter 1 Product Introduction
⚫1.1 Product Overview

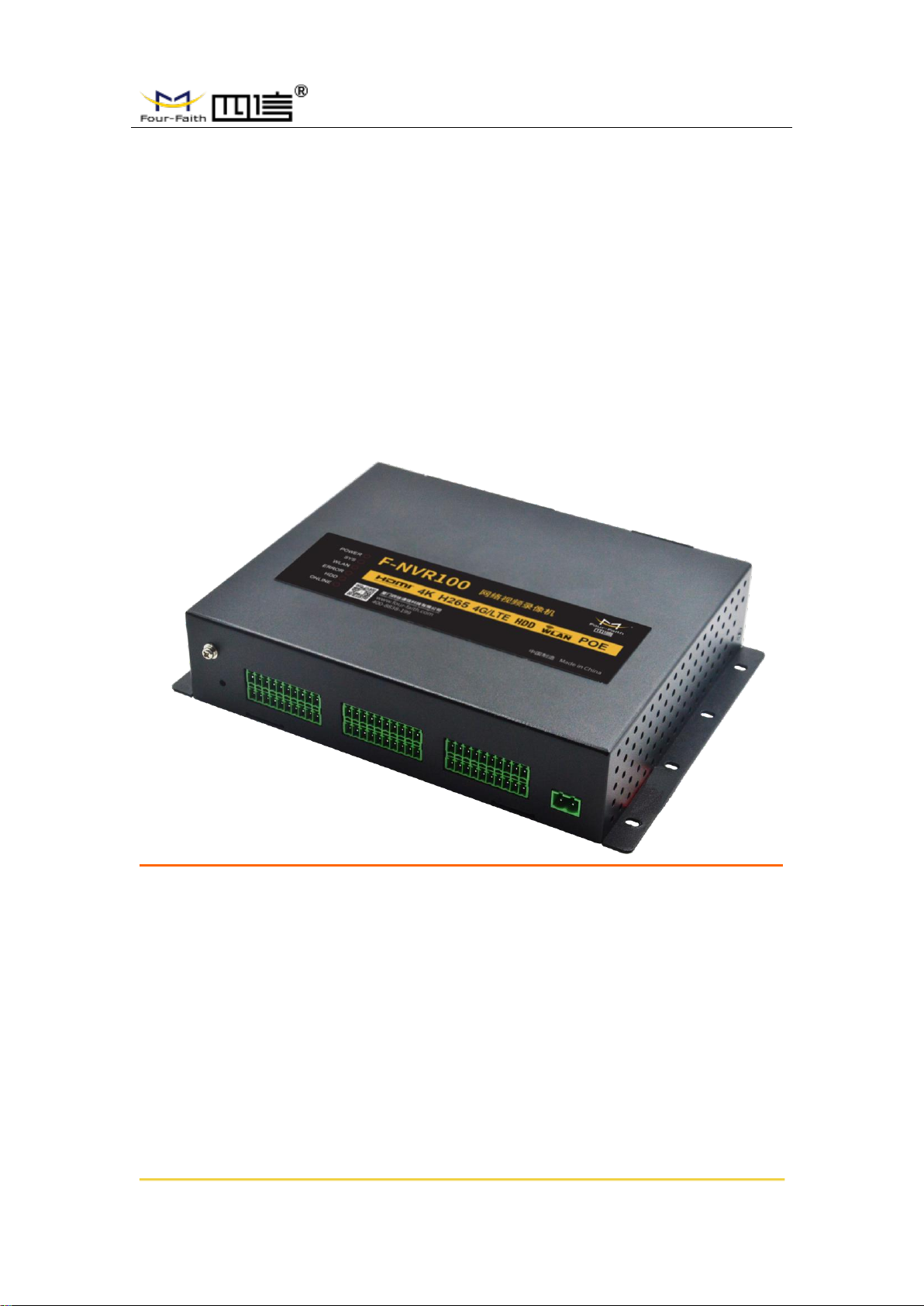

F –NVR100 is Four-Faith company independent research and development of a new
generation of NVR terminals, the integration of advanced 4G/WIFI communications
technology, with 8 road POE power supply of 1080 p video input and 1 road, real-time
video intercom input and output of local store/remote viewing, GPS, mobile video and
alarm, alarm, video frame test protection and alarm event reporting platform, support the
local/remote video playback of video and export function, GPS remote positioning, hard
disk error detection, hard disk health detection, and remote platform error reporting
function, selection of WAN port (4G/WIFI/cable).There are a series of supporting video
server solutions, to achieve the different needs of small or large users.
System Framework:
The product has been widely used in the public transportation, tourism, industrial control
industry video and audio monitoring, such as city bus, custom bus, bus station,
sightseeing bus, long-distance passenger bus, tourist attractions, industrial minerals and
other places.

NVR100 User Manual
Address: 11th Floor, A-06 Area, No.370, Chengyi Street, Jimei, Xiamen, Fujian, China.
Website: www.fourfaith.com Tel: [phone] Fax: [phone]
2/ 65

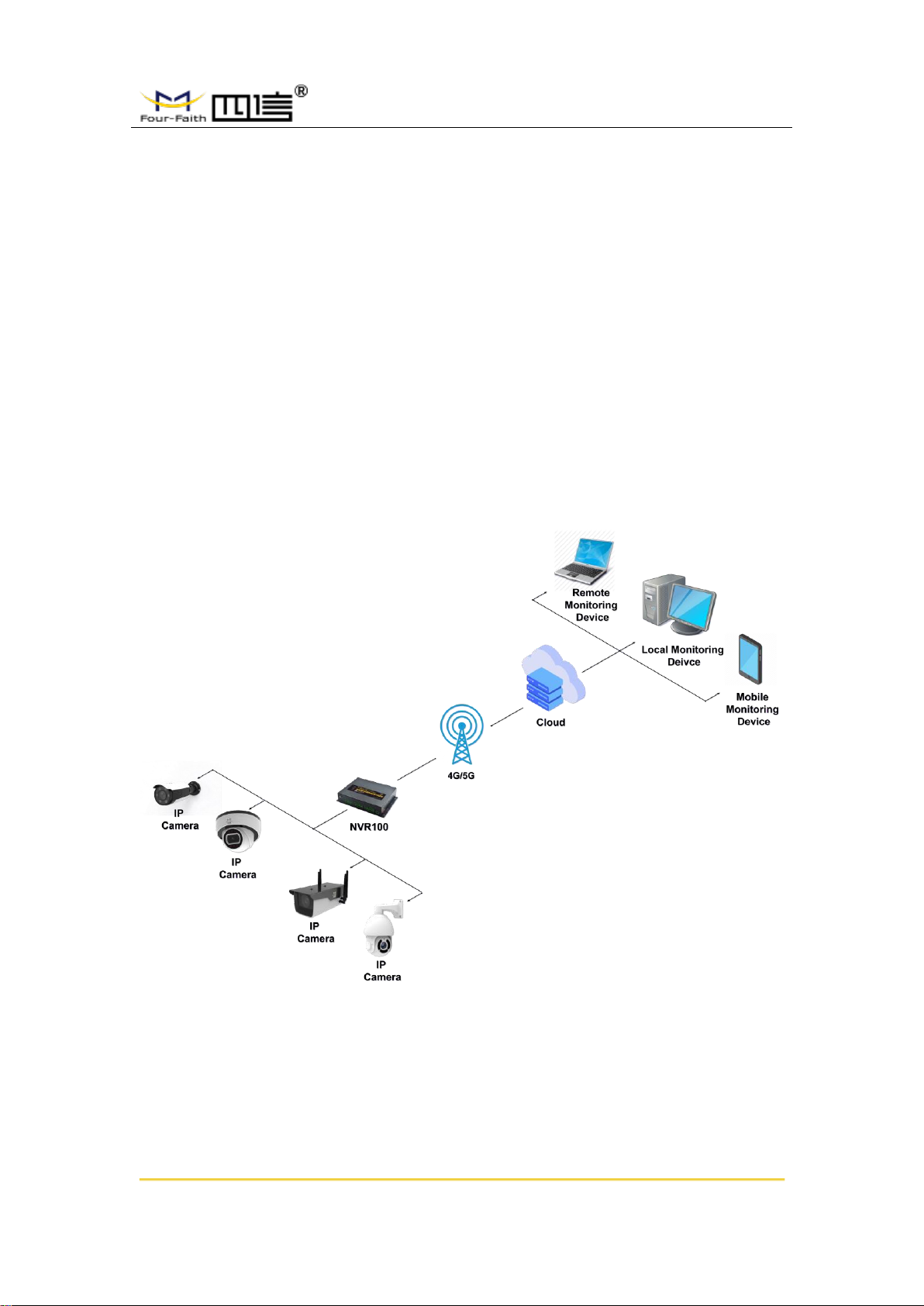

Topology:
1.2 Product Features
Outdoor Application Design
⚫High performance processor ARM Cortex A7 Dual-core 1.3GHz
⚫Wide power input (DC 9~60V)
⚫Wide temperature design (-10℃~75℃)
⚫Metal shell, good heat dissipation, impact resistance
⚫Waterproof, dustproof, moisture-proof suitable for outdoor use (add waterproof water tank)
⚫Compact, light, flexible installation
⚫TF, SIM card and SATA are easy to install
⚫Low power consumption design, video standby state to achieve data acquisition and upload
Stable and Reliable
⚫WDT watch dog design to ensure system stability
⚫The use of a complete anti-drop mechanism to ensure the terminal always online
⚫Use hard disk storage to ensure high speed reading and writing of data and safe and stable
⚫Ethernet interface built-in 2.0KV electromagnetic isolation protection
⚫RS232/RS485 interface is lightning proof and surge proof
⚫SIM/UIM card interface built-in 15KV ESD protection
⚫Antenna interface lightning protection (optional)
Powerful Function

NVR100 User Manual
Address: 11th Floor, A-06 Area, No.370, Chengyi Street, Jimei, Xiamen, Fujian, China.
Website: www.fourfaith.com Tel: [phone] Fax: [phone]
3/ 65
⚫Up to 8 channels full real-time coding, standard H. 264, H. 265 decoding format, lower code stream,
better picture quality.
⚫4 way and 8 way display switch, according to different needs to choose.
⚫Support 4 or 8 channels of video and audio synchronous recording and playback.
⚫Support up to 8 channels 1080p IPC access, 4 channels 1080p decoding, support IPC event trigger
video (motion detection, block alarm, etc.).
⚫IPC image capture and video recording.
⚫Support USB flash drive upgrade/remote upgrade/local web upgrade and another multiple upgrade
methods.
⚫Support the external power supply of maximum 8-way PSE, support 802.3.AF, 802.3.AT.
⚫Support 3 ways RS232/RS485 multiplexing interface, convenient peripheral access and data
transmission.
⚫Support 1 way RS232 debugging interface, convenient debugging and data collection.
⚫Support 8 channels analog input interface: 12-bit ADC, support 0~ 5V voltage signal, 0~20mA current
signal, 16-bit / 24-bit ADC support 0~ 10V voltage signal, 0~20mAcurrent signal, choose one of three
options.
⚫Support 6 ways digital input.
⚫Support 4 ways digital output, support 5V or 12V voltage output, drive current 500mA.
⚫Support 2 relay output, shock load 5A 250VAC/30VDC.
⚫Support circuit board high temperature alarm, low temperature hard disk heating.
⚫Abundant indicator light, can quickly check the running state of the machine.
⚫Powerful server platform and client tools.
⚫A variety of media transmission, can be applied to a variety of network environment.
⚫Intelligent bitrate adjustment function to solve the impact of network bandwidth fluctuation in wireless
environment.
⚫A variety of data export methods, USB flash drive local export, remote client download, local network
data export.
⚫The removable hard disk can be directly mounted via USB cable to achieve the quick export and
preview of data in the hard disk on the computer.
⚫Support a variety of video audio recording mode, manual video, timing video, motion detection video
and alarm video.
⚫6 working modes are operate simultaneously: monitoring, video recording, playback, backup, network
and cloud platform.
⚫Support double code stream, main code stream for local storage, to ensure high image quality;
Secondary code stream network real-time transmission, to solve the bandwidth bottleneck problem.
⚫Support HDMI output, HDMI effective resolution up to 3840*2160@30fps.
⚫Local storage support hard disk, SD card, automatic overwrite.

NVR100 User Manual
Address: 11th Floor, A-06 Area, No.370, Chengyi Street, Jimei, Xiamen, Fujian, China.
Website: www.fourfaith.com Tel: [phone] Fax: [phone]
4/ 65
⚫Support alarm video recording protection mechanism, can protect important video.
⚫Stable storage, sudden power failure is not easy to be destroyed.
⚫Power protection function, after power off the machine to ensure the integrity of data preservation.
⚫Low voltage data protection function.
⚫Rich switch mode, timing, normally open mode.
⚫WIFI module support client default and AP mode switching.
⚫Local configuration graphical interface, easy to operate.
⚫Voice intercom function.
⚫Rich configuration device parameters, local UI configuration, local network configuration, client remote
configuration.
⚫The local plug-in supports IE.
⚫Support NTP, built-in RTC, support timing restart, timing switch function.
⚫Support 4G network, WIFI and wired LAN three link network intelligent switching function, can achieve
intelligent switching according to the preset priority.
⚫Support GPS/ Beidou positioning function (optional).
⚫1.3 Product Specifications
Hardware System
Item
Content
CPU
High-performance ARM architecture A7 dual-core @ 1.3 GHz processor
FLASH
64 MB
DDR3
512 MB
Video & Audio Parameters
Item
Content
IPC Video
Capture
Input
8-channel digital HD video input
Maximum 8 channel 1080p digital camera input
Output
1 channel HDMI HD output
Support resolution: 3840*2160@30fps, 1920*1080@30fps,
1280*720@30fps, etc
Video
Decoding
Standard
H. 265 / H. 264 decoding
Network
Video
Access
ONVIF (version 3.0), RTSP, etc

NVR100 User Manual
Address: 11th Floor, A-06 Area, No.370, Chengyi Street, Jimei, Xiamen, Fujian, China.
Website: www.fourfaith.com Tel: [phone] Fax: [phone]
5/ 65
Protocol
Video
Decoding
Performanc
e
4 x 1080p @ 30 fps H. 265 / H. 264 decoding
8 x 720p @ 30 fps H. 265 / H. 264 decoding
Video
Storage
Resolution
12 MP / 8 MP / 6 MP / 5 MP / 3MP / 4MP / 1080P/ UXGA / 720P / VGA/ 4CIF/
2CIF/CIF /QCIF
IPC Audio
Acquisition
Input
8-channel IPC terminal audio input acquisition
Output
8 GUI interface audio playback
Audio
Coding
Standard
G711-alaw, G711-Ulaw, ACC-LC
Audio
Sampling
Rate
The sampling rate is 8KHz and 16KHz
Voice
Intercom
The input
1, 3.5 mm port (electrical level: 2.0 the Vp - p, impedance: 1 k Ω)
The output
1, 3.5 mm port (electrical level: 2.0 the Vp - p, impedance: 1 k Ω)
Audio
Compressio
n Standard
ADPCM
Audio bit
rate
32 Kbps
Voice
Intercom
G726
Storage Parameters
Item
Content
Hard Disk Type
2.5-inch HDD/SSD drive with SATA interface
Hard Drive Capacity
HDD: maximum capacity up to 4TB (optional)
Hard Disk Access
1 hard drive with standard SATA interface, pluggable, support SATA3.0 rate
Hard Disk Heating
1 hard drive with a heating pad
TF Card Type
Standard Micro SD card
TF Card Capacity
128GB (optional)
TF Card Access
1 TF card, standard Micro SD card slot, support hot plug

NVR100 User Manual
Address: 11th Floor, A-06 Area, No.370, Chengyi Street, Jimei, Xiamen, Fujian, China.
Website: www.fourfaith.com Tel: [phone] Fax: [phone]
6/ 65
Wireless Parameters
Item
Content
The Wireless
Module
Industrial wireless module (optional menu module or no module)
Standard
Support TDD LTE/FDD - LTE/EVDO/WCDMA/TD-SCDMA/CDMA1X/GPRS/EDGE
Single mode, multi - mode or full - network communication is optional
The Theory of
Bandwidth
FDD LTE(downlink rate 150Mbps, uplink rate 50Mbps)
TDD LTE(downlink rate 130Mbps, uplink rate 35Mbps)
CDMA2000 1X EVDO Rev A (downlink rate 3.1Mbps, uplink rate 1.8Mbps)
WCDMA(downlink rate 42Mbps, uplink rate 5.76mbps)
TD-SCDMA (downlink rate 4.2Mbps, uplink rate 2.2Mbps)
Transmission Power
The < 23 DBM
Reception
Sensitivity
< - 97 DBM
GPS Parameters
Item
Content
GPS Module
Industrial GPS module (optional Beidou module)
Receiver Type
50 channels
GPSL1 (1575.42mhz) C/A code
Support WAAS and EGNOS, MSAS, GAGAN
Maximum Update
Rate
5 Hz
Positioning
Accuracy
Location: 2.5m CPE
SBAS: 2.0 m CPE
Sensitivity
Tracking: - 160 dBm
Recapture: -160 dBm
Cold start: -146 dBm
WIFI Parameters
Item
Content
Standard and
Frequency Band
Support IEEE 802.11b /g/n, 2.4GHz, 1T1R
The Theory of
Bandwidth
IEEE 802.11b/g: up to 54Mbps
IEEE 802.11n: up to 150Mbps
Security Encryption
Support WEP, WPA, WPA2 and other encryption methods

NVR100 User Manual
Address: 11th Floor, A-06 Area, No.370, Chengyi Street, Jimei, Xiamen, Fujian, China.
Website: www.fourfaith.com Tel: [phone] Fax: [phone]
7/ 65
Transmission Power
20dBm (11n), 21.5dBm (11g), 26dBm (11b)
Reception
Sensitivity
< - 72 dBm @ 54Mbps
Application
Support client mode, AP mode
Other External Interfaces and Indicators
Number
Item
Content
1
WAN
1 RJ45 10M/100M/1000M adaptive Ethernet port
2
LAN
8 RJ45 10M/100M adaptive Ethernet port, support POE power AF&AT
(optional)
3
Serial
Interface
3, standard RS485/RS232 serial interface time division multiplexing, support
for expansion
4
The USB
Interface
2, USB2.0
5
Digital Input
6
6
Digital
Output
4 channels, 2 channels support relay output
7
ADC
Acquisition
Interface
8, support 12 bits, 16 bits, 24 bits ADC (choose one of three) support 0~ 5V
voltage signal, 0~20mAcurrent signal
8
System
Reset Key
1, restore the factory default, long press 10 seconds
9
Indicator
Light
POWER: Power indicator
SYS: System operation indicator
WLAN: Ethernet interface indicator light
ERROR: Video ERROR alarm indicator
HDD: Hard drive indicator
ONLINE: 4G status indicator
Power Supply
Item
Content
Power Interface
Terminal Block
Power Supply Range
DC 9 ~ 60V
Power Consumption
Non-POE < 24 W, POE < 120 W
Standby Current
< 10 mA (12 V)

NVR100 User Manual
Address: 11th Floor, A-06 Area, No.370, Chengyi Street, Jimei, Xiamen, Fujian, China.
Website: www.fourfaith.com Tel: [phone] Fax: [phone]
8/ 65
Physical Properties
Item
Content
Casting
Metal, IP30
Dimensions
182 x 152 x 45mm (Excluding antenna and mounting)
Weight
1.5kg (Excluding antenna and mounting parts)
The other Parameters
Item
Content
Working Temperature
- 10 ~ + 75°C ( + 14 ~ + 167 ℉)
Storage Temperature
- 40 ~ + 85°C ( - 40 ~ 185 ℉)
Working Humidity
90% (non-condensing)
Interface Pin Definition
Panel indicator light (MODE screen printing will be modified)
Number
Item
Content
1
Indicator
Light
POWER Indicator: POWER on
SYS: Video system power indicator: standby is off, and the video system is
always on
WLAN: Gigabit network indicator light: no WLAN connection off, access to
WLAN port light
ERROR: Video ERROR indicator light: the video will go out if there is no
ERROR, and the video will flash if there is an ERROR
HDD: Indicator of hard disk working status: it is always on when the hard disk
is not connected, and the read-write data is flashing
Online: module working status indicator light: the module will be off if it is not
Online or not connected to the Internet

NVR100 User Manual
Address: 11th Floor, A-06 Area, No.370, Chengyi Street, Jimei, Xiamen, Fujian, China.
Website: www.fourfaith.com Tel: [phone] Fax: [phone]
9/ 65
The Front Panel
Stitch Definition
Number
Identification
Definition
Instructions
1
Grounding
Screw
Pin 1: GND
Access to the chassis.
2
Reset
Pin 1: RESET
Parameters restore
factory default. Press
this button for more
than 10 seconds to
restore factory default
parameters of NVR
device.
3
Double Block
1
Pin 1:
DEBUG_RS232_
RX
Pin 2:
DEBUG_RS232_T
X
Pin 3:
CPU_RS232_RX
Pin 4:
CPU_RS232_TX
Pin 5:
CPU_RS485_B -
Pin 6:
Pin 1/2: Debug
RS232, main CPU
debugging interface.
Pin 3/4/5/6 :
CPU_RS232 and
RS485 hydraulic and
environmental version
sensor acquisition,
internal multiplexing
transmission, RS485
can be connected to
the head.
Pin 11/12/13/14:

NVR100 User Manual
Address: 11th Floor, A-06 Area, No.370, Chengyi Street, Jimei, Xiamen, Fujian, China.
Website: www.fourfaith.com Tel: [phone] Fax: [phone]
10 / 65
CPU_RS485_A -
Pin 7: GND
Pin 8: GND
Pin 9: GND
Pin 10: GND
Pin 11:
MCU_RS232_RX
Pin 12:
MCU_RS232_TX
Pin 13:
MCU_RS485_B -
Pin 14:
MCU_R485_A +
Pin 15: GND
Pin 16: GND
Pin 17:
MCU_RS232_RX
Pin 18:
MCU_RS232_TX
Pin 19:
MCU_RS485_B -
Pin 20:
MCU_R485_A +
MCU_RS232 and
RS485 hydraulic and
environmental version
sensor collection.
Pin 17/18/19/20:
MCU_RS232 and
RS485 hydraulic and
environmental version
sensor collection.

NVR100 User Manual
Address: 11th Floor, A-06 Area, No.370, Chengyi Street, Jimei, Xiamen, Fujian, China.
Website: www.fourfaith.com Tel: [phone] Fax: [phone]
11 / 65

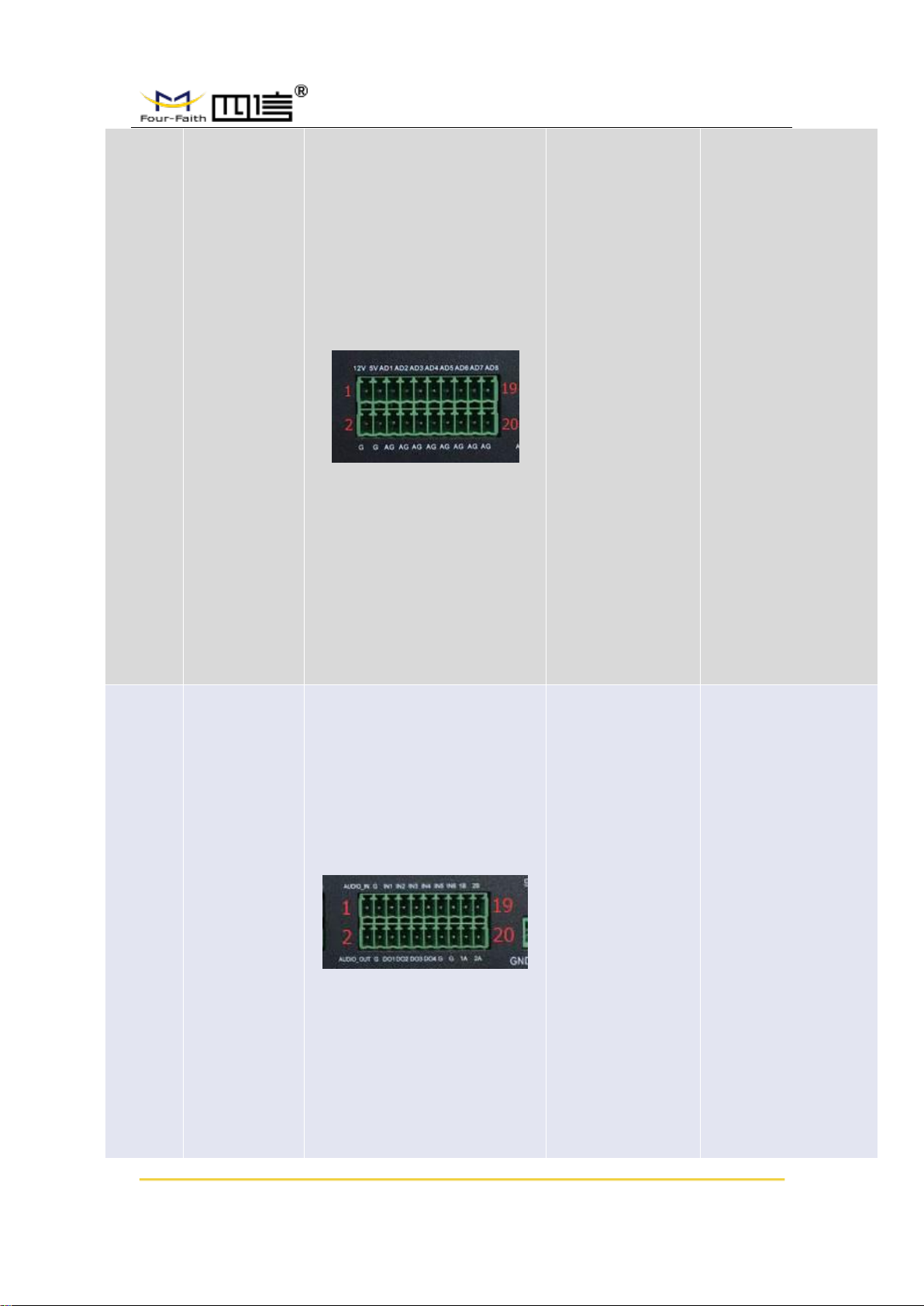

4
Double Block
2
Pin 1: 12 V0_OUT
Pin 2: GND
Pin 3: 5 V0_OUT
Pin 4: GND
Pin 5: AD1
Pin 6: GND
Pin 7: AD2
Pin 8: GND
Pin 9: AD3
Pin 10: GND
Pin 11: AD4
Pin 12: GND
Pin 13: AD5
Pin 14: GND
Pin 15: AD6
Pin 16: GND
Pin 17: AD7
Pin 18: GND
Pin 19: AD8
Pin 20: GND
Pin 1: +12V power
output, maximum
output current 0.5A.
Pin 3: +5V power
output, maximum
output current 0.5A
Pin 5/7/9/11/13/17/19:
ad1-8 input
Buffered 12 - or 24-bit
analog input.
0 ~ 5V voltage signal
input
4 ~ 20mA current
signal input (optional)
5
Double Block
3
Pin 1: AUDIO_IN
Pin 2:
AUDIO_OUT
Pin 3: GND
Pin 4: GND
Pin 5: DIN1
Pin 6: DOUT1
Pin 7: DIN2
Pin 8: DOUT2
Pin 9: DIN3
Pin 10: DOUT3
Pin 11: DIN4
Pin 12: DOUT4
Pin 13: DIN5
Pin 14: GND
Pin 15: DIN6
Pin 16: GND
Pin 1: linear audio
input，the linear level,
impedance: 1KΩ
Pin 2: linear audio
output, level: 2.0 the
Vp-p impedance: 1KΩ
Pin 5/7/9/11/13/15:
Optical isolation of
digital input, active
low level
Pin 6/8/10/12:
Digital output, single
output power supply
standard 5V (default)
or 12V, output
maximum current

NVR100 User Manual
Address: 11th Floor, A-06 Area, No.370, Chengyi Street, Jimei, Xiamen, Fujian, China.
Website: www.fourfaith.com Tel: [phone] Fax: [phone]
12 / 65
Pin 17: RELAY1B
Pin 18: RELAY1A
Pin 19: RELAY2B
Pin 20: RELAYAB
100mA.
Pin 17/18: The first
relay output
Pin 19/20: The
second relay.
Maximum switching
voltage:
30VDC/250VAC
Maximum switching
current: 5A
Maximum switching
power: 150W/1250VA
6
DC Input
Pin 1: GND
Pin 2: Power
DC input voltage
range: 9V~60V, note
the POE version must
use A 48V power
adapter, adapter can
choose 48V 1.25A or
48V 2.5A
Rear Panel:
The Interface Definition

NVR100 User Manual
Address: 11th Floor, A-06 Area, No.370, Chengyi Street, Jimei, Xiamen, Fujian, China.
Website: www.fourfaith.com Tel: [phone] Fax: [phone]
13 / 65
Number
Identification
Definition
Instructions
1
LAN1-8
Interface
Lan1-8 webcam
input interface,
gateway address
192.168.63.1
10M/100M adaptive
Ethernet port,
support POE power
AF&AT (Optical)
2
HDMI
HDMI
Video output,
standard HDMI
interface
3
WLAN + 2
USB2. 0
WLAN
USB
RJ45
10M/100M/1000M
adaptive Ethernet
port.
USB2.0: supports
mouse and USB
flash drive access.
4
Antenna
GPS
4G
WIFI
GPS: Directional
antenna.
4G: Main 3G/4G
antenna.
WIFI: WIFI
antenna.
5
Micro
SD&SIM/UIM
Micro SD
SIM/UIM

NVR100 User Manual
Address: 11th Floor, A-06 Area, No.370, Chengyi Street, Jimei, Xiamen, Fujian, China.
Website: www.fourfaith.com Tel: [phone] Fax: [phone]
14 / 65

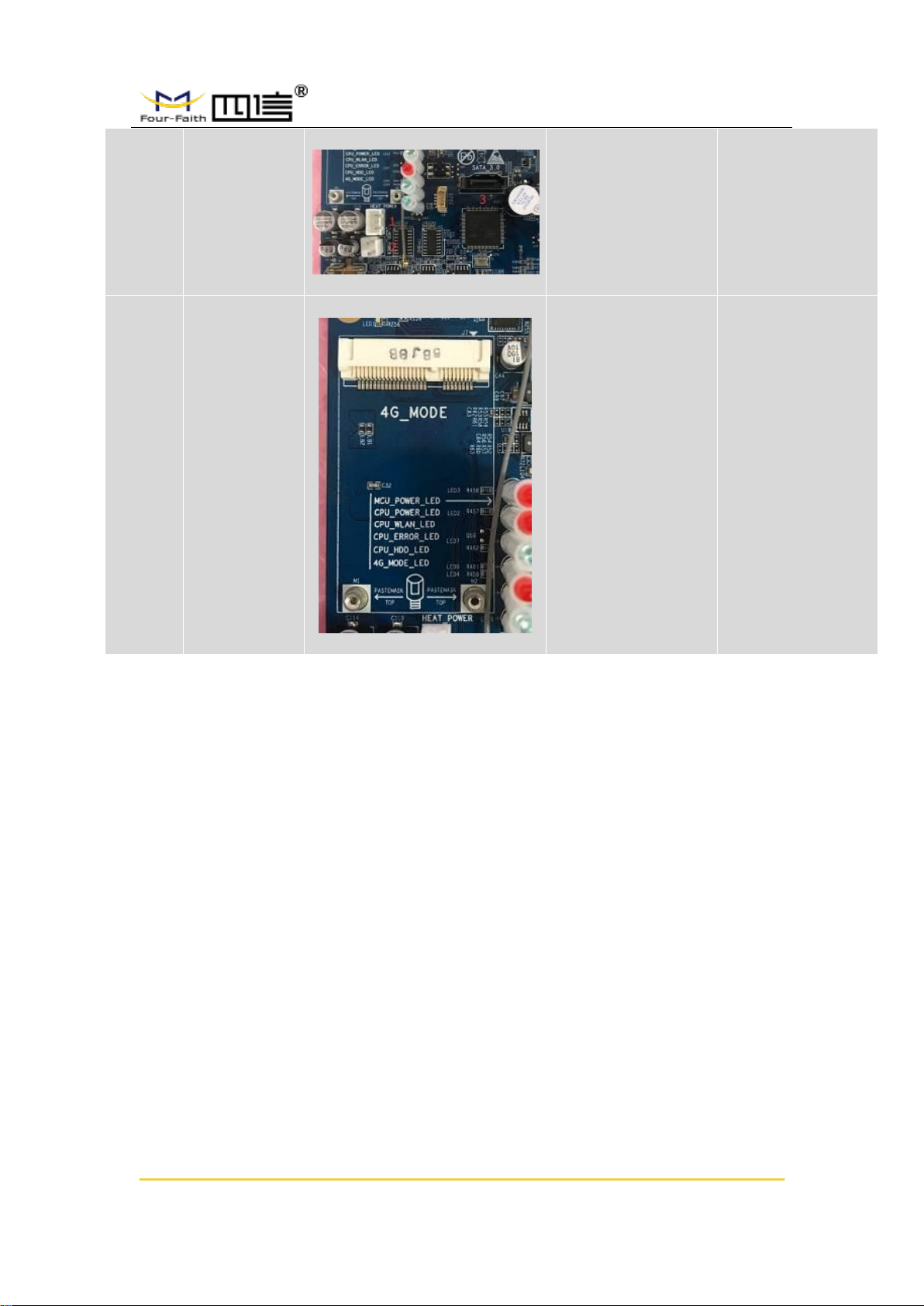

6
Hard Disk
SATA heating chip
power interface
SATA hard disk
power interface
SATA data interface
7
4G Module
4G Module

NVR100 User Manual
Address: 11th Floor, A-06 Area, No.370, Chengyi Street, Jimei, Xiamen, Fujian, China.
Website: www.fourfaith.com Tel: [phone] Fax: [phone]
15 / 65
Chapter 2 Installation of Device
2.1 Power Supply Installation
Remove the power adapter and power terminal from the package, install the positive and
negative terminals of the power adapter on the power terminal in the correct access
mode:
2.2 Hard Disk Installation
1. Disassemble the machine shell and install M3*25+6 yin-yang copper column (in the
accessories) at the shown position:
2. Fixing of hard disk and heating gasket.
