Four Seasons FS200 User manual

FS200M 8.15 /R3
By
By
Owner’ s Manual

WELCOME TABLE OF CONTENTS
CONGRATULATIONS on your
purchase of the Four Seasons™
combination heater/humidifier/
air purifier/fan! This amazing
product combines all the
benefits and comforts of a
space heater, a humidifier, an
air purifier and fan into one
space-saving and money-saving
product. You’ll soon agree that
the Four Seasons™is one product
you can’t live without!
KEEP THIS PRODUCT MANUAL FOR
FUTURE REFERENCE.
IMPORTANT INSTRUCTIONS 1
PRODUCT FEATURES 2
PRODUCT SPECIFICATIONS 2
PRODUCT OVERVIEW 3
ASSEMBLY AND USE 4
PREPARING FOR OPERATION 4
USING THE FOUR SEASONS™UNIT 5
CLEANING AND MAINTENANCE 6
REPLACING HEPA FILTER 5
CLEANING THE WICK FRAME 6
CLEANING THE WATER TANK 7
TROUBLE SHOOTING 7
ONE YEAR LIMITED WARRANTY 8

1 2
READ AND SAVE THESE
IMPORTANT INSTRUCTIONS
WARNING: RISK OF ELECTRIC SHOCK
When using electrical appliances, basic precautions should always be
followed to reduce the risk of fire, electric shock, and injury to persons,
including the following:
Read all instructions before using this Four Seasons™unit.
1. Extreme caution is necessary when the Four Seasons™unit is used near children or invalids
and whenever the unit is left operating and unattended. Always supervise children and keep
them away from the unit.
2. Do not operate any Four Seasons™unit with a damaged cord or plug or after the unit
malfunctions, or has been dropped or damaged in any manner. Discard the Four Seasons™
unit or return it to an authorized service facility for examination and/or repair.
3. Do not use outdoors.
4. This Four Seasons™unit is not intended for use in bathrooms, laundry areas or similar indoor
locations near water. Never place the Four Seasons™unit in a location where it might get wet or
fall into a bathtub or other water source.
5. Do not run the cord under carpeting or cover cord with throw rugs, runners, or similar
coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic
area and where it will not be tripped over.
6. To disconnect Four Seasons™unit, turn all controls off, then remove plug from outlet. Do not
unplug by pulling on the cord. Do not pull the plug from outlet when unit is turned on.
7. This product is intended for household use only and not for commercial
or industrial use.
8. Always unplug the power cord from outlet before opening or filling the water tank. When
filling the water tank, use extreme caution to ensure that water is poured only into the water
tank and that the rest of the Four Seasons™unit does not get wet. Never plug in the unit if it
gets wet.
9. If the power cord is damaged, it must be replaced by the manufacturer or a
qualified technician.
10. Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may
cause an electric shock, fire or damage the Four Seasons™unit.
11. This product operates at 120VAC, 60Hz only.
12. To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on
soft surfaces, like a bed, where openings may become blocked.
13. Always plug the Four Seasons™unit directly into a wall outlet/receptacle. Never use with an
extension cord or relocatable power tap (outlet/power strip).
14. CAUTION – This heater is hot when in use. To avoid burns, do not let bare skin touch the hot
surfaces of the unit. Use the back handle when moving the Four Seasons™unit. Keep combus-
tible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least
3 feet (0.91m) from the font of the heater and keep them away from the sides and rear.
15. This heater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline,
paint, or flammable liquids are used or stored.
16. Use this heater only as described in this manual. Any other use not recommended by the
manufacturer will void warranty and may cause fire, electric shock, or injury to persons.
17. Do not overfill the water tank as this may cause the risk of electric shock.
18. This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible
for their safety.
19. Children should be supervised to ensure that they do not play with the appliance.
20. If the supply cord is damaged, it must be replaced by the manufacture or its service agent
or a similarity qualified person in order to avoid a hazard.
21. WARNING: In order to avoid overheating, do not cover the heater.
22. The heater must not be located immediately below a socket-outlet.
23. Do not use this heater in the immediate surrounding of a bath, a shower
or a swimming pool.
24. WARNING: care should be taken when using the appliance due to the emission
of hot water vapor.
25. Appliance has a polarized plug (one blade is wider than the other). To reduce the risk of
electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug
does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified
electrician. Do not attempt to defeat this safety feature.
26. WARNING: To reduce the risk of fire or electric shock, do not use this fan with any
solid-state speed control device.
SAVE THESE INSTRUCTIONS!
PRODUCT FEATURES
• Durable, washable cloth wick
• LED low water level indicator light
• 3 independent controls settings (Heater, Humidifier+Fan, Heater+Humidifier)
• 3 fan speed settings and 3 heating power levels (LOW, MEDIUM AND HIGH)
• Self-regulating PTC heater and over-heat protection
• Evaporative humidification eliminates the issue of “white powder”
• Tip-over sensor for smart automatic shutoff control for the
whole unit
• Empty water sensor for smart automatic power shutoff for the humidifier
• HEPA filter effectively removes, smoke, pollen, dust, animal dander,
dust mites from the air.
PRODUCT SPECIFICATIONS
• Model: FS200
• Voltage: 120 VAC
• Power usage: 1500W
• Capacity of
Humidification: 2.2 gallons /day
• Volume of air flow: 80cfm at high setting
• Dry weight: 10.6 lbs.
• Product measurements: 9” x 11” x 26”
• Thermally protected

3 4
1. Control panel
2. Humidifier water sensor
3. Humidifier wick frame
4. Wick frame release tab
5. Water tank
6 HEPA cover frame
7. Humidifier wick
8. Air outlet grill
9. Fan speed switch
10. Refill light
11. Heater + Humidifier
12. Humidifier + Fan
13. Heater only
14. Function knob
15. Power button
16. Heater knob
17. HEPA Filter
PRODUCT OVERVIEW
CONTROL PANEL
ASSEMBLY AND USE
WARNING: Unplug the Four Seasons™unit
prior to filling the tank with water
PREPARING FOR OPERATION
1. Open the packing box and take out the
Four Seasons™unit.
2. Turn the unit upright for operation.
3. To remove the humidifier wick frame, press the
release tab and pivot the frame outwards and
then lift it out of the unit. See Figure 1.
NOTE: You must remove the wick frame
before you can remove the tank.
4. Remove the tank by sliding it out of the unit.
See Figure 2.
5. Fill the water tank with clean water to
maximum water level marking on tank.
CAUTION: Do not overfill the tank.
Use extreme caution to ensure that water is
poured only into the water tank and that the
rest of the unit stays dry. Never plug in the
unit if it gets wet.
6. After filling, put the tank back into the main
body and replace the humidifier wick frame.
WARNING: This heater is equipped with a
temperature limiting thermostat. If the unit
should sense an overheat condition, the
element will stop heating. It can only resume
operation when user manual reset the unit.
TO RESET HEATER: Unplug the unit and
wait 10 minutes for the unit to cool down,
then plug unit back and follow the“USING
THE FOUR SEASONS™” instruction described
in this manual.
9
10
11
12
13
14
16
15
Figure 1
Figure 2
8
1
4
3
6
7
5
2
17

5 6
USING THE Four Seasons™
1. Plug the unit into an electrical outlet and press the power button
to turn on your Four Seasons™unit.
2. Turn the mode knob to select the desired function. You may
choose to use either the heater, the humidifier, or the heater and
humidifier together.
Note: No matter which mode you select, the HEPA air purifier feature
will always be active.
3. Once you have chosen the mode you can control how much air passes
through your Four Seasons™unit by sliding the fan speed button to low,
medium or high as you prefer.
4. When you select either the heater mode or the heater + humidifier mode
you may control the amount of heat your Four Seasons™produces.
Choose low, medium or high heat output.

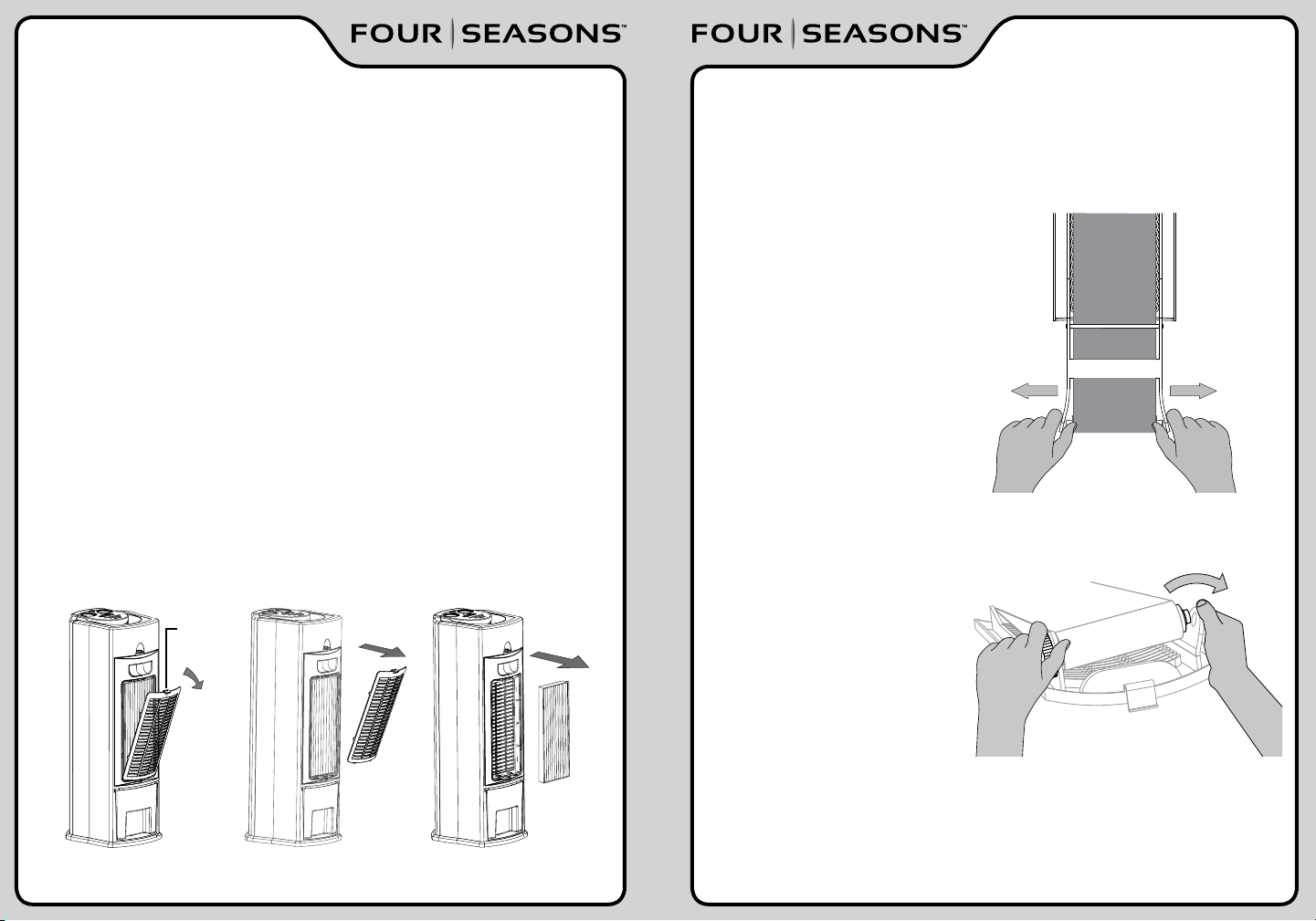

REPLACING THE HEPA FILTER
1. Make sure unit is turned off and unplugged. To remove the HEPA cover
frame, press the release tab and pull the frame outwards. See Figure 3A/B.
2. Remove the HEPA filter by pulling the filter out from the unit.
See Figure 4.
3. Insert a new HEPA filter, then place HEPA cover frame back into position.
CLEANING AND MAINTENANCE
WARNING: Always unplug the Four Seasons™unit prior to cleaning
or other maintenance.
CLEANING THE HUMIDIFIER WICK FRAME:
1.Remove the humidifier wick
frame as explained in the
“ASSEMBLY AND USE”
section of this manual.
2.With the humidifier wick
frame lying in front of you,
gently bend each side of the
wick frame to release the
bottom roller. See Figure 5.
3.Release the top roller from
the frame by carefully
bending back the frame
bracket and removing the
roller axle from the bracket
hole. See Figure 6. Remove
wick from rollers.
4.To clean the wick you may
wash it in your washing
machine on a gentle cycle or
use a mild detergent to wash
by hand. Rinse with clean
water. Be sure it is completely
dry before reinserting.
5.Reinsert the humidifier wick
into the rollers and then
insert the humidifier wick
frame into the unit.
Figure 5
Figure 6
Figure 3B Figure 4Figure 3A
Release
Tab

7 8
Contact Info for Warranty Service:
Four Seasons™ by Envion®
PO Box 9159 / Van Nuys, CA / 91409-8291
1.800.875.8577
[email protected]
www.envionproducts.com
©2015 Envion, LLC. All Rights Reserved.
U.S. Patent No. D574,475, EU Patent No. 996285-001,
Hong Kong Patent No. 801939.0, Japan Patent No. 1358544.
Additional patents pending.
CLEANING THE WATER TANK:
1.Remove the humidifier wick frame as shown previously.
2.Remove the water tank as demonstrated earlier in this manual.
Clean the tank with water and mild detergent.
3.Rinse thoroughly with clean water before reinstalling. Hand wash only.
STORAGE
Loop the cord around 6-8 inches and wrap with a cord tie. Place the unit in
the original box and store in a cool, dry place.
WARNING: Any servicing other than as described in this manual should
be performed by an authorized service representative. Do not
wash the tank in the dishwasher.
TROUBLE SHOOTING
If you are having problems with your Four Seasons™, please refer to the
following suggestions:
Problem: My Four Seasons™unit will not operate.
Suggestions: • Make sure the power button is pressed and
in the down position.
• Make sure the unit is plugged into a functioning
power outlet.
• Verify the wick frame and the inlet grill are
properly installed.
Problem: My Four Seasons™unit is not blowing as much air as it
used to.
Suggestions: • Verify that the fan speed is set correctly.
• Verify that nothing is blocking the air inlet grill
or outlet grill.
Problem: My Four Seasons™ unit’s humidifier feature isn’t
working.
Suggestions: • Verify there is water in the tank
• Verify the humidifier water sensor is floating
in the water after filling tank.
• Make sure that the water tank is fully inserted.
ONE YEAR LIMITED WARRANTY
Your Four Seasons™unit is warranted to be free from defects in materials
and workmanship for one year from the original purchase date. Should
the product have a defect in materials or workmanship, we will repair or
replace it without charge to you (a shipping and processing fee will apply).
To obtain service under warranty, simply call our customer service center
toll-free at 1.800.875.8577.
This warranty does not cover damage caused by accident, misuse or any
use other than as intended and described in this product manual, or
damage resulting from failure to maintain and clean this product as
specified in this product manual. This warranty applies only to the original
purchaser of the Four Seasons™unit.
ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT, INCLUDING
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE WARRANTY
PERIOD, AND NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL
APPLY AFTER THIS PERIOD.
Some states do not allow limitations on the duration of implied
warranties, so the above limitation may not apply to you. While this
warranty gives you specific legal rights, you may also have other
rights which may vary from state to state.
