FOVNO RS-03B3 User manual

吸盘车顶架说明书
Sucker Bike Rack Instructions

09
Name Text Rear wheel
suction foot
One
-bike
rack
Accessories
×1×1
×1
×1
×2
×3
M6×18 Screw ×5 M6 Locknut ×5
Quick release
lever ×2
Fork clamp ×2 Lubricant ×1
4mm Allen key×1 10mm Wrench ×1
Microfibre
cleaning
cloth ×1
Adapter ×4
25×4cm Crank strap ×2
M6×18 Screw ×7 M6 Locknut ×7
Quick release
lever ×3
Fork clamp ×3 Lubricant ×1
4mm Allen key ×1 10mm Wrench ×1
Microfibre
cleaning
cloth ×1
Adapter ×6
25×4cm Crank strap ×3
M6×18 Screw ×3 M6 Locknut ×3
Quick release
lever×1
Fork clamp ×1 Lubricant ×1
4mm Allen key ×1 10mm Wrench ×1
Microfibre
cleaning
cloth ×1
Adapter ×2
25×4cm Crank strap ×1
Two
-bikes
rack
Three
-bikes
rack
Protection cap ×4
protection cap ×6
protection cap ×8

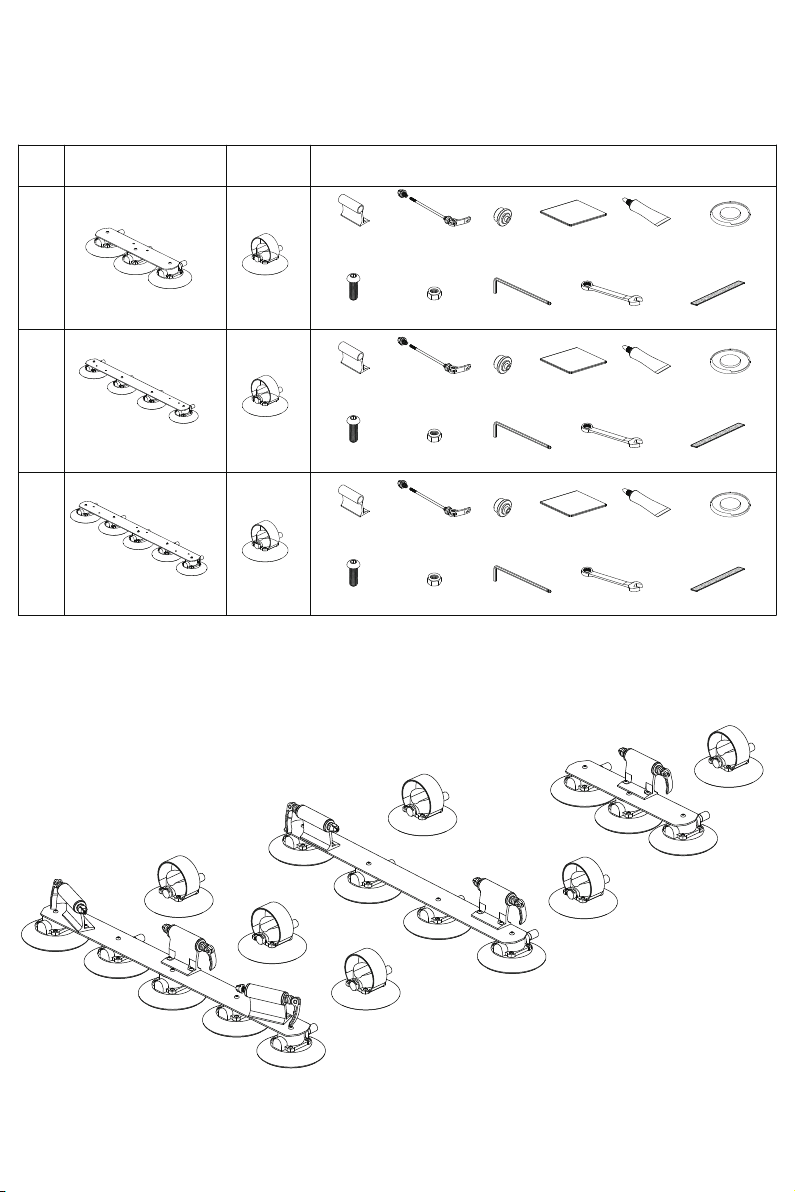

Product Specs and Parts
Product Display
Three-bikes rack
Two-bikes rack
One-bike rack
Product List

10
2. Choose the right front
fork adapter
3. Install the front rack on
the flat place
4. Put the rear suction foot
on
6. Remove the front bike
wheel
7. Fix the bike fork on fork
clamp
8. Install the rear suction
foot
Installation Steps
1. Install fork clamp 5. Fix the crank with crank
straps
9. Fix the rear wheel on
the rack
Part Name
AdapterScrewFork clamp
Suction foot Locknut
Text Cylinder rod
Quick release lever

11
Fork Clamp Installation

12

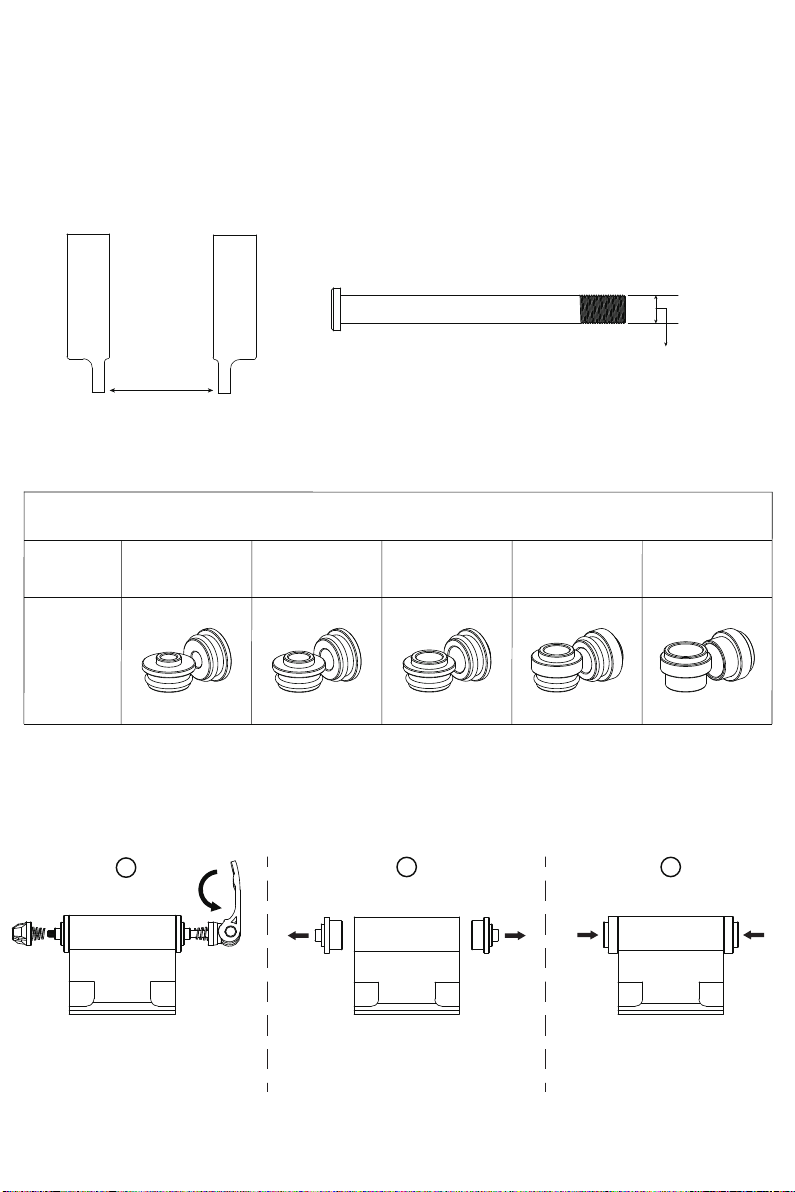

The diameter of the thru-axle
（9/12/15/20mm）
Adapter installation method
Adapter specification
Accessories Selection
The roof rack comes fitted adaptors to suit quick release type fork. If the front fork is the thru-axle
please measure the distance of the fork opening and the diameter of the thru-axle. Choose the
appropriate adapter from the following five specifications adapter (to be purchased separately).
Installation method：
Specs 9*100mm 12*100mm
Alternative axle adaptors
15*100mm 15*110mm 20*110mm
Model
Length
(100/110mm)
Remove the quick release lever
adapter of the fork clamp
Install the axle adapter to the
front clamp
Remove the quick release
lever of the fork clamp
2 3
1

13
Correct
Error
Crank fixing
· To avoid the cranking or bumping of the cranks in the process of
driving, the crank should be fixed to the bike frame with crank strap.
· The crank should be fixed before the bike is put on the rack, to
prevent the crank from rotating and scratching the paint.
Choose the right place
· The front rack should be mounted on a flat place, do not install the rack on the advertising
area, on the glass, or on the seam.
· Place the bike handlebar forward when fixing bike on the car roof.
Rack installation method
· Clean up the car roof and suction foot with water and towel.
· Wipe the suction foot and car roof surface with a clean wet towel, prevent the roof rack
from sliding o due to accumulated water. Then put the roof rack on the chosen location,
press the suction foot vertically against the car roof with one hand while the other hand
pushes the cylinder rod to extract the air until the white line is in the pump. And make sure
there is no obvious sign of rebound from the cylinder rod. Remove the bike front wheel then
lock the front fork on the roof rack.(The angle of the front fork clamp on both sides of
Three-bike rack can be adjusted depending on the bike model to avoid interference between
the handlebars.)
Installation and Removal
Press the cylinder rod Install the front fork to the fork clamp

14
Rear suction foot installation method
Clean up the suction foot and car surface with wet towel, be careful not to leave too much water to
avoid the suction foot sliding off. Put it on the chosen place. Then press the suction foot vertically
against the car roof with one hand while the other hand pushes the cylinder rod to extract the air
until the white line is in the pump and make sure there is no obvious sign of rebound from the
cylinder rod.
Place the rear wheel on the suction foot and bind the crank strap.
Remove the roof rack
After using, remove it from the edge of the suction foot by hand to allow air to enter the suction foot.
1. Place cylinder rod toward the rear of the vehicle to avoid the wind and dust entering into the cylinder rod.
Attention
2. Check carefully whether the front fork of the bicycle is firmly locked with the fork clamp of the roof rack.
3. Make the bike parallel to the car body to reduce wind resistance.
4. Equipped with standard accessories, please purchase separately if you need non-standard accessories.
Press the cylinder rod Fix the rear wheel Vertical placed

15
Attention

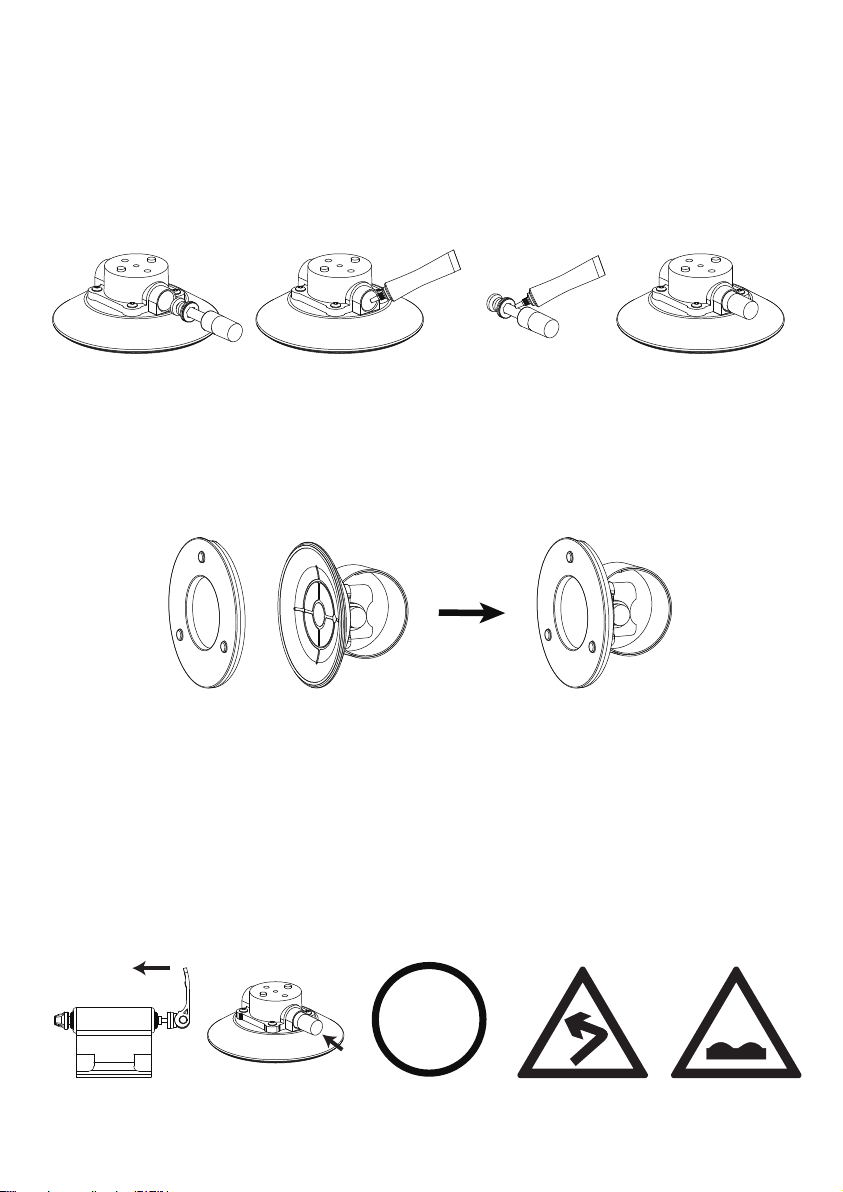

Cylinder maintenance
Cylinder maintenance oil is used to maintain the cylinder, make the cylinder more lubricated and
seal better. There is no regular time for the cylinder maintenance. If it is used frequently, please check
it once a month. If not, please check and ensure that the cylinder is lubricated before use. Due to the
transport control issue, the maintenance oil is not included in the package, please find a normal
silicone oil at local market or bike shop to replace it.
Suction foot protection
Each suction foot is equipped with a protective cover, and the suction foot should be covered with
the protective cover after each use.
Attention
Please stop to check the roof rack about every 4 hours, Ensure that the bicycle front fork and the fork
clamp are not loose, and ensure that there is no sign air leakage from the suction foot . (If the white
line is outside of the pumpwhich means the suction is leaking, youshould push the cylinder rod until
it comes into pump.)
The speed in normal roads should not exceed the speed limit. The speed in highways should not
exceed 120km/h. Please slow down when cornering and drive slowly in bumpy roads.
1 2 3 4
120
Check for looseness
Check the white line 120km/h
Speed limit
Sharp turn Bumpy road

16
