Foxconn R10-A1 User manual

AHD1S Series
Motherboard
User’s Manual

Statement:
This manual is the intellectual property of Foxconn, Inc. Although the information
in this manual may be changed or modied at any time, Foxconn does not obligate
itself to inform the user of these changes.
Trademark:
All trademarks are the property of their respective owners.
Version:
User’s Manual V1.0 for AHD1S Series motherboard.
Symbol description:
Caution : refers to important information that can help you to use motherboard
better, and tells you how to avoid problems.
Warning : indicating a potential risk of hardware damage or physical injury may
exist.
WEEE:
The use of this symbol indicates that this product may not be treated as household
waste. By ensuring this product is disposed of correctly, you will help prevent potential
negative consequences for the environment and human health, which could otherwise
be caused by inappropriate waste handling of this product. For more detailed
information about recycling of this product, please contact your local city ofce, your
household waste disposal service or the shop where you purchased this product.
More information:
If you want more information about our products, please visit Foxconn’s
website: http://www.foxconnchannel.com
CAUTION
!
W
A
R
N
I
N
G
!
© All rights reserved.
All trade names are registered trademarks of respective manufacturers listed.
All images are for reference only, please refer to the physical motherboard for specic features.

Declaration of conformity
HON HAI PRECISION INDUSTRY COMPANY LTD
66 , CHUNG SHAN RD., TU-CHENG INDUSTRIAL DISTRICT,
TAIPEI HSIEN, TAIWAN, R.O.C.
declares that the product
Motherboard AHD1S/AHD1S-K
is in conformity with
(reference to the specication under which conformity is declared in
accordance with 89/336 EEC-EMC Directive)
■ EN 55022:1998/A2: 2003 Limits and methods of measurements of radio
disturbance characteristics of information technology
equipment
■ EN 61000-3-2/:2000 Electromagnetic compatibility (EMC)
Part 3: Limits
Section 2: Limits for harmonic current emissions
(equipment input current <= 16A per phase)
■ EN 61000-3-3/A1:2001 Electromagnetic compatibility (EMC)
Part 3: Limits
Section 2: Limits of voltage uctuations and icker in low
voltage supply systems for equipment with rated current
<= 16A
■ EN 55024/A2:2003 Information technology equipment-Immunity
characteristics limits and methods of measurement
Signature : Place / Date : TAIPEI/2011
Printed Name : James Liang

Declaration of conformity
Trade Name: FOXCONN
Model Name: AHD1S/AHD1S-K
Responsible Party: PCE Industry Inc.
Address: 458 E. Lambert Rd.
Fullerton, CA 92835
Telephone: [phone]
Facsimile: 714-738-8838
Equipment Classication: FCC Class B Subassembly
Type of Product: Motherboard
Manufacturer: HON HAI PRECISION INDUSTRY
COMPANY LTD
Address: 66 , CHUNG SHAN RD., TU-CHENG
INDUSTRIAL DISTRICT, TAIPEI HSIEN,
TAIWAN, R.O.C.
Supplementary Information:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions : (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Tested to comply with FCC standards.
Signature : Date : 2011

Installation Precautions
Please carefully read the following procedures to install your computer :
■ It is suggested to select high-quality, certied fans in order to avoid damage
to the motherboard and CPU due to high temperature. Never turn on the
computer if the CPU fan is not properly installed.
■ We cannot guarantee that your system can operate normally when your
CPU/Memory is overclocked. Normal operation depends on the overclocking
capacity of your device.
■ If there is any, when connecting USB, audio, 1394a, RS232 COM, IrDA or
S/PDIF cables to the internal connectors on the motherboard, make sure
their pinouts are matching with the connectors on the motherboard. Incorrect
connections might damage the motherboard.
■ When handling the motherboard, avoid touching any metal leads or connec-
tors.
■ If there is a PCI Express x16 graphics card installed in your system, we
recommend using a 24-pin ATX power supply to get the best performance.
■ Before turning on the power, please make sure the power supply AC input
voltage setting has been congured to the local standard.
■ To prevent damage to the motherboard, do not allow screws to come in contact
with the motherboard circuit or its components. Also, make sure there are no
leftover screws or metal components placed on the motherboard or within the
computer casing.
■ If you are uncertain about any installation steps or have a problem related to
the use of the product, please consult a certied computer technician.
CAUTION
!
■ Electrostatic discharge (ESD) is the sudden and momentary electric current
that ows between two objects at different electrical potentials. Normally it
comes out as a spark which will quickly damage your electronic equipment.
Please wear an electrostatic discharge (ESD) wrist strap when handling
components such as a motherboard, CPU or memory.
■ Ensure that the DC power supply is turned off before installing or removing
CPU, memory, expansion cards or other peripherals. It is recommended to
unplug the AC power cord from the power supply outlet. Failure to unplug
the power supply cord may result in serious damage to your system.
W
A
R
N
I
N
G
!

TABLE OF CONTENTS
Chapter 1 Product Introduction
Product Specications.................................................................. 2
Layout...........................................................................................4
Back Panel Connectors................................................................ 5
Chapter 2 Installation

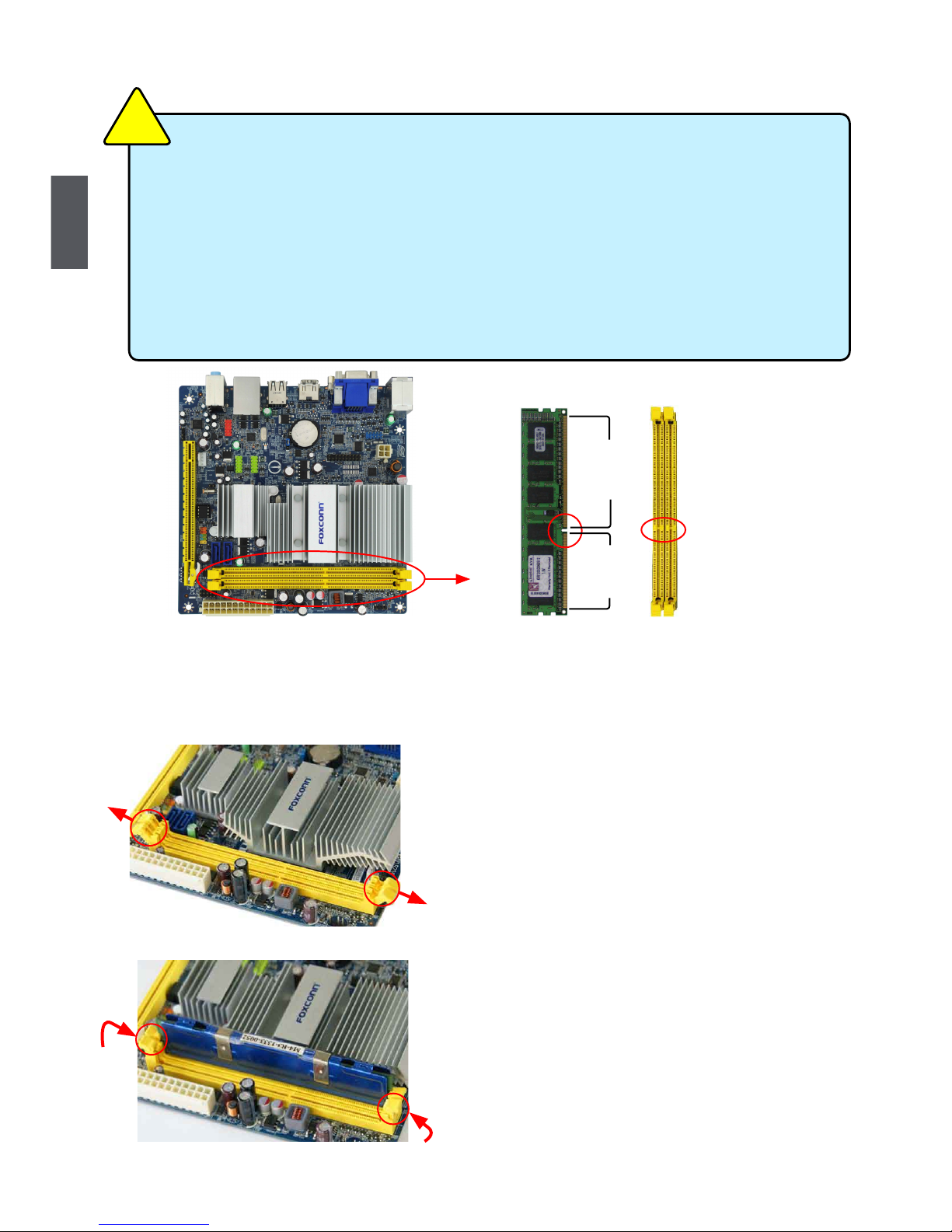

Install the Memory ........................................................................ 8
Install an Expansion Card ............................................................ 9

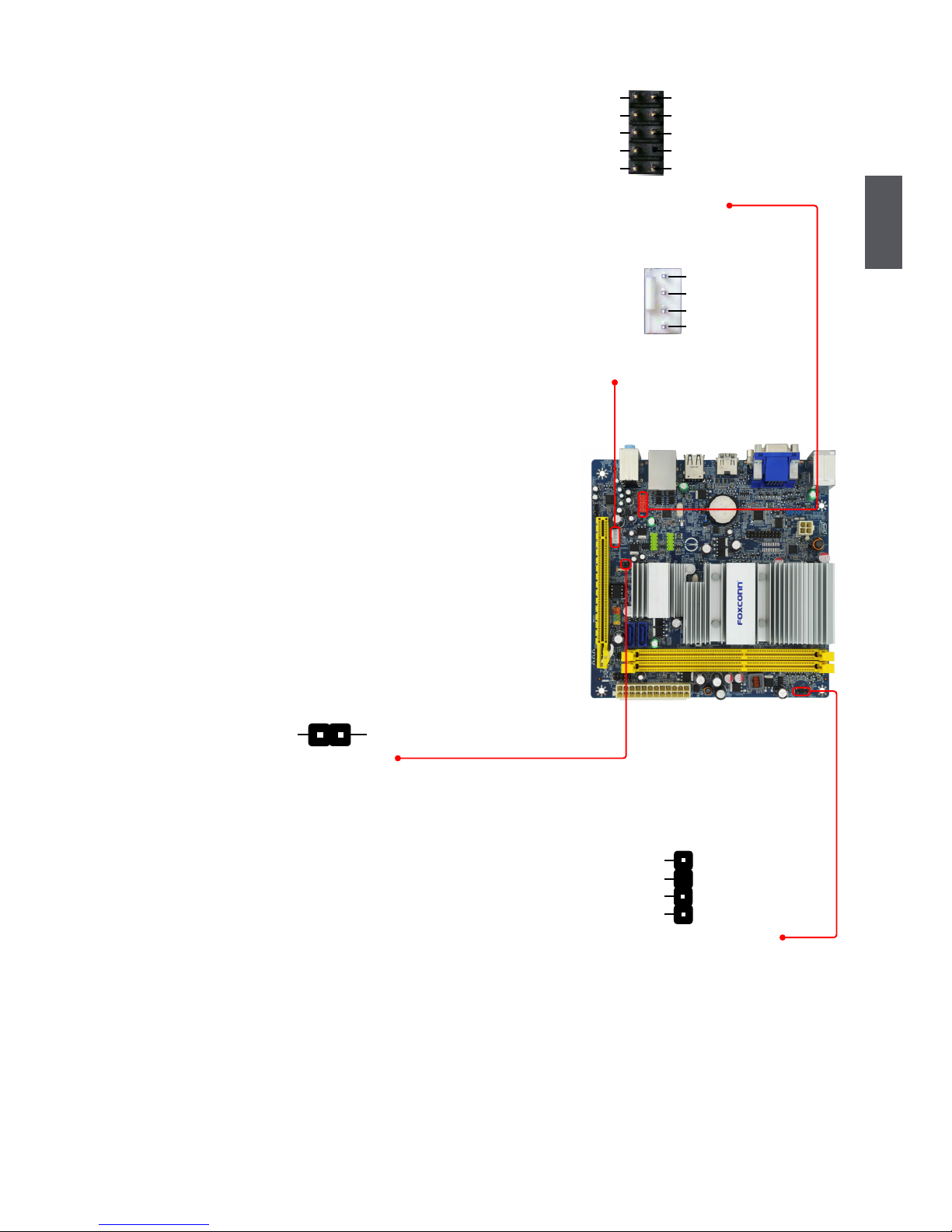

Install other Internal Connectors.................................................10
Jumpers......................................................................................14
Install Driver and Utility...............................................................15
Chapter 3 BIOS Setup
Enter BIOS Setup....................................................................... 19
Main............................................................................................20
Advanced ...................................................................................22
Chipset .......................................................................................29
Boot ............................................................................................31
Power .........................................................................................32
Health .........................................................................................33
Security .....................................................................................34
Save & Exit ................................................................................36

Technical Support :
Website :
http://www.foxconnchannel.com
Support Website :
http://www.foxconnsupport.com
Worldwide online contact Support :
http://www.foxconnsupport.com/inquiry.aspx
CPU Support List :
http://www.foxconnsupport.com/cpusupportlist.aspx
Memory, VGA Compatibility List :
http://www.foxconnsupport.com/complist.aspx
Support

Thank you for buying Foxconn AHD1S Series motherboard. Foxconn
products are engineered to maximize computing power, providing only
what you need for break-through performance.
With advanced overclocking capability and a range of connectivity
features for today multi-media computing requirements, AHD1S/
AHD1S-K enables you to unleash more power from your computer.
This chapter includes the following information:
■ Product Specications
■ Layout
■ Back Panel Connectors

2
1
1-1 Product Specications
CPU Zacate Dual Core APU, Max processor power up to 18W
For the latest CPU information, please visit:
http://www.foxconnsupport.com/cpusupportlist.aspx
Chipset Hudson D1
Memory 2 x 240-pin DDR3 DIMMs
Support up to 8GB of system memory
Dual Channel DDR3 1066MHz architecture
Expansion Slots 1 x PCI Express x16 slot (only support PCIE x 4 card )
VGA AMD Radeon HD 6310 Graphics
support Direct X11 compliant
Storage Hudson D1 chipset:
- 2 x SATA 2.0 connectors 300MB/s data transfer rate
- Support hot plug and NCQ (Native Command Queuing )
LAN Realtek RTL8111E Gigabit LAN chip
(co-lay Realtek RTL8105E 10/100Mb/s LAN chip)
Audio Realtek ALC662 audio chip:
- High Denition Audio
- 2/4/5.1-channel
- Support for S/PDIF Out
- Support Jack-Sensing function
USB Hudson D1 chipset:
- Support up to 10 x USB 2.0 ports (6 rear panel ports, 2 onboard USB
headers supporting 4 extra ports)

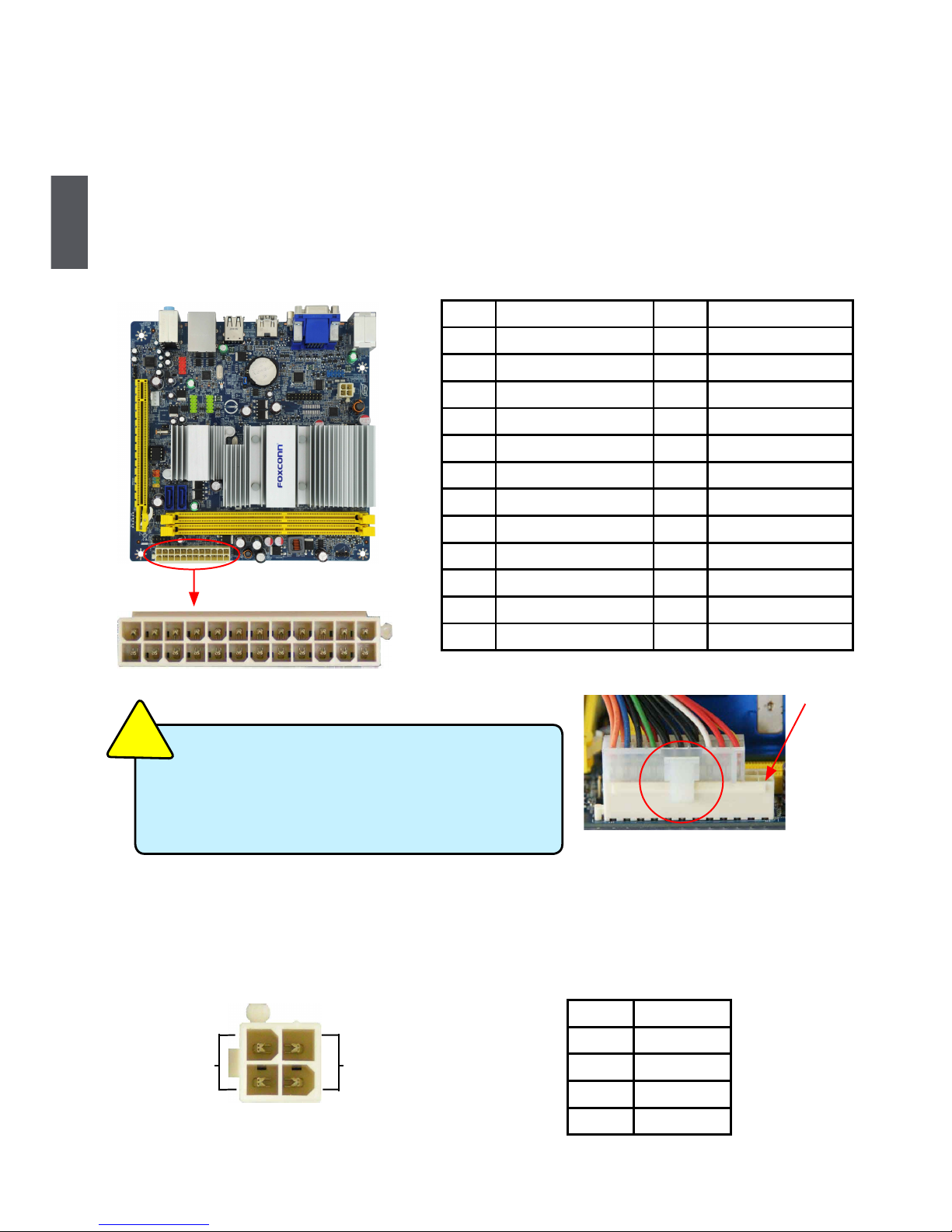

Internal Connectors 1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
2 x SATA 2.0 connectors
2 x USB 2.0 connectors (supporting 4 x USB devices)
1 x CPU fan header (4-pin)
1 x System fan header (4-pin)
1 x Front panel connector
1 x Front Audio connector
1 x S/PDIF_OUT connector
1 x Speaker connector
1 x Chassis intrusion alarm header
1 x COM connector
1 x TPM connector
1 x CIR connector
(Continued on the next page)

3
1
Back Panel
Connectors
1 x PS/2 Keyboard port
1 x VGA port
1 x DVI-D port
1 x HDMI port
6 x USB 2.0 ports
1 x RJ-45 LAN port
6-channel Audio ports
Hardware Monitor System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU overheating warning
CPU/System fan speed control
PCI Express x16 Transfer rate per lane are 2.5GT/s for PCIe Gen 1 and 5GT/s for PCIe
Gen 2. Low power consumption and power management features
Green Function Support ACPI (Advanced Conguration and Power Interface)
Support S0 (normal), S1 (power on suspend), S3 (suspend to RAM),
S4 (suspend to disk), S5 (soft - off)
Support EuP function
Bundled Software FOX ONE
FOX LiveUpdate
FOX LOGO
FOX DMI
Operating System Support for Microsoft® Windows® 7/Vista/XP
Form Factor Mini-ITX Form Factor, 6.7 inches x 6.7inches (17cm x17cm)

4
1
1-2 Layout
Note : The above motherboard layout is for reference only, please refer to the physical
motherboard for detail.
1. COM Connector
2. TPM Connector
3. Clear CMOS Jumper
4. Front USB Connectors
5. Front Audio Connector
6. System Fan Header
7. SPDIF_OUT Connector
8. Chassis Intrusion Alarm Header
9. PCI Express x16 Slot
10. Front Panel Connector
11. CIR Connector
12. 24-pin ATX Power Connector
13. Speaker Connector
14. DDR3 DIMM Slots
15. SATA Connectors
16. Zacate Dual Core APU
17. Chipset: Hudson D1
18. 4-pin ATX 12V Power Connector
11
17
12 13
14
18
16
1
5
9
8
10
62
3
47
15

5
1
1-3 Back Panel Connectors
1. PS/2 Keyboard Port
Use the lower port (purple) to connect a PS/2 keyboard.
2. USB Ports
The USB port supports the USB 2.0/1.1 specication. Use this port for USB devices such as an
USB keyboard/mouse, USB printer, USB ash drive and etc.
3. VGA Port
To connect with external display devices, such as monitor or LCD display.
4. DVI-D Port
The DVI-D port supports DVI-D specication. Connect a monitor that supports DVI-D connection
to this port.
5. HDMI Port
The HDMI (High-Denition Multimedia Interface) provides an all-digital audio/video interface to
transmit the uncompressed audio/video signals and is HDCP compliant. Connect the HDMI audio/
video device to this port. The HDMI Technology can support a maximum resolution of 1920x1080p
but the actual resolutions supported depend on the monitor being used.
6. RJ-45 LAN Port
The Ethernet LAN port provides Internet connection at up to 10/100/1000Mb/s data rate.
VGA Port LAN Port
PS/2 Keyboard
Port
Line Out
Microphone In
Line In
1
7
5
2
USB Ports Audio Ports
4
3 6
USB Ports
2
DVI-D Port HDMI Port
Active
LED
Link
LED
LAN Type Left: Active Right: Link
Status Description Status Description
1000M
Off No Link Off No Link
Green
Blinking Data Activity
Off 10Mb/s Connection
Green 100Mb/s Connection
Orange 1000Mb/s Connection

6
1
7. Audio Ports
For the denition of each audio port, please refer to the table below :
* : Please refer to Chapter 4, and install the Realtek audio driver (in CD) to assign the audio
output ports for different applications of 2/4/5.1 channels. The fundamental audio outputs are
depicted in the table above.
Port 2-channel 4-channel 5.1-channel
Blue Line In Rear Speaker Out Rear Speaker Out
Green Line Out Front Speaker Out Front Speaker Out
Pink Microphone In Microphone In Center/Subwoofer
Speaker Out

This chapter introduces the hardware and software installation proc-
ess, including the installation of the CPU, memory, power supply,
slots, pin headers and the mounting of jumpers. Caution should be
exercised during the installation of these modules. Please refer to the
motherboard layout prior to any installation and read the contents in
this chapter carefully.
This chapter includes the following information :
■ Install the Memory
■ Install other Internal Connectors
■ Jumpers
■ Install Driver and Utility
Please visit the following website for more supporting information about your motherboard.
CPU Support List:
http://www.foxconnsupport.com/cpusupportlist.aspx
Memory, VGA Compatibility List:
http://www.foxconnsupport.com/complist.aspx

8
2
2-1 Install the Memory
If you take a look at front side of memory module, it has asymmetric pin counts on both sides
separated by a notch in the middle, so it can only t in one direction. Follow the steps below to
correctly install your memory modules into the sockets.
Step 1:
Spread the clips at both ends of the memory socket.
Place the memory module onto the socket, then put
your ngers on top edge of the module, and push it
down rmly and seat it vertically into the memory
socket.
Step 2:
The clips at both ends of the socket will snap into
place when the memory module is securely inserted.
Read the following guidelines before you begin to install the memory :
■ Make sure that the motherboard supports the memory. It is recommended that memory
of the same capacity, brand, speed, and chips be used.
■ Always turn off the computer and unplug the power cord from the power outlet before
installing the memory to prevent hardware damage.
■ Memory modules have a foolproof design. A memory module can be installed in only
one direction. If you are unable to insert the memory, switch the direction.
■ Be sure to install DDR3 DIMMs on this motherboard.
CAUTION
!
Notch
96-Pin 144-Pin

9
2
2-2 Install an Expansion Card
Follow the steps below to correctly install your expansion card in the expansion slot.
1. Locate an expansion slot that supports your card. Remove the metal slot cover from the chassis
back panel.
2. Align the card with the slot, and press down on the card until it is fully seated in the slot.
3. Make sure the metal contacts on the card are completely inserted into the slot.
4. Secure the card's metal bracket to the chassis back panel with a screw.
5. After installing all expansion cards, replace the chassis cover.
6. Turn on your computer. If necessary, go to BIOS Setup to make any required BIOS changes for
your expansion card(s).
7. Install the driver provided with the expansion card in your operating system.
Installing and Removing a PCI Express x16 Graphics Card :
• Installing a Graphics Card:
Gently insert the graphics card into the PCI Express x16 slot. Make
sure the graphics card is locked by the latch at the end of the PCI
Express x16 slot.
• Removing the Card:
Push the latch at the end of the PCI Express x16 slot to release
the card and then pull the card straight up from the slot.
PCI Express x16
■ Make sure the motherboard supports the expansion card. Carefully read the manual
that came with your expansion card.
■ Always turn off the computer and unplug the power cord from the power outlet before
installing an expansion card to prevent hardware damage.
CAUTION
!

10
2
2-3 Install other Internal Connectors
Power Connectors
This motherboard uses an ATX power supply. In order not to damage any device, make sure all the
devices have been installed properly before applying the power supply.
24-pin ATX power connector : PWR2
PWR2 is the ATX power supply connector. Make sure that the power supply cable and pins are
properly aligned with the connector on the motherboard. Firmly plug the power supply cable into the
connector and make sure it is secure.
4-pin ATX 12 V Power Connector : PWR1
Connect the 4-pin ATX 12V power supply to PWR1 and provides power to the CPU.
Pin # Denition Pin # Denition
1 3.3V 13 3.3V
23.3V 14 -12V
3 GND 15 GND
4 +5V 16 PS_ON(Soft On/Off)
5GND 17 GND
6+5V 18 GND
7 GND 19 GND
8 Power Good 20 NC
9+5V SB(Stand by +5V) 21 +5V
10 +12V 22 +5V
11 +12V 23 +5V
12 3.3V 24 GND
PWR2
24 13
12 1
We recommend you using a 24-pin power supply.
If you are using a 20-pin power supply, you need
to align the ATX power connector according to
the picture.
CAUTION
!
20-Pin Power
Pin No. 24
Pin # Denition
1 GND
2GND
3+12V
4 +12V
3 1
GND
+12V
4 2
PWR1

11
2
S/PDIF OUT Connector : SPDIF_OUT1
The connector is used for S/PDIF output.
USB Connectors : F_USB1/2
In addition to the four USB ports on the rear panel, this
product also provides two 10-pin USB headers on its
motherboard. By connecting through USB cables with
them, user can quickly expand another four USB ports
on the front panel.
TPM Connector : TPM1
The TPM (Trusted Platform Module) provides the ability
to the PC to run applications more secure and to make
transactions and communication more trustworthy. To
utilize this function, you should purchase additional
device and install it.
COM Connector : COM1
This motherboard supports one serial RS232 COM port
for legacy compatibility. User must purchase another
RS232 cable with a 9-pin D-sub connector at one end
to connect with the external RS232 device and another
end with 10-pin female connector to connect with COM1
connector in the motherboard.
GND
GND
VCC
D+
D-
D+
GND
D-
VCC
EMPTY
12
10
9
F_USB 1/2
SPDIF_OUT
+5V
EMPTY
SPDIF_OUT1
GND
1
2
3
4
LCLK#
LFRAME#
LRESET#
LAD3
VDD
LAD0
SB3V
NC
GND
LPCPD#
GND
EMPTY
LAD2
NC
LAD1
GND
NC
SERIRQ
CLKRUN#
NC
12
19 20
TPM1
RLSD
SOUT
RI
GND
RTS
DSR
DTR
CTS
EMPTY
SIN
12
10
9
COM1

12
2
IrDA Connector : CIR
This connector supports infrared wireless transmitting and
receiving device.
Front Panel Connector : FP1
This motherboard includes one connector for connecting the
front panel switch and LED Indicators.
Hard Disk LED Connector (HDD-LED)
Connect to the chassis front panel IDE indicator LED. It
indicates the active status of the hard disks. This 2-pin
connector is directional with +/- sign.
Reset Switch (RESET-SW)
Attach the connector to the Reset switch on the front
panel of the case; the system will restart when the switch
is pressed.
Power LED Connector (PWR-LED)
Connect to the power LED indicator on the front panel of
the chassis. The Power LED indicates the system’s status.
When the system is in operation (S0 status), the LED is
on. When the system gets into sleep mode (S1) , the LED
is blinking; When the system is in S3/S4 sleep state or
power off mode (S5), the LED is off. This 2-pin connector
is directional with +/- sign.
Power Switch Connector (PWR-SW)
Connect to the power button on the front panel of the
chassis. Push this switch allows the system to be turned
on and off rather than using the power supply button.
Serial ATA Connectors : SATA_1/2
The Serial ATA connector is used to connect with SATA Hard
Disk or CD devices which supporting this feature. The current
Serial ATA II interface allows up to 300MB/s data transfer
rate.
EMPTY
HDD-LED
RESET-SW
NC
+
-
PWR-SW
+
-PWR-LED
12
10
9
FP1
SATA _1/2
GND
TX+
TX-
GND
RX-
RX+
GND
1
CIR
+5V
EMPTY
NC
GND
NC
+5VSB
CIRRX
GND
CIRTX
EMPTY
12
9 10

13
2
Audio Connector : F_AUDIO1
The audio connector supports HD Audio standard.
It provides the Front Audio output choice.
Fan Headers : CPU_FAN1, SYS_FAN1
There are two main fan headers on this motherboard. The fan
speed can be controlled and monitored in “PC Health Status”
section of the BIOS Setup. These fans can be automatically
turned off after the system enters S3, S4 and S5 sleeping
states.
Chassis Intrusion Alarm Header : C_INTRUSION1
The connector can be connected to a security switch on the
chassis. The system can detect the chassis intrusion through
the function of this connector. If eventually the chassis is
closed, the system will send a message out.
Speaker Connector : SPEAKER1
The speaker connector is used to connect speaker of the
chassis.
CPU_FAN1/SYS_FAN1
GND
POWER
SENSE
CONTROL
1
A_MIC2_L
A_MIC2_R
A_LINE2_L
SENSE_SEND
SENSE1_RETURN
PRESENCEJ
EMPTY
SENSE2_RETURN
AUD_GND
12
109
F_AUDIO1
A_LINE2_R
NC
PWR
EMPTY
SPEAKER1
SPKJ
1
2
3
4
C_INTRUSION1
GND
INTRUDERJ
1
