Foxfury Lighting Solutions RUGO 700-300S User manual

POWER PACK LIFE
700-301:
QUICK SWAP®POWER PACK (N50-200)
MODE DURATION*
DIM 6.75 hours
LOW 3.5 hours
MEDIUM 1.5 hours
HIGH 1 hour
700-300S, 700-301S: QUICK SWAP®
POWER PACK WITH STROBE (N50-220)
MODE DURATION*
LOW 6.75 hours
MEDIUM 1.5 hours
HIGH 1 hour
STROBE 2.5 hours
*Power Pack life may vary according to age and ambient
conditions.
The Charge Indicator will turn green once
fully charged.
Charging time is about 2.5 hours.
Do NOT leave Power Pack charging for
extended periods of time.
When disassembled, keep both ends dry
and away from water.
RUGO™

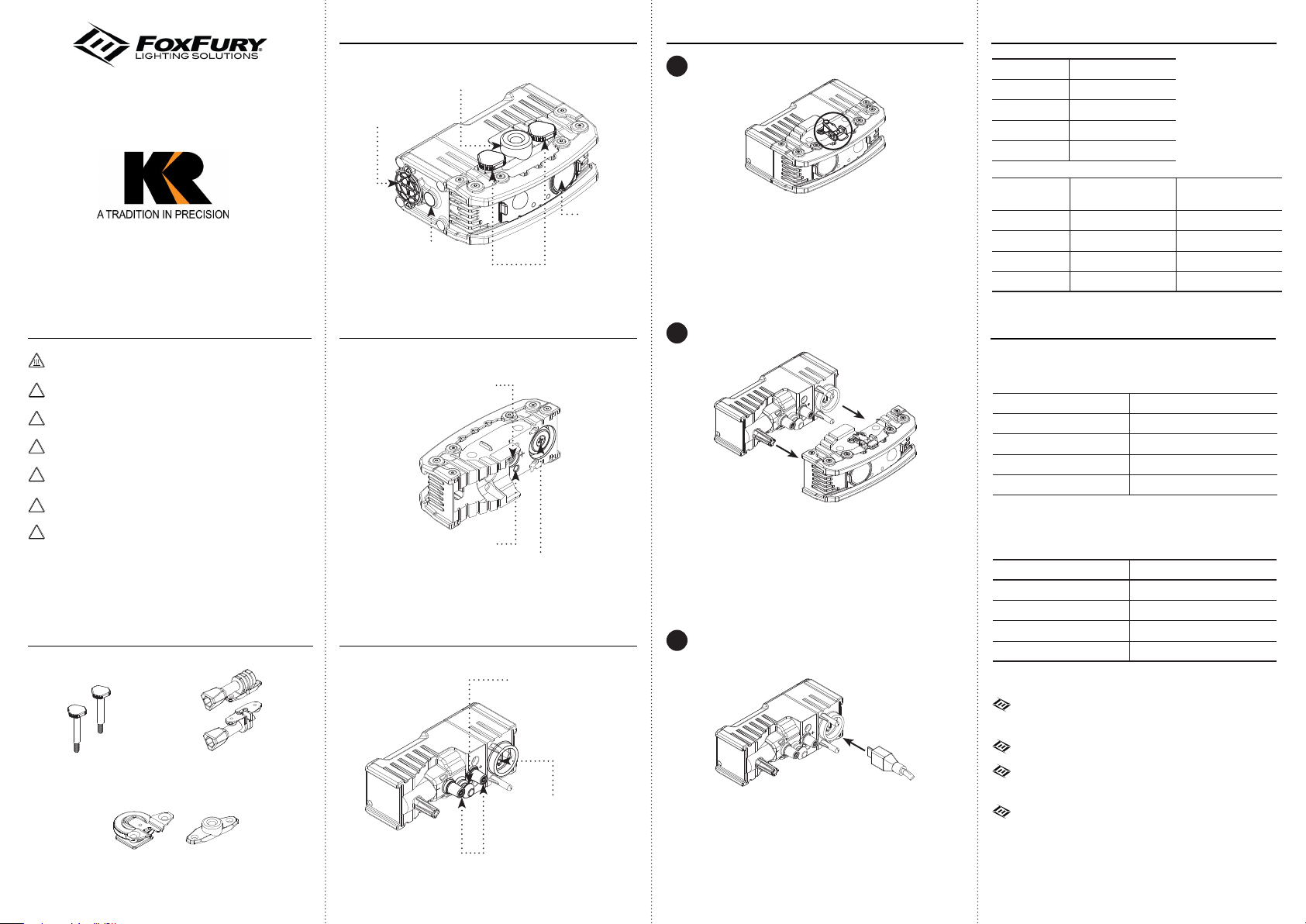

QUICK START GUIDE
FULL ASSEMBLY CHARGING THE POWER PACK
DISASSEMBLED LIGHT HEAD
DISASSEMBLED POWER PACK
TRI-LENS™
THUMBSCREWS
POWER/MODE
SWITCH
¼”-20 MOUNT
CHARGE
INDICATOR
LED CONTACT
CAVITY (2)
O-RING
ACCESS SCREW
LED MODULE
SCREW HOLE (4)
1
2
3
Press and hold the Power Pack Release
Lever located on the Light Head portion of
the Rugo™.
(Rugo™in steps 1–3 shown with no mounts and is flipped to
show Power Pack Release Lever)
While maintaining pressure on the Power
Pack Release Lever, pull the Light Head
and Power Pack apart. If unable to pull
apart easily, try moving the Power Pack
back and forth while continuing to pull.
Insert the provided Micro USB Cable into
the Power Pack. Then, insert the opposite
end USB (Type A) into a USB compatible
power source.
WARNINGS
When used for extended periods of time the
Rugo™will become HOT to the touch.
Do not stare into the LEDs for long periods of
time or from a close range (less than 2 ft or
0.6 m).
This product is designed as an auxiliary lighting
tool to be used with photo, video, and film.
DO NOT use the Rugo™as a primary light source
for activities.
While using any FoxFury product, please operate
at safe speeds.
Be sure to rinse the Rugo™with fresh water
immediately after use in the ocean or a pool.
It is the responsibility of drone/UAV users to
follow the FAA laws and regulations and/or the
laws and regulations applicable to flight location.
IMPORTANT!
Please fully charge the Quick Swap™Power Pack
before using the Rugo™for the first time.
!
!
!
!
!
!
POWER CONTACTS
USB CHARGE PORT
LOCKING POST
MOUNTS INCLUDED
OPERATIONAL MODES
MODES RC (700-301)
DIM 70 LUMENS
LOW 200 LUMENS
MEDIUM 380 LUMENS
HIGH 620 LUMENS
MODES R1S
(700-300S)
RCS
(700-301S)
LOW 70 LUMENS 70 LUMENS
MEDIUM 400 LUMENS 380 LUMENS
HIGH 700 LUMENS 620 LUMENS
STROBE 700 LUMENS 620 LUMENS
7/2021
700-300S | 700-301 | 700-301S
THUMBSCREWS (2)
¼"–20 AND
COLD-SHOE MOUNT
(700-301 ONLY)
STANDARD MOUNT
WITH (2) KNOBS
(700-301 ONLY)
Seattle 425-771-7776 | Tacoma 253-922-6087
Portland 503-641-3388 | Salt Lake City 801-878-976
Las Vegas 702-586-1152 | Boise 800-537-6848
www.KukerRanken.com

REMOVING/CHANGING THE
STANDARD MOUNT
REMOVING/CHANGING THE
¼”-20 & COLD-SHOE MOUNT
MOUNTING TO DEVICES
1 1
2 2
3 3
Start with the Rugo™positioned so that the
Thumbscrews are on top.
Start with the Rugo™positioned so that the
Thumbscrews are on top.
Twist each Thumbscrew counter-clockwise
until they become loose. They should then
be ready to pull out completely.
Twist each Thumbscrew counter-clockwise
until they become loose. They should then
be ready to pull out completely.
ACTION CAM
The Rugo™can be mounted to an Action
Cam via the removable Standard Mount.
Line up the mounts on the Rugo™with
the mounts on the Action Cam and then
tighten the Mount Knobs.
CAMERA
The Rugo™can be mounted to a DSLR
camera via the removable Cold-shoe
Mount. Simply slide the mount onto the
camera flash attachment and twist the
Locking Ring until securely fastened.
TRIPOD OR PUCK ADAPTOR (85-045)
The Rugo™can be mounted to most
tripods or to the Puck Adaptor
(purchased separately) via the ¼"-20
Mount. Twist the threaded hole of the
Rugo™¼"-20 Mount onto the screw of
the tripod or Puck. Then, twist the Rugo™
and Puck until it is securely fastened.
USING THE TRI-LENS™
NOTE: Orientation of Mount Knobs
should match as shown above.
OPERATIONAL BEAM DISTANCE
FOR RC AND RCS: 50 ft (15 m)
OPERATIONAL BEAM DISTANCE
FOR R1S: 100 ft (30 m)
USED FOR: Distance
SPOT - 25°
FLOOD - 120°
OPERATIONAL BEAM DISTANCE: 10 ft (3 m)
USED FOR: Close-up
AREA - 55°
OPERATIONAL BEAM DISTANCE: 30 ft (10 m)
USED FOR: Mid-range
