Foxwell T10 User manual

Shenzhen Foxwell Technology Co., Ltd
Please read this quick start guide carefully before installing the sensor. For safety reasons, we recommend
that only trained technicians perform maintenance and repair work in accordance with the guidance of the
car manufacturer. The valves are safety-related components and are only used for professional installation.
Incorrectly installed TPMS valves and sensors may malfunction. Foxwell does not assume any liability in
case of faulty or incorrect installation of the product.
Foxwell T10 sensor are shipped blank and must be programmed with Foxwell TPMS tool, which is recommended
to be performed prior to installation.
Remove the valve cover and valve core to deflate the tire.
Pictures illustrated here are for reference only and this Quick Start Guide is subject to change without prior notice.
Sensor InstallationSensor Description
T10 Programmable TPMS Sensor Quick Start Guide
?
?
Shim
Cap
Valve Stem,
and rubber grommet
assembly
Technical Data
Operating Frequency
Pressure Monitoring Range
Battery Life
Vehicle Coverage
Test Accuracy
Weight of Sensor without Valve
315 MHZ / 433 MHZ
0 to 800 kPa
4-6 year
＞96%
± 5 kPa
12 g
1. Deflating the tire
Place the tire in the tire machine with the TPMS sensor located 180° away from the bead breaker tool arm. Break the tire
bead and remove the tire from the tire machine. Then use a suitable tool to dismantle the TMPS sensor. (Note* in some
cases the tire may have to be removed entirely from the wheel)
2. Dismantling the sensor
Do not directly break the tire bead in
the region of the TPMS sensor as it is
easily damaged. If the TPMS sensor
is a rubber valve snap-in type, please
use the tire valve stem puller tool to
remove.
Caution
Sensor Body
Rubber Valve Sensor Metal Valve Sensor
Valve Stem,
rubber grommet and
valve core assembly
Cap
Screw Nut
Sensor Body

Pictures illustrated here are for reference only and this Quick Start Guide is subject to change without prior notice.
Shenzhen Foxwell Technology Co., Ltd
T10 Programmable TPMS Sensor Quick Start Guide
For service and support, please contact us.
WebSite:
E-mail:
Service Number:
Fax:
www.foxwelltech.us
[email protected]
+86 - 755 - 26697229
+86 - 755 - 26897226
Contact Us
When the tire is repaired or disassembled, or if the sensor is disassembled or replaced, the rubber
grommet, grommet, screw nut and valve core must be replaced with Foxwell original parts to ensure
proper connection. If the sensor is damaged externally, it must be replaced.
Caution
3. Installing sensor
4. Inflating the tire

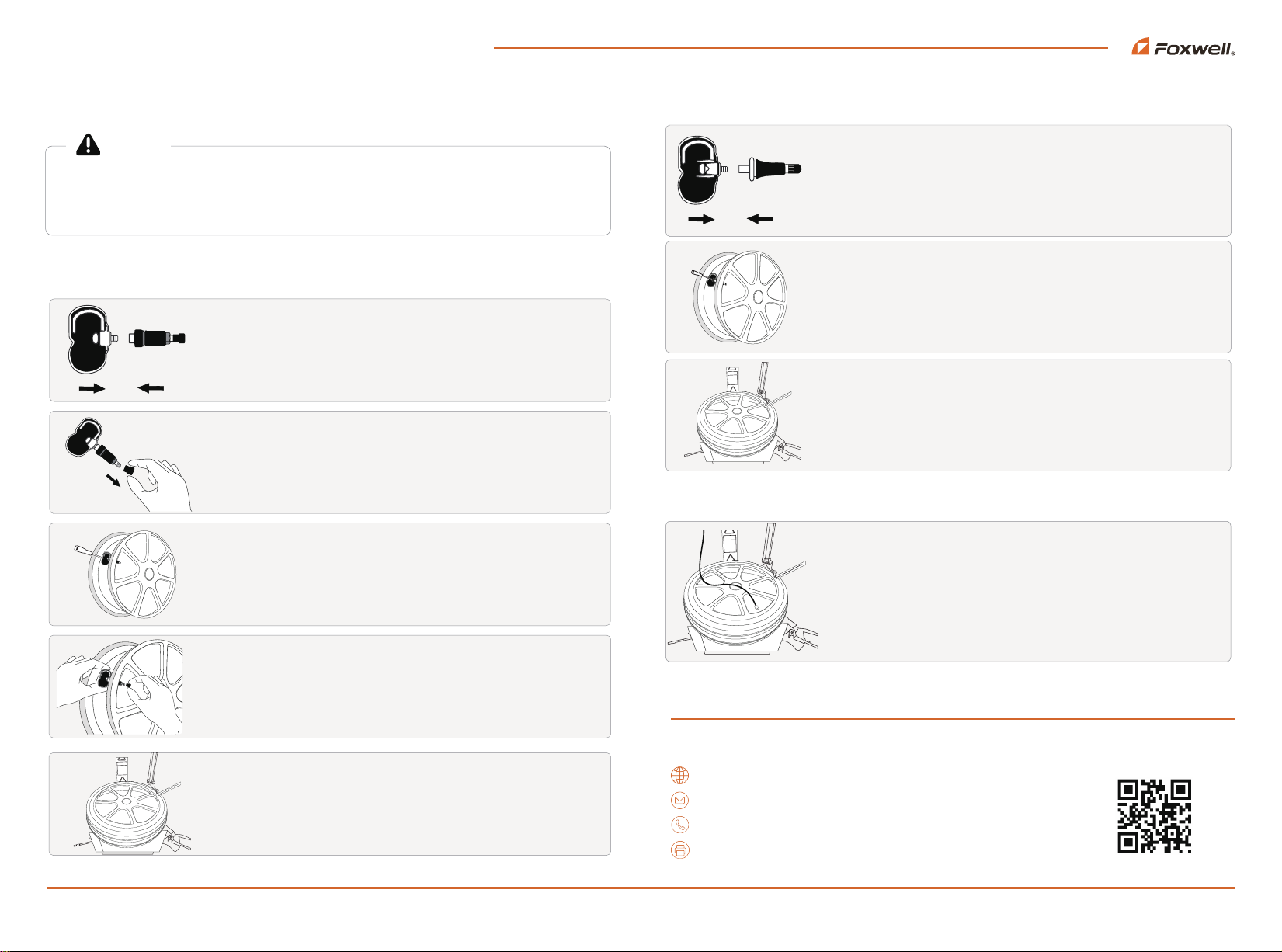

Rubber Valve Stem Sensor Installation
(1) Connect the sensor body and the valve stem.
(Screw on the back screw but do not tighten it for adjusting the angle.)
(3) Use the tire valve stem puller to pull the sensor to the proper position.
(5) Use the tire valve stem puller to pull the sensor to the proper position.
(2) Install the valve stem on the valve hole of the rim and adjust
the angel between sensor body and the valve stem to fit hub.Then
tighten the back screw.
Metal Valve Stem Sensor Installation
(1) Connect the sensor body and the valve stem.
(Screw on the back screw but do not tighten it for adjusting the angle.)
(2) Remove the cap, screw nut, and grommet from the stem one by one.
(4) Install the grommet, screw nut and cap on the stem.
(3) Install the valve stem on the valve hole of the rim and adjust
the angel between sensor body and the valve stem to fit hub.Then
tighten the back screw.
Dismantle the valve core with valve core removal tool. Then inflate the
tire to the nominal value according to the tire data plate the vehicle.
Install the valve core and screw the valve cap.
