FRÄNKISCHE profi-air Series User manual

profi-air® flat / flex wireless remote control
Operating instructions
Building Technology
www.fraenkische.com

Operating instructions - profi-air flat / flex wireless remote control
2

Table of contents
1 General information 4
1.1 Introduction 4
1.2 Safety 4
1.3 Symbols used 4
1.4 Intended use 5
1.5 Transport and unpacking 5
1.6 Checking the scope of delivery 5
1.7 Overview of functions 5
2 Layout of the wireless remote control 6
2.1 Front 6
2.2 Back 6
3 Putting the wireless remote control
into operation 7
3.1 Installation of the antenna 7
3.2 Synchronisation 7
3.3 Multiple wireless remote controls 7
4 Display overview 8
5 Navigation button and keystroke combinations 9
5.1 Navigation button 9
5.2 Keystroke combinations 9
6 User menu 10
6.1 “Operating modes” display field 10
6.2 “Operating data” display field 12
6.3 “Info line” display field 14
6.4 “Ventilation mode” display field 14
7 Fitter menu 15
7.1 SW menu item 16
7.2 Automatic mode menu item
(optional accessories required) 16
7.3 Fan menu item 16
7.4 Defroster heater menu item
(optional accessories required) 17
7.5 Summer bypass menu item 17
7.6 Target values and setting ranges 18
7.7 Reset to factory settings 18
8 Error codes 19
9 Weekly programmes 19
Weekly programme P1 19
Weekly programme P2 19
Weekly programme P3 20
Weekly programme P4 20
Weekly programme P5 20
Weekly programme P6 21
Weekly programme P7 21
Weekly programme P8 21
Weekly programme P9 22
Weekly programme P10 22
Weekly programme P11 22
All information provided in this publication is generally up to date at the time of printing. Moreover, this publication was prepared with the greatest possible care.
However, we cannot rule out printing errors or translation mistakes. Furthermore, we reserve the right to change products, specifications and other information,
or changes may be necessary due to legal, material or other technical requirements, which no longer could be considered for this publication. For this reason,
we are unable to accept any liability if this is based solely on the information contained in this publication. Instrumental in connection with information about products
or services are always the purchase order, the concrete product purchased and the related documentation or the information provided by our specialist staff in the
specific case.
Operating instructions - profi-air flat / flex wireless remote control 3

Risk of personal injury
Risk of:
■Damage to equipment
■Errors while operating the device if the instructions are not followed
■Other material damage
Additional notes
Reference to other sections and/or guidelines of the manufacturer
Disposal instructions
1. General information
The wireless remote control has been developed specifically for demanding operators of ventilation units from the profi-air flat/
flex product lines, who emphasise innovative operation. The remote control has a wireless connection to the control board of
the ventilation unit. The range of this control unit inside a building (through walls and light ceiling structures) is up to 30m.
1.1 Introduction
The operating instructions will help you operate the wireless remote control ideally. We therefore recommend reading these
operating instructions carefully. Keep these operating instructions during the entire life of the wireless remote control since
they also serve as a reference for service and maintenance work and thus guarantee smooth and ecient operation.
1.2 Safety
If used as intended, the unit is safe and reliable to operate. Its construction and design are state of the art and comply with
all the relevant DIN/VDE regulations and safety provisions. All safety regulations, warnings and notes of these operating
instructions have to be observed; non-observance might result in personal injury and/or damage to the profi-air180flat/
profi-air250flex / profi-air360flex ventilation unit.
1.3 Symbols used
Non-authorised changes or modifications of the wireless remote control are forbidden.
Operating instructions - profi-air flat / flex wireless remote control
4

1. General information
1.4 Intended use
The wireless remote control must only be used to operate the ventilation units from the profi-air flat / flex product lines, and it is
only suited for domestic use inside closed and frost-protected rooms.
1.5 Transport and unpacking
Please handle the profi-air wireless remote control with utmost care during transport and unpacking.
1.6 Checking the scope of delivery
If the delivered wireless remote control has any damage or incompleteness, please get in touch with the supplier immediately.
The scope of delivery includes:
■Wireless remote control n Operating instructions
■2x batteries 1.5V AAA n Antenna for installation in profi-air 180 flat
■USB cable for optional power supply
1.7 Overview of functions
■Manual operation
■Weekly autotimer using weekly programmes (P1 to P11)
■Holiday mode
■Night setback
■Temperature control – summer bypass
■Setting of the time interval for filter replacement
■Automatic demand control depending on relative humidity and/or VOC (optional accessories)
The following can be displayed on the remote control:
■Ventilation mode
■Fresh air, supply air, extract air and room temperature
■Time left until filter replacement
■Error code + alarm signal
■Humidity in the extract air channel (only possible if a humidity sensor is installed in the ventilation unit)
■Air quality in the extract air channel (only possible if a VOC sensor is installed in the ventilation unit)
Operating instructions - profi-air flat / flex wireless remote control 5

2. Layout of the wireless remote control
2.1 Front
2.2 Back
Display
Open battery compartment
Navigation button
Optional USB connection
Fastening points
Operating instructions - profi-air flat / flex wireless remote control
6

3. Putting the wireless remote control into operation
3.1 Installation of the antenna (profi-air180flat only)
In order to ensure reliable communication between the ventilation unit and the wireless remote control, the included antenna
must be installed in profi-air180 flat. This requires the following steps:
Step Procedure
1Disconnect the power supply of the ventilation unit.
2Remove the housing cover of the ventilation unit.
3
Screw the antenna to the connection coupling of the control board and turn it.
For the position of the connection coupling, see the profi-air180flat installation and operating instructions.
4Re-install the housing cover of the ventilation unit.
3.2 Synchronisation
The remote control and the ventilation unit must be synchronised in order to be able to communicate.
This requires the following steps:
Step Procedure
1Disconnect the power supply of the ventilation unit.
2Open the battery compartment on the back of the remote control and insert the included batteries 2 x 1.5V AAA).
3If you want to establish permanent power supply, connect the included USB cable. The port for the mini USB connector is on
the back of the wireless remote control under the battery cover.
4Re-connect the power supply of the ventilation unit. Within the next 60 seconds, the wireless remote control and the
ventilation unit try to establish a connection after which the unit's data is displayed on the display.
If synchronisation does not work at the first attempt (error code E13), either the distance to the control
board of the ventilation unit is too large or the wireless remote control has been synchronised with
another ventilation unit before. You must reset the wireless remote control in this case. Push and hold
the “LEFT” button for approx. 10 seconds until all symbols on the display are flashing. The wireless
remote control can now be synchronised again.
3.3 Multiple wireless remote controls
Up to three wireless remote controls can be connected to a ventilation unit. All connected wireless remote controls are equal,
meaning that always the latest respective change is applied.
Operating instructions - profi-air flat / flex wireless remote control 7

4. Display overview
Operating modes
Info line Ventilation mode Navigation buttonTime/day
Operating data
The following table provides a short description of the dierent symbols and buttons of the wireless remote control.
The wireless remote control features a power saving function which switches the display o between
11:00pm and 07:00am. You can activate the illumination by pushing any button.
Display fields Function
Operating
mode
Automatic mode/demand control
Manual operation
Weekly autotimer
Holiday mode
Night setback
Time/day Use the clock to set the weekly autotimer and night setback.

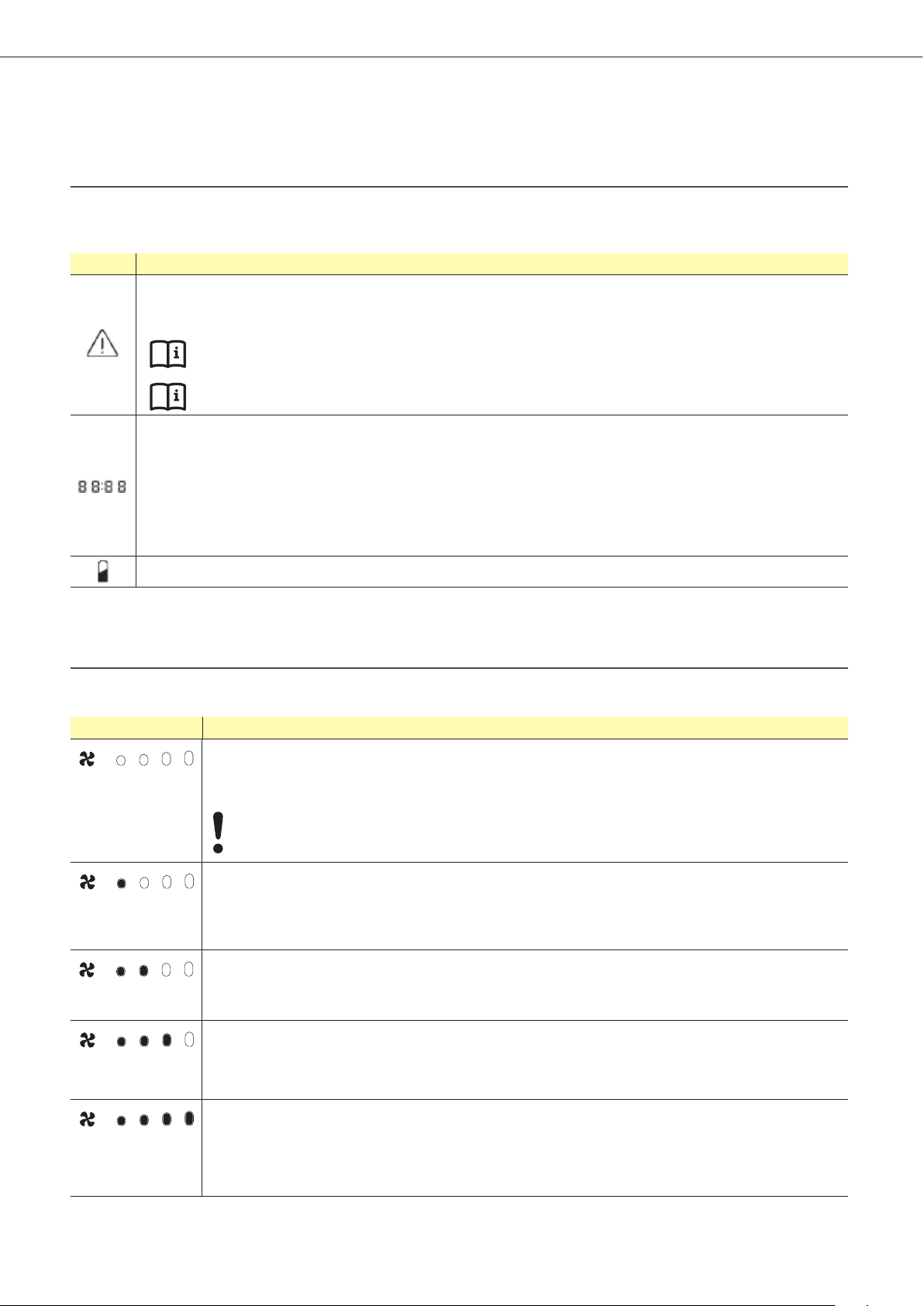

Info line
Alarm (error code)
Information on various functions or programmes
Low battery status
Ventilation
mode The four oval fields display the ventilation mode. The more fields are filled, the higher the ventilation mode.
Navigation
button Use this button to select individual menu items from the user menu and to increase or reduce target values.
Operating data

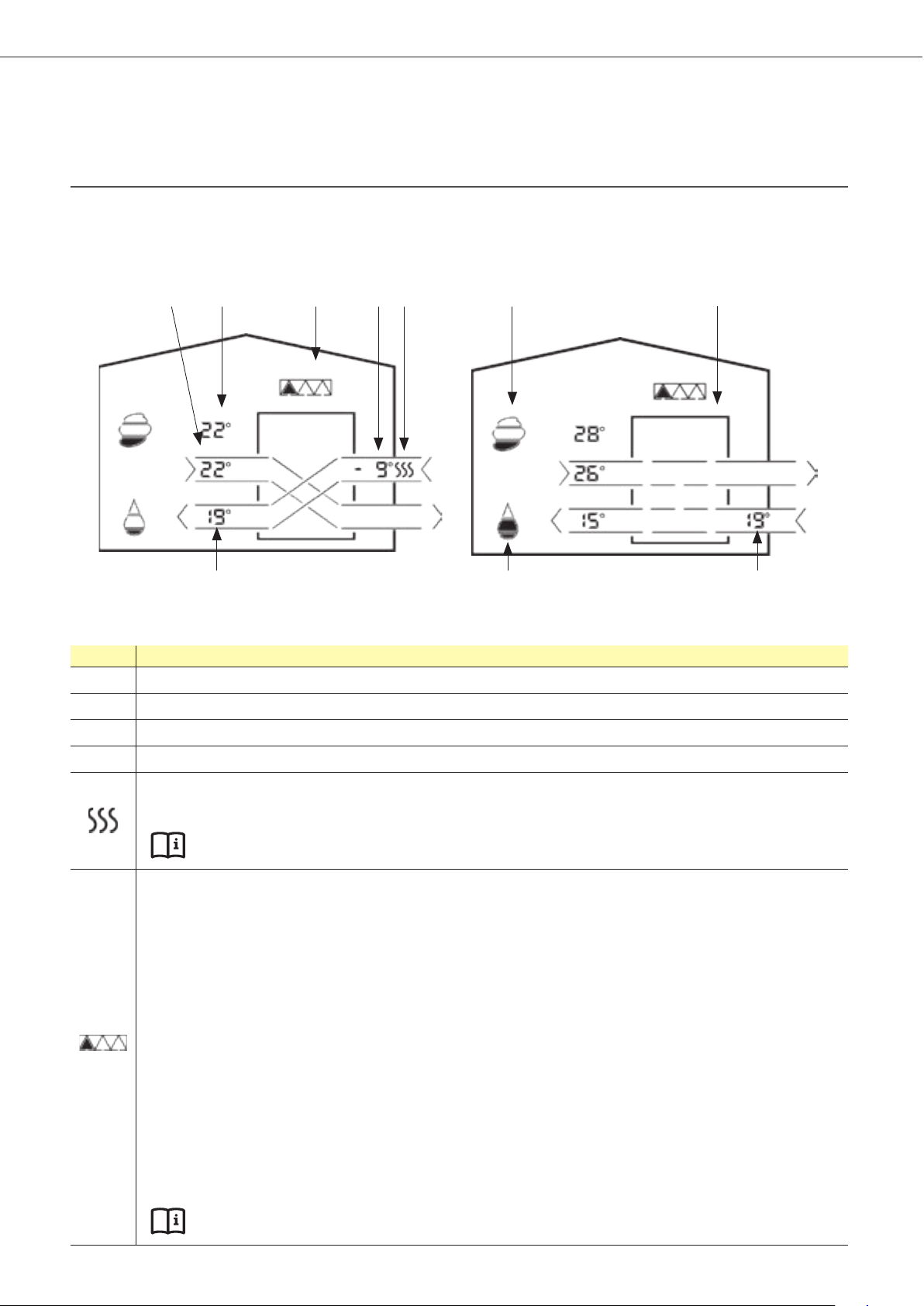

The following information can be displayed:
nFilter replacement
nRoom temperature
nTemperature of supply/extract air
nFresh air temperature
nHeat recovery/summer bypass
nRelative extract air humidity (optional)
nExtract air quality (optional)
nDefroster heater active (optional)
Operating instructions - profi-air flat / flex wireless remote control
8

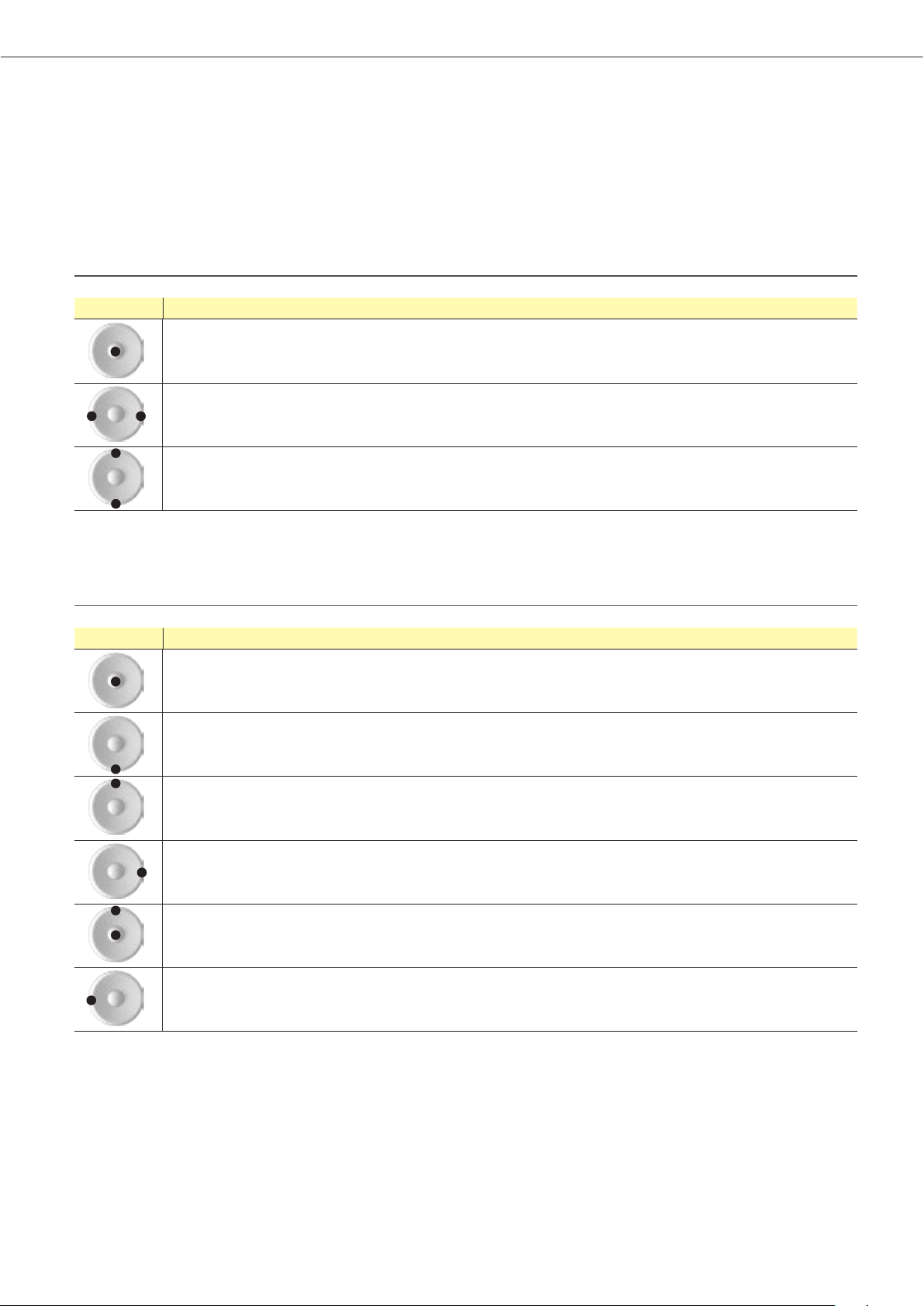

5.1 Navigation button
5. Navigation button and keystroke combinations
The following table provides a short description of the dierent symbols and buttons of the wireless remote control.
Button Function
Push the “CENTER” button to start the user menu, select a menu item or confirm a setting.
Push the “LEFT” and “RIGHT” buttons to switch between the dierent menu items or to switch the ventilation mode
into manual mode.
Push the “UP” and “DOWN” buttons to switch between menu subitems or to change the set values.
5.2 Keystroke combinations
Button Function
Push and hold the “CENTER” button for approx. 3 seconds.
Takes you back to the start page from any menu item.
Push and hold the “DOWN” button for approx. 5 seconds.
Activates/deactivates manual summer bypass for 1 hour.
Push and hold the “UP” button for approx. 5 seconds.
Activates/deactivates fireplace operation for 15 minutes.
Push and hold the “RIGHT” button for approx. 10 seconds.
Activates/deactivates the installation mode.
Push and hold the “CENTER” and “UP” buttons for approx. 10 seconds.
Resets all settings and target values to the factory settings (only possible in activated installation mode).
Push and hold the “LEFT” button for approx. 10 seconds.
Resets the wireless remote control/ventilation unit synchronisation.
Operating instructions - profi-air flat / flex wireless remote control 9

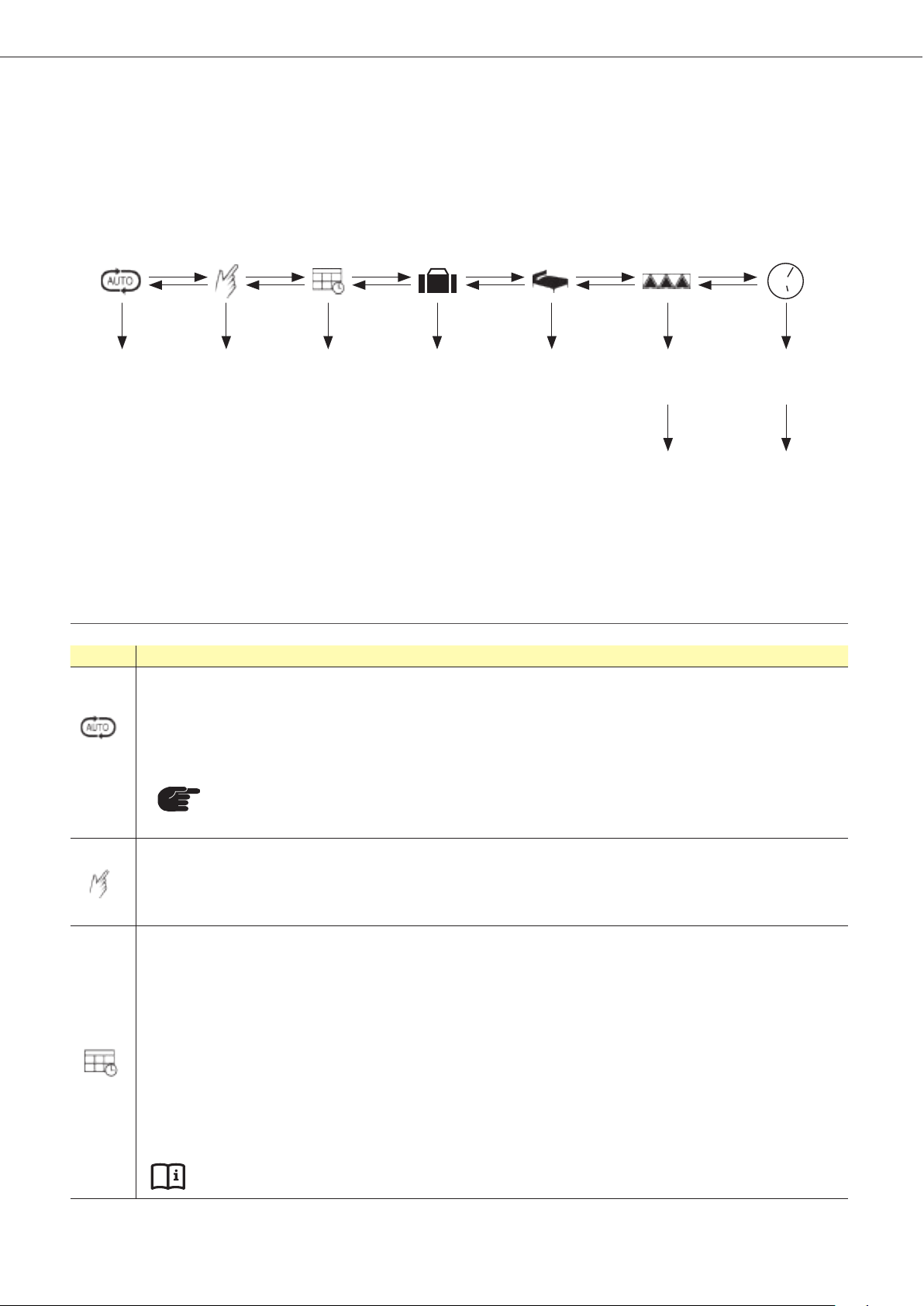

6. User menu
The user menu is used to control the profi-air180flat / profi-air250flex / profi-air360flex ventilation unit. It allows you to set,
e.g., operating modes and visualise operating data, filter replacement, and error codes.
The user menu is set up as follows:
The following sections describe the individual display fields.
6.1 “Operating modes” display field
Automatic
mode
Manual
ventilation
mode (1– 4)
Weekly
programme
setting (1–11)
Holiday
mode
on/o
Night
setback
on/o
Remaining
filter life
Set time
Set filter
replacement
interval
90 – 360 days
Set day
Symbol Description
Automatic mode (only with installed humidity sensor and/or VOC sensor)
The automatic mode regulates the airflow rate of the ventilation unit depending on the humidity level and/or air quality in the
building. A sensor in the extract air channel of the ventilation unit measures the humidity and/or air quality.
The automatic mode is activated if the symbol is shown on the display. The set ventilation mode is also displayed there.
We generally recommend operating the ventilation unit in automatic mode since this ensures constant
air exchange as required. The automatic mode additionally prevents the house from drying out espe-
cially during the winter.
Manual operation
In manual operation the user must set the ventilation mode himself/herself if the required air exchange in the house changes.
Weekly programme
The ventilation mode is controlled via the selected profile when a weekly programme is activated. The profile can be changed
as follows:
Step Description
1 Start the user menu by pushing the “CENTER” button.
2 Select the weekly programme menu item by pushing the “LEFT” or “RIGHT” buttons.
3 Push the “DOWN” button as soon as the weekly programme symbol starts flashing. Now, the selected weekly
programme, e.g., P1, flashes in the info line.
4 Select the weekly programme by pushing the “UP” or “DOWN” buttons.
5 Confirm this by pushing the “CENTER” button.
See Section 9 for a description of the dierent weekly programmes.
Operating instructions - profi-air flat / flex wireless remote control
10

6. User menu
Symbol Description
Holiday mode
The holiday mode can be activated for times when the building is not inhabited. The ventilation unit runs with minimum air
exchange in holiday mode (i.e., 2/3 of the time in ventilation mode 1 and 1/3 of the time in ventilation mode 0).
The function is deactivated by choosing another operating mode or after 28 days at the latest.
Deactivate the function immediately after the building is inhabited again since otherwise this causes an
increased risk of condensation in the pipes, or might lead to moisture damage in the building.
Night setback
The ventilation unit runs in ventilation mode 1 with activated night setback. This function can be used together with the
automatic mode, manual operation and activated weekly programme.
You can set the period for the night setback as follows:
Step Description
1 Start the user menu by pushing the “CENTER” button.
2 Select the weekly programme menu item by pushing the “LEFT” or “RIGHT” buttons.
3 Push the “DOWN” button as soon as the night setback symbol flashes.
Now, the set start time, e.g., 11:00pm, flashes in the info line.
4 Select the start time by pushing the “UP” or “DOWN” buttons.
5 Confirm this by pushing the “CENTER” button.
6 Now, the set end time, e.g., 07:00am, flashes in the info line.
7 Select the end time by pushing the “UP” or “DOWN” buttons.
8 Confirm this by pushing the “CENTER” button.
See Section 9 for a description of the dierent weekly programmes.
Time
The time controls weekly programmes and night setback.
Set the time as follows:
Step Description
1 Start the user menu by pushing the “CENTER” button.
2 Select the clock menu item by pushing the “LEFT” or “RIGHT” buttons.
3 Push the “DOWN” button as soon as the clock symbol starts flashing.
Now, the set start time, e.g., 05:00 p.m., flashes in the info line.
4 Set by pushing the “UP” or “DOWN” buttons.
5 Confirm this by pushing the “CENTER” button.
6 Now, the set weekday flashes at the bottom edge of the clock.
nMO – Monday
nTU – Tuesday
nWE – Wednesday
nTH – Thursday
nFR – Friday
nSA – Saturday
nSU – Sunday
7 Select the weekday by pushing the “UP” or “DOWN” buttons.
8 Confirm this by pushing the “CENTER” button.
For factory settings and setting options, see the profi-air 180 flat or profi-air 250 / 360 flex installation
and operating instructions, Section 5.
For summer bypass, automatic mode and frost protection control, see the profi-air180flat or
profi-air250/360flex installation and operating instructions, Section 6.
Operating instructions - profi-air flat / flex wireless remote control 11

(T3)
Symbol for the ventilation unit
(T5)
7
(T1)
6 9
(T2) (T1)
8
Heat recovery active Summer bypass active
6.2 “Operating data” display field
The “operating data” display field displays dierent operating data depending on the system's current operating mode and/or
the accessories connected. The following table shows and explains the individual items.
Symbol Description
(T1) Fresh air temperature/measured in the fresh air channel of the ventilation unit.
(T2) Supply air temperature/measured in the supply air channel of the ventilation unit.
(T3) Extract air temperature/measured in the extract air channel of the ventilation unit.
(T4) Room temperature/measured at the wireless remote control.
Defroster heater (optional accessories required)
Display with the profi-air defroster heater in operation.
For frost protection mode control strategies, see the profi-air180flat or profi-air250 / 360flex
installation and operating instructions, Section 6.
(7)
Filters
The triangles of the filter symbol show the remaining life of the filter. If all three triangles are displayed in black,
the filter symbol flashes and the filter should be replaced.
The filter alarm can be intermitted for 14 days by pushing any button on the wireless remote control.
The factory setting for filter replacement is 180 days. This setting can be extended or reduced depending on the degree
of pollution of the filter.
Proceed as follows to display the remaining filter life or to adapt the interval for filter replacement:
Step Description
1 Start the user menu by pushing the “CENTER” button.
2 Select the filter menu item by pushing the “LEFT” or “RIGHT” buttons.
3 The remaining life of the filter is displayed in the info line as soon as the filter symbol flashes.
4 Push the “DOWN” button to display the filter interval in the info line.
5 Set by pushing the “UP” or “DOWN” buttons.
6 Confirm this by pushing the “CENTER” button.
For filter replacement instructions, see the profi-air180flat or profi-air250 / 360flex installation and
operating instructions and/or the replacement filter instruction leaflet.
6. User menu
Operating instructions - profi-air flat / flex wireless remote control
12

Symbol Description
(8)
Relative humidity (optional accessories required)
The drop symbol shows whether the humidity in the building is within the comfort zone.
Symbol Relative humidity Description
< 24 % very dry air
< 25 – 34 % dry air
35 – 65 % comfort zone
> 66 % humid air
The drop symbol is active only if the ventilation unit is furnished with the optional humidity sensor.
The automatic mode must be activated to control the air volume depending on the humidity.
For automatic mode control strategies, see the profi-air180flat or profi-air250 / 360flex installation and
operating instructions, Section 6.
Air quality (optional accessories required)
The cloud symbol shows the air quality in the building.
Symbol Relative humidity Description
< 800 ppm very good air quality
800 – 1,200 ppm good air quality
1,200 – 1,500 ppm sucient air quality
> 1,500 ppm poor air quality
The cloud symbol is active only if the ventilation unit is furnished with the optional VOC sensor.
The automatic mode must be activated to control the air volume depending on the air quality.
For automatic mode control strategies, see the profi-air180flat or profi-air250 / 360flex installation and
operating instructions, Section 6.
6. User menu
Operating instructions - profi-air flat / flex wireless remote control 13

6.3 “Info line” display field
The info line displays error messages, information on dierent settings of the ventilation unit and the battery status of the
wireless remote control.
Symbol Description
Alarm
The alarm symbol means that there is a malfunction in the ventilation unit. The error code is displayed after the symbol.
See Section 8 for a list of error codes.
For more troubleshooting information, see the profi-air180flat or profi-air250 / 360flex installation and
operating instructions, Section 8.
Information regarding time setting, weekly programmes, error codes, etc. is displayed here.
Display Meaning
A1 A1 automatic programme is selected.
P1, P2 … Weekly programme number
BYP1 Manual summer bypass is activated, 1h left.
DEF Defroster function active
E1, E2 … Error code
Low battery status in the wireless remote control
6.4 “Ventilation mode” display field
This display field displays the current ventilation mode.
Symbol Description
Mode 0
The device is switched o. This function may be used in exceptional cases only, e.g., unpleasant odour from the
outside. After activating mode 0, this will be enabled for 4 hours and switched to mode 3 afterwards.
The device is switched o. This function may be used in exceptional cases only, e.g., unpleasant
odour from the outside. After activating mode 0, this will be enabled for 4 hours and switched to
mode 3 afterwards.
Mode 1 (protection against humidity)
The lowest fan speed protects the building from moisture during times of longer absence of the inhabitants
(e.g., holidays).
49% of the set fan speed in mode 3
Mode 2 (reduced ventilation)
The low fan speed is used for reduced ventilation during times of absence of the inhabitants.
70% of the set fan speed in mode 3
Mode 3 (rated ventilation)
The normal fan speed is used for rated operation of the ventilation unit when the inhabitants are present.
Can be set between 46% and 91% of fan speed.
Mode 4 (full-scale ventilation)
The maximum fan speed is used for full-scale ventilation (party mode). After activating mode 4, this will
be enabled for 4 hours and switched to mode 3 afterwards.
Can be set from ventilation mode 3 to 100% of the fan speed.
6. User menu
Operating instructions - profi-air flat / flex wireless remote control
14

7. Fitter menu
The fitter menu is used to commission the profi-air180flat / profi-air250flex / profi-air360flex ventilation unit.
Push and hold the “RIGHT” button for 10 seconds to activate the fitter menu. The unit symbol starts flashing slowly and the
control switches to ventilation mode 3. You can also access the fitter menu by pushing and holding the MANUAL and AUTO
buttons at the control unit for 5 seconds.
The fitter menu remains active for 60 minutes or until you push the same combination of buttons for a restart.
Only experts and service technicians who have familiarised themselves comprehensively with the
ventilation unit may use the fitter menu. Wrong settings may lead to device and/or building damage.
For commissioning information, see the profi-air180flat or profi-air250 / 360flex installation and
operating instructions, Section 4.
The fitter menu is set up as follows:
Software status of
the heat recovery
ventilation unit H___
Automatic
programme
Speed of the
supply air fan
Read target values
of preheating
(accessories)
Display summer
bypass target value
Software status
of the remote
control F___
Automatic
program-
me setting
(A1…)
Read the
speed of
the extract
air fan
Preheating
(accessories)
on/off
Summer bypass
target value Tmin
(T1) set fresh air
temperature
Software status of
accessories A___
Set the sensitivi-
ty of the humidity
sensor (accesso-
ries) (35–65%RH)
Summer bypass
target value Tmax
(T3) set fresh air
temperature
Operating instructions - profi-air flat / flex wireless remote control 15

7.1 SW menu item
This menu item displays the software versions of the dierent components in the info line.
Display Description
H… Software version of the mainboard in the ventilation unit
F… Software version of the wireless remote control
A… Software version of the connection box
7.2 Automatic mode menu item (optional accessories required)
This menu item displays the automatic programme and the target value for relative humidity.
Display Description
Operating
modes
display field
The selected automatic programme is displayed.
You can set the humidity target value as follows:
Step Description
1 Push and hold the “RIGHT” button for approx. 10 seconds to start the fitter menu.
2 Push the “CENTER” button to display the A1 automatic programme and the currently measured value.
3 Push the “CENTER” button to display the humidity target value (display flashes rapidly).
4 Set by pushing the “UP” or “DOWN” buttons.
5 Confirm this by pushing the “CENTER” button.
6 Push and hold the “RIGHT” button for approx. 10 seconds to end the fitter menu.
If a set target value is too low, this can compromise the well-being of the inhabitants and/or lead to
certain materials in the building drying out.
If a set target value is too high, this can compromise the well-being of the inhabitants and/or lead to
moisture damage in the building.
Info line
display field
A1
Operating data
display field
7.3 Fan menu item
This menu item displays the automatic programme and the target value for relative humidity.
Display Description
Ventilation mode
display field
Proceed as follows to display fan speed:
Step Description
1 Push and hold the “RIGHT” button for approx. 10 seconds to start the fitter menu.
2 Select the fan menu item by pushing the “RIGHT” button until the fan symbol starts flashing.
If the fan symbol and the supply air channel are flashing, the info line will show the fan speed of the
supply air fan.
3 Push the “DOWN” button to display the extract air fan.
If the fan symbol and the extract air channel are flashing, the info line will show the fan speed of the
extract air fan.
4 Push and hold the “RIGHT” button for approx. 10 seconds to end the fitter menu.
Info line
display field
Current
ventilation
mode
Operating data
display field
flashing supply
air channel
flashing
extract air
channel
7. Fitter menu
Operating instructions - profi-air flat / flex wireless remote control
16

7.4 Defroster heater menu item (optional accessories required)
This menu item activates/deactivates the defroster heater:
Step Description
1Push and hold the “RIGHT” button for approx. 10 seconds to start the fitter menu.
2Select the defroster menu item by pushing the “RIGHT” button until the defroster heater symbol starts flashing.
3Push the “CENTER” button to display the current setting.
4
Push the “UP” or “DOWN” buttons to activate or deactivate the defroster heater.
“ON” – defroster heater activated
“OFF” – defroster heater deactivated
5Confirm this by pushing the “CENTER” button.
6Push and hold the “RIGHT” button for approx. 10 seconds to exit the fitter menu.
For frost protection mode control strategies, see the profi-air180flat or profi-air250 / 360flex
installation and operating instructions, Section 6.

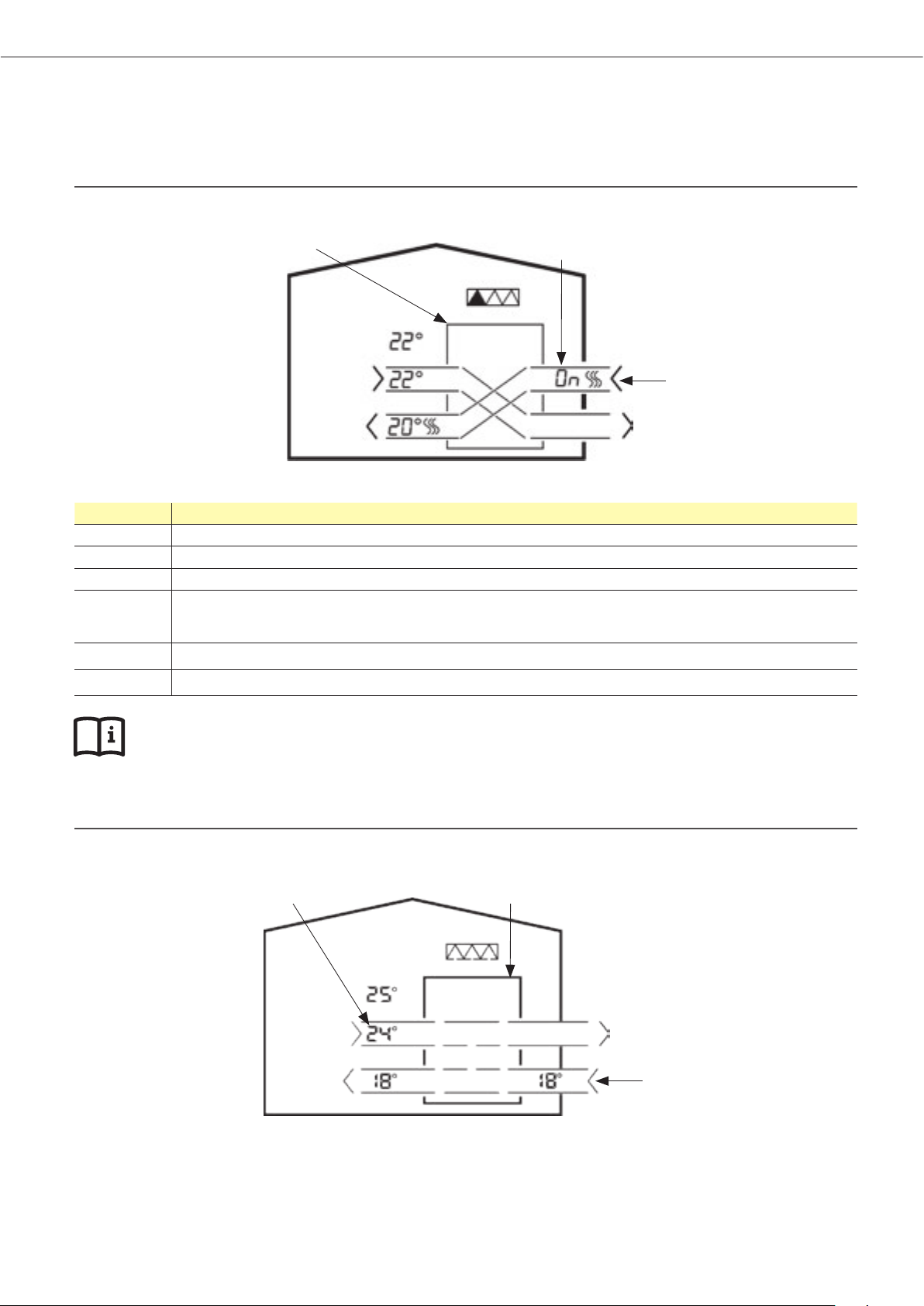

7.5 Summer bypass menu item
7. Fitter menu
Symbol for the ventilation unit
Heat recovery active
Summer bypass active
Symbol for the ventilation unit
(T3/set bypass Tmax )
(T1/set bypass Tmin)
Summer bypass active
You can set the desired target temperatures for the summer bypass under this menu item:
Operating instructions - profi-air flat / flex wireless remote control 17

Step Description
1Push and hold the “RIGHT” button for approx. 10 seconds to start the fitter menu.
2
Select the summer bypass menu item by pushing the “RIGHT” button until the summer bypass is displayed as shown
above. The ventilation unit symbol flashes.
The displayed temperatures still equal the currently measured values.
3Push the “CENTER” button to display the T1/set bypass Tmin and T3/set bypass Tmax target values.
4
Push the “CENTER” button to set the T1/set bypass Tmin target value.
The T1 target value flashes and can be changed by pushing the “UP” and “DOWN” buttons (8 to 15 °C range).
Confirm this by pushing the “CENTER” button again.
5
After confirming the last setting, the T3 target value flashes and can be changed by pushing the “UP” and “DOWN”
buttons (22 to 30 °C range/”OFF”).
The summer bypass is deactivated permanently if the target value is set to “OFF”.
Confirm this by pushing the “CENTER” button again.
6Push and hold the “RIGHT” button for approx. 10 seconds to exit the fitter menu.
For summer bypass control strategies, see the profi-air180flat / profi-air250flex / profi-air360flex
installation and operating instructions, Section 6.
7.6 Target values and setting ranges
The following table shows the target values and setting ranges which can be adapted using the wireless remote control.
Description Factory setting min max.
Humidity
automatic mode (RH %) 45 % 35 % 45 %
Summer bypass Tmin
Fresh air temperature (T1) 15 °C 8 °C 15 °C
Summer bypass Tmax
Extract air temperature (T3) 24 °C 22 °C/OFF 30 °C
Defroster heater OFF OFF OFF
Filter replacement interval 180 days 90 days 360 days
7.7 Reset to factory settings
You can reset the ventilation unit to the factory settings from the fitter menu. Push and hold the “UP” and “CENTER”
buttons at the same time for approx. 10 seconds until the entire display flashes.
7. Fitter menu
Operating instructions - profi-air flat / flex wireless remote control
18

8. Error codes
For more troubleshooting information, see the profi-air180flat or profi-air250 / 360flex installation
and operating instructions.
Code Description
E1 Extract air fan
E2 Supply air fan
E3 Summer bypass flap
E4 Fresh air temperature sensor (T1)
E5 Supply air temperature sensor (T2)
E6 Extract air temperature sensor (T3)
E7 Exhaust air temperature sensor (T4)
Weekly programme P1
Monday - Friday
Time /
mode
0-1
1-2
2-3
3-4
4-5
5-6
6-7
7-8
8-9
9-10
10 -11
11-12
12-13
13-14
14-15
15-16
16 -17
17-18
18-19
19-20
20-21
21-22
22-23
23-24
4
3
2
1
Weekend
Time /
mode
0-1
1-2
2-3
3-4
4-5
5-6
6-7
7-8
8-9
9-10
10 -11
11-12
12-13
13-14
14-15
15-16
16 -17
17-18
18-19
19-20
20-21
21-22
22-23
23-24
4
3
2
1
Weekly programme P2
Monday - Friday
Time /
mode
0-1
1-2
2-3
3-4
4-5
5-6
6-7
7-8
8-9
9-10
10 -11
11-12
12-13
13-14
14-15
15-16
16 -17
17-18
18-19
19-20
20-21
21-22
22-23
23-24
4
3
2
1
Weekend
Time /
mode
0-1
1-2
2-3
3-4
4-5
5-6
6-7
7-8
8-9
9-10
10 -11
11-12
12-13
13-14
14-15
15-16
16 -17
17-18
18-19
19-20
20-21
21-22
22-23
23-24
4
3
2
1
9. Weekly programmes
Code Description
E8 Room air temperature sensor (T5)
E9 Humidity sensor
E10 Fresh air temperature < -13 °C
E11 Supply air temperature < 5 °C
E12 Fire protection; one sensor measures a temperature > 70 °C
E13 Communication error
Operating instructions - profi-air flat / flex wireless remote control 19

Weekly programme P3
Monday - Friday
Time /
mode
0-1
1-2
2-3
3-4
4-5
5-6
6-7
7-8
8-9
9-10
10 -11
11-12
12-13
13-14
14-15
15-16
16 -17
17-18
18-19
19-20
20-21
21-22
22-23
23-24
4
3
2
1
Weekend
Time /
mode
0-1
1-2
2-3
3-4
4-5
5-6
6-7
7-8
8-9
9-10
10 -11
11-12
12-13
13-14
14-15
15-16
16 -17
17-18
18-19
19-20
20-21
21-22
22-23
23-24
4
3
2
1
Weekly programme P4
Monday - Friday
Time /
mode
0-1
1-2
2-3
3-4
4-5
5-6
6-7
7-8
8-9
9-10
10 -11
11-12
12-13
13-14
14-15
15-16
16 -17
17-18
18-19
19-20
20-21
21-22
22-23
23-24
4
3
2
1
Weekend
Time /
mode
0-1
1-2
2-3
3-4
4-5
5-6
6-7
7-8
8-9
9-10
10 -11
11-12
12-13
13-14
14-15
15-16
16 -17
17-18
18-19
19-20
20-21
21-22
22-23
23-24
4
3
2
1
Weekly programme P5
Monday - Friday
Time /
mode
0-1
1-2
2-3
3-4
4-5
5-6
6-7
7-8
8-9
9-10
10 -11
11-12
12-13
13-14
14-15
15-16
16 -17
17-18
18-19
19-20
20-21
21-22
22-23
23-24
4
3
2
1
Weekend
Time /
mode
0-1
1-2
2-3
3-4
4-5
5-6
6-7
7-8
8-9
9-10
10 -11
11-12
12-13
13-14
14-15
15-16
16 -17
17-18
18-19
19-20
20-21
21-22
22-23
23-24
4
3
2
1
9. Weekly programmes
Operating instructions - profi-air flat / flex wireless remote control
20
Other manuals for profi-air Series
1
This manual suits for next models
2
Table of contents
Other FRÄNKISCHE Remote Control manuals
