Franke SMART GN 86 M H XS User manual

GN 86 M H XS GN 86 M H BK GN 86 M H WH
SMART
EN Installation and user manual Oven
FR Manuel d‘installation et mode d‘emploi Four
IT Manuale per l‘installazione e l‘uso Forno
ES Manual de instalación y servicio Horno
PT Manual de instalação e de assistência Forno
EL Εγκατάσταση και εγχειρίδιο συντήρησης Φούρνος
CS Návod k montáži a obsluze Trouba

– 3 –
GN 86 M H XS / GN 86 M H BK / GN 86 M H WH EN
ABOUT THIS MANUAL
Dear Customer,
Thank you for relying on this product.
We aim toallow you tooptimally and efficiently
use this environmentally-friendly product
produced inour modern facilities under precise
conditions with respect tosense ofquality
intotal.
We advise you toread these operating manual
thoroughly before using theoven and keep it
permanently so that thefeatures ofthebuilt-in
oven you have purchased will stay thesame as
thefirst day for along time.
Note: This operating manual isprepared for
multiple models. Your appliance may not
feature some functions specified inthemanual.
The product images are schematic.
This product has been produced inmodern
environmentally-friendly facilities without
adversely affecting nature.
Symbol Meaning
Warning symbol. Warning against risks of injury.
Actions in safety and warning notes to avoid injury or damage.
Action step. Specifies an action to be done.
Result. Result of one or more action steps..
TABLE OF CONTENTS
About this manual 3
Safety Information 4
Overview 6
Accessories 7
Installation 7
Important warnings for installation 8
Placing and securing the oven 9
Electrical connection 9
Control panel 10
Operation 11
Initial use of oven 11
Normal use ofoven 11
Digital timer 11
Programmable options 13
Cooking programs 14
Program types 14
Cooking Table 15
Cleaning and maintenance 15
Maintenance and repair 18
Technical data 19
Disposal 19

– 4 –
GN 86 M H XS / GN 86 M H BK / GN 86 M H WH
EN
SAFETY INFORMATION
 Read the user manual and the
safety information carefully
before using the oven.
 Keep the manual for future
reference.
The manufacturer can not
be made liable for possible
damage which may occur
due to incorrect installation
and incorrect, improper or
unreasonable use of the device.
The electrical safety of the
oven is guaranteed only when
itisconnected to an earthing
system in compliance with the
valid regulations.
To ensure safe and efficient
operation of this electrical device:
 Setting conditions of this
appliance are specified on the
label (or on the data plate).
 This appliance can be used by
children over 8 years of age,
people with physical, hearing
or mental challenges or
people with lack of experience
or knowledge;
as long as control is ensured
or information is provided
regarding the dangers.
 Children must not play with
the appliance.
 Cleaning and user
maintenance shouldn‘t be
made by children unless
theyare older than 8years old
and under adult supervision.
 This device is not a toy.
 Do not leave children near
the device unattended.
 Do not allow children
to touch the device or
its controls during and
immediately after using it.
 Children under 8 years
of age should be kept away,
ifthey cannot be monitored
continuously.
 Ensure that the device is
installed in a way that allows
to disconnect it from the
power supply, with
a contact opening distance
that ensures complete
disconnection in category III
overvoltage conditions.
 Means for disconnection
must be incorporated in the
fixed wiring in accordance
with the wiring rules.
 The appliance hasn‘t been
designed for operation with
an external time or a separate
remote control system.
 To prevent overheating, the
appliance should not be
installed behind of
a decorative door.
 Make sure that children
at and under 8 can‘t reach
appliance and appliance
cable.

– 5 –
GN 86 M H XS / GN 86 M H BK / GN 86 M H WH EN
Risk of burns!
 The end of the door handle
may be hotter due to hot air
being vented.
 Always make sure that the
control knobs are in the off
position when the oven is not
in use.
 Touching the heating
elements should be avoided.
WARNING: The accessible parts
may be hot during use of grid.
 Children must be kept away.
WARNING: Appliance and its
accessible parts are hot during
operation.
 Accessible parts might be
hot during use of grill. Small
children should be kept away.
CAUTION: There are additional
protective tools avoiding
contact with oven doors.
This part must be attached
when it‘s likely that there are
children around.
Risk ofelectric shock!
WARNING: Ensure that the
appliance is switched off before
replacing the lamp to avoid the
possibility of electric shock
 WARNING: All supply
circuit connections must
be disconnected before
accessing terminals.
 WARNING: If the surface is
cracked, open the appliance
circuit to avoid risk of electric
shock.
 Power supply cable (plug in
cable) mustn‘t touch hot parts
of the appliance.
 If supply cord (plug in cable)
is damaged, this cord must
be replaced by the importer
or its service agent or an
equally competent personnel
to prevent a hazardous
situation.
Risk of fire hazard!
WARNING: do not store
materials on cooking surface.
 Keep curtains, tissue paper
or combustible (inflammable)
materials away from appliance
before starting to use it.
 Do not place inflammable or
combustible materials in or
on the appliance.
 NEVER try to put out the fire
with water. Only shut down
the appliance circuit and then
cover the flame with a cover
or a fire blanket
CAUTION: in order to avoid
a hazard due to inadvertent
resetting of the thermal cutout,
this appliance must not be
supplied through an external
switching device, such as a
timer, or connected to a circuit
that is regularly switched on
and off by the utility.

– 6 –
GN 86 M H XS / GN 86 M H BK / GN 86 M H WH
EN
Proper use
 This device has been
designed for domestic use.
 Only use the temperature
probe recommended for this
oven.
WARNING: Appliance is
intended for cooking only.
It should not be used for other
purposes like heating a room.
 Ensure that door is fully
closed after food is placed.
Maintenance and cleaning
 Hard and abrasive cleaners
or hard metal scrapers
should not be used to clean
the oven glass door, as these
can scratch the surface and
cause breaking.
 Cleaning and user
maintenance can‘t be made
by children without adult
supervision.
Risk ofelectric shock
due toentering liquid!
 Do not use steam cleaners to
clean the appliance.
OVERVIEW
1
2
3
4
1. Control Panel
2. In Tray Wire Grill
3. Standard Tray
4. Oven door
6
5
7
5. Lamp
6. In Tray Wire Grill
7. Standard Tray

– 7 –
GN 86 M H XS / GN 86 M H BK / GN 86 M H WH EN

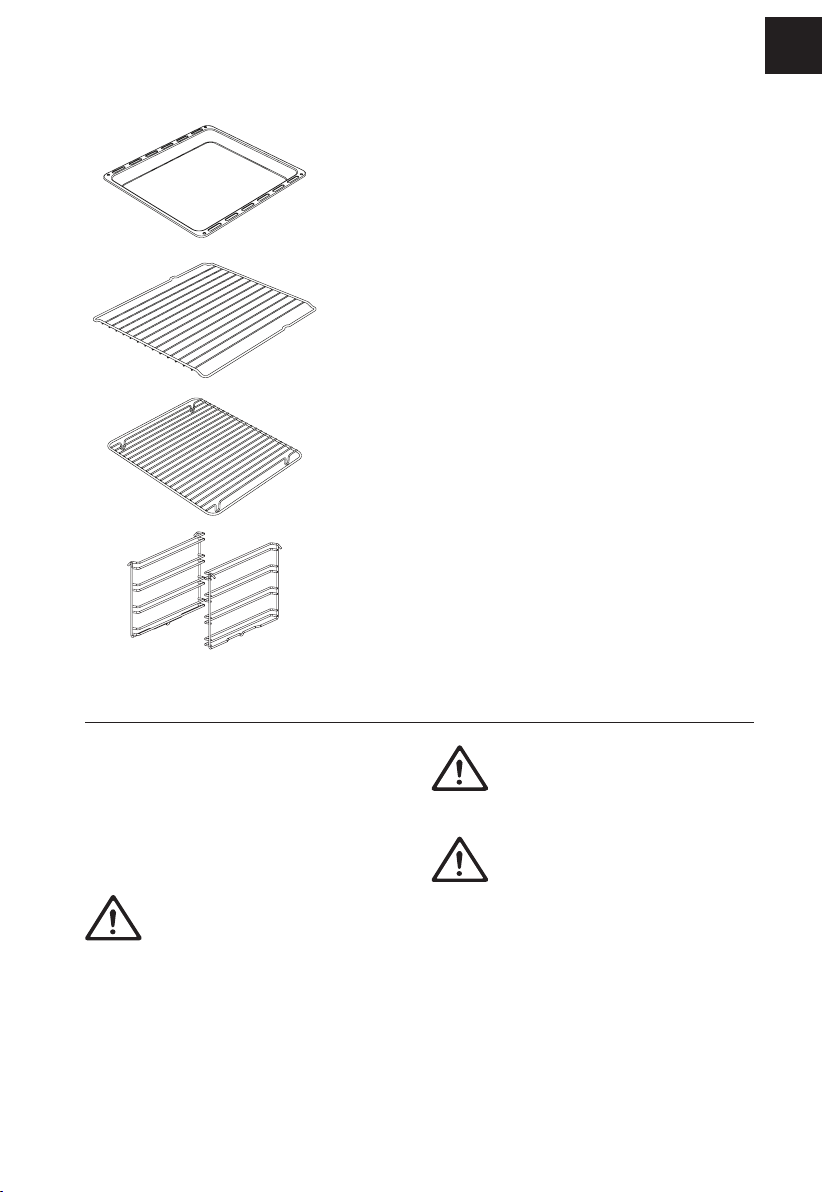

Accessories
Tray (2 pcs.)
Used for pastry (cookie, biscuit etc.), frozen foods.
Wire grid
Used for roasting orplacing foods tobebaked,
roasted and frozen into desired rack.
In tray wire grill
Foods tostick while cooking such as steak are placed
on intray grill. Thus contact offood with tray and
sticking are prevented.
Wire racks
You can place deep tray and tray on lower and upper
wire racks while cooking.
INSTALLATION
Ensure that electrical installation is suitable
for operationalising the appliance. If not, call
an electrician and plumber to make necessary
arrangements. Manufacturing firm can‘t be
hold responsible for damages to arise due to
operations by unauthorized people and product
warranty becomes void.
WARNING: It is customer‘s
responsibility to prepare the location the
product shall be placed on and also have
power utility prepared.
WARNING: The rules about electrical
local standards must be adhered to during
product installation.
WARNING: Check for any damage on
the product before installing it. Do not have
product installed if it‘s damaged. Damaged
products pose danger for your safety.

– 8 –
GN 86 M H XS / GN 86 M H BK / GN 86 M H WH
EN
Important warnings for installation
 Cooling fan shall take extra steam out and
prevent outer surfaces of appliance from
overheating during operation of oven.
This is a necessary condition for better
appliance operation and better cooking.
 Cooling fan shall continue operation after
cooking is finished.
 Fan shall automatically stop after cooling is
completed.
 A clearance must be left behind the enclosure
where you‘ll place the appliance for efficient
and good operation.
This clearance shouldn‘t be ignored
as it‘s required for ventilation system of the
appliance to operate.
Right place for installation
Product has been designed to be mounted
to worktops procured from market. A safe
distance must be left between the product and
kitchen walls or furniture.
See the drawings provided on pages 124 - 125
for proper distances (values in mm).
 Used surfaces, synthetic laminates and
adhesives must beheat resistant
(minimum 100°C).
 Kitchen cupboards must belevel with
product and secured.
 If there isadrawer below theoven, arack
must beplaced between oven and drawer.
WARNING: Do not install the product
next to refrigerators or coolers. The heat
emitted by the product increases the energy
consumption of cooling devices.
WARNING: Do not use door and/or
handle to carry or move the product.
60 Cm built-in oven installation
and mounting
 Place of use for product must be located
before starting installation.
 Product mustn‘t be installed in places which
are under the effect of strong air flow.
 Carry the product with minimum two
people. Do not drag the product so that
floor isn‘t damaged.
 Remove all transportation materials inside
and outside the product. Remove all
materials and documents in the product.
Installation under counter
Cabin must match the dimensions provided in
Figure 1.
A clearance must be provided at the rear part
of the cabin as indicated in the figure so that
necessary ventilation can be achieved.
After mounting, the clearance between lower
and upper part of the counter is indicated
in Figure 4 with „A“. It‘s for ventilation and
shouldn‘t be covered.
Installation in an elevated cabinet
Cabin must match the dimensions provided in
Figure 3.
The clearances with the dimensions indicated
in the figure must be provided at the rear part
of cabin, upper and lower sections so that
necessary ventilation can be achieved.

– 9 –
GN 86 M H XS / GN 86 M H BK / GN 86 M H WH EN
Installation requirements
Product dimensions are provided in the Figure 2.
Furniture surfaces for mounting and mounting
materials to be used must have a minimum
temperature resistance of 100 °C.
Mounting cabin must be secured and its floor
must be plane for product not to tilt over.
Cabin floor must have a minimum strength that
would handle a load of 60 kg.
Placing and securing the oven
 Place the oven into the cabin with two or
more people.
 Ensure that oven‘s frame and front edge of
the furniture match uniformly.
 Supply cord mustn‘t be under the oven,
squeeze in between oven and furniture
or bend.
 Fix the oven to the furniture by using the
screws provided with the product. Screws
must be mounted as shown in Figure 4 by
passing them through plastics attached to
frame of the product.
 Screws mustn‘t be overtightened.
 Otherwise, screw sockets might be
worn. Check that oven doesn‘t move
after mounting. If oven isn‘t mounted
in accordance with instructions, there
is a risk of tilt over during operation.
Electrical connection
Mounting place of the product must have
appropriate electrical installation.
Network voltage must be compatible with the
values provided on type label of product.
Product connection must be made in
accordance with local and national electrical
requirements.
 Before starting the mounting disconnect
network power.
 Do not connect the product to network until
its mounting is completed.
WARNING:This oven must be installed
and connected to its place correctly according
to manufacturer instructions and by an
authorized service.
WARNING: Appliance must be
installed in an oven enclosure providing high
ventilation.
WARNING: Electrical connections of
the appliance must be made only via sockets
having earth system furnished in compliance
with rules.
 Contact an authorized electrician if there
is no socket complying with the earthed
system at where appliance will be placed.
Manufacturing company is by no means
responsible for damage resulting from
connection of non-earthed sockets to
appliance.
 Plug of your oven must be earthed; ensure
that socket for the plug is earthed.
 Plug must be located in a place that can be
accessed after installation.
CAUTION:Your oven has been manufactured
as 220-240V 50/60 Hz. AC power supply
compliant and requires a 16 Amp fuse.
If your power network is different that these
indicated values, refer to an electrician or your
authorized service.
CAUTION: When you need to replace the
electrical fuse, please ensure that electrical
connection is made as follows:
– Brown = Live
– Blue = Neutral
– Yellow/Green = Earth
Oven disconnecting switches must be in an
accessible place for final user while oven is in
its place.

– 10 –
GN 86 M H XS / GN 86 M H BK / GN 86 M H WH
EN
Control panel
Thermostat knob
Helps to set cooking temperature of the food
to be cooked in the oven. You can set the
desired temperature by turning the knob after
placing the food into the oven.
Check cooking table related to cooking
temperatures of different foods.
Program knob
Helps to set with which heaters the food placed
in oven will be cooked.
Heater program types in this knob and their
functions are stated below. Every model might
not have all heater types and thus program
types of these heaters.
Adjustment can be made only when knob is
popped for models with pop-up knob.
Make sure that knob is popped by pressing on
the knob as shown in the figure atleftside.
You can make necessary adjustments by turning
right or left when knob is popped enough.

– 11 –
GN 86 M H XS / GN 86 M H BK / GN 86 M H WH EN
OPERATION
Initial use of oven
Here are the things you must do at first use
of your oven after making its necessary
connections as per instructions:
 Remove labels or accessories attached
inside the oven. If any, take out the protective
folio on front side of the appliance.
 Remove dust and package residues by
wiping inside of the oven with a damp cloth.
Inside of oven must be empty. Plug the
cable of appliance into the electrical socket.
 Set the thermostat knob to the highest
temperature (max. 240°C) and run the
oven for 30 minutes with its door closed.
Meanwhile a slight smoke and smell might
occur and that's a normal situation.
 Wipe inside of the oven with a slightly
warm water with detergent after it
becomes cold and then dry with a clean
cloth. Now you can use your oven.
Normal use ofoven
 Adjust thermostat knob to the temperature
at which you want to cook the food to start
cooking.
 You can set cooking time to any desired
time by using the knob at models with
mechanical timer. Timer will de-energize
automatically the oven when time expired
and provide warning beep as ringing.
 Timer turns automatically the oven off and
provides audible signal when cooking time
expires in line with the information entered
in the models with digital timer.
 Cooling system of the appliance will
continue to operate after cooking is
completed. Do not cut the power of
appliance as it required to cool down.
System will shut down automatically after
cooling is completed.
Digital timer
13
2
1. Minus button
2. Time of day/Adjustment button
3. Plus button
Screen symbols
Oven status indication
On: Cooking orready for cooking.
Off: No cooking.
Minute minder status indication
On: Minute minder alarm active.
Flashing: Minute minder adjustment mode, adjustment possible by or buttons
orcurrent minute minder alarm completed.
Off: Minute minder isnot active.
Child lock indication
On: Child Lock isactive.
Off: Child Lock isinactive.
Automatic cooking status indication
On: Full orsemi auto-cooking active.
Flashing: Auto cooking completed orpower on condition.
Off: No auto cooking active.

– 12 –
GN 86 M H XS / GN 86 M H BK / GN 86 M H WH
EN
It is an electronic timing module enabling your
food you have put in the oven to be ready for
service at any time you like. The only thing you
need to do is to programme the cooking time
of the food and also the time when you would
like your food to be ready.
It is also possible to use a minute-programmed
alarm clock independent from the oven.
The case where the time clock is behind or
ahead is not a malfunction. The oven time
clock may be put back or ahead according to
mains frequency as it runs directly with mains
voltage. This is not a malfunction.
Power on
At power on, oven is inactive, time of day and
symbols are flashing.
 The indicated time of day is not correct
and has to be adjusted.
 Press to activate the oven and proceed
adjusting the time of day as below.
Time of day adjustment
Time of Day adjustment is only possible when
no cooking program is in progress.
 Press and simultaneously for
3seconds to enter the adjustment mode
and then the dot symbol in between
hours and minutes digits will start to
flash. Using either and adjust the
desired duration. The maximum adjustable
duration is 23h 59 minutes.
Adjustment mode will be abandoned within
6 seconds after the last button press or
can be terminated immediately by pressing
the button.
Note: Time of Day adjustment is also activated
in first 7 seconds after power on.
Setting theminute minder
With this function, you can adjust a duration in
minutes.
 After the adjusted time has been elapsed,
an alarm sound will be produced.
 Press button once to enter the minute
minder adjustment mode, symbol will
start flashing on the screen.
 Using either or , adjust the desired
duration. The maximum adjustable
duration is 10 hour. Adjustment mode will
be abandoned within 6 seconds after the
last button press or can be terminated
immediately by pressing the button.
Cancelling thealarm buzzer sound
 Once the adjusted minute minder
duration is elapsed, the buzzer alarm
will start to sound, accompanied by
the flashing symbol on thescreen.
 Any button press will stop thealarm
sound and this indication.
 If no button is pressed, the alarm sound
will end automatically after 5 minutes,
but the flashing symbol will go on.
Semi automatic cooking
This cooking program is intented to start
cooking immediately for a specified duration.
After the oven is set to the desired function
and Temperature via the oven knobs:
 Press the button twice, symbol will
flash on the screen. and duration
of cooking will show on the screen one
after another.
 Using or buttons, adjust thedesired
cooking duration.
 After 6 seconds of the last button press
or by pressing twice, theadjustment
iscompleted. will be steady on the
screen and the display shows the current
time of day.
Full automatic cooking
This cooking program is intented to perform
adelayed cooking by programming the time of
day, when the food should be ready.
In other words, the oven will start cooking not
immediately but will automatically calculate the
time to start cooking.
 Perform step 1 and 2 of the semi auto
cooking as above.
(cooking duration adjustment).
 Press button once again, symbol
will flash on thescreen and duration
ofcooking will show on thescreen one
after another.

– 13 –
GN 86 M H XS / GN 86 M H BK / GN 86 M H WH EN
 Using or buttons, adjust thedesired
end ofcooking time. symbol will
disappear but symbol will bestill
flashing on thescreen. This indicates that
anautomatic cooking isprogrammed but
cooking has not started yet.
 After 6seconds ofthelast button push
orby pressing , theadjustment
will becompleted, thedisplay shows
thecurrent time ofday.
Auto cooking end
After the automatic cooking has been
completed, symbol will be flashing on the
screen and the buzzer alarm will sound.
Any button press will stop the alarm sound but
the flashing symbol will go on till button
is pressed. The buzzer alarm will sound for
7minutes if not stopped.
Power interrupts
 After any interrupt of mains power, your
oven will be inactive after the power is
restored, for safety reasons.
 After power on, the time of day digits
and symbol will flash and the
time of day has to be adjusted
(see power on).
Note: theflashing symbol indicates that
the oven is inactive and you have to enter the
manual mode.
Child lock
This function is intented to prevent any
unauthorized modification of the timer settings.
 This function will be active, within
30seconds after the last button press.
will appear.
 To deactive it, press the button for
3seconds. will disappear.
Programmable options
Alarm tone
 Pressing and holding the button for
3seconds will result inthecurrenly
valid buzzer tone being produced.
 By pressing and buttons, you
may scroll through 3available
buzzer tones.
 The last heard buzzer tone will be
automatically recorded as the selected
tone.
 After 6seconds ofthelast button push
orby pressing , the adjustment
iscompleted.
Brightness setting
 Pressing and holding the button for
3 seconds will result in the currenly
valid brightness setting being showed.
 By pressing and buttons,
you may scroll through 8 available
brightness setting.
 The last seen brightness setting will be
automatically recorded as the selected
setting.
 After 6 seconds of the last
button press or by pressing ,
theadjustment iscompleted.
Note: Default settings are highest.
Note: Programmable options are nonvolatile
and will beresident after any power failure.

– 14 –
GN 86 M H XS / GN 86 M H BK / GN 86 M H WH
EN
COOKING PROGRAMS
Program types
Heating program types in your appliance and
important explanations of them are provided
below for you can cook different foods
appealing to your taste.
Multifunctional Cooking Fan
Grill Lower and Upper Heating Elements
Grill and Fan Lower-Upper Heating Element and Fan
Steam Cleaning and Lower Heating
Element Turbo Heater and Fan
Multi functional cooking
Suitable for baking and roasting. Lower
and upper heaters operate as well as quick
transmission of heat via air flow. Suitable for
cooking requiring single tray and intense heat.
Grill
Grill cooker is used for grilling meat like foods
such as steak, sausage and fish. While grilling,
tray should be placed in the lower rack and
water must be placed in it.
Grill and fan
Suitable for cooking meat type foods. Do not
forget to place a cooking tray in a lower rack
inside the oven and a little water in it while
grilling.
Lower heating element
Select this program towards end of cooking
time if lower part of the food cooked will be
roasted.
Fan
Can be used to prevent the cooling of your
cooked food.
Lower and upper heating elements
A program that can be used for cooking foods
like cake, pizza, biscuit and cookie.
Lower and upper heating element
and fan
The program suitable for cooking foods like
cakes, dried cakes, lasagne. Suitable for
cooking meat dishes, as well.
Turbo heater and fan
Suitable for baking and roasting. Keep heat
setting lower than “Lower and Upper Heater”
program since heat is conveyed immediately
via air flow.
Cooking recommendations
You can find in the following table the
information of food types which we tested
and identified their cooking values in our
labs. Cooking times can vary depending on
the network voltage, quality of material to be
cooked, quantity and temperature. Dishes to
cook by using these values might not appeal
to your taste. You can set various values for
obtaining different tastes and results appealing
to your taste by making tests.
WARNING: Oven must be preheated for
7-10minutes before placing the food in it.

– 15 –
GN 86 M H XS / GN 86 M H BK / GN 86 M H WH EN
Defrosting
To defrost the food, the following procedure is
recommended:
 Take the material to be defrosted out of
its package and put it on the grid. Put the
square tray under the grid for the water
pours in during the defrosting.
 Set the programme selector knob to the
position „Fan“.
 Set the temperature control knob to 0°C.
Cooking Table
Food Cooking function Cooking temperature (°C) Cooking rack Cooking time (min.)
Cake Static / Static+Fan 170 -180 2-3 35-45
Small cake Static / Turbo+Fan 170 -18 0 225-30
Pie Static / Static+Fan 180-200 235-45
Pastry Static 180 -190 220-25
Cookie Static 170 -180 220-25
Apple pie Static / Turbo+Fan 180 -190 150-70
Sponge cake Static 200/150 * 220-25
Pizza Static Fan 180 -200 320-30
Lasagne Static 180 -200 2-3 25-40
Meringue Static 100 250
Grilled chicken** Grill+Fan 200-220 325-35
Grilled fish** Grill+Fan 200-220 325-35
Calf steak** Grill+Fan Max 415 -20
Grilled meatball** Grill+Fan Max 420-25
* Do not preheat. First half of cooking time is recommended to be at 200°C while the other half at 150°C.
** Food must be turned after half of the cooking time.
CLEANING AND MAINTENANCE
 Remove the power plug from electrical
socket.
 Do not clean inner parts, panel, trays and
other parts of the product with hard tools
such as bristle brush, wire wool or knife.
Do not use abrasive, scratching materials or
detergent.
 Rinse after wiping the parts at inner parts
of the product with soapy cloth, then dry
thoroughly with a soft cloth.
 Clean glass surfaces with special glass
cleaning material.
 Do not clean your product with steam
cleaners.
 Never use combustibles like acid, thinner
and gas while cleaning your product.
 Do not wash any part of the product in
dishwasher.
 Use potassium stearate (soft soap) for dirt
and stains. You can perform cleaning with a
soft textured cloth not to scratch surfaces
according to the figures below.

– 16 –
GN 86 M H XS / GN 86 M H BK / GN 86 M H WH
EN
Cleaning and mounting oven door
Fig. 5 Fig. 6
 Open thedoor fully by pulling theoven door toward yourself.
 Then perform unlock operation by pulling thehinge lock upwards
with theaid ofscrewdriver as indicated inFigure 5.1.
Fig. 5.1
 Set thehinge lock tothewidest angle as inFigure 5.2.
 Adjust both hinges connecting oven door totheoven tothesame
position.
Fig. 5.2
 Later, close theopened oven door so that it will bein aposition
tocontact with hinge lock as inFigure 6.1.
Fig. 6.1
 For easier removal ofoven door, when it comes close toclosed
position, hold thecover with two hands as inFigure 6.2 and pull
upwards.
Fig. 6.2
Reversely perform respectively what you did while opening door to reinstall oven door back.

– 17 –
GN 86 M H XS / GN 86 M H BK / GN 86 M H WH EN
Cleaning oven glass
 Lift by pressing on plastic latches on left
and right side as shown in Figure 7 and
pulling the profile toward yourself as in
Figure 8.
 Glass is released after profile is removed as
shown in Figure 9.
 Remove the released glass by pulling
toward yourself carefully. Outer glass is
fixed to oven door profile. You can perform
glass cleaning easily after glasses are
released. You can mount glasses back by
performing the operations reversely after
cleaning and maintenance are completed.
 Ensure that profile is seated properly in
place.
Fig. 7
Fig. 8
Fig. 9
Steam cleaning
It enables cleaning the soils softened thanks to
the steam to be generated in the oven.
 Remove all the accessories in the oven.
 Pour a half litre of water into the tray and
place the tray at the bottom of the boiler.
 Set the switch to the steam cleaning mode.
 Set the thermostat to 70° C degrees and
operate the oven for 30 minutes.
 After operating the oven for 30 minutes,
open the oven door and wipe the inner
surfaces with a wet cloth.
 Use dishwashing liquid, warm water and a
soft cloth for stubborn dirt, then dry off the
area you have just cleaned with a dry cloth.
Rack positions
It is important to place it right in the wire rack.
Do not let the wire rack lean against the back
wall of the oven. The shelf positions are shown
on the side.
Rack 4
Rack 3
Rack 2
Rack 1

– 18 –
GN 86 M H XS / GN 86 M H BK / GN 86 M H WH
EN
Replacing oven lamp
WARNING: To avoid electric shock, ensure
that the appliance circuit is open before
changing the lamp (having circuit open
means power is off).
 First disconnect the power of appliance and
ensure that appliance is cold.
 Remove the glass protection by turning as
indicated in the figure on the left side.
If you have difficulty in turning, then using
plastic gloves will help you in turning.
 Then remove the lamp by turning, install the
new lamp with same specifications.
 Reinstall glass protection, plug the power
cable of appliance into electrical socket
and complete replacement. Now you can
use your oven.
Lamp assembly
220-240 V, AC
15 W
MAINTENANCE AND REPAIR
Troubleshooting
You can solve the problems you can face with
your product by checking the following points
before calling the technical service.
 Check if electrical cable of the oven is
plugged.
 Safely check if there is power in the network.
 Check the fuses.
 Check if electrical cable of the oven is
damaged.

– 19 –
GN 86 M H XS / GN 86 M H BK / GN 86 M H WH EN
TECHNICAL DATA
Specifications 60 cm Built-in oven
Lamp power 15 W
Thermostat 40-240 / Max °C
Lower heater 1200 W
Upper heater 1000 W
Turbo heater 1800 W
Grill heater
Small Grill 1000 W
Big Grill 2000 W
Supply voltage 220 V - 240 V 50/60 Hz
Technical specifications can be changed without
prior notice to improve product quality.
The values provided with the appliance or
its accompanying documents are laboratory
readings in accordance with the respective
standards.
These values may differ depending on the use
and ambient conditions.
Figures in this guide are schematic and may not
be exactly match your product.
DISPOSAL
Dispose ofpackaging
inanenvironmentally-friendly
manner.
This appliance is labelled in accordance with
European Directive 2012/19/EU concerning
used electrical and electronic appliances (waste
electrical and electronic equipment - WEEE).
The guideline determines the frame work for
the return and recycling of used appliances as
applicable throughout to the EU.
Package information
Packaging materials of the product are
manufactured from recyclable materials in
accordance with our National Environment
Regulations. Do not dispose of the packaging
materials together with the domestic or other
wastes. Take them to the packaging material
collection points designated by the local
authorities.

– 20 –
GN 86 M H XS / GN 86 M H BK / GN 86 M H WH
FR
À PROPOS DE CE MANUEL
Cher client, chère cliente
Merci de faire confiance à ce produit. Notre
objectif est de vous permettre d’utiliser
de manière optimale et efficace ce produit
respectueux de l’environnement fabriqué dans
nos installations modernes dans des conditions
précises respectant le sens de qualité totale.
Nous vous recommandons de lire attentivement
ce mode d’emploi avant d’utiliser le four et de
le conserver de façon permanente pour que les
caractéristiques du four encastré que vous avez
acheté restent pendant longtemps comme au
premier jour.
Remarque : ce mode d’emploi est conçu pour
différents modèles. Votre appareil peut ne pas
présenter certaines fonctions spécifiées dans
le manuel.
Les images de produit sont des représentations
schématiques.
Ce produit a été fabriqué dans des installations
modernes et respectueuses de l’environnement
qui n’ont pas de conséquences négatives pour
la nature.
Symbole Signification
Symbole d'avertissement. Avertissement contre les risques de blessures.
Actions dans les consignes de sécurité et avertissements pour éviter les blessures et les dommages.
Étape d'action. Indique une action à effectuer.
Résultat. Résultat d'une ou de plusieurs étapes d'action.
SOMMAIRE
À propos de ce manuel 20
Informations sur la sécurité 21
Vue d'ensemble 24
Accessoires 24
Installation 25
Avertissements importants pour
l’installation 25
Placing and Securing the Oven 26
Branchement électrique 26
Panneau de commande 27
Fonctionnement 28
Première utilisation du four 28
Utilisation normale du four 28
Minuteur numérique 28
Options programmables 30
Programmes de cuisson 31
Types de programmes 31
Tableau de cuisson 32
Maintenance et nettoyage 33
Maintenance et réparation 35
Caractéristiques techniques 36
Mise au rebut 36
