frasch NET User manual

frasch.com | 682.200.3005
NET: ASSEMBLY INSTRUCTIONS
ACOUSTICAL BAFFLE
01 of 10
frasch.com | 682.200.3005
rev. date 8.20.2022
Tape Measure Pencil/MarkerLevel
Wire CuttersPower Drill
TOOLS REQUIRED

frasch.com | 682.200.3005
NET:INCLUDED HARDWARE
STANDARD HARDWARE
02 of 10
frasch.com | 682.200.3005
Spike Bracket [x18]
Standard Gripper [x18]
Aircraft Cable [27ft]
Standard hardware shown does not include direct
to ceiling, wall or oor hardware. All customers of
Fräsch products are responsible for the selection of
nal surface mounting hardware.
Please contact suppor[email protected] to review your
unique site conditions and select the appropriate
hardware package.

frasch.com | 682.200.3005
NET:ASSEMBLY INSTRUCTIONS
INCLUDED COMPONENTS
03 of 10
frasch.com | 682.200.3005
11.75”
10.75”
10”
7.75”
11.5”
Fin A1
Fin B
Fin C
Fin D
Fin F [CENTER]
Fin E
7.75”
Fin A2
Fin B2
Fin D2
Fin C2
Fin E2
Bowtie Connector [x44]
11.75”
10.75”
10”
11.5”
7.75”
[x8]
[x8]
[x8]
[x8]
[x8]
[x8]
[x8]
[x8]
[x8]
[x8]
[x8]

frasch.com | 682.200.3005
NET:ASSEMBLY INSTRUCTIONS
MODULE RIB LAYOUT
04 of 10
frasch.com | 682.200.3005
A
B
C
D
E
F
E
D
C
B
A
A2
B2
C2
E2
F
E2
D2
D2
C2
B2
A2
Refer to this diagram when assembling the modules.
NET is formed by 4 identical assemblies refered to as “modules”. Once completed, the
modules are hung one by one and the dovetail connector is installed at the seam of
each connecting n.

frasch.com | 682.200.3005
NET: ASSEMBLY INSTRUCTIONS
ASSEMBLING THE MODULE
05 of 10
Step 1: Assemble a box frame of the rst module with the 4
corresponding ns as shown above.
Step 2: Assemble the “2” variant ns inside the frame.
B2
B
C
D
E
F
E
D
C
B
C2
D2
E2
F
E2
D2
C2
B2
A
A2
A2
A
Step 3: Complete the module by assembling the remaing ns.

frasch.com | 682.200.3005
NET: ASSEMBLY INSTRUCTION
HARDWARE ASSEMBLY
06 of 10

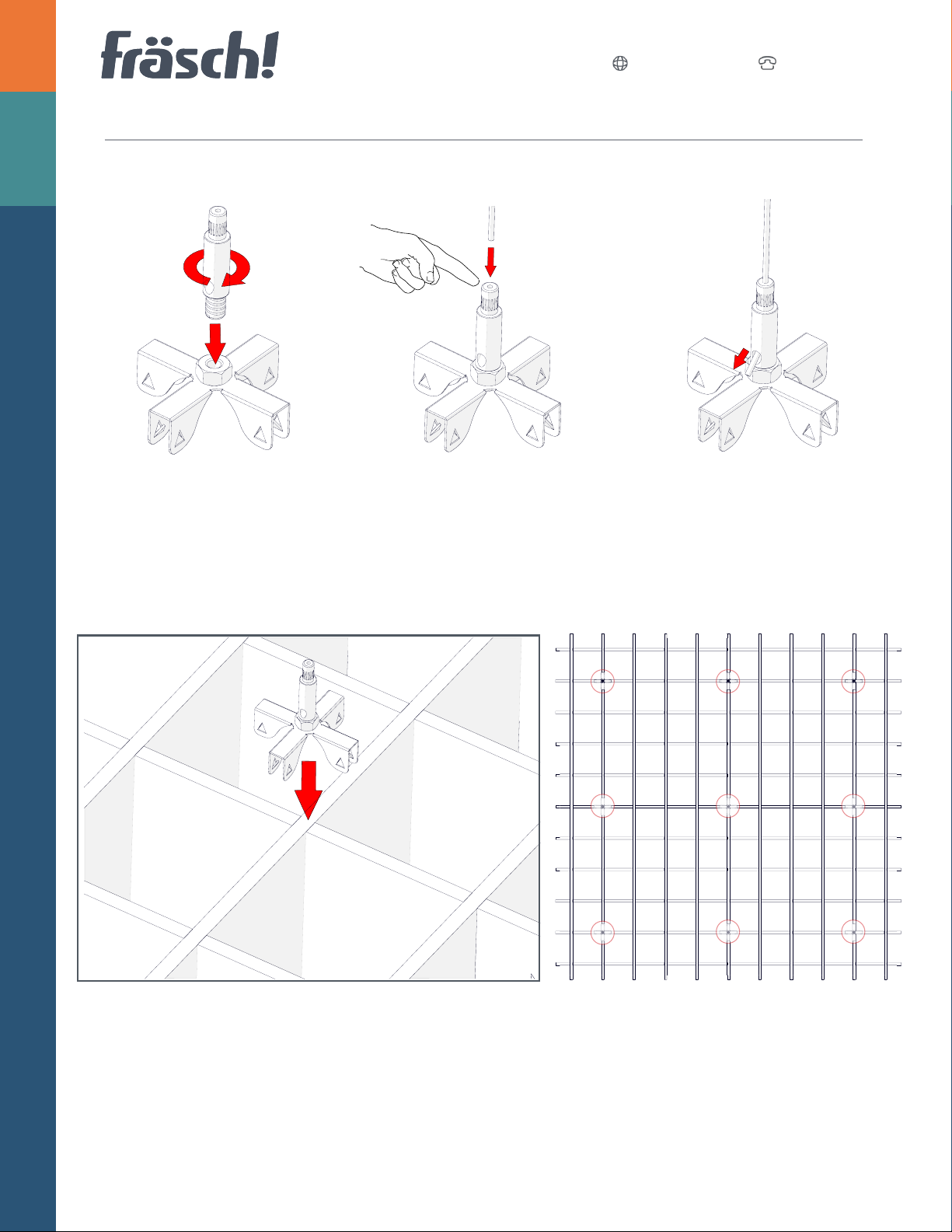

A: Fasten the gripper to the bracket. C: Ensure the cable threads through
the side opening. Use the locking
mechanism to adjust the level of NET,
then trim the excess cable
B: Press down on the nipple while
inserting the cable end. Releasing the
nipple locks the cable in place
D: Press the brackets rmly into the n possitions shown in the diagram
above.

frasch.com | 682.200.3005
NET: INSTALLATION INSTRUCTION
CEILING MOUNT LOCATION
07 of 10
Use this diagram as a reference to install mounting harware in the ceiling.
95.00
95.00
0
6.50
23.75
41.00
54.00
71.25
88.50
0
6.50
23.75
41.00
54.00
71.25
88.50

frasch.com | 682.200.3005
NET: ASSEMBLY INSTRUCTION
08 of 10
Step 4: Remove the inserts from the ends of the ns. Hang and level the rst module.
Step 5: Hang and level the second module. Use the bowtie connectors to join each n at the seam.
CONNECTING THE MODULES

frasch.com | 682.200.3005
NET: ASSEMBLY INSTRUCTION
CONNECTING THE MODULES
09 of 10
Step 6: Connect the remaining modules.

frasch.com | 682.200.3005
NET: ASSEMBLY INSTRUCTION
INSTALLATION COMPLETE
10 of 10
For questions, concerns or help with installation,
contact suppor[email protected]
