Fraser Hill Farm FSSL071A-RD User manual

1) Schematic diagram
2) Component list
No.
Name
Number
1
Lamptop
1
2
Lampholder
1
3
Lamppost (17in)
2
4
Adapter(12VAC500mA)
1
5
Extended wire (137in)
1
6
Powerwire (137in)
(insidelamp post: 59, outside:78in)
1
7
Additionalbase
1set(4)
8
Ground nail
4
9
Lampbase
1
10
Squarebase
1
11
Brand
1
12
Lamppostjoint
1
13
Wreath+ bowknot
1set
14
Power wireoflamp holder
1
15
Screw
4+1
Note: 1,2,3,4,5,6areall wire joints.

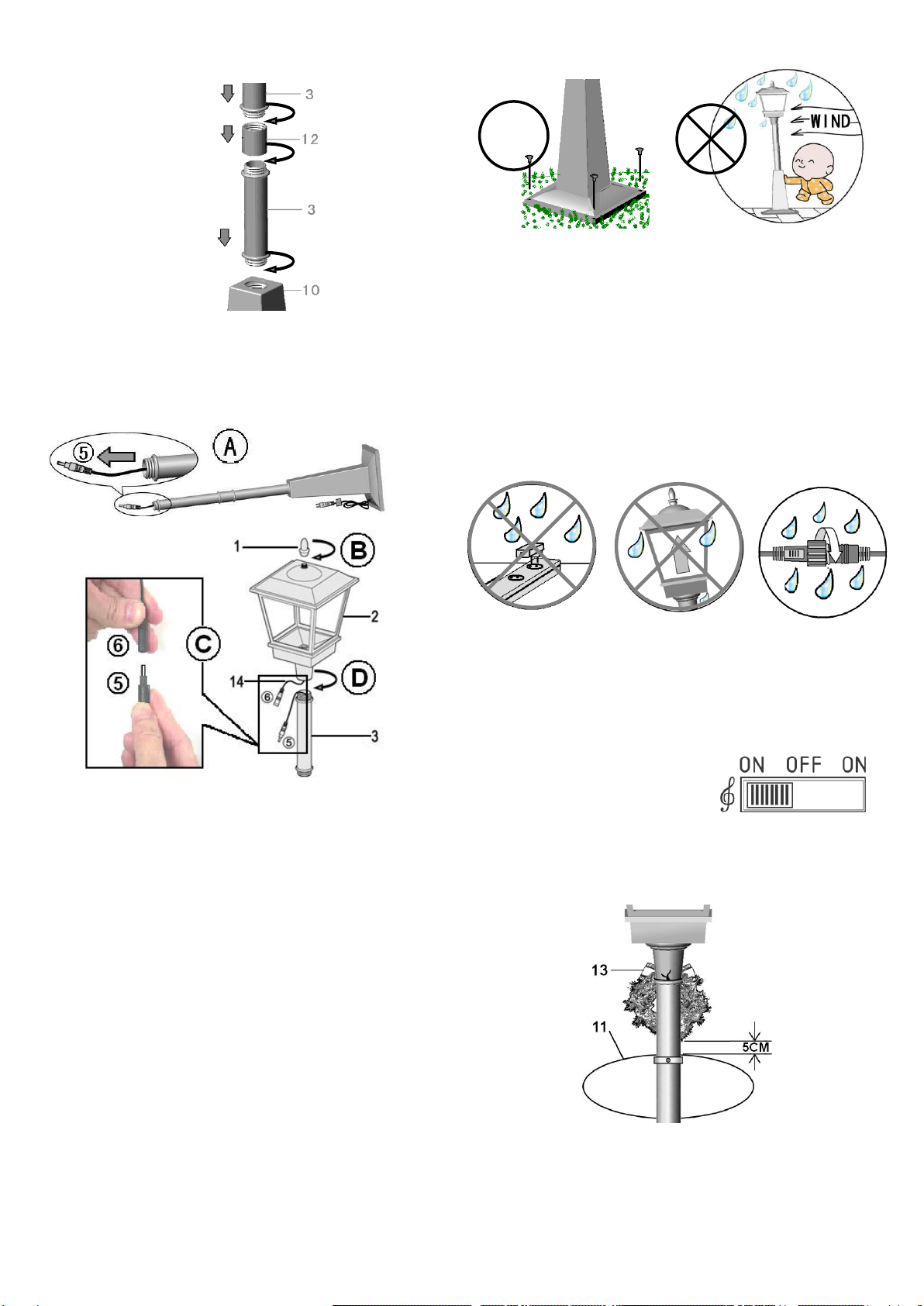

3) Assembling steps
Please assemble the product from the bottom to the up,
following themainstepsbelow:
1. Installlamp base
A. Assemble lamp base (9) and square base (10) with 4
screws:
B. Assemble 4 pieces of additional base (7) into a whole,
and then assemble the whole additional base (7) with the
lampbase (9).
Note: The additional base (7) is especially designed to
fasten the street lamp more securely. The additional base
does not need to be installed if the following applies- street
lamp is installed on a flat ground and there is no external
force (such as high wind or man-made interference) to
bring it downor if the streetlamp is used outdoorand it can
be fixed on the ground by fastening ground nails. It is to
your discretion on whether to install the additional base (7)
according to the actual condition.
2. Install lamp post
Screw the 2 lamp posts (3), lamp post joints (12) and
square lamp base (10) together according to the sequence
shown in the figure below. Note: Every screw thread must
betightened;otherwise,thelamppostsmayleanorgetloose!
Caution
This product (especially the lamp holder) is
fragile, do not exert too much strength or drop it
during the assembly and use. Be sure to fix it on
thewallsecurely.
This product is waterproof; but it is necessary to
keep the lamp in the vertical direction to ensure
waterdrainscorrectly.
Please assemble it in strict accordance with
the steps and requirements specified in the
instruction to ensure safety and reliability
during the installation.
3. Install lamp holder
A. Thread the power wire (6) and its joint (5) through the
lamp base and lamp post (the lamp base and lamp post
canbe laiddownor put upside downforconvenience.After
drawingoutthejoint(5), placeit correctlyfor later use);
B.Takeoutthe lampholder (2)andputon thelamptop(1);
C. Draw out the joint (6) and the power line (14), connect
the joints (5) and (6), put the combined joints and their
wires into lamp post (3). Note: At this time, it will be better
to ask anotherpersontohold the lampholder (2) in case of
droppingit.
D. Rotate the lamp holder (2) to fasten it on the lamp post
(3). Note: The screw thread shall be tightened as far as
possible. Meanwhile the direction of the lamp holder (2)
shall be slightly adjusted to make it match the direction of
thelampbases(9)and(10).
4.Positioning, power-on,
Rainproof and examination
A. Positioning:Place carefullythe assembled street lamp at
thesetposition.Note: (1) If thestreetlamp is tobeinstalled
outdoor, please fix the lamp base with ground nails in case
high wind blows it down; (2) The street lamp should be
placed at a location without man-made interference in case
of damages. (3) If the street lamp is being installed indoor
and is a by man-made interference or is to be installed
outdoor and ground nails can not be used, please be sure
touse additional base (7) tokeep it secure.
B. Poweron: Tightlyconnectthetwojoints (1) and (4) of the
adaptor (4) and power wire (6). If the power wire isn’t long
enough, it is able to add the extended wire (5) between
them, and then connect the adapter (4) with the main
power source.
C. Rainproof: (1) The adapter itself is not waterproof, so
make sure that the connection point between the adapter
and themain power source is indoororfree of rainwater or
snow in case of electric leakage or electric shock. (2) The
lamp holder(2) shall be kept vertical to ensure water drains
correctly(3) If the street lampisused outside,all joints of (1)
and (2), (3) and(4), (5) and (6) mustbe tightened in case of
waterand electricleakage.
D. Examination: Whensetting the switch on the bottom of
the lamp holder (2) (see the figure below) to the left side,
the lamp should be lit, snowflakes falling down and music
splaying. If it fails to perform such functions, check if the
joints 1, 2, 3, 4, 5 and 6 are connected well. You can also
turn the switch to theright sidetoturn off themusic.
5. Decorate and enjoy
Asshowninthefigurebelow,fix
the brand (11) and the wreath +
bowknot (13) to the upper side
of the lamp post to make the
street lamp complete the look. If the street lamp is going to
be installed outside, there is no need to install these
decorations.
√
