FRC ICA900 User manual

ICA900 Rev150324
1
INTERCOM SYSTEM
Model ICA900
Document Number:
XE-ICA9PM-R0A
FIRE RESEARCH CORPORATION
www.reresearch.com
26 Southern Blvd., Nesconset, NY 11767
TEL [phone] FAX [phone] TOLL FREE 1.800.645.0074
Push-To-Talk
Control Module
Hands Free
Control Module
Speaker Box

ICA900 Rev150324
2
CONTENTS
Table of Contents
CONTENTS................................................................................................................ 2
INTRODUCTION ...................................................................................................... 3
Overview................................................................................................................ 3
Features.................................................................................................................. 3
Specications......................................................................................................... 3
INSTALLATION ........................................................................................................ 4
Install Control Module........................................................................................... 4
Install Speaker Box................................................................................................ 6
OPERATION .............................................................................................................. 8
Two-Way System ................................................................................................... 8
Three-Way System................................................................................................. 8
Operational Check ................................................................................................. 8
Programmable Power-Up Volume Level ............................................................... 8
WIRING.................................................................................................................... 10
Control Module.................................................................................................... 10
Cables .................................................................................................................. 11
List of Figures
Figure 1. ICA900 Control Module Dimensions ........................................................ 5
Figure 2. ICA900 Speaker Box Dimensions.............................................................. 7
Figure 3. ICA900 Operation ...................................................................................... 9
Figure 4. ICA900 Control Module Wiring .............................................................. 10
Figure 5. ICA900 Cables ......................................................................................... 11

ICA900 Rev150324
3
INTRODUCTION
Overview
The ACT (Always Clear Talking) intercom system from FRC has updated noise
cancellation circuitry that essentially eliminates acoustical background noise. The
compact control module is separate from the speaker box to provide installation
exibility. Multiple mounting options that only require a two-wire connection between
stations, and hands-free remote operation make this intercom especially useful for
aerial applications. A high level output signal ensures high quality sound even when
the wires are routed through the aerial turntable.
The intercom system is designed to meet rescue and re service requirements for
a voice communications system. It is weather-resistant and specically designed for
outside use on re service apparatus.
The PTT (Push-To-Talk) station is always in receive mode. The PTT button must
be pressed to transmit.
The hands free station is always in transmit mode. To talk on the intercom the
operator speaks and the intercom transmits. It will be in receive mode when another
station is transmitting.
Since March 2012 all ACT intercom control modules have included a program that
allows for setting the volume level at power-up. Two modes are available:
Power-up at the last used volume setting;
Power-up at a pre-set volume.
Features
Programmable Power-Up Volume Level
Active Noise Cancellation
High Level Output Signal
Hands Free Remote Station (System Option)
Specications
Supply Voltage: 12 VDC (24 VDC Option)
Supply Current: 0.5 Amp / Station
Dimensions:
Control Module 5 1/8" by 2 7/8" (w/o Mounting Bracket)
Speaker Box 5 1/8" by 5 1/8" (w/o Mounting Bracket)

ICA900 Rev150324
4
INSTALLATION
Install Control Module
The control module is mounted with a bracket or to the surface with a panel cutout
for the connector.
Bracket Mount
Note: The mounting bracket can be removed by unscrewing the adjustment
knobs at the side of the control module.
1. Measure and mark mounting location for control module bracket. Refer to
Figure 1 for layout and dimensions.
2. Drill two mounting holes (clearance or tapped) for mounting 10-32 hardware.
3. Place mounting bracket in position and secure with two screws.
4. If bracket was removed from module, place module in position and install
rubber bushings and mounting knobs.
5. Connect the cables and wiring. Provide enough slack in the cable(s) for the
control module to be adjusted as needed. (Refer to Wiring Section).
Surface Mount
1. Measure and mark mounting location for control module panel cutout and
mounting screw holes. Make sure there is clearance behind the panel for the
connector and wiring before cutting holes. Refer to Figure 1 for layout and
dimensions.
2. Cut out a 1 3/8" wide by 2 3/8" high hole for the connector to t through and
drill two holes (clearance or tapped) for 10-32 mounting screws.
3. Place control module in position and secure with two screws.
4. Connect the cables and wires. (Refer to Wiring Section).

ICA900 Rev150324
5
Surface Mounted
Rubber
Bushing
Figure 1. ICA900 Control Module Dimensions
Mounting holes are
clearance or tapped
for 10-32 screws.
Bracket Mounted
Note: The mounting bracket can be removed by unscrewing the adjustment
knobs at the side of the control module. The rubber bushing is installed
between the bracket and the control module.
Adjustment
Knob
4 3/8"
6 1/2" 1 7/8"
3 1/4"
Mounting holes are
clearance or tapped
for 10-32 screws.
Panel Cutout
1/4" radius max
C
L
4 5/8"
1 3/8"
2 5/16"
1 7/8"
2 7/8"
5 1/8"
1 1/2"
2 3/8"
Mounting
Bracket

ICA900 Rev150324
6
Install Speaker Box
The speaker box is mounted with a bracket or to the surface with a feed through
hole for the cable.
Bracket Mount
Note: The mounting bracket can be removed by unscrewing the adjustment
knobs at the side of the control module.
1. Measure and mark mounting location for speaker box bracket. Refer to Figure
2 for layout and dimensions.
2. Drill four mounting holes (clearance or tapped) for mounting 10-32 hardware.
3. Place mounting bracket in position and secure with four screws.
4. If bracket was removed from box, place box in position and install rubber
bushings and mounting knobs.
5. Connect the cable. Provide enough slack in the cable for the speaker box to be
adjusted as needed. (Refer to Wiring Section).
Surface Mount
Note: At the rear of the box there are four 10-32 blind tapped holes to accept
the mounting screws (1/2 to 5/8 inch deep). Ensure that the mounting
screws do not bottom out in the hole.
1. Measure and mark mounting location for speaker box cable hole and mounting
screw holes. Make sure there is clearance behind the panel before drilling holes.
Refer to Figure 2 for layout and dimensions.
2. Drill a 3/4" hole for the cable and four clearance holes for 10-32 mounting
screws.
3. Place speaker box in position and secure with four screws.
4. Connect the cable to the control module. (Refer to Wiring Section).

ICA900 Rev150324
7
Figure 2. ICA900 Speaker Box Dimensions
Surface Mounted
Bracket Mounted
Note: The mounting bracket can be removed by unscrewing the adjustment
knobs at the side of the speaker box. The rubber bushing is installed
between the bracket and the speaker box.
Panel mounting
holes are clearance
for 10-32 screws.
Use four 10-32 screws through
panel into tapped holes in box.
Ensure that the screws do not
bottom out in the hole.
4 1/2"
5 1/8"
5 1/8"
C
L
2 1/2"
2 1/4"
4 1/2"
1/2"
3/4" Diameter hole
for the cable.
4 5/16"
3/4"
6 5/8"
5 5/8"
2 1/2"
Rubber
Bushing
Adjustment
Knob
Mounting
Bracket
Mounting holes are
clearance or tapped
for 10-32 screws.
Panel

ICA900 Rev150324
8
OPERATION
The Push-To-Talk modules are always in receive mode. The Push-To-Talk button
must be pressed to put the module into transmit mode.
The hands free module is always in transmit mode. To talk on the intercom the
operator speaks and the intercom transmits. It is in receive mode when another module
is transmitting.
Two-Way System
The system includes two control modules with a Push-To-Talk button or one
control module with a Push-To-Talk button and one control module that is hands free.
Three-Way System
The system includes three control modules with a Push-To-Talk button or two
control module with a Push-To-Talk button and one control module that is hands free.
Operational Check
1. Turn on DC power to intercom.
2. Press the Push-To-Talk button to put control module in transmit mode and
speak toward the control module microphone.
Result: Voice is heard over speaker(s) connected to other control modules.
(Adjust the volume level buttons at each module for receive level.)
3. Repeat step 2 at each control module. If a hands free module is installed speak
toward the control module microphone and it is in transmit mode.
Programmable Power-Up Volume Level
ACT intercom control modules include a program that allows for setting the volume
level at power-up. Two modes are available:
Power-Up at the Last Used Volume Setting
1. Press and hold the volume increase button until the top LED ashes. Release
the button and wait 15 seconds.
Result: The volume drops to 50% level; the module sets to the last used volume
level on power-up.
Power-Up at a Pre-Set Volume.
1. Press and hold the volume decrease button until the bottom LED ashes.
Release the button.
2. Press the increase button and set to desired level. Release the button and wait
until the highest LED ashes.
Result: The module sets to this volume level on power-up.

ICA900 Rev150324
9
Push-To-Talk
Button and
Transmit LED
Volume
Level
Controls Microphone
Volume
Level
LEDs
Refer to Wiring Section
for detailed information.
PowerPower
Two-Way System
Three-Way System
Figure 3. ICA900 Operation
PowerPower
Power
Alternate
Connection
Either control
module can be
hands free.
Any one control
module can be
hands free.

ICA900 Rev150324
10
Figure 4. ICA900 Control Module Wiring
WIRING
The following gures include wiring and cable information.
Control Module
12-Pin Connector/Cable
Pin/Wire Description
1/Red Supply +12(24 VDC)
2/Black Supply Ground
3/Blue Speaker
4/Brown Speaker
5/White Line 1-A
6/Green Line 1-B
7/Plug Line 2-B
8/Plug Line 2-A
9 Jumper to Pin 10
10 Jumper to Pin 9
11 Jumper to Pin 12
12 Jumper to Pin 11
Rear View
Top
Pin 1

ICA900 Rev150324
11
Figure 5. ICA900 Cables
Cables
+12(24)VDC
GND
Ignition Key
RED
BLK
BLU
BRN
Speaker Cable Assembly
(P/N XE-IC9SPKR-C0A)
with 2-Pin Deutsch Connector.
WHT
BLK
WHT
GRN
For Two or Three-Way System
Extension Cable Assembly
(P/N XE-IC9EXT-C20A)
To Pins 5 and 6 on Remote.
To Install the Second Extension Cable Assembly
(P/N XE-IC9EXTP-C20A)
- This cable can be installed on either of the rst two control modules.
- Remove the plugs from the 12-Pin Connector at pins 7 and 8.
- Insert pins that are crimped on the cable into the 12-Pin Connector.
Black wire at pin 7. White wire at pin 8.
- Connect the other end of cable to pins 5 and 6 on the third control module.
White wire to 5. Black wire to 6.
WHT
GRN
WHT
BLK
Butt
Crimps
Line 1
WHT
BLK
WHT
GRN
WHT
BLK
For Three-Way System
Second Extension Cable Assembly
(P/N XE-IC9EXTP-C20A)
To Pins 5 and 6 on Third Module
Line 2
Notes:
- All cables can be cut to length.
- Speaker cable standard length is 5 feet.
- Extension cable standard lengths are 20 feet (-C20A). Longer cables are available.
- Provide enough slack in the cable when using the mounting bracket for the control

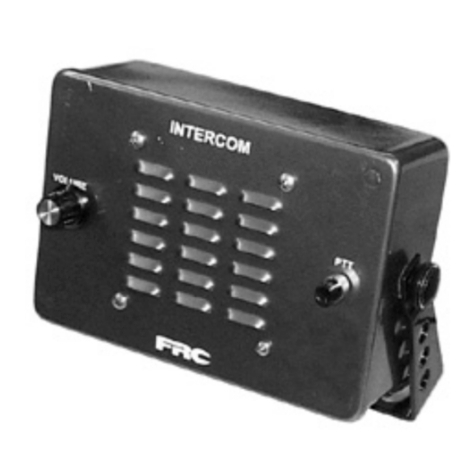

module or speaker box to be adjusted as needed.
