Freedom Won Encore 12K User manual

User Manual
Freedom Won Three Phase Encore
12K and Encore 15K Inverter Manual
Distributed By Freedom Won (Pty) Ltd
Kimbult Industrial Park, Unit C3 & C4
9 Zeiss Road
Laser Park, Honeydew
2040
South Africa
www.freedomwon.co.za
Technical and Installation Assistance – Contact:
Please contact your Freedom Won Distributor/Reseller or Installer for technical and
installation support. A directory of Distributors and Reseller Installers is available at
www.freedomwon.co.za.
For advanced support please contact [e-mail].
Update Record:
Revision
Number
Update Summary
Updated By
Date of Issue

Freedom Won Three Phase Encore 12K and Encore 15K Inverter Manual Version 0
Page 2 | 41
Table of Contents
1. Notes on this Manual..................................................................................................................... 3
1.1. Scope of Validity ....................................................................................................................... 3
1.2. Target Group............................................................................................................................. 3
2. Safety ........................................................................................................................................... 3
2.1. Important Safety Instructions................................................................................................... 3
2.2. Explanation of Symbols............................................................................................................. 7
2.3. CE Directives ............................................................................................................................ 8
3. Introduction.................................................................................................................................. 9
3.1. Basic Features.......................................................................................................................... 9

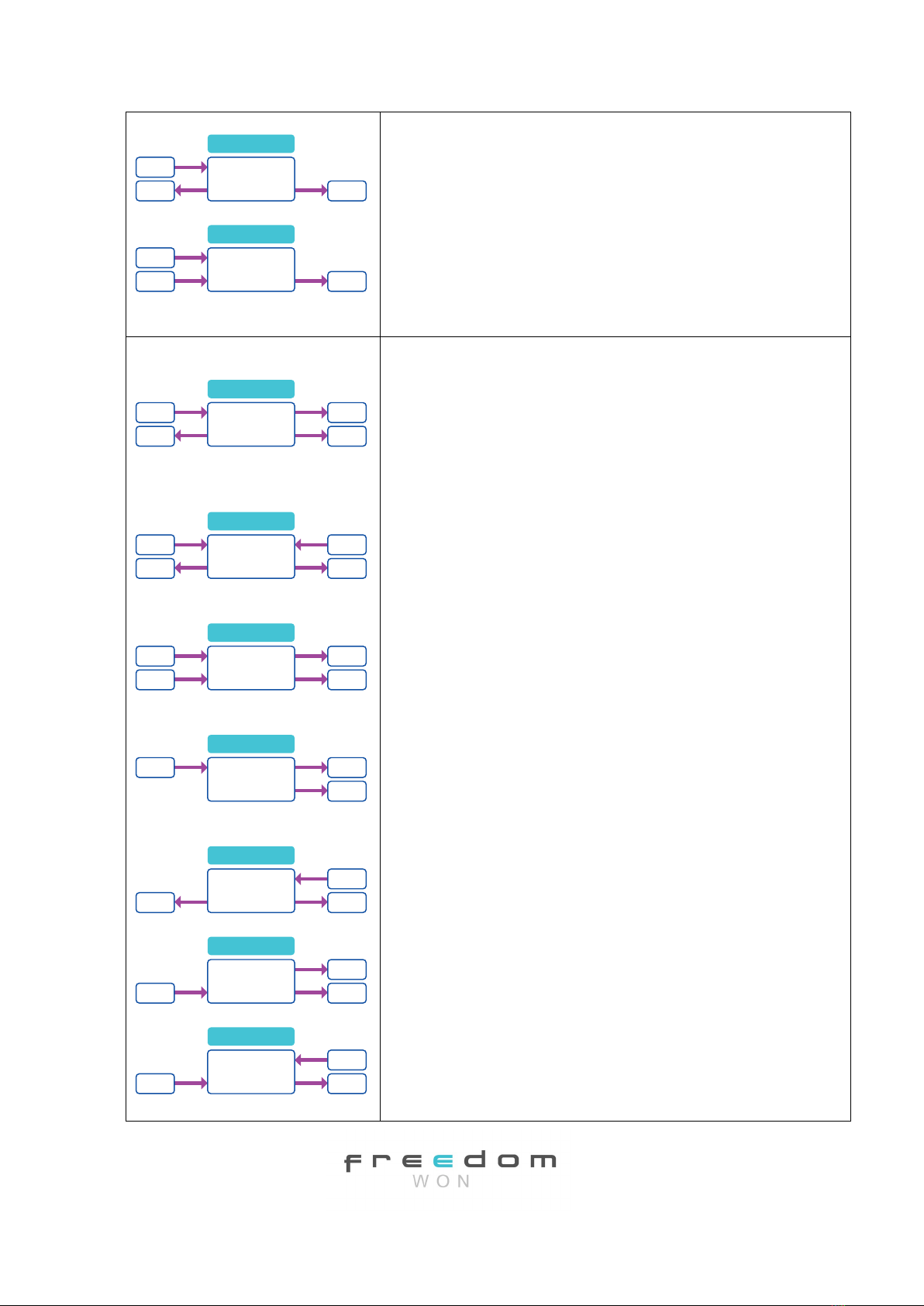

3.2. Work Modes .............................................................................................................................10

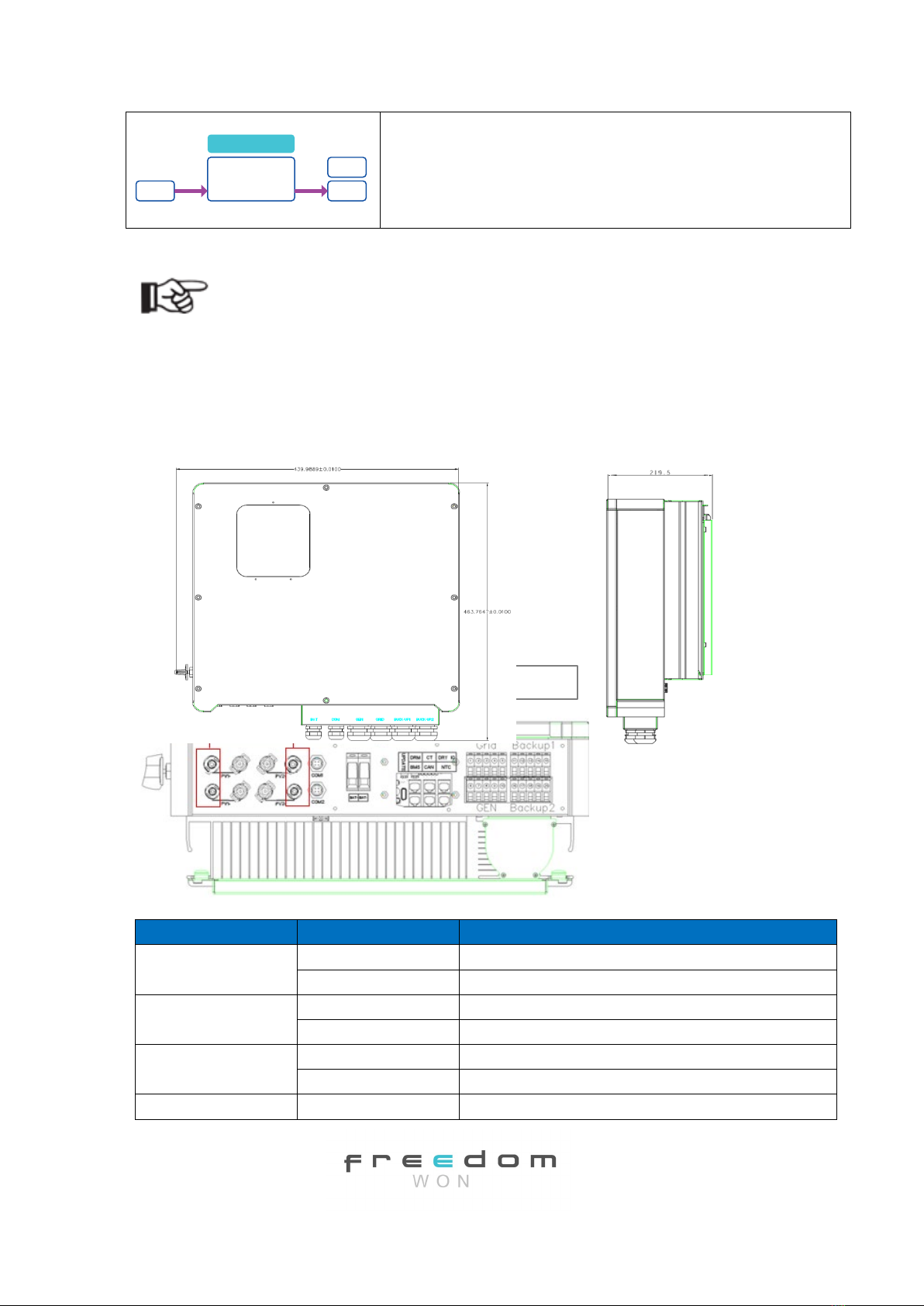

3.3. Dimensions.............................................................................................................................. 13
3.4. Terminals of Three Phase Inverter ........................................................................................... 13
4. Technical Data ............................................................................................................................. 15
5. Installation................................................................................................................................... 16
5.1. Check for Physical Damage...................................................................................................... 16

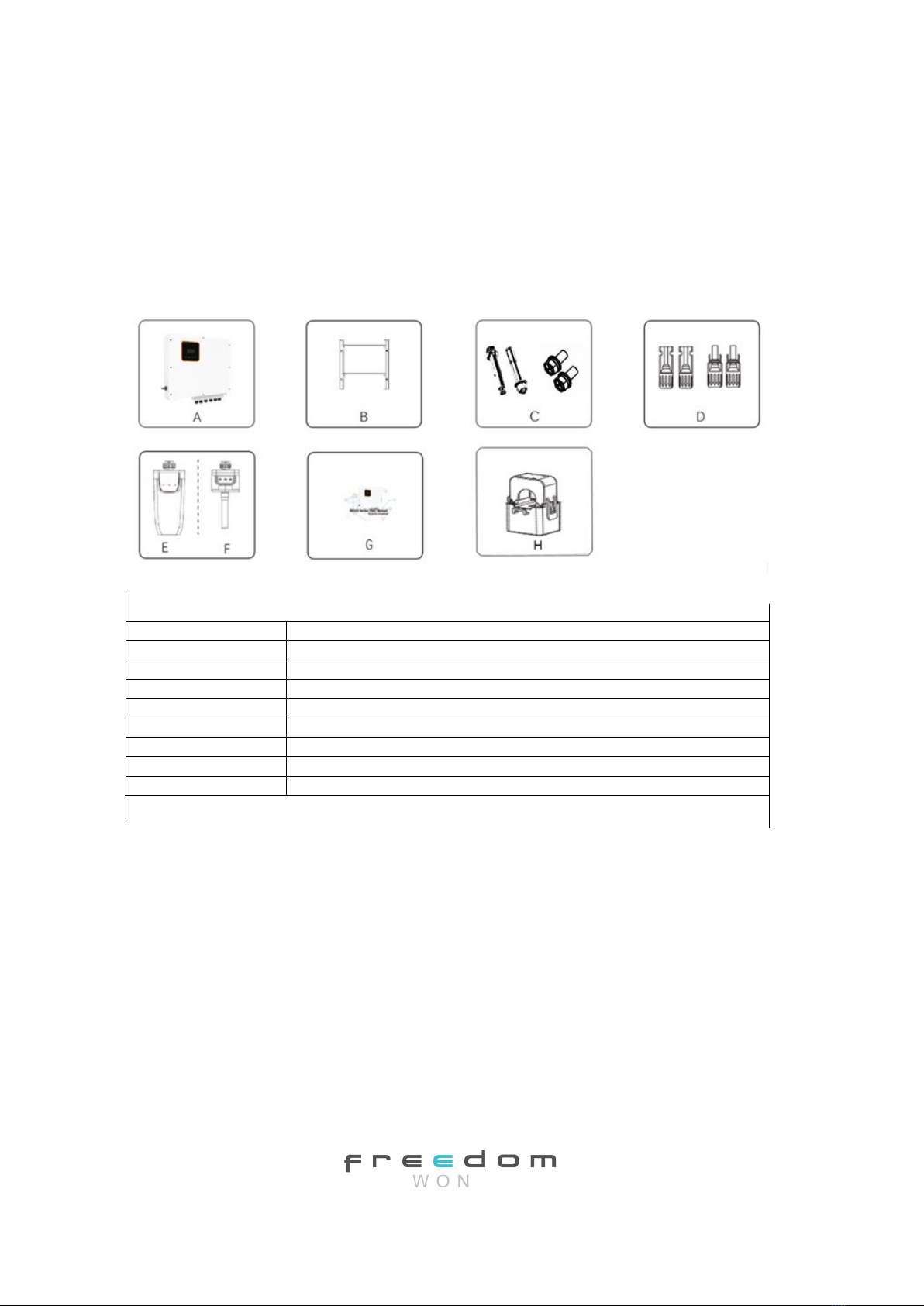

5.2. Packing List ............................................................................................................................. 16

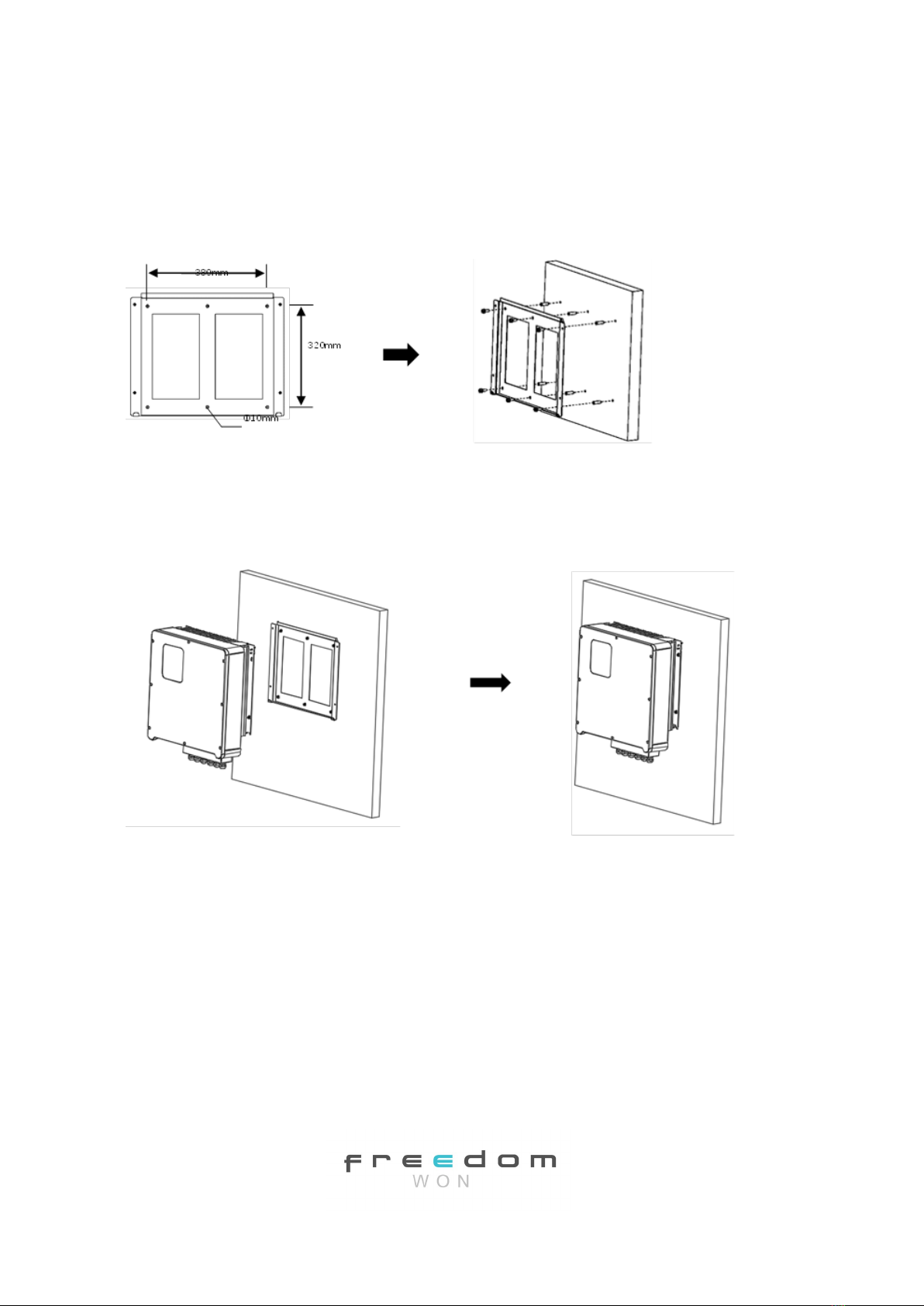

5.3. Mounting.................................................................................................................................. 16
6. Electrical Connection .................................................................................................................. 19

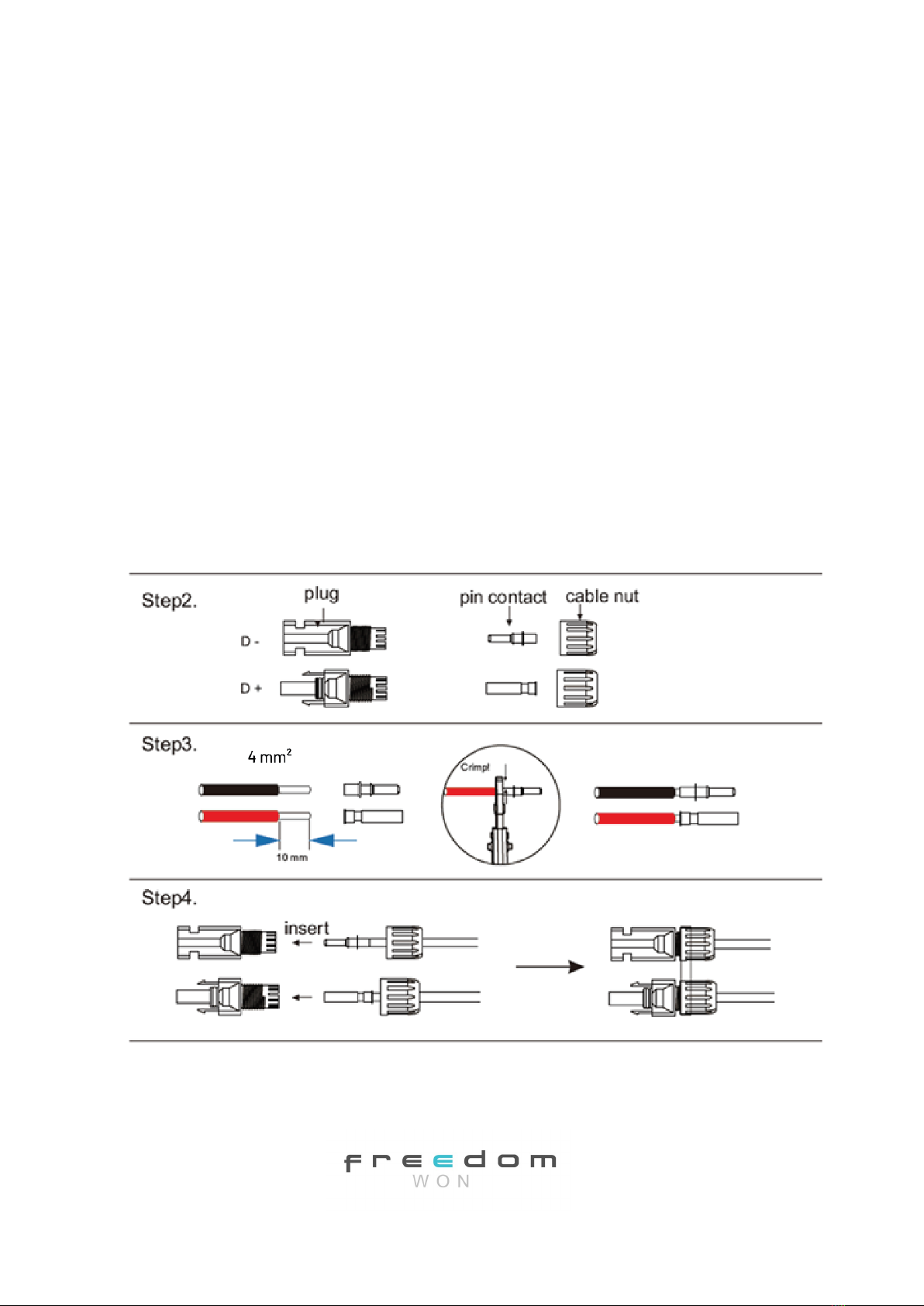

6.1. PV connection ......................................................................................................................... 19
6.2. Grid Connection ....................................................................................................................... 21
6.3. Backup (EPS) Connection........................................................................................................ 23
6.4. Battery Connection................................................................................................................. 25
6.5. CT Connection and Phase instruction ..................................................................................... 28
6.6. Demand Response Mode (DRM) Connection ............................................................................ 30
6.7. WiFi Connection ...................................................................................................................... 31
6.8. Inverter Operation................................................................................................................... 32
7. Setting........................................................................................................................................ 33
7.1. Control Panel .......................................................................................................................... 33
7.2. Instructions for LED Indicator................................................................................................. 34
7.3. Instructions for the use of three modes .................................................................................. 35
8. LCD Operation .............................................................................................................................37
9. Fault diagnosis and solutions...................................................................................................... 39

Freedom Won Three Phase Encore 12K and Encore 15K Inverter Manual Version 0
Page 3 | 41
1. Notes on this Manual
1.1. Scope of Validity
This manual must be referenced together with the Encore Three Phase Inverter installation
and operation. It provides detail important for the assembly, installation, commissioning, and
maintenance of the product. A troubleshooting guide is included to assist with assessing the
types of failures and related remedies.
Please read this manual carefully before operating the product.
The Encore three phase inverter range covers models 12K and 15K.
1.2. Target Group
This manual is for qualified electricians. The tasks described in this manual may be
performed only by qualified electricians.
2. Safety
2.1. Important Safety Instructions
The following types of safety instructions and general information appear in this document
as described below:
Danger!
•Poses a danger to life due to high voltage.
•All work must be done by a qualified electrician.
•The appliance is not to be used by children, or persons with reduced physical,
sensory, or mental capabilities, or that lack the required experience and
knowledge.
•The appliance must be installed out of reach of children.
Caution!
•Danger of burn injuries due to hot enclosure parts.
•During operation, the enclosure’s upper lid and body may become hot. Only
touch the lower lid during operation.
Caution!
•Possible damage to health because of the effects of radiation!
•Do not stay closer than 20cm to the inverter for extended periods.
Note!
•Grounding the PV generator:
•Comply with the local requirements for grounding the PV modules and the PV
generator. The generator frame and other electrically conductive surfaces
should be connected in a manner that ensures continuous conductivity and
grounding of these items to ensure optimal protection of the system and
persons.

Freedom Won Three Phase Encore 12K and Encore 15K Inverter Manual Version 0
Page 4 | 41
Warning!
•Ensure input DC voltage ≤Max. allowed DC voltage.
•Overvoltage may cause permanent damage to the inverter or other losses,
which will not be included in the warranty!
Warning!
•Authorized service personnel must disconnect both AC and DC power from the
inverter before attempting any maintenance or cleaning or Risk of electric
shock working on any circuits connected to the inverter.
•Risk of electric shock!
•Adhere to the instructions and requirements of this manual.
•Prior to the application, please read this section carefully to ensure correct and safe
application. Please keep the user manual for continuous reference.
•When operating equipment, in addition to following the precautions in this document,
follow the accepted safety requirements associated with the work being performed.
Freedom Won will not be liable for any consequences of violation of the safety
regulations relating to proper installation and operation of the product.
•Only accessories supplied with the inverter are recommended. Use of other
unverified parts may result in a risk of fire, electric shock, or injury to persons.
•Make sure that existing wiring is in good condition and that wires are not undersized.
•Do not disassemble any parts of the inverter which are not mentioned in the
installation guide. It contains no user-serviceable parts. See the warranty document
for instructions on obtaining service from the manufacturer. Attempting to service
the inverter yourself may result in a risk of electric shock or fire and will void your
warranty.
•Do not expose the inverter to flammable or explosive materials.
•The installation location should be free of corrosive substances and humid
condensing air.
•Authorized service personnel must use insulated tools when installing or working with
this equipment.
•PV modules shall have an IEC 61730 class A rating.
•Do not touch either the positive or negative pole of the PV connecting device. Never
touch both at the same time.
•The unit contains capacitors that remain charged to a potentially lethal voltage after
the mains, battery, and PV supply have been disconnected.
•A hazardous voltage will be present for up to 5 minutes after disconnection from the
power supply.
•CAUTION - RISK of electric shock from energy stored in a capacitor, never operate on
the inverter couplers (plugs), the mains cables, battery cables, PV cables, or the PV
generator when power is applied. After switching offthe PV, battery, and mains,
always wait for 5 minutes to let the intermediate circuit capacitors discharge before
unplugging the PV DC, battery connectors, and mains couplers.
•When accessing the internal circuits of the inverter, it is very important to wait 5
minutes before operating the power circuit or removing the electrolyte capacitors
inside the device. Do not open the device beforehand since the capacitors require
time to sufficiently discharge!
•Surge protection devices (SPDs) for PV installation:

Freedom Won Three Phase Encore 12K and Encore 15K Inverter Manual Version 0
Page 5 | 41
WARNING!
Over-voltage protection with surge arresters should be provided the PV power system
is installed. When The grid connected inverter is not fitted with SPDs in both PV input
and mains input
•Lightning will cause damage either from a direct strike or from surges due to a nearby
strike.
•Induced surges are the most likely cause of lightning damage in majority of
installations, especially in rural areas where electricity is usually provided by long
overhead lines. Surges may originate on both the PV array conductors and the AC
cables leading to the building.
•Specialists in lightning protection should be consulted during the end use application.
•Using appropriate external lightning protection, the effect of a direct lightning strike
into a building can be mitigated, and the lightning current surge can be discharged into
the ground.
•Installation of Surge Protection Devices (SPDs) is recommended to protect the
inverter against mechanical damage and excessive stress. Including a surge arrester
in case of a building with external lightning protection system (LPS) when separation
distance is kept.
•To protect the DC system, SPD type2 should be fitted at the inverter end of the DC
cabling, if the voltage protection level (VP) of the surge arresters is greater than 1100V,
an additional SPD type 3 is required for surge protection for electrical devices.
•To protect the AC system, SPD type2 should be fitted at the main incoming point of AC
supply (at the consumers breaker), located between the inverter and the
meter/distribution system.
•All DC cables should be installed to provide as short a run as possible. Positive and
negative cables of the string or main DC supply should be bundled together. Avoiding
the creation of loops in the system.
•Spark gap devices are not suitable to be used in DC circuits once conducting, they won’t
stop conducting until the impedance voltage across their terminals is typically more
than 30 volts.
•Anti-Islanding Effect
Islanding effect is a phenomenon where a grid-connected PV system can still supply power to
the nearby grid when the local grid is off. It is dangerous for maintenance personnel and the
public.
The Encore Three Phase series inverters provide Active Frequency Drift (AFD) to prevent the
occurrence of islanding.
•PE Connection and Leakage Current

Freedom Won Three Phase Encore 12K and Encore 15K Inverter Manual Version 0
Page 6 | 41
The end-use application shall monitor the protective conductor using the Residual Current
Operated Protective Device (RCD) with rated fault current Ifn≤240mA which automatically
disconnects the device in case of a fault. The device is intended to connect to a PV generator
with a capacitance limit of about 700nf.
WARNING!
High leakage current!
Earth connection essential before connecting supply.
Incorrect grounding can cause physical injury, death or equipment malfunction and increase
electromagnetic interference.
• Make sure that the grounding conductor is adequately sized as required by safety
regulations.
• Do not connect the ground terminals of the unit in series in case of a multiple installation.
•This product can cause current with a DC component, where a residual current operated
protective (RCD) or monitoring (RCM) device is used for protection in case of direct or
indirect contact, only an RCD or RCM of type B is allowed on the supply side of this product.
•Do not connect the ground terminals of the unit in series in case of multiple installations.
This product can cause current with a DC component, where a residual current operated
protective (RCD) or monitoring (RCM) device is used for protection in case of direct or
indirect contact, only an RCD or RCM of type B is allowed on the supply side of this product.
For United Kingdom
• The installation that connects the equipment to the supply terminals shall comply with
the requirements of BS 7671.
• Electrical installation of PV system shall comply with requirements of BS 7671 and IEC
60364-7-712.
• No protection settings can be altered.
• User shall ensure that equipment is so installed, designed, and operated to always
maintain compliance with the requirements of ESQCR22(1)(a).
For Australia and New Zealand
• Electrical installation and maintenance shall be conducted by licensed electrician and
shall comply with Australia National Wiring Rules.
•Battery Safety Instructions
The Encore 12kw to 15kw three phase inverter operate on a “high voltage” battery, for the
specific parameters such as battery type, nominal voltage, and nominal capacity etc., please
refer to section 4.

Freedom Won Three Phase Encore 12K and Encore 15K Inverter Manual Version 0
Page 7 | 41
As batteries may contain potential electric shock and short-circuit current danger, to avoid
accidents the following warnings should be observed during battery replacement:
1. Do not wear watches, rings, or similar metallic items.
2. Use insulated tools.
3. Put on rubber shoes and gloves.
4. Do not place metallic tools and similar metallic parts on the batteries.
5. Switch off load connected to the batteries before dismantling battery connection
terminals.
6. Only personal with proper expertise can carry out the maintenance of batteries.
2.2. Explanation of Symbols
This section explains all the symbols shown on the inverter's type label.
Symbols on the Type Label
Symbol
Explanation
CE mark.
The inverter complies with the requirements of the applicable
CE guidelines.
TUV certified.
The product is compliant with applicable safety and operating
standards.
RCM remark
Regulatory Compliance Mark
The product adheres to all safety regulations and is certified for
sales
SAA
certification.
Certified approval for declared and non-declared electrical
equipment that has proven to comply with the safety
requirements of the applicable Australian Standard.
Beware of the
hot surface.
The inverter can become hot during operation.
The danger of
high voltages
Dangerous due to high voltages in the inverter!
Danger
Risk of electric shock!
Disposal
The inverter cannot be disposed of with household waste.
Disposal information can be found in the enclosed
documentation.
Documentation
Observe enclosed documentation
Do not operate
Do not operate on this inverter until it is isolated from the
battery, mains, and on-site PV generation supply.

Freedom Won Three Phase Encore 12K and Encore 15K Inverter Manual Version 0
Page 8 | 41
Dangerous due
to high voltage.
There is residual voltage existing in the inverter after power off,
which needs 5 min to discharge.
• Wait 5 min before you open the upper lid or the DC lid.
2.3. CE Directives
This chapter follows the requirements of the European low voltage directives,
which contains the safety instructions and conditions of acceptability for the
endues system, which you must follow when installing, operating and servicing
the unit. If ignored, physical injury or death may follow, or damage may occur to
the unit. Read this before you work on the unit. If you are unable to understand
the dangers, warnings, cautions or instructions please contact an authorized
service dealer before installing. Operating and servicing the unit.
The Grid connected inverter meets the requirement stipulated in Low Voltage
Directive (LVD) 2014/35/EU and Electromagnetic Compatibility (EMC) Directive
2014/30/EU. The unit is based on: EN 62109-1:2010; EN 62109-2:2011; IEC 62109-
1(ed.1); IEC62109-2(ed.1); EN 61000-6-3:2007+A: 2011; EN 61000-6-1:2007;EN
61000-6-2:2005;
In case of installation in PV system, startup of the unit (i.e. start of designated
operation) is prohibited until it is determined that the full system meets the
requirements stipulated in EC Directive (2014/35/EU, 2014/30/EU, etc.)
， The
grid connected inverter leave the factory completely connecting device and
ready for connection to the mains and PV supply ,the unit shall be installed in
accordance with national wiring regulations. Compliance with safety
regulations depends upon installing and configuring system correctly,
including using the specified wires.
The system must be installed only by professional assemblers who are
familiar with requirements for safety and EMC. The assembler is responsible
for ensuring that the end system complies with all the relevant laws in the
country where it is to be used.
The individual subassembly of the system shall be interconnected by means
of the wiring methods outlined in national/international such as the national
electric code (NFPA) No.70 or VDE regulation 0107.

Freedom Won Three Phase Encore 12K and Encore 15K Inverter Manual Version 0
Page 9 | 41
3. Introduction
3.1. Basic Features
The Encore 12K and 15K three phase inverter series is a high-quality inverter range that can:
•Convert solar energy to AC energy,
•Store solar energy in batteries
•Use battery stored energy to supply the AC output without the grid being available,
•Export excess solar energy to the grid,
•Use the grid to charge batteries if needed,
•Use the grid to support loads directly if needed,
•Interface with a fuel generator for backup power if needed.
•The inverter can be used to optimize self-consumption, store in the battery for future
use or feed into public grid. Work mode depends on PV energy and user’s preference. It
can provide power for emergency use during the grid lost by using the energy from
battery and inverter generated from PV.
System Diagram
The Encore Three Phase inverters apply the wiring rules that require the Live line and N (Neutral)
line of EPS to be disconnected from the Live line and N (Neutral) line of the grid input (applies
to most countries).

Freedom Won Three Phase Encore 12K and Encore 15K Inverter Manual Version 0
Page 10 | 41
Note!
•Please control the home loads, and make sure it’s within the “EPS output rating” under
•EPS mode, otherwise the inverter will Shut down with an “overload fault” warning.
•Please confirm with the mains grid operator whether there is any special regulations for grid
connection.
•The wiring diagram is for reference only, and the complete electrical connection shall meet the
requirements of local regulations.
•Ensure correct phase sequence.
If the user requires more loads to be placed on the EPS that could exceed the power rating of
the inverter, the user must request a larger model inverter, or place multiple inverters in
parallel.
Note!
•The peak load power must not exceed the rated output power on the
Load 1 and Load 2 connections. The load profile at the premises must be
assessed before selecting the inverter size, or larger loads must be
connected on the Load 3 connection point (non-backup). The inverter
will shut down with an “overload fault” if the loads exceed the rated
power.
•Comply with the local power utility regulations for grid connected
systems.
3.2. Work Modes
The Encore Three Phase inverters provide multiple operating modes based on different
requirements.
Operating Mode: Self-consumption or battery cycling
1.When PV, Grid, and Battery are available:
A. Solar provides power to the loads as first priority, if solar
power is sufficient to power all connected loads, solar
power excess will be used to charge the battery, or – if the
battery is fully charged – will feed to non-essential loads or
the grid.
B. Solar provides power to the loads as first priority, if solar
power is not sufficient to support all connected loads,
battery energy will supplement the solar power supplied to
the loads
C. Solar provides power to the loads as first priority, if solar
energy and battery are not sufficient to power all connected
loads, utility energy (grid) will supply power to the loads
supplemented by the available solar energy.
PV
BAT
GRID
EPS
INVERTER
OPERATING MODE:1A
PV
BAT
GRID
EPS
INVERTER
OPERATING MODE:1B
OPERATING MODE:1C
PV
BAT
GRID
EPS
INVERTER

Freedom Won Three Phase Encore 12K and Encore 15K Inverter Manual Version 0
Page 11 | 41
2.When PV, Battery is available (the grid is disconnected):
A. Solar energy provides power to the loads as first priority, if
solar energy is sufficient to power all connected loads, solar
energy will provide power to charge the battery.
B. Solar energy provides power to the loads as first priority, if
solar energy is not sufficient to power all connected loads,
battery energy and solar energy will supply power to the
loads at the same time.
Operating Mode: Time of Use Scheduling (Peak shift)
1. When PV, Grid, and Battery are available:
A. During battery charge time, solar power will charge the
battery as first priority. The excess power will supply the
loads. If solar power is sufficient to supply loads and charge
the battery, and if there's still some extra energy, then the
excess power will feed the power to non-essential loads
and the grid.
B. During battery charge time, solar energy will charge the
battery as first priority, then the excess solar energy will
supply power to loads. If solar energy is not sufficient to
charge the battery and supply loads, the grid will supply the
connected loads while available solar power charges the
battery.
C. During battery discharge time, solar provides power to the
loads as first priority, if solar power is sufficient to supply
loads, and if there's still some extra power from solar, then
the excess solar power and the battery will deliver the
power to the non-essential loads or grid at the same time.
D. In the period of no charge or discharge, the solar power
supplies load as first priority, and excess energy is fed to
non-essential loads and the grid.
2. When Grid and Battery are available (PV is unavailable):
A. During battery charge time, the grid will charge the battery
and supply power to the connected loads at the same time.
B. During battery discharge time, if load power is less than
battery power, the battery will supply power to loads as
first priority, the excess battery power will feed to non-
essential loads and the grid.
C. During battery discharge time, if load power is more than
battery power, the battery and grid will supply power to the
loads at the same time.
OPERATING MODE:2A
PV
BAT EPS
INVERTER
OPERATING MODE:2B
PV
BAT EPS
INVERTER
OPERATING MODE:1A
PV
BAT
GRID
EPS
INVERTER
OPERATING MODE:1B
PV
BAT
GRID
EPS
INVERTER
OPERATING MODE:1C
PV
BAT
GRID
EPS
INVERTER
OPERATING MODE:1D
PV GRID
EPS
INVERTER
OPERATING MODE:2A
BAT
GRID
EPS
INVERTER
OPERATING MODE:2B
BAT
GRID
EPS
INVERTER
OPERATING MODE:2C
BAT
GRID
EPS
INVERTER

Freedom Won Three Phase Encore 12K and Encore 15K Inverter Manual Version 0
Page 12 | 41
Operating Mode: Time of Use Scheduling (load shift)
1. When PV, Grid, and Battery are available:
A. During battery charge time, solar power will charge the
battery as first priority. The excess power will supply the
loads. If solar power is sufficient to supply loads and charge
the battery, and if there's still some extra energy, then the
excess power will feed the power to non-essential loads
and the grid.
B. During battery charge time, solar energy will charge the
battery as first priority, then the excess solar energy will
supply power to loads. If solar energy is not sufficient to
charge the battery and supply loads, the grid will supply the
connected loads while available solar power charges the
battery.
C. During battery discharge time, solar provides power to the
loads as first priority, if solar power is sufficient to supply
loads, and if there's still some extra power from solar, then
the excess solar power and the battery will deliver the
power to the non-essential loads or grid at the same time.
D. In the period of no charge or discharge, the solar power
supplies loads as first priority, and excess energy is fed to
non-essential loads and the grid.
2. When Grid, Battery is available (PV is unavailable):
A. During battery charge time, the grid will charge the battery
and supply power to the connected loads at the same time.
B. During battery discharge time, if load power is less than
battery power, the battery will supply power to loads as
first priority, the excess battery power will feed to non-
essential loads and the grid.
C. During battery discharge time, if load power is more than
battery power, the battery and grid will supply power to the
loads at the same time.
Operating Mode: Bat priority
1. When PV, Grid, and Battery are available:
A. Solar energy will charge the battery as first priority, if solar
energy is excess, the excess power will supply load. If
there's still some extra energy, then the excess power will
feed the power to the grid.
B. Solar energy will charge the battery as first priority. If solar
energy is insufficient to charge the battery and supply
loads, the grid will supply power to loads.
OPERATING MODE:1A
PV
BAT
GRID
EPS
INVERTER
OPERATING MODE:1B
PV
BAT
GRID
EPS
INVERTER
OPERATING MODE:1C
PV
BAT
GRID
EPS
INVERTER
OPERATING MODE:1D
PV GRID
EPS
INVERTER
OPERATING MODE:2A
BAT
GRID
EPS
INVERTER
OPERATING MODE:2B
BAT
GRID
EPS
INVERTER
OPERATING MODE:2C
BAT
GRID
EPS
INVERTER
OPERATING MODE:1A
PV
BAT
GRID
EPS
INVERTER
OPERATING MODE:1B
PV
BAT
GRID
EPS
INVERTER

Freedom Won Three Phase Encore 12K and Encore 15K Inverter Manual Version 0
Page 13 | 41
2. When only the Grid and Battery are available (not available):
A. The grid will supply power to the load and charge the
battery at the same time.
Note!
If the “anti-Reflux” (zero-export) function is set on the inverter, in all
operating modes the system will not feed power to the grid, only to non-
essential loads.
3.3. Dimensions
Unit: mm
3.4. Terminals of Three Phase Inverter
These plugs applicable to Encore 15K only.
Function label Description
PV string 1 Input port PV1+ PV string 1 positive input
PV1- PV string 1 negative input
PV string 2 Input port PV2+ PV string 2 positive input
PV2- PV string 2 negative input
Communication interface COM1 GPRS port(optional)
COM2 WiFi port (optional)
BAT Port BAT+ Battery Positive input
OPERATING MODE:2A
BAT
GRID
EPS
INVERTER

Freedom Won Three Phase Encore 12K and Encore 15K Inverter Manual Version 0
Page 14 | 41
BAT- Battery negative input
signal line interface
UPDATE Upgrading software ports
DRM Demand Response Mode presently unavailable
CT Connect to CT (current transformer)
DRY IO dry contact
BMS BMS communication to Battery
CAN CAN communication
NTC NTC detection
Grid
①Grid line A phase
②Grid line B phase
③Grid line C phase
④Grid line null line
⑤Grid line ground electrode
GEN
(Diesel generator function is
unreleased currently)
⑥A phase
⑦B phase
⑧C phase
⑨null line
⑩ground electrode
Backup1
⑪Backup1 line A phase
⑫Backup1 line B phase
⑬Backup1 line C phase
⑭Backup1 line null line，
⑮Backup1 line ground electrode
Backup2
⑯Backup2 line A phase
⑰Backup2 line B phase
⑱Backup2 line C phase
⑲Backup2 line null line，
⑳Backup2 line ground electrode

Freedom Won Three Phase Encore 12K and Encore 15K Inverter Manual Version 0
Page 15 | 41
4. Technical Data

Freedom Won Three Phase Encore 12K and Encore 15K Inverter Manual Version 0
Page 16 | 41
5. Installation
5.1. Check for Physical Damage
Make sure the inverter is intact during transportation. If there is any visible damage, such as
cracks, please contact the manufacturer or installer immediately.
5.2. Packing List
Open the package and take out the product, please check the accessories first. The packing
list shown as below:
Object
Description
A
Inverter
B
Bracket
C
Expansion screws and pan-head screws
D
PV connectors (2*positive, 2*negative)
E
WIFI module
F
GPRS module (optional)
G
User manual
H
current transformer (CT)
5.3. Mounting
Installation Precaution
Encore inverter is designed for outdoor installation (IP 65). Make sure the installation site
meets the following conditions:
• Not in direct sunlight.
• Not in areas where highly flammable materials are stored.
• Not in potential explosive areas.
• Not in the cool air directly.
• Not near the television antenna or antenna cable.
• Not higher than altitude of about 2000m above sea level.
• Not in environment of precipitation or humidity (＞95%).

Freedom Won Three Phase Encore 12K and Encore 15K Inverter Manual Version 0
Page 17 | 41
• Under good ventilation condition.
• The ambient temperature in the range of -20℃to +60℃.
• The slope of the wall should be within ± 5°.
• The wall hanging the inverter should meet conditions below:
1. solid brick/concrete, or strength equivalent mounting surface.
2. Inverter must be supported or strengthened if the wall’s strength isn’t enough (such as
wooden wall, the wall covered by thick layer of decoration).
Please AVOID direct sunlight, rain exposure, snow building up during installation and
operation.
Space Requirement:
Mounting Steps
Tools required for installation - crimping pliers for binding post and RJ 45, screwdriver,
manual wrench etc.
Step 1: Screw the wall bracket on the wall.
1.1 Place the bracket on the wall and mark down the position of the 4 holes.
Position
Min size
Left
300mm
Right
300mm
Top
300mm
Bottom
300mm
Front
300mm

Freedom Won Three Phase Encore 12K and Encore 15K Inverter Manual Version 0
Page 18 | 41
1.2 Drill holes with driller, make sure the holes are deep enough (at least 60mm) to
support the inverter.
1.3 Install the expansion tubes in the holes and tighten them. Then install the wall bracket
with the expansion screws.
Step 1
Step 2: Place the inverter on the wall mounted bracket by holding the handle on the side.
Step 2
Step 3: Tighten the fixing screws on both sides of the inverter.
Step 4: If necessary, customer can install an anti-theft lock on the left-bottom of the
inverter.

Freedom Won Three Phase Encore 12K and Encore 15K Inverter Manual Version 0
Page 19 | 41
6. Electrical Connection
6.1. PV connection
The Encore Three Phase inverter can be connected in series with 2-strings PV modules for
6KW,8KW,10KW,15KW.
Select PV modules with excellent function and reliable quality. Open-circuit voltage of
module arrays connected in series should be Less than Max. DC input voltage; operating
voltage should be conformed to MPPT voltage range.

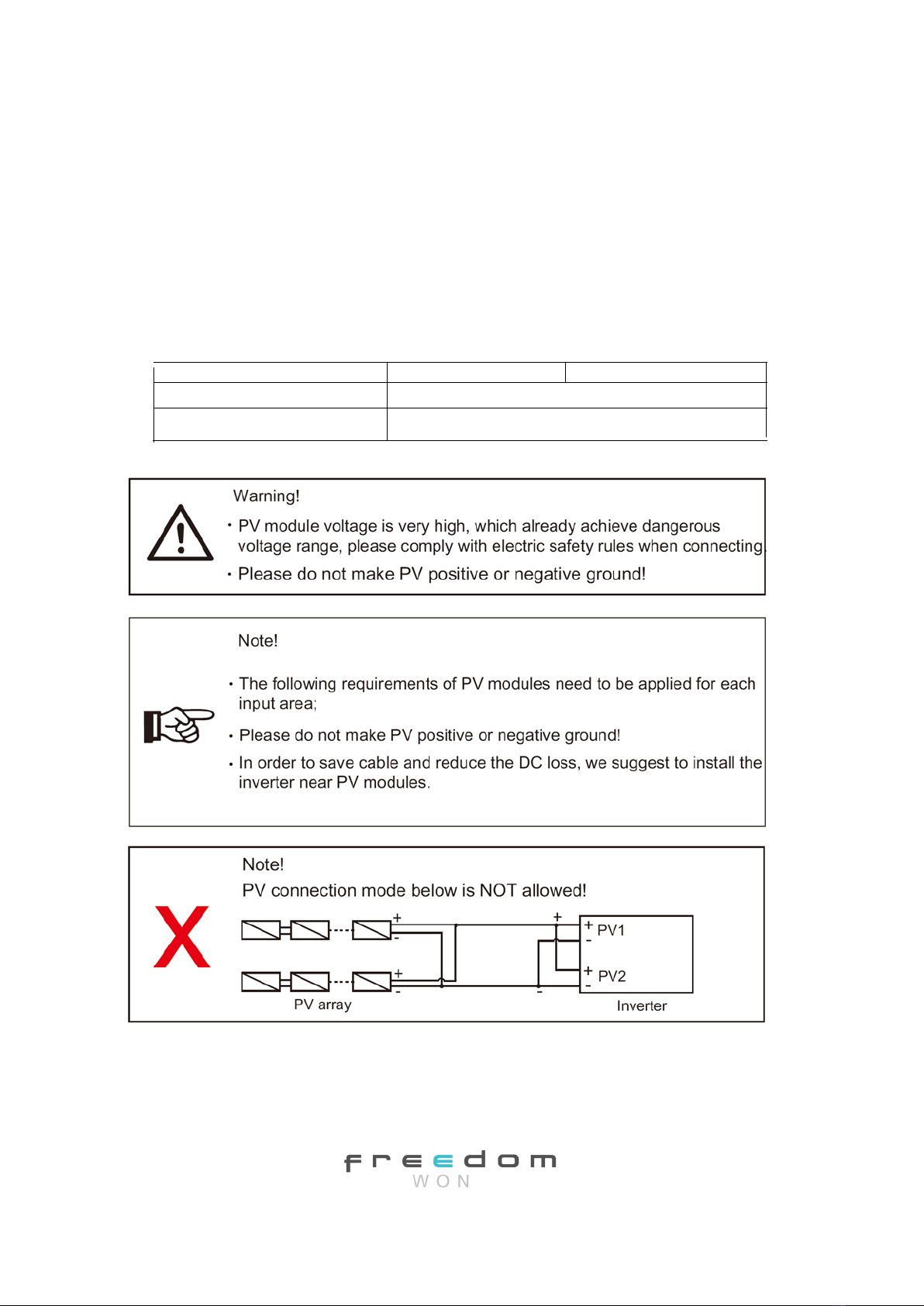

Max. DC Voltage Limitation
Model
Encore 12K
Encore 15K
Max. DC Voltage
（
V
）
1000
MPPT Voltage Range (V
）
180~850

Freedom Won Three Phase Encore 12K and Encore 15K Inverter Manual Version 0
Page 20 | 41
Connection Steps:
Step 1. Checking PV module.
1.1 Use voltmeter to measure module array voltage.
1.2 Check the PV+ and PV- from the PV string combiner box correctly.
1.3 Please ensure the impedance between the positive and negative poles of PV to earth
should be MΩ level.
Step 2. Separating the DC connector.
Step 3. Wiring.
3.1 Choose the 4mm² wire to connect with the cold-pressed terminal.
3.2 Remove 10mm of insulation from the end of wire.
3.3 Insert the insulation into pin contact and use crimping plier to clamp it.
Step 4. Insert pin contact through the cable nut to assemble into back of the male or female
plug. When you feel or heard a “click” sound the pin contact assembly is seated correctly.
Step 5. Plug the PV connector into the corresponding PV connector on inverter.
