Freestylus Freemotion User manual

FreeMotion Dispenser

Reference Guide

FreeMotion Reference Guide

Sections

1.0 FreeMotion Dispenser

Contents + Components

1.1 Box Contents

1.2 Dispenser Elements

1.3 Dimensions

1.4 Required Space

2.0 FreeMotion Dispenser Operation

2.1 Dispensing Directions

2.2 Opening the Front Cover

2.2 Relling Directions

3.0 Installation

3.1 Mounting Points | Keyhole

3.2 Mounting Points | Threaded Inserts

3.3 Power Cable | Routing Options

3.4 Countertop

3.5 Wallmount

3.6 Pedestal (accessory)

4.0 Safety

3.1 Safety Instructions

Table of Contents

CONTENTS + COMPONENTS

FreeMotion Reference Guide

In the Box:

The FreeMotion dispenser ships in a

single box with everything you need to

get it up-and-running right away.

1.1 Box Contents

Front Cover Key (qty. 1)

Key Opening Plug (qty. 1)

FreeMotion Dispenser (qty. 1)

Drywall Anchor (qty. 6)

Anchor Screw (qty. 6)

Power Plug & Adapter (qty. 1)

Machine Screw (qty. 4)

Machine Screw Washer (qty. 4)

Rubber Feet (qty. 4)

FreeMotion Reference Guide

FreeStylus Level Window

Key Access Slots

Interior Cover Latch

Front Cover

Keyhole Slot (qty. 6)

Pass Through Hole (qty. 4)

Threaded Insert (qty. 4)

Front Cover Key

Rear Power Pass Through

Motion Sensor Window

Touchless Dispensing Tray

Customization Area

1.2 Dispenser Elements

Lower Power Pass Through

Product Information Sticker

Non-Slip Rubber Feet

Threaded Inserts (qty. 4)

Bottom Detail:

FreeMotion Reference Guide

1.3 Dispenser Dimensions

5.28" (134 mm)

6.62" (168 mm)

10.68" (271 mm)

12.38" (315 mm)

Front View: Side View: Side View Cover Open:Top View:

FreeMotion Reference Guide

1.4 Required Operation Space

The FreeStylus Dispenser

Requires A Little Room:

Some elements of this dispenser and its key require

that there be clear space around portions of the

dispenser to ensure proper functionality.

We suggest approximately 4.25" of clear space

above the dispenser and 6.75" of clear space

directly in front of the dispenser.

4.25" (108 mm)

6.75" (171 mm)

DISPENSER OPERATION

FreeMotion Reference Guide

How to Use the

FreeStylus Dispenser:

This product is a fully automated, touchless

stylus dispenser. You don’t need to physically

touch the unit to get a Recyclable FreeStylus.

Simply wave your hand in front of the sensor and

it will dispense a single stylus for your use.

Our proximity sensor is set to initiate a dispensing

cycle when an object enters into its eld-of-view

(within four inches from the sensor).

2.1 Dispensing Directions

4.0" (102 mm)

FreeMotion Reference Guide

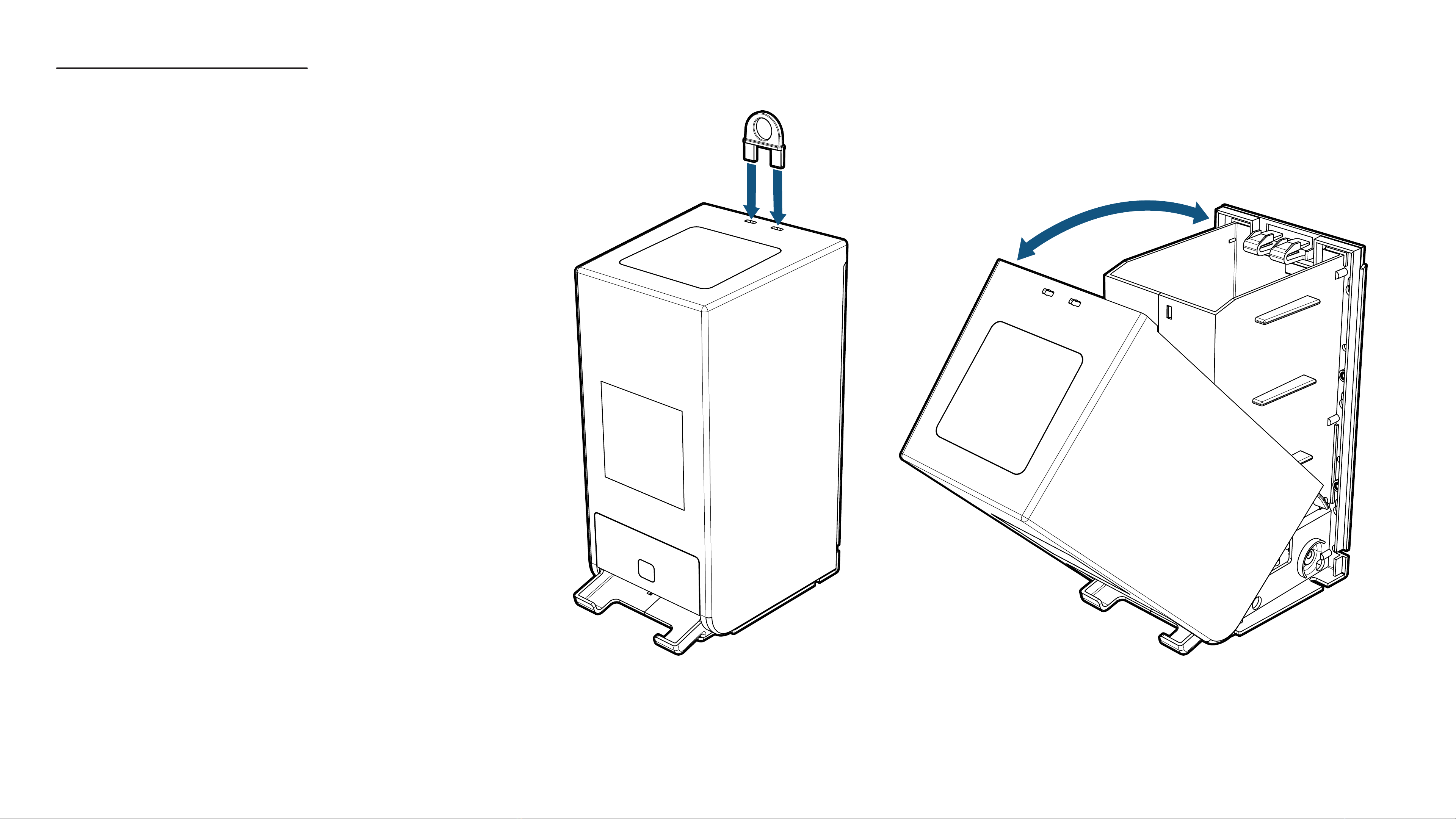

How to Open the

FreeStylus Dispenser:

The FreeMotion dispenser sports a self-latching

front cover with a key that came with your unit.

It’s only a two-step process to open the cover.

Step A: Unlocking

Use the key (as shown in diagram A) to

press down on the internal latch.

Step B: Opening

Once the latch has released the cover,

remove the key and gently rotate the front

cover open. Don’t worry, it has a stop built

in to keep it from opening too far.

Step C: Closing the Lid

You don’t need the key to close the lid.

Simply rotate the lid back up until it latches,

you should be able to hear and feel it catch.

2.2 Opening the Front Cover

Diagram A: Diagram B:

FreeMotion Reference Guide

How to Rell the

FreeStylus Dispenser:

The FreeMotion dispenser has been designed

and engineered to work seamlessly with the

Recyclable FreeStylus.

1. Follow the directions in section 2.2 to

open the front cover.

2. Open a pack of FreeStylus pens and

carefully lower them into the dispenser,

being sure to have all stylus pens positioned

parallel to the front of the dispenser.

3. Use the ll lines on the side of the

dispenser as a guide for determining the

stylus capacity available.

4. Once the dispenser is full, close the front

cover (see section 2.2). Make sure that the styluses are arranged like the image on the right side. This is important

as the direction of the stylus matters to complete the dispensing function.

INCORRECT: CORRECT:

2.3 Relling Directions

INSTALLATION

FreeMotion Reference Guide

3.1 Keyhole Details

Keyhole and Pass Through

Hole Details:

There are six keyhole slots and four pass through

holes on the back face of the FreeMotion

Dispenser. The keyhole slots are intended for wall

mounting the dispenser with drywall anchors. The

pass through holes are to give you the opportunity

to mechanically fasten the dispenser in a more

“public-proof” manner, requiring tools and access

beyond the front cover to unfasten the dispenser.

Back View:

3.50" (89 mm)

4.48" (114 mm)

4.35" (110 mm)

Ø0.21" (5 mm)

Ø0.31" (8 mm)

Ø0.20" (5 mm)

4.43" (112 mm)

on center

3.50" (89 mm)

3.54" (90 mm)3.95" (100 mm)

2.54" (64 mm)

FreeMotion Reference Guide

Mounting the FreeStylus

Dispenser with the

Threaded Inserts:

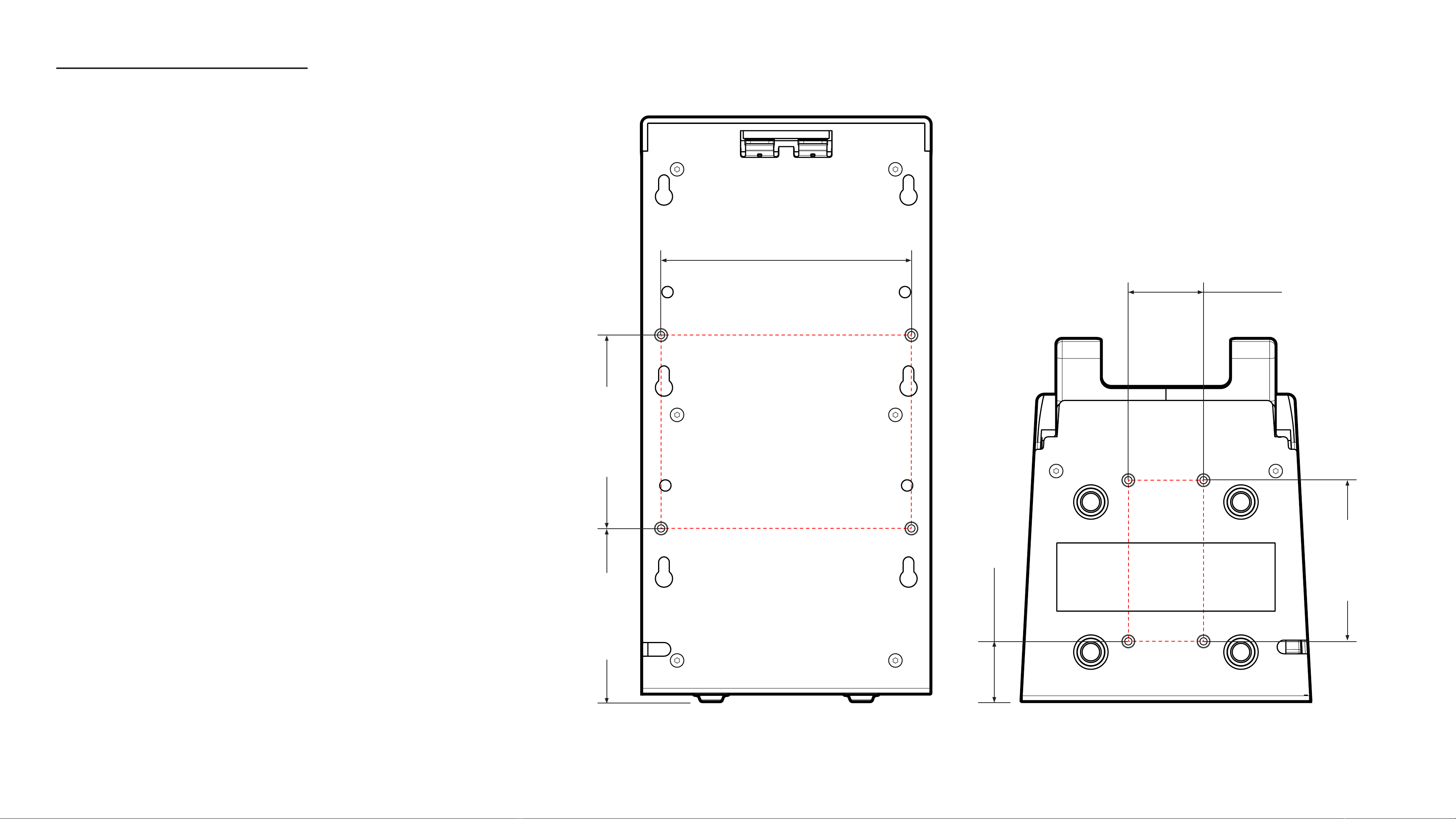

The FreeMotion dispenser features eight cast-in

threaded inserts. They are located on the bottom

and back surfaces of the outer housing to support

dierent installations and integrations.

Threaded Inserts Are:

• M4 x 6 Thread

• 6mm Deep

3.2 Threaded Insert Details

1.38" (35 mm)

on center

4.59" (116 mm)

on center

Bottom View:Back View:

2.95" (75 mm)

3.54" (90 mm)3.16" (80 mm)

1.09" (28 mm)

FreeMotion Reference Guide

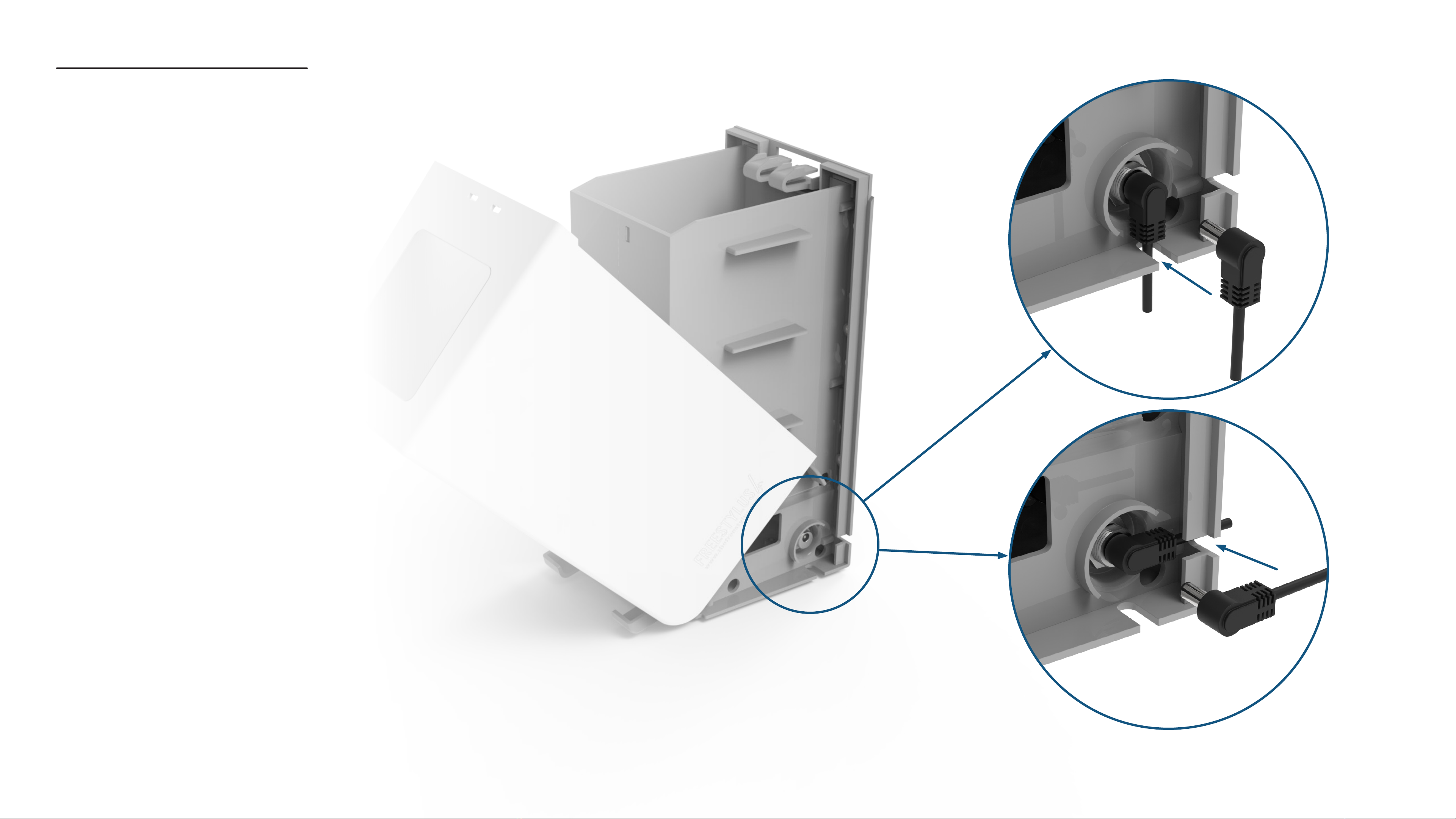

The Power Cable Has

Routing Options:

Because the FreeMotion dispenser can

be installed in so many dierent ways, we

have an engineered in solution to allow

the power cable to be run out of two

dierent pass through’s.

Depending on your own installation, you

can run the power cable through the

bottom of the unit, or the back of the unit.

3.3 Power Cable | Routing Options

FreeMotion Reference Guide

Placing the FreeStylus

Dispenser on a Counter:

The FreeMotion dispenser has been designed for

countertop placement. It includes rubberized

feet for better stability on counter top surfaces,

and a hinge point that keeps the front cover from

colliding with the counter when opened. The

power converter and its associated power cable are

long enough to make it through your existing cable

management system.

We suggest placing the dispenser at least 1 inch,

but not more than 10 inches, from the leading edge

of the counter.

3.4 Countertop Installation

FreeMotion Reference Guide

Mounting the FreeStylus

Dispenser on a Wall:

The FreeMotion dispenser features six keyhole

slots and four pass through holes on the back of

the dispenser housing (Section 3.1 has details).

This product also comes with drywall anchors and

screws to allow for standard wall mounting.

We can provide a 1:1 scale mounting hole location

guide for drilling wall mounted anchor pilot holes.

We suggest using a minimum of four keyholes for

hanging and two of the pass through holes to keep

the dispenser secured to the wall.

3.5 Wallmount Installation

Mounting Hole Location Guide Example:

FreeMotion Reference Guide

Mounting the FreeStylus

Dispenser to it’s Pedestal:

We have a pedestal specically for situations when your

space doesn’t support a counter or wall installation.

The pedestal has been engineered for stability, easy

installation, power cable management, and utilizes

the existing threaded inserts in the dispenser for

attachment (see section 3.2 for insert details).

3.6 Pedestal Installation

SAFETY

FreeMotion Reference Guide

IMPORTANT SAFETY INSTRUCTIONS

Warning - When using electric appliances, basic precautions should always be

followed, including the following:

Read all the instructions before using the appliance.

To reduce the risk of injury, close supervision is necessary when an

appliance is used near children.

Do not contact moving parts.

Only use attachments recommended or sold by the manufacturer.

Do not use outdoors.

Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

Unplug from outlet when not in use and before servicing or cleaning.

Do not operate any appliance with a damaged cord or plug, or after the

appliance malfunctions or is dropped or damaged in any manner. Return

appliance to the nearest authorized service facility for examination,

repair, or electrical or mechanical adjustment.

SAVE THESE INSTRUCTIONS

4.0 Safety Instructions
