FreeVision VILTA-M Pro User manual

User Manual
VILTA-M Pro
Freevision Intelligent Technology Co.,Ltd.
Stabilizer for Smartphone

Contents
Warning
02
03
05
04
07
08
12
14
17
17
18
19
Warranty Information 23
App Installation
Smartphone Installation and Balance
App Connection
Control Panel Introduction
App Menu Introduction
App Operation
Packing List
Product Overview
Overview
Installation
Start Up
Specifications Parameter
Technical Parameter
Other Specification
Specifications
0101

Packing List
VILTA-M pro
Portable Bag
Charging Cable
Tripod
User Manual
Lanyard
Warranty Card
0102
| OVERVIEW |

Product Overview
03
| OVERVIEW |
Portrait and
Landscape Knob
1/4 Inch Screw PortType-C Charging Port
Smartphone
Mounting Holder
Connection Indicator LED
Balance
Adjustment Knob
Roll Axis Buckle
Joystick
Focus/Zoom Wheel
Focus/Zoom Button
Camera Parameter
Adjustment Wheel
Mark A Button
Mark B Button
Scene Mode Switch
Menu/Back Button
Shutter Button
EV Button Quick Shutter Button
Record Button
Custom Mode Button
ISO Button
Album Mode Button
OK/DISP Button
Power Button
Tilt Axis
Wireless Charging
Roll Axis Adjustable Arm
USB-A
Charging Port
Pan Axis
Status Indicator LED
Handle Grip

App Installation
04
| Installation |
For iOS users, please search FV Share App in App Store.( iOS 9.0 or above)
Download FV Share App
For Android users, please search FV Share App in Google Play.
(Android 5.0 or above)
Available on the
App Store

Smartphone Installation and Balance
05

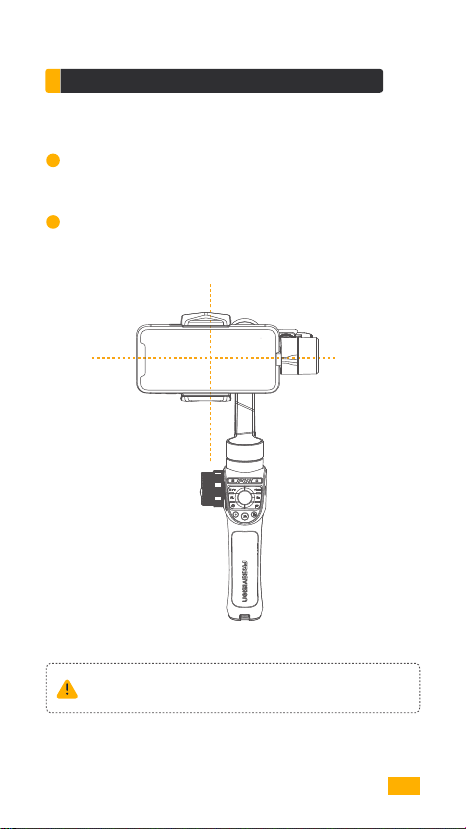

Place the mobile phone in the smartphone mounting holder while pulling
the sides of the holder outwards, then release the sides of the holder. It
is recommended that you position the mobile phone close to the tilt axis.
Turn the mobile phone over facing downwards, adjust the position of
the phone in the holder to balance the tilt axis(refer to the picture
below) and then tight up the balance adjustment knob.
1
2
| Installation |
Always keep your phone mounted and well balanced in level prior
to power on.

06
Manually rotate the phone holder to switch between horizontal and
vertical screens.
3
| Installation |

App Connection
07

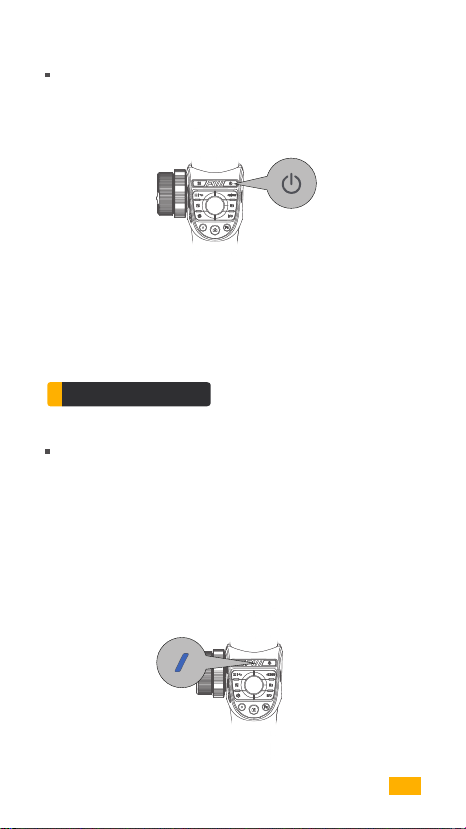

Power On/Off
FV Share Connection
For Android users, please turn on GPS)
Power on VILTA-M Pro
Open FV Share
Tap Connect to Gimbal and choose your gimbal to connect.
After successfully connecting, the blue connection indicator LED stops
flashing and turns solid blue.
Long press power button for 3 seconds to power on/off.
| Installation |
Power Button
Connection
Indicator LED

Operating instructions
08

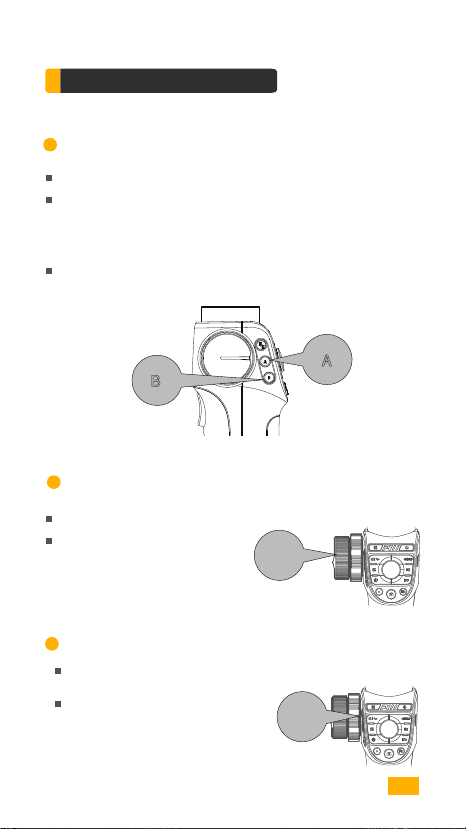

Choose two different depth of fields of the shooting subject.
Use Focus/Zoom Wheel to choose one of your subjects. Long press the
Mark A button to confirm.
Use Focus/Zoom Wheel to choose the other subject. Long press the Mark
B button to confirm.
When recording, single tap the Mark A and B button to switch the focus
of the subject.
Shooting Subject Switching
Quick Zoom / Focus
1
Single tap to zoom/focus switching button
Adjust the focus or zoom with the
Focus/Zoom wheel
2
| Start Up |
Mark A
Mark B
Focus/Zoom Wheel
Camera Parameter
Adjustment Wheel
Quick Camera Parameter Adjustment
3
Single tap EV button, shutter button, ISO button to turn on quickly the
manual camera parameter adjustment.
Camera Parameter Adjustment Wheel

Scene Mode Switching Menu/Return Button
Status
Indicator LED
09
Single tap to switch between walk mode, sports mode, custom mode.
Scene Mode Switching
5
In the primary level of the App interface, single tap the menu key to
switch to menu bar options.
In the secondary level of the APP interface, single tap the Back button
to return to the previous menu and long press to exit the menu.
Menu/Return Button
6
4
Mode indicator LED and Mode switch
| Start Up |
Status
Indicator LED
Single tap
Follow Mode
Button
Double taps
Three taps
Four taps
Long press
Long press and move
the joystick
Green
Yellow light
flashes
Red
Yellow
Gimbal Mode
To adjust the roll
axis angle
POV mode
For quick positioning
of the direction
Semi follow mode
Full follow mode
To lock the current
camera shooting angle

Custom mode Button
Album Mode Button
Record Button Shutter Button
10
7
Single tap to start/exit recording.
Double tap to switch front and rear facing camera.
Record Button
Default hand following mode, customized flash, white balance and wireless
charging power switch.
(Hand following mode: the motor responds at high speed, and follows quickly the handle
rotation to meet the fast transition effect)
Custom mode Button
9
Single tap the album mode button to view the album.
Single tap the back button to return to the previous menu.
Album Mode Button
10
| Start Up |
8
Light press Shutter Button to focus. Deep press Shutter Button to take
a photo.
Shutter Button

OK/DISP Button
11
When adjusting the camera parameters, single tap OK to confirm the
parameters.
When viewing the album, single tap OK to confirm the playback.
When the APP is on the primary interface display, single tap the DISP
button to display the current camera parameters.
When viewing photos, single tap the DISP button to display photo
information.
OK/DISP Button
11
Single tap the power button to activate the sleeping/waking up mode .
If any buckle is locked, the gimbal will automatically sleep.
If unlock all buckles, the gimbal will resume its operation.
The gimbal will automatically power off if it sleeps for more than 15 minutes.
Gimbal Sleeping mode
12
| Start Up |
Buckle
Buckle

App Menu Introduction
Due to the limitations of Android phones, VILTA-M Pro Android users
will not be able to use all the functions for the time being. Thank you for
your understanding and support.

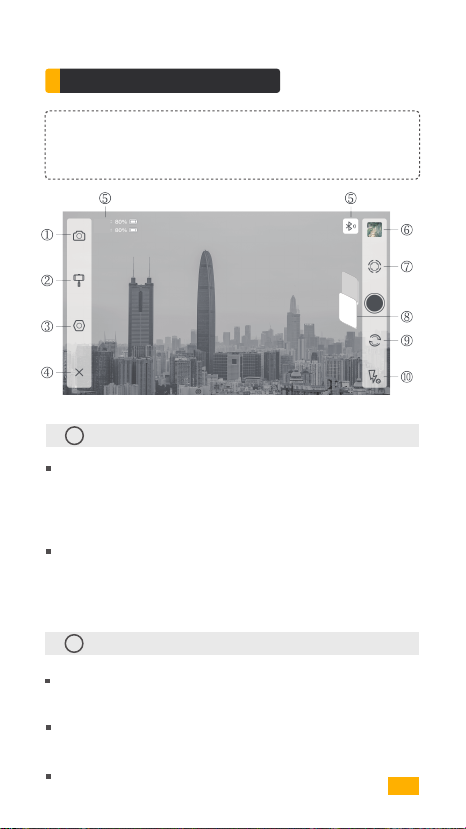

02 Gimbal
Scene Modes:
Walk Mode, Sport Mode, Custom Mode
Follow Modes:
Follow Mode, Semi-follow Mode, Lock Mode, POV Mode
Camera Mode:
Time-lapse, Panorama, Long Exposure, Beautify, HDR, Filter, White
Balance, Grid, Camera Manual Mode
Video Mode:
Slow Motion, Beautify, Filters, Time Lapse, Motion Time Lapse,
Motion Lapse, White Balance, Grid,Camera Manual Mode, Hitchcock
01 Camera Settings
Focus wheel function 12
| Start Up |
Phone Video
Phone
Gimbal

03 Advanced Settings
Camera
Camera Resolution, Video Resolution, Panorama Quality,
Panorama Saved, Photo and Video Save Address,Phone Anti-shake
Mark point switching speed
Gimbal
Roll Axis Attitude Adjustment,Scene Mode Settings, Dead Zone
Settings, Gimbal Calibration, Reset All,Custom button function
settings, Wireless charging
Joystick
Speed, Dead Zone, Direction, Smooth Degree
Information
Gimbal Battery Information, Gimbal Information, About App, Live
Answering a phone when recording or in IntelliTrace, the
recording will be automatically stopped.
04 Return
05
Tap to return to App home page
Tap to turn on IntelliTrace. Tap to turn off IntelliTrace.
Frame the subject and VILTA-M Pro will track in real time.
Information
Gimbal Battery, Phone Battery, Bluetooth Connection Status
Preview and storage location of photos and videos.
06 Documents
07 IntelliTrace
13
| Start Up |

08 Photo/Video Switch
Tap to switch
09 Front/Back Camera Switch
Tap to switch
10
01
02
Flashlight Status
Display current flashlight status
Tap to switch flashlight state
App Operation
Panorama
Video Mode
Photo Mode
Tap to enter panorama. Choose 180°, 330°, 3*3, 3*5, VILTA -M Pro
will automatically shoot and compose a panorama. It will be automatically
saved to documents.
IntelliTrace
1. Tap and choose sport mode in scene mode.
2. Tap to start IntelliTrace.
3. Tap or draw a frame of the subject on your phone screen. VILTA-M pro
will intelligently identify and automatically track subject.
4.Tap to start shooting.
A
14
5.Tap to exit IntelliTrace.
| Start Up |
Phone Video

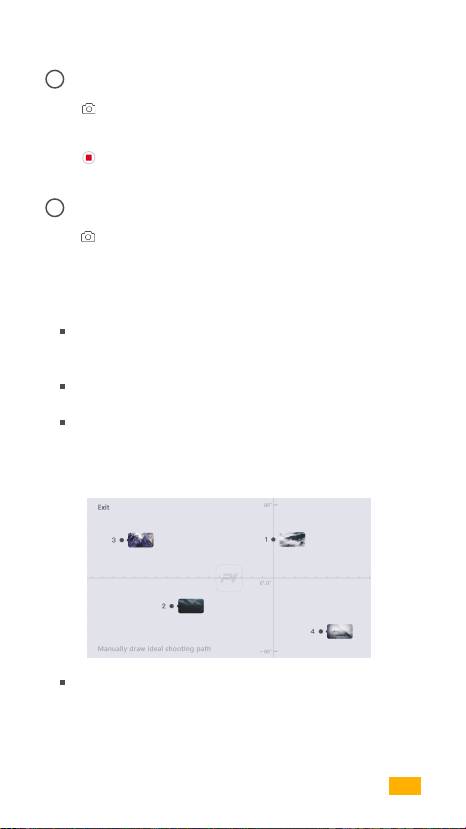

04 Motion Time Lapse
1. Tap and choose motion time lapse.
2. Set shooting points
Manually adjust phone to one position. Take photo at that
position. It is shooting point A. Likewise, other shooting
points can be done in the same approach.
Auto Mode
Draw shooting path at will on your phone screen.
Manual Mode
Shooting path will be generated according to the shooting
points.
Adjust smoothness of the shooting path.
3. Set shutter interval and time of duration. Tap Start.
15
03 Time Lapse
1. Tap and choose time lapse.
2. Set shutter interval and time of duration. Tap Start.
3. Tap to exit shooting. Video will be automatically saved to
documents.
| Start Up |

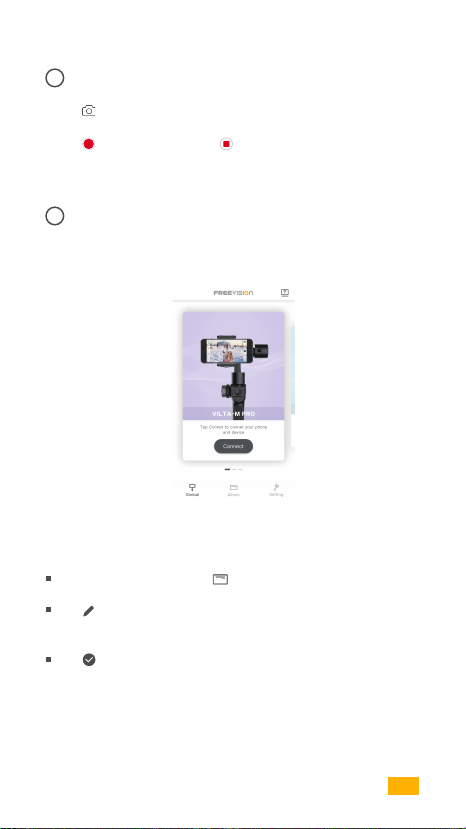

05 Slow Motion Video
2. Tap to start shooting. Tap to exit shooting.
Videos will be automatically saved to documents.
1. Tap and choose slow motion.
Enter App home page and tap at the bottom.
Tap to choose the photo and editing ( Filter, Beautify,
Adjust, Mosaric, Crop, Paint )
Tap to confirm editing.
06 Photo/Video Editing
1. Photo Editing
16
| Start Up |

07 Camera Manual Mode
Specifications Parameter
Tap to confirm editing.
Adjust exposure,shutter,ISO, white balance, manual focus
and zoom of your phone camera.
Enter App home page and tap at the bottom. Choose video.
Tap to editing (Add Video, Video Editing, Add
Music, Filter, Adjust)
2. Video Editing
17
| Start Up |
VILTA -M Pro
VT30
332*122*62mm (Folded）
Name
Item No.
Dimensions
635g
275g
Weight
Supporting phone width 55~85mm
gimbal maximum load capacity
Phone Video
iPhone
Gimbal

Technical Parameter
01 Mechanical Rotation Range
02 Maximum Control Speed
Adaptive Rotation Speed（±500°/ s )
Other Specification
03 Battery
Above data come from laboratory. Gimbal has been well
balanced. Wireless charging function is turned off. Data
vary according to phone models and gimbal balance status.
18
| SPECIFICATIONS |
330°
325°
360°unlimited
Tilt
Roll
Pan
Intelligent Lithium Battery
7.4V
Static:93mA Dynamic:3.6A
Battery Type
Voltage
Working Current
2000mAHBattery Capacity
14.8WHEnergy
Static:0.7W ynamic:26.5WConsumption
-10℃~40℃
Bluetooth 4.2
Operating Temperature
Bluetooth version

Web: www.fvshare.com
Tel: [phone]
Email: [email protected]
Warning
19
| WARNING |
Buckles will cause slight wear and tear due to friction during use.
Do not expose to fire or high heat.
Drop and collision will break VILTA-M Pro. Please use it carefully.
Not water-proof. Keep away from liquids or do not clean with liquid detergent.
Do not disassemble, repair or modify VILTA-M Pro.
Please use charging cable complying with public safety regulation.
Do not interfere gimbal on its working operation.
Not suitable for children.
Smartphones are not included.
@freevisiontech
