FreeVision Vilta User manual

User Manual
2017.12
VILTA
V1.0
Operating Frequency Band (RF) :
TX/RX: 2402-2480 MHz
Modulation mode：GFSK
Max. Of Transmit power: -6.33dBm
Maximum of Antenna’s Gain：5.05dBi
Operating Frequency Band (RF) :
TX/RX: 2402-2480 MHz
Modulation mode：GFSK
Max. Of Transmit power: -6.33dBm
Maximum of Antenna’s Gain：5.05dBi

Contents
Warranty Information
03
04
05
06
09
10
15
17
20
20
21
23
App Installation
Smartphone Installation and Balance
App Connection
Control Panel Introduction
App Menu Introduction
App Operation
Packing List
Product Overview
Overview
Quick Start
Start Up
Specifications Parameter
Technical Parameter
Other Specification
Specifications
02
VILTA

Packing List
VILTA
VILTA
Portable Bag
Charging Cable
Lanyard
User Manual
03

Micro-USB
Charging Port
Balance
Adjustment
Knob
Pan Axis
Power Button
Smartphone
Mounting Clip
Shutter Button
Joystick
Lanyard Hole
Mode Button
Handle Grip
Tilt Axis
Smartphone
Detection
Sensor
Roll Axis
Adjustment Arm
1/4 Inch
ScrewPort
Status Indicator

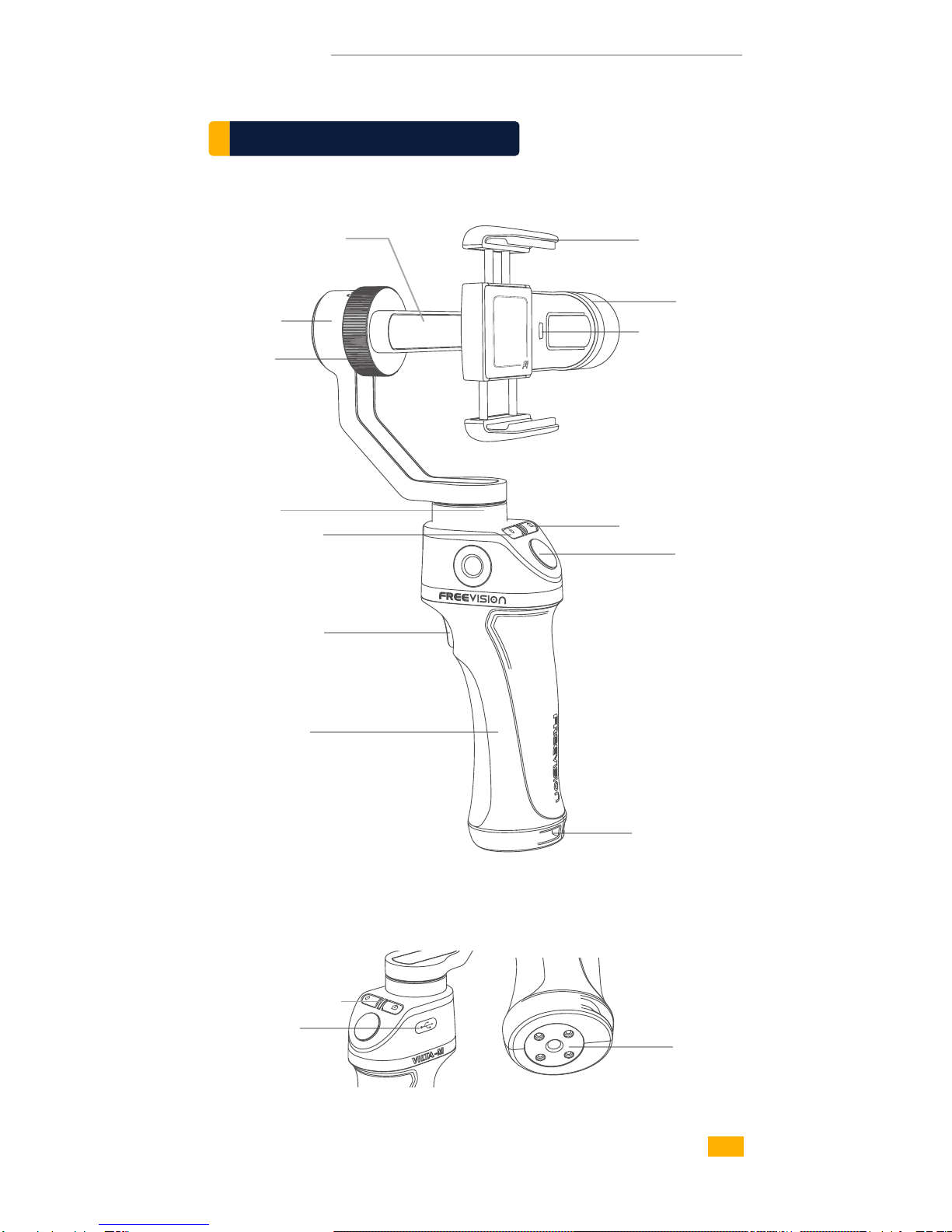

Product Overview
VILTA
04

VILTA
Available on the
App Store
Download App on Freevision’s official website
www.freevisiontech.com.
Android 4.3 above or iOS 9.0 above required.
For iOS user, search“FV Share”in App Store.
Get it on
App Installation
For Android user, search “FV Share”in Google Play
or scan below QR Code
05

VILTA
Smartphone Installation & Balance
Smartphone Installation
01
OutwardInward
1
2
Pull open the smartphone mounting clip.
1
2
VILTA won ’t work unless mounting the phone.
Smartphone detection can be closed in App.
Always keep your phone well balanced in level prior to
power on, or it will greatly affect working performance.
Please ensure back camera of phone is outward and not
covered.
Put your phone in and keep it close to the tilt axis motor.
06

VILTA

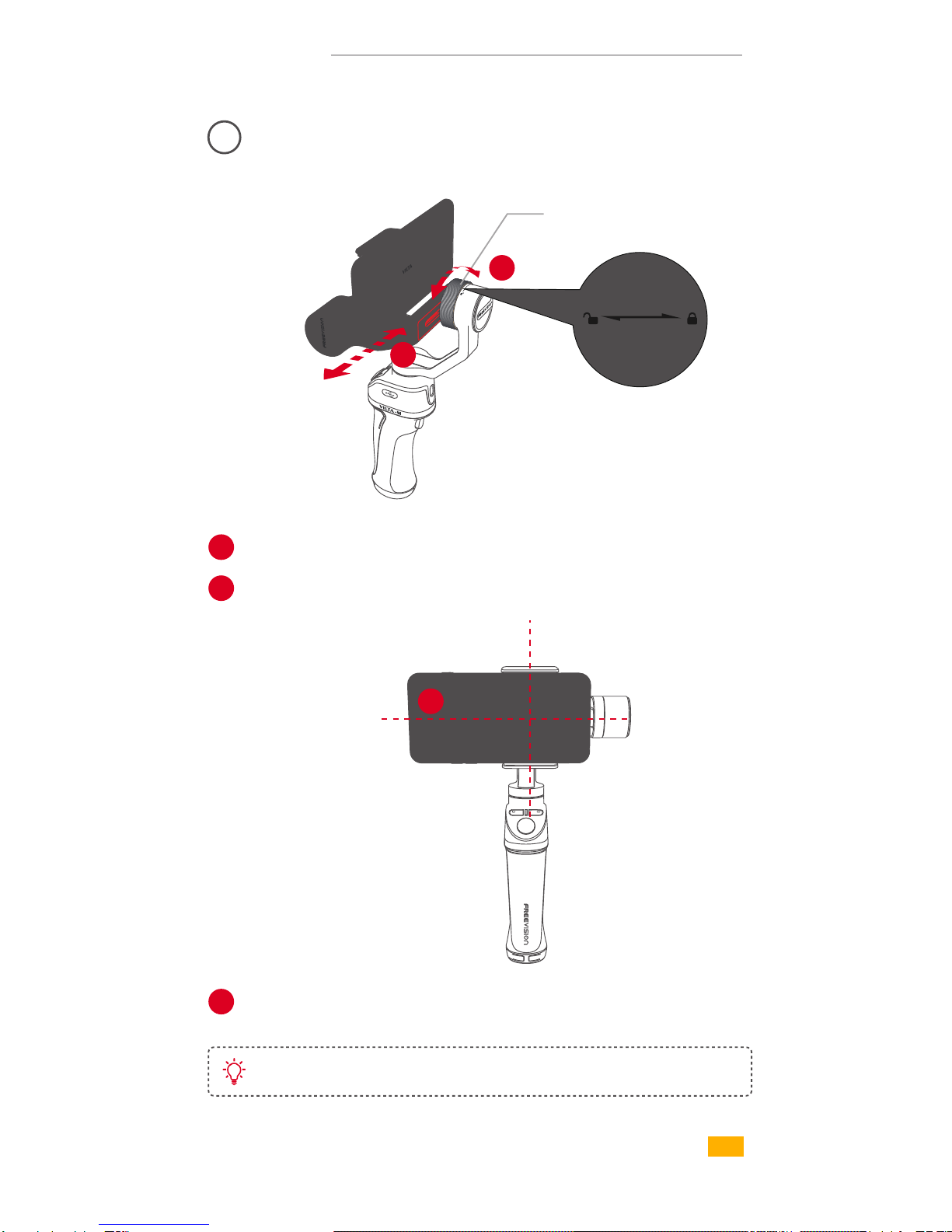

Smartphone Balance
02
Slightly move the adjustment arm.
Unscrew the balance adjustment knob.
When your phone can stay level and balanced, screw up the
balance adjustment knob.
1
3
2
Write scale of adjustment arm for easy reuse.
3
Balance
Adjustment Knob
2
1
07

VILTA
Power On/Off
03
Long press power button for 3 seconds to power on/off.
1
Power Button
1
If system halted, long press power button for 7.5 seconds
to mandatory shutdown.
08

VILTA
Turn on bluetooth and unlock the phone screen rotation.
Ensure phone can be displayed horizontally.
Open App, tap Connect to enter the device list.
Choose your gimbal to connect.
App Connection
The light of shutter button will go out after successfully
connected.
09

VILTA
Shutter Button
Status Indicator
Shutter Button
01
Control Panel Instruction
Single Tap
Double Tap
Long Press for 2s
Photo Mode
Selfie Mode
Video Mode
Take Photo
Front & Back Camera Switch
Recording On/Off
Status Indicator
02
10

VILTA
Abnormal conditions of VILT Ainclude absence
of phone, motor damage, internal fault, etc.
Red light glints
Green light glints
Warning (Abnormal Condition)
Busy/Auto Calibration
Mode Button
Mode Button
03
Semi-follow Mode (default)
Single tap Mode Button
Status Indicator is yellow
Tilt and Roll Axes are locked.
Pan Axis smoothly moves
with handle.
11

VILTA
Follow Mode
Double tap Mode Button
Status Indicator is red
Roll Axis is locked. Pan and
Tilt Axes smoothly move with
handle.
Lock Mode
Quadruple tap Mode Button
Status Indicator is green
Tilt, Roll and Pan Axes are
locked.Smartphone always
keeps the current shooting
direction.
Center the smartphone
Triple tap Mode Button
The smartphone returns
to the front.
Focusing
Long Press
Long press Mode Button.
12

VILTA
When toggling joystick to left or right, VILTA will
rotate corresponding level direction.
Joystick
04
1
2
1
2
When toggling joystick upward or downward,
VILTA will rotate corresponding vertical direction.
Direction of control can be modified in advanced
setting of App.
Adjustment of exposure and roll axis angle can be
swtiched in advanced setting of App.
Zoom—Long press mode button and toggle joystick upward
or downward.
Exposure—Long press mode button and toggle joystick
left or right.
Roll Axis Angle—Long press mode button and toggle joystick
left or right.
Basic Function
Advanced Funtion
13

VILTA
Micro-USB Charging Port
05
Manual
06
When charging, status indicator alternately glints in red,
yellow and green.
When fully charged, the status indicator is green.
Please apply charging cable with standard configuration to
charge VILTA .
When the charging current is 2A, it takes 2.0 hours
to be fully charged, which allows 17 working hours.
Datum come from laboratory test.
Directly adjust the shooting direction by hand. Manual mode
can be turned off in VILTA App.
When the power button glints,please charge VILTA .
Tilt
Pan
14

VILTA
App Menu Introduction
01
01
05 05
06
07
08
09
10
02
03
04
General Settings
Camera
Video Resolution, Panorama Quality
Gimbal
Rotation Speed Settings, Dead Zone Settings, Mode Button+Toggle
Joystick, Phone Detection, Gimbal Calibration, Reset All
Joystick
Sensitivity, Speed, Dead Zone, Direction
Information
Gimbal Battery Information, Gimbal Information, App
02 Gimbal Settings
Scene Modes:
Walk Mode, Sport Mode, Custom Mode
PhotoVideo
15

VILTA
Follow Modes:
Follow Mode, Semi-follow Mode, Lock Mode
Manual Mode
Phone Charge
Camera Mode:
Time-lapse, Panorama, Long Exposure, Beauty, HDR, Filter,
White Balance, Grid
Video Mode:
Slow Motion, Beauty, Filters, Time Lapse, Motion Time Lapse,
Motion Lapse, White Balance, Grid
Answering a phone when recording or in IntelliTrace, the
shooting will be automatically stopped.
03 Camera Settings
04 Return
05 Information
Tap to return to App home page
Tap to turn on IntelliTrace. Tap to turn off IntelliTrace.
Frame the subject and VILTA will track in real time.
Gimbal Battery, Bluetooth Connection Status
Preview and storage location of photos and videos.
06 Documents
07 IntelliTrace
16

VILTA
08 Photo/Video Switch
Tap to switch
09 Front/Back Camera Switch
Tap to switch
10
01
Flashlight Status
Display the current flashlight status
Tap to switch working state
PhotoVideo
App Operation
Panorama
Tap to enter panorama. Choose 180°, 330°, 3*3，3*5, VILTA
will automatically shoot and compund panorama.
Photo will be automatically saved to documents.
01 IntelliTrace
Photo Mode
Video Mode
1. Tap and choose sport mode in scene mode.
4. Tap to exit recording. Tap to exit IntelliTrace.
Video will be automatically saved to documents.
2. Tap to start IntelliTrace. Frame the subject on your phone
screen.
3. Tap to start recording. VILTA wil intelligently
identify and automatically track the subject to take video.
A
17

VILTA
1. Switch to video mode. Tap and choose motion time lapse.
1. Switch to video mode. Tap and choose time lapse.
2. Set shutter interval and time of duration. Tap Start.
3. Tap to exit recording. Video will be automatically
saved to documents.
2. Set shooting points
Auto Mode
Manual Mode
Manually adjust phone to ideal shooting point. Take photo at
that direction and it will be shown as shooting point A on App.
Likewise, the rest shooting points can be done in the same
approach.
According to the shooting points, VILTA will
automatically generate shooting path.
Adjust smoothness of the shooting path.
02 Time Lapse
03 Motion Time Lapse
3. Set shutter interval and time of duration. Tap Start.
Freely set the shooting path by directly drawing on your
phone screen.
18

VILTA
1. Tap and open Slow Motion.
2. Tap to start recording. Tap to exit recording.
Videos will be automatically saved to documents.
04 Slow Motion Video
Enter App home page and tap on the bottom
Tap to choose the photo and editing ( Filter, Beautify,
Adjust, Mosaric, Crop, Paint )
Tap to confirm editing
11 Photo/Video Editing
1. Photo Editing
19

VILTA
Enter App home page and tap on the bottom.
Choose Videos
Tap to choose the video and editing (Add Video, Video Editing,
Add Music, Filter, Adjust)
2. Video Editing
Tap to confirm editing
Specifications Parameter
Technical Parameter
01 Mechanical Rotation Range
±125°
±90°
360°(Infinite Rotation)
Tilt
Roll
Pan
VILTA
Name
Item No.
Dimensions
520g
Phones Width: 48～85mm
Weight
Supported Phones
02 Controllable Rotation Range
±115°
±45°
360°(Infinite Rotation)
Tilt
Roll
Pan
20
275*115*40mm(Folded)
VT10
