FreeVision FMTV74810.0 User manual

CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Model No. FMTV74810.0
QUESTIONS?
If you have questions, or if parts
are damaged or missing,
please see HOW TO CONTACT
CUSTOMER CARE on the back
cover of this manual.
EKFM74810
(FMTK74810)
USER’S MANUAL
www.freemotionfitness.com

2
FREEMOTION is a registered trademark of ICON IP, Inc.
IMPORTANT PRECAUTIONS..................................................................3
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
HOW TO CONNECT YOUR FITNESS EQUIPMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
HOW TO CONNECT THE DIGITAL TV. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
HOW TO USE THE DIGITAL TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
MAINTENANCE AND TROUBLESHOOTING.....................................................14
HOW TO CONTACT CUSTOMER CARE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
TABLE OF CONTENTS

3
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual before using the digital TV. FreeMotion Fitness assumes no responsibility
for personal injury or property damage sustained by or through the use of this product.
1. Before beginning this or any exercise
program, consult your physician. This is
especially important for persons over age 35
or persons with pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of the digital TV are adequately
informed of all warnings and
precautions.
3. Use the digital TV only as described in this
manual and in your fitness equipment user’s
manual.
4. Keep the digital TV indoors, away from
moisture and dust. Do not place the TV in a
garage or covered patio, or near water.
5. Keep children under age 12 and pets away
from the digital TV at all times.
6. Never insert or drop any object into any
opening.
7. To reduce the risk of electric shock, do not
remove the cover or the back of the digi-
tal TV. There are no user serviceable parts
inside. Refer servicing to qualified service
personnel.
8. Upon completion of any service or repairs
to the digital TV, ask the service technician
to perform safety checks to confirm that the
unit is in proper operating condition.
9. Note to the CATV system installer: This
reminder is provided to call the CATV sys-
tem installer’s attention to Article 820-40 of
the NEC that provides guidelines for proper
grounding and, in particular, specifies that
the cable ground shall be connected to the
grounding system of the building, as close to
the point of cable entry as practical.
Power Lines
Ground
Clamps
Ground
Clamps
Ground
Clamp
Bonding
Jumper
Standoff
Insulators
Antenna
Lead-in Wire
Ground Wire
Ground
Wire
Antenna
Discharge Unit
To External 75 Ohm
Terminal of Incline Trainer Mast
Service
Entrance
Equipment
Power Service Grounding
Electrode System (e.g.
Interior Metal Water Pipe)
Service
Entrance
Conductors
Optional Antenna Grounding Electrode Driven 8
Feet (2.44 m) Into The Earth (If Required By Local
Codes). See NEC Section 810–21 (f).
SAVE THESE INSTRUCTIONS

4
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materialsuntilyounishallassemblysteps.
• Assembly requires the following tool:
one Phillips screwdriver
To avoid damaging parts, do not use power tools.
ASSEMBLY
1. Remove the four Screws (A) from the Console
Back Cover (B), and remove the Console Back
Cover from the Console Back (C).
A
1
B
C
2
2. Set the digital TV (D) face down on a soft sur-
face to avoid scratching the TV.
Remove the four indicated Screws (E) from the
TV Console Back (F). The Screws will be used
again in step 5. Remove the TV Console Back.
F
E
E
D

5
3
4
5
3. Hold the digital TV (D) near the Console (G).
Connect the wires from the TV to the cor-
responding connections on the back of the
Console.
4. Attach the digital TV (D) to the Console (G) with
four 5/16" x 1" Screws (H) and four 5/16" Star
Washers (I). Be careful not to pinch any wires.
5. Attach the TV Console Back (F) with the four
Screws (E) that you removed in step 2. Do not
overtighten the Screws.
D
D
G
G
H
II
F
E

6
CONNECT THE POWER CORD
Before using your fitness equipment with the digital TV,
make sure that the power cord is properly connected
as described in your fitness equipment user’s manual.
CONNECT A CATV CABLE
A CATV cable must be connected to your fitness equip-
ment for cable TV stations to be viewed. Locate the
cable jack on your fitness equipment, and connect a
CATV cable to the cable jack.
HOW TO CONNECT YOUR FITNESS EQUIPMENT
6. Make sure that all parts are properly tightened before you use the digital TV. If there is a sheet of plastic
on the digital TV, remove the plastic. Note: Extra hardware may be included.

7
HOW TO CONNECT AN ANTENNA
Place an indoor
VHF antenna or an
outdoor combination
VHF/UHF antenna
in the desired loca-
tion. Note: Outdoor
antennas are
subject to weather-
ing that can reduce
signal quality.
Inspect your out-
door antenna and
the lead-in wiring
before connecting
the antenna.
75 Ohm CATV Cable
1. Connect the 75 ohm
CATV cable from
the antenna to the
75 ohm terminal on
the fitness equip-
ment frame near the
power cord.
300 Ohm Flat Wire
1. Connect the 300
ohm flat wire from
the antenna to a
300 ohm to 75 ohm
adapter.
2. Push the 300 ohm
to 75 ohm adapter
onto the 75 ohm
terminal on the
fitness equipment
frame near the
power cord.
Note: Due to an FCC requirement, analog signals are
no longer broadcast over the air in the United States
as of June 12, 2009. If you wish to view television
signals through an antenna, you must have an antenna
capable of receiving digital signals. Cable television
has not been affected.
HOW TO CONNECT AN EXTERNAL SOURCE
USING A CATV CABLE
1. Connect one end of a 75 ohm CATV cable to the
75 ohm output jack on your external source.
2. Plug in the power cord of your external source.
See your external source user’s manual for proper
grounding instructions.
3. Connect the 75 ohm CATV cable to the 75 ohm
terminal on the fitness equipment frame near the
power cord. See the drawing at the left.
75 Ohm Terminal
75 Ohm CATV Cable
Outdoor
Combination
VHF/UHF
Antenna
Indoor
VHF
Antenna
Before operating the digital TV, you must connect an antenna or a 75 ohm CATV cable to the 75 ohm
terminal. Note: Use a CATV cable to connect to an external source such as a cable box, satellite TV box, VCR, or
analog cable. No CATV cable, antenna, or adapter is included.
75 Ohm
Terminal
300 to 75 Ohm Adapter
HOW TO CONNECT THE DIGITAL TV
300 to 75
Ohm Adapter
Screwdriver
300
Ohm Flat
Wire

8
EKFM74810
(FMTK74810)
HOW TO USE THE DIGITAL TV
CONSOLE AND TV DIAGRAM
FEATURES OF THE DIGITAL TV
The FREEVISION HD 17" Digital TV allows you to
watch your favorite TV shows or movies while you get
in shape. The TV operates through your fitness equip-
ment’s console. To learn about the features of the
console, see the user’s manual that came with your fit-
ness equipment. Note: The buttons at the top of the
console are for use with the TV or a remote TV.
To learn about how to operate the digital TV, see
page 9. To use the entertainment mode, see page
10. To use the remote control, see page 11. To
adjust the digital TV settings, see page 12.
If there is a sheet of plastic on the face of the digital
TV, remove the plastic.
Note: Before changing channels on the digital TV, you
must perform an Auto Scan (see step 5 of HOW TO
ADJUST THE DIGITAL TV SETTINGS on page 13).

9

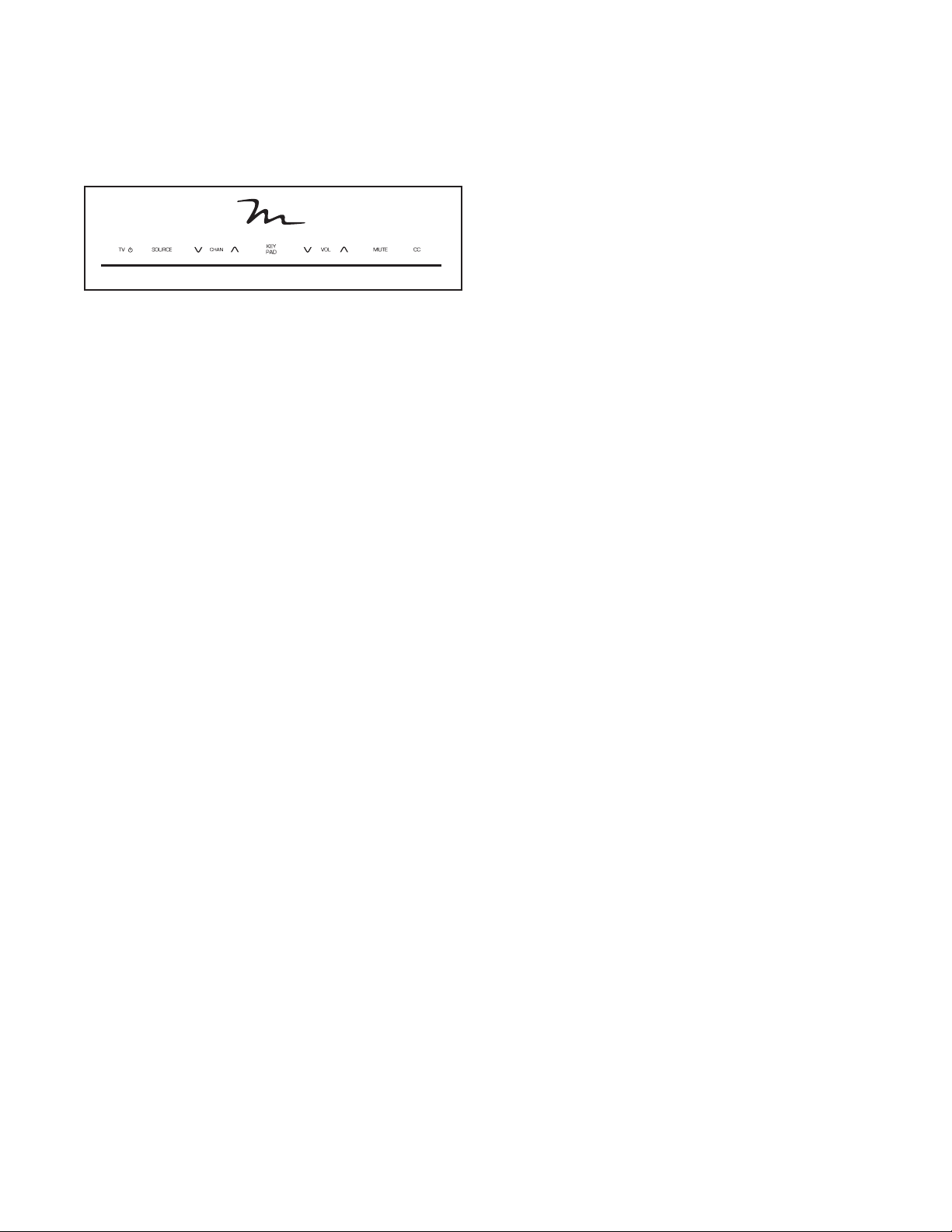

HOW TO OPERATE THE DIGITAL TV
The digital TV can be controlled using the control
buttons found on your fitness equipment’s console
or using the remote control (see HOW TO USE THE
REMOTE CONTROL on page 11).
1. Turn on the digital TV.
To turn on the digital TV, press the TV power but-
ton, which is the farthest left of the control buttons.
2. Select an audio input source.
To select an audio source, press the Source but-
ton. Then, choose an audio source from the list.
Select Wall of TV’s for input from a remote TV
connected to your fitness equipment, Personal TV
for digital TV input, iPod for an iPod connected to
your fitness equipment’s console, or FM Radio for a
radio tuner.
3. Select the desired channel.
Note: The digital TV can identify and store in mem-
ory all valid cable channels in your area (see step 5
of HOW TO ADJUST THE DIGITAL TV SETTINGS
on page 13). The Chan increase and decrease
buttons will select only channels that are stored in
memory. If a satellite TV box, VCR, or DVD player
is connected, the channel must be changed on the
satellite TV box, VCR, or DVD player.
To select the desired cable channel, press the
Chan increase and decrease buttons or the Key
Pad button. Note: If you press the Key Pad but-
ton, a ten-number button pad will appear on your
console’s touch screen. Touch the numbers for the
desired cable channel.
When the buttons are pressed, a graphic will
appear on-screen to show which channel is
selected.
4. Adjust the volume as desired.
Press the Vol increase and decrease buttons to
adjust the volume. When the buttons are pressed,
a graphic will appear on-screen to show which
volume setting is selected.
5. Mute the TV if desired.
Press the Mute button to turn off the digital TV’s
audio output. Press the button again or adjust the
volume to turn on the TV’s audio output.
6. Use closed captioning.
If the TV show or movie you are watching features
closed captioning, you can use this feature to dis-
play text to supplement the audio output. To view
closed captioning on the digital TV, press the CC
button repeatedly (see step 5 on page 12 to adjust
closed captioning settings).
7. When you are done using the digital TV, turn off
the TV.
To turn off the digital TV, press the TV power
button.

10
HOW TO USE THE ENTERTAINMENT MODE
Your fitness equipment’s console features an entertain-
ment mode that allows you to connect your console to
other TVs in a fitness club setting, personalize settings
for the digital TV, and access an on-screen remote
control.
1. Access the settings main menu on your fitness
equipment’s console.
Insert the key
into the con-
sole (see HOW
TO TURN ON
THE POWER
in the console
instructions of
your fitness
equipment’s user’s manual). Next, select the main

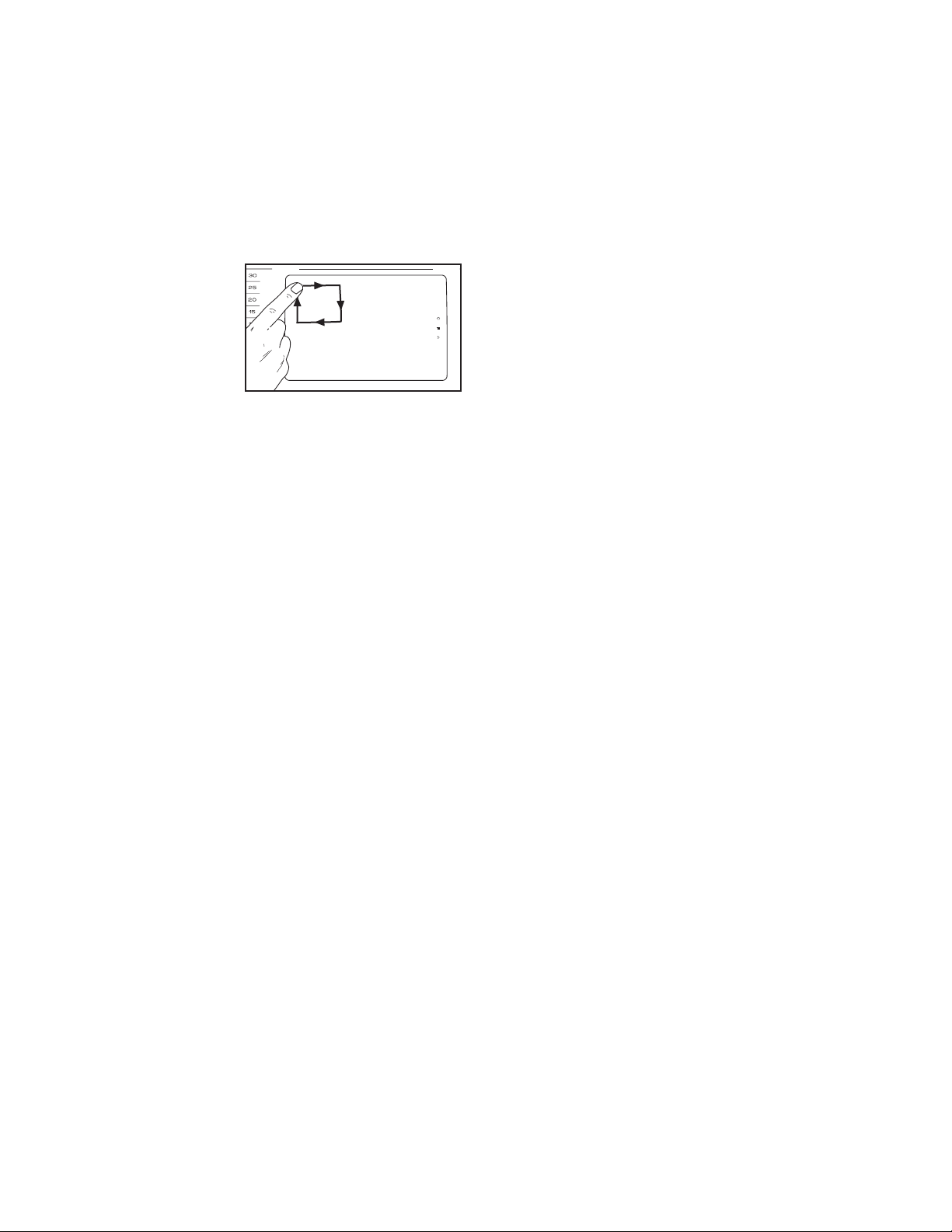

menu (see your user’s manual). Then, draw a
square clockwise on the screen to access the set-
tings main menu (see the drawing above).
2. Select the entertainment mode.
In the settings main menu, touch the Entertainment
button to select the entertainment mode.
3. Set up the wall of screens receiver.
Touch the Wall of Screens button to view options
for setting up the console to operate with a
remote TV.
Touch the Default Settings button to select a
default volume.
Touch the Custom Settings button to select cus-
tomized channels. Select your transmitter type
from the drop-down list. Then, select a channel.
Touch the Add button to create multiple transmitter
and/or channel settings.
Touch the Enable checkbox to turn the Wall of
Screens settings on or off.
4. Select settings for the digital TV.
From the entertainment mode main menu, touch
the Personal Settings button to customize settings
for your personal digital TV.
Touch the Default Settings button to enter the
default channel or the default volume.
Enter the default channel by touching the channel
number on the keypad. Enter the default volume
using the increase/decrease buttons.
Touch the Custom Settings button to select your TV
type (Freemotion TV) or to access the on-screen
remote control. Note: This on-screen control func-
tions similarly to the included remote control (see
page 11 to learn how to use the remote control).
5. Exit the entertainment mode.
To exit the entertainment mode, touch the back but-
ton on the screen.
TV CONNECTION SETTINGS
Note: The digital TV has been pre-configured to
be either NTSC-compatible or PAL-compatible.
Compatibility may vary from country to country.

11
HOW TO USE THE REMOTE CONTROL
It is highly recommended
that only fitness club staff
be permitted to use the
remote control, which will
make setup easier. All user
controls are located on the
top of your fitness equipment
console.
The first time you use the
remote control, insert batter-
ies (see HOW TO REPLACE
THE BATTERIES IN THE
REMOTE CONTROL at the
right).
Next, stand on your fit-
ness equipment and hold
the remote control near the
digital TV. Point the remote
control directly at the TV.
Press the Power button ( ). After a few moments, the
digital TV will turn on or turn off.
Press the volume (Vol) increase or decrease button to
adjust the volume.
Press the Mute button to turn on or turn off the TV’s
audio output.
Press the numbered channel buttons and the dash
button (-/--) or the Channel (CH) increase or decrease
button to select a channel.
Press the Recall button ( ) to view the previous
channel.
Press the Menu button to view the main menu or to exit
a menu. See pages 12 and 13 for information about
the menu.
Press the CH and Vol arrow keys to navigate in the
menu. Press the OK button to make a selection in the
menu.
Press the EQ button to change the sound mode. See
step 3 on page 12 to adjust audio settings.
Press the CC button repeatedly to turn on or turn off
closed captioning. See step 5 on page 12 to adjust
closed captioning settings.
Press the Mode button repeatedly to select the input
source. Make sure that the source is set to TV.
HOW TO REPLACE THE BATTERIES IN THE
REMOTE CONTROL
To replace the batteries,
first locate the battery
cover on the back of the
remote control. Push
down on the clip on the
battery cover and pull off
the battery cover.
Next, remove the old batteries from the remote control,
and insert two new AAA batteries; alkaline batteries
are recommended. Do not use old and new batteries
together or alkaline, standard, and rechargeable bat-
teries together. Make sure to insert the batteries as
shown in the drawing. Then, press the battery cover
onto the remote control.

12
HOW TO ADJUST THE DIGITAL TV SETTINGS
The digital TV has a menu that allows you to adjust
and personalize digital TV settings.
Press the Menu button on the remote control or
the on-screen control (see HOW TO USE THE
ENTERTAINMENT MODE on page 10) to enter, return
to, or exit the main menu. Use the CH and Vol arrow
buttons to navigate right and left or up and down in a
menu. Press the OK button to make a selection.
1. Press the Menu button to enter the main menu.
To select
one of the
icons in
the menu,
press the
Vol arrow
buttons
on your
remote
control until
the desired
icon is highlighted. Select the camera icon to adjust
the image settings. Select the headphones icon to
adjust the audio settings. Select the gear icon to
adjust digital TV settings. Select the globe icon to
adjust the channel settings. To return to the main
menu, press the Menu button.
2. Adjust the image settings.
The camera icon menu allows you to adjust the
Picture Mode, Contrast, Brightness, Color, Tint,
Sharpness, and Color Mode of the TV display. Use
the arrow buttons to navigate through the various
settings and personalize the image settings.
Also, you can adjust advanced image settings in
the Advanced Video submenu.
3. Adjust the audio settings.
The headphones icon menu allows you to adjust
the Sound Mode, Bass, Treble, Balance, Surround,
AVC, Digital Output, and Audio Language of the
TV audio output. Use the arrow buttons to navigate
through the various settings and personalize the
audio settings.
4. Adjust the digital TV settings.
The gear icon menu allows you to set the Parental
Controls, the Time settings, the Closed Caption
settings, the Menu Settings, and to restore the TV
to factory default settings.
a. The Parental Controls submenu allows you to
block or allow various settings on the digital TV.
Note: You can access this menu only if TV is
selected as the input source.
First, enter the Password, which is a 4-digit
PIN. Note: The default password is 0000. Once
the password has been entered, the Parental
Controls submenu can be accessed.
Select Change Password to change the Lock
menu password. Enter the new password twice
as indicated. You will now have to enter the new
password to enter the Lock menu. IMPORTANT:
Make sure to record the password. If you forget
the password, you will not be able to access
locked programs or menus. To reset the pass-
word and restore the TV to default settings, see
step e on page 13.
Select System Lock and turn it on to adjust
parental lock settings.
Select US or Canada to control which TV and
movie ratings are blocked or allowed. Note: The
lock icon will indicate whether a rating has been
blocked or allowed. You will need to enter the
password to watch blocked programs.
b. The Time submenu allows you to set a Sleep
Timer, adjust the Time Zone, and turn Daylight
Saving Time on or off. Adjust the Sleep Timer to
set how long the TV will wait before it automati-
cally shuts off. Adjust the Time Zone to match
your local time.
c. In the Menu Settings submenu, adjust the menu
Transparency level or select Menu Language to
change the language used in the menus.

13
d. To enter the closed caption submenu, highlight
Closed Caption and press the OK button. In
the closed caption submenu, turn the CC Mode
on or off, adjust the Basic Selection and/or
Advanced Selection, and enter the Option sub-
menu. In the Option submenu, you can adjust
the closed captioning text’s appearance.
e. To restore the TV to factory default settings,
highlight Restore Default and press the OK but-
ton. IMPORTANT: All of your favorite channels,
labels, and personal adjustments will be erased.
5. Adjust the channel settings.
The globe icon menu allows you to select between
antenna or cable input, save channels in the digital
TV memory, and select settings for channels.
Note: You can access this menu only if TV is
selected as the input source.
First, select either Air for antenna input or Cable for
cable input.
Next, select Auto Scan and press the OK button
to start the auto scan. The digital TV will begin
scanning all of the channels available in your area.
When no signal is detected on a channel, the chan-
nel will be skipped. When a signal is detected, the
channel will be saved into memory and the next
channel will be selected. This process will continue
until the highest channel number is reached. The
TV will renumber the channels in the order in which
it locates them. Do not turn off the power while
the TV is scanning channels. Note: If a TV chan-
nel disappears, scan for channels again.
Next, select Favorite to view a list of channels
saved in the TV memory. Highlight a channel in the
list and press OK to add the channel to your favor-
ite channels list.
Select Show/Hide to view a list of channels saved
in the TV memory. Highlight a channel and press
OK to have the TV no longer show that channel.
Select Channel No. to scroll through a list of chan-
nels saved in the TV memory.
Select Channel Label and press the right Vol arrow
button to edit the currently selected channel’s
name. Edit each letter in the name using the CH
and Vol arrow buttons.
6. Exit the menu.
When you have finished adjusting the settings,
press the Menu button.

14
MAINTENANCE AND TROUBLESHOOTING
Most digital TV problems can be solved by follow-
ing the simple steps below. Find the symptom that
applies, and follow the steps listed. If further assis-
tance is needed, see the back cover of this manual.
SYMPTOM: The digital TV is not receiving a signal
a. Make sure that the correct input source is selected.
See page 11 to select an input source.
b. Make sure that the antenna cable or CATV cable is
connected securely to your fitness equipment. See
page 7 to connect a CATV cable to your fitness
equipment.
c. Scan for broadcast or cable signals. See step 5 on
page 13 to scan for signals.
d. Due to an FCC requirement, analog signals are no
longer broadcast over the air in the United States
as of June 12, 2009. If you wish to view television
signals through an antenna, you must have an
antenna capable of receiving digital signals. Cable
television has not been affected.
SYMPTOM: The volume cannot be turned up
a. Note: The digital TV and your fitness equipment
console do not have speakers. You must use
headphones to hear audio output from the TV or
console.
b. If there is no sound coming from the digital TV
through your headphones, make sure that the TV
audio output is not muted.
SYMPTOM: Digital TV reception is poor
a. Make sure that the digital TV settings are set cor-
rectly. See HOW TO ADJUST THE DIGITAL TV
SETTINGS on page 12.
b. For the digital TV to operate properly, good recep-
tion is necessary. If you are using an antenna,
make sure that it is properly connected and
adjusted for optimal reception. See HOW TO
CONNECT AN ANTENNA on page 7.
c. Check for the problems listed below and follow the
applicable instructions:
 • Ignition(blackspotsorhorizontalstreaksthat
appearorapicturethatuttersordrifts)—
Usually this is caused by interference from
automobile ignition systems, neon lamps, electric
drifts, or other electric appliances. Try changing
thepositionofyourtnessequipmentorother
electric appliances to correct the problem.
 • Ghosts—GhostsarecausedbytheTVsignalfol-
lowingtwopaths—oneisthedirectpathandthe
otherisreectedfromtallbuildings,hills,orother
objects. Change the direction or position of the
antenna to improve reception.
 • BlueScreen—Ifyourtnessequipmentis
located in the fringe area of a TV station where
the signal is weak, the picture may be of poor
quality or a blue screen may appear. If the signal
is weak, it may be necessary to install an exter-
nal antenna to improve the picture.
 • Fading—Ifblocksofthepicturearemissing,the
picture moves around the screen, or the picture
disappears, the signal may be weak. Change the
direction or position of the antenna to improve
reception. Make sure the digital TV settings are
set correctly (see HOW TO ADJUST DIGITAL TV
SETTINGS on page 12). Do not use a splitter.
Note: If one of these problems appears when the
cable from a CATV company is connected, the
problem may be caused by the cable company
broadcast.
SYMPTOM: The digital TV needs to be cleaned
a. UNPLUG THE POWER CORD. To clean the digital
TV, wipe the TV and screen using a soft cloth with
a small amount of soft detergent. Do not use a
polishing cloth, solvent, or any type of propellant or
chemical detergent such as alcohol or benzene.

15
NOTES

Part No. 312685 R0212A Printed in USA © 2012 ICON IP, Inc.
If you have questions after reading this manual, or if you require assistance, please contact Customer Care at one
of the phone numbers or addresses listed below. Please note the model number, serial number, and name of
the product (see the front cover of this manual) before contacting Customer Care.
In the United States and Canada
Call: 1-800-201-2109, Mon.–Fri. 8 a.m.–5 p.m. MT
Write:
FreeMotion Fitness
1500 South 1000 West
Logan, UT 84321-9813
United States
Outside the United States and Canada
Call: 001-435-786-3521
Email: [email protected]
HOW TO CONTACT CUSTOMER CARE
