freightliner C SB FS65 User manual

SCHOOL BUS CHASSIS MAINTENANCE MANUAL
Models: Type C SB
FS65
STI-348 (5/06P) Published by
Freightliner LLC
4747 N. Channel Ave.
Portland, OR 97217
Printed in U.S.A.

Foreword
Scheduled maintenance provides a key element for safe operation of your vehicle. A proper
maintenance program also helps to minimize downtime and to safeguard warranties. This
maintenance manual provides information necessary for years of safe, reliable, and cost-efficient
vehicle operation.
Perform daily pretrip inspection and maintenance as outlined in the vehicle operator’s manual.
Perform the operations in this maintenance manual at scheduled intervals based upon distance
traveled or months of operation. Your authorized servicing dealer has the qualified technicians
and equipment to perform this maintenance for you. Your dealership can also set up a scheduled
maintenance program tailored specifically to your needs. Optionally, your dealership can assist
you in learning how to perform the maintenance procedures in this manual.
IMPORTANT: Descriptions and specifications in this manual were in effect at the time of
printing. Freightliner Custom Chassis Corporation (FCCC) reserves the right to discon-
tinue models at any time, or change specifications and design without notice and
without incurring obligation.
For additional information, please contact Freightliner LLC, Service Systems and Documenta-
tion, P.O. Box 3849, Portland, OR 97208-3849, U.S.A. or refer to http://www.Freightliner.com and
http://www.FreightlinerChassis.com.
Environmental Concerns and Recommendations
Whenever you see instructions in this manual to discard materials, you should attempt to reclaim
and recycle them. To preserve our environment, follow appropriate environmental rules and
regulations when disposing of materials.
NOTICE: Parts Replacement Considerations
Do not replace suspension, axle, or steering parts (such as springs, wheels, hubs, and steering
gears) with used parts. Used parts may have been subjected to collisions or improper use and
have undetected structural damage.
© 1996-2006 Freightliner LLC
All rights reserved. No part of this publication, in whole or in part, may be translated, reproduced,
stored in a retrieval system, or transmitted in any form by any means, electronic, mechanical,
photocopying, recording, or otherwise, without the prior written permission of Freightliner LLC.
Freightliner LLC
Service Systems and Documentation (POC-SSD)
P.O. Box 3849
Portland, OR 97208–3849

Freightliner LLC distributes the following major service publications.
Workshop Manual Workshop manuals contain service and repair information for all vehicle sys-
tems and components, except for major components such as engines, transmis-
sions, and rear axles. Each workshop manual section is divided into subjects
that can include general information, principles of operation, removal, disassem-
bly, assembly, installation, specifications, and troubleshooting.
Maintenance Manual Maintenance manuals contain routine maintenance procedures and intervals for
vehicle components and systems. They have information such as lubrication
procedures and tables, fluid replacement procedures, fluid capacities, specifica-
tions, procedures for adjustments and for checking the tightness of fasteners.
Maintenance manuals do not contain detailed repair or service information.
Operator’s Manual Operator’s manuals contain information needed to enhance the driver’s under-
standing of how to operate and care for the vehicle and its components. Each
manual contains a chapter that covers pretrip inspection and daily maintenance
of vehicle components. Operator’s manuals do not contain detailed repair or
service information.
Parts Technical Manual Freightliner LLC publishes this manuals to aid in the identification of serviceable
replacement vehicle parts. This manual is used in conjunction with the parts
book and the service parts catalog microfiche.
Service Bulletins Service Bulletins provide the latest service tips, field repairs, product improve-
ments, and related information. Some service bulletins are updates to informa-
tion in the workshop manual. These bulletins take precedence over workshop
manual information, until the latter is updated; at that time, the bulletin is usually
canceled. The service bulletins manual is available only to dealers. When doing
service work on a vehicle system or part, check for a valid service bulletin for
the latest information on the subject.
IMPORTANT: Before using a particular service bulletin, check the current
service bulletin validity list to be sure the bulletin is valid.
Recall Bulletins These bulletins pertain to special situations that involve service work or replace-
ment of parts in connection with a recall notice. Recall bulletins pertain to mat-
ters of vehicle safety. All bulletins are distributed to dealers; customers receive
notices that apply to their vehicles.
Field Service
Modifications This publication is concerned with non-safety-related service work or replace- ment of parts. All field service modifications are distributed to dealers; custom-
ers receive notices that apply to their vehicles.
Introduction
Descriptions of Service Publications
School Bus Chassis Maintenance Manual, November 2002 I–1

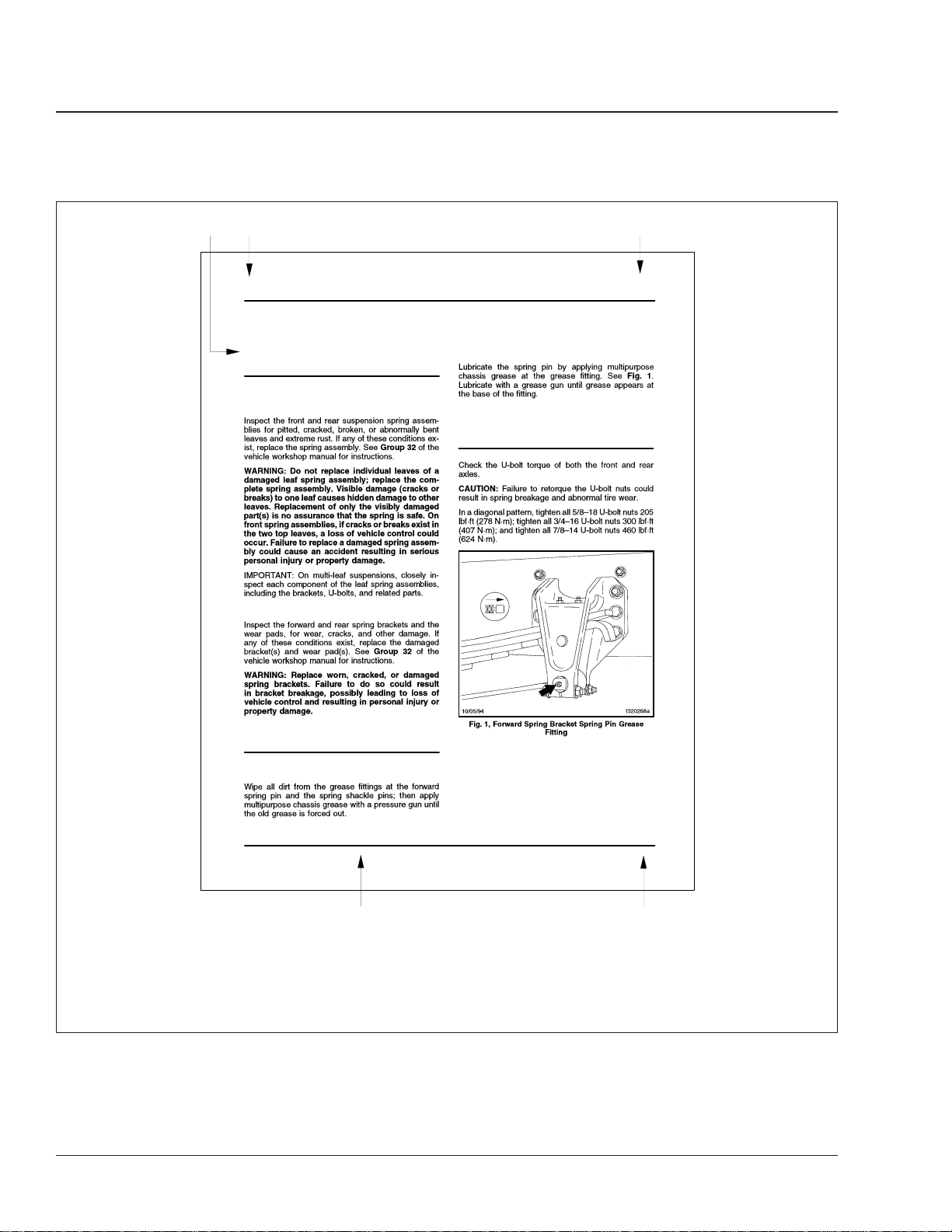

For a page example of the printed manual, see Fig. 1.
f020053
ABC
DE
09/16/96
32
Suspension
Suspension Inspecting,
Freightliner Spring
32−01
U−Bolt Torque Checking,
Freightliner Spring
32−01
Suspension
Suspension Lubricating,
Freightliner Spring
32−02
FRONT AND REAR SUSPENSION SPRING
ASSEMBLIES
FRONT SUSPENSION
REAR SUSPENSION
School Bus Chassis Maintenance Manual, October 1996 32/1
REAR SUSPENSION SPRING BRACKETS
A. Maintenance Operation Number consists of the Group Number followed by the Sequence Number
B. Group Title
C. Group Number
D. Release Date
E. Group Number/Page Number
Fig. 1, Page Example of the Printed Manual
Introduction Page Description
I–2 School Bus Chassis Maintenance Manual, November 2002

Group No. Group Title
00...................... General Information
01................................ Engine
09.............................. AirIntake
15................... Alternators and Starters
20................... Engine Cooling/Radiator
25................................ Clutch
26........................... Transmission
31............. Frame and Frame Components
32............................ Suspension
33............................. Front Axle
35 ............................. Rear Axle
40........................ Wheels and Tires
41.............................. Driveline
42................................ Brakes
46............................... Steering
47 ................................. Fuel
49............................... Exhaust
54.......... Electrical, Instruments, and Controls
Introduction
Maintenance Manual Contents
School Bus Chassis Maintenance Manual, November 2002 I–3

Title of Maintenance Operation (MOP) MOP Number
Determining Scheduled Maintenance Intervals.............................................00–01
Initial Maintenance (IM) Operations.....................................................00–06
Lubrication and Fluid Level Check ..................................................... 00–04
M1 Maintenance Interval Operations....................................................00–07
M2 Maintenance Interval Operations....................................................00–08
M3 Maintenance Interval Operations....................................................00–09
Maintenance Interval Table...........................................................00–03
Maintenance Operation Sets..........................................................00–05
Metric/U.S. Customary Conversion Table.................................................00–12
Noise Emission Controls Maintenance...................................................00–10
Torque Specifications Tables..........................................................00–13
Vehicle Maintenance Schedule Table ................................................... 00–02
Verification of Inspections Log.........................................................00–11
General Information 00
Index, Alphabetical
School Bus Chassis Maintenance Manual, October 2005

Description
Category I (urban transport) applies to vehicles that
annually travel
up to 20,000 miles (32 000 kilome-
ters).
Category II (rural transport) applies to vehicles that
annually travel
over 20,000 miles (32 000 kilome-
ters).
The table under
Vehicle Maintenance Schedule Table
shows the two categories of vehicle usage. For each
category, the appropriate distance and time intervals
are given for performing Initial Maintenance and for
repeating each maintenance operation set (M1
through M3).
The table under
Maintenance Interval Table shows
which maintenance operation set must be performed
at the actual distances (miles and kilometers) or ac-
tual months of operation for each maintenance cat-
egory. The schedule of actual distances (and
months) is based on the intervals given in the Ve-
hicle Maintenance Schedule Table.
The table under
Maintenance Operation Sets lists, in
numerical order, the text reference numbers and de-
scriptions of
all maintenance operations, and indi-
cates all maintenance operation sets at which each
operation must be performed.
Each
Maintenance Interval Operations table (IM
through M3) lists the appropriate text reference num-
bers and descriptions of only those maintenance op-
erations that must be performed at that maintenance
operation set. Each maintenance operation set is
listed in a separate Maintenance Interval Operations
table.
Use
Before placing your new vehicle in service, determine
the maintenance category (Category I or II) that ap-
plies to your intended use of the vehicle. See the
Vehicle Maintenance Schedule Table to determine
the distance (or time) interval at which each mainte-
nance operation set must be performed for your cat-
egory of vehicle.
When the vehicle reaches the actual distance (or
months) given for an interval, see the Maintenance
Interval Table to find the maintenance operation set
that applies to that interval. Then perform the mainte-
nance operations listed in the applicable Mainte-
nance Interval Operations table. Use the mainte-
nance operation reference numbers to find
instructions in the manual for completion of each op-
eration.
Complete each maintenance operation set at the re-
quired interval. Then, when you have completed
maintenance operation set M3 under the 12th Main-
tenance Number listed in the Maintenance Interval
Table, repeat the pattern. The 13th Maintenance
Number will begin at maintenance operation set M1,
under the 1st Maintenance Number listed in the
Maintenance Interval Table.
NOTE: When performing operations for the 13th
Maintenance Number, complete the M1 opera-
tions only, not the Initial Maintenance opera-
tions.
To determine the distance/months for the 13th Main-
tenance Number, add your category’s
distance/months for the 1st Maintenance Number to
the distance/months for the 12th Maintenance Num-
ber, then perform the operations listed in the appli-
cable table in the Maintenance Interval Operations
tables. For the 14th Maintenance Number, add the
distance/months for the 2nd to the distance/months
for the 12th; continue this pattern for each succes-
sive Maintenance Number.
General Information 00
Determining Scheduled Maintenance Intervals: 00–01
School Bus Chassis Maintenance Manual, October 2005 00/1

Vehicle Maintenance Schedule Table
Description Maintenance Operation Set Maintenance Intervals
Frequency Miles km Months
CATEGORY I
(Urban Transport)
vehicles that annually travel up to
20,000 miles (32 000 km)
Initial Maintenance (IM) first 2500 4000 3
Maintenance 1 (M1) every 2500 4000 3
Maintenance 2 (M2) every 10,000 16 000 12
Maintenance 3 (M3) every 30,000 48 000 36
CATEGORY II
(Rural Transport)
vehicles that annually travel over 20,000
miles (32 000 km)
Initial Maintenance (IM) first 5000 8000 3
Maintenance 1 (M1) every 5000 8000 3
Maintenance 2 (M2) every 20,000 32 000 12
Maintenance 3 (M3) every 60,000 96 500 36
General Information00
Vehicle Maintenance Schedule Table: 00–02
School Bus Chassis Maintenance Manual, October 200500/2

Maintenance Interval Table
Maint. No. Maint. Oper.
Set Category I Category II
miles x 100 km x 100 months miles x 100 km x 100 months
1st IM + M1 25 40 3 50 80 3
2nd M1 50 80 6 100 160 6
3rd M1 75 120 9 150 240 9
4th M2 100 160 12 200 320 12
5th M1 125 200 15 250 400 15
6th M1 150 240 18 300 480 18
7th M1 175 280 21 350 560 21
8th M2 200 320 24 400 640 24
9th M1 225 360 27 450 720 27
10th M1 250 400 30 500 800 30
11th M1 275 440 33 550 885 33
12th M3 300 480 36 600 965 36
General Information 00
Maintenance Interval Table: 00–03
School Bus Chassis Maintenance Manual, October 2005 00/3

Lubrication and Fluid Level Check
Maintenance
Operation
Reference
Number
Maintenance Operation Description
25–01 Clutch Release Bearing Lubricating
25–02 Clutch Release Cross-Shaft Lubricating
26–01 Eaton/Fuller Transmission Oil Level Checking
26–05 Allison Transmission Fluid Level Checking
32–02 Suspension Lubricating, Freightliner Spring
33–01 Knuckle Pin Lubricating
33–02 Tie-Rod End Lubricating
33–05 Oil-Filled Hubs Oil Level Checking
35–01 Axle Lubricant Level Checking
41–01 Driveline Inspecting and Lubricating
42–04 Air Reservoir Automatic Drain Valve Disassembling, Cleaning, and
Inspecting, Bendix DV–2
42–05 Automatic Slack Adjuster Lubricating and Checking, Meritor
42–09 Camshaft Bracket Bushing Lubricating
42–14 Brake Caliper Slide Pin Lubricating, Bosch Brakes
42–15 Brake Caliper Slide Rail Lubricating, Bosch Brakes
46–01 Steering Driveline Lubricating
46–02 Drag Link Lubricating
46–03 Power Steering Reservoir Fluid Level Checking
46–05 Steering Gear Lubricating
54–01 Ground Cables Checking and Cleaning
Table 1, Lubrication and Fluid Level Check
General Information00
Lubrication and Fluid Level Check: 00–04
School Bus Chassis Maintenance Manual, October 200500/4

NOTE: Maintenance operations appearing in italics in
this table are for noise emission control components.
Numbers in this table are maintenance operation ref-
erence numbers matching those in the text of this
manual.
REQUIRED MAINTENANCE OPERATION SET IM M1 M2 M3
Maintenance Operation Reference Number and Maintenance Operation
00–04 Lubrication and Fluid Level Check • • • •
01–01
Engine-Support Fasteners Checking •
01–02 Engine Drive Belt Inspecting ••
01–03 Pacbrake Inspecting and Maintenance*
09–01 Air Cleaner Element Inspecting • • • •
09–02 Air Cleaner Element Replacing ••
15–01 Alternator, Battery, and Starter Checking • •
20–01 Radiator Cap Checking ••
20–02 Radiator Pressure Flushing and Coolant Changing •
20–03
Eaton Viscous Fan Drive Checking ••
25–01 Clutch Release Bearing Lubricating • • • •
25–02 Clutch Release Cross-Shaft Lubricating • • • •
26–01 Eaton/Fuller Transmission Oil Level Checking • •
26–02 Eaton/Fuller Transmission Oil Changing and Magnetic Plug Cleaning • •
26–03 Transmission Breather Checking ••
26–04 Allison Transmission Fluid and Filter Changing†•
26–05 Allison Transmission Fluid Level Checking • • •
31–01 Frame Fastener Torque Checking • •
32–01 Suspension Inspecting, Freightliner Spring • • • •
32–02 Suspension Lubricating, Freightliner Spring • • • •
32–03 U-Bolt Torque Checking, Freightliner Spring • •
32–04 Spring Bracket Fastener Torque Checking, Freightliner Spring (Rear) • •
32–05 Fastener Torque Checking, Freightliner AirLiner • •
32–06 Component Clearance Checking, Freightliner AirLiner • •
32–07 Component Inspecting and Operation Checking, Freightliner AirLiner •
32–08 U-Bolt Torque Checking, Freightliner AirLiner • •
32–09 Shock Absorber Checking, Freightliner Spring •
32–10 Radius Rod Bushing Checking, Hendrickson •
32–11 Control Rod Checking, Freightliner AirLiner • • • •
32–12 Fastener Torque Checking, Hendrickson •
33–01 Knuckle Pin Lubricating ••••
33–02 Tie-Rod End Lubricating ••••
33–03 Tie-Rod End Inspecting ••••
General Information 00
Maintenance Operation Sets: 00–05
School Bus Chassis Maintenance Manual, October 2005 00/5

REQUIRED MAINTENANCE OPERATION SET IM M1 M2 M3
Maintenance Operation Reference Number and Maintenance Operation
33–04 All-Axle Alignment Checking •
33–05 Oil-Filled Hubs Oil Level Checking • • •
33–06 Oil-Filled Hubs Oil Changing •
33–07 Wheel Bearing Removing, Cleaning, Checking, Repacking, and Adjusting •
35–01 Axle Lubricant Oil Level Checking • •
35–02 Axle Lubricant Changing and Magnetic Plug Cleaning • •
35–03 Axle Breather Checking ••••
40–01 Wheel Nut and Rim Nut Checking •
41–01 Driveline Inspecting and Lubricating • • • •
42–01 Air Dryer Checking, Bendix AD–9‡••
42–02 Air Dryer Desiccant Replacing, Bendix AD–9 •
42–03 Air Dryer Inspecting, Bendix AD–9‡•••
42–04 Air Reservoir Automatic Drain Valve Disassembling, Cleaning, and Inspecting, Bendix DV–2 • •
42–05 Automatic Slack Adjuster Lubricating and Checking, Meritor • • • •
42–06 Bendix Hydro-Max Power Booster Checking • • • •
42–07 Brake Lines Checking, Hydraulic Disc Brakes • • • •
42–08 Brake Lining Wear Checking, Hydraulic Disc Brakes • • • •
42–09 Camshaft Bracket Bushing Lubricating • •
42–10 Foot Brake Valve Actuator Lubricating, Bendix E–6 • • •
42–11 Relay Valve Checking, Midland • • • •
42–12 Front Air Brake Hose Inspecting • • • •
42–13 ABS Tone Rings Cleaning§••••
42–14 Brake Caliper Slide Pin Lubricating, Bosch Brakes¶
42–15 Brake Caliper Slide Rail Lubricating, Bosch Brakes**
46–01 Steering Driveline Lubricating • • • •
46–02 Drag Link Lubricating ••••
46–03 Power Steering Reservoir Fluid Level Checking • • •
46–04 Power Steering Reservoir Fluid and Filter Changing •
46–05 Steering Gear Lubricating ••••
47–01 Inline Fuel Strainer Replacing, Cummins ISB02 and MBE900 Engines • •
49–01
Exhaust System Inspecting ••
54–01 Ground Cables Checking and Cleaning • •
General Information00
Maintenance Operation Sets: 00–05
School Bus Chassis Maintenance Manual, October 200500/6

REQUIRED MAINTENANCE OPERATION SET IM M1 M2 M3
Maintenance Operation Reference Number and Maintenance Operation
54–02 Electrical Wiring Checking ••
*With frequent use, the Pacbrake Exhaust Brake will operate free of maintenance. However, if the vehicle is used inconsistently, seasonally, or is exposed to
excess moisture, it will be necessary to perform preventative maintenance as instructed in Maintenance Operation 01–03.
†For series 2000/2400 transmissions with non-TranSynd ATF, change oil and filters at 50,000 miles (80 000 km) or 24 months, whichever comes first.
‡Perform annually during the fall.
§This operation applies specifically to vehicles used during winter months in areas where corrosive materials are used on the highways.
¶See the "Bosch Pin Slide Disc Brakes Service Manual" for more information.
** Lubricate every 6 months OR every 18,000 miles (28 800 km), whichever comes first.
General Information 00
Maintenance Operation Sets: 00–05
School Bus Chassis Maintenance Manual, October 2005 00/7

This Initial Maintenance (IM) Operations table lists all
maintenance operations that are to be performed at
initial maintenance (IM). Numbers in this table are
maintenance operation reference numbers matching
those in the text of this manual, that can be used to
find detailed instructions for the operations to be per-
formed. All operations listed in the table, along with
the operations listed in the M1 Maintenance Interval
Operations table, must be performed to complete the
initial maintenance (IM).
Initial Maintenance (IM) Operations
Maint.
Oper. No. Initial Maintenance (IM) Operations
00–07 Perform all M1 Operations
26–02 Eaton/Fuller Transmission Oil Changing and Magnetic Plug Cleaning
31–01 Frame Fastener Torque Checking
32–03 U-Bolt Torque Checking, Freightliner Spring
32–04 Spring Bracket Fastener Torque Checking, Freightliner Spring (Rear)
32–05 Fastener Torque Checking, Freightliner AirLiner
32–06 Component Clearance Checking, Freightliner AirLiner
32–08 U-Bolt Torque Checking, Freightliner AirLiner
33–04 All-Axle Alignment Checking
35–02 Axle Lubricant Changing and Magnetic Plug Cleaning
42–03 Air Dryer Inspecting, Bendix AD–9
42–10 Foot Brake Valve Actuator Lubricating, Bendix E–6
General Information00
Initial Maintenance (IM) Operations: 00–06
School Bus Chassis Maintenance Manual, October 200500/8

This M1 Maintenance Interval Operations table lists
all maintenance operations that are to be performed
at the M1 maintenance interval. Numbers in this
table are maintenance operation reference numbers
matching those in the text of this manual, that can be
used to find detailed instructions for the operations to
be performed.
M1 Maintenance Interval Operations
Maint.
Oper. No. M1 Maintenance Interval Operations
00–04 Lubrication and Fluid Level Check (includes the following):
•Clutch Release Bearing Lubricating
•Clutch Release Cross-Shaft Lubricating
•Eaton/Fuller Transmission Oil Level Checking
•Allison Transmission Fluid Level Checking
•Suspension Lubricating, Freightliner Spring
•Knuckle Pin Lubricating
•Tie-Rod End Lubricating
•Axle Lubricant Level Checking
•Driveline Inspecting and Lubricating
•Automatic Slack Adjuster Lubricating and Checking, Meritor
•Steering Driveline Lubricating
•Drag Link Lubricating
•Power Steering Reservoir Fluid Level Checking
•Steering Gear Lubricating
•Oil-Filled Hubs Oil Level Checking
09–01 Air Cleaner Element Inspecting
32–01 Suspension Inspecting, Freightliner Spring
32–11 Control Rod Checking, Freightliner AirLiner
33–03 Tie-Rod End Inspecting
35–03 Axle Breather Checking
42–06 Bendix Hydro-Max Power Booster Checking
42–07 Brake Lines Checking, Hydraulic Disc Brakes
42–08 Brake Lining Wear Checking, Hydraulic Disc Brakes
42–11 Relay Valve Checking, Midland
42–12 Front Air Brake Hose Inspecting
42–13 ABS Tone Rings Cleaning
General Information 00
M1 Maintenance Interval Operations: 00–07
School Bus Chassis Maintenance Manual, October 2005 00/9

This M2 Maintenance Interval Operations table lists
all maintenance operations that are to be performed
at the M2 maintenance interval. Numbers in this
table are maintenance operation reference numbers
matching those in the text of this manual, that can be
used to find detailed instructions for the operations to
be performed. Perform all M1 maintenance interval
operations at the M2 maintenance interval.
M2 Maintenance Interval Operations
Maint.
Oper. No. M2 Maintenance Interval Operations
00–07 Perform all M1 Operations
01–02 Engine Drive Belt Inspecting
09–02 Air Cleaner Element Replacing
15–01 Alternator, Battery, and Starter Checking
20–01 Radiator Cap Checking
20–03
Eaton Viscous Fan Drive Checking
26–03 Transmission Breather Checking
42–01 Air Dryer Checking, Bendix AD–9*
42–03 Air Dryer Inspecting, Bendix AD–9*
42–04 Air Reservoir Automatic Drain Valve Disassembling, Cleaning, and
Inspecting, Bendix DV–2
42–09 Camshaft Bracket Bushing Lubricating
42–10 Foot Brake Valve Actuator Lubricating, Bendix E–6
47–01 Inline Fuel Strainer Replacing, Cummins ISB02 and MBE900 Engines
49–01
Exhaust System Inspecting
54–01 Ground Cables Checking and Cleaning
54–02 Electrical Wiring Checking
*Perform annually during the fall.
General Information00
M2 Maintenance Interval Operations: 00–08
School Bus Chassis Maintenance Manual, October 200500/10

This M3 Maintenance Interval Operations table lists
all maintenance operations that are to be performed
at the M3 maintenance interval. Numbers in this
table are maintenance operation reference numbers
matching those in the text of this manual, that can be
used to find detailed instructions for the operations to
be performed. Perform all M1 maintenance interval
operations and M2 maintenance interval operations
at the M3 maintenance interval.
M3 Maintenance Interval Operations
Maint.
Oper. No. M3 Maintenance Interval Operations
00–07 Perform all M1 Operations
00–08 Perform all M2 Operations
01–01
Engine-Support Fasteners Checking
20–02 Radiator Pressure Flushing and Coolant Changing
26–02 Eaton/Fuller Transmission Oil Changing and Magnetic Plug Cleaning
26–04 Allison Transmission Fluid and Filter Changing
31–01 Frame Fastener Torque Checking
32–03 U-Bolt Torque Checking, Freightliner Spring
32–04 Spring Bracket Fastener Torque Checking, Freightliner Spring (Rear)
32–05 Fastener Torque Checking, Freightliner AirLiner
32–06 Component Clearance Checking, Freightliner AirLiner
32–07 Component Inspecting and Operation Checking, Freightliner AirLiner
32–08 U-Bolt Torque Checking, Freightliner AirLiner
32–09 Shock Absorber Checking, Freightliner Spring
32–10 Radius Rod Bushing Checking, Hendrickson
32–12 Fastener Torque Checking, Hendrickson
33–06 Oil-Filled Hubs Oil Changing
33–07 Wheel Bearings Removing, Cleaning, Checking, Repacking, and Adjusting
35–02 Axle Lubricant Changing and Magnetic Plug Cleaning
40–01 Wheel Nut and Rim Nut Checking
42–02 Air Dryer Desiccant Replacing, Bendix AD–9
46–04 Power Steering Reservoir Fluid and Filter Changing
General Information 00
M3 Maintenance Interval Operations: 00–09
School Bus Chassis Maintenance Manual, October 2005 00/11

General Information
Federal Law, Part 205: Transportation
Equipment Noise Emission Controls
Part 205, Transportation Equipment Noise Emission
Controls, requires the vehicle manufacturer to fur-
nish, with each new vehicle, such written instructions
for the proper maintenance, use, and repair of the
vehicle by the ultimate purchaser to provide reason-
able assurance of the elimination or minimization of
noise emission degradation throughout the life of the
vehicle. In compliance with the law, the noise emis-
sion controls maintenance information located in
each applicable group of this manual, in conjunction
with the vehicle workshop manual, provides these
instructions to owners.
Normal Vehicle Use
The maintenance instructions contained in this
manual are based on average vehicle use and nor-
mal operating conditions. Unusual vehicle operating
conditions may require service at more frequent in-
tervals.
Recommendations for Replacement
Parts
Replacement parts used for maintenance or repair of
noise emission controls should be genuine Freight-
liner Custom Chassis Corporation (FCCC) parts. If
other than genuine FCCC parts are used for replace-
ment or repair of components affecting noise emis-
sion control, the owner should be sure that such
parts are warranted by their manufacturer to be
equivalent to genuine FCCC parts in performance
and durability.
Freightliner Noise Emissions Warranty
See the vehicle owner’s warranty information book
for warranty information concerning noise emission
controls.
Tampering With the Noise Controls is
Prohibited
Federal law prohibits the following acts or the caus-
ing thereof: (1) the removal or rendering inoperative
by any person other than for purposes of mainte-
nance, repair, or replacement, of any device or ele-
ment of design incorporated into any new vehicle for
the purpose of noise control prior to its sale or deliv-
ery to the ultimate purchaser or while it is in use, or
(2) the use of the vehicle after such device or ele-
ment of design has been removed or rendered inop-
erative by any person. Among those acts presumed
to constitute tampering are the acts listed below:
A. Removal of engine noise-deadening panels.
B. Removal of, or rendering inoperative, the engine
speed governor so as to allow engine speed to
exceed manufacturer’s specifications.
C. Removal of, or rendering inoperative, the fan
clutch, including by-passing the control on any
thermostatic fan drive to cause it to operate con-
tinuously.
D. Removal of the fan shroud.
E. Removal of, or rendering inoperative, exhaust
system components, including exhaust pipe
clamping.
F. Removal of air intake components.
G. Removal of hood liners (noise-deadening pan-
els).
Maintenance Instructions
Scheduled intervals are in the maintenance table in
this Group. A "Verification of Inspections Log" follows,
and should be filled in each time the noise emission
controls on the vehicle are maintained or repaired.
General Information00
Noise Emission Controls Maintenance: 00–10
School Bus Chassis Maintenance Manual, October 200500/12

Verification of Inspections Log
Verification of Inspections Log
Date Mileage Repair Description Cost Repair Facility
Group 01 — Engine Support Fasteners
Group 20 — Engine Cooling Fan Drive
Group 49 — Exhaust System
General Information 00
Verification of Inspections Log: 00–11
School Bus Chassis Maintenance Manual, October 2005 00/13

When You Know U.S.
Customary Multiply By To Get Metric When You
Know Metric Multiply By To Get U.S. Customary
Length
inches (in) 25.4 millimeters (mm) 0.03937 inches (in)
inches (in) 2.54 centimeters (cm) 0.3937 inches (in)
feet (ft) 0.3048 meters (m) 3.281 feet (ft)
yards (yd) 0.9144 meters (m) 1.094 yards (yd)
miles (mi) 1.609 kilometers (km) 0.6215 miles (mi)
Area
square inches (in2) 645.16 square millimeters (mm2) 0.00155 square inches (in2)
square inches (in2) 6.452 square centimeters (cm2) 0.155 square inches (in2)
square feet (ft2) 0.0929 square meters (m2) 10.764 square feet (ft2)
Volume
cubic inches (in3) 16387.0 cubic millimeter (mm3) 0.000061 cubic inches (in3)
cubic inches (in3) 16.387 cubic centimeters (cm3) 0.06102 cubic inches (in3)
cubic inches (in3) 0.01639 liters (L) 61.024 cubic inches (in3)
fluid ounces (fl oz) 29.54 milliliters (mL) 0.03381 fluid ounces (fl oz)
pints (pt) 0.47318 liters (L) 2.1134 pints (pt)
quarts (qt) 0.94635 liters (L) 1.0567 quarts (qt)
gallons (gal) 3.7854 liters (L) 0.2642 gallons (gal)
cubic feet (ft3) 28.317 liters (L) 0.03531 cubic feet (ft3)
cubic feet (ft3) 0.02832 cubic meters (m3) 35.315 cubic feet (ft3)
Weight/Force
ounces (av) (oz) 28.35 grams (g) 0.03527 ounces (av) (oz)
pounds (av) (lb) 0.454 kilograms (kg) 2.205 pounds (av) (lb)
U.S. tons (t) 907.18 kilograms (kg) 0.001102 U.S. tons (t)
U.S. tons (t) 0.90718 metric tons (t) 1.1023 U.S. tons (t)
Torque/Work Force
inch–pounds (lbf·in) 11.298 Newton–centimeters (N·cm) 0.08851 inch–pounds (lbf·in)
foot–pounds (lbf·ft) 1.3558 Newton–meters (N·m) 0.7376 foot–pounds (lbf·ft)
Pressure/Vacuum
inches of mercury (inHg) 3.37685 kilo Pascals (kPa) 0.29613 inches of mercury (inHg)
pounds per square inch (psi) 6.895 kilo Pascals (kPa) 0.14503 pounds per square inch (psi)
Table 2, Metric/U.S. Customary Conversion Table
General Information00
Metric/U.S. Customary Conversion Table: 00–12
School Bus Chassis Maintenance Manual, October 200500/14
