Fresenius Vial OPTIMA PT Manual

OPERATOR’S GUIDE
Volumetric
Infusion Pump 237,0$37
Introduction
Great care has been taken in the design and manufacture of the
Optima PT, a volumetric infusion device.
The configuration flexibility of the Optima PT provides overall
improvement in the working conditions of medical teams, thus increasing
patient safety.
The use of this material requires great care. The user must be able to handle the instrument
properly and must know how to fully operate.
Please read the operator’s guide carefully before putting the device into use.
Table of contents
1. Operations for use.......................................................................2
2. Advanced functions ....................................................................4

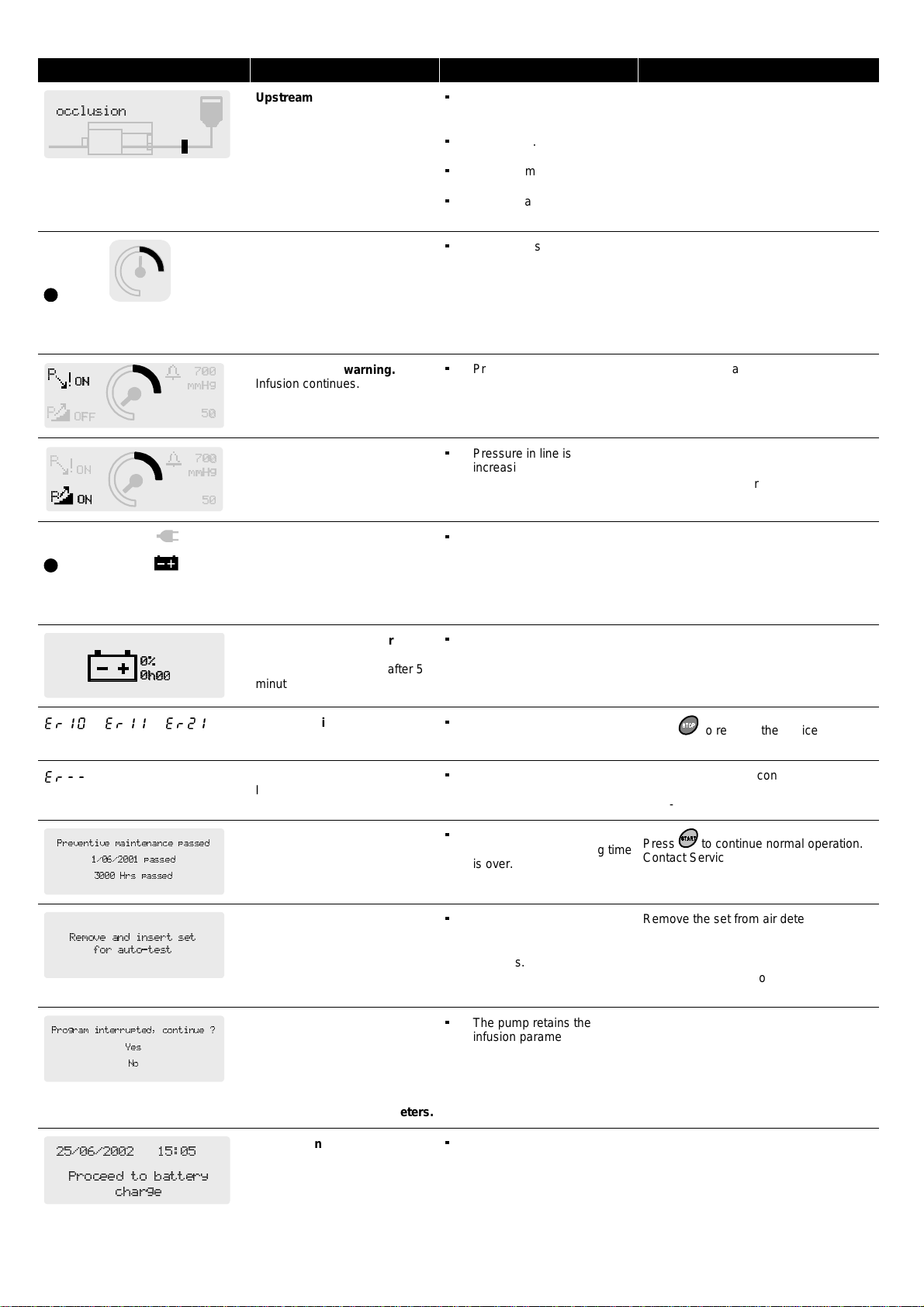

3. Optima PT - Internal safety features...........................................7
4. Optima PT - Performances........................................................10
5. Optima PT - Technical characteristics.....................................11

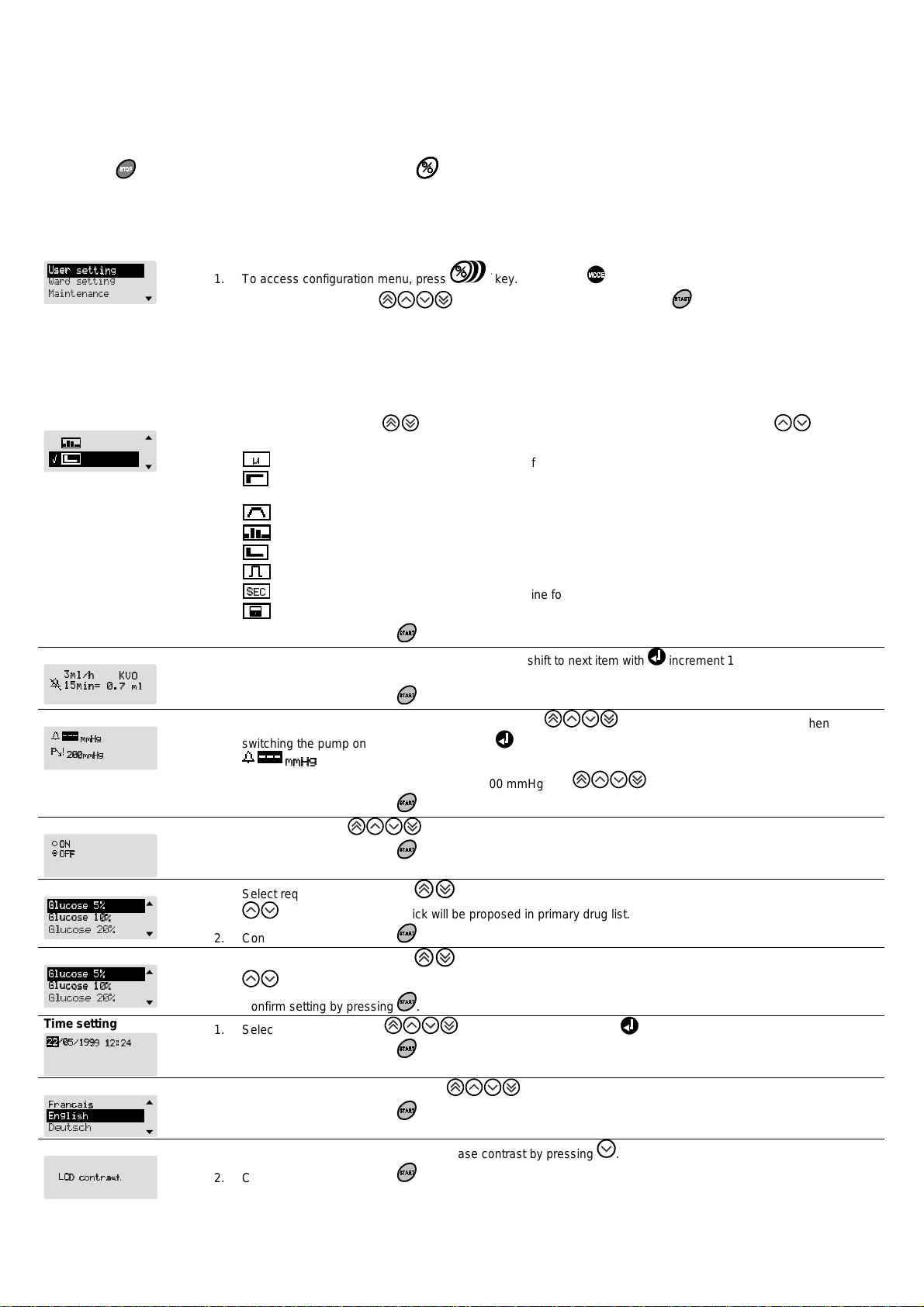

6. Configuration menu ..................................................................13
7. Precautions to be taken............................................................15
8. Maintenance recommendations...............................................16
9. RS 232 connection ....................................................................17
10. Nurse call connection ...............................................................17

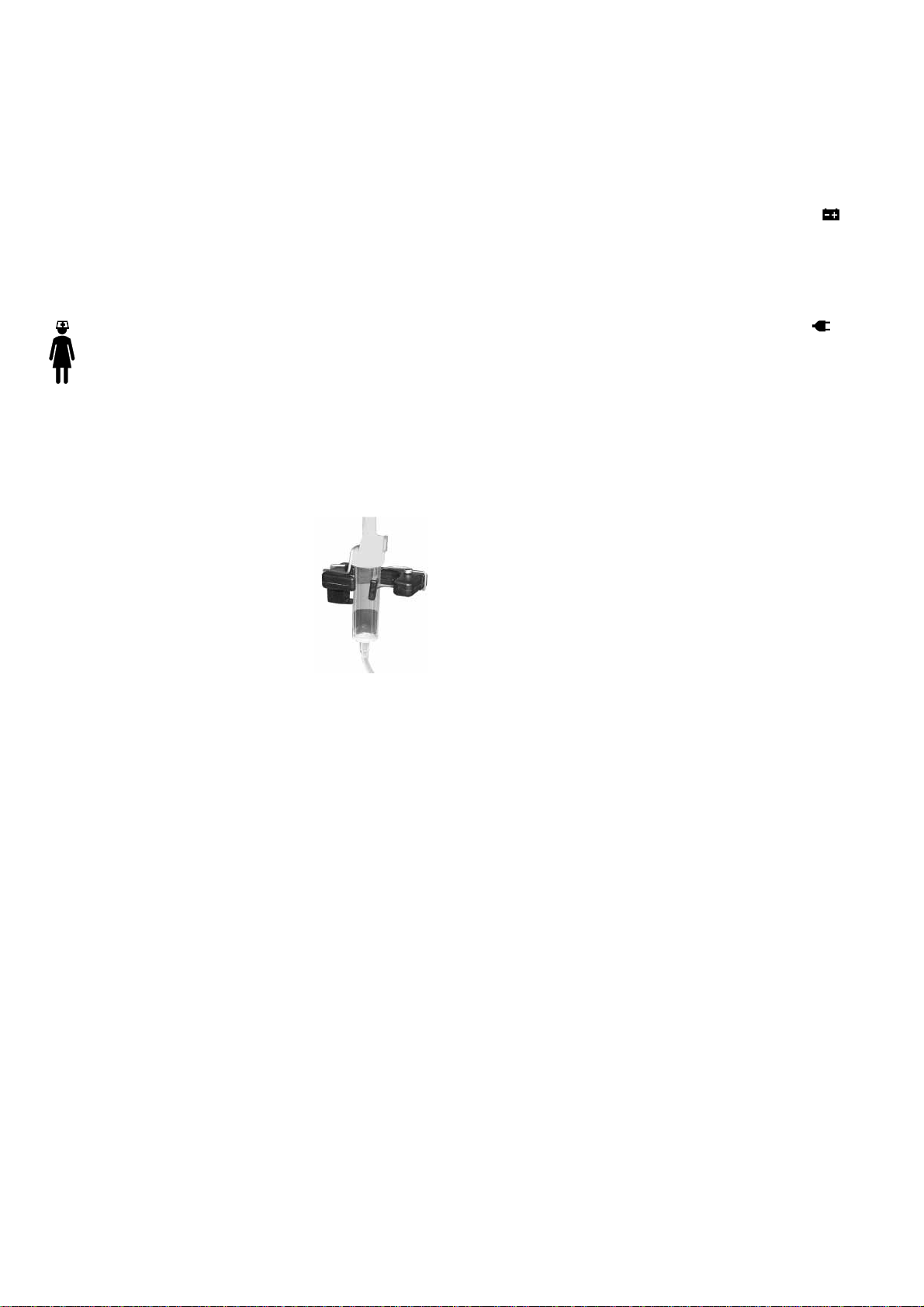

11. Drip sensor ................................................................................17
12. Function with the internal battery ............................................17

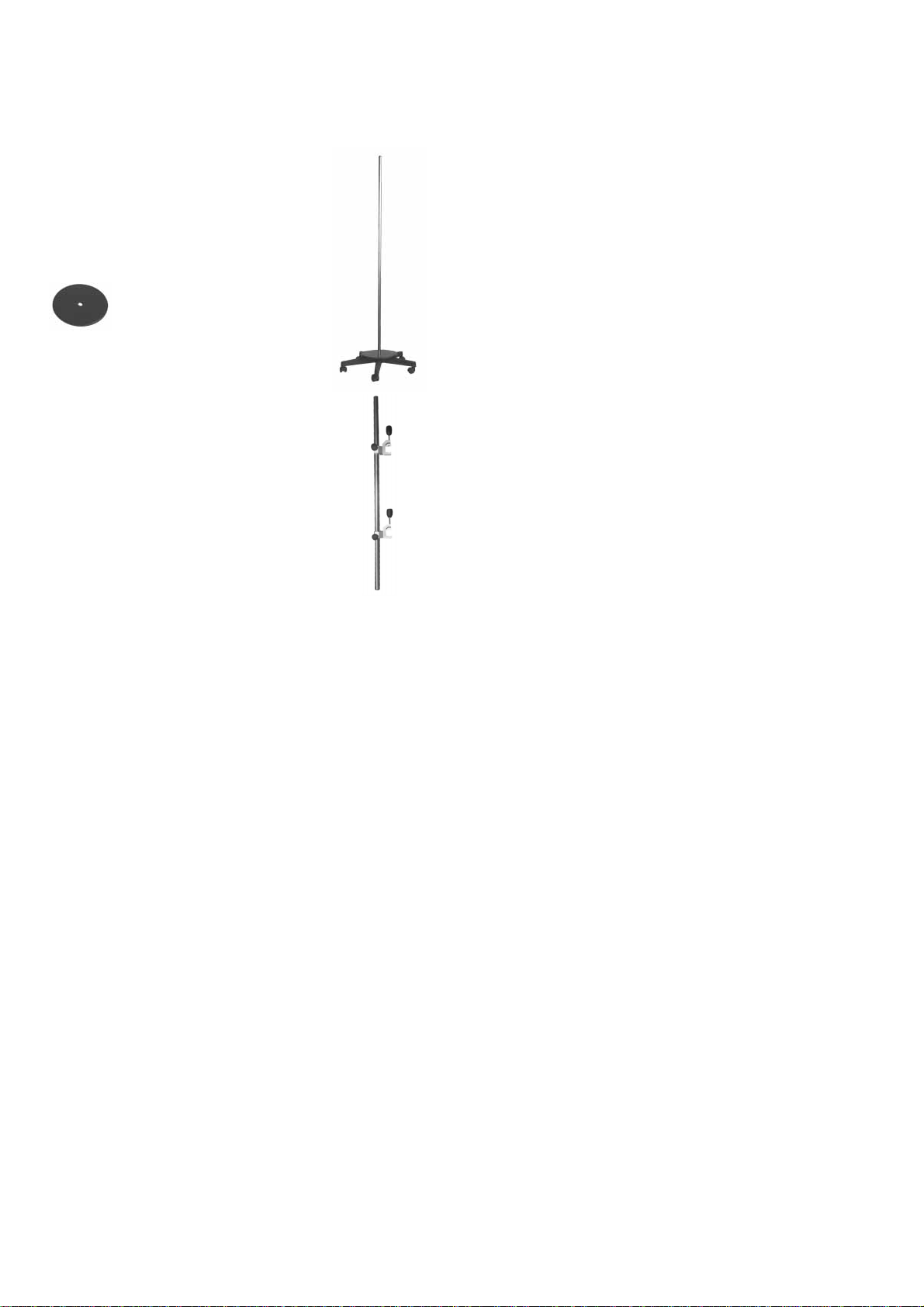

13. Accessories ...............................................................................18
14. Disposable.................................................................................19
15. Conditions of guarantee ...........................................................20
16. Useful addresses.......................................................................24

NU OPTIMA PT IS - 1273 rev 0 – 03/12/02
- 2 -
1. Operations for use
1.1. Installation of the Optima PT
Special attention must be paid to the stability of the Optima PT.
The Optima PT can be used on mains or battery .
Note: connect device to mains as often as possible to recharge
batteries.
1. Connect the power supply cord to the pump and to the mains
source. The mains power indicator lights up .
2. Quick check : see protocol page 9. This test is recommended or
mandatory (in case of in-forced law): it allows a complete
alarms & safety features check. It is recommended before use
or when the device has not been used for a long time.
1.2. Tubing set installation
1. Choose from the range of infusion sets proposed on page 18,
the one that best suits the protocol you are using. The infusion
set must be in normal temperature conditions: +18°/+30°C.
2. Prepare the solution container (bag/bottle) with its associated
infusion line according to the standard infusion procedures.
Important: the solution container must be in normal
temperature conditions: +18°/+30°C.
1.2.1. Purge of the set used with a bag
1. Introduce the spike right down into the bag
(roller clamp open – air inlet closed).
2. Press the bag in order to remove the air, and fill the drip chamber up
to 1/2 of its capacity.
3. Hang the bag upside down, and let the liquid flow into the set.
4. Once the set is completely primed, close the roller clamp and check
absence of air bubble.
1.2.2. Purge of the set used with a bottle
1. Introduce the spike right down into the bottle
(roller clamp open, air inlet closed)
2. Close the roller clamp.
3. Hang the bottle upside down then press the drip chamber in order to
fill it till ~ 1/2 of its capacity.
4. Open the roller clamp.
5. Open the air inlet, and let the liquid flow into the set.
6. Once the set is primed, close the roller clamp and check absence of
air bubble.
1.2.3. Switching on and installation of the
infusion set
Open the pump door by lifting the door handle. The pump automatically
switches on when connected to mains (if configurated). If not, press .
Auto-test checks functionality of the pump. Make sure that all LED &
buzzers are activated. Warning may be displayed at that time. Please
refer to the warning section.
Check the type of set displayed is the one you are using.
1. Lift pump clamp upward and insert tube as indicated in the drawing.
1
32
2. Insert the tube into left set guide so that the tube is held, in straight
position, on the pumping membrane.
3. Insert the tube into air detector by forming a loop.
4. Close the door by pushing the door handle.
1.2.4. Drip sensor
1. Connect the drop detector plug of to
the connection socket on the back of
the pump.
2. Connect the drop detector to the drip
chamber.
Important: control the right positioning of
the drip chamber and check there are no
drops on the drip chamber walls.
Place the container outside
the pump
The container should be
placed 20 to 80 cm above
the pump
Í To patient
The set should be
positionned in the pump so
that it remains loose outside
the pump
Form a short loop
between the door
and the air
detector
Ô

NU OPTIMA PT IS - 1273 rev 0 – 03/12/02 - 3 -
1.3. Infusion setting
1.3.1. Setting with Volume / Time / Rate

P
PO
O




P
PO
O
K
K



P
PO
O

K
K


*
*O
OX
XFR
FRV
VH
H
Volume to infuse
Ì
Infusion duration
Æ
Drug name (optional)
Æ
Infused volume (total I. Vol.)
Æ
flow rate
Ê
1. Select the volume to infuse with , then confirm and
shift to next item with .
Caution : the volume set must be the closest possible to the actual
volume of the container. All added or removed volumes must be
taken into account, including the volumes of fluids contained in the
set and lost during priming which must be removed from the volume
to infuse (~ 25 ml).
2. Select the infusion duration with , then confirm and
shift to next item with .
3. Select the flow rate with , then confirm and shift to next
item with . The infusion duration is automatically calculated and
readjusted according to displayed flow rate.
4. Check the infused volume. Erase it if desired with .
5. Open the roller clamp. Check there is no free flow nor air remaining
inside the infusion line.
6. Connect set to IV Infusion site according to good clinical practices.
7. Press to start infusion.
Note:
 When the optional drip sensor is used, the volume to infuse can be
set at zero. The infusion therefore automatically stops when drops
are no longer detected, thus enabling to fully empty the container.
 When using secondary mode, this setting is stored as primary
mode.
1.3.2. Setting with flow rate only
This setting mode is available only if the drop detector is used.

P
PO
O

K

K
1. Select the flow rate with .
2. Open the roller clamp. Check there is no free flow nor air remaining
inside the infusion line.
3. Connect set to IV Infusion site according to good clinical practices.
4. Press to start infusion.
1.4. Information during infusion
Alarm status (red)
Prealarm status (orange)
Drop indicator
(speed related to flow rate if drop sensor connected)
In-progress flow indicator
Flow rate (ml/h)
Mains power operation
Battery power operation Volume/time (*)
Flow rate
Time
Drug name
(optional)
Infusion mode type

(*) In alternance with infused volume : total volume (Total IV) or partial
volume (Partial IV)
.
Total volume is displayed when the same drug has been infused and the
same infusion mode has been used.
Partial volume is displayed when different drugs have been infused or
when different modes have been used.
1.5. Hold of infusion
Press . An audible alarm triggers after 2 minutes.
1.6. Change of container
1. Press to hold infusion.
2. Close roller clamp.
3. Disconnect set from the old container.
4. Connect set to new container according to good clinical practices.
5. Check fluid level in drip chamber (around half of its capacity)
Prime the line if some air remains inside.
6. Program new infusion parameters : flow rate, volume, …
7. Open roller clamp.
8. Start infusion.
1.7. Change of set
1. Press to hold infusion.
2. Close roller clamp.
3. Disconnect set from container.
4. Disconnect set from IV device according to usual clinical practices.
5. Open the door and remove set from pump.
6. Select and prepare new set as indicated above.
7. Program and start infusion as indicated above.
1.8. Turning off the Optima PT
Press , then for more than 2 seconds.

NU OPTIMA PT IS - 1273 rev 0 – 03/12/02
- 4 -
2. Advanced functions
When activated in the configuration menu, all advanced functions can be reached by pressing .
Then, press to reach required item and to enter desired screen.
3U
3UH
HVVX
VVXU
UH
H
7R
7RW
WDO
DO Y
YR
ROXPH
OXPH
%DWDXWRQRP\
6RXQG OHYHO
/RDGLQJ GRV
/RDGLQJ GRVH
H
5DPS XS  'RZ
5DPS XS  'RZQ
Q
6HTXHQWLDO
%ROX
%ROXV
V
6HFRQGDU
6HFRQGDU\
\
3DXVH
%R
%RO
OXV
XV
6H
6HF
FRQG
RQGD
DU
U\
\
.H\V ORFNHG
Note: Upon pump status (stop or infusion), some functions may not be available. Example: loading dose is not available after infusion start.
2.1. Pressure monitoring and
setting
1. Press , then .
21
21
3
21
21
3




P
PP
P+
+J
J


É
Dynamic Pressure System
Pressure increase control
Ë
Line disconnection / Drop in pressure alarm
Å
Pressure alarm threshold
Å
Infusion pressure
2. Press to select item.
3. Press to select value.
4. Return to main screen by pressing .
2.2. Total volume / Infused
volume by mode
1. Press :
3
3U
UHVVX
HVVXU
UH
H
7
7R
RWDO
WDO Y
YRO
ROX
XP
PH
H
%DWDXWRQRP\
2. Press to select “Total Volume”.
3. Using the key, the infused volumes of the different modes
(Secondary, Primary, Ramp up / down, Sequential) are displayed.
4. To clear the total infused volume, the infusion should be on hold.
Switch to the total volume screen and use the key to clear (use
the key to restore).
When total volume is cleared, all infused volumes of the different
modes are also cleared.
3
35
5,
,



P
PO
O
9
93
3WRW
WRWD
DO
O
L
LQ
Q




P
PO
O

K
K


5. Confirm by pressing . Then, press to escape.
2.3. Battery charge level
The present battery charge level can be reached by pressing either
or :
Å Average battery life at current
flow rate
Å
battery charge indication




K
K 



P
PO
O
K
K
See paragraph 9 for operation with battery.
2.4. Bolus
1. Access with the key and enter the bolus function with .


P
PO
O



PO
PO
K
K

P
PO
O
P
PL
LQ
Q

7R
7RW
WDO ,
DO ,9
9
2. If necessary, select the volume of bolus to infuse with .
Then, confirm and shift to next item with .
3. Select the bolus duration with . The bolus rate is
automatically calculated.
4. Select the flow rate bolus with . The bolus duration is
automatically calculated and readjusted according to displayed flow
rate.
5. Check bolus parameters and start bolus infusion by pressing .
6. After the bolus has been delivered, a short beep is emitted. The
pump automatically resumes its initial status (stand-by or infusion)
and the bolus programming parameters are stored.
If the bolus is interrupted, the remaining bolus volume to infuse is
kept in memory.
Notes:
 Infused bolus volume is subtracted from remaining volume to infuse.
 For a bolus at infusion start, use loading dose mode.

NU OPTIMA PT IS - 1273 rev 0 – 03/12/02 - 5 -
2.5. Secondary infusion
2.5.1. Definition
This programming mode enables the infusion of a secondary line placed
above, automatically followed by the infusion of a primary line placed
below. The parameters of the primary infusion must be previously set.

P
PO
O




PO
POK
K
P
PO
O
K
K

6(
6(&
&
$QWL
$QWLE
EL
LR
RW
WLF
LFV
V
1. Place the drip sensor on the primary line.
2. Select the secondary volume to infuse with . Then,
confirm and shift to next item with .
3. Select the secondary infusion duration with . Then,
confirm and shift to next item with .
4. Select the drug name (optional) with . Then, confirm
and shift to next item with .
5. Select the flow rate with . The infusion time is
automatically calculated and readjusted according to displayed flow
rate.
6. Start secondary infusion by pressing .
7. After the secondary infusion has been delivered, a short beep is
emitted. The pump automatically resumes the primary infusion.
Note that if opening the clamp is forgotten, the drip alarm triggers.
2.5.2. Recommendations in case of
secondary infusions
The use of the drop sensor is mandatory. The use of MS80 as
primary set is recommended.
The container of the secondary solution must be placed higher than
the one of the primary solution.
Setting of the secondary volume to be infused must be equal to the
volume of the solution in the secondary container.
One must then take into account the variables such as over volume in
container, addition of medicines, etc.
If a volume lower than the real volume is set, the remaining secondary
solution will infuse at the primary rate. If, on the contrary, a higher volume
is set, part of the primary solution will be infused at the secondary rate.
Primary
Î
Gravity set or secondary set
Î
Í MS 80
Drop sensor
Î
Note: the set must be equipped
with a one way valve to prevent the
secondary solution from filling the
primary container.
2.6. Programming pause
1. Press twice, or reach programming pause with key.
2. Select pause duration in minutes and hours with .
Confirm with . After the pause has ended, an auditing signal is
emitted.
3. If required, stop the pause by pressing , or to restart the
infusion.
2.7. Key locked/unlocked
1. Access with the key.
2. Select locked or unlocked position with and
press .
Note: when locked, the infusion parameters cannot be changed.
2.8. Loading dose
This infusion mode enables the delivery of a volume (e.g. loading dose)
automatically followed by the delivery of the primary infusion.
The parameters of the primary infusion must be previously set according
to paragraph 1.3.
Note that infused loading dose volume is automatically subtracted from
primary volume to infuse.



P
PO
O



PO
PO
K
K

P
PO
O
P
PL
LQ
Q


1. Select the volume to infuse with . Then, confirm and
shift to next item with .
2. Select the infusion duration with . Then, confirm and
shift to next item with .
3. Select the flow rate with . The infusion duration is
automatically calculated.
4. Start loading dose delivery by pressing .

NU OPTIMA PT IS - 1273 rev 0 – 03/12/02
- 6 -
2.9. Ramp up/Ramp down
By setting ramp up and ramp down durations, the pump will
automatically increase the flow rate to reach in ten intermediate
steps the plateau flow rate and, at the end of the infusion plateau,
decrease the flow rate down to zero.
K 
K  P
POK K
OK K


 P
PO
O
K
K

1. Select the volume to infuse with . Then, confirm and
shift to next item with .
2. Select total infusion duration in minutes with , in hours with
. The sustaining flow rate is then automatically calculated.
3. Select ramp-up duration in minutes with , in hours with .
Then, confirm and shift to next item with .
4. Select ramp-down duration in minutes with , in hours with
. Then, confirm and shift to next item with .
5. Start infusion by pressing .
2.10. Sequential programming
From 1 up to 20 infusion sequences can be defined in volume to
infuse and rate of infusion. Pause periods (Stop) or KVO periods
could also be defined in the sequence program:




PO
PO






W
W

K
K


K
K


K
K

PO
PO
K
K





1. Select the volume of the first sequence with . Then,
confirm and shift to next item with .
2. Select the duration of the first sequence with . Then
confirm and shift to next item with .
3. Select the flow rate with . The infusion duration is
automatically calculated and readjusted according to displayed flow
rate. Confirm and shift to next item with .
4. Activate or de-activate beep at the end of the sequence with
. Then, confirm and shift to next item with .
5. Select next sequence with , and shift to next volume to infuse
with .
6. Set new sequence(s) in the same way.
7. End last sequence by selecting “end” as last volume to infuse.
8. Check programming sequences and confirm with key.


P
PO
O




PO
POK
K

 P
PO
O

K
K





Number of pending sequence / out of total
Ë
number of sequence
7
7RWD
RWDO
O,
,9
9
9. Start sequential infusion by pressing .
Changes in the sequence program will become active only if the
sequences are re-started or have not already been reached. A beep
sound could be activated at each end of a sequence.
Notes :
 To modify the ongoing sequence, press , change the ongoing
sequence parameters and press key to validate. The sequential
program is not modified.
 If sequence program is modified during sequential infusion, only
forthcoming sequences will be modified.
2.11. Micro Infusion Flow Rate
When the micro infusion flow rate is activated (see Configuration
menu), a decimal digit is displayed both for flow rate and for
volume.
 Flow rate range : from 0.1 ml/h to 100 ml/h, 0.1 ml/h increment.
In order to insure a high flow rate accuracy, the lower limit is set at
0.5 ml/h (see Precaution to be taken before use page 15). For a
setting as of 0.1 ml/h, contact our After-Sales Service Department.
 Bolus Flow rate range : from 0.1 ml/h to 300 ml/h, 0.1 ml/h
increment from 0.1 to 100 ml/h, 1 ml/h increment above 100 ml/h.
 Volume limit range for primary infusion : 0.1 ml to 1000 ml, 0.1
ml increment.
 Volume limit for secondary infusion : 0.1 ml to 1000 ml, 0.1 ml
increment from 0.1 to 100 ml; 1 ml increment, above 100 ml.
Note: volume is displayed at ±0.1 ml.
2.12. Sound level
The sound level can be adjusted with the selection keys .
Press to confirm.

NU OPTIMA PT IS - 1273 rev 0 – 03/12/02 - 7 -
3. Optima PT - Internal safety features
Optima PT has a continuous inspection system which functions as soon as the pump is in use. Any internal failure or anomaly detected will
be immediately displayed.
Nevertheless, the qualified personnel in your establishment or our After-Sales Department should always be notified of any abnormal
function where no specific cause can be found.
3.1. Optima PT – Alarms, pre-alarms and warnings
All alarms are displayed with a flashing red light at the left of the front panel and are indicated with an audible signal. The audible signal can
be switched off for 2 minutes by pressing .
All pre-alarms are displayed with an orange light flashing on the left side of the front panel.
All alarms are displayed with a red light flashing on the left side of the front panel.
The right LCD display provides explanations about alarms, pre-alarms and warnings :
Message on LCD display Meaning Causes Actions to do
'RRU RSHQ
Door open alarm.
Infusion stops.
 Door is open. Close the door.
Check tube positioning.
,QVHUW VHW
Set insertion alarm.
Infusion can not be started.
 Set mis-positioned. Check set insertion.
$LU LQ OLQH
Air Alarm.
Infusion stops.
 The volume of air in line is
above limit.
 Set is not properly inserted
in air detector.
Remove air bubble in line by priming set
according to facility protocol.
Check set positioning in air detector.

P
PO
O

P
PO
O
K
K

P
PO
O

K
K

*
*OXF
OXFR
RV
VH 
H

End of infusion pre-alarm.
Infusion continues.
 5 minutes or 5% volume
before volume limit is
reached.
Check if remaining volume in container is
in accordance with remaining volume to
infuse. If needed, prepare container for a
new infusion sequence.


P
PO
O.
.9
92
2


P
PO
O

K
K

*
*OXF
OXFR
RV
VH 
H

End of infusion alarm.
Infusion continues in KVO
mode.
 Volume limit is reached. If needed, set a new infusion sequence.
'ULS VHQVRU
In case of use with drip
sensor only :
Flow control alarm
Infusion stops.
 Empty container.
 Roller clamp closed.
 Drip sensor is not properly
positioned.
 Drip sensor has been placed
onto the secondary line.
 Drip chamber over filled.
Check container.
Check roller clamp.
Check air-inlet cap (if bottle is used).
Check drip sensor positioning.
Check fluid level in drip chamber.
Check set.
Check the fluid temperature.
&KHFN VHW
In case of use with drip
sensor only :
Set positioning
Infusion stops.
 Over-flow.
 Mispositioning of infusion
set.
Open the door and check set positioning.
Check drip sensor positioning.
RFFOXVLRQ
Downstream occlusion alarm.
Infusion stops.
 Downstream pressure in line
exceeds pressure threshold
programmed.
Check infusion line.
Check if pressure threshold is set in
relation to flow rate.

NU OPTIMA PT IS - 1273 rev 0 – 03/12/02
- 8 -
Message on LCD display Meaning Causes Actions to do
RFFOXVLRQ
Upstream occlusion alarm.
Infusion stops.
 Upstream pressure in line is
too low.
 Empty bag.
 Roller clamp closed.
 Air inlet cap is closed (if
bottle is used).
Check container.
Check roller clamp.
Check container height.
Check air inlet cap (if bottle is used).
orange (on front panel)
Occlusion pre alarm.
Infusion continues.
 In-line pressure has reached
50 mmHg below pressure
threshold.
Check the infusion line.
Set proper pressure threshold.
3
2
21
1
3




P
PP+
P+J
J



2
2)
))
)
Pressure drop warning.
Infusion continues.
 Pressure in line is dropping. Check downstream luer lock connection.
3
2
21
1
3




P
PP+
P+J
J



2
21
1
Pressure increase warning.
Infusion continues.
 Pressure in line is
increasing. Check downstream line.
Check if pressure threshold is in
accordance with flow rate.
orange (on front panel)
Low battery pre-alarm.
Infusion continues. The pre-
alarm is activated at least 30
min before the battery alarm
when the battery is properly
charged.
 Battery life is low. Connect Optima PT to the mains.




K
K

Discharged battery alarm.
Infusion stops. Pump will
automatically switch off after 5
minutes.
 Battery charge is over. Connect Optima PT to the mains.
(U , (U ; (U
(LED display) Motor rotation alarm.
Infusion stops
 Control signal failure. Press to resume the device to normal
operation.
(U
(LED display) Technical alarm.
Infusion stops.
Pump can not start.
 Technical failure. Note error code and contact the qualified
technicians in your establishment or our
After-Sales Department.
Occlusion
3UHYHQWLYH PDLQWHQDQFH SDVVHG
 SDVVHG
 +UV SDVVHG
It is time to conduct the
preventive maintenance.
 Maintenance date has been
reached or total running time
is over. Press to continue normal operation.
Contact Service Department to plan
pump servicing in the coming months.
5HPRYH DQG LQVHUW VHW
IRU DXWRWHVW
The set is in the pump for
long time and needs to be
removed to control pump
functions.
 The pump has been
switched on and off with a
set installed for more than
24 hours.
Remove the set from air detector and
install it again.
If this warning persists, contact the
qualified technicians of your
establishment or our after-sales service.
Occlusion
3URJUDP LQWHUUXSWHG FRQWLQXH "
<HV
1R
The pump has been turned off
while the volume to infuse
has not been reached. You
can decide to resume the
infusion from the point when
the pump was turned off or to
reset the infusion parameters.
 The pump retains the
infusion parameters for
more than 6 hours. This is
independent of the total
infused volume that can be
permanently stored.
Select "No" to reset infusion parameters.
Select "Yes" to resume the infusion.
 
3URFHHG WR EDWWHU\
FKDUJH
Set date and time.
 The pump has been out of
mains power for a long time. Set date and time and charge the battery.

NU OPTIMA PT IS - 1273 rev 0 – 03/12/02 - 9 -
3.2. Quick check
This test is recommended or mandatory (in case of in-force law).
It allows a complete alarm and safety features check of the Optima PT (no patient connected).
Serial number (ID/N): ............................. Date: ..... / ..... / ..... Department: ........................ Name: .............................
Results
1. Switch the pump ON, pressing the key, without tube:
- check buzzer and LEDs test.
YES


NO 

2. Open the pump door :
- check message:
GRRU RSHQHG
GRRU RSHQHG
YES 

NO 

3. Install set (filled with fluid) without positioning the tube in the air sensor :
- close the door and check message :
DLU LQ OLQH
DLU LQ OLQH
YES 

NO 

4. Insert the tube in the air sensor. The air alarm message disappears. YES 

NO 

5. Set infusion parameters – 500 ml/h (no patient connected).
- start infusion.
6. Clamp the upstream line with the roller clamp:
- check upstream occlusion alarm (less than 15 seconds). YES


NO 

7. Open roller clamp.
8. Start infusion (500 ml/h) and clamp the downstream line:
- check occlusion alarm (less than 15 seconds). YES


NO 

9. Unclamp the downstream line. Open the door:
- check that there is no more than 3 drip falling in the drip chamber. YES


NO 

Quick check is OK if answers are “yes” for all items.

NU OPTIMA PT IS - 1273 rev 0 – 03/12/02
- 10 -
4. Optima PT - Performances
4.1. Flow rate available from
keyboard selection
From 1 to 1000 ml/h, 1 ml/h increment.
In micro infusion mode: from 0.1 to 100 ml/h, 0.1 ml/h increment.
4.2. Volume limit and volume
infused
From 1 to 9999 ml, 1 ml increment, displayed at ±1 ml.
In micro infusion mode: from 0.1 to 1000 ml, 0.1 ml increment.
4.3. Time limit
From 0h01’ to 96h00’, 1’ increment, displayed at ±1’.
4.4. Pressure limit threshold
From 100 to 900 mmHg, 50 mmHg increment.
±75 mmHg, or ±15%.
4.5. Dynamic Pressure System
(DPS)
Pressure increase
Anticipates an occlusion during infusion, recommended for low flow rates
when quick occlusion detection is required.
Pressure drop
A pressure drop indication may be a warning of infusion line
disconnection.
Can be used to prevent disconnection when a significant pressure is
present in the infusion line.
4.6. Air detection
Default setting: 250 µl, detected as a single bubble or cumulated
volume air over a period of 15 minutes, from bubble sizes above 50 µl.
Resolution of sensor : ~ 10 µl.
These values can be adjusted in ward setting menu (refer to “Ward
setting menu” paragraph, page 14).
4.7. Average flow rate accuracy
VS sets PVC type or VS sets PVC free type or MCM 400
 Flow rate accuracy ±5% first 24 hours.
±10% (*) between 24 and 72 hours.
Fresenius Infudrop Air PD, Codan PVC (Pressure), Braun Intrafix,
BD Ohmeda R 87 P:
 Flow rate accuracy ±10% (**) over period of 24 hours.
These values are given for an intermediate flow rate of 100 ml/h and
when the tube type is selected on the device (see technical manual).
(*) A better accuracy, over a long period of time, can be obtained by
regularly shifting the tube segment in contact with pumping system every
24 hours.
(**) Tested on one batch. Contact tube’s manufacturer for batch
dispersion.
4.8. Change set interval
We recommend to change the set after 24 hours and/or 2.5 liters for very
tight flow rate accuracy (check local protocols).
We recommend to change the set after 72 hours of use or 7 liters.
4.9. Volume / Time and rate
setting
The device operates at the displayed rate. The time entered is readjusted
according to the formulae:
displayedRate infusetoVolume
Time =
4.10. Response time & bolus
release after occlusion alarm
according to infusion flow
rate for VS tube
Flow rate Threshold value mmHg Response time h/min/sec Bolus ml
1 ml/h 100 < 12’ < 0.1
300 < 30’ < 0.15
750 < 1h15’ < 0.25
25 ml/h 100 < 12’’ < 0.15
300 < 45’’ < 0.15
750 < 2’30’’ < 0.25
100 ml/h 100 < 6’’ < 0.15
300 < 20’’ < 0.15
750 < 45’’ < 0.25
To reduce bolus and occlusion detection delay at low flow rates we
recommend you to select the appropriate threshold value according to
your needs and the above table.
4.11. Programmed Bolus Infusion
Volume infused accuracy : deducted from tube accuracy versus
volume/time programmed, or ±0.1 ml.
4.12. Ramp up/down mode
Flow rate accuracy : following average flow rate accuracy with
recommended set.
4.13. Sequential mode
Flow rate accuracy per sequence: following average flow rate accuracy
with recommended set.
4.14. KVO Rate
Activated when the volume to infuse is reached. 3 ml/h for 30 minutes for
flow rate selection above 3ml/h, set flow rate for 30 minutes for flow rate
below 3 ml/h.

NU OPTIMA PT IS - 1273 rev 0 – 03/12/02 - 11 -
5. Optima PT - Technical characteristics
5.1. Mains power supply
Mains supply 100-240 V ~ / 50-60 Hz
Maxi. power consumption 50 VA
Internal protective fuse 630 mAT
5.2. Battery
Characteristics 6 V 2.7/3 Ah - NiMH
Battery life 4 h min for any flow rate lower than 125
ml/h
Battery recharging Device off: 5 hours / Device on: 16 hours
5.3. Compliance
Compliance with EN 60 601-1 and EN 60 601-2-24.
CE 0459 CE 0459 marking in compliance with
EEC 93/42 Medical Device directive
IP31 Protection against splashing fluid
Protection against leakage current: Type
CF equipment
Class I Protection against electric shocks
Functional earth
Equipotentiality
dc voltage
5.4. Device materials : all components
are Latex free
Housing Polycarbonate, ABS
Keyboard & labels Polyester
Pumping track membrane EPDM Elastomer
Drip sensor Polycarbonate
5.5. Dimensions - Weight
Height / Width / Depth 13.5 x 17.5 x 14.5 cm
Weight approx. 2.9 Kg
5.6. Symbols
The operator's guide should be completely
read prior to use the device
Battery
Fuse
Drip sensor inlet
Nurse call connection
RS232 RS 232 outlet
5.7. Indicators lights
Mains power operation yellow
Battery power operation green
Infusion in progress green
Confirm signal green
Pre-alarm orange
Alarm red
Flow rate  green
Drop Green
LCD Black, backlighted
5.8. Electronic retainer memory
In case of prolonged switched off, all parameters of the device are stored
indefinitely except for the date which is lost after 3 months storage. When
the pump is switched ON, settings of the new date are proposed.
5.9. Data log event
The last 764 dated events are stored and can be read with the
maintenance software.

NU OPTIMA PT IS - 1273 rev 0 – 03/12/02
- 12 -
5.10. Curves
Trumpet curves demonstrate the evolution of the minimum and maximum variance of the PUMP / SET combination versus flow rate.
The test protocol used to obtain these results is described in the EN 60 601-2-24. For further information, please refer to this publication. Use
these curves to determine the accuracy depending upon your infusion protocol / drug / dilution.
Sequential and Ramp up / down curves are given for a typical representative programming protocol parameters:
 Sequential: 40 ml/h for 10 ml, 100 ml/h for 30 ml, 5 ml/h for 1.5 ml, 40 ml/h for 6 ml.
 Ramp up / down: Ramp up time setting: 15 minutes, Ramp down time setting: 15 minutes, Stabilised flow rate: 115 ml/h, Total volume to
be infused: 70 ml.
These graphs are therefore representative of VS PVC type sets during trials and serve as an indication only of the pump’s overall
performance. Please contact our after-sales department for other curves.
5.10.1. Trumpet curves for 2, 5, 11, 19, 31 minutes observation windows
1 ml / hour:
Observation windows (min)
Accuracy upper limit (+5%)
Accuracy lower limit (-5%)
% variance from nominal flowrate
max
min
25 ml / hour:
Observation windows (min)
% variance from nominal flowrate
max
min
Accuracy upper limit (+5%)
Accuracy lower limit (-5%)
100 ml / hour:
Observation windows (min)
% variance from nominal flowrate
max
min
Accuracy upper limit (+5%)
Accuracy lower limit (-5%)
5.10.2. Flow rate / time curves: start-up and instantaneous flow rate
(in ml/h, measured every 30”) versus time (in second).
1 ml / hour:
time (minutes)
Flow rate (ml/h)
25 ml / hour:
time (minutes)
Flow rate (ml/h)
100 ml / hour:
time (minutes)
Flow rate (ml/h)
5.10.3. Curves for micro infusion mode
Trumpet curves at 0.5 ml / hour:
60
40
20
0
-20
-40
-60 2 5 11 19 31
Observation windows (min)
Accuracy upper limit (+5%)
Accuracy lower limit (-5%)
% variance from nominal flowrate
max
min
Instantaneous flow rate at 0,5 ml / hour:
1.2
0
0.2
0.4
0.6
1.0
0 1000 2000 3000 4000 5000 6000 7000
time (second)
Flow rate (ml/hr)
1.4
0.8
5.10.4. Flow rate / time curves: sequential mode, ramp up / ramp down mode
40 ml/h for 10 ml, 100 ml/h for 30 ml,
5 ml/h for 1.5 ml, 40 ml/h for 6 ml
0
20
40
60
80
100
120
0 500 1000 1500 2000 2500 3000 3500 4000
time (seconds)
measured flow rate
Set flow rate
Flow rate (ml/hr)
Ramp up : 15’, Ramp down : 15’, Stabilised
flow rate : 115 ml/h, Total vol. : 70 ml.
0
14
0
12
0
10
0
8
0
6
0
4
0
2
0
Flowrate
(
ml/hr
)
0 500 1000 1500 2000 2500 3000
time (second)
measured flow rate
Setflowrate

NU OPTIMA PT IS - 1273 rev 0 – 03/12/02 - 13 -
6. Configuration menu
Fresenius Vial
recommends the presence of its qualified personnel or a member of the Technical Department of your establishment to help
you implement the configuration procedures you wish to choose.
Note: press to cancel modification at any time - Press OFF to leave configuration mode at any time.
6.1. Access to the configuration menu
8VHU
8VHU V
VH
HW
WWLQ
WLQJ
J
:DUG VHWWLQJ
0DLQWHQDQFH
1. To access configuration menu, press key. Then, keep key pressed.
2. Select required item with , and enter in required item by pressing .
Note: Maintenance setting is accessible by Bio Medical Technicians. Please refer to the Technical Manual.
6.2. “User setting “ menu
Infusion modes 1. Select required item with and activate with a tick or de-activate required item by pressing .
All infusion modes with a tick will be proposed when switching the pump on.
g
g
Micro-infusion mode: display of one decimal from 0,5 ml/h to 99,9 ml/h.
Setting with flow rate only: infusion with no volume limit and no time limit
(end of infusion when empty container is detected by drop detector).
Ramp-up / Ramp down: progressive increase and decrease of flow rate.
Sequential infusion: programming of 1 to 20 infusion sequences automatically linked together.
Loading dose: infusion of a loading dose prior to primary infusion.
Bolus: infusion of a bolus before or during a primary infusion.
6
6(
(&
&
Secondary infusion: infusion of a secondary line followed by the primary infusion.
Lock function: enables the locking of key board after the infusion has been set.
2. Confirm setting by pressing .
KVO (Keep vein open)

P
PO
OK

K.
.92
92


P
PLQ
LQ


 P
PO
O
1. Select KVO rate from 0 (no KVO) to 20 ml/h. Then, shift to next item with increment 1 ml/h.
2. Select silence alarm duration during KVO from 2 to 30 minutes.
3. Confirm setting by pressing .
Pressure setting
3
3


P
PP+J
P+J
P
PP
P+J
+J
1. Select pressure threshold from 100 to 900 mmHg with . This threshold will be proposed when
switching the pump on. Shift to next item with .
P
PP
P+
+J
J
recall of the last pressure threshold when the pump is switched on.
2. Select pressure drop threshold from 100 to 500 mmHg with .
3. Confirm setting by pressing .
Drug display selection
21
21
2
2)
))
)
1. Select by pressing whether you wish the drug name to be displayed.
2. Confirm setting by pressing .
Primary drug list
*O
*OX
XFRVH 
FRVH 

*O
*OX
XFRVH 
FRVH 


*OXFRVH 
1. Select required drug name with . Then, activate with a tick or de-activate required drug name by pressing
. All drug names with a tick will be proposed in primary drug list.
2. Confirm setting by pressing .
Secondary drug list
*O
*OX
XFRVH 
FRVH 

*O
*OX
XFRVH 
FRVH 


*OXFRVH 
1. Select required drug name with . Then, activate with a tick or de-activate required drug name by pressing
. All drug names with a tick will be proposed in secondary drug list.
2. Confirm setting by pressing .
Time setting








 






1. Select value by pressing . Then, shift to next item with .
2. Confirm setting by pressing .
Language
)U
)UD
DQFDL
QFDLV
V
(Q
(QJ
JOLV
OLVK
K
'HXWVFK
1. Select desired language by pressing .
2. Confirm setting by pressing .
LCD contrast
/
/&
&' FR
' FRQ
QWU
WUD
DVW
VW
1. Increase contrast by pressing or decrease contrast by pressing .
2. Confirm setting by pressing .

NU OPTIMA PT IS - 1273 rev 0 – 03/12/02
- 14 -
6.3. Ward setting
Ward setting
&RG
&RGH
H


:DUG VHWWLQJ
1. Enter code with , and confirm by pressing (pre-set code is 200).
2. Select required item with and enter the required item by pressing .
Ward name
5
5HD HD&
&DUGL
DUGLR
R




1. Select desired letter with . Shift to next letter with .
2. Confirm setting by pressing .
User code
&RG
&RGH
H

The user code is settable from 0000 to 9999. If user code is set at 0, the user setting menu is then accessible without
code entry.
1. Enter code with .
2. Confirm setting by pressing .
Bolus reduction during
occlusion release
2
21
1
2)
2))
)
1. Select by pressing whether you wish to activate bolus reduction after release of an occlusion.
2. Confirm setting by pressing .
Maximum rate
 POKU
1. Select by pressing the maximum flow rate you wish to allow during infusion setting (valid for all
infusion modes except bolus and loading dose).
2. Confirm setting by pressing .
Air bubble size
=250 µl/15min
50 µl
1st parameter: cumulated air volume over a period of 15 minutes after which the air bubble alarm will trigger: select value
from 30 to 1000 µl with . Shift to next item with .
Note: a continuous air bubble greater or equal to the cumulated programmed volume will trigger an alarm independent
from the time period.
2nd parameter: minimum air bubble size you wish to take into account within the cumulated air volume over 18 minutes.
Select value from 10 to 200 µl with . If 1 is selected, all detectable bubbles will be taken into account.
1. Confirm setting by pressing .
Fixed initial parameters
2
21
1
2)
2))
)
Select by pressing whether you wish to fix infusion parameters (rate, volume, drug name…) for all infusion
modes :
 21 : when switching the pump on, the same parameters are always proposed.
 2)) : when switching the pump on, the last set parameters are proposed.
Volume screen
2
21
1
2)
2))
)
Select by pressing whether you wish to display the volume screen :
 21 : display of the volume screen during infusion.
 2)) : display of the infusion setting during infusion.
Infused volume stored at
power off
2
21
1
2)
2))
)
Select by pressing whether you wish the last infused volume to be recalled when switching the pump on :
 21 : recall of the last volume (enabling cumulating).
 2)) : total volume infused is pre-set at 0.
Keep interrupted program
for
K
K


Select by pressing the time you wish the last infusion parameters to be recalled when switching the pump
OFF then ON. From 0 h 15 to 24 h 00.
If 0 h 00 is selected, parameters are not recalled.
Infusion modes transition Select required item with . Activate with a tick or de-activate required item by pressing whether you wish 3
beeps to be triggered after advanced infusion mode.
Pre-Alarm

PLQ
PLQ
9RO
9RO 

21
Select required item with , adjust value by pressing , Confirm setting by pressing .
1. Remaining infusion time which triggers an end of infusion pre-alarm : from 5 to 30 minutes.
1. Remaining volume to infuse (in % of total volume to infuse) which triggers an end of infusion pre-alarm from 0 to
15%.
 21 : end of infusion pre-alarm is always activated when the first above condition is reached.
 2)) : end of infusion pre-alarm not activated.
Buzzers


Select by pressing the type of buzzer type 1 or type 2.
Automatic ON
2
21
1
2)
2))
)
Select by pressing the activation of automatic switch ON at door opening (when connected to mains).
Screen with Mode key
3DX
3DXV
VH
H
%DWWHU\ OLIH
Select by pressing the items which can be reached from the Mode key in the menu : Pause, Battery life.
allows you to shift from an item to another.
Serial link speed
 %DXGV
 %
%D
DX
XG
GV
V





%
%D
DXG
XGV
V





%
%D
DXG
XGV
V
Select by pressing the serial link speed.

NU OPTIMA PT IS - 1273 rev 0 – 03/12/02 - 15 -
7. Precautions to be taken
The symbol , visible inside door label of the device,
recommends this Operator's Guide should be completely read in
accordance with the EN 60 601-1 Standard.
Fresenius Vial
will not be liable for any damages or claims,
medical or otherwise, of any nature whatsoever, whether direct or
consequential, caused by improper use of this device.
In order to insure that all the safety features of the device are
activated, the pump should be switched ON prior to being
connected to the patient.
Special attention must be paid to the stability of the device. Use the
device in horizontal position, on a table, or with the incorporated clamp
for using on a pole.
Fresenius Vial recommends not to place the pump higher than 1,3
metre above patient.
Container must be placed on a range of 50 cm above the pump ±30
cm.
During all manipulations on the pump or on the set (set installation,
door opening, set removal), make sure the line is closed near to the
injection device with a clamp or a stopcock. If they are not available,
we recommend a back check valve to be assembled on the injection
device in order to avoid any pressure variations which may occur due
to the compliance of the line.
Recommendations to improve performances and safety when the
pump is commonly used at low flow rates (≤20 ml/h) :
 Limit the range of available flow rates in accordance with the
maximum flow rate to be used with your protocol (see
configuration menu);
 The time to detect a downstream occlusion being conversely
proportional to the flow rate, it is recommended to lower the
pressure limit in order to gain in time to detect an occlusion.
For the infusion of very short half life drugs at flow rate below 5 ml/h,
we recommend the use of syringe pumps which usually offer better
performances of instant flow rates. Check instant flow rate curves and
trumpet curves.
We recommend you partially or completely recharge the battery when
you receive the device or in the case of prolonged storage so as to
prevent all risks of premature discharge.
To preserve the environment, remove the battery from the device prior
to destruction or at the end of the device life and as during normal
maintenance replacement, return it to a competent recycling
organisation. Proceed in the same way for the device itself (electronic
boards, plastics…).
Avoid short circuit and excessive temperature.
Anaesthetic substances: the device must not be used in the presence
of inflammable anaesthetic agents due to the risk of explosion. It
should always be used away from all risk areas.
The device is designed to infuse any medical substance that can be
injected in normal conditions of temperature: +18°/+30°C. The
physiological effects of medicine can be influenced by the
characteristics of the device and the associated disposable
(constitution material is commonly listed on the set packaging). Check
that they are compatible with prescriptions, the characteristics of
trumpet curves and occlusion alarm setting times in relation to the
programmed flow rate.
When using the pump with protocols including refrigerated solution,
check normal temperature of the solution container (+18°/+30°C)
before the installation of the infusion set into the pumping system. This
medical device complies with IEC 60 601-2-24 for environmental
range of use (+ 5°C to + 40°C, 20% to 90% relative humidity) but due
to the range limitation condition of the solution to be infused, we
recommend a normal use condition from + 18°C to + 30°C.
Use only disposable proposed in this Operator’s Guide in accordance
with local standard operating procedures and good clinical practices.
Using non recommended disposable could lead to serious hazards
such as free flow or pump degradation.
After the disposable is primed, check the integrity of the connected
disposable to patient (no leak, no air, especially after the air bubble
sensor).
Fuses should be replaced by equivalent parts. This should be done by a
qualified technician. Refer to the part list of the technical manual for full
specification.
The pump may only be connected to the mains with the power cord
supplied by the manufacturer. Check that the mains voltage corresponds
with the value indicated on the label placed underneath the device.
Do not exceed the permitted voltage on the different external
connections.
The settings parameters which have been modified but not validated by
the users, or the ones which are proposed after the pump has been
switched on may trigger an alarm after a while. The default values
which are then proposed by the pump may vary according to ongoing
status (Start-up, Stop, Infusion). In any case, check the setting
parameters are in accordance with the one you wish.
This device can be disturbed by a strong electromagnetic fields, external
electrical influences and electrostatic discharges above the limits
stipulated by EN 60 601-1-2 and EN 60 601-2-24 (e.g.: mobile phones,
surgical equipment leads close to the pump). It can also be disturbed by
environmental pressure or pressure variations, mechanical shocks, heat
ignition sources, etc.
Standard precautions should be taken to prevent contamination or
injuries while discarding the associate waste disposables (e.g. extension
sets, etc.).
High inline depression may create free flow.
Only use luer lock connection to prevent disconnection due to infusion
pressure.
Make sure that all connection tubes and other infusion devices, that may
be connected to this pump, will resist to a pressure up to 2000 HPa.
Do not use in conjunction with positive pressure infusion devices, that
could generate backpressure higher than 1500 HPa, susceptible to
damage infusion disposables and the device (e.g. contrast fluid
devices).
While in use, negative pressure variation may occur in the line, by the
relative height from the device to the injection site or by combination with
pumping devices such as blood pump, alternative clamp, etc.
Pressure variation may generate flow rates fluctuation mainly noticeable
at low flow rates.
When the reservoir is placed higher than the injection site, please pay
attention to manipulate the set only when it is clamped or disconnected
from patient side.
Make sure that infusion line does not hinder moving parts of other
devices.
Fresenius Vial
recommends the use of one way valves or positive
pressure infusion devices for multi-line infusions. If there is no one way
valve on a gravity infusion line during a multi-line infusion, this will make
it impossible to detect occlusions on the patient side, and could result in
accumulation of the drug being infused in the gravity line, which could
later be infused in an uncontrolled manner when the occlusion is
released. Place the connection between the gravity line and the pump-
driver line as near to the start of the set as possible in order to minimise
the dead space and consequently the impact of any change in flow rate
on the gravity line.
One way
valve
Solution container
Infusion pump
All computer systems connected to the RS 232 link on the base must
meet the safety features, as in the IEC 950 standard for computer
interfaces.
Fresenius Vial
will not be responsible whatsoever for use of any
interface communication between the Optima pump and computer
systems.
Opening the pump or the battery cover must only be carried out by the
qualified personnel in your establishment, and taking all the necessary
technical precautions. Non-respect of these procedures is dangerous to
the personnel and may damage the pump. We recommend you follow
the maintenance procedures defined in the Technical Manual. To obtain
a copy of the Technical Manual, please contact our After-Sales
Department specifying the identification number of the device.

NU OPTIMA PT IS - 1273 rev 0 – 03/12/02
- 16 -
8. Maintenance recommendations
8.1. Cleaning and disinfection
The device forms part of the patient’s immediate environment. It is
advisable to clean and disinfect the device’s external surfaces on a
daily basis in order to protect patient and staff.
 Disconnect the device
from its mains supply before starting to clean.
 Do not place in an AUTOCLAVE nor IMMERSE the device. Do not let
fluids enter the device’s casing.
 If the device is placed in a high contamination risk unit, it is advisable
to leave it in the room during aerial disinfection, after having
disinfected it with a moist cloth.
 Use a cloth soaked in DETERGENT-DISINFECTANT, previously
diluted with water if required, to destroy micro-organisms. Avoid
abrasive scrubbing which could scratch the casing. Do not rinse or
wipe surfaces.
 Do not use: TRICHLOROETHYLENE-DICHLOROETHYLENE -
AMMONIA - AMMONIUM CHLORIDE - CHLORINE and AROMATIC
HYDROCARBON - ETHYLENE DICHLORIDE-METHYLENE
CHLORIDE - CETONE. These aggressive agents could damage the
plastic parts and cause device malfunction.
 Take care also with ALCOHOL BASED SPRAYS (20% - 40%
alcohol). They lead to tarnishing of and small cracks in the plastic,
and do not provide the necessary cleaning prior to disinfection. Using
disinfecting applies by SPRAYS may be done, in accordance with the
manufacturer recommendation, from a distance of 30 cm of the
device, avoid the accumulation of the product in fluid form.
Please contact the appropriate service, handling suitable cleaning and
disinfection products, in your establishment for further details.
8.2. Storage
The device should be stored in a dry, cool place. In case of
prolonged storage, the battery should be disconnected. This should
be done by a qualified technician.
 Permissive relative humidity: from 20% to 90%, no condensation.
 Storage temperature: -10°C + 60°C.
8.3. Servicing
To ensure normal performance of the device, it is recommended to
replace the internal battery every 3 years. This should be done by a
qualified technician.
The qualified technicians in your establishment or our After-Sales
Department should be informed if the device is dropped or if any
malfunction occurs. In this case the instrument must not be used. For
further information please contact our After-Sales Department.
If the device has to be returned to our After-Sales Department, proceed to
its cleaning and disinfection. Then, pack it very carefully, if possible in its
original packaging, before shipping.
Fresenius Vial
is not liable for loss or damage to the device during
transport to our After-Sales Department.
8.4. Regular inspections
In order to insure that the device is functioning optimally, regular
inspections of the device are recommended every 12 months.
A regular control check consists of various inspection operations listed in
the Technical manual. These control checks must be performed by an
experienced technician. There are not covered by any contract or
agreement provided by
Fresenius Vial
and are under the responsibility of
the User.
Note: failure to comply with these maintenance procedures can damage
the device and lead to a functional failure.

NU OPTIMA PT IS - 1273 rev 0 – 03/12/02 - 17 -
9. RS 232 connection
RS232
The installation as well as the use of the infusion pump
via a RS 232 interface must be in compliance with the
installation protocol described in the Technical Manual of
the device.
For further information, please contact our After-Sales Department.
10. Nurse call connection
The nurse call connection, situated on the back of the
pump, enables the connection of the device to a nurse
call.
For further information, please contact our After-Sales
Department.
11. Drip sensor
1. Connect the drop detector plug of to
the connection socket on the back of
the pump.
2. Connect the drop detector to the drip
chamber.
Important: control the right positioning of
the drip chamber and check there are no
drops on the drip chamber walls.
12. Function with the
internal battery
The device contains an internal battery which automatically takes
over when the mains supply is disconnected and ensures normal
function with no loss of the programmed data.
Operation from the battery is visualised by the battery indicator .
12.1. Recharging the battery
To recharge battery, just connect the pump to a mains power supply.
Recharging of the battery is visualised by the mains indicator .
12.2. Recommendations
The battery should be replaced every 3 years or according your local
servicing recommendations.
The loading charge indicator may be affected (lower battery life) if the
battery is out of order or too old.

NU OPTIMA PT IS - 1273 rev 0 – 03/12/02
- 18 -
13. Accessories
Fresenius Vial recommends the use of Optima PT range
accessories.
Rolling stand 180 - Cat # 073070
High stability rolling stand - Height 1.80 m - 5
rollers - Burnished pole.
Cast iron - Cat # 073074
Added to high stability rolling stand 180, for
live loads higher than 16 kg.
Transrail 120 - Cat # 073071
Two clamps which firmly fix a burnished pole
on 2 parallel rails.

NU OPTIMA PT IS - 1273 rev 0 – 03/12/02 - 19 -
14. Disposable
14.1. VS range
In order to use the Optima PTpump in best conditions and cover
most applications, we have developed a complete range of sterile
disposables: the VS series.
Due to the quality and diversity of this range, you are offered a
selection of high performance administration sets.
Designation
VS 10 - Infusion set with 15 µ filter - L ~ 240 cm
VS 20 - Infusion set with 100 µ filter and male or female luer lock -
L ~ 250 cm
VS 30 - Infusion set with injection site (Latex free) and 15 µ filter -
L ~ 250 cm
VS 31 - Infusion set for infusion, with 15 µ filter and needle-free access
for intermittent injection - L ~ 240 cm
VS 33 - Infusion set with 15 µ filter and 3-way stopcock for injection of
medicines - L ~ 250 cm
VS 50 - Infusion set with 200 µ filter for transfusion - L ~ 240 cm
VS 60 - Infusion set with 15 µ filter for infusion of drugs non compatible
with PVC - L ~ 250 cm
VS 70 - Infusion set with 15 µ filter and 0.22 µ antibacterial filter for
infusion of drugs non compatible with PVC (Taxol) - L ~ 250 cm
OP VS - Opaque infusion set for infusion of light sensible drugs,
with 15 µ filter - L ~ 265 cm
All sets are designed and controlled by Fresenius Vial in order to
guarantee the performances and the safety features of our pump. The
manufacturing is done by Fresenius Vial (CE0459) or by its qualified
subcontractors (CE0123, CE0318) for and on behalf of Fresenius Vial in
exclusive distribution. The CE certificates are available on request.
Notes:
 These sterile infusion sets are packed in an individual peeling
pouch by carton of 100 units.
 These sets are single use.

Fresenius Vial
is not responsible for the use of Optima PT
pump with non-recommended sets.
14.2. Other PVC giving sets
Fresenius Vial recommends the use of the following sets :
 MCM400 infusion set (Fresenius MCM)
 VS XX sets (Fresenius Vial)
 Fresenius Infudrop Air PD
 Codan PVC (Pressure)
 Braun Intrafix
 BD Ohmeda R 87 P
The choice of the set to be used with the pump should be selected in the
Configuration menu : Maintenance / Configuration / SAV2 Set selection.
MCM400 infusion set and VS XX set ranges are made of bio-compatible
plastic materials
Single use, with 5 year shelf life.
MCM400 & VS XX infusion sets with different filter sizes.
Note : the staff of the hospital should check the compatibility of the fluid
or drug to deliver with the components listed on the pouch: materials,
filter size, special recommendations.
All Fresenius Vial sets are designed and controlled by Fresenius
Vial in order to guarantee the performances and the safety features
of our pump. The manufacturing is done by Fresenius Vial (CE0459)
or by its qualified subcontractors (CE0123, CE0318) for and on
behalf of Fresenius Vial in exclusive distribution. The CE certificates
are available on request.

NU OPTIMA PT IS - 1273 rev 0 – 03/12/02
- 20 -
15. Conditions of
guarantee
Fresenius Vial
guarantee that this product is free from defects in
materials and workmanship (excluding batteries and accessories)
for a period of one year from the date of invoice. If you comply to
benefit from the materials and workmanship guarantee from our
After-Sales Service or an agent authorised by
Fresenius Vial
, the
following conditions must be respected:
 The device must have been used according to the instructions in
this Operator’s Guide.
 The device must not have been damaged when in storage, at the
time of repair, or show signs of improper handling.
 The device must not have been altered or repaired by non-qualified
personnel.
 The serial number (ID/N°) must not have been altered, changed, or
erased.
In case of non-respect of these conditions,
Fresenius Vial
will prepare
an estimate for repair covering the parts and labour required.
Where return and repair of a device is necessary, please contact
Fresenius Vial
Customer or After-Sales Department.
