Frico Soloclim SC17 User manual

Soloclim
Original instructions
Installation

2
Soloclim
GB
This unit complies with the following European Directives:
• Low voltage 2014/35/EU
• Electro-magnetic compatibility 2014/30/EU
• Use restrictions of hazardous substances in electrical and
electronic equipment 2011/65/EC (RoHS2)
• Waste electrical and electronic equipment 2002/96/EC
(WEEE).
• Energy consumption indication on the labels of energy-
related products 2010/30/EU
Warning
- It indicates actions that require caution and a suitable
preparation.
Prohibition
- Refers to prohibited actions.
Compliance Safety pictograms

3
Soloclim GB
General
General warnings 4
Fundamental safety rules 4
Description 5
Storage 5
Handling 6
Shipping dimensions and weight 6
Supplied components 6
Unit parts 7
Installation
Installation mode 8
Choosing the position of the unit 8
Assembling the unit 9
Condensation drain predisposition 10
Assembling air ducts and external shutters 10
Mounting the appliance on the bracket 11
Electrical connection 12

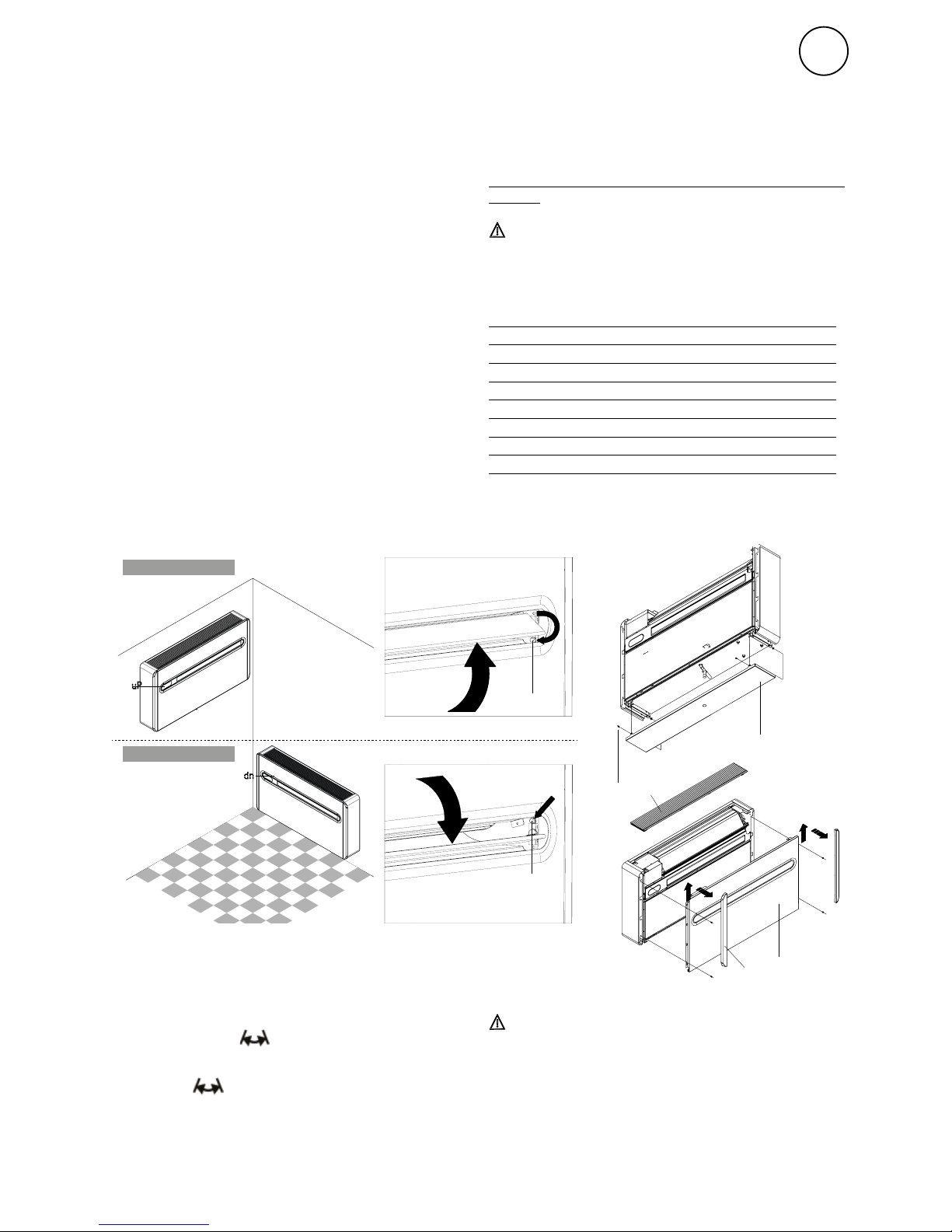

High/low installation configuration 13
Setting cool only or heat only modes 14
Brightness regulation 14
Touch-screen display key lock 14
Hotel function 14
Anomaly diagnosis 14
Troubleshooting
Periodic Maintenance 16
Troubleshooting 17
Technical specifications 18

4
Soloclim
GB General
After unpacking, check that the contents are intact and
that all parts are included. If not, contact the agent who
sold the appliance to you.
The appliance must be installed by an authorised
company.Once the work is done, it must issue a
declaration of conformity to the client in compliance
with current Regulations and with indications on the
instruction manual supplied with the appliance.
These appliances have been designed for conditioning
and/or heating rooms and they must be destined solely
for this purpose compatibly with their performance
characteristics.
The manufacturer refuses any contractual or extra-
contractual responsibilities for damage caused to people,
animals or things resulting from incorrect installation,
adjustment, maintenance or improper use.
In the event of water leaks, turn off the main switch and
close the water taps.
Immediately call the Technical Assistance Service
or other qualified personnel and do not intervene
personally on the appliance.
The use of products that use of electricity and water
requires the observation of some fundamental safety
rules such as:
The unit can be used by children over the age of
8, and by people with reduced physical, sensory or
mental capabilities, or with no experience or necessary
knowledge, as long as they remain under surveillance or
after they have received instructions on the safe use of
the unit and have understood the dangers involved.
Children must not play with the appliance.
The cleaning and maintenance that must be performed
by the user must not be carried out by children without
supervision.
It is forbidden to modify the safety or adjustment
devices or adjust without authorisation and indications
of the manufacturer.
It is forbidden to pull out or twist the electric cables
coming out of the unit, even when disconnected from
the mains power supply.
General
General warnings
A temperature that is too high or too low is harmful to
health and is an unnecessary waste of energy.
Avoid prolonged direct contact with the air flow.
Do not leave the room closed for long. Periodically open
the windows to ensure proper ventilation.
This instruction booklet is an integral part of the
appliance and therefore it must be kept with care and
must ALWAYS accompany the appliance even when
the latter is transferred to another owner or user or
transferred to another system. If it gets damaged or
lost, please request another copy to the local Technical
Assistance Service.
Repairs or maintenance must be performed by the
Technical Assistance Service or by qualified personnel
in accordance with this manual. Do not modify
or intervene on the appliance as this could create
dangerous situations and the manufacturer will not be
responsible for any damage caused.
The appliance is declared to have a degree of protection
IPX0, therefore it cannot be installed outdoors or in
laundry rooms.
Fundamental safety rules
It is forbidden to introduce objects or substances
through the aspiration grills and the air outflow.
It is forbidden to open the access doors to the internal
parts of the appliance without having turned off the
main switch first.
It is forbidden to dispose of, or leave in the reach of
children, the packaging materials which could become a
source of danger.
It is forbidden to climb onto the appliance and/or to
place any type of object on top of it.

5
Soloclim GB General
The air conditioning unit Soloclim is the new solution
that represents a significant step towards reducing the
aesthetic impact of air conditioners. With a depth of just 16
centimetres, Soloclim is the most compact and least bulky of
the category. Its aesthetic impact is therefore minimal, both
inside and out.
Optimised Capacities
The conditioning capacities of Soloclim have been optimised
so as to obtain the right temperature for the best level of
comfort and, therefore, less consumption and less noise.
Thanks to the careful choice of sound insulation materials,
the noise is similar to that of a standard wall split unit and
consumption is drastically contained thanks to the new
direct current fan.
162 millimetre holes
An important choice not only for the design, but also for
a significant installation advantage: easier to find drilling
tools, no need for professional drills, even less aesthetic
encumbrance.
BLDC inverter technology
We have perfected the Inverter technology to offer the
best in terms of acoustic comfort (noise) and performance:
reduction of consumptions, maintenance of the best
temperature level and humidity level in the room.
Thanks to the use of the cutting edge BLDC (brushless
direct current) Inverter regulation, vibrations have been
completely eliminated and acoustic emissions have been
lowered to exceptional levels.
Both ventilation motors are BLDC to reduce consumption
still further and make flow adjustment more precise.
The packing is made of suitable material and carried out by
expert personnel. All units are checked and tested and are
delivered complete and in perfect conditions, however please
perform the following instructions to check the quality of
shipping services:
- upon receipt, check if the box is damaged.If that is
the case, accept the goods with reservations and keep
photographic evidence of any damage found
- unpack and check the contents against the packing list.
- check that none of the parts have been damaged
during shipment.In case of damage, report it to the
shipping company within 3 days of receipt by registered
letter with return receipt and attaching photographic
documentation. A copy should also be sent by fax to the
MANUFACTURER. No notice of damage will be accepted
after 3 days from delivery.
Description
Storage
The energy consumption is extremely reduced thanks to
absorption values falling down under 300 W in the case
of partial load. At the nominal cooling power of 2.35 kW
Soloclim has an EER equal to 3.24 (10 HP) and 3.22 (12
HP) which allows an energy efficiency ratio of “A+” to be
obtained, this is the cutting edge in the sector of monobloc
climate control systems with fixed installation.
Easy to install
Soloclim can be installed on any perimeter wall either low or
high. Everything needed for installation (template, support
bracket, hole pipes and external grids), excluding the drill, is
included in the box.
Folding external grids
Soloclim is equipped with folding grids activated by inlet
and outlet air.They open when the unit is working and
close when it's turned off. Better indoor comfort, less dust,
noise and pollution, less maintenance and even less outdoor
visibility.
Remote control and touch-screen display
In addition to the remote control, the touch-screen display
on the unit enables the setting of any function.There's even a
"lock" mode to avoid any improper use. With a simple action
on the touch screen display, the "heating" function can be
deactivated: the appliance will then operate in "cooling" only,
without the need for the condensate discharge pipe. The
orientation of the air flaps can also be adjusted by simply
pressing one key.Receipt and unpacking
Keep the packing at least through the warranty
period, in case you need to ship the air-conditioner to
the service centre for repair. Dispose of the packing
materials in compliance with current regulations on
waste disposal.
Store the box in a closed environment protected from
atmospheric agents and isolate it from the floor using planks
or pallets.
Do not turn the carton upside down

6
Soloclim
GB General
Packaging SC17 SC22 SC23DCI
Weight Kg 47,6 48 48,5
Lmm 110 0 1110 1110
Hmm 660 660 660
Pmm 260 260 260

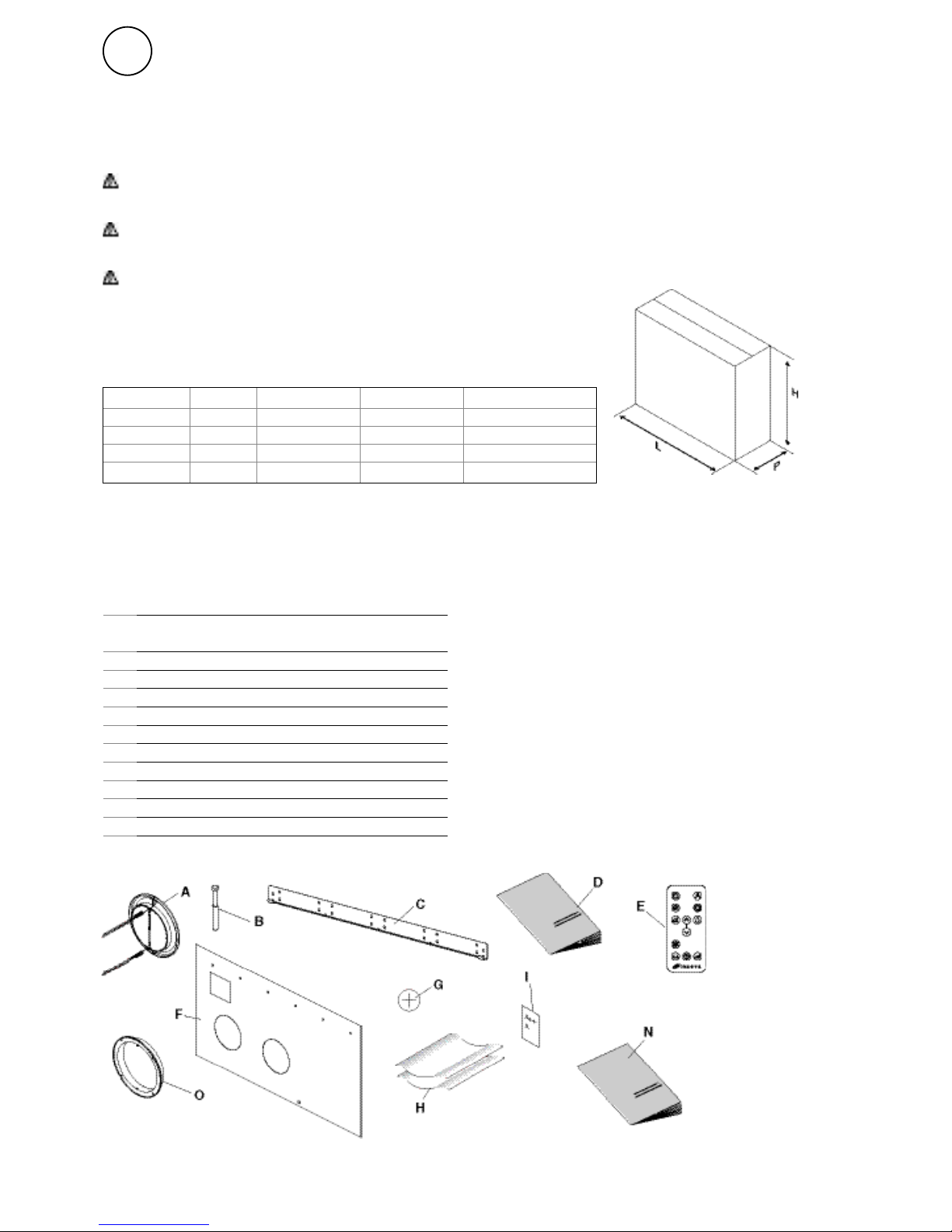

The supply comprises of the parts listed in the following table.
Before assembly, please check that they are all at hand.
A External grids for air inlet and outlet with springs and chains
(2 pcs)
B Screws and plugs kit (6 pcs)
C Bracket for wall mounting
D User manual
E Remote control
F Paper template for holes.
G CR2025 3V remote control battery
H Wall inlet pipes (2 pcs)
I Energy efficiency label
N Installation manual
O Counter-flange for internal wall
The unit is packed singularly in a cardboard box. Boxes can
either be carried singularly by hand by two operators or
loaded on a cart, for a maximum of three units.w
Handling must be performed by qualified personnel,
with specific tools and with equipment suitable for the
weight of the appliance.
The appliance is unbalanced on the right (compressor
side)
During transportation, the appliance must be kept in
vertical position.
Handling
Shipping dimensions and weight
Supplied components

7
Soloclim GB General

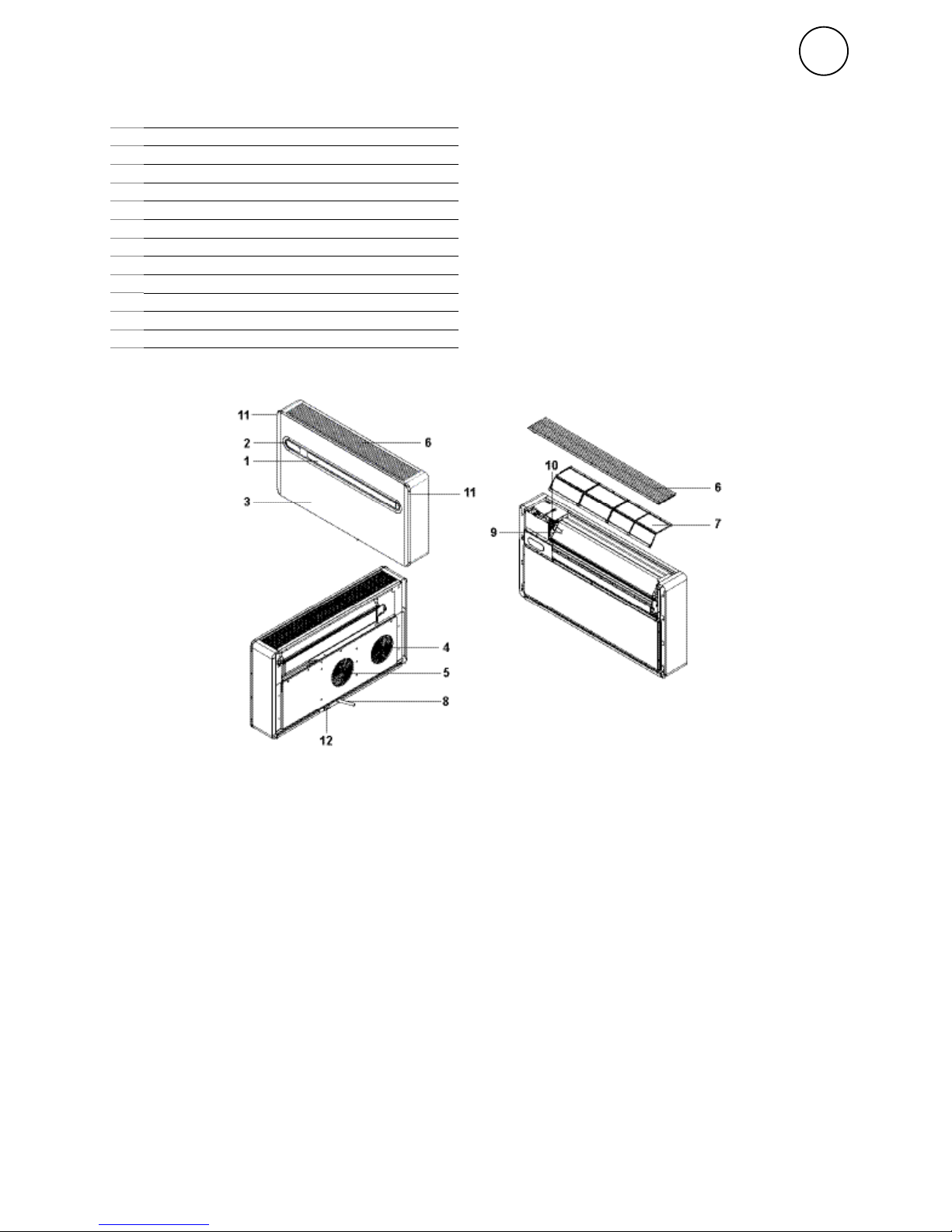

1 Air outlet flaps
2 Touch screen display
3 Front panel
4 Outdoor air suction
5 Outdoor air outlet
6 Internal air intake grille
7 Air Filter
8 Condensation drain pipe
9 Room air probe
10 Power supply terminal board
11 Aesthetic side panel
12 Anti-lifting bracket
Unit parts

8
Soloclim
GB Installation
Before installing the conditioner, it is essential to calculate
the summer thermal loads (and winter ones for the models
with a heat pump) of the room. The more calculations
are exact, the better the product will work. Please
refer to current regulations to carry out calculations.
For big installations please call a study specialised in
thermotechnics.
For a better performance of the appliance and to avoid
malfunctions or dangerous situations, the location of the unit
must meet the following requisites:

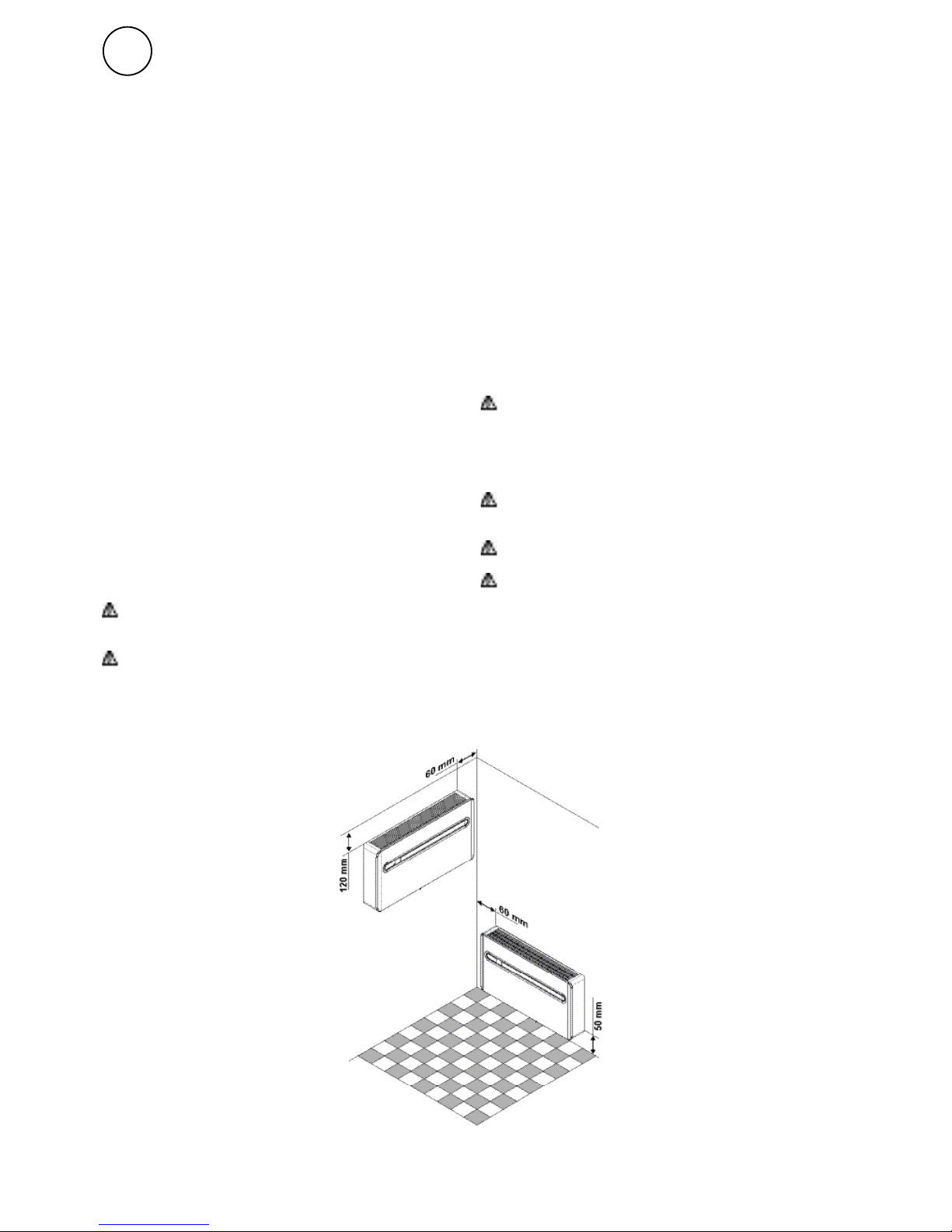

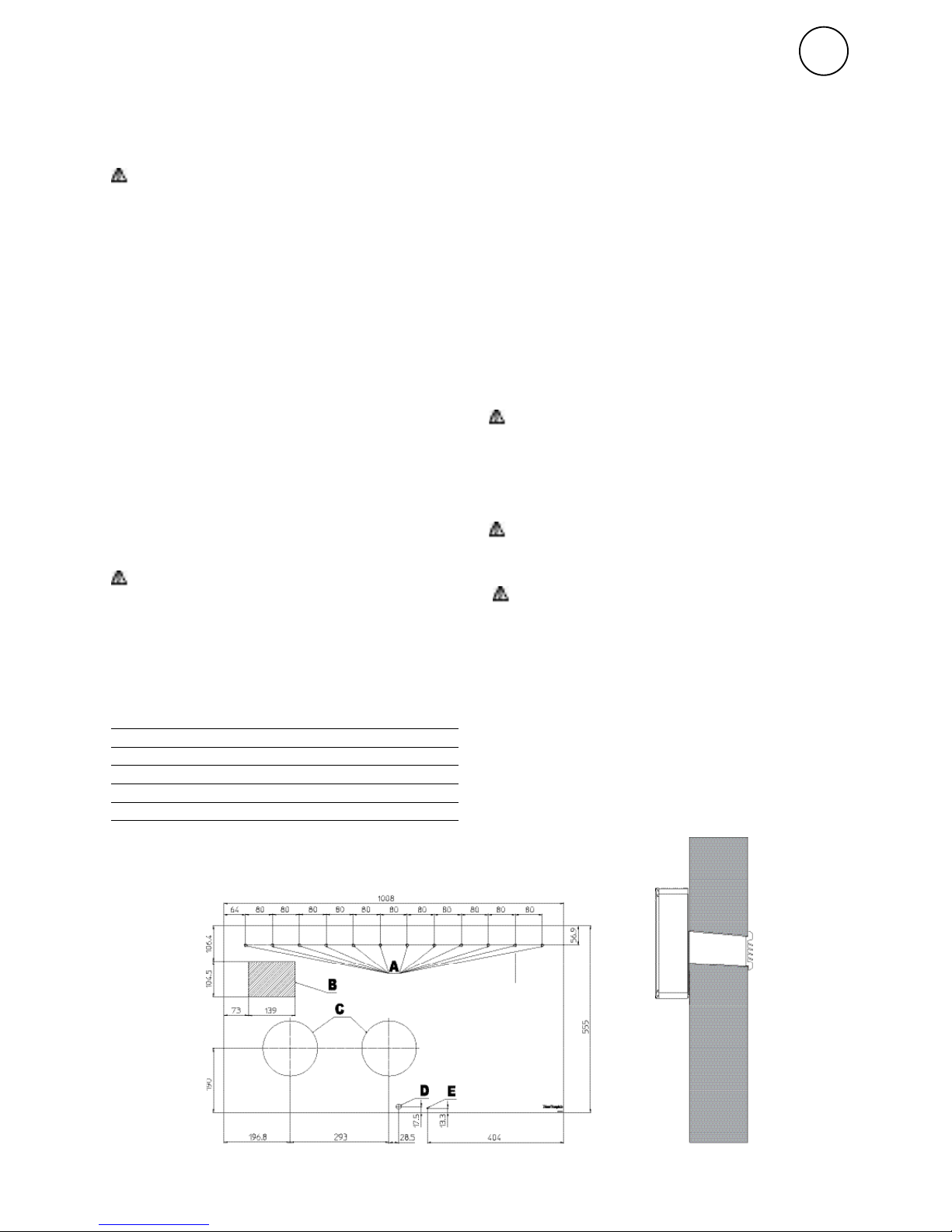

- Respect the minimum distances indicated in the picture.
- The wall on which you wish to anchor the unit must be
robust and able to support its weight.
- Leave enough space around the unit to perform
maintenance operations.
- Nothing must obstruct the air flow both in the top suction
part (curtains, plants, furniture) and in the lower outlet
part, as it could cause vibrations which might prevent the
appliance from working correctly
The appliance must be installed against a wall
communicating with the outside.
The appliance is declared to have a degree of protection
IPX0, therefore it is not suitable for outdoor installation.
Installation
Installation mode
Choosing the position of the unit
Try to reduce the thermal refrigeration load of the room
following instructions below:
- Cover large windows exposed to sunlight with curtains
or with external maskings (blinds, porches, reflecting
films, etc.).
- The room must remain closed for as long as possible.
- Avoid turning on halogen lamps or other high energy
consumption appliances such as small ovens, steam
irons, cooking plates etc.
Check that there are no structures or systems (beams,
pillars, hydraulic pipes, electrical cables etc.) in the part
that must be drilled. Check that nothing is placed in front
of the holes thus obstructing the air flow (plants and
leaves, panelling, shutters, thick grates or grids, etc.)
The unit shouldn't be installed in a position where the air
flow aims directly at the people nearby;
Do not force the air flap open;
The appliance must not be installed directly above
another electrical appliance (TV, radio, fridge, etc.) or
above a source of heat.w

9
Soloclim GB Installation
For the unit to work, two holes Ø162 must be placed as
indicated on the template;
The maximum length of the holes is 1 m and there must
be no bends. Use the supplied grids or grids with the
same characteristics.
The holes on the wall must be drilled using suitable
equipment that facilitates your work and that does not cause
damage or excessive inconvenience to Your client. The best
tools to make big holes on walls are special drills (called
"core drills") with a high torque and whose speed can be
adjusted according to the diameter of the hole to make and
to the material. In order to avoid excessive dust and debris
in the room, "core drills" can be combined with suction
systems composed of a vacuum connected to e.g. a suction
cup placed next to the perforation tip.
In order to make the holes, proceed as follows:
- Place the drilling template provided against the wall
respecting the minimum distances: from the ceiling,
from the floor and from the side walls, indicated on the
template itself, which can be held in the correct position
by using some tape.
- Mark the centre of each hole with a small drill or a
punch before actual drilling.
- Using the core drill, make two holes for inlet and outlet
air.
The holes must be drilled slightly downwards to prevent
water from entering.
A Holes for M8 plugs
B Electrical connection area
CØ162 mm Holes for air channelling
DØ14 mm Condensation drain
E Anti-lifting bracket hole
The majority of the removed material is expelled outwards,
so please be careful that it doesn't hit people or objects. In
order to avoid breaking the outer plaster, be careful while
drilling the final part of the hole and ease the pressure on the
core drill.
Drill the 6 holes for the bracket as indicated on the template.
The appliance weights more on the right, so make sure to
secure it properly on this side. The holes must have an 8 mm
diameter to accommodate the 6 supplied plugs.
A thorough examination of the characteristics and
consistency of the wall must always be carried out to
determine the amount of fixings to be made and to
choose specific plugs in particular conditions. In the case
of installation on a plasterboard or on walls with low
consistency arrange, if necessary on the outside, a bracket
that can support the machine safely.
The manufacturer cannot be held responsible for
any underestimates of the structural consistency of
the anchoring arranged by the installer. We therefore
encourage you to pay the utmost attention to this
operation as, if performed badly, it could cause serious
damage to people and objects.
Drill a hole in the position indicated on the template
for those heat-pump appliances without a condensation
drain built in the wall in order to enable the draining of
condensation.
A hole is also indicated on the template to secure the
machine on the wall with an anti-lifting bracket, which
is already on the machine.
Assembling the unit

10
Soloclim
GB Installation
For heat pump appliances, a condensation drain pipe (Ø10
mm, internal, not supplied) must connect the unit to the
pipe on the top part of the appliance.
A solenoid valve will start the flow of the condensation from
the internal collection tray when the maximum level has
been reached. For cooling only appliances, said pipe must
be connected if the appliance is going to be used with low
external temperatures (below 23°C). The drainage occurs by
gravity. For this reason, it is essential for the line to have at
least a 3% minimum slope in every point. The pipe to be used
can be rigid or flexible with a minimum inner diameter of
10 mm. If the line flows into a sewer system, it is necessary
to add a siphon before placing the pipe into the main drain.
Said siphon must be placed at least 300 mm under the
mouth of the appliance.
1 Safety drain to empty tray
2 Condensation drain duct
Once the holes have been made, place the supplied plastic
sheets inside them.
Roll up the sheet and insert it in the hole, checking that the
A junction line is aiming upwards.
Use a cutter to remove any excess pipe.
To place the external grids, proceed as follows:
- connect the chains to the ends of the springs;
- fold the external shutters;
- insert your arm in the hole to push the shutter outside
while holding the ends of the chains with the other hand
to prevent them from falling down;
- open the shutter inside the hole;
- rotate the shutter to bring the flap in the vertical C
position and check that the closing mechanism works;
- pull the chains by tensioning the springs;
- use a bolt cutter to remove any excess chain.
- anchor the hook of the chain to wall B.
Condensation drain predisposition
If the line flows into a container (e.g. a tank), do not
close the container hermetically and avoid immersing
the draining pipe into the water.
The hole for the condensation pipe must always lean
towards the outside.
The exact position in which to place the pipe mouth is
indicated on the template.
Check that the expelled water does not cause any
damage or problems to people or objects. During winter,
this water may create sheets of ice outside.
When connecting the condensation drain, be careful not
to squeeze the rubber duct.
It is possible to empty the collection tray using the
safety drain at the base of the appliance if necessary.
Assembling air ducts and external shutters
Use only the supplied grids or grids with the same
characteristics.
The shutters must be positioned with the flap in vertical.
The shutters are different. Should be distinguished from
that position on the recovery from the one place on the
delivery, according to the opening direction of the fins.

11
Soloclim GB Installation

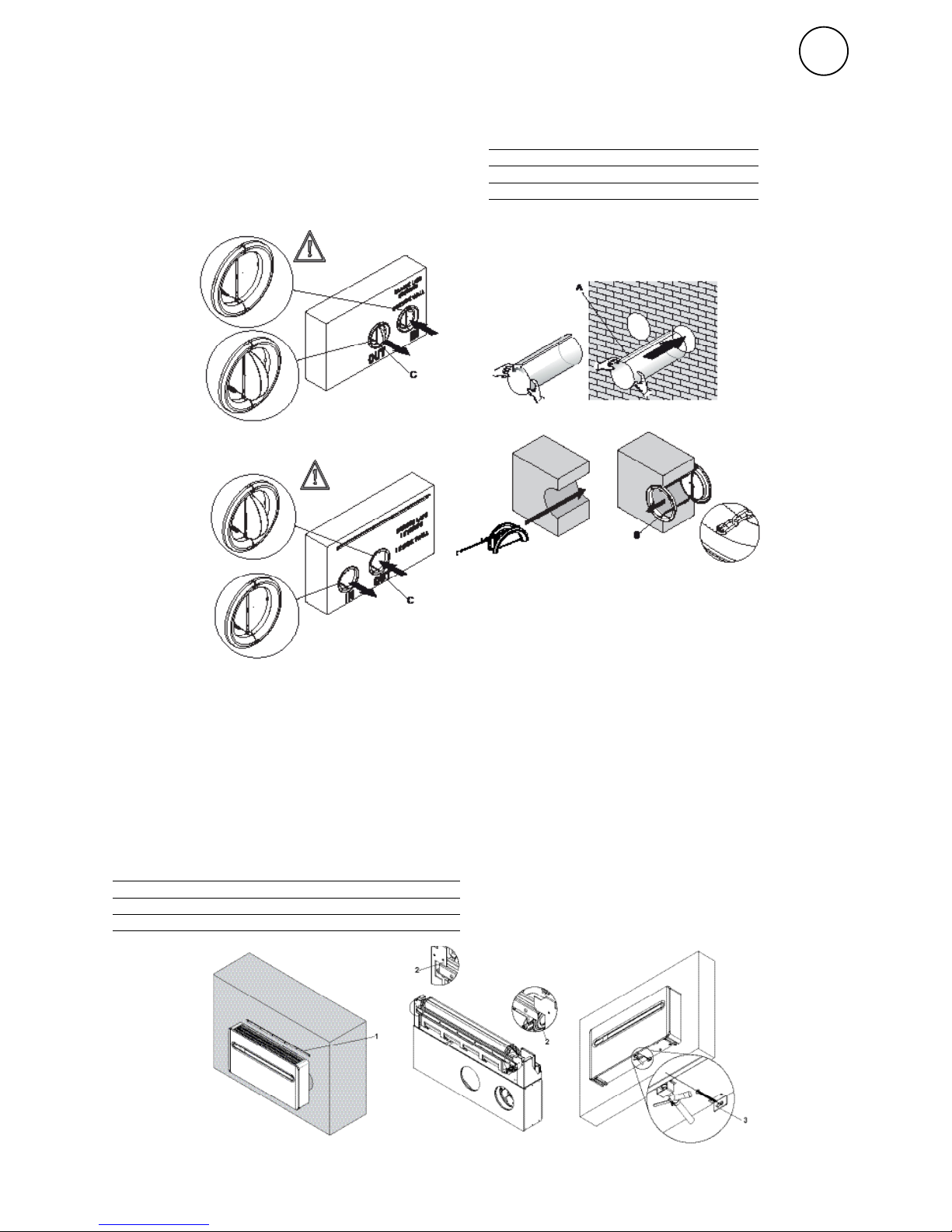

1 Bracket
2 Bracket anchoring points
3 Anti-lifting bracket
A Junction line
B Hook
C Flap in vertical position
After checking that the bracket is anchored to the wall and
that all necessary electrical connections and condensation
drain predispositions have been made, you can mount the
conditioner. Lift it by the sides of the bottom base until
the bracket fits on all of the right spots on the appliance.
In order to ease the operation, slightly tilt the appliance
towards you.
Direct electrical connections (disconnecting the power supply
cable) and the anchoring of the condensation drain must be
Once installation of the grilles is complete check their
opening (towards the inside of the duct for the air inlet
grid "IN" and towards the outside of the duct for the air
outlet grid "OUT"). Remember that the grilles open when
the external air flow is activated, to allow the cooling and
heating functions to be operated. The conditioner must be
activated for cooling or heating in order to test them.
Mounting the appliance on the bracket
carried out after having spaced the appliance from the wall
using a wooden wedge or any other similar object.
Once the work is done, check that there are no openings on
the back of the appliance, especially where the air ducts are
connected. The machine can be secured to the wall with a
dedicated anti-lifting bracket in order to improve installation
safety,
this is located on the rear part of the machine. The drilling
position is reported on the installation template.

12
Soloclim
GB Installation
The appliance is equipped with a power cord and plug
(Y-type connection, the cord can only be replaced by the
manufacturer, the assistance centre or a qualified installer).
If using a socket near the appliance, insert the plug.
Before connecting the conditioner check that:
- The power supply voltage and frequency values comply
with the data plate of the appliance.
- The power supply line is provided with a suitable earth
connection and that it is dimensioned for the maximum
absorption of the conditioner (minimum cable section
equal to 1.5 mm2).
- Power is only supplied using a suitable socket through
the supplied plug.
If the supply cable is replaced this has to be done
exclusively by the technical assistance service or by
authorised personnel and in compliance with current
national regulations.
The appliance must be connected to 230V/50 Hz mains
via an omnipolar switch with a contact opening distance
of minimum 3 mm, or using a device enabling the
complete disconnection of the appliance in overvoltage
III category conditions. It is possible to carry out the
electrical connection using a cable inside of the wall as
indicated in the installation template (recommended for
installations in the upper part of the wall).
When the CP contact opens (very low voltage, connected to
a free non-live contact) the appliance is put is stand-by and
CP appears on the display.
Using this contact, it is possible to connect an external
device that inhibits the functioning of the appliance such
as: open window contact, on/off remote, infrared presence
sensors, enabling badge, etc.
We recommend using a double insulation cable.

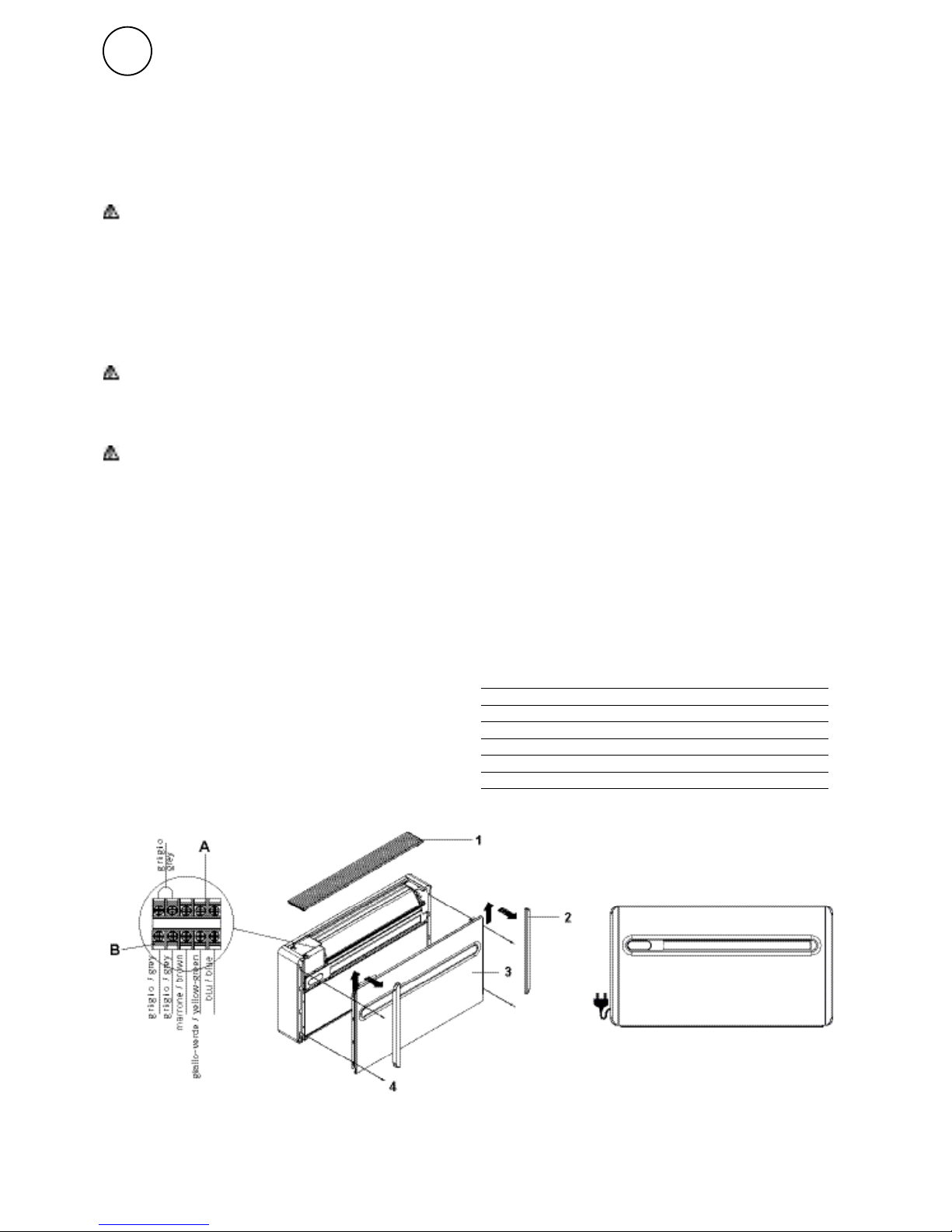

A 230V/50 Hz Electrical power supply terminal board
B CP presence contact
1 Upper grill
2 Plastic side panels
3 Front panel
4 Fixing screws
Electrical connection
CP presence contact input connection
Please check that the power supply is provided with
suitable protections against overloads and/or short-circuits
(using a 10 at delay fuse or other equivalent devices is
recommended).
To prevent any risk of electrocution, always disconnect the
main circuit breaker before making electric connections or
performing any maintenance on the units.
To carry out direct connections and substitute the power
cord using the cable in the wall, proceed as follows:
- Remove the upper grill.
- Remove the two plastic side panels, by lifting them
upwards.
- Undo the front panel fixing screws.
- Remove the front panel.
- Disconnect the power cord by unscrewing the 3 screws
from the terminal board.
- Connect the wall cable checking that the power supply
line is provided with a suitable earth connection and
that it is dimensioned for the maximum absorption
of the conditioner (minimum cable section equal to
1.5mm2).

13
Soloclim
A
B
1
1
2
6
5
34
GB
Installation
The unit can be installed either in the lower part (near the
floor) or in the upper part (near the ceiling) of the wall. In
order to optimise air distribution and comfort, the direction
of the air flow can be modified by adjusting the position of
the air flap.
The appliance is supplied ready to be installed in the lower
part of the wall, so air is dispensed upwards.The same
• Open the air outlet flap gently
• Remove the flap opening block insert located internally
on the right of the air outlet mouth and place it in the
lower hole.
• Remove the upper grill
• Remove the two plastic side panels by moving them up
• Unscrew the fixing screws
• Remove the front panel
• Place the bottom cover and fix it with the supplied
screws (optional kit GB0737)
• Refit in the reverse order.
After adjusting the air outlet flap position, it is necessary to
set up the electronic control of the appliance:
- Keep pressed the button on the display for 5
seconds;
- The dn (lower wall) symbol flashes on the display;
- Press the key again;
- The uP (upper wall) symbol lights up on the display.
- If no other operations are performed in the following 2
seconds, the new setting is memorised.
A High installation
B Low installation (factory settings)
1 Block insert
2 Lower cover (kit code GB0737)
3 Fixing screws (supplied with the optional kit GB0737)
4 Upper grill
5 Plastic side panels
6 Front panel
High/low installation configuration
configuration can also be used in the upper part of the wall
in cooling mode, which increases the air flow in the room
(coanda effect).
In this case, purchase the the lower cover aesthetic kit code
GB0737.
This operation must be performed while the appliance is
switched off and disconnected.
Modifications from lower wall to the upper wall position
For the appliance to work properly, each time the
configuration of the air outlet flap is modified, the
electronic control must be set.

14
Soloclim
GB Installation
Should any anomaly occur in the condensation water
system, the maximum level float blocks the conditioner and
the OF code appears on the display.
During cooling and dehumidification, electronics switches
the compressor off and keeps the water distribution system
active with the battery - together with the fan - to disperse
excess water in the container. If the problem persists, please
contact the assistance service.
During heating, condensations should drain freely through
the specific pipe. In the event of an alarm, check that the
condensation pipe is not bent or obstructed, thus preventing
the water from flowing out.
If the presence contact is not closed, the appliance doesn't
start and the CP alarm appears on the display.
The key lock is activated by keeping the Timer symbol on
the touch-screen display pressed for three seconds.
Operating aspects that must not be interpreted as problems
Managing the appliance if the remote control is not available.
To deactivate the lock, keep the Timer symbol pressed for three
seconds once again.
The lock remains active also for the next operations performed
via remote control and in the event of a power failure.
Press and hold the air exchange key ( ) for 10 seconds to
enable the function ("En" displayed); the dehumidification
and Auto functions are disabled (leaving active only
ventilation, heating and cooling) and the settable set range is
reduced from 22 to 28 in cooling mode and from 16 to 24 in
heating mode.
The display brightness sensor can be disabled (leaving the
maximum brightness at all times) by pressing and holding
the night button ( ) for 10 seconds. "ds" (disabled) or
"En" (enabled) will appear on the display.
Display
indications
Cause
E1 Broken room temperature RT probe
E2 Broken evaporative battery IPT probe
E3 Broken outdoor air temperature OT probe
E4 Broken conditioner battery OPT probe
E5 Broken indoor air fan motor
E6 Broken outdoor air fan
E7 Lack of communication with the display
E8 Compressor discharge probe failure (only for DC Inverter models)
If the conditioner blocks because of an alarm (see following
table), please communicate to the assistance centre the code
on the display to facilitate interventions.
It is possible to deactivate the heating or the cooling modes
following a simple procedure.
Keep the A key on the touch-screen display pressed for
5 seconds until HC (heating and cooling) appears on the
display.
Press the A key for 1 second for the Co (cooling only) mode.
Press the A key again for Ho (heating only) mode.
Wait for 3 seconds without touching anything to memorise
the setting.
Setting cool only or heat only modes
Brightness regulation
Touch-screen display key lock
Hotel function
Anomaly diagnosis
Open CP contact
Evacuation of condensate water in the event of an emergency

15
Soloclim GB Maintenance
Objects or structural obstacles (furniture, curtains, plants,
leaves, blinds, etc.) must not obstruct the normal air flow
both from the internal and from the external grids.
Do not lean against, or worse sit on, the body of the
conditioner, this would damage the appliance.
Do not move the horizontal air outlet flap manually.
Always use the remote control to perform such operation.
In the event of water leaks, turn off the appliance and
disconnect the electric power supply. Call the nearest
service centre.
Before leaving the site it is advisable to collect the packaging
and eliminate all traces of dirt that has deposited on the
unit during assembly using a damp cloth. These operations,
which are not strictly necessary, in any case allow for a more
professional appearance of the installation in the eyes of the
User.
To avoid unnecessary calls by the User, before leaving the
site it is also a good idea to:
- show them the contents of the Manual,
- show them how to clean the filter,
- explain when and how they should contact Customer
Service.
Use of the appliance
During heating mode, the conditioner eliminates
periodically any ice formed on the external battery. In
such situation, the machine keeps on working but it does
not dispense warm air to the room. This phase can last 3
up to maximum 10 minutes.
The appliance must not be installed in rooms where
explosive gases develop or where there are humidity and
temperature conditions that exceed the maximum levels
reported on the installation manual.
Clean the air filter regularly as described in the specific
paragraph.
Operations after installation

16
Soloclim
GB Maintenance
Disconnect the unit from the power supply before each
cleaning and maintenance intervention by setting the
main power supply switch to off.
Wait for the components to cool down in order to avoid
any burns.
Do not use abrasive sponges or abrasive or corrosive
detergents as you might damage the painted surfaces.
When necessary, clean the external surfaces with a soft damp
cloth.
The air conditioner you have bought has been designed to
keep maintenance operations to a minimum, in fact, they
only include the following cleaning operations.
• Clean the air filter after a period of continuous use and
according to the concentration of impurities in the air, or
when you wish to start-up the appliance after a period of
inactivity. N.B.: before performing any operation, take care
with the hot and/or sharp surfaces of the metal.
The filter is placed in the top part of the appliance.
To extract the filters:
• open the grid and remove it;
• extract the filters by lifting them;
• remove the dust from the filter with a vacuum cleaner or
by washing it in running water without using detergents or
solvents and leave to dry;
• put the filters back on top of the batteries, taking care to
position them correctly;
• put the grid back.
After filter cleaning check if the panel is properly
mounted.
It is forbidden to use the device without its mesh filter.
The air conditioner you have bought has been designed to
keep maintenance operations to a minimum, in fact, they
only include the following cleaning operations:
Periodic maintenance
Cleaning the filters
External cleanings
Maintenance

17
Soloclim GB Maintenance
In case of malfunctioning, please refer to the following table. If, after performing the suggested
checks, the problem is not solved, please contact the authorised technical assistance.
An alarm code appears on the display in case of anomalies. Some of the functions
remain active nonetheless (see FUNCTIONING column).
The only way to solve the problem is to disconnect and
reconnect the appliance.If the alarm still appears, please
contact the authorised technical assistance.
* for DC Inverter models: lack of communication between the main, power, driver or display boards
Anomaly Possible causes Solution
The appliance
doesn't switch
on
No power supply
Check the voltage (by turning the light on, for example).
Check that the exclusive magneto-thermic switch that protects the appliance
hasn't intervened (if it has, reset it). If the problem repeats immediately, please
call the Service Centre and avoid trying to make the appliance work.
Batteries ran out Check that the appliance can be turned on using the touch-screen display and
substitute the batteries.
The appliance
does not cool/
heat enough.
The temperature set is too high or too low. Check and adjust the temperature on the remote
The air filter is clogged Check the air filter and clean it if necessary
Check that there are no other obstacles of the
air flow both inside and outside. Remove anything that might block the air flow.
The thermal refrigeration load has increased
(for example, a door or a window has been
left open or an appliance has been installed in
the room which generates a lot of heat).
Try to reduce the thermal refrigeration load of the room following instructions
below:
- Cover large windows exposed to sunlight with curtains or with external
maskings (blinds, porches, reflecting films, etc.).
-The room must remain closed for as long as possible.
- Avoid turning on halogen lamps or other high energy consumption
appliances such as small ovens, steam irons, cooking plates etc.
Alarm Cause Operation
E1 Broken room temperature RT
sensor
It is still possible to activate the Cooling, Dehumidification and Heating modes. It only monitors
the antifreeze function of the internal battery.
E2 Broken internal battery IPT sensor None of the modes can be activated.
E3 Broken outside temperature OT
sensor None of the modes can be activated.
E4 Broken outside battery OPT sensor It is still possible to activate the Cooling, Dehumidification and Heating modes. Defrosting is
performed at fixed times.
E5 Broken internal fan motor None of the modes can be activated.
E6 Broken external fan motor None of the modes can be activated.
E7 Lack of communication with the
display * None of the modes can be activated.
E8 Compressor discharge probe
failure * None of the modes can be activated.
CP Open CP contact The appliance only works if the contact is closed. Check that the clamps are connected.
OF Maximum level float intervention
During cooling and dehumidification, electronics switches the compressor off and keeps the
water distribution system active with the battery - together with the fan - to disperse excess
water in the container. During heating, condensations should drain freely through the specific
pipe. In the event of an alarm, check that the condensation pipe is not bent or obstructed, thus
preventing the water from flowing out.
Trouble shooting
Display alarms

18
Soloclim
GB Maintenance
Please read data plate to obtain the technical data listed below.
• Power supply voltage
• Maximum absorbed power
• Maximum absorbed current
• Amount of refrigerant gas
• Casing protection level
• Max. working pressure
Reference standards EN 14511. 1. 2.3.4
*) with Dual Power function activated during heating
**) Noise pressure measured 1 m away and 1.5 m high
SC17 SC22 SC21DCI SC23DCI
Cooling power (1) kW 1.65 2.30 2.04 2.35
Power in max cooling mod. Dual Power kW 2.60 3.10
Heating power (2) kW 1.70 2.25 2.36 2.36
Power in max heating mod. Dual Power kW 2.64 3.05
Power absorbed when cooling (1) W 580 850 630 730
Power absorbed when heating (2) W 545 725 638 720
Dehumidification capacity l/h 0.8 1.1 1. 0 1.1
Power supply voltage: V-F-Hz 230-1-50 230-1-50 230-1-50 230-1-50
EER W/W 2.84 2.71 3.24 3.22
COP W/W 3.12 3.1 3.29 3.28
Energy efficiency ratio when cooling A A A+ A+
Energy efficiency ration when heating A A A A
Internal-external ventilation speed No. 3 3 3 3
Dimensions (WxHxD) mm
1030x555x170 1030x555x170 1030x555x170 1030x555x170
Weight kg 47.6 48.0 48.5 48.5
Noise level (min-max) ** dB(A) 29/38 32/41 27/41 27/41
Wall holes diameter mm 162 162 162 162
Wall holes distance mm 293 293 293 293
Refrigerant gas R-410A R-410A R-410A R-410A
R410A refrigerant charge g 480 520 520 520
Maximum absorbed power W 690 920 1060 * 1060 *
Maximum absorbed current A 3 4.1 4.8 * 4.8 *
Maximum working pressure PS MPa 3.8 3.8 3.8 3.8
Degree of protection IPX0 IPX0 IPX0 IPX0
T ambient External t
(1) Cooling mode tests DB 27°C - WB 19°C DB 35°C - WB 24°C
(2) Heating mode tests DB 20°C - WB 15°C DB 7°C - WB 6°C
Internal ambient temp. Outside ambient temp.
Maximum operating temperature in cooling mode DB 35°C - WB 24°C DB 43°C - WB 32°C
Minimum operating temperature in cooling mode DB 18°C DB -5°C
Maximum operating temperatures in heating DB 27°C DB 24°C - WB 18°C
Minimum operating temperatures in heating DB 5°C DB -10°C
Technical specifications
Refer conditions
Operating limits

Main office
Frico AB Tel: [phone]
Box 102
SE-433 22 Partille [email protected]
Sweden www.frico.se
For latest updated information and information
about your local contact: www.frico.se
