Frigidaire FRS093LS1 User manual

8. The site must allow for the easy
removal of the connector pipe and
drain hose.
9. The unit must be installed at a site
protected from direct sunlight.
Precautions for Installation
Installation at the following sites may cause problems. If you must inevitably install
2. Sites with a high concentration of salinity, such as coastal areas.
3. Sites with sulfuric gas, such as hot water springs.
4. Sites with high frequency equipment, such as wireless equipment, welding
machines and medical installations.
5. Sites with flammable gases or volatile material.
6. Sites with special environmental conditions.
7. Laundry rooms.
Indoor Unit
1. The unit must be installed at a site
that does not obstruct the flow of
air.
2. The site must support the weight of
the indoor unit.
3. The site must be easily accessible
for maintenance and replacement
of the air filter.
4. The site must allow for the
necessary space around the indoor
figure.
that the unit be installed at the
flammable gases.
Choosing the installation site
More
More
More
More
Choosing the installation site
the unit at one of these sites, please consult your local distributor beforehand:
1. Sites with machine oil.
unit, as shown in the sideward
meter) between the unit and radio
5. There should be at least 3 feet (1
7. The indoor unit must be at least 7.5
feet (2.3 meters) from the ground.
6. It must be far from fire, smoke or
center.
or television devices. It is ideal
than 6"
than 5"
than 7.5'
than 5"
Installation warnings:
Installation
1. Carefully read the installation manual before beginning.
2. Follow each step as shown.
3. Observe all local, state, and national electrical codes and by qualified,
licensed, authorized personnel only.
4. Pay attention to danger and safety notices
07

Outdoor Unit
1. The outdoor unit must be
installed at a convenient site
that is not exposed to strong
winds. The site should be dry
and well ventilated.
2. The site must support the weight
of the outdoor unit and allow
for vertical installation.
3. There must not be the possibility
of increased noise and vibration
at the site.
4. The unit must be installed at a
site where the noise produced
by its operation and air
discharge does not disturb the
neighbors or animals.
5. The site cannot have any
leakage of flammable gases.
space around the unit, as shown
access the installation site.
More
More
More
More
More
Choosing the installation site
in the figure.
6. The site must provide enough
7. Children must not be able to
07
than 1 feet
than 2 feet than 1 feet
than 2 feet
than 6.6 feet

Parts list
2
54
3
1
Indoor unit
Outdoor unit
Parts list
Installation plate
Clip anchor
Seal
Drain Joint
.
1
2
3
4
5
1
2
1
1
10
8
1
1
Remote controller
Remote Controller holder
Connecting
pipe
assembly
Liquid side
Gas side
NUMBER PART NAME QTY
(capacity < 12000 Btu's)
(capacity < 12000 Btu's)
(capacity < 9000 Btu's)
(capacity > 12000 Btu's)
Ø3/8"
Ø1/4"
Ø1/2"
Ø3/8"
Ø5/8"
Self-tapping screw A #7X1"
Self-tapping screw B #7X3/4"
1
6Connecting cable
8
9
10
71
08
89
10 10
98
(capacity > 12000 Btu’s)

Attention
1. This illustration is for explanation purposes only.
5
4
23
1
Indoor unit
Outdoor
unit
6
Air filter
More
A
BC
Parts list
2. Copper tubes must be insulated independently
More than 5"
More than 6"
More than 5"
09
8
9
10
6
7
More than 2 feet
than 2 feet
More than 6.6 feet
More than 1 feet

Attention
Fixing the Installation Plate
Drilling the Hole
1. Install the installation plate
horizontally over the structural
parts on the wall using the spaces
indicated on the plate, as shown
2. In the case of tiled, concrete or
diameter holes. Place anchorage
supports for the appropriate
assembly screws.
3. Fix the installation plate to the
1. Determine the position of the
installation plate and drill the
downward.
2. Always use a pipe cover with an

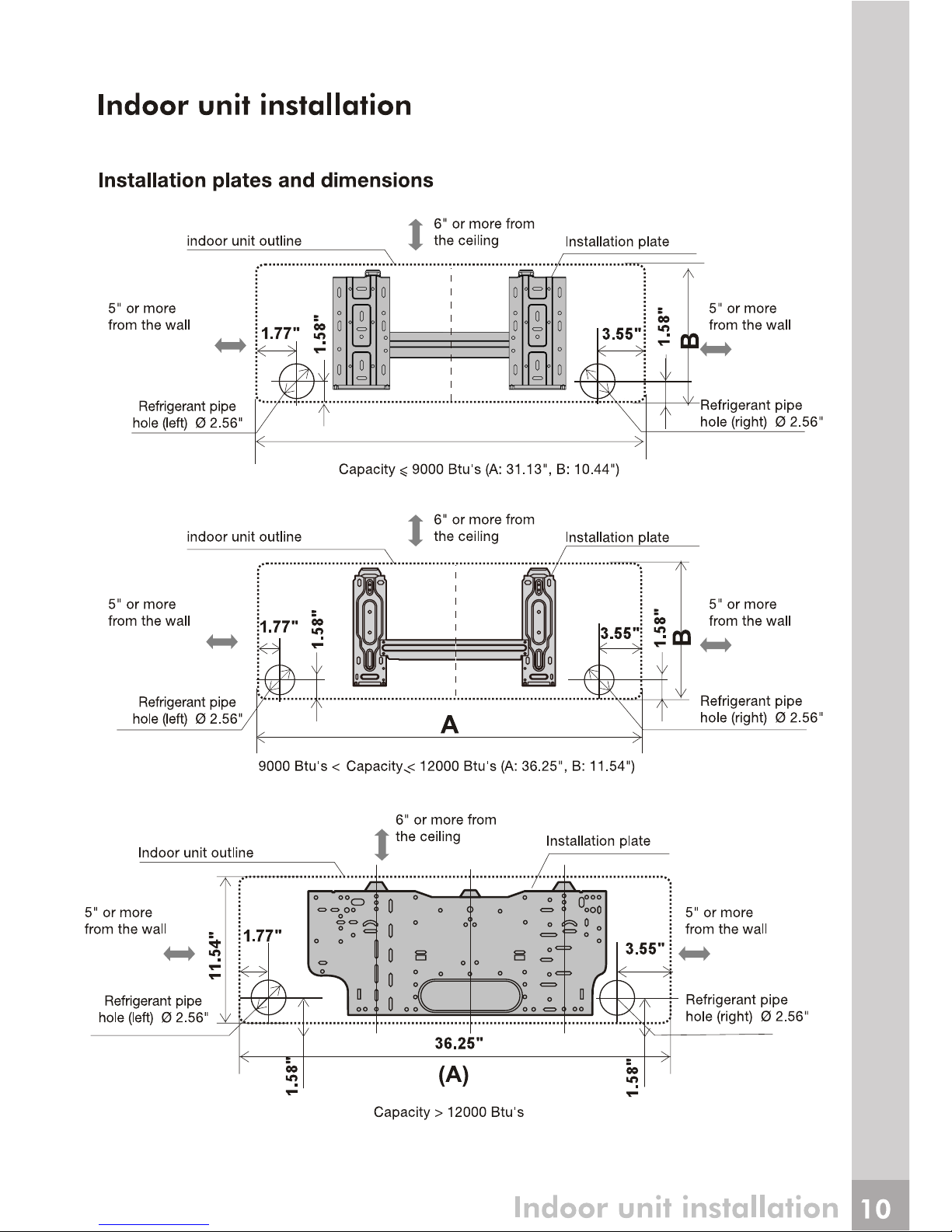

Installation plate
Fit the Installation Plate and drill holes
in the wall according to the wall
structure and corresponding mounting
points on the installation plate
(Dimensions are in “mm” unless
otherwise stated).
Wall
Indoor unit Outdoor unit
Indoor unit installation
(B)
Indoor unit outline Installation plate
the ceiling
from the wall from the wall
Refrigerant pipe Refrigerant pipe
Capacity
< 12000 Btu's
3.15
in the figures above.
A type screws.wall with eight
hole for the pipes using the
pipe hole so that it is tilted slightly
opening when drilling.
6" or more from
5" or more
hole (left) Ø 2.56" hole (right) Ø 2.56"
5" or more
3.55"
1.77"
1.77"
1
0.72"
11.54"
19.27"
1.77"
36.25"
0.2"-0.28"
4. At all times securing to the wall
studs is recommended.
11
similar walls, create 0.2 inch

Connective pipe and drainage installation
Drainage
1. Run the drain hose sloping
downward. Do not install the drain
2. When connecting extension drain
hose, insulate the connecting part
of extension drain hose with a
shield pipe, do not let the drain
hose slack.
Connective pipe
1. For the left-hand and right-hand
piping, remove the pipe cover from
2. For the rear-right-hand and rear-left-
hand piping, install the piping as
connective pipe.
Indoor unit installation
1. Pass the piping through the hole in
the wall.
2. Put the upper claw at the back of
the indoor unit on the upper hook of
the installation plate, move the
indoor unit from side to side to see
that it is securely hooked.
Upper hook
Lower hook
Fastening the Indoor Unit
Do not put the end
of drain hose into water.
Do not block
water flow
by a rise.
Do not block
water flow
by a rise.
piping
Pipe cover
(left)
Pipe
holder
Pipe cover
(right)
Right piping
Connective
pipe
Indoor unit
outline
Rear right
piping
Rear left
Left piping
hose as illustrated sideward.
the side panel. The pipe cover
must be kept as it may
conditioner
to any other place.
be used
the air
shown in the sideward figure. Bend
the connective pipe to be laid at
the wall. Fix the end of the
when relocating
1.69"
12
a height of 1.69 inches or less from

Attention
Piping and wrapping
1. Bundle the tubing, connecting
cable, and drain hose with tape
2. Because the condensed water
from rear of the indoor unit is
gathered in ponding box and is
anything else in the box.
1. Connect the indoor unit first, then the outdoor unit.
2. Do not allow the piping to let out from the back of the indoor unit.
3. Be careful not to let the drain hose slack.
5. Be sure that the drain hose is located at the lowest side of the bundle. Locating
6. Never intercross nor intertwist the power wire with any other wiring.
7. Run the drain hose sloped downward to drain out the condensed water
smoothly.
Cushioning
material
3. Piping can easily be made by
lifting the indoor unit with a
cushioning material between the
indoor unit and the wall. Get it
out after finish piping.
4. Push the lower part of the indoor
unit up on the wall, Then move
the indoor unit from side to side,
up and down to check if it is
hooked securely.
Indoor unit installation
Indoor unit
Cable
Ponding
box
Pipe room
Wrapping
belt
Drain hose
Connective
pipe
securely and evenly as shown
in the sideward figure.
piped out of room, do not put
connection
at the upper side may cause drain pan to overflow inside the unit.
4. Both of the auxiliary piping should be heat insulation.
13

1. Install the outdoor part of the unit
on a rigid surface to avoid excess
noise and vibration.
2. Direct the air vent toward an area
without obstacles.
especially in areas where it is
frequently windy.
4. If the installation site is exposed to
heavy winds, such as in coastal
areas, place the unit along the
widest part of the wall or use
protective plates.
requirement in the installation
bracket diagram. The installation
wall should be solid brick, concrete
or the same intensity construction,
supporting should be taken.
The connection between bracket
and wall, bracket and the air
conditioner should be firm,
stable and reliable.
6. Be sure there is no obstacle which
Outdoor unit installation
Strong wind
Outdoor unit installation
3. Install the unit at the site where it is
exposed to as little wind as possible,
or action to reinforce, damping
schrubs or bushes.
blocks radiating air, including
14
5. If suspended installation is needed,
local or servicer. The installation
purchase kit No.EA140S from your
bracket should accord with technique

Settlement of outdoor unit
Anchor the outdoor unit tightly and
horizontally on a concrete or rigid
Fit the seal into the drain elbow, then
insert the drain joint into the base
pan hole of outdoor unit, rotate 90
o
to
securely assemble them. Connect
the drain joint with an extension
drain hose (Locally purchased), in
case of the water draining off the
outdoor unit during the heating
Air inlet
Air
inlet
Air outlet
A
B
Outdoor unit installation
Base pan hole
of outdoor unit
Seal Drain joint
Seal
Drain pipe
+=
Drain joint installation
mode or rainy season.
A (inch) B (inch)
Outdoor unit dimension inch(WxHxD)
2.25'x1.41'x0.85'
2.56'x1.77'x0.82'
2.49'x1.94'x0.94'
2.77'x2.28'x1.10'
1.51'
1.80'
1.74'
1.84'
0.82'
0.91'
0.91'
0.95'
1.10'
2.30'x1.76'x0.77'
1.50'
15
separately).
or 0.32 inch diameter (Purchasedy
mount with a bolt and nut 0.39 inch

Flaring work
Main cause for refrigerant leakage is
due to defect in the flaring work.
Carry out correct flaring work using the
following procedure:
1. Cut the pipes and the cable.
A) Use the piping kit accessory or
pipes purchased locally.
B) Measure the distance between the
indoor and the outdoor unit.
C) Cut the pipes a little longer than the
measured distance.
2. Burr removal
A) Completely remove all burrs from
the cut cross section of pipe/tube.
tube/pipe in a downward direction
as you remove burrs in order to
avoid dropping burrs into the
tubing.
indoor and outdoor unit, then put
them on pipe/tube having
possible to put them on after flaring
work)
Refrigerant piping connection
Refrigerant piping connection
Pipe
Correct Wrong
Oblique Roughness Burr
Pipe
Reamer
Point
down
Flare nut
Cooper tube
Remove flare nuts attached to
B) Put the end of the copper
3. Put nut on.
completed burr removal.(It is not
Note: Keep original bend so not kinking of the tube occurs.
16
long, loop for excess.
Unit comes with 16.4 feet tubing bundle. It is not recommended to cut. If too
the pipe length.
D) Cut the cable 4.92 feet longer than

4. Flaring work.
die in the dimension shown in
the table below.
OUTER
Connection Adjustment
1. Align the pipes to be connected.
OUTER TIGHTENING
Caution: Excessive twisting may
break the nut, depending on the
installation conditions.
Refrigerant piping connection
Bar
pipe
Handle
Clamp
handle
Yoke
Red arrow mark
Flare
nut
Pipings
Indoor unit
tubing
Copper
A (inch)
Max. Min.
DIAMETER (inch)
0.051
0.063
0.071
0.095
0.028
0.039
0.039
0.087
2. Screw the flare nut with your
fingers, and then tighten it with
a spanner and torque wrench,
as shown in the following figure.
ADDITIONAL TIGHTENING
DIAMETER (inch)
Firmly hold copper pipe in a
1/4
3/8
1/2
5/8
1/4
3/8
1/2
5/8
TORQUETORQUE (lbf.in)
139 174
260 304
434 477
651 694
(lbf.in)
17

Note: The supply voltage must be consistent with the rate voltage of the air conditioner.
Electrical work
1. If there is serious safety problem
about the power supply, the
technicians should refuse to install
the air conditioner and explain to the
client until the problem is solved.
2. Power voltage should be in the
range of 90%~110%of rated
voltage.
3. The creepage protector and main
power switch with a 1.5 times
capacity of Max. Current of the unit
should be installed in power circuit.
4. Ensure the air conditioner is
grounded well.
5. According to the attached
Electrical Connection Diagram
located on the panel of the
outdoor unit to connect the wire.
6. All wiring must comply with local
and national electrical codes and
be installed by qualified and
skilled electricians.
7. An individual branch circuit
used only for this air conditioner
must be available. See the
following table for suggested wire
sizes and fuse specifications:
Electric safety regulations for the initial Installation
Electrical work
INPUT RATED AMP
Switch / Fuse
POWER SUPPLY SIZE
CAPACITY
<9000 Btu's
9000 Btu's < capacity <12000 Btu’s
> 12000 Btu's
115V~/ 60Hz
115V~/ 60Hz
208/230V~/ 60Hz
15A/15A
20A/20A
20A/20A
AWG WIRE
14
14
12
18

1. The inside and outside connecting
cable can be connected without
removing the front grille.
2. Connecting cable between indoor
unit and outdoor unit shall be
approved polychloroprene
sheathed flexible cord, type
cord.
3. Lift the indoor unit panel up,
remove the electrical box cover by
loosening the screw.
4. Ensure the colour of wires of
outdoor unit and the terminal Nos.
are the same to the indoors
respectively.
5. Wrap those cables not connected
with terminals with insulation
tapes, so that they will not touch
any electrical components. Secure
the cable onto the control board
with the cord clamp.
Connect the cable to the indoor unit
Electrical work
(Heating and cooling model)
(Heating and cooling model)
"Cable A"
"Cable C”
"Cable B"
or
cover
Electrical box
designation 16AWG or heavier
Code wire
1.57"
0.39"
> 12000 btu's CABLE
< 12000 btu's CABLE (Cooling model)
< 12000 btu's CABLE
1.57" 1.57"
1.57"
0.39"
0.39"
0.39"
Code wire Code wire
Code wire
19

Electrical work
COOLING MODEL
HEATING AND COOLING MODE
HEATING AND COOLING MODEL
1 2(N) 3 4 1 2(N) 3 4
or
Terminal block of indoor unit
Terminal block of indoor unit
Terminal block of indoor unit
or
"Connector A"
"Connector A" "Connector B"
To outdoor
unit
To outdoor
unit
To outdoor
unit
1 2 3 4
To Outdoor Unit
9000 and 12000 Btu's 9000 and 12000 Btu's
18000 Btu's
20

1. Remove the electrical control
board cover from the outdoor unit
by loosening the screw.
2. Connect the connective cables to
the terminals as identified with
their respective matched numbers
on the terminal block of indoor
and outdoor units. The connective
cable to power supply shallbe
approved polychloroprene
sheathed flexible cord, type
3. Secure the cable onto the control
board with the cord clamp.
4. To prevent the ingress of water,
cable as illustrated in the
installation diagram of indoor and
outdoor units.
5. Insulate unused cords (conductors)
Connect the cable to the outdoor unit
Screw
Cover
Electrical work
(Heating and cooling model)
(Heating and cooling model)
"Cable D”
"Cable F”
"Cable E”
or
form a loop of the connective
with PVC-tape. Process them so
they could not touch any electrical
or metal parts.
1.57"
0.39"
Code wire
Code wire Code wire
Code wire
1.57" 1.57"
1.57"
0.39"
0.39"
0.39"
< 12000 btu's CABLE
< 12000 btu's CABLE (Cooling model)
> 12000 btu's CABLE
21
designation 14AWG or heavier
cord.

Electrical work
COOLING MODEL
HEATING AND COOLING MODEL
HEATING AND COOLING MODEL
or
o
or
or
"Conector A"
"Conector A"
"Conector C”
"Conector B"
"Conector B"
"Conector D”
Cables
board
Cables
board
Cables
board
Cables
board
Cables
board
Cables
board
41 3
2(N) 41 3
2(N)
134
2(N)
41 3
2(N)
12(N) SNL
To power supply
Terminal block of outdoor unit
Cord clamp
LNG12 3 4
To indoor unit
Terminal block of outdoor unit
Terminal block of outdoor unit
9000 and 12000 Btu's
9000 and 12000 Btu's
18000 Btu's
Terminal block of outdoor unit
22

1. Never fail to have an individual power circuit specifically for the air
conditioner. As for the method of wiring, be guided by the circuit diagram
posted on the inside of control cover.
liable to come loose from vibrations to which the unit is subjected during
the course of transportation. Check them and make sure that they are all
tightly fastened. (If they are loose, it could cause burn-out of the wires.)
3. Specification of power source.
4. Confirm that electrical capacity is sufficient.
5. See to that the starting voltage is maintained at more than 90 percent of
the rated voltage marked on the name plate.
6. Confirm that the cable thickness is as specified in the power source
specification.
7. Always install an earth leakage circuit breaker in a wet or moist area.
switch, which will damage the contact point, fuse breaking, disturbance of
9. The means for disconnection from a power supply shall be incorporated
Caution
After the confirmation of the above conditions, prepare the wiring as follows:
Air purging
below:
1. Pressure in the system rises.
2. Operating current rises.
4. Moisture in the refrigerant circuit
may freeze and block capillary
tubing.
5. Water may lead to corrosion of
parts in the refrigeration system.
between the indoor and outdoor unit
moisture from the system.
Electrical work and air purging
2. The screws which fasten the wiring in the casing of electrical fittings are
8. The following would be caused by voltage drop: vibration of a magnetic
the normal function of the overload protector.
Air and moisture in the refrigeration system have undesirable effects as indicated
Therefore, the indoor unit and tubing
must apply leakage test and be evacuated
to remove any noncondensables and
3. Cooling or heating(only for
models with heating function)
efficiency drops.
23
in the fixed wiring and have an air gap contact separation of at least 0.12
inch in each active (phase) conductors.

Air purging with vacuum pump
1. Check that each tube(both liquid and gas side tubes) between the indoor and
outdoor units have been properly connected and all wiring for the test run has
been completed. Remove the service valve caps from both the gas and the
liquid side on the outdoor unit. Note that both the liquid and the gas side
service valves on the outdoor unit are kept closed at this stage.
2. When relocating the unit to another place, perform evacuation using vacuum
pump.
3. Pipe length and refrigerant amount:
Air
purging
Additional amount of
refrigerant to be charged
Connective
pipe length
Use vacuum pump.
Use vacuum pump.
the stopper. Do not try to open it further.
Air purging
Half union
Refrigerant
AC
D
B
Packed valve
Gas
Indoor unitOutdoor unit
1. Operation of opening packed valve: Open the valve stem until it hits against
16.4'~32.8'
Less than 16.4'
2. Operation of closing packed valve: Securely tighten the valve stem with a special
tool. Then securely tighten the valve stem cap with a spanner or the like. Refer to
24
Flare nut
Stopper
Cap
Valve stem
Charge port
Valve body
Caution in handling the packed valve integrated in the outlets of
outdoor unit.
for valve stem cap tightening torquetightening torque table in page 17
high side outlet. The low side outlet is shown in the sketch map below.
Note: There is a charging port integrated in the low side outlet, but not in the
R410: 0.71ozs (Pipe length-16.4')

Air purging
25
Vacuum pump
Charge hose
Manifold valve
-76cm/Hg
Charge
hose
Handle Lo Handle Hi
Outdoor unit
Indoor unit
When using the vacuum pump
For method of using a manifold valve, refer to its operation manual.
manifold valve.
evacuate. After starting evacuation,
slightly loose the flare nut of the
Lo valve on the gas pipe side and
check if the air is entering (Operation
noise of the vacuum pump changes
and a compound meter indicates
0 instead of minus), then tighten
the flare nut. The procedure verifies
if there are blocks inside the tubes.
valve B about 45
counterclockwise for 6~7
out, then tighten the flare nut
again. Make sure the pressure
display in the pressure indicator is
a little higher than the atmosphere
pressure. This procedure verifies if
the refrigerant goes through the
tubes correctly.
o
manifold valve to the vacuum pump.
seconds after the gas comes
5. Make evacuation for 15 minutes
or more and check that the
compound meter indicates
-7.6 x 10 μmHg (-1x10 Pa).
55
1. Completely tighten the flare nuts at
connection point A, B, C and D.
Connect valve core removal tool to
the charging port, then connect
vacuum hose to valve core tool.
Open the schrader valve.
Note: The schrader valve is inside
the charging port.
2. Connect the other charge hose of
3. Fully open the handle Lo of the
4. Operate the vacuum pump to
packed valve.
9. Securely tighten the cap of the
stems B and A.
8. Fully open the packed valve
fully close the handle Lo of the
manifold valve and stop the
operation of the vacuum pump.
After the evacuation is completed,
6. Turn the stem of the packed
7. Close the schrader valve, then
remove the valve core tool.
Replace the charging port cap.
