Frigidaire PTAC FRP12PTT2R User manual

frigidaire.com
Signature Features
Air Conditioner /
Heat Pump /
Backup Electric Heater
PTAC
FRP12PTT2R
Performance
Cool
Backup Electric Heater
Heat Pump
BTUs
12,000 / 11,800
10,200 / 8,300
10,700 / 10,500
Product Dimensions
Height 16"
Width 42"
Depth 13-13/16"
More Easy-To-Use Features
Comfort Control Design
Simple controls allow guests to
customize their settings, while quiet,
uniform air movement keeps rooms
comfortable.
Smart Self-Check
Provides nine diagnostic points for self-
check and correction of fault conditions.
Eco-Friendly
Frigidaire® uses R-410A refrigerant that’s
not harmful to the earth’s ozone layer
and meets U.S. Environmental Protection
Agency requirements.
Eortless™ Operation
Simple, intuitive room controls are easy
for guests to operate — ensuring a
relaxing, more comfortable stay. Features
like Effortless™ Restart and Ready-Select®
controls reduce maintenance calls.
Eortless™ Temperature
Control
Frigidaire® air conditioners maintain the
preset room temperature so the room
remains comfortable at all times and
helps control energy levels.
SilentDesign™
Sound reduction package.
Energy-Saver Option
This function effortlessly maximizes
energy efficiency while keeping guests
comfortable.
Eortless™ Maintenance
With Frigidaire’s reputation for durability,
easy maintenance, availability of reliable
parts and service you can count on,
you can be sure that you’re getting the
highest-quality performance.

Specifications
subject to change.
Product Dimensions
A - Height
B - Width
C - Depth
Max. Wall Thickness
16"
42"
13-13/16"
13-13/16"
Wall Cutout Dimensions
Height
Width
16-5/16"
42-3/16"
NOTE: For planning purposes only. Always consult
local and national electric codes. Refer to Product
Installation Guide for detailed installation instructions
on the web at frigidaire.com.
RAC P-TAC Models
Frigidaire Baseline
B
A
C
Accessories information available
on the web at frigidaire.com
Frigidaire
R= Normal no accessories
A= Seacoast no accessories
S= Normal w/ accessories
B= Seacoast w/ accessories
F R P 90 E T T 2 R
Room
PTAC
Platform
Design Year
T= 2010
U= 2011
BTU
77= 7,700
90= 9,000
12= 12,000
15= 15,000
Heat Type
E= Electric
P= Heat Pump
Voltage
2= 230/208V
3= 265V
PTAC Nomenclature
Performance
BTU (Cool)
BTU (Backup Electric Heater)
BTU (Heat Pump)
Dehumidification (Pints / Hour)
Cool Area (Sq. Ft.)
Energy Eciency Ratio
Electrical
Volts
Amps (Cool)
Amps (Backup Electric Heater)
Amps (Heat Pump)
Watts (Cool)
Watts (Backup Electric Heater)
Watts (Heat Pump)
Cable Included
Length of Power Cord
Circuit Breaker
Plug Type (NEMA)
Features
Electronic Controls
Front Desk Control Ready
Fan Speeds (Cool / Fan / Heat)
Noise Level Indoors (High / Med / Low)
Quiet Start-Up
Low Voltage Start-Up
Random Restart Protection
Eortless™ Auto Freeze Protection
Energy Save
24-Hour On / O Timer
Air CFM (High / Med / Low)
Air Direction Control
Air Intake
Filter Type
Filter Access
Fin Coating
Slide-Out Chassis
Commercial Grade Warranty1
Certifications
Safety Certification
Performance
Specifications
Refrigerant
Charge
Shipping Weight (Approx.)
Plug Type (NEMA)
6-20P
1Warranty 5 year sealed system / 1 year full parts and labor.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-866-942-1567
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-866-942-1567
•
frigidaire.ca
FRP12PTT2R 06/11 © 2011 Electrolux Home Products, Inc. Printed in the U.S.A.
12,000 / 11,800
10,200 / 8,300
10,700 / 10,500
2.7
640
10.7 / 10.5
230 / 208
5.1 / 5.3
13.2 / 12.2
4.5 / 4.7
1,120 / 1,120
3,000 / 2,452
1,010 / 990
Yes
5.5'
20A
LCDI (6-20P)
Ready-Select® Controls
Yes
3 / 3 / 3
53 /52 / 51
Yes
Yes
Yes
Yes
Yes
Yes
315 / 295 / 275
Auxiliary 2-Way
Fresh or Recycled
Nylon Mesh
Slide-Out
Normal
Yes
Yes
UL, CUL & CSA
AHRI & CEC
R410a
26.8 oz.
135 Lbs.
PTAC
FRP12PTT2R Air Conditioner / Heat Pump / Backup Electric Heater

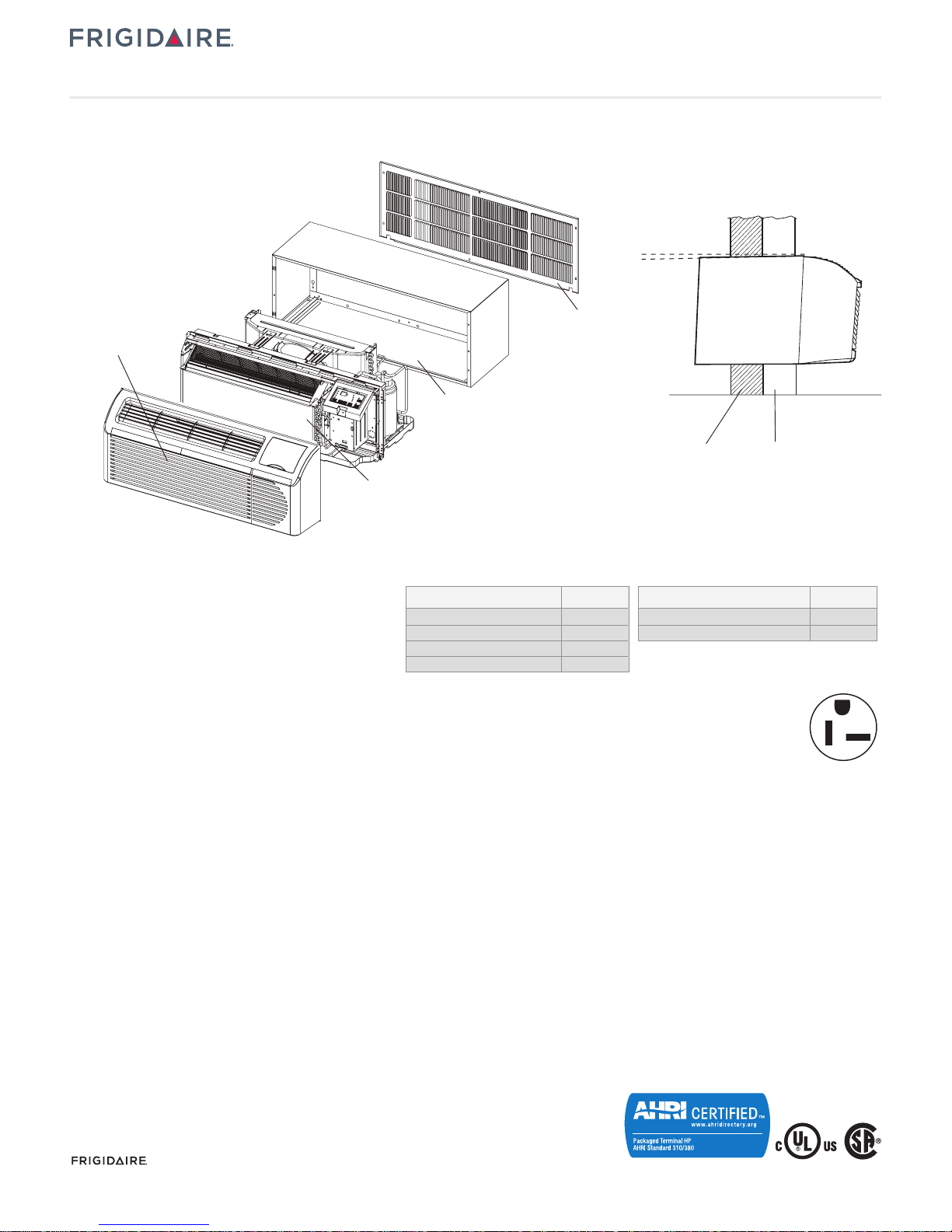

PTAC - Heat Pump and Electric Heat models_Full Back
Rearward Slope
Front Panel
Outside Wall
1/4" Slope
Inside Wall
Chassis
Acccessory
Wall Sleeve
Acccessory
Outdoor Grille
16"
42"
Specifications
subject to change.
Product Dimensions
Height
Width
Depth
Max. Wall Thickness
Manufacturer Wall Sleeve Part Number
General Electric
Amana
Trane
Friedrich
16"
42"
13-13/16"
13-13/16"
Metal Sleeve RAB71
Plastic Sleeve RAB77
Metal Sleeve WS900B
Metal Sleeve SLV149
T-Series Metal 11-1/2-in. Deep
Wall Sleeve
Standard-Depth Wall Sleeve
16 X 42 X 13-3/4-in. PXWS
Wall Cutout Dimensions
Height
Width
16-5/16"
42-3/16"
PTAC Specifications
•Product Shipping Weight (approx.) – 135 Lbs.
•An electrical supply with grounded three-prong receptacle is
required. The power supply circuit must be installed in accordance
with current edition of National Electrical Code (ANSI/NFPA 70)
and local codes & ordinances.
•Voltage Rating – 230V / 208V / 60 Hz / 20 Amps
•Amps @ 230/208V Volts = (Cool) 5.1 / 5.3 Amps / (Backup Electric
Heater) 13.2 / 12.2 Amps / (Heat Pump) 4.5 / 4.7 Amps
•Always consult local and national electric codes.
•Recommended Circuit Breaker – 20 Amps
•Unit equipped with 230/208V 3-wire power supply cord, NEMA plug
type 6-20P, approximately 66" long.
•In order for condensate water to drain properly inside the unit, the
sleeve must be installed properly: Level from right to left with a slight
1/4" rearward pitch from the indoor side to the outdoor side as shown
in the illustration above. Refer to the Installation Instructions on the
web.
New Installation
•For new installation, Frigidaire® PTAC Sleeves are available and
recommended for proper installation. See accessories pages for
sleeve options.*
•PTAC installation requires 13-13/16" maximum wall thickness.
Replacement Installation
•When replacing existing PTAC with new unit, refer to Product
Installation Guide on web to identify existing wall-sleeve manufacturer
and size compatibility. If proper installation and slope are suspect,
then correct installation of Frigidaire® PTAC Sleeve options
recommended.
•For any sleeve retrofit application, be sure that the foam seals
(factory-installed on the tube sheets) provide a good seal between
the grille and the outdoor coil tube sheets. These foam seals provide
a barrier that stops air from the inside mixing with air on the outside
(known as air recirculation).
•Using Frigidaire® wall sleeve with Non-Frigidaire grille requires
installation of an Accessory Baffle Kit, which ensures a good seal
between the unit and exterior grille to prevent air recirculation. Air
recirculation is a large contributor to performance loss and premature
damage to major components.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
*See accessories pages attached for optional accessories.
Plug Type (NEMA)
6-20P
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-866-942-1567
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-866-942-1567
•
frigidaire.ca
FRP12PTT2R 06/11 © 2011 Electrolux Home Products, Inc. Printed in the U.S.A.
PTAC
FRP12PTT2R Air Conditioner / Heat Pump / Backup Electric Heat

JOB: REFERENCE: CONSTRUCTION:
LOCATION: APPROVAL: UNIT NUMBER:
ENGINEER: DATE: DRAWING NUMBER:
SUBMITTED TO: SUBMITTED BY:
Packaged Terminal Air Conditioner (PTAC)
FRP12PTT2R – Cool & Heat Pump with Electric Heat Back-up, 12,000 BTU
Features
•SilentDesign™
•Energy-Saver Option
•Eco-Friendly with R410a Refrigerant
•Ready-Select® Controls with
LED Temperature Display
•Effortless™ Temperature Control
•Versatile Multi-Mode Operation
•Effortless™ Operation
•Multi-Speed Fan
•24 Hour On/Off Timer
•Effortless™ Maintenance
•Effortless™ Protection
•Comfort Control Design
•Smart Self-Check
•Front desk Control Ready
•Cord included (LCDI 6-20P)
•Commercial Grade Warranty
Dimensions
Height: 16˝
Width: 42˝
Depth: 13
13/16˝
Unit Weight: 111 Lbs.
Shipping Weight: 135 Lbs.
Max Wall Thickness: 13 13/16˝
Cut-Out Height: 16 5/16˝
Cut-Out Width: 42 3/16˝
SPECIFICATIONS
Refrigerant
Charge (Oz.)
Noise Level Indoors (High/Med/Low) (dB)
Air Volume (CFM) (High/Med/Low)
Motor RPM (High/Med/Low)
Air Direction Control
UPC Code
FEATURES
Fin Coating
Air Intake
Low-Voltage Start-up
Auto Fan
Energy Saver
24 Hour On/Off Timer
Room Freeze Protection
Random Restart Protection
Quiet Start-up
Indoor Fan Speeds
LED Display
R410A
26.8
53/52/51
315/295/276
1100/1000/920
Auxiliary 2-way
0-12505-27603-3
Normal
Fresh or Recycled
Yes
Yes
Yes
Yes
Yes
Yes
Yes
3
Yes
PERFORMANCE
BTU (Cool)
BTU (Heat Pump)
BTU (Heat - Electric)
EER (Cooling)
COP (Heat Pump)
Dehumidification (Pints/Hr.)
Approximate Cooling Area (Sq. Ft.)
Performance Certification
Safety Certification
Commercial Grade Warranty
ELECTRICAL
Volts/Hertz
Amps (Cool)
Watts (Cool)
Amps (Heat Pump)
Watts (Heat Pump)
Amps (Heat - Electric)
Watts (Heat - Electric)
Circuit Breaker
NEMA Plug Type
12,000/11,800
10700 / 10500
10,200/8,300
10.7/10.5
3.1/3.1
2.7
640
AHRI & CEC
UL, CUL & CSA
1 Year Full/5 Year Sealed
230/208V/60Hz
5.1/5.3
1120/1120
4.5/4.7
1010 / 990
13.2/12.2
3000/2452
20A
LCDI 6-20P
ACCESSORIES – A complete line of accessories is available for each Frigidaire PTAC model. For more details please contact our Commercial Call Center at 1-866-942-1567.
