Frigidaire FEC30S8A User manual

PRODUCT NO. BASE MODEL NO. FACTORY NO. COLOR MARKET
FEC30S6ABB FEC30S6A 3805422351062 black North America
FEC30S6ASB FEC30S6A 3805423351012 white North America
Publication No.
5995366183
020219
-EN/SERVICE /ECL
377
ELECTRIC
COOKTOP
Model No.
FEC30S8A
©2002 Electrolux Home Products, Inc.
All rights reserved
FACTORY PARTS CATALOG
RANGE

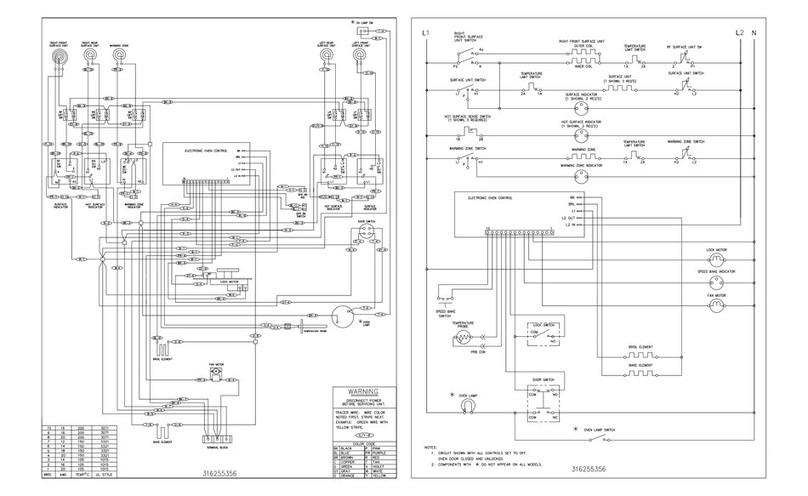

WIRING DIAGRAM - # 318047019
OWNER’S GUIDE - # 318200612
INSTALLATION INSTRUCTIONS - # 318201410
ELECTROLUX HOME PRODUCTS, INC.
P.O. BOX 212378, Augusta, GA 30917

02/02 2
Publication No. FEC30S8A
5995366183
CONTROL PANEL

# = Functional Parts 3 02/02
* = Non-Illustrated Parts
FEC30S8A Publication No.
5995366183
CONTROL PANEL
A = FEC30S6A (FEC30S6ASB)
B = FEC30S6A (FEC30S6ABB)
POS. NO PART NO DESCRIPTION
16 318096326 A B Box,instrument mtg
36 318196633 A - Knob,control ,white
36 318196634 - B Knob,control ,black
51 # 318044820 A - Light,indicator ,red
51 # 318044822 - B Light,indicator ,clear
54 # 318120505 A B Switch,surface unit ,small/large
69 5303323134 A B Screw,switch mtg. ,8-32 x 0.188
74 5303321205 A B Bushing
* 5303300265 A B Screw,8-18 x 0.500 ,chrome
* 5303323131 A B Screw,8-32 x 7/16
* 5303323140 A B Screw,ground ,10-32 x 0.375

02/02 4
Publication No. FEC30S8A
5995366183
MAINTOP / SURFACE UNITS

# = Functional Parts 5 02/02
* = Non-Illustrated Parts
FEC30S8A Publication No.
5995366183
MAINTOP / SURFACE UNITS
A = FEC30S6A (FEC30S6ASB)
B = FEC30S6A (FEC30S6ABB)
POS. NO PART NO DESCRIPTION
15 # 316010205 A B Element,surface ,6" ,1200 W ,radiant
15A# 316010206 A B Element,surface ,8" ,2200 W ,radiant
15B# 316224200 A B Element,surface ,9" ,2500W ,radiant
16 318079347 A - Main Top,white
16 318079348 - B Main Top,black
20 318121902 A B Bracket,retainer
23 318194701 A B Panel,Service ,black
46 318077214 A B Burner Box
52 318122007 A B Spring,element mtg ,large
52A 318122010 A B Spring,element mtg ,1000W/2500W
52B 318122006 A B Spring,element mtg ,small
159 318125112 A B Deflector
163 08007817 A B Spacer,(6)
* # 5303323364 A B Box & wires assy
* 08016432 A B Screw,truss head ,8-18 x 0.375
* 5303323129 A B Screw,8 X 0.750
* 5303323131 A B Screw,8-32 x 7/16

02/02 6
Publication No. FEC30S8A
5995366183
WIRING DIAGRAM
