Built-In Cooktop
FPEC3085K S 30" Electric
Signature Features
Product Dimensions
Width 36"
Depth 18"
Height 3-7/8"
More Easy-To-Use Features
“On” Indicator
Alerts you when your cooktop is on.
Spill Saver™ Drip Bowls
Cooktop features chrome drip bowls that
make cleaning up spills quick and easy.
A.D.A. Compliant
When properly installed, this model
is A.D.A.-qualified based on the United
States Access Board’s A.D.A./A.B.A.
Accessibility Guidelines and the
Department of Justice’s
2010 A.D.A. Standards
for Accessible Design.
Available in:
Elements
Right Front
Right Rear
Left Front
Left Rear
Watts
1,250
2,100
2,100
1,250
Size
6"
8"
8"
6"
White
(W)
36" Electric
Built-In Cooktop
FFEC3603LW
Spill Saver™ Cooktop
Cooktop contains your spillovers for easier
cleanup.
Color-Coordinated
Control Knobs
White cooktops come with matching knobs.
Approved Over Frigidaire®
Electric Wall Ovens
Cooktops are approved for installation above
any of our Electric Single Wall Ovens.
Ready-Select® Controls
Select options or control cooking temperature
with our easy-to-use controls.

Accessories information available
on the web at frigidaire.com
Granite Countertop
Installation Kit available.
Cutout Dimensions
Width (Min.)
Width (Max.)
Depth (Min.)
Depth (Max.)
Height
Product Dimensions
A - Width
B - Depth
C - Height
NOTE: Always consult local and national electric codes. Refer to Product Installation
Guide for detailed installation instructions on the web at frigidaire.com.
Drop-In Electric Cooktops
Frigidaire Baseline
AB
C
34-1/4"
34-3/8"
16-5/8"
16-3/4"
5-7/8"
36"
18"
3-7/8"
1When properly installed, this model is A.D.A.-qualified based on the
United States Access Board’s A.D.A./A.B.A. Accessibility Guidelines and
the Department of Justice’s 2010 A.D.A. Standards for Accessible Design.
2Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz AC
only electrical supply with ground required on separate circuit fused on
both sides of line.
3Cooktops are approved for installation above any of our Electric Single
Wall Ovens.
Features
Controls
Surface Type
Right Front Element (Watts)
Right Rear Element (Watts)
Left Front Element (Watts)
Left Rear Element (Watts)
“On” Indicator
Control Location
Knob Color
Knob Type
Bowl Type
Certifications
A.D.A. Compliant1
Specifications
Power Supply Connection Location
Voltage Rating
Connected Load
(kW Rating) @ 240 / 208 Volts2
Amps @ 240 / 208 Volts
Minimum Circuit Required (Amps)
Approved for Electric Single Wall Oven
Combination Installation3
Shipping Weight (Approx.)
Ready-Select®
Color-Coordinated
Porcelain
6" - 1,250
8" - 2,100
8" - 2,100
6" - 1,250
Yes
Center Front
Color-Coordinated
Plastic
Chrome
Yes
Center Front
240V /208V / 60Hz
6.7 / 5.0
27.9 / 24.0
30
Yes
30 Lbs.
USA
•
10200 David Taylor Drive • Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FFEC3603L 02/14 © 2014 Electrolux Home Products, Inc.
Specifications
subject to change.
Built-In Cooktop
FFEC3603LW 36" Electric

Accessories information available
on the web at frigidaire.com
Drop-In Induction / Electric Cooktops
(Callouts MUST be charted per individual model).
Professional / Gallery / Baseline
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE •frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FFEC3603L 02/14 © 2014 Electrolux Home Products, Inc.
Specifications
subject to change.
Built-In Cooktop
FFEC3603LW 36" Electric

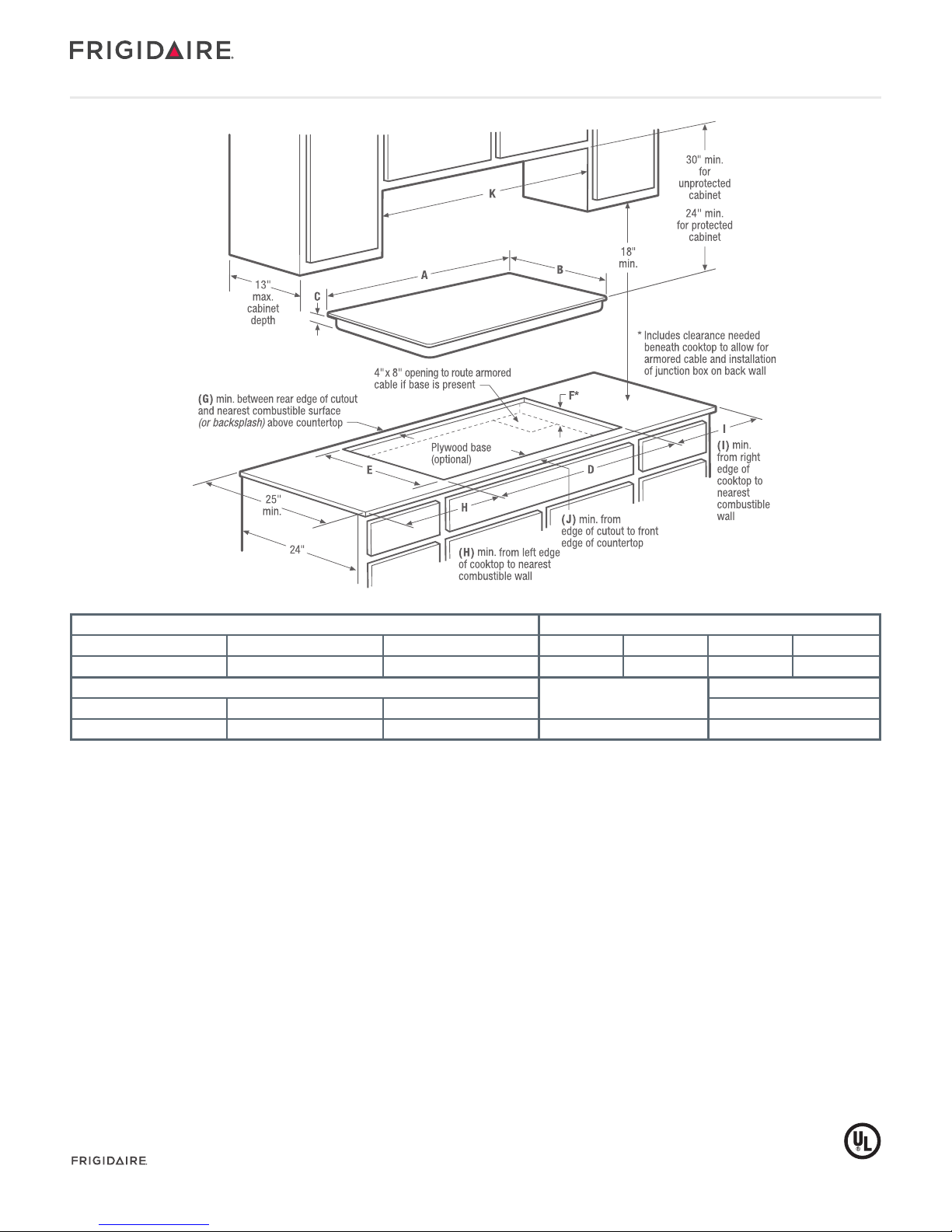

• Allow 3" minimum clearance between rear edge of cutout and nearest
combustible surface (or backsplash) above countertop.
• Allow 3" minimum required clearance from left edge of cooktop to
nearest combustible wall and 3" minimum from right edge of cooktop
to nearest combustible wall.
• Installation of drawer not recommended beneath cooktop.
• To reduce risk of fire when using overhead cabinetry, install
range hood that projects horizontally a recommended minimum
of 5" beyond bottom of cabinets.
• Electric Drop-In Cooktop model FFEC3603L is NOT approved to be
used over any Frigidaire® Single Wall Oven.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
• Granite Countertop Installation Kit – (PN # 903061-9010).
Built-In Cooktop Specifications
• Product Shipping Weight (approx.) – 30 Lbs.
• Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit
fused on both sides of line.
• Connected Load (kW Rating) @ 240 / 208 Volts = 6.7 / 5.0 kW
• Amps @ 240 / 208 Volts = 27.9 / 24.0 Amps
• Recommended Circuit Breaker – 30 Amps
• Always consult local and national electric codes.
• Cooktop cutout height includes clearance needed beneath cooktop to
allow for armored cable and installation of junction box on back wall.
Position center of junction box 10" inward from right side of cooktop
cutout, and 12" down from underside of countertop.
• Overhead cabinetry should not exceed a 13" maximum depth.
• Absolute minimum horizontal distance between overhead cabinets
installed to either side of appliance must be no less than 36".
• Allow 30" minimum clearance between top of cooktop platform
and bottom of unprotected wood or metal overhead cabinet; or 24"
minimum clearance when bottom of wood or metal overhead cabinet
is protected by not less than 1/8" flame-retardant millboard covered
with not less than No. 28 MGS sheet steel, 0.015" stainless steel,
0.024" aluminum or 0.020" copper.
Product Dimensions Required Clearances
A- Width B- Depth C- Height G(min.) H(min.) I(min.) J(min.)
36" 18" 3-7/8" 3" 3" 3" 2-1/2"
Product Cutout Dimensions K- Cabinet Opening Width
(min.)
Utility Connection Locations
D- Width (min. - max.) E- Depth (min. - max.) F- Height (min.)* Power Supply
34-1/4" - 34-3/8" 16-5/8" - 16-3/4" 5-7/8" 36" Right Rear

Electric Cooktop Installation
Over 30"/27" Electric Single Wall Oven
Specifications
subject to change.
30"/ 27" Electric Single Wall Oven
Under-Counter Installation Specifications
•Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit
fused on both sides of line.
•For detailed electrical requirements, refer to model-specific product
page and installation guide on web.
•Always consult local and national electric codes.
•Minimum 21" clearance for oven door depth when open.
•Minimum 23-1/2" deep cutout dimension is critical for proper
installation, to ensure that oven’s faceplate will fit flush against
cabinet front.
•Side filler panels necessary to isolate oven from adjoining cabinets.
•Full oven base of solid plywood or similar material required, capable
of supporting 200 Lbs. (30" models) or 150 Lbs. (27" models).
Install over two runners and flush with toe plate.
•Base must be level and cabinet front must be square.
•Allow 5" maximum height from oven base to floor, if NO cooktop is
installed directly over wall oven.
Electric Cooktop Installation Over
30"/ 27" Electric Single Wall Oven Specifications
All Frigidaire® Electric Single Wall Ovens are approved to be used
beneath any approved Frigidaire® Electric Cooktop. (This installation
page excludes approved wall oven model GLEB27Z7H. For model-
specific installation details, refer to Electric Cooktop Installation Over
27" Electric Single Wall Oven GLEB27Z7H Specifications pages on web.)
For detailed Electric Cooktop installation, refer to model-specific
product page and installation guide on web.
•Side filler panel height may need to be modified to accommodate the
depth of approved electric cooktop models.
•To route armored cable to junction box, cut minimum 4" x 4" opening
in right side filler panel.
•Allow 4-1/2" maximum height from oven base to floor, if cooktop is
installed directly over wall oven.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Combination Frigidaire Electric Cooktop/
30" & 27" Electric Wall Oven Under-Counter Installation
(excludes side swing wall oven)
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
EC_EW INST FR 11/13 © 2013 Electrolux Home Products, Inc.

Specifications
subject to change.
27" Electric Single Wall Oven (GLEB27Z7H)
Under-Counter Installation Specifications
•Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit
fused on both sides of line.
•For detailed electrical requirements, refer to model-specific product
page and installation guide on web.
•Always consult local and national electric codes.
•Minimum 27-1/4" clearance for oven door depth when open.
•Minimum 23-1/2" deep cutout dimension is critical for proper
installation, to ensure that oven’s faceplate will fit flush against
cabinet front.
•Minimum 4-1/2" distance required from door hinge side of oven’s
cutout opening to any adjoining cabinetry or wall, to allow sufficient
clearance for oven rack removal.
•Side filler panels necessary to isolate oven from adjoining cabinets.
•Oven base of solid plywood or similar material required, capable of
supporting 150 Lbs. Install over two runners and flush with toe plate.
•Base must be level and cabinet front must be square.
•Recommended that bottom of cabinet remain partially opened to
permit free air circulation, avoiding possible water condensation
which may appear inside control panel while operating oven.
•Allow 5" maximum height from oven base to floor, if NO cooktop is
installed directly over wall oven.
Electric Cooktop Installation Over
27" Electric Single Wall Oven (GLEB27Z7H) Specifications
Frigidaire® Single Wall Oven model GLEB27Z7H is approved to be used
beneath any approved Frigidaire® Electric Cooktop.
For detailed Electric Cooktop installation, refer to model-specific
product page and installation guide on web.
•Side filler panel height may need to be modified to accommodate the
depth of approved electric cooktop models.
•To route armored cable to junction box, cut minimum 4" x 4" opening
in right side filler panel.
•Allow 4-1/2" maximum height from oven base to floor, if cooktop is
installed directly over wall oven.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Combination Frigidaire Electric Cooktop/ 27" Electric
Side-Swing Wall Oven Under-Counter Installation
Frigidaire Gallery Model GLEB27Z7H
Electric Cooktop Installation
Over 27" Electric Single Wall Oven (GLEB27Z7H)
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
EC_EW_SS INST FR 11/13 © 2013 Electrolux Home Products, Inc.
