Frigidaire FPIC3095MS Installation instructions

frigidaire.com
Signature Features
Product Dimensions
Width 30-3/4”
Depth 21-1/2”
Height 4-3/8”
More Easy-To-Use Features
Exceptional Temperature Control
Adjust heat with greater accuracy than
on gas or electric cooktops especially at
lower settings.
More Energy-Ecient
Cooking with induction is 70% more
efficient than gas and 20% more efficient
than electric.
Cooktop Stays Cooler
With induction cooking, heat is
transferred directly to the cookware,
so the cooktop stays cooler to the
touch — making it easier to clean.
Pro-Select® Controls
Precise control at your fingertips.
Smoothtop Ceramic Glass
Cooking Surface
Hot Surface Indicators
Available in:
Built-In Cooktop
FPIC3095M S 30" Induction
Stainless
(S)
Elements
Right Front
Right Rear
Left Front
Left Rear
Watts
2,500 / 3,400
1,500 / 1,900
1,800 / 2,600
2,300 / 3,200
Size
10"
6"
7"
8"
More Responsive
Cooking with induction is more
responsive than gas or electric so
you can easily go from simmer to boil.
Versatile Induction Elements
With up to five powerfully efficient
induction elements, the Induction
Cooktop offers the superior cooking
flexibility. And the 10" induction
element offers up to 3,400 watts of
power, so you can bring water to a
boil quickly.
Cooking Versatility
Gentle enough to melt chocolate and
powerful enough to boil water, so it’s
great for entertaining or getting dinner
on the table quickly.
PowerPlus® Boost
Generates rapid heat for a quicker boil.

Specifications
subject to change.
Accessories information available
on the web at frigidaire.com
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FPIC3095M 06/11 © 2011 Electrolux Home Products, Inc. Printed in the U.S.A.
Features
Controls
Surface Type
Right Front Element (Watts)
Right Rear Element (Watts)
Left Front Element (Watts)
Left Rear Element (Watts)
Hot Surface Indicators
Control Location
Specifications
Power Supply Connection Location
Voltage Rating
Connected Load
(kW Rating) @ 240 / 208 Volts1
Amps @ 240 / 208 Volts
Minimum Circuit Required (Amps)
Approved for Electric Single
Wall Oven Combination Installation2
Shipping Weight (Approx.)
Pro-Select®
Black Ceramic Glass
10" - 2,500 / 3,400
6" - 1,500 / 1,900
7" - 1,800 / 2,600
8" - 2,300 / 3,200
Yes
Center Front
Right Rear
240V /208V / 60Hz
8.4 / 7.3
35.1 / 35.0
40
Yes
48 Lbs.
1Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz AC
only electrical supply with ground required on separate circuit fused on
both sides of line.
2Cooktops are approved for installation above any of our Electric Single
Wall Ovens.
Built-In Cooktop
FPIC3095M S 30" Induction
Drop-In Electric Cooktops
Frigidaire Baseline
AB
C
NOTE: For planning purposes only. Always consult local and national electric codes.
Refer to Product Installation Guide for detailed installation instructions on the web
at frigidaire.com.
Product Dimensions
A - Width
B - Depth
C - Height
30-3/4"
21-1/2"
4-3/8"
Cutout Dimensions
Width (Min.) / (Max.)
Depth (Min.) / (Max.)
Height
29-5/8" / 29-3/4"
20-3/8" / 20-1/2"
4-1/2"
Granite Countertop
Installation Kit available.

Accessories information available
on the web at frigidaire.com
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE •frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FPIC3095M 06/11 © 2011 Electrolux Home Products, Inc. Printed in the U.S.A.
Specifications
subject to change.
Built-In Cooktop
FPIC3095M S 30" Induction
Drop-In Induction / Electric Cooktops
(Callouts MUST be charted per individual model).
Professional / Gallery / Baseline
Built-In Cooktop Specifications
•Product Shipping Weight (approx.) – 48 Lbs.
•Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit
fused on both sides of line.
•Connected Load (kW Rating) @ 240 / 208 Volts = 8.4 / 7.3 kW
•Amps @ 240 / 208 Volts = 35.1 / 35.0 Amps
•Recommended Circuit Breaker – 40 Amps
•Always consult local and national electric codes.
•Cooktop cutout height includes clearance needed beneath cooktop to
allow for armored cable and installation of junction box on back wall.
Position center of junction box 10" inward from right side of cooktop
cutout, and 12" down from underside of countertop.
•Overhead cabinetry should not exceed a 13" maximum depth.
•Absolute minimum horizontal distance between overhead cabinets
installed to either side of appliance must be no less than 30-3/4".
•Allow 30" minimum clearance between top of cooktop platform
and bottom of unprotected wood or metal overhead cabinet; or 24"
minimum clearance when bottom of wood or metal overhead cabinet
is protected by not less than 1/8" flame-retardant millboard covered
with not less than No. 28 MSG sheet steel, 0.015" stainless steel,
0.024" aluminum or 0.020" copper.
•Allow 1-1/2" minimum clearance between rear edge of cutout and
nearest combustible surface (or backsplash) above countertop.
•Allow 7-1/2" minimum required clearance from left edge of cooktop
to nearest combustible wall and 7-1/2" minimum from right edge of
cooktop to nearest combustible wall.
•Installation of drawer not recommended beneath cooktop.
•To reduce risk of fire when using overhead cabinetry, install
range hood that projects horizontally a recommended minimum
of 5" beyond bottom of cabinets.
•Electric Built-In Cooktop model FPIC3095M is approved to be
used over any Frigidaire® Electric Single Wall Oven. (Refer to
Electric Cooktop Installation Over 30" / 27" Electric Single Wall Oven
Specifications page on web.)
•Electric Built-In Cooktop model FPIC3095M is approved to be used
in combination with Frigidaire® 30" Downdraft Vent E30DD75ESS or
PL30DD50EC. (Refer to model-specific Downdraft Vent product page
on web for detailed countertop preparation specifications.)
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
•Granite Countertop Installation Kit – (PN # 903061-9010).

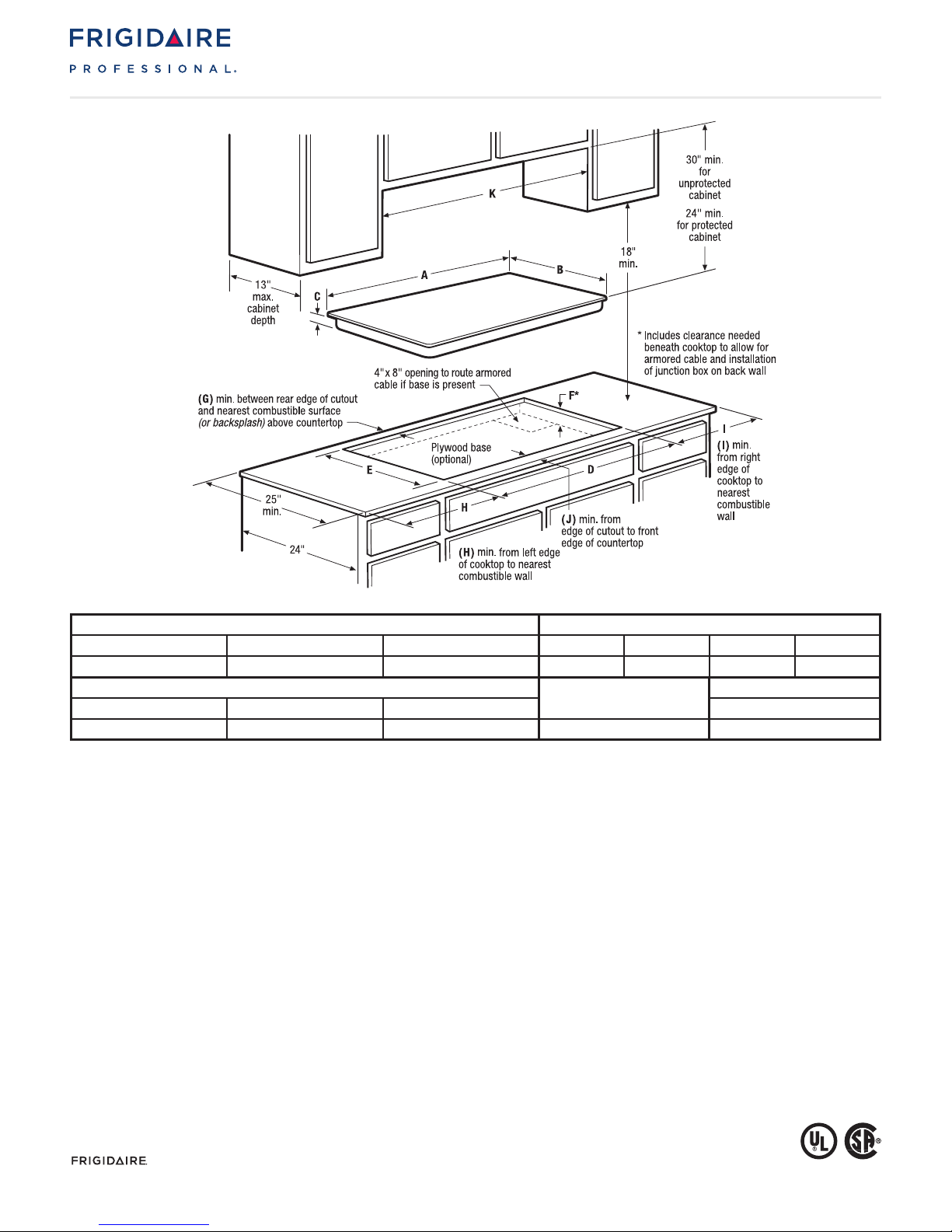

Product Dimensions Required Clearances
A- Width B- Depth C- Height G(min.) H(min.) I(min.) J(min.)
30-3/4" 21-1/2" 4-3/8" 1-1/2" 7-1/2" 7-1/2" 2-1/2"
Product Cutout Dimensions K- Cabinet Opening Width
(min.)
Utility Connection Locations
D- Width (min. - max.) E- Depth (min. - max.) F- Height (min.)* Power Supply
29-5/8" - 29-3/4" 20-3/8" - 20-1/2" 4-1/2" 30-3/4" Right Rear

Electric Cooktop Installation
Over 30"/27" Electric Single Wall Oven
Specifications
subject to change.
30"/ 27" Electric Single Wall Oven
Under-Counter Installation Specifications
•Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit
fused on both sides of line.
•For detailed electrical requirements, refer to model-specific product
page and installation guide on web.
•Always consult local and national electric codes.
•Minimum 21" clearance for oven door depth when open.
•Minimum 23-1/2" deep cutout dimension is critical for proper
installation, to ensure that oven’s faceplate will fit flush against
cabinet front.
•Side filler panels necessary to isolate oven from adjoining cabinets.
•Full oven base of solid plywood or similar material required, capable
of supporting 200 Lbs. (30" models) or 150 Lbs. (27" models).
Install over two runners and flush with toe plate.
•Base must be level and cabinet front must be square.
•Allow 5" maximum height from oven base to floor, if NO cooktop is
installed directly over wall oven.
Electric Cooktop Installation Over
30"/ 27" Electric Single Wall Oven Specifications
All Frigidaire® Electric Single Wall Ovens are approved to be used
beneath any approved Frigidaire® Electric Cooktop. (This installation
page excludes approved wall oven model GLEB27Z7H. For model-
specific installation details, refer to Electric Cooktop Installation Over
27" Electric Single Wall Oven GLEB27Z7H Specifications pages on web.)
For detailed Electric Cooktop installation, refer to model-specific
product page and installation guide on web.
•Side filler panel height may need to be modified to accommodate the
depth of approved electric cooktop models.
•To route armored cable to junction box, cut minimum 4" x 4" opening
in right side filler panel.
•Allow 4-1/2" maximum height from oven base to floor, if cooktop is
installed directly over wall oven.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Combination Frigidaire Electric Cooktop/
30" & 27" Electric Wall Oven Under-Counter Installation
(excludes side swing wall oven)
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
EC_EW INST FR 03/11 © 2011 Electrolux Home Products, Inc. Printed in the U.S.A.

Specifications
subject to change.
27" Electric Single Wall Oven (GLEB27Z7H)
Under-Counter Installation Specifications
•Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit
fused on both sides of line.
•For detailed electrical requirements, refer to model-specific product
page and installation guide on web.
•Always consult local and national electric codes.
•Minimum 27-1/4" clearance for oven door depth when open.
•Minimum 23-1/2" deep cutout dimension is critical for proper
installation, to ensure that oven’s faceplate will fit flush against
cabinet front.
•Minimum 4-1/2" distance required from door hinge side of oven’s
cutout opening to any adjoining cabinetry or wall, to allow sufficient
clearance for oven rack removal.
•Side filler panels necessary to isolate oven from adjoining cabinets.
•Oven base of solid plywood or similar material required, capable of
supporting 150 Lbs. Install over two runners and flush with toe plate.
•Base must be level and cabinet front must be square.
•Recommended that bottom of cabinet remain partially opened to
permit free air circulation, avoiding possible water condensation
which may appear inside control panel while operating oven.
•Allow 5" maximum height from oven base to floor, if NO cooktop is
installed directly over wall oven.
Electric Cooktop Installation Over
27" Electric Single Wall Oven (GLEB27Z7H) Specifications
Frigidaire® Single Wall Oven model GLEB27Z7H is approved to be used
beneath any approved Frigidaire® Electric Cooktop.
For detailed Electric Cooktop installation, refer to model-specific
product page and installation guide on web.
•Side filler panel height may need to be modified to accommodate the
depth of approved electric cooktop models.
•To route armored cable to junction box, cut minimum 4" x 4" opening
in right side filler panel.
•Allow 4-1/2" maximum height from oven base to floor, if cooktop is
installed directly over wall oven.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Combination Frigidaire Electric Cooktop/ 27" Electric
Side-Swing Wall Oven Under-Counter Installation
Frigidaire Gallery Model GLEB27Z7H
Electric Cooktop Installation
Over 27" Electric Single Wall Oven (GLEB27Z7H)
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
EC_EW_SS INST FR 03/11 © 2011 Electrolux Home Products, Inc. Printed in the U.S.A.
