Frigidaire GLGR331D User manual

Product No. GLGR331DQ0
Series Frig Gallery
Market North America
Color bisque
Volts 120
Wiring Diagram 134054800
Owner's Guide 131883500

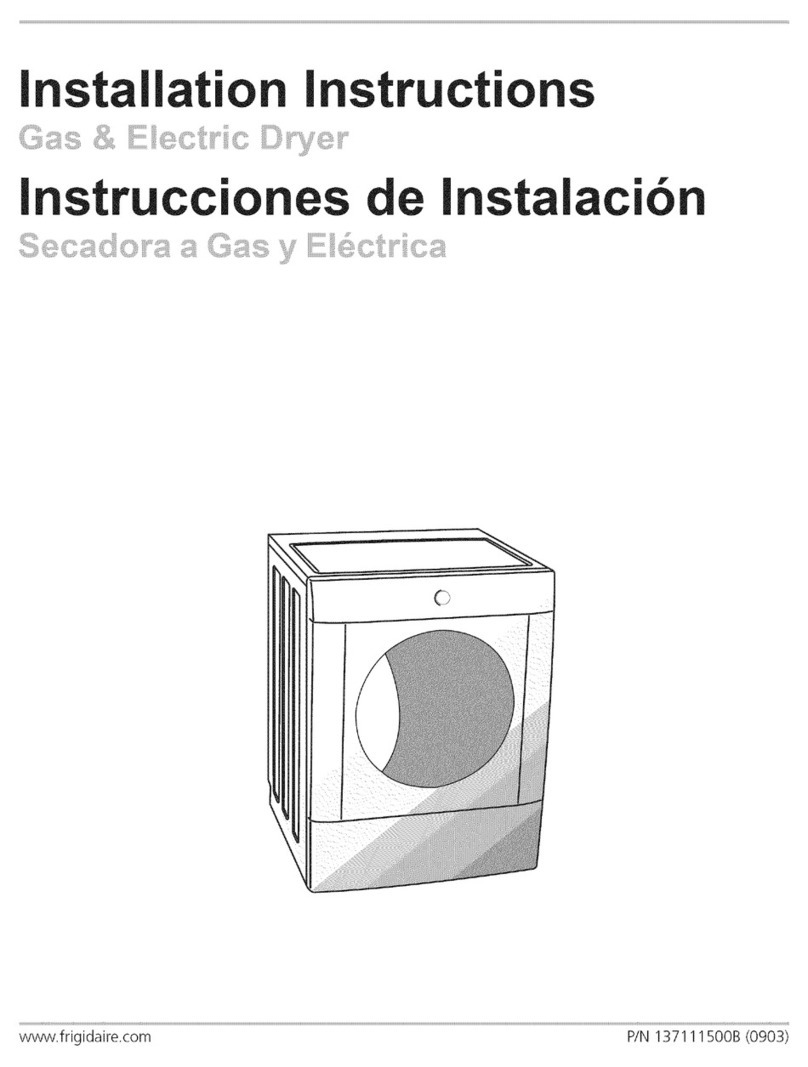

Installation Instructions 134296400
Operating Instructions 134145400
P16L0032-Z.eps P16V0064.eps P16D0021.eps P16C0204.eps P16M0024.eps
P16b0015.eps 134054800g.eps
ELECTROLUX HOME PRODUCTS, INC.
P.O. Box 212378, Augusta, GA 30917
Publication No.
5995416806
04/09/21
(EN/SERVICE/KC)
361
GAS DRYER
Model No.
GLGR331D
Copyright ©2004 Electrolux Home Products, Inc.
All rights reserved.

Publication No: 5995416806 GLGR331DQ0
09/04 2
CABINET/DRUM

GLGR331DQ0 Publication No: 5995416806
# Functional Parts 3 09/04
* Non-Illustrated Parts
CABINET/DRUM
POS. NO PART NO. DESCRIPTION
2 131168200 Screw, pan head, 8-18B x 0.31
5 5303281019 Ball
6 5303281020 Clip, ball, steel, flat nut
9 131793201 Panel, access, rear
11 131363200 Cover, terminal block
* # 134101400 Terminal Block, main
12 131825900 Bearing, drum support
13 131724300 Bracket, bearing support
14 131205400 Screw, bracket mtg., 10-16B x 1.375, cr/sq drive
15 # 131600500 Housing, gas heater assy, w/seal
18 131477000 Screw, 10-16AB x 0.375
20 131469100 Bracket, hinge, rear, top panel mtg.
21 134122532 Drum, dryer, galvanized stl., service kit
24 131963900 Glide, drum
25 5303015671 Screw, hex washer head, 8-18 x 0 .375, cup point
29 131382300 Screw, quadrex head, 10-14 x 1.00, vane mtg., special
30 5303201200 Vane, straight
31 # 134102200 Power Cord, electric svce
32 131777700 Shaft, drum support, ballhitch
32* 5303307893 Lubricant, high temp
33 # 5308015399 Thermostat, safety
34 131243700 Screw, pan head, 8-18AB x 0.375, cr/sq drive
37 131952100 Duct, heat
42 134154100 Screw, hex washer head, 10-32 x 0.375, ground
44 134158000 Leveling Leg, screw
64 131704600 Clip
* # 5303281153 Rear Bearing Kit, includes 5, 6, 12, 13, 14, 18, 32

Publication No: 5995416806 GLGR331DQ0
09/04 4
FRONT PANEL/LINT FILTER

GLGR331DQ0 Publication No: 5995416806
# Functional Parts 5 09/04
* Non-Illustrated Parts
FRONT PANEL/LINT FILTER
POS. NO PART NO. DESCRIPTION
1 134417000 Seal, air duct
2 131397002 Plug, dome, bisque
6 131621900 Duct, air
8 131622202 Cover, lint housing
9 131633202 Plug, bisque
16 131063700 Clip, wiring
20 134036400 Seal, felt, upper
20* 5308027429 Adhesive, high temp
21 134134700 Seal, felt, lower
22 131845915 Panel, front, bisque, w/light hole
22* 131474700 Insulation
22* 131870700 Plug, light hole
25 131658800 Door Catch
26 # 131843100 Switch, door, w/o drum light
27 131450300 Trap, lint blade assy
28 134440000 Clip, guide, (3)
41 134222900 Hinge, dryer door
42 131209600 Screw, flat head, 8-18AB x 0.44, cr/sq drive
44 131129900 Gasket, door seal
46 131644702 Handle, door, bisque
47 131844104 Panel, inner door, white
48 131789305 Panel, outer door, bisque
49 5303211430 Door Strike
50 131303300 Screw, pan head, 10-16AB x 0.500, locking

Publication No: 5995416806 GLGR331DQ0
09/04 6
CONTROLS/TOP PANEL

GLGR331DQ0 Publication No: 5995416806
# Functional Parts 7 09/04
* Non-Illustrated Parts
CONTROLS/TOP PANEL
POS. NO PART NO. DESCRIPTION
1 131583801 Timer, dryer, 3-off
2 134096100 Spacer, console mtg
4 134034901 Knob, rotary, bisque
5 134019910 Closure, console trim, bisque, front
7 3205821 Clip, top-to-front
9 131992900 Panel, backsheet, console
10 # 131447800 Switch, start, turn type
15 # 131288900 Switch, temperature
16 134034300 Screw, pan hd phillips, 8-18B x 0.250
17 131993040 Bracket, control mtg.
18 134161800 Panel, trimplate, bisque, console front
20 134019611 End Cap, bisque, LH
21 134035501 Knob, timer, bisque/brown
22 131266330 Screw, 8-18 x 1.250
23 134054600 Wiring Harness
* # 134101400 •Terminal Block, main
25 5303015671 Screw, hex washer head, 8-18 x 0 .375, cup point
27 131197000 Clip, console mtg
31 134019601 End Cap, bisque, RH
38 # 5303210285 Buzzer
39 131168200 Screw, pan head, 8-18B x 0.31
45 131205100 Screw, #8 pan head, 10-10B x 0.500, cr/sq drive
53 134086804 Panel, dryer top, bisque, console mtg
56 131243800 Screw, pan hd locking, 8-32CA x 0.375, cup point

Publication No: 5995416806 GLGR331DQ0
09/04 8
MOTOR

GLGR331DQ0 Publication No: 5995416806
# Functional Parts 9 09/04
* Non-Illustrated Parts
MOTOR
POS. NO PART NO. DESCRIPTION
4 131435200 Lock, blower housing
7 131451600 Tube, exhaust, rear, w/mtg bracket
7* 131456800 Tube, exhaust, side/bottom, Optional Kit
10 # 131775600 Housing, blower assy,cover & wheel
11 131749800 Spacer, idler
15 # 131298400 Thermostat, temp control
20 131017900 Screw, hex head, 1/4-20T x 1.25, spacer mtg., thread cutting
22 131601000 Spring, idler arm
23 # 131863004 Idler Arm Assy, w/pulley
25 # 134163400 Belt, dryer
27 134242400 Clamp, motor mtg.
28 # 131560100 Motor & Pulley Assy
34 131243700 Screw, pan head, 8-18AB x 0.375, cr/sq drive
46 134203400 Bracket, motor mtg
47 131633300 Seal, exhaust tube
48 131168200 Screw, pan head, 8-18B x 0.31
52 131303100 Screw, hex washer head, 10-16AB x 0.625

Publication No: 5995416806 GLGR331DQ0
09/04 10
BURNER

GLGR331DQ0 Publication No: 5995416806
# Functional Parts 11 09/04
* Non-Illustrated Parts
BURNER
POS. NO PART NO. DESCRIPTION
2 131168200 Screw, pan head, 8-18B x 0.31
34 131243700 Screw, pan head, 8-18AB x 0.375, cr/sq drive
55 # 134389600 Wiring Harness, gas valve
61 134122000 Bracket, burner mtg
64 134144900 Pipe, gas, right angle
65 08015112 Cap, pipe
66 134128700 Bushing, coupler
68 134185100 Tail Piece, coupling
69 # 5308015194 Union, hex nut
70 # 5303207409 Valve, gas
71 # 5303307291 Coil, secondary
72 # 5303307292 Coil, booster
73 # 5303207410 Orifice, natural gas, size 44
74 # 134192000 Igniter Assy
77 # 134197700 Burner, gas
79 # 5303281135 Sensor, radiant
80 # 134200801 Tube, burner, riveted
* # 134315100 LP Conversion Kit, natural to LP

Publication No: 5995416806 GLGR331DQ0
09/04 12
WIRING DIAGRAM
